Product type	Range hood
Brand	BEKO
Model	HCA62541W
Width	596 mm
Depth	386 mm
Height	750 mm / 1080 mm (extendable)
Net weight	10.4 kg
Supply voltage	220-240 V, 50 Hz
Total power	316 W
Motor power	210 W
Lighting	2 x 3 W (halogen bulbs)
Speed levels	3 (electronic control)
Extraction capacity	537 m³/h
Air outlet diameter	120 mm or 150 mm
Filters	Washable aluminum filter, activated charcoal filter (optional)
Aluminum filter cleaning	Every 60 hours or 4 weeks, dishwasher safe
Charcoal filter replacement	Approximately every 6 months
Minimum distance to cooking surface	65 cm
Automatic shut-off function	Yes, 15 minutes
Backflow prevention device	Yes (N-RV)
Use	With external evacuation or recirculation (charcoal filter)
Spare parts	Available for 10 years after purchase

Frequently Asked Questions - HCA62541W BEKO

What is the minimum installation height of the hood?

The distance between the lower surface of the hood and the upper surface of the hob must be at least 65 cm.

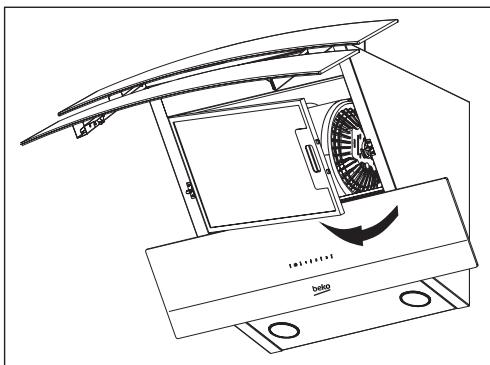

How to clean the aluminum filter?

Remove the filter by pushing the lock forward and lowering it. Wash it with liquid detergent, rinse and dry. It can also be washed in the dishwasher. Clean it every 60 hours of operation or every 4 weeks.

When to replace the charcoal filter?

The charcoal filter should be replaced approximately every 6 months. It cannot be washed. You can obtain filters from authorized BEKO service agents.

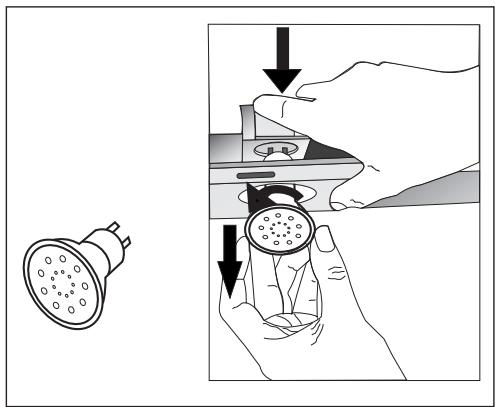

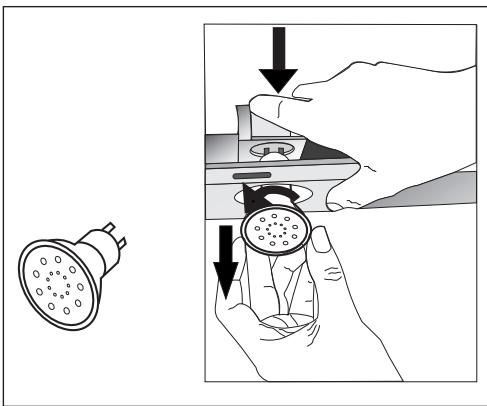

How to replace the bulbs?

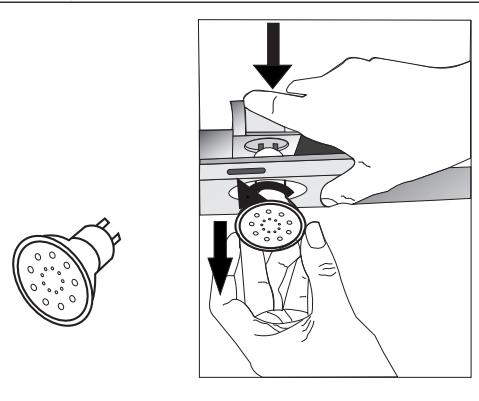

Unplug the appliance. Press the bulb downwards at the back of the socket to loosen it, then turn it 1/4 turn anticlockwise and remove it. The bulbs are 3 W halogen.

Can the hood operate without external evacuation?

Yes, in recirculation mode with an activated charcoal filter. The air is filtered and returned to the room. The charcoal filter is required in this case.

How to activate automatic shut-off?

Press one of the speed buttons (B, C, D) for more than 2 seconds. The timer displays 15 minutes and the hood turns off automatically after this time.

What diameter of exhaust duct to use?

The hood accepts pipes of 120 mm or 150 mm diameter. Use the provided adapter.

What to do in case of malfunction?

Unplug the appliance and contact an authorized service agent. Do not attempt to repair yourself.

How to use energy efficiently?

Use low speeds (1-2) for normal cooking and high speed (3) for intense odors and vapors. The lights illuminate only the cooking area.

Are the aluminum filters washable?

Yes, they are washable in the dishwasher or by hand with a mild detergent. Discoloration is normal and does not affect their function.

USER MANUAL HCA62541W BEKO

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

This product was manufactured using the latest technology in environmentally friendly conditions.

1 Important instructions for safety and environment 22-24

1.1 General safety 22 1.1.1 Electrical safety 22 1.1.2 Product safety 23 1.1.3 Children's safety 24 1.2 Intended use 24 1.3 Compliance with WEEE regulation and disposal of the waste product 24 1.4 Package information 24

2 Technical specifications of your appliance 25-26

3 Installing your appliance 27-32

3.1 Installation accessories.. 27 3.2 Installing the hood onto the wall 28 3.2.1 Boring the hanger holes. 29 3.2.2 Hammering the wall plugs 30 3.2.3 Installing the hanger screws 30 3.2.4 Hanging the hood onto the wall 30 3.3 Installing the hood flue 31 3.4.1 Using with flue connection 32 3.4.2 Using without flue connection 32 3.5 Flue connection: 32

4 Operating your appliance 33-34

4.1 Digital electronic control with 3 levels . . . 33 4.2 Energy efficient usage: 34 4.3 Operating the hood: 34

5 Cleaning and maintenance 35-36

5.1 Aluminum filter 35 5.1.1 Removing the aluminum filters 35 5.2.1 Replacing the carbon filter 35 5.3 Cleaning 36 5.4 Replacing the lamps. 36

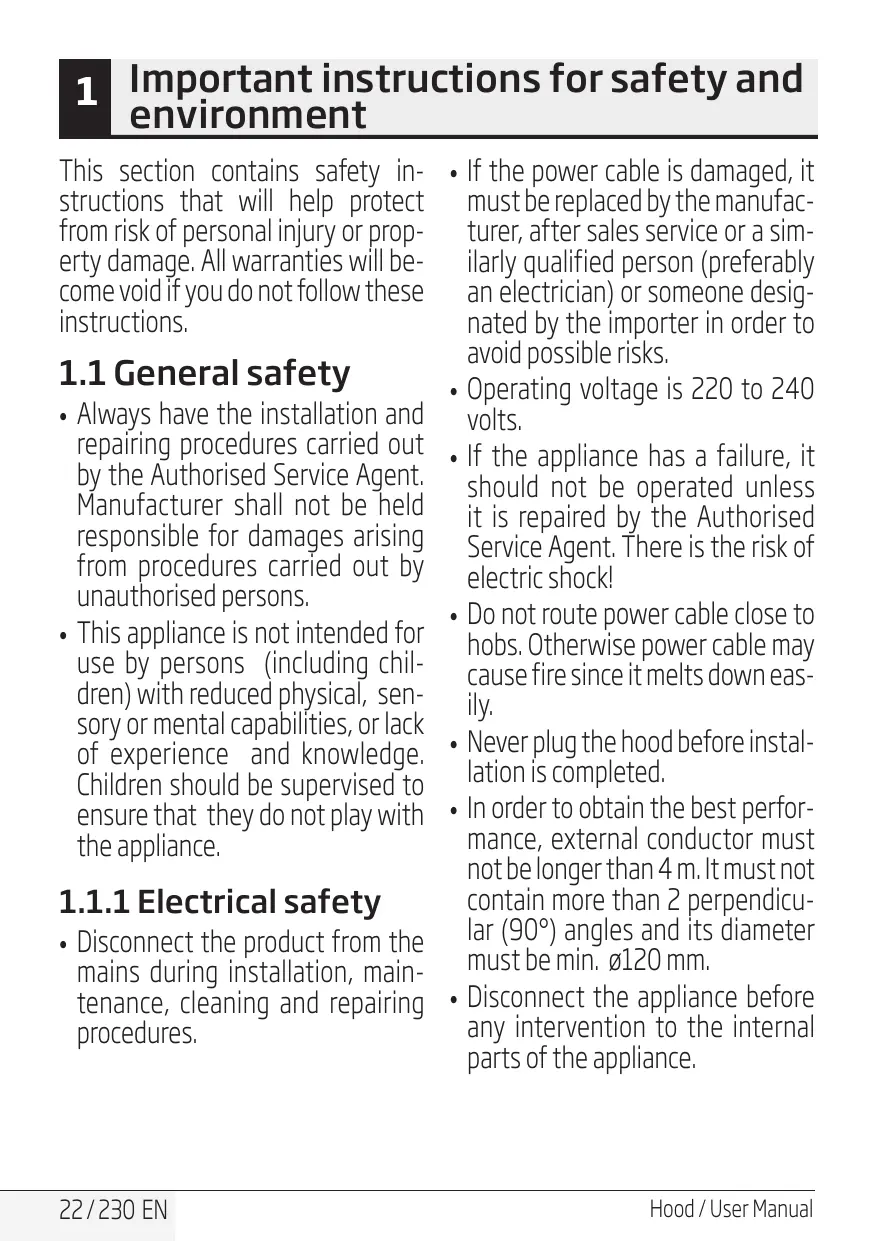

1 Important instructions for safety and environment

This section contains safety instructions that will help protect from risk of personal injury or property damage. All warranties will become void if you do not follow these instructions.

1.1 General safety

• Always have the installation and repairing procedures carried out by the Authorised Service Agent. Manufacturer shall not be held responsible for damages arising from procedures carried out by unauthorised persons.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. Children should be supervised to ensure that they do not play with the appliance.

1.1.1 Electrical safety

• Disconnect the product from the mains during installation, maintenance, cleaning and repairing procedures.
• If the power cable is damaged, it must be replaced by the manufacturer, after sales service or a similarly qualified person (preferably an electrician) or someone designated by the importer in order to avoid possible risks.
• Operating voltage is 220 to 240 volts.
• If the appliance has a failure, it should not be operated unless it is repaired by the Authorised Service Agent. There is the risk of electric shock!
• Do not route power cable close to hobs. Otherwise power cable may cause fire since it melts down easily.
• Never plug the hood before installation is completed.
• In order to obtain the best performance, the external conductor must not be longer than 4 m. It must not contain more than 2 perpendicular (90°) angles and its diameter must be at least 120 mm.
• Disconnect the appliance before any intervention on the internal parts of the appliance.

1 Important instructions for safety and environment

1.1.2 Product safety

• You can use a pipe with a diameter of 120 mm or 150 mm on the flue connection of the hood.
• Do not make connections to flues connected with stoves, exhaust shafts, or flues with rising flames. Observe the rules set by authorities on the discharge of exhaust air.
• The height between the lower surface of the hood and the upper surface of the stove/oven should not be less than 65 cm.
• Do not operate the hood without aluminum filters and do not remove the filters while it is operated.
• Never touch the hood's lamps after they have been operated for a long time. Hot lamps may burn your hand.
• Avoid big flames beneath the product. Otherwise, particles on the oil filter may ignite and lead to a fire.
• Turn on the hobs after placing pans or pots on them. Otherwise, rising temperature may deform certain parts of your product.
• Turn off the hobs before taking away pans or pots.
• Avoid inflammable materials under the hood.
• Oil may ignite while frying foods. Therefore, be careful about cloths and curtains.
• Never leave the cooker unattended when frying foods; otherwise boiled oil may cause fire.
• There is the risk of fire if your hood is not cleaned in the specified periods.
• Be extremely careful and wear gloves when cleaning the hood.
• We advise you to operate the appliance a few minutes before starting to cook in order to increase the suction power. Thus, you shall have a continuous and stable suction power when the vapors arise.
• Operate your hood for 15 minutes more after the end of cooking or frying in order to remove smell cooking vapour in the kitchen.
• When the hood is in use, especially together with gas cookers, make sure that environment is ventilated with clean air.
• Pay attention not to connect the appliance to the flues used by non-electrical devices. (E.g.: Heater flue).

1 Important instructions for safety and environment

• When a non-electrical device is concurrently used in the same room together with the hood, the negative pressure in the room must be maximum 0.4 mbar in order to prevent hood from sucking other device's exhaust into the room.

1.1.3 Children's safety

• Packaging materials are dangerous to children. Keep packaging materials in a safe place out of reach of children.
• Electrical appliances are dangerous to children. Keep children away from the product. Do not allow children play with the appliance.

1.2 Intended use

• This appliance is intended for domestic use. It is not suitable for commercial use and it must not be used out of its intended use.
• The manufacturer shall not be liable for any damage caused by improper use or handling.
• The period required for the availability of spare parts for the correct operation of the appliance is 10 years.

1.3 Compliance with WEEE regulation and disposal of the waste product

This product does not contain harmful and forbidden materials described in the "Directive on the Restriction of the Use of Certain Hazardous Substances in Waste Electrical and Electronic

Equipment" (WEEE) issued by the T.R. Ministry of Environment and Urbanization.

Complies with the WEEE Directive.

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the product with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Please consult your local authorities to learn the nearest collection point. Help protect the environment and natural resources by recycling used products.

1.4 Package information

Ni-MH

The product package is made of recyclable material as per the National Legislation. Do not dispose of the package waste together with the household

waste or other waste and deliver them to the package collection points indicated by the local authority.

2 Technical specifications of your appliance

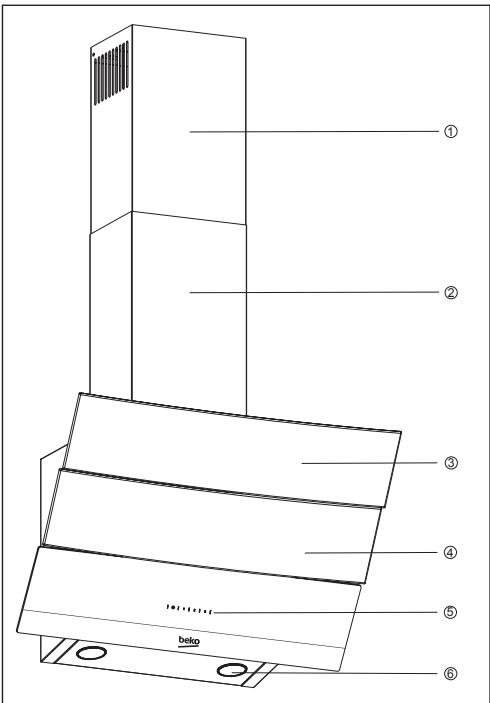

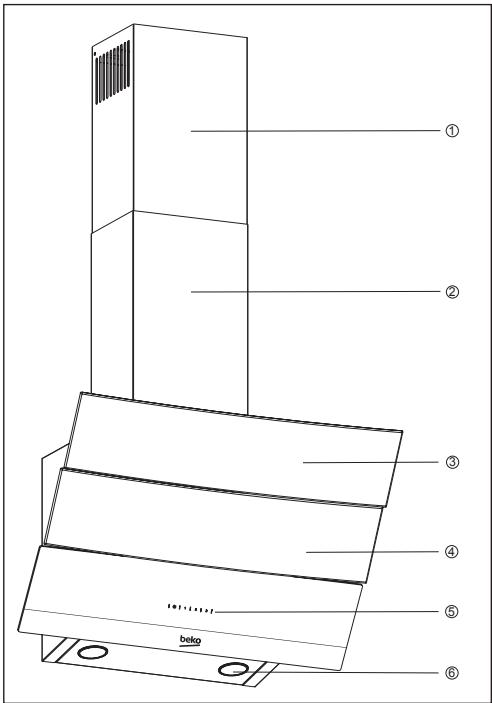

1. Internal flue
2. External flue
3. Glass cover
4. Filter (under the glass cover)
5. Control panel
6. Illumination

(Figure 1)

	HCA 92640 BH	HCA 92640 WH	HCA 62640 W
Width	896 mm	896 mm	596 mm
Depth	393 mm	393 mm	386 mm
Height	750 mm / 1130 mm	750 mm / 1130 mm	750 mm /1080 mm
Supply voltage	220 - 240 V, 50 Hz	220 - 240 V, 50 Hz	220 - 240 V, 50 Hz
Control	With 3 levels	With 3 levels	With 3 levels
Lamp power	2 x 3 W	2 x 3 W	2 x 3 W
Air outlet pipe	120 / 150 mm	120 / 150 mm	120 / 150 mm
Capacity	577 m³/h	577 m³/h	537 m³/h
Motor power	1 x 210 W	1 x 210 W	1 x 210 W
Total power	316 W	316 W	316 W
Net weight	13 kg	13 kg	10,4 kg
Colour	Black	White	White

Values stated on the product labels or in the documentation accompanying it are obtained in laboratory conditions in accordance with relevant standards. These values may vary depending on operational and environmental conditions of the product.

2 Technical specifications of your appliance

	HCA 62640 WH	HCA 62640 B	HCA 62640 BH
Width	596 mm	596 mm	596 mm
Depth	386 mm	386 mm	386 mm
Height	750 mm /1080 mm	750 mm /1080 mm	750 mm /1080 mm
Supply voltage	220 - 240 V, 50 Hz	220 - 240 V, 50 Hz	220 - 240 V, 50 Hz
Control	With 3 levels	With 3 levels	With 3 levels
Lamp power	2 x 3 W	2 x 3 W	2 x 3 W
Air outlet pipe	120 / 150 mm	120 / 150 mm	120 / 150 mm
Capacity	537 m³/h	537 m³/h	537 m³/h
Motor power	1 x 210 W	1 x 210 W	1 x 210 W
Total power	316 W	316 W	316 W
Net weight	10,4 kg	10,4 kg	10,4 kg
Colour	White	White	Black

3 Installing your appliance

Please consult the nearest Authorised Service Agent for the installation of your hood. *Preparation of location and electrical installation for the product is under customer's responsibility.

Caution!

Remove the protective film (if any) on the hood and flue surface after the installation.

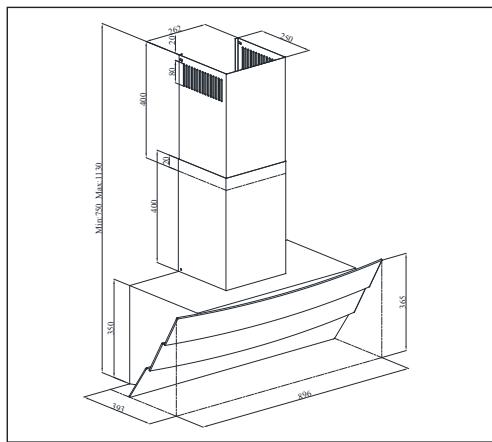

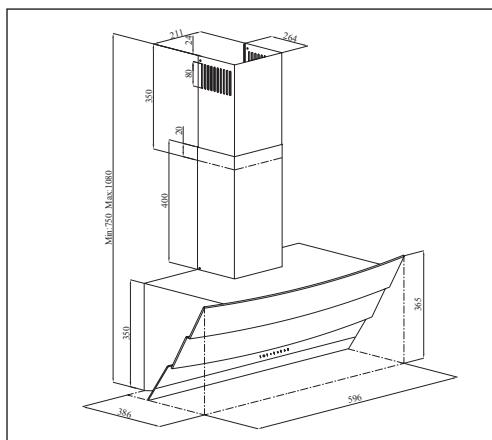

Distance between lower surface of the hood and upper surface of the hob should be at least 65 cm.

Have a qualified electrician make the electrical connection.

Install your appliance so that you can reach the power connection (plug, outlet) easily after installation.

Dimensions are given in mm.

(Figure 3b)

3.1 Installation accessories

1 x flue connection plate

1 x Ø150 mm plastic flue

1 x Ø120/150 mm plastic flue adapter

3 Installing your appliance

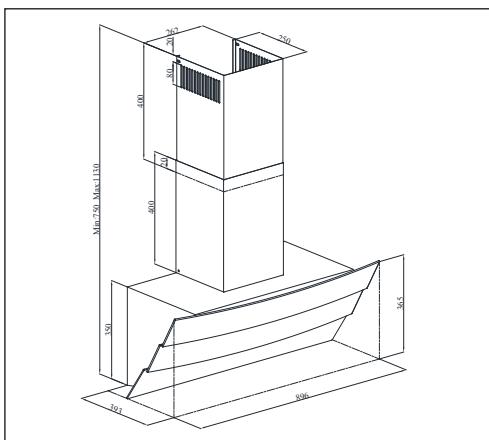

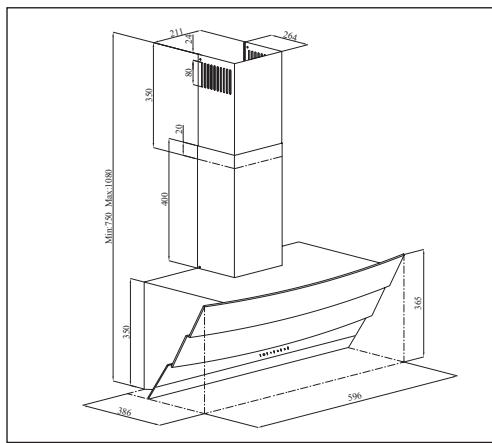

Information required for the preparation of the installation place for your hood is given below.

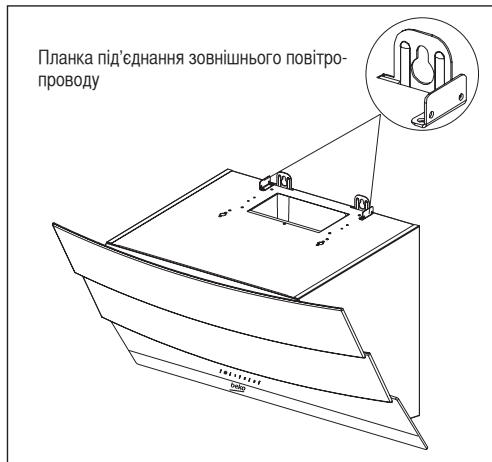

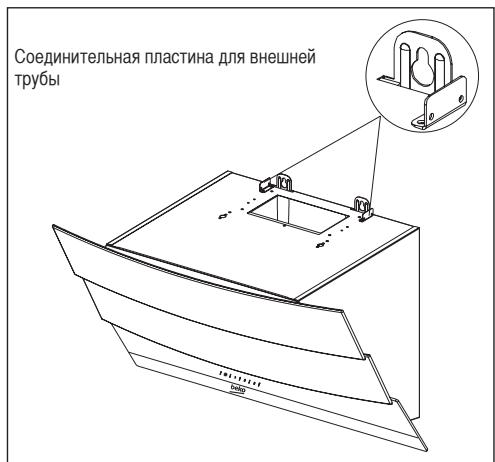

3.2 Installing the hood onto the wall

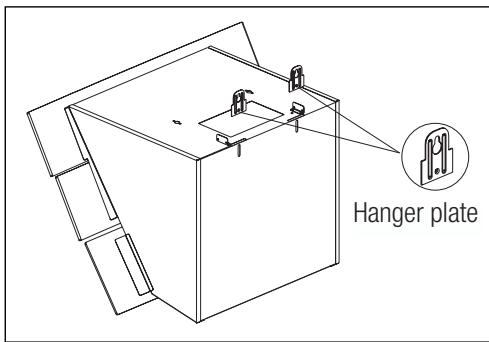

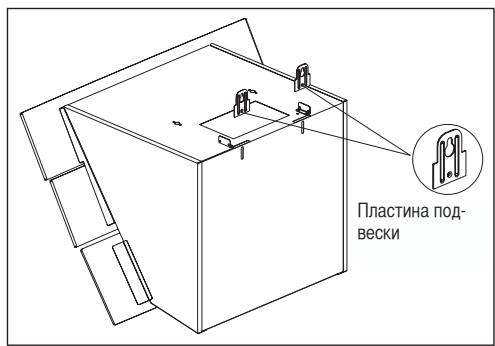

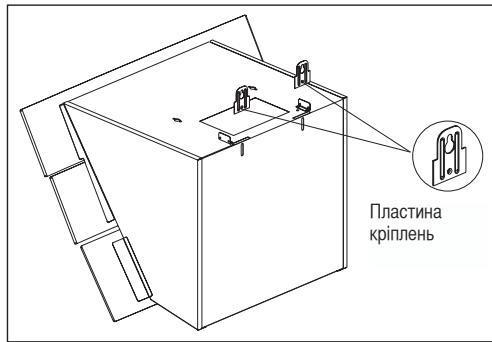

To install the hood onto the wall, loosen the screws of hanger plates on the motor housing and pull the plates upwards. Then, tighten the screws of the hanger plates. (Figure 3a).

(Figure 3a)

(Figure 3b)

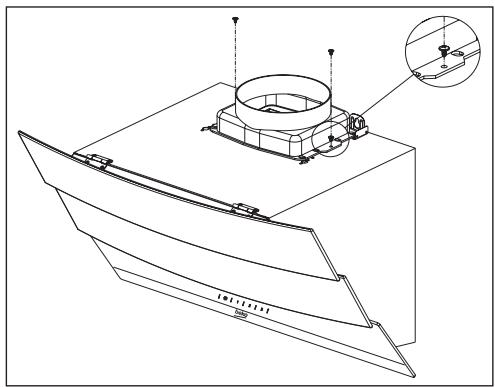

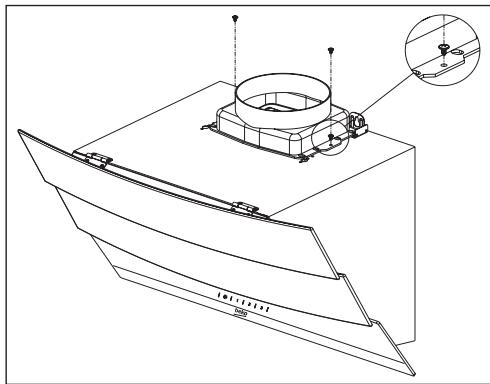

Secure the Ø150 mm plastic flue adapter onto the top of the body with the 3.5x9.5 screw included in the installation accessories (Figure 4).

If you will use a Ø120 mm flue pipe, install the Ø120 mm flue adapter onto it.

(Figure 4)

3 Installing your appliance

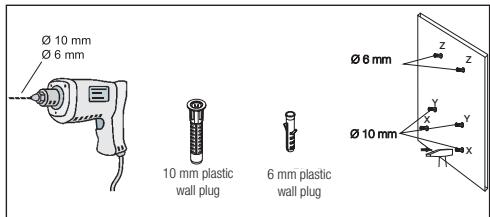

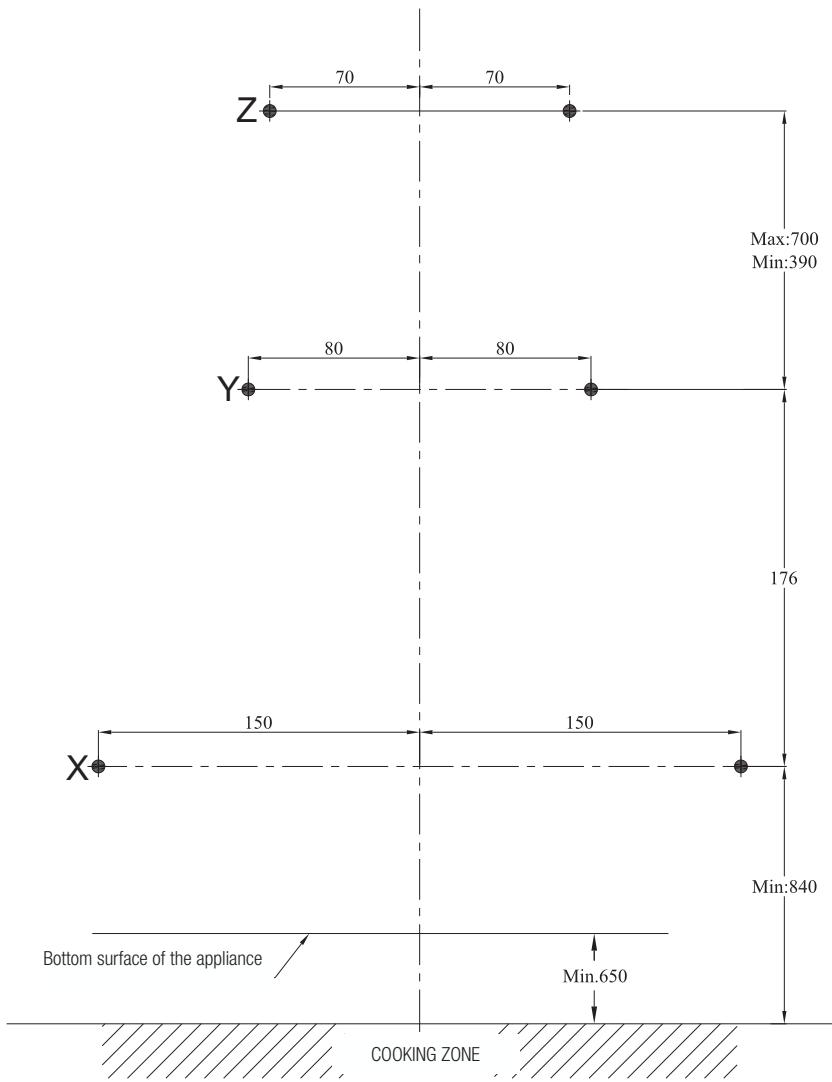

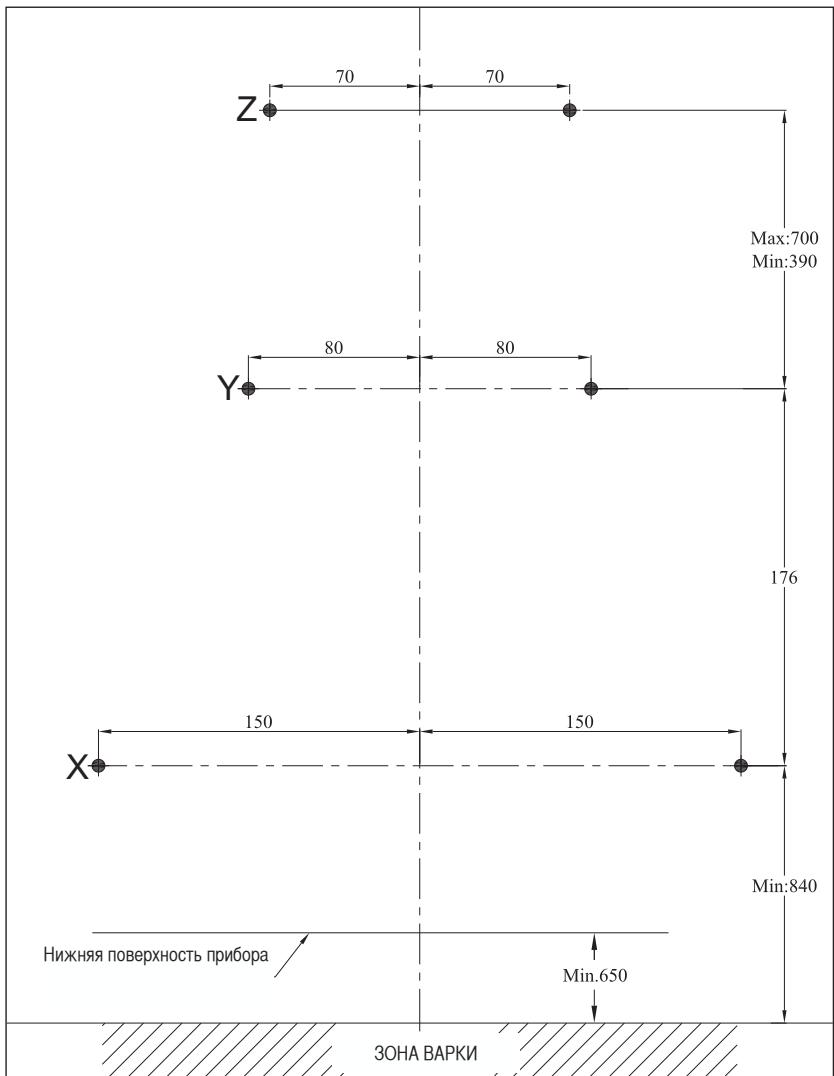

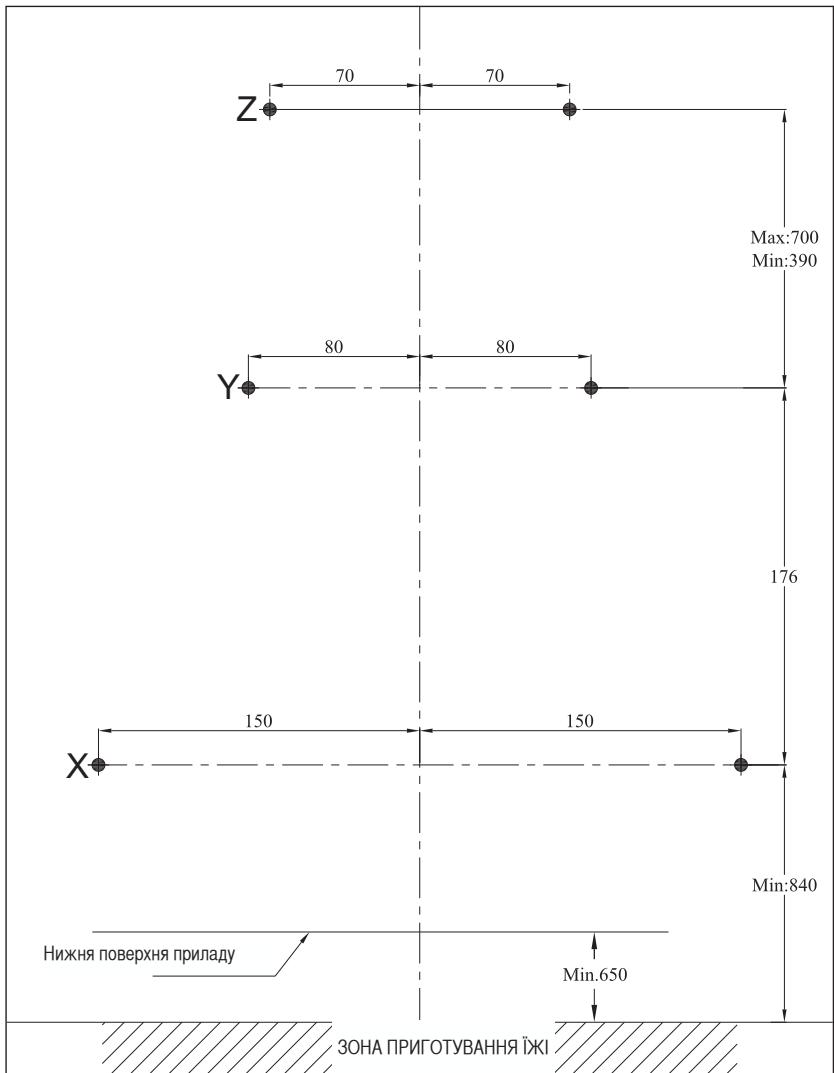

3.2.1 Boring the hanger holes

Affix the installation template onto the installation place of the hood. Drill the points marked with (X,Y) (Figure 5) using a Ø 10 mm bit and points marked with (Z) (Figure 5) using a Ø 6 mm bit.

(Figure 5)

3 Installing your appliance

3.2.2 Hammering the wall plugs

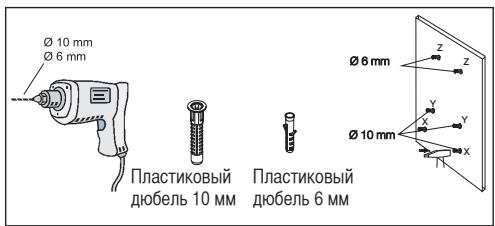

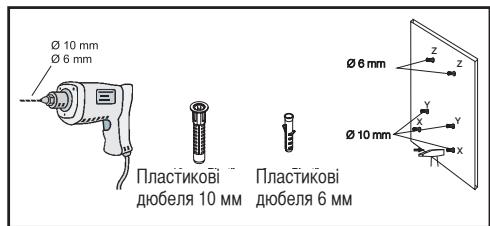

Hammer Ø 10 mm wall plugs (X,Y) into the holes drilled for hanger screws. Hammer 2 x Ø 6 mm wall plugs (Z) into the holes drilled with a Ø 6 mm bit for the external flue connection plate. (Figure 5)

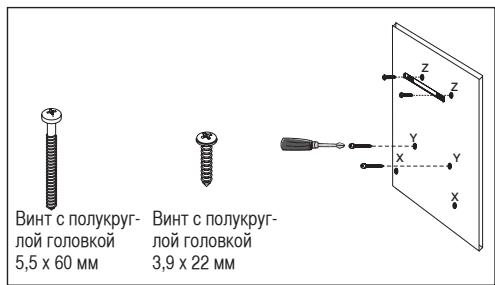

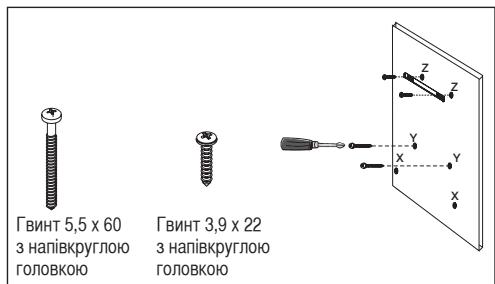

3.2.3 Installing the hanger screws

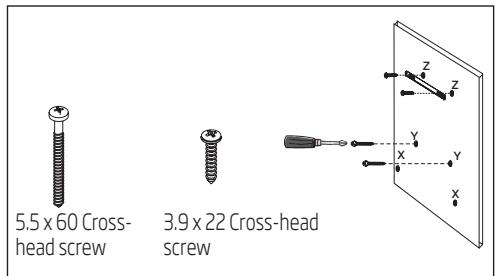

Install 5.5 x 60 hanger screws into the Ø 10 mm wall plugs (Y) you have hammered into the wall. There must be a gap of 5 mm between the screw head and the wall. (Figure 6)

Connect the internal flue connection plate to the 6 mm wall plugs (Z) on the wall using Ø 3.9x22 screws. (Figure 6)

(Figure 6)

3.2.4 Hanging the hood onto the wall

• Hang the hood onto the screws you have installed into the Y holes.
• Open the side suction window of the hood by pulling it towards yourself. Install the 5.5x60 screws through the X holes located inside in order to secure the appliance.

3 Installing your appliance

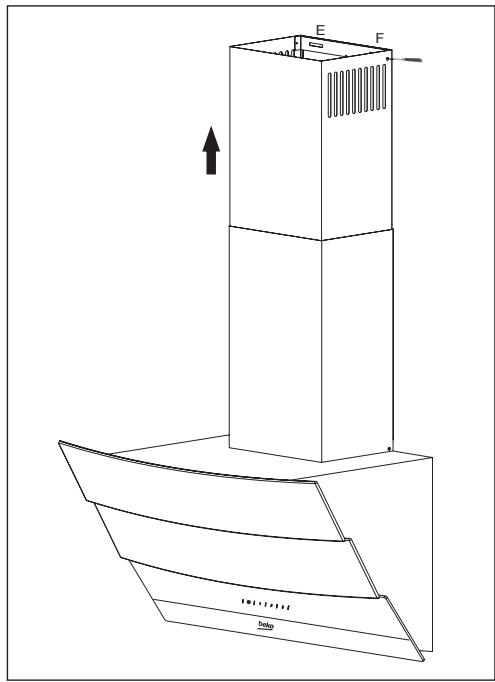

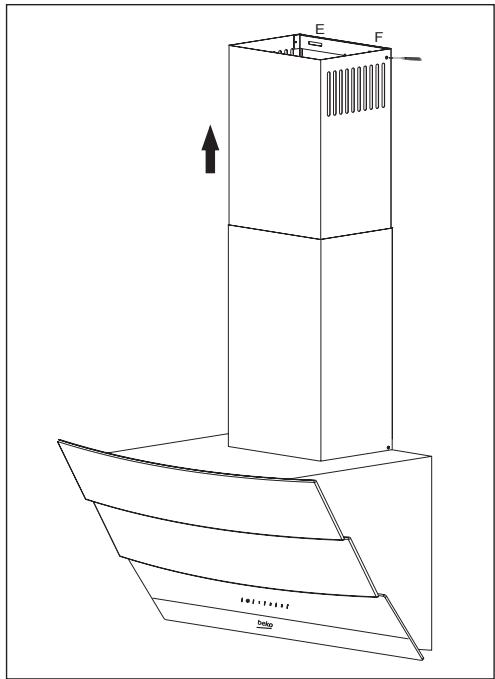

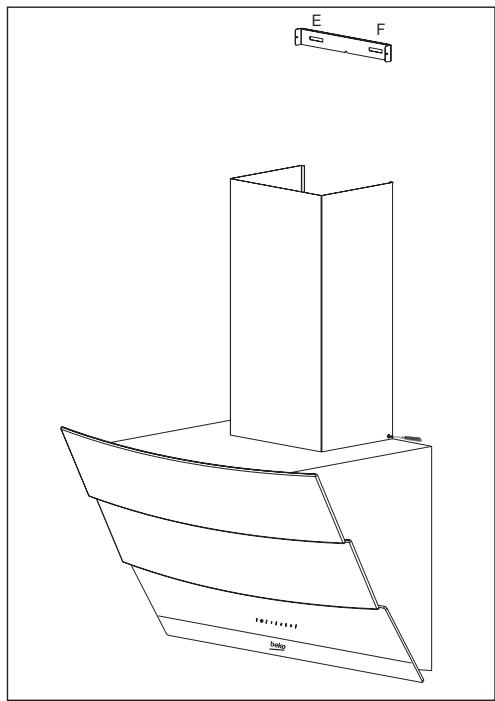

3.3 Installing the hood flue

Disconnect the product from mains supply before starting flue installation. Fit the sheet metal flue parts around the body.

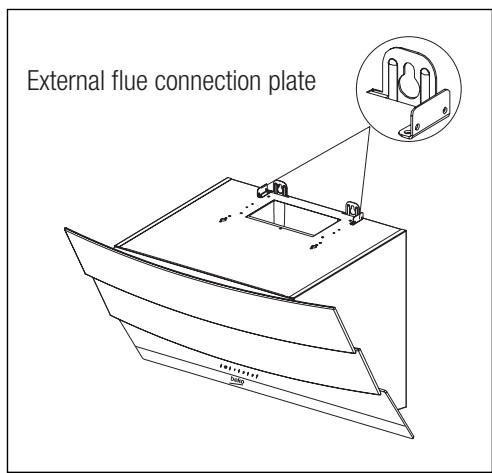

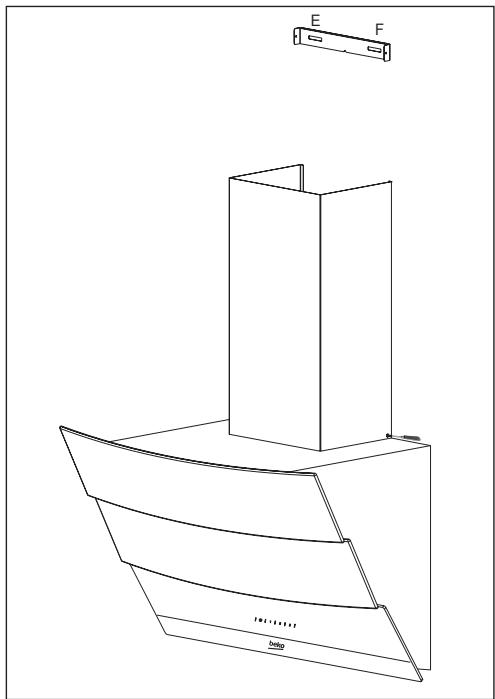

Screw the external flue to the external flue connection plates located on the motor housing. (Figure 3b / 7)

(Figure 7)

Extend and screw the internal flue from its outer edges onto the flue connection plate which was secured to the wall (Figure 8).

(Figure 8)

3 Installing your appliance

3.4.1 Using with flue connection

• The vapour is removed via flue pipe which is secured to the connection head on the hood.
• Diameter of the flue pipe should be equal to the diameter of connection ring. To allow the air be removed easily out of the room in horizontal arrangements, the pipe should be slightly tilted upwards (approximately 10° ).

3.4.2 Using without flue connection

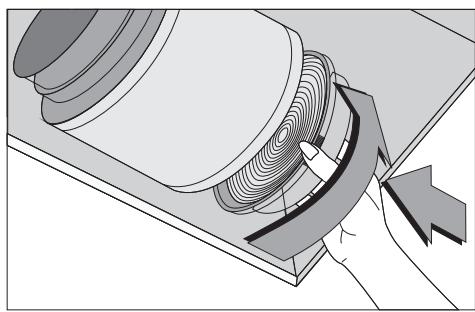

Air is filtered by the carbon filter and returned to the room. Carbon filter is used when there is no flue in the house. - If the hood will be used without flue connection remove the diverters inside the flue adapter. - Remove the aluminum filter. To install the carbon filter, center the carbon filter on the plastic part on both sides of the fan body, and secure it on the tabs. Secure the filter by turning the tabs to right or left. Install the aluminum filter.

3.5 Flue connection:

Place adapter supplied together with the hood into the ventilation hole located on the top section of the hood. Procure a pipe with a diameter of 120 / 150mm . Connect one end of the pipe to the adapter and the other end to the flue.

Make sure that these two connections are secure enough

so that they will not dislocate when the hood is operated in max. speed. Check that the flaps inside flue are functional when tightened with the clamp. Fit the flue connection pipe onto the adapter. If you fit the flue connection pipe inside the adapter, air suction will not occur since the flaps that prevent air backflow will remain closed.

It is not advisable to make connections to the flues connected with stoves or exhaust shafts. Do not make connections to such flues.

Pipe connection must be as short as possible and have minimum number of elbows.

A: Flue outlet pipe

B: Flaps that prevent backflow

C: Plastic flue

3.5.1 Backflow prevention system (N-RV)

When the hood is operated, flaps are closed in order to prevent possible odours and dust from entering into the ambient from outside.

Correct

Not correct (Figure 9)

(Figure 9)

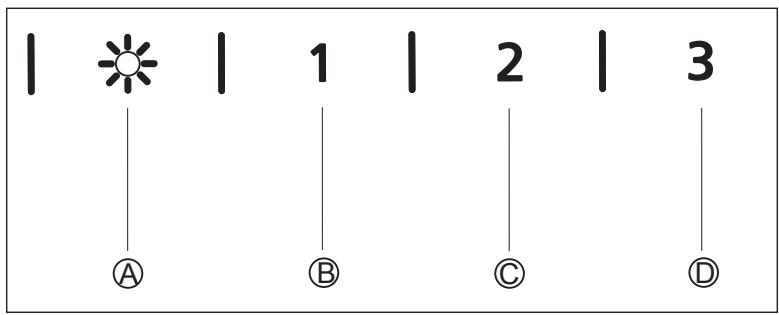

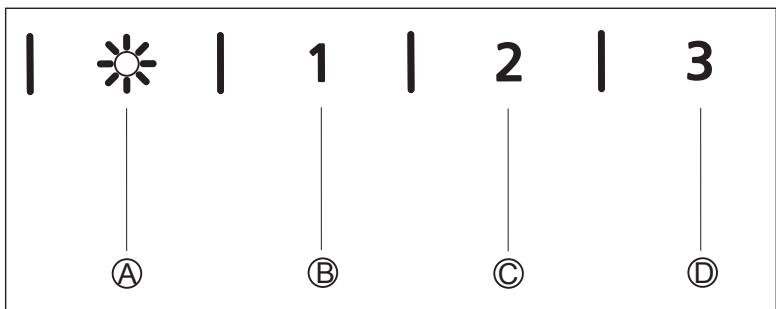

(A): Light On / Off key (B): 1st level key (C): 2nd level key (D): 3rd level key

4.1 Digital electronic control with 3 levels

(A) Light On/Off Key: You can illuminate the cooking area by pressing this key. (B) key: You can start your hood at speed level 1 by pressing this key.

When you press this key again to switch off the appliance, speed level indication on the display disappears.

(C) key: You can start your hood at speed level 2 by pressing this key.

When you press this key again to switch off the appliance, speed level indication on the display disappears.

(D) key: You can start your hood at speed level 3 by pressing this key.

When you press this key again to switch off the appliance, the speed level indication on the display disappears.

Auto-stop in 15 min.:

This appliance is equipped with an Auto-Stop function which allows the appliance to ventilate the room for an additional period of time in order to remove the unpleasant odour and vapour in the room after the cooking is over. The appliance stops automatically after a certain period of time.

To enable the Auto-stop function, press any of the speed level keys (B, C, D) on the control for longer than 2 seconds. A timer with 15 minutes will be activated.

If you press the same speed level key while the Auto-stop function is enabled, the function will be disabled and the appliance will stop.

If you select a different speed level, this function will be disabled.

If you want your appliance to stop automatically, you must enable the Auto-stop function again.

Periodical cleaning of metal filters:

Filters must be cleaned at about every 60 hours of operation or 4 weeks depending on the frequency of usage.

4 Operating your appliance

4.2 Energy efficient usage:

• When operating the hood, adjust the speed level according to the odour and vapour intensity in order to prevent unnecessary power consumption.
• Use low speeds in normal conditions (1-2), and high speed (3) when smell and vapors are intensified.
• Lights on the hood are intended for illuminating the cooking zone.

Using them to illuminate the ambient/kitchen will result in unnecessary power consumption and inadequate illumination.

4.3 Operating the hood:

• The hood is equipped with a motor having various speed settings.
• For better performance, we advise you to use low speeds in normal conditions, and high speeds when smells and vapors are intensified.
• You can start the hood by pressing the desired speed level key (B, C, D).
• You can illuminate the cooking area by pressing the light key (A).

Prior to cleaning and maintenance, unplug the appliance or turn the main switch off, or loosen the fuse that supplies the hood.

5.1 Aluminum filter

This filter captures oil particles in the air. You are recommended to clean your filter every month under normal usage conditions. First, remove the aluminum filters for this process. Wash the filters with liquid detergent and rinse them with water, and install them back after they get dry. Aluminum filters may get discolored as they are washed; this is normal and you don't need to change your filter.

5.1.1 Removing the aluminum filters

1. Push the aluminum filter lock forward.
2. Then, slightly lower it and pull forward. Otherwise, you may bend the filter. (Figure 10) After the aluminum filter is washed and dried, reinstall the filter to its slot by applying the above steps in reverse order.

(Figure 10)

Note:

You can also wash aluminum filters in the dishwasher.

Carbon filter (Using without flue)

This filter removes cooking odors. If it is not possible to use a flue, it purifies the air that is circulated inside the kitchen. The carbon filter of your appliance will become clogged over time depending on the frequency of use, style of cooking, and regular cleaning of the aluminum filters.

Caution!

The carbon filter should never be washed.

You may obtain carbon filters from Beko Authorised Service Agents.

5.2.1 Replacing the carbon filter

• Remove the aluminum filters. (Figure 10)
• To remove the carbon filter, turn the tabs counterclockwise and release the filter. (Figure 11) Install the new carbon filter. Install the aluminum filters.

(Figure 11)

Anti-odor filters contain charcoal (active carbon).

They must be changed at intervals of approximately 6 months.

Regardless of whether a carbon filter is used or not, aluminum filters must always be installed.

Do not operate your appliance without the aluminum filter in place. Using with a carbon filter will decrease the suction performance of the appliance.

5.3 Cleaning

Pay particular attention to cleaning your hood immediately after frying.

Use a soft cloth soaked with liquid detergent to clean the outer surface of your hood.

Never use abrasive or scratching materials for cleaning.

You may use commercially available cleaning agents for persistent grease, etc., by following the warnings on the product. To avoid scratching the brushed steel body, wipe in the same direction as the brush trace.

Do not use cleaning agents containing hydrochloric acid, bleach, or abrasive powders to maintain the surface quality of your product. Use a cloth dampened with soapy water or a special stainless steel cleaning spray for stainless steel surfaces. Remove the protective foil on the appliance.

If you need to transport the appliance:

• Keep the original packaging of the appliance. Transport the appliance in its original package and follow the transport markings on the original package.

If you do not have the original package:

• Do not place any objects on the hood.
• Protect the outer surface from impacts.
• Pack the appliance so that it will not be damaged during transport.

5.4 Replacing the lamps

Disconnect the hood from the mains supply.

This appliance is equipped with 3 W halogen lamps.

To replace the halogen lamps, press the lamp downwards from the rear section of the lamp holder to release the lamp. Then turn it counterclockwise by 1/4 turn and remove it.

Perform the above steps in reverse order to fit the new lamps.

Note:

You may procure lamps from Authorised Service Agents.

5.1 Aluminium filter

1 Important instructions on safety and environmental protection 180-183

1.1 General safety rules 180 1.1.1 Electrical safety 180 1.1.2 Appliance safety 181 1.1.3 Child safety 182 1.2 Intended use 183 1.3 Compliance with the requirements of the Directive on the disposal of electrical and electronic equipment (WEEE) and product disposal 183 1.4 Information on packaging materials 183

2 Technical characteristics of the device 184-185

3 Installation of the device 186-191

3.1 Installation accessories 186 3.2 Wall mounting 187 3.2.1 Drilling holes in the wall 188 3.2.2 Hammering dowels 189 3.2.3 Installing the mounting screws 189 3.2.4 Hanging the appliance 189 3.3 Installing the air duct 189 3.4.1 Using the hood with air duct 190 3.4.2 Using the hood without air duct 190 3.5 Connecting the air duct 190 3.5.1 Non-return valve system (N-RV) 191

4 Operation of the device 192-193

4.1 Three-button electronic control system 192 4.2 Energy-efficient operation 193 4.3 Operating the hood 193

*The buyer is responsible for the preparation of the site and the electrical installation of the product.

(Figure 2)

The distance between the lower surface of the hood and the upper part of the hob must not be less than 65 cm.

The electrical connection of the appliance must be carried out by a qualified electrician.

The device must be connected to the electrical outlet (socket).

Dimensions are given in mm.

3.1 Installation tools

1x duct for air duct connection

1x 0150 mm plastic air duct

1x 0120/150 mm plastic air duct

3 Installation of the device

Information required for installation between the device and the exhaust duct.

3.2 Installing the exhaust duct on the wall

To install the exhaust duct on the wall, unscrew the screw of the plastic bracket on the device body and lift the bracket up. Then tighten the screw of the plastic bracket. (Figure 3a)

(Figure 3a)

(Figure 3b)

Secure the plastic adapter (150 mm) to the upper part of the air duct body using the 3.5 x 9.5 screws included in the installation kit (Figure 4).

If you used a 120 mm air duct, install the adapter (120 mm) on the air duct.

(Figure 4)

3.2.1 Drilling holes in the wall

Mark the installation points on the wall. Drill holes with a diameter of 10 mm at the marked points (X, Y) (Figure 5), and drill holes with a diameter of 6 mm at the marked points (Z) (Figure 5).

(Figure 5)

3.2.2 Hammering in the dowels

Hammer the dowels 10 mm (X, Y) into the holes drilled for the mounting screws. Hammer the dowels 2 x 6 mm (Z) into the holes drilled with a 6 mm drill, for the air duct clamp. (Figure 5)

3.2.3 Installing the mounting screws

Insert the 5.5 x 60 mounting screws into the dowels 10 mm (Y) hammered into the wall. There must be a distance of 5 mm between the screw head and the wall. (Figure 6)

Attach the air duct clamp to the dowels 6 mm (Z) using the 3.9 x 22 screws. (Figure 6)

3.2.4 Adjusting the wall bracket

Place the bracket over the screws installed in the holes (Y). Open the front window slightly, pulling it towards you. Insert the 5.5 x 60 screws into the holes (X) located in the middle to secure the bracket.

3.3 Installing the exhaust duct

Button (C): Pressing this button once will turn on the exhaust fan at the second speed level.

If you press this button again, the fan will turn off, and the speed level on the display will decrease.

Button (D): Pressing this button once will turn on the exhaust fan at the third speed level.

If you press this button again, the fan will turn off, and the speed level on the display will decrease.

The timer will turn off after 15 minutes.

The device is equipped with

«Automatic shutdown», which allows you to carry out the cooking process for a certain period of time to identify possible hazards and vapors after cooking. The device turns off automatically after a set period of time.

To activate the «Automatic shutdown» function, press any power level button (B, C, D) on the panel and hold it for 2 seconds. The timer will turn on for 15 minutes. If you press the same power level button while the «Automatic shutdown» function is active, the function will be deactivated and the device will turn off.

If you select a different power level, the function will be deactivated.

If you need the automatic shutdown to work again, you need to activate the «Automatic shutdown» function again.

Periodic cleaning of metal filters:

The filters should be cleaned approximately every 60 hours of operation or every 4 months, depending on the frequency of use.

4.2 Energy-efficient operation:

- During use of the hood, set the appropriate speed level depending on the intensity of odors and vapors, to avoid excessive energy consumption. Under normal conditions, set a low speed (1-2), and increase it (3) if the level of odors and vapors becomes more intense. - The lamps on the hood are designed to illuminate the cooking area.

Using them to illuminate the surrounding area or the room will lead to unnecessary energy consumption and insufficient lighting.

4.3 Operation of the hood:

The hood is equipped with a motor that has different speed settings. - For better operation of the motor under normal conditions, it is recommended to use low speeds, and high speeds if the level of odors and vapors is more intense. - The hood turns on when you press the button of the required speed (B, C, D). - The lighting of the cooking area turns on with the help of the button. (A)

Before cleaning and maintenance, disconnect the device from the power supply by turning off the main switch or unplugging it, which disconnects the hood from the power supply.

5.1 Metal filters

The filter should be cleaned under normal operating conditions. To clean the filter, it is necessary to remove the aluminum filters. Remove the filters and wash them with clean water. After cleaning, allow the filters to dry and then reinstall them. Aluminum filters may lose their properties over time. This is normal, and in such a case, the filter does not need to be replaced.

5.1.1 Removing the aluminum filters

1. Press the latch of the aluminum filter forward. 2. After that, pull it down and forward. In other cases, you can remove the filter. (Figure 10) After cleaning and drying the filter, reinstall it in place, following the steps above in reverse order.

(Figure 10)

Note:

The aluminum filters can be cleaned in a dishwasher.

Charcoal filter (use without recirculation)

This filter absorbs odors from cooking. If there is no possibility to use recirculation, the filter purifies the air that is returned to the kitchen. Over time, the charcoal filter may become saturated depending on the frequency of use, the cooking method, and the frequency of cleaning the aluminum filters.

Warning!

Do not wash the charcoal filter.

You can purchase charcoal filters from authorized service center representatives.

5.2.1 Replacing the charcoal filter

Remove the aluminum filters. (Figure 10) - To remove the charcoal filter, turn the knobs counterclockwise and remove the filter. (Figure 11) - Install new charcoal filters. Reinstall the aluminum filters.

(Figure 11)

5 Cleaning and technical maintenance

Filters, 10 pcs, replace the old filters (active filters).

Replacement of such filters must be performed every month.

Regardless of whether you use filters or not, aluminum filters must be installed.

Do not use the appliance without aluminum filters. Used filters reduce the suction power of the appliance.

5.3 Cleaning

Cleaning must be carried out immediately after the appliance is used.

For cleaning the external surface of the hood, use a soft cloth moistened with a mild detergent.

Do not use abrasive materials or materials that can scratch the surface of the hood.

When using cleaning products available on the market, which are suitable for stainless steel, follow the instructions for use of such product. To avoid damaging the matte steel body of the appliance, wipe the hood in the direction in which the matte coating was applied.

To preserve the surface finish of the hood, do not use cleaning agents containing saline acid, bleach, or abrasive powders. For surfaces with stainless steel, use a cloth moistened with warm water or special products for cleaning stainless steel. Remove the protective film from the appliance.

Warning!

Failure to follow the instructions for replacing filters may lead to damage.

After transporting the appliance:

Keep the original packaging of the appliance. Transportation of the appliance must be carried out in the original packaging and with the transport markings on the original packaging.

If the original packaging is not preserved:

• He po3miuye Ha Bntjxj 6ydb-ki nped-METI. 3axncitb 3OBHIHIO NOBepxHIO BNTJKKy BiD yapib.
• YnakyIte npinad TaKIM YHOM, 106 BIn He NOxKOINBCN iD Yac TpaHCnOPTyBaHH.

5.4 Replacing the lamp

Disconnect the lamp from the power supply.

The lamp is supplied with a halogen lamp.

To replace the halogen lamp, press it in the direction downwards on the rear part of the socket. Then turn the lamp counterclockwise by 1/4 turn and remove it.

To install a new lamp, perform the reverse steps in the reverse order.

Note:

Lamps can be purchased from authorized service center representatives.

Important information and useful operating tips.

Warning about dangerous situations for human life and property.

Warning about the danger of electric shock.

1.1.3 Safety of children

• Packaging materials are dangerous for children. Packaging materials should be stored in a safe place out of reach of children.
• Electrical appliances are dangerous for children. Do not allow children near the appliance.

Safety instructions for the environment

Do not allow children to play with the device.

1.2 Intended use

• This device is intended for household use. The device is not suitable for commercial use and must not be used for purposes other than its intended use.
• The manufacturer is not liable for any damage resulting from improper use or handling of the device. The service life of the device is 10 years. During this time, the availability of spare parts necessary for the operation of the device is ensured.

1.3 Compliance with the Directive on Waste Electrical and Electronic Equipment (WEEE) and disposal of the device

This device does not contain hazardous or prohibited materials as specified in the Directive on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment

issued by the Ministry of Environment and Urban Planning of the Republic of Turkey.

It complies with the requirements of the EU Directive on Waste Electrical and Electronic Equipment.

This product is made of high-quality materials and components that are suitable for reuse and recycling. Therefore, do not dispose of the product with ordinary household waste at the end of its service life. It should be taken to a collection point for electrical and electronic equipment. Information about the nearest collection point can be obtained from local authorities. Help protect the environment and natural resources by ensuring the recycling of the product when it is taken out of use.

1.4 Information about packaging

Ni-MH

The packaging of the device is made of materials suitable for recycling, in accordance with national legislation.

It is forbidden to dispose of packaging waste with household or other waste; it should be taken to collection points established by local authorities.

2 Technical characteristics of the device

1. Inner pipe
2. Outer pipe
3. Glass cover
4. Filter (under glass cover)
5. Control panel
6. Lighting

(Figure 1)

Dimensions are given in mm.

Information necessary for preparing the installation location of the exhaust is given below.

3.2 Attaching the exhaust to the wall

To attach the exhaust to the wall, it is necessary to loosen the screws of the mounting plates on the fan housing and pull the plates up. Then tighten the screws of the mounting plates (Figure 3a).

Figure 3a

Attach the adapter for the duct with a diameter of 150 mm to the upper part of the exhaust housing using the screw 3.5 x 9.5, which is included in the installation accessories (Figure 4).

When using a duct with a diameter of 120 mm, install an adapter with a diameter of 120 mm in it.

(Figure 4)

Figure 3b

3 Installation of the device

3.2.1 Drilling holes

Attach the mounting template to the installation location of the hood. Drill the holes marked (X, Y) (Figure 5) with a 10 mm drill bit, and the hole marked (Z) (Figure 5) with a 6 mm drill bit.

(Figure 5).

3.2.2 Driving in the dowels

Drive in the dowels (X, Y) with a hammer, 10 mm diameter, into the holes drilled for the mounting screws. Drive in 2 dowels (Z) with a hammer, 6 mm diameter, into the holes drilled with a 6 mm drill bit for the connecting plate of the upper pipe (Figure 5).

3.2.3 Installing the mounting screws

Install the mounting screws 5.5x60 into the dowels (Y) with a 10 mm diameter, which were driven into the wall. There must be a gap of 5 mm between the screw head and the wall (Figure 6).

Attach the connecting plate of the inner pipe to the dowels (Z) with a 6 mm diameter on the wall, using screws with a diameter of 3.9 x 22 (Figure 6).

(Figure 6).

3.2.4 Hanging the hood on the wall

• Hang the hood on the screws installed in the holes marked with the letter Y.
• Open the side window of the hood for the duct, pulling it towards you. Install the screws 5.5x60 into the holes marked with the letter X, located inside, to secure the hood.

3.3 Installation of the exhaust pipe

It is necessary to disconnect the appliance from the electrical power supply before installing the pipe. Install the metal pipe sections around the body.

Screw the outer pipe to the connecting flanges of the outer pipe located on the motor housing (Figure 3b/7).

(Figure 7).

3 Installation of the appliance

Spread and screw the inner pipe to the outer connecting flange of the pipe attached to the wall (Figure 8).

(Figure 8)

3.4.1 Use with connection to a flue

• Steam is removed through the flue, which is connected to the exhaust outlet. The diameter of the flue must be equal to the diameter of the connecting ring. To ensure that air is removed from the room without problems in horizontal installations, the pipe must be slightly inclined upwards (approximately 10°).

3.4.2 Use without connection to a flue

The air is filtered by a charcoal filter and returned to the room. The charcoal filter is used when there is no flue in the house. - If the extractor will be used without connection to a flue, it is necessary to remove the deflectors inside the flue adapter. Remove the aluminum filter. To install the charcoal filter, position it centrally on the plastic part on both sides of the fan housing and attach it to the clips. Secure the filter by turning the clips to the right or left. Install the aluminum filter.

3.5 Connection to the flue

Place the adapter, which is supplied with the extractor, into the ventilation opening located in the upper section of the extractor. A pipe with a diameter of 120/150 mm is required. Connect one end of the pipe to the adapter and the other end to the flue.

Check that these two connections are securely fastened.

In this way, they will not move when the extractor operates at maximum speed. It is necessary to check that the flaps inside the flue function correctly with the damper. Install the connecting pipe of the flue onto the adapter. If the connecting pipe of the flue is installed inside the adapter, air suction will not occur, because the flaps that prevent the reverse flow of air will remain closed.

3. Installation of the device

It is not recommended to connect to chimneys connected to the exhaust ventilation shafts. Do not connect to such chimneys. The connecting pipes should be as short as possible and have the minimum number of bends.

A: Air exhaust opening of the chimney B: Flaps preventing backflow of air C: Flat roof

3.5.1 Backdraft prevention system (N-RV)

When the extractor is operating, the flaps are closed to prevent the entry of possible odors and dust from outside.

(Figure 9)

(Figure 9)

(A): On/Off button with light (B): Level 1 button (C): Level 2 button (D): Level 3 button

4.1 Digital electronic control with 3 levels

(A) On/Off button with light: when pressing this button, the work surface is illuminated.

Button (B): When pressing this button, the speed level 1 of the extractor is set.

Do not neglect cleaning the extractor immediately after cooking.

For cleaning the external surface of the extractor, it is necessary to use a soft cloth moistened with a mild liquid detergent.

Do not use abrasive or scratching materials for cleaning the extractor.

Commercially available cleaning products can be used for regular lubrication, etc., following the safety instructions on the product. To avoid scratching the stainless steel body, it is necessary to wipe it in the same direction as the grain.

Clean the device with a soft cloth, containing a mild detergent, to remove abrasive residues and preserve the quality of the filter surface. Use a cloth dampened with water or special cleaning wipes for stainless steel surfaces. Remove the protective film with a pull tab.

Caution!

Failure to follow the instructions for cleaning and replacing the filters may result in a fire hazard.

If it is necessary to transport the device:

It is necessary to keep the original packaging of the hood. Transport the hood in its original packaging, following the transport markings on the packaging. In the absence of the original packaging: - do not place foreign objects on the hood; - protect the external surface from impacts; - pack the hood in such a way as not to damage it during transport.

5.4 Replacing the lamps

Disconnect the hood from the electrical outlet.

This device is equipped with halogen lamps with a power of 50 W.

To replace the halogen lamps, press the lamp downwards from the rear part of the holder, then turn the lamp counterclockwise by 1/4 turn and pull it out.

Install the new lamp in the reverse order.

Note.

Lamps can be purchased from authorized technical specialists.
