USER MANUAL CTB6250W BEKO

1 Recommendations and Suggestions 5
2 Characteristics. 7
3 Installation. 9
4 Use. 11
5 Maintenance. 12

DEUTSCH

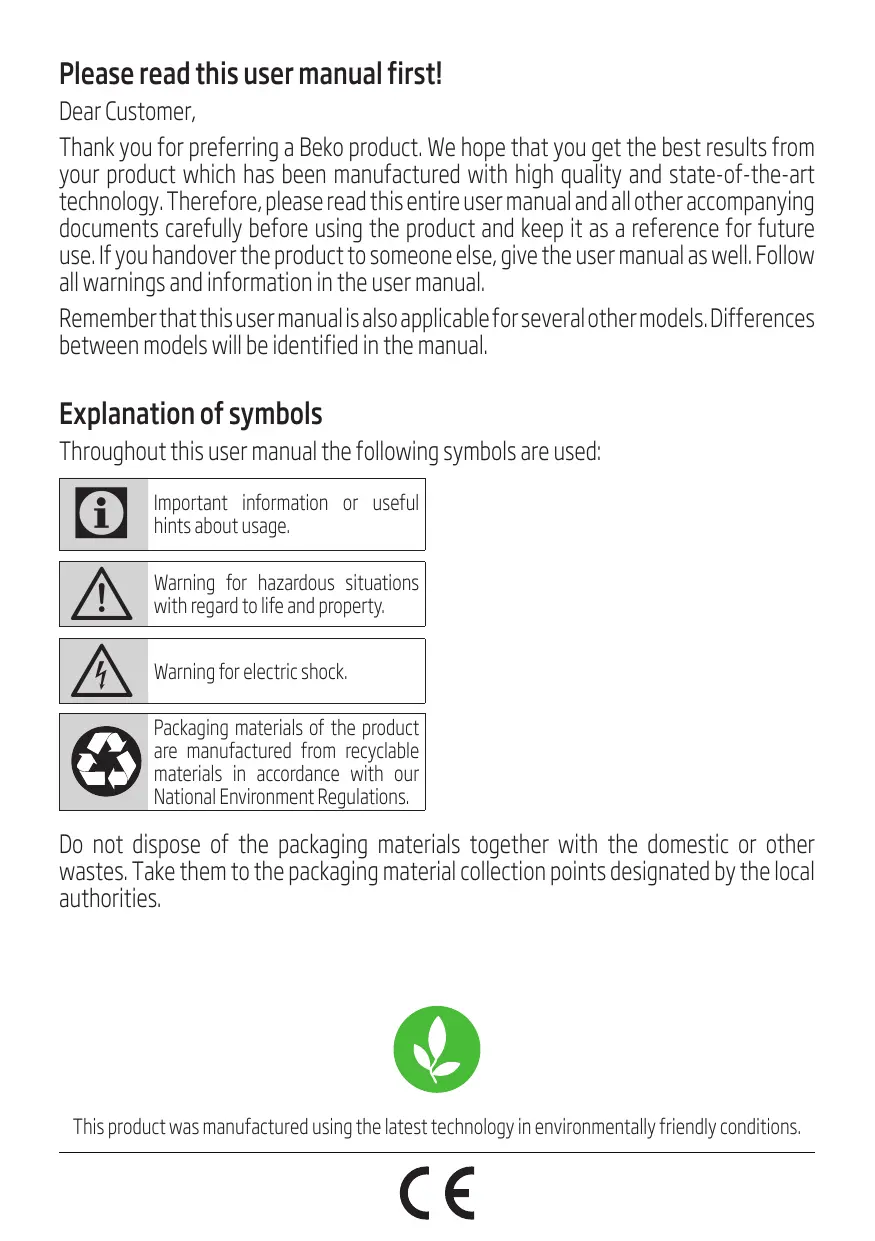

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

i	Important information or useful hints about usage.

!	Warning for hazardous situations with regard to life and property.

Warning for electric shock.

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.

Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

This product was manufactured using the latest technology in environmentally friendly conditions.

1 Recommendations and Suggestions

1.1 Installation

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 ~mm . The route of the flue must be as short as possible.

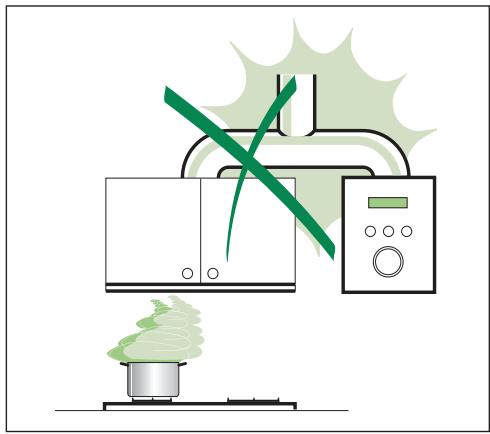

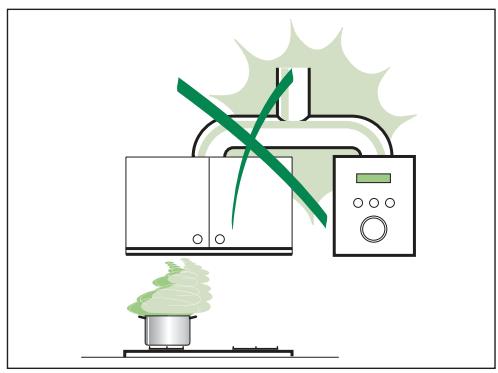

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

1.2 Use

The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has been designed.

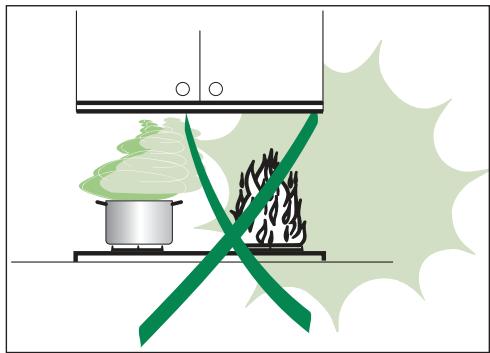

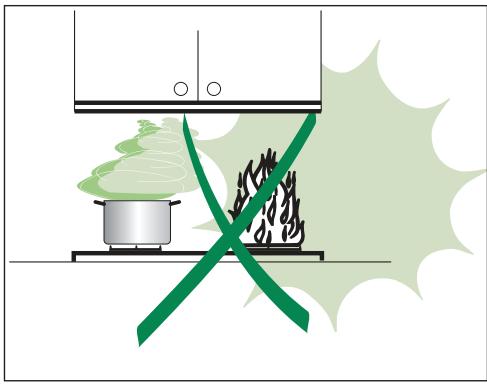

• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.

1 Recommendations and Suggestions

• Deep fat fryers must be continuously monitored during use; overheated oil can burst into flames.
• The hood should not be used by children or persons not instructed in its correct use.

1.3 Maintenance

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• Clean the hood using a damp cloth and a neutral liquid detergent.

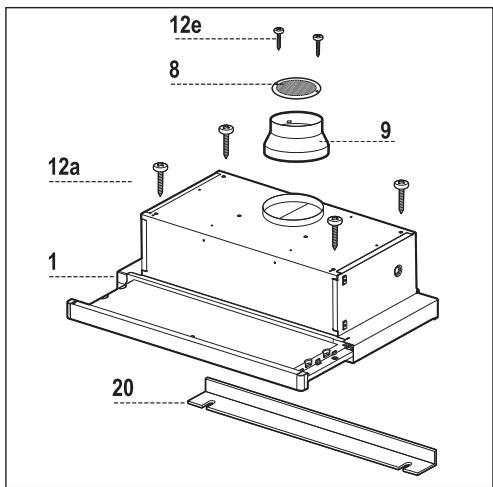

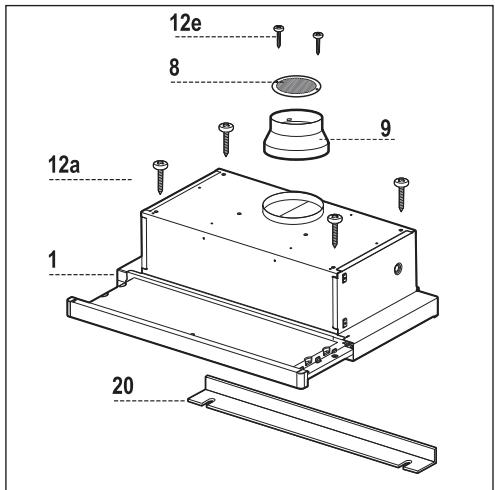

2.1 Components

Ref. Q.ty Product Components

1 1 Hood Body, complete with: Controls, Light, Blower, Filters
8 1 Directional Air Outlet grille
9 1 Reducer Flange 150-120 mm
20 Closing element

Ref. Q.ty Installation Components

12a 4 Screws 4,2x44,4
12e 2 Screws 2,9× 9,5

Q.ty Documentation

1 Instruction Manual

2.2 Dimensions

2 Characteristics

2.3 Technical Specifications

	CTB 6250 W	CTB 6250 B	CTB 6250 X/XH	CTB 9250 X/XH
Width	598 mm			898 mm
Depth	175 mm
Height	280 mm
Supply voltage	220 - 240 V, 50-60 Hz
Control	3 positions
Suction power	420 m³/h
Motor power	140 W
Lamp power	2X28 W
Air outlet pipe diameter	120-150 mm
Net weight	7,6 kg			9,3 kg
Gross weight	8,5 kg			10,5 kg
Color	White	Black	Inox	Inox

Markings on the product or the values stated in other documents supplied with the product are values obtained under laboratory conditions as per relevant standards. These values may vary according to the usage of the product and ambient conditions.

3 Installation

3.1 Drilling the Support surface and Fitting the Hood

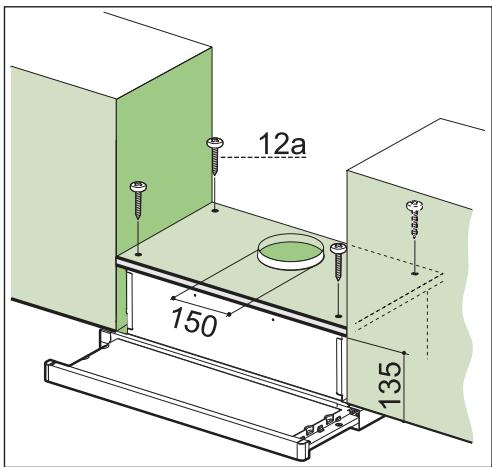

Screw Fitting

• The hood support surface must be 135mm above the bottom surface of the wall units.
• Drill the support with a 4,5 mm drill bit,using the drilling template provided.
• Cut a hole 120 - 150 mm in size on the support surface, using the drilling template provided.
  Fix using the 4 screws 12a (4,2 x 44,4) provided.

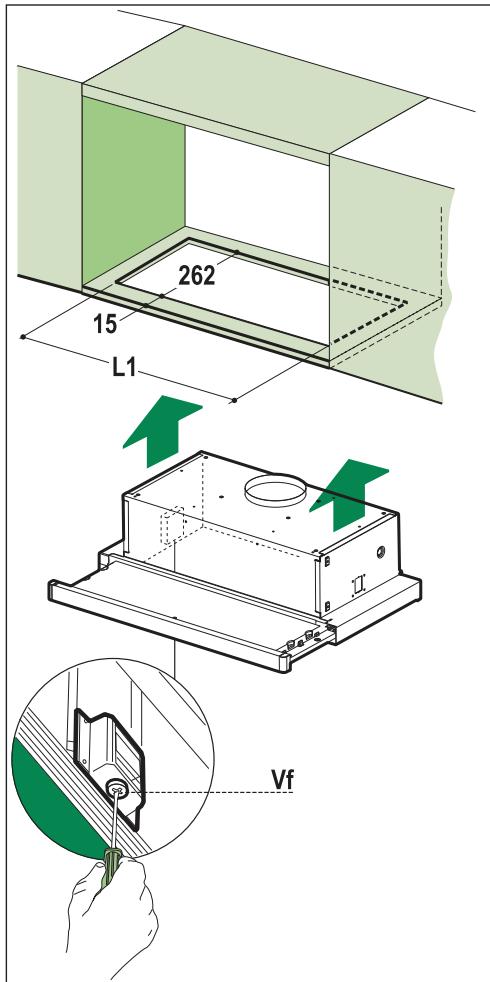

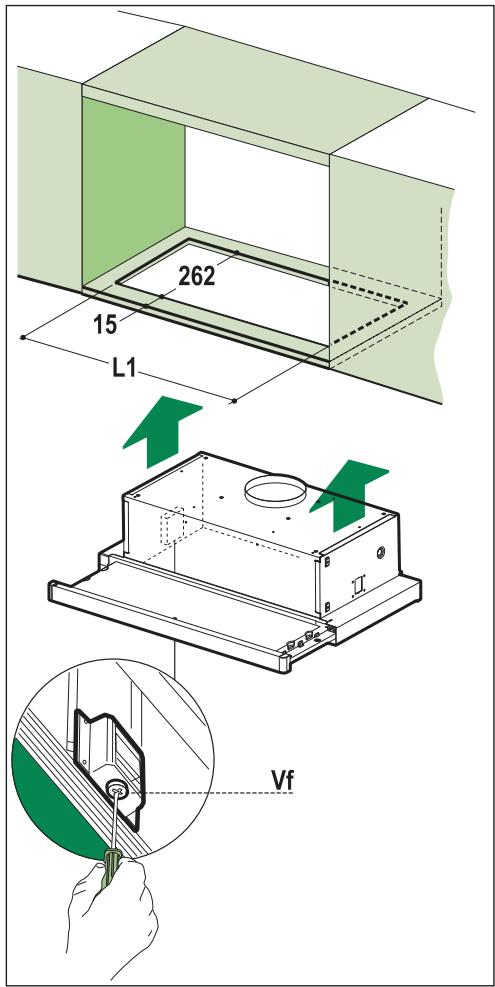

Snap-On Fitting

• The hood can be installed either directly on the bottom surface of the wall units using snap-on side supports.
• Cut a fitted opening in the bottom surface of the wall unit, as shown.

• Insert the hood until the side supports snap into place.

• Lock in position by tightening the screws Vf from underneath the hood.

Hood Type	CTB 6250 W/B/X	CTB 9250 X
L1	510	810

3 Installation

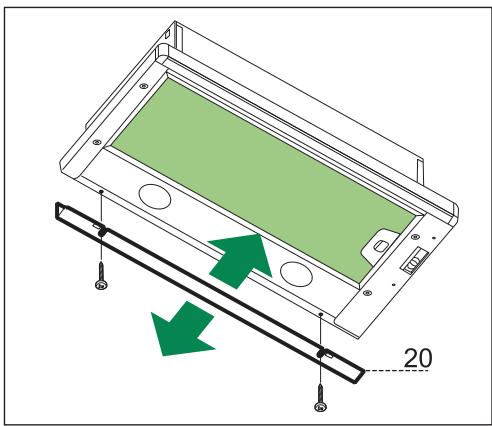

Closing Element

• The space between the edge of the hood and the rear wall can be closed by applying the element 20 provided, using the screws supplied for this purpose.

3.2 Connection

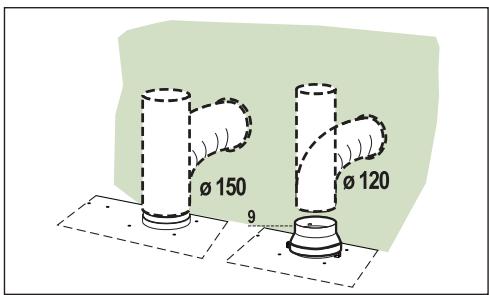

3.2.1 Ducted Version Air Exhaust System

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120~mm , the choice of which is left to the installer.

• To install a 0.120 mm air exhaust connection, insert the reducer flange 9 on the hood body outlet.
  Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove possible charcoal filters.

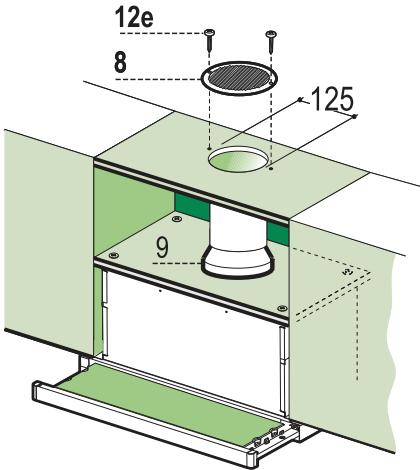

3.2.2 Recirculation Version Air Outlet

• Cut a hole 0.125 ~mm in any shelf that may be positioned over the hood.
• Insert the reducer flange 9 on the hood body outlet.
• Connect the flange to the outlet on the shelf over the hood by using a flexible or rigid pipe 120 ~mm .
  Fix the pipe in position using sufficient pipe clamps (not supplied).
  Fix the air outlet grid 8 on the recirculation air outlet by using the 2 screws 12e (2,9× 9,5) provided.
• Ensure that the activated charcoal filters have been inserted.

3.2.3 Electrical Connection

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3mm .
• When opening the sliding carriage for the first time after installing the hood, pull it out briskly until it clicks.

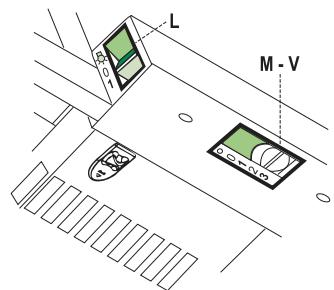

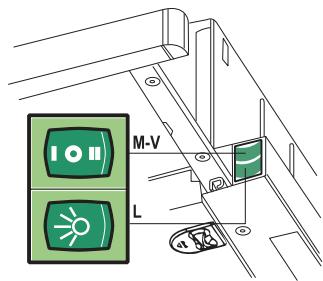

4.1 Control panel

L	Light	Switches the lighting system on and off
M	Motor	Switches the extractor motor on and off
V	Speed	Sets the operating speed of the extractor: 1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour. 2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio. 3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods

L	Light	Switches the lighting system on and off
M	Motor	Switches the extractor motor on and off
V	Speed	Sets the operating speed of the extractor: 1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour. 2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.

5 Maintenance

5.1 Grease Filters

5.1.1 Cleaning Metal Self-Supporting Grease Filters

• The filters must be cleaned every 2 months, or more frequently in case of particularly heavy use of the hood. Filters can be washed in a dishwasher.
  Pull out the sliding suction panel.
• Remove the filters one by one, after having disconnected the relative fastening elements.
• Wash the filters, taking care not to bend them. Let them get dry before refitting them. (The colour of the filter surface may change throughout the time but this has no influence to the filter efficiency).
• When refitting the filters, make sure that the handle is visible on the outside.
• Close the sliding suction panel.

5.2 Charcoal filter (Recycling version)

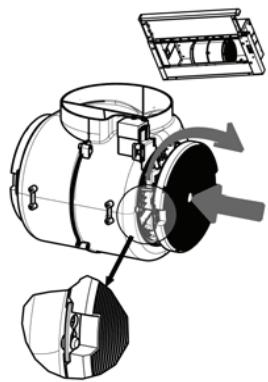

5.2.1 Replacing Charcoal Filters

Warning: Turn the lights off and wait until the lamps cool down before you change the odour filter.

• These filters are not washable and cannot be regenerated, and must be replaced approximately every four months or more frequently by particularly heavy use.

• Pull out the sliding suction panel.

• Remove the grease filters.
• Remove the saturated carbon filter by releasing the fixing hooks
• Fit the new filter by hooking it into its seating.
• Replace the grease filters.
• Close the sliding suction panel.

5.3 Lighting

5.3.1 Light Replacement

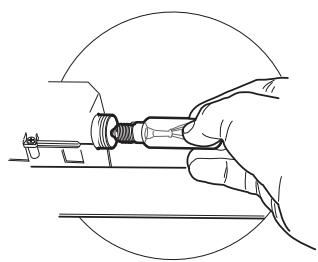

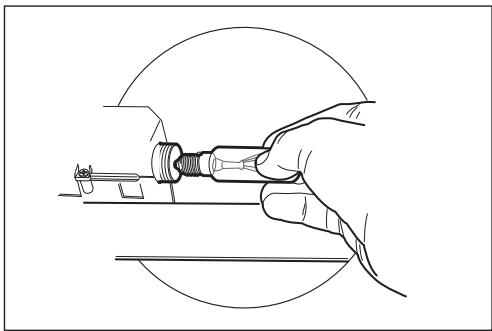

28W light

• Remove the metal grease filters.
• Unscrew the bulbs and replace them with new ones having the same characteristics.
• Replace the metal grease filters.

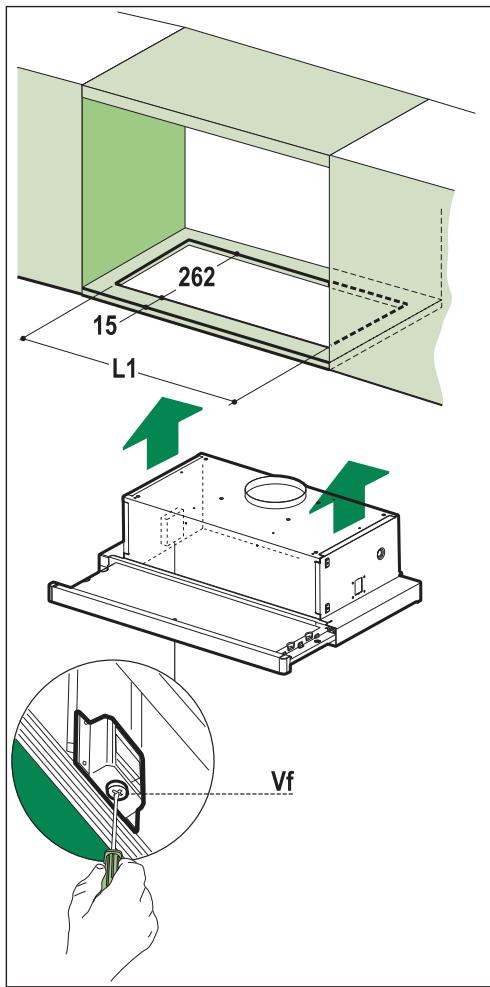

• The hood can be installed either directly on the bottom surface of the wall units using snap-on side supports.
• Cut a fitted opening in the bottom surface of the wall unit, as shown.
• Insert the hood until the side supports snap into place.
• Lock in position by tightening the screws Vf from underneath the hood.

Tipo Cappa	CTB 6250 W/B/X	CTB 9250 X
L1	510	810

Profilo Di Chiusura

Ap. Ioo. Mepn Tou TpoiovtoC

1 1 a atoppoqntnpa, Xeipiotnpia, a, avemiotnpa, pIATpa
8 1 KaTeuUvOu6Vn Oxapa Eaywyns aepa
9 1 150- 120 xIλ.
20 1 Στοίχειο κλεισίματος

Ap. Ioo. Egaptnmuata ykataoTaon
