Product type	Microwave
Brand	CLATRONIC
Model	MWG 775 H
Power supply	230 V, 50 Hz
Microwave consumption	1300 W
Grill consumption	1200 W
Hot air consumption	1200 W
Microwave power	800 W / 2450 MHz
Oven volume	21 liters
Protection class	I
Net weight	14.1 kg
Main functions	Microwave, Grill, Convection (hot air), Combined microwave/grill, Automatic defrosting by weight or time, Automatic programs (heating, potatoes, vegetables, pasta, meat, fish, pizza, bread, poultry)
Controls	Touch buttons, rotary knob, LED display
Included accessories	Glass turntable, metal rack, guide ring
Safety	Child lock, automatic stop at end of cooking, door safety (stop when opened)
Maintenance and cleaning	Interior cleanable with damp cloth and mild detergent; dishwasher-safe turntable; guide ring washable by hand
Repairability and spare parts	Repair exclusively by a qualified professional; replaceable light in specialized store
General information	Device complies with European directives; protection class I; domestic use only

Frequently Asked Questions - MWG 775 H CLATRONIC

How to set the clock on the Clatronic MWG 775 H microwave?

Press the STOP/CLEAR/CLOCK button. The display shows '0:00' and the first digit flashes. Turn the rotary knob to set the hour, then press START/+30SEC./CONFIRM. The minutes flash, set them with the rotary knob and confirm by pressing START again.

What containers can I use in this microwave?

Use only suitable containers: heat-resistant glass, ceramic, microwave-safe plastic. Avoid metal, recycled paper containing metal, and non-heat-resistant containers. For grill only, you can use metal, but not in combined mode.

How to defrost food with this microwave?

Press the MICROWAVE button several times until dEF1 (defrost by weight, 0.1 to 1 kg) or dEF2 (by time) appears. Confirm with START, set the weight or time with the rotary knob, then start. During defrosting, the appliance stops automatically to invite you to turn the food.

Can I operate the microwave empty?

No, never operate the appliance empty, as this could damage it. Always ensure there is food or a container of water inside during use.

How to lock the control panel (child safety)?

Press the STOP/CLEAR/CLOCK and START/+30SEC./CONFIRM buttons simultaneously to activate the lock. A symbol appears. To unlock, repeat the same operation.

What to do if smoke comes out inside the oven?

Immediately turn off the appliance by pressing STOP/CLEAR/CLOCK and unplug it. Keep the door closed to smother any flames. Do not open the door suddenly. Do not reuse the appliance until the cause has been identified.

How to clean the interior and the turntable?

Unplug the appliance. Clean the interior with a damp cloth and mild detergent. The glass plate can be washed in the dishwasher. The guide ring is cleaned by hand. Wipe the interior and exterior window. Do not let water enter through openings.

What automatic programs are available?

Turn the rotary knob to select a code from A1 to A9: A1 Heat, A2 Potatoes, A3 Vegetables, A4 Pasta, A5 Meat, A6 Fish, A7 Pizza, A8 Bread, A9 Poultry. Each program automatically adjusts power and time according to the set weight.

Why does my microwave stop during cooking?

It is normal if you open the door: the appliance stops automatically for safety. Close the door and press START/+30SEC./CONFIRM to resume. If it stops unexpectedly without door opening, check the timer or contact a professional.

Can I use the grill and microwave at the same time?

Yes, in combined mode. Press the GRILL button to choose G-2, G-3 or G-4 (different grill/microwave ratios) or COMBI to set a temperature. The two functions alternate automatically. Use only the provided rack and heat-resistant containers.

USER MANUAL MWG 775 H CLATRONIC

Overview of the Components 3

Instruction Manual. 60

Technical Data.. 67

FRANÇAIS

JEZYK POLSKI

Sommaire

3

Mode d'emploi.. 21

• Do not remove any installed parts from inside the oven or anything from the inside of the door!
  The foils on the inside of the door must not be removed!

UWAGA:

D-47906 Kempen/Germany

Tabell for oppvarming

Næringsmidler/matvarer	Mengde	Effekt ca. watt	Tid ca.min.	Tildek-king
Væsker
Vann, 1 kopp	150 g	800	0,5 - 1	nei
Vann, 0,5 l	500 g	800	3,5 - 5	nei
Vann, 0,75 l	750 g	800	5 - 7	nei
Kaffe, 1 kopp	150 g	800	0,5 - 1	nei
Melk, 1 kopp	150 g	800	0,5 - 1	nei
OBS: Sett en glasstav i beholderen for Å forhindre koking, rør godt om før du drikker.
Tallerkenretter
Snitsel, poteter og grønnsaker	450 g	800	2,5 - 3,5	ja
Gulasj med pasta	450 g	800	2 - 2,5	ja
Kjøtt, raspeball og saus	450 g	800	2,5 - 3,5	ja
Tips: Fukte matenlett på forhånd, rør om iblant.
Kjøtt
Snitsel, panert	200 g	800	1 - 2	nei
Kjøttkaker, 4 stk.	500 g	800	3 - 4	nei
Braadvlees	250 g	800	2 - 3	nei
Tips: Pensle med olje, sik at paneringen eller skorpen ikke bløt.
Fjørkre
1/2 kylling	450 g	800	3,5 - 5	nei
Hønsefrikassé	400 g	800	3 - 4,5	ja
Tips: Pensle kjøttet med olje, rør om iblant.
Tilbehør
Pasta, ris 1 porsjon	150 g	800	1 - 2	ja
2 porsjoner	300 g	800	2,5 - 3,5	ja
Poteter	500 g	800	3 - 4	ja
Tips: Fukte matvarenelett på forhånd.
Supper/sauser
Klar suppe, 1 tallerken	250 g	800	1 - 1,5	ja
Suppe med biter av kjøtt, pasta, grønnsaker e.l.	250 g	800	1,5 - 2	ja
Saus	250 g	800	1 - 2	ja
Babymat
Melk	100 ml	400	0,5 - 1	nei
Grøt	200 g	400	1 - 1,5	nei
Tips: Ristningen og rør om. Kontroller temperaturen!

Koking

Praktiske tips om koking

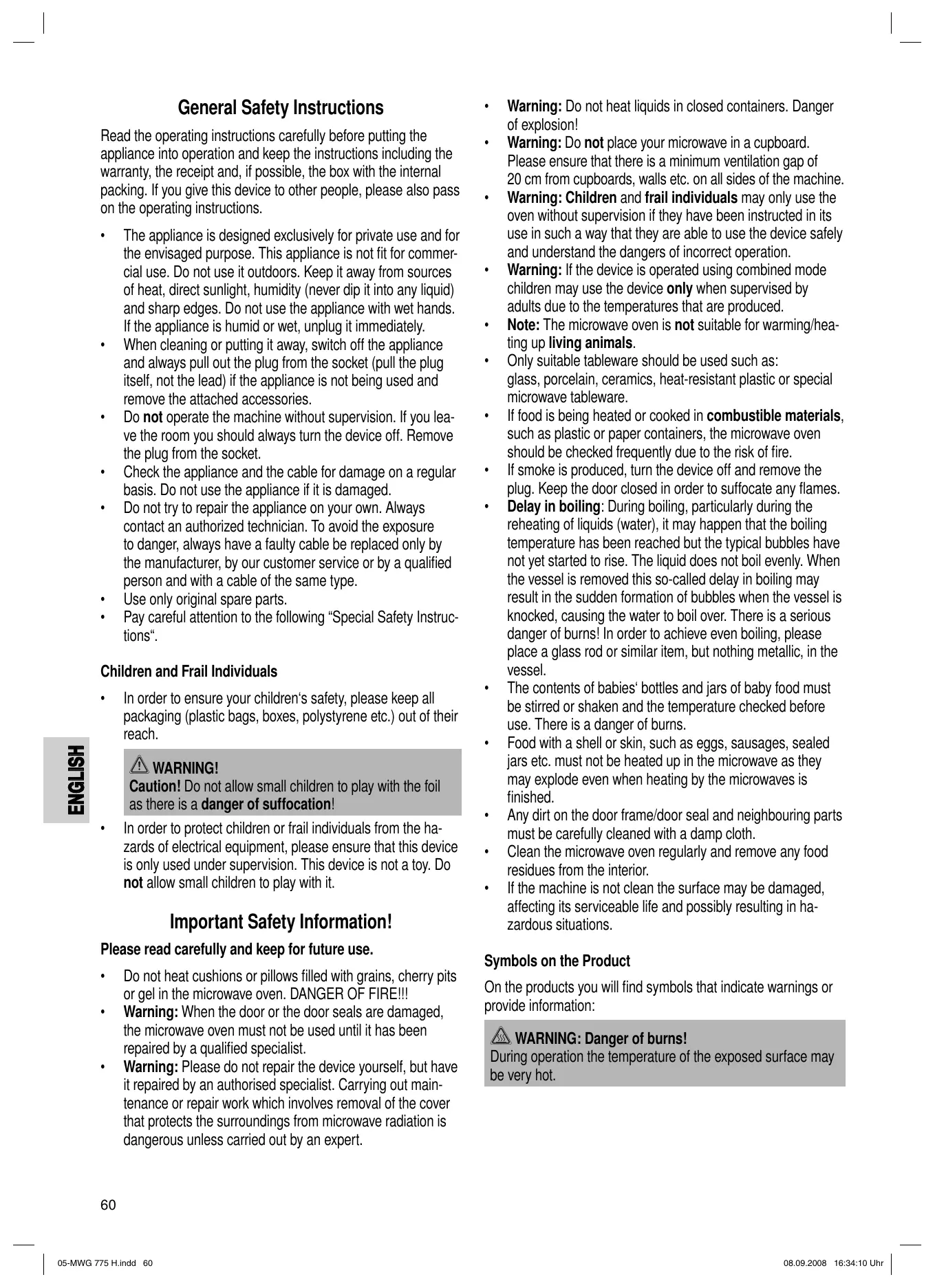

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
  Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Children and Frail Individuals

• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• In order to protect children or frail individuals from the hazards of electrical equipment, please ensure that this device is only used under supervision. This device is not a toy. Do not allow small children to play with it.

Important Safety Information!

Please read carefully and keep for future use.

• Do not heat cushions or pillows filled with grains, cherry pits or gel in the microwave oven. DANGER OF FIRE!!!
• Warning: When the door or the door seals are damaged, the microwave oven must not be used until it has been repaired by a qualified specialist.

• Warning: Please do not repair the device yourself, but have it repaired by an authorised specialist. Carrying out maintenance or repair work which involves removal of the cover that protects the surroundings from microwave radiation is dangerous unless carried out by an expert.

• Warning: Do not heat liquids in closed containers. Danger of explosion!

• Warning: Do not place your microwave in a cupboard. Please ensure that there is a minimum ventilation gap of 20 ~cm from cupboards, walls etc. on all sides of the machine.
• Warning: Children and frail individuals may only use the oven without supervision if they have been instructed in its use in such a way that they are able to use the device safely and understand the dangers of incorrect operation.
• Warning: If the device is operated using combined mode children may use the device only when supervised by adults due to the temperatures that are produced.
  Note: The microwave oven is not suitable for warming/heating up living animals.
• Only suitable tableware should be used such as: glass, porcelain, ceramics, heat-resistant plastic or special microwave tableware.
  If food is being heated or cooked in combustible materials, such as plastic or paper containers, the microwave oven should be checked frequently due to the risk of fire.
• If smoke is produced, turn the device off and remove the plug. Keep the door closed in order to suffocate any flames.
• Delay in boiling: During boiling, particularly during the reheating of liquids (water), it may happen that the boiling temperature has been reached but the typical bubbles have not yet started to rise. The liquid does not boil evenly. When the vessel is removed this so-called delay in boiling may result in the sudden formation of bubbles when the vessel is knocked, causing the water to boil over. There is a serious danger of burns! In order to achieve even boiling, please place a glass rod or similar item, but nothing metallic, in the vessel.
• The contents of babies' bottles and jars of baby food must be stirred or shaken and the temperature checked before use. There is a danger of burns.
• Food with a shell or skin, such as eggs, sausages, sealed jars etc. must not be heated up in the microwave as they may explode even when heating by the microwaves is finished.
• Any dirt on the door frame/door seal and neighbouring parts must be carefully cleaned with a damp cloth.
• Clean the microwave oven regularly and remove any food residues from the interior.
• If the machine is not clean the surface may be damaged, affecting its serviceable life and possibly resulting in hazardous situations.

Symbols on the Product

On the products you will find symbols that indicate warnings or provide information:

WARNING: Danger of burns!

During operation the temperature of the exposed surface may be very hot.

Overview of the Components

1 Control panel
2 Grilling grid
3 Drive axle
4 Slide ring
5 Revolving tray
6 Door lock
7 Viewing window

Switches on the Control Panel

MICROWAVE

Microwave: Selection of the power levels of the microwave

GRILL (time-controlled)

Grill: For grilling and gratinating

Grill/Comb: Grill and microwave work alternately

CONVECTION

Hot air: Hot air operation, select a temperature

COMBI. (temperature-controlled)

Grill/Comb: Grill and microwave work alternately

DEFROST

Automatic defrost

STOP/CLEAR/CLOCK

Stop: Press once to stop the cooking process

Delete: Press twice to cancel the programme

Clock: Together with the rotary knob for adjusting the clock or cooking time

START/+30Sec./CONFIRM

Start of the programme

Confirmation of the Input

Locking

Press the STOP/CLEAR/CLOCK button and the START/+30Sec./CONFIRM button at the same time to lock the control panel (child lock)

TIMER·WEIGHT·AUTOMENU

Rotary knob for adjusting the clock, cooking time of automatic programs or weights

Symbols on the Control Panel

Symbol	Meaning/ Function	Symbol	Meaning/ Function
	Microwave	~~~	Hot air
	Defrost	AUTO COOK	Automatic Program
	Grill	~~	Power high/low
	Microwave + Grill		Child lock active

Intended Use

This device is used:

for heating up and cooking solid or liquid foods,
for browning and grilling solid foods.

It is intended exclusively for this purpose and may only be used as such. It may only be used in the manner described in these instructions for use. The device must not be used for commercial purposes.

Any other use of this device is considered to be contrary to the intended use and may result in damage to materials or even personal injury.

The firm Clatronic International GmbH does not accept any liability for damage caused as a result of the use of this device contrary to its intended use.

Information on Grilling and Combined Operation

• As heat radiation is used during grilling and combined operation, please use only heat-resistant tableware.
• When food is only being grilled, metal or aluminium tableware may also be used -but not during combined or microwave operation.
• Only the grilling grid is suitable for the COMBI mode of operation.
• Do not place anything on top of the housing as this becomes hot. Always leave the ventilation slits uncovered.
• Please use the grilling grid to move the food to be cooked nearer to the heating element.

Suitable Microwave Tableware

• The ideal material for use in a microwave is transparent and allows the microwave radiation to heat the food evenly.
• Microwaves are not able to penetrate metal, so that no metal vessels or plates should be used.
• Do not use any paper dishes made of recycled material as these may contain small amounts of metal, which may result in sparks or fires.
• Round/oval dishes and plates are more suitable than rectangular ones as the food in the corners may overcook.

The list below is intended to help you select suitable microwave tableware:

Material	Suitable for
	micro-wave	grill	hot air	combi-nation*
Heat-resistant glass vessel	yes	yes	yes	yes
Non-heat-resistant glass vessel	no	no	no	no
Heat-resistant ceramic vessel/plate	yes	yes	yes	yes
Plastic vessels suitable for microwave use	yes	no	no	no
Kitchen roll	yes	no	no	no
Metal tray	no	yes	yes	no
Grilling grid	no	yes	yes	yes
Aluminium foil and foil containers	no	yes	yes	no

*) Combination of grill with microwave or hot air

Setting the Time

I NOTE:

When the device is switched on for the first time a buzzer is heard and 0:00 appears in the display.

• Press the STOP/CLEAR/CLOCK button. The display changes to ,0:00" . The first figure flashes.
• With the help of the rotating knob you can now set the desired hour figure.
• Press the START/+30SEC./CONFIRM button. The second set of figures flash.
• With the help of the rotating knob you can now set the desired minutes figures.
• Press the START/+30SEC./CONFIRM button again to activate the new time.

Initial Operation

NOTE:

If there are any oil or other residues from the manufacturing process on the housing or heating element, smoke or odours may initially be produced. This is normal and will not occur after the oven has been used a few times.

The following procedure is strongly recommended:

• Turn the device to the grill function and allow it to run several times without any food inside.
• Please ensure sufficient ventilation.

After removing all the accessories from inside the oven, unpack them and place the sliding ring in the middle. Position the glass plate on the drive axle in such a way that it locks into the dents of the drive shafts and is lying flat.
- Check the device for any visible damage, particularly in the area of the door. If any damage is found, the machine must not be used.

• In order to avoid interference to other machines when the microwave oven is operated, do not place it in the direct vicinity of other electronic devices.
• Remove any protective foils that may be adhered to the housing.
• Insert the mains plug into a properly installed 230 ~V, 50 ~Hz power socket.

CAUTION:

Do not remove any installed parts from inside the oven or from inside the door!

Using the Device

What you should know about microwave operation

• Your device works with microwave radiation, which heats up water particles in food in a very short time. There is no heat radiation and therefore hardly any browning.
  Only food should be heated up with this device.
  The device is not suitable for baking in floating fat.
  Only 1-2 portions should be heated up at the same time. Otherwise the microwave will become less efficient.
• Press the STOP/CLEAR/CLOCK button in order to interrupt the cooking process.
• Microwaves provide their full energy levels immediately. Preheating is therefore not necessary.
• Never operate the microwave function when the oven is empty.
• The microwave oven does not replace your traditional cooker. It is used mainly for:

defrosting deep-frozen food
rapid warming/heating of food or drinks
- cooking meals

Operating the Microwave

1. Place the food to be heated up into suitable tableware.
2. Open the door and place the vessel in the middle of the glass plate. Then close the door. (For safety reasons the device only works when the door is firmly closed.)
3. Select the desired microwave power by pressing the MICROWAVE button once or several times.

Power in the display as selected in %	Power in watts (approx.)	Field of application
P100	800	Rapid heating
P 75	600	Cooking
P 50	400	Melting cheese etc.
P 25	200	Defrosting deep-frozen food

1. Use the rotating button to set the desired cooking duration between 5 seconds and 95 minutes.
2. Press the START/+30SEC./CONFIRM button to start the machine. The length of cooking depends on the quantity and consistency of the contents. With a little practice you will soon learn to estimate the cooking time.

I NOTE:

Every further press of the START/+30SEC./CONFIRM button increases the operating time by 30 seconds.
- Cooking in the microwave oven is very much faster than in a standard cooker. If you are not sure, set the cooking time to low and continue cooking afterwards if necessary.

1. After that time has elapsed, the device switches off and 5 buzzers are heard. Then you can remove the food.

Interrupting or Stopping the Cooking Process

• If you would like to interrupt the cooking process, press the STOP/CLEAR/CLOCK button or simply open the door.
• If you wish to continue cooking, close the door and press the START/+30SEC./CONFIRM button.
• If you would like to stop the cooking process altogether, press the STOP/CLEAR/CLOCK button twice.

Warming

The warming and heating of food is a particular strength of the microwave. Liquids and foods that are in the refrigerator can be easily brought up to room temperature or the right temperature for consumption without the need for many pots.

The heating times contained in the following table are only rough guides as the time depends very much on the starting temperature and the composition of the food. You are therefore advised to check from time to time whether the dish is already hot enough.

Heating Table

Food/dish	Quantity	Power in watts	Approx. time in minutes	Cover
Liquids
Water, 1 cup	150 g	800	0,5 - 1	no
Water, 0.5 l	500 g	800	3,5 - 5	no
Water, 0.75 l	750 g	800	5 - 7	no
Coffee, 1 cup	150 g	800	0,5 - 1	no
Milk, 1 cup	150 g	800	0,5 - 1	no
Note: Place a glass rod in the vessel to prevent delayed boiling; stir thoroughly before drinking.
One-Course Meals
Schnitzel, potatoes and vegetables	450 g	800	2,5 - 3,5	yes
Goulash with noodles	450 g	800	2 - 2,5	yes
Meat, dumpling and sauce	450 g	800	2,5 - 3,5	yes
Tip: moisten slightly beforehand, stir from time to time.
Meat
Schnitzel, coated with bread crumbs	200 g	800	1 - 2	no
Meatballs, 4 in total	500 g	800	3 - 4	no
Joint	250 g	800	2 - 3	no
Tip: brush with oil so that the bread crumbs or crust do not become soft.

Food/dish	Quantity	Power in watts	Approx. time in minutes	Cover
Poultry
Half a chicken	450 g	800	3,5 - 5	no
Chicken fricassee	400 g	800	3 - 4,5	yes
Tip: brush with oil, stir from time to time.
Extras
Noodles, rice 1 portion	150 g	800	1 - 2	yes
2 portions	300 g	800	2,5 - 3,5	yes
Potatoes	500 g	800	3 - 4	yes
Tip: moisten slightly beforehand.
Soups/Sauces
Clear soup, 1 plate	250 g	800	1 - 1,5	yes
Soup with garnish	250 g	800	1,5 - 2	yes
Sauce	250 g	800	1 - 2	yes
Baby Food
Milk	100 ml	400	0,5 - 1	no
Mash	200 g	400	1 - 1,5	no
Tip: shake well or stir. Check the temperature!

Cooking

Practical Cooking Tips

Please keep to the recommended values in the cooking table and the recipes. Keep an eye on the cooking process until you have more experience.

The door of the microwave can be opened at any time. The machine switches off automatically.

This only starts to work again when the door is closed and the START/+30SEC./CONFIRM button is pressed a second time.

Foods taken directly from the refrigerator require a slightly longer cooking time than those at room temperature.

The more compact a food is, the longer is the cooking time. For example, a large piece of meat has to be cooked longer than the same quantity of sliced meat. It is advisable to start cooking sizeable quantities on maximum power and then to continue cooking evenly on medium power.

Flat dishes cook faster than thick ones. Therefore it is advisable to spread the food as thinly as possible. Thinner pieces, e.g. chicken legs or fish fillets should be placed towards the inside or allowed to overlap.

Smaller quantities cook faster than large ones.

The following rule of thumb applies:

Double the quantity = almost double the time Half the quantity = half the time

If you are not able to find a suitable time for a dish, the following rule applies:

approx. 1 minute cooking time for each 100g

All dishes which are covered up on a normal cooker should also be covered in the microwave oven.

A lid prevents the food from drying out. Suitable covers are an inverted plate, parchment paper or microwave foil. Dishes which are to be given a crust should not be covered when cooked.

Cooking Table

Food/dish	Quantity	Power in watts	Approx. time in minutes	Cover
Vegetables
Aubergines	500 g	600	7 - 10	yes
Cauliflower	500 g	600	8 - 11	yes
Broccoli	500 g	600	6 - 9	yes
Chicory	500 g	600	6 - 7	yes
Peas	500 g	600	6 - 7	yes
Fennel	500 g	600	8 - 11	yes
Green beans	300 g	600	13 - 15	yes
Potatoes	500 g	600	9 - 12	yes
Turnip cabbage	500 g	600	8 - 10	yes
Leek	500 g	600	7 - 9	yes
Maize cob	250 g	600	7 - 9	yes
Carrots	500 g	600	8 - 10	yes
Paprika	500 g	600	6 - 9	yes
Sprouts	300 g	600	7 - 10	yes
Asparagus	300 g	600	6 - 9	yes
Tomatoes	500 g	600	6 - 7	yes
Courgettes	500 g	600	9 - 10	yes
Tip: Cut the vegetables into small pieces and cook with 2 - 3 tablespoons of liquid, stir from time to time, continue cooking for 3 - 5 minutes, season just before serving.
Fruit
Stewed apple, pear	500 g	600	5 - 8	yes
Plum jam	250 g	600	4 - 6	no
Stewed rhubarb	250 g	600	5 - 8	yes
4 baked apples	500 g	600	7 - 9	yes
Tip: add 125 ml water. Lemon juice prevents the fruit from changing colour. Cook for a further 3 - 5 minutes.
Meat*)
Meat with sauce	400 g	600	10 - 12	yes
Goulash, stewed strips of meat	500 g	600	10 - 15	yes
Roulade of beef	250 g	600	7 - 8	yes
Tip: stir from time to time, allow to stand for 3 - 5 minutes.
Poultry*)
Chicken fricassee	250 g	600	6 - 7	yes
Poultry soup	200 g	600	5 - 6	yes
Tip: stir from time to time, allow to stand for 3 - 5 minutes.
Fish
Fish fillet	300 g	600	7 - 8	yes
	400 g	600	8 - 9	yes
Tip: turn halfway through, continue cooking for 3 - 5 minutes.
Defrosting and Cooking Vegetables
Apple and red cabbage	450 g	600	14 -16	yes
Leaf spinach	300 g	600	11 - 13	yes
Cauliflower	200 g	600	7 - 9	yes
French beans	200 g	600	8 - 10	yes
Broccoli	300 g	600	8 - 9	yes
Peas	300 g	600	7 - 8	yes
Turnip cabbage	300 g	600	13 -15	yes
Leek	200 g	600	10 - 11	yes
Corn	200 g	600	4 - 6	yes
Carrots	200 g	600	5 - 6	yes
Sprouts	300 g	600	7 - 8	yes

Food/dish	Quantity	Power in watts	Approx. time in minutes	Cover
Defrosting and Cooking Vegetables
Spinach	450 g	600	12 - 13	yes
	600 g	600	15 - 17	yes
Tip: cook in 1 - 2 tablespoons of liquid, stir from time to time or divide carefully into pieces. Continue cooking for 2 - 3 minutes and season just before serving.
Soups / Stews*)
Stew	500 g	600	13 - 15	yes
Soup with garnish	300 g	600	7 - 8	yes
Crème soup	500 g	600	13 - 15	yes
Tip: stir from time to time and continue cooking for 3 - 5 minutes.

*) Ready-made meals.

Automatic Cooking

With the help of the automatic programme you can cook certain quantities of food automatically. Please proceed as follows:

1. Turn the rotary knob in a clockwise direction and select the desired automatic program. Please see the following table for the possible settings.

Code	Program	Weight in grams/display	Power
A1	Heating	200	Microwave 100%
		300
		400
		500
A2	Potatoes	200	Microwave 100%
		400
		600
A3	Vegetables	200	Microwave 100%
		300
		400
		500
A4	Noodles/Pasta	50	Microwave 100%
		100
		150
A5	Meat	150	Microwave 100%
		300
		500
		750
A6	Fish	150	Microwave 80%
		250
		350
		450
A7	Pizza	300	Microwave/Grill100%
		400
A8	Bread	50	Grill 100%
		100
		150
		200
A9	Poultry(grilled)	1000	Grill G-2
		1250
		1500

1. Press the START/+30SEC./CONFIRM button to confirm your selection.
2. Turn the rotary knob to set the desired weight.
3. To start cooking press the START/+30SEC./CONFIRM button.

After that time has elapsed, the device switches off and 5 buzzers are heard. Then you can remove the food.

Automatic Defrost (DEFROST)

With the defrost programs you can automatically defrost your food in two different ways. Select defrost according to weight or time.

1. Select one of the defrost programmes by pressing the DEFROST button repeatedly:

defrost according to weight from 0.1 - 1.0kg

dEF II Defrost according to time from 5 seconds

-95 minutes

1. Press the START/+30SEC./CONFIRM button to confirm your selection.
2. Use the rotary knob to set the desired weight/time.
3. Press the START/+30SEC./CONFIRM button to start.

I NOTE:

Every further press of the START/+30SEC./CONFIRM button increases the operating time by 30 seconds.

After that time has elapsed, the device switches off and 5 buzzers are heard. Then you can remove the food.

Grill

For grilling please use the grilling grid. Use suitable heatresistant tableware or place the food to be grilled directly on the grid.

It is not necessary to "pre-heat" the grill as the infrared grill produces radiation energy immediately.

To grill and gratinate food, proceed as follows:

1. Press the GRILL button until G - 1 appears in the display.
2. Press the START/+30SEC./CONFIRM button to confirm your selection.
3. Set the desired grilling time between 5 seconds and 95 minutes using the rotating button.

Food/dish	Quantity	Approx. time in minutes	Cover
Toast gratinated with cheese	2-3	3-4	no

1. To start cooking press the START/+30SEC./CONFIRM button.

i NOTE:

After half of the time has elapsed, a buzzer reminds you to turn the food over.

After that time has elapsed, the device switches off and 5 buzzers are heard. Then you can remove the food.

Combination of Microwave and Grill Operation (GRILL time-controlled)

When these settings are used the microwave and grill alternate within the preselected time in the ratio:

G-2	high grill level	low microwave level
G-3	medium grill level	medium microwave level
G-4	low grill level	high microwave level

1. Press the GRILL button until the desired function appears.
2. Set the desired grilling time between 5 seconds and 95 minutes using the rotating button.
3. To start cooking press the START/+30SEC./CONFIRM button.

After that time has elapsed, the device switches off and 5 buzzers are heard. Then you can remove the food.

Combination of Microwave and Grill Operation (COMBI. temperature-controlled)

In these settings the microwave and grill also alternate. You can however set a cooking temperature.

1. Press the COMBI. button until the desired temperature appears.
2. Set the desired grilling time between 5 seconds and 95 minutes using the rotating button.
3. To start cooking press the START/+30SEC./CONFIRM button.

Tips on Combined Operation

If you prepare food using the combined microwave-grill functions you should note the following:

For large, thick foods such as roast pork the microwave time is correspondingly longer than for small, flat foods. However, in the case of the grill it is the other way round. The closer the food is to the grill, the faster it turns brown. This means that when large joints are prepared using combined operation the grilling time may be shorter than for smaller joints.

Please use the grid for grilling in order to achieve rapid and even browning. (Exception: large, thick items of food are grilled directly on the rotating plate!)

Combined Operation Table

Food/dish	Quantity	Approx. time in minutes	Cover
Meat, Sausages
Beef, pork or veal in pieces	500 g	10 - 12	no
	750 g	12 - 15	no
Smoked pork loin	500 g	12 - 14	no
Meat loaf	500 g	13 - 15	no
Wienerwurst	200 g	2 - 3	no
Frankfurter	200 g	2 - 3	no
Tip: turn the meat halfway through and continue cooking for 3 - 5 minutes; coat the meat loaf with egg white; prick the sausages with a fork.
Poultry
Chicken pieces	250 g	4 - 5	no
Tip: allow to cook without liquid in its own juice, turn once and continue cooking for 4 - 5 minutes.
Fish
Trout, blue	300 g	5 - 6	no
Fish fillet	300 g	3 - 4	no
Tip: turn halfway through and continue cooking for 3 - 5 minutes.

Heart Air Operation (CONVECTION temperature-controlled)

In hot air operation you can set a cooking temperature.

1. Press the CONVECTION button until the desired temperature appears.

NOTE Preheating:

Now it is possible to press the START/+30SEC./CONFIRM button in order to preheat the oven.

• Once the desired temperature has been reached, two buzzers are heard.
  Now open the door and place the food to be cooked in the oven.
• Use the rotary knob to set the desired cooking time between 5 seconds and 95 minutes.

I NOTE:

You cannot enter the cooking time if you have not opened the door!

1. Use the rotary knob to set the desired cooking time between 5 seconds and 95 minutes.
2. Press the START/+30SEC./CONFIRM button to start.

I NOTE:

Every further press of the START/+30SEC./CONFIRM button increases the operating time by 30 seconds.
- If you press the CONVECTION button during operation, the preset time is displayed for 3 seconds.

After that time has elapsed, the device switches off and 5 buzzers are heard. Then you can remove the food.

Special Functions

Disabling

• Press the STOP/CLEAR/CLOCK button and the START/+30SEC./CONFIRM button at the same time in order to lock the device.

NOTE:

• The fact that the machine is disabled is then shown in the display.
  The function of the operating controls is now blocked.

• Press the STOP/CLEAR/CLOCK button and the START/+30SEC./CONFIRM button again at the same time in order to unlock the device.

Cleaning

Turn the microwave off and remove the mains plug.

Interior

• Keep the interior of the oven clean. Splashes and overflowing liquids on the walls of the oven can be removed with a damp cloth. If the oven is very dirty a mild detergent can also be used. Please do not use any abrasive detergents.
• Wipe off the viewing window on the inside and outside with a damp cloth and remove splashes and stains from overflowing liquids regularly.

External Walls

• The external walls of the microwave should only be cleaned with a damp cloth. Please ensure that no water enters the openings in the housing and therefore inside the device.
• The switches should also only be cleaned with a damp cloth. In order to clean the function switch, first open the microwave door to avoid switching on the device so accidentally.

Accessories

• The glass plate should occasionally be cleaned with washing-up liquid or in the dishwasher.
• The rotating ring and the inside floor of the oven should be cleaned regularly. The rotating ring can be removed and cleaned by hand. You may use a mild detergent or window cleaner for this. Please dry thoroughly afterwards. Ensure that the ring is put back in the correct position afterwards.

Odours

• In order to remove any unpleasant odours that may emanate from the microwave, place a dish filled with water and lemon juice that is suitable for microwave use in the oven and heat it for approximately 5 minutes. Then wipe out the oven with a soft cloth.

Oven light

If you need to replace the lighting in the oven, please contact a specialist workshop near you.

Technical Data

Model: MWG 775 H

Power supply: 230 V, 50 Hz

Power consumption:

microwave: 1300 W

grill: 1200 W

hot air: 1200 W

Rated microwave power output: 800 W/2450 MHz

Cavity volume: 21 litres

Protection class: I

Net weight: 14.1 kg

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

IpeekJIIOUaTeJIb Ha paHeJI N O6cJyKJBAHNIA

MICROWAVE

MnKpOBoHOBa neyb: BbI6Op CTypeHeM MoUHOCTN MnKpOBoHOBo Neu.

AByOMaTnueeckoepa3MopaaKbBaHne

STOP/CLEAR/CLOCK

CtoI: OndHO HaKaTHe 0ctaHaBJIbBaET npOeCC pNIROTOBJIeHnI

YdaHb: IBaHaKaTna-OTMeHa npoRpaMMbl

Yacbl: B coetahnn c pykoJ NaCTPOIKN YACOB IIN BpeMeHn PnIRTOBJIeHNAI

START/+30Sec./CONFIRM

3anyck nporpaMMbl 6bictporo cnapta

IopntBepKdeneHyeCTaHOBKn

Бл_OKировka

ДяблOKИРOBКпаHEЛиобслУKINBAHAЯ (6e3OJaCHocTb DeTei)надмITE KhoNky STOP/CLEAR/CLOCKиODHOBpeMeHNO KhoNkySTART/+30SEC./CONFIRM

TIMER·WEIGHT·AUTOMENU

Pyka hactpoKu yacOB, BpemeH npiroTOBJIeHnI NIIuN B 3aBcIMoCTn OT BbIbpaHHoI aBTOMaTHUeCKO pOrpamMbI IINI PO BecOBbIM POKa3aTeJAM

CnmbolblaHeN ynpabJeHna

HcNoJIb3ObaHHe NO Ha3NaYeHnIO

3TOT npnbop npedna3nueH:

HnB Koem clyuae He ydaJIaIe KaKne-JIbO pRikpyeHHble DeTALN N3 DyXOBKn IIN C DBePcbl Neu!

Порадок польбовеня

I03HaBaTeIbHoe K TeMe MmKpoBoJIHOBa IeYb

• Пech pa6oTaet C mKpOBOHOBbIM n3nyeHnEM, KOTOpoe B KOPOTKOE BpeMpa3OrpeBaET qactuKN BObl, HaxoJaIeNcB INIe. 3deCb HET TEJIIOBOr n3nyeHnIA TAKIM o6pa3OM pOJHKapNCtAa KOpOyKa He o6pa3yETcR.
  Pa3oRpeBaIte B neu TOnbKO npOdyKtbl NHTaHnA.
• Пechь не п dedиазнayehа дя ожариBaHЯ поуктов в Macne.
  3a oINH pa3 pa30rpeBaIe ToIbKO 1-2 npUIM. Hnue neYb nOtePrrT 3ΦΦeKTHBHOCTb.
• Hαχмnte Na Khoŋky STOP/CLEAR/CLOCK, ηTO6bl npερBaTB ποιecc πριστόθυνηκη.
  MnKpoBOLHOBA neyb pa6oTaET C MOMeHTa BKNIOUeHnHa NpOHyHO MOuBHOCTb. IpeDbapntelbHoe pa3OrpeBaHne IO3TOMy n3JIuShHe.

HnB Koem clyuae He BkIHOuaTe MmKpOBOJHObyo neyb nyctoI.
MnKpOBoNHOBa ney He 3aMeHReT o6bUHoi neyn. Oha CnyJHT B OCHOBHOM dIra:

pa3MopaxkHbAHINI pOdyKTOB
- 6bictporo HargpeBaHnra/pa30rpeBaHnra NiuNi HaHTKOB
TyuJeHnI npOdyKTOB

YnpaBHeHne MHKPOBOJHOBoI neyIO

1. Пложиразаорваему пшу в похаяшию nocуд.
2. OTKpoIte DBepy Neu N yCTaHOBITE NOcUdHy B cpeDInHy CTeKJIaHHoTapeLKn. 3aKpoIte DBepy. (N3 COO6paKeHn 6e3OpacHOCTn Neyb BKJIIOuaETcra TOnbKO C 3aKpbITOn DBepuoJ.)
3. MHoropaTbIM HaKaTneM Ha KhoNkY ,MICROWAVE" 3aJaTe HeoXoDmMyO MnKpOBIoHObyO MoUHOCTb NeuN.

Ha KaKdIbe 100 r npHmepHo 1 MmHyTa

Bce 6nOda, KOtOpbIe Bbl HaKpbIBaII B O6bIuHOI neH, Heo6xOJIMo HApKpbIBaTb N B MmKpOBIoHOBOi.

HaKpbIbAHne KpbIshKOIpedeOTBpaaet NOcBixAHne NnU. B KaueCTBe KpbIshKN PoJXoINT nepeBepHyTaN TapeNka, neprameHTHb6yMaRa HIN PhOBra DnMnKpOBoJHObIx Neeu. IpojYkTB KoTOPbIe DoxHbI pOnyHtB KOpOChy He HaKpbIbATb.

Ta6JIuza peKHMOB tyUeHnA

A B T O M A T N U C E C K O E p n H R O T O B J E H N E

При поши abTomatни B03MOЖна abTomatнeckая Варka onpeделен Horo kOJIuYeCTBa npOdyKToB. Дял STOrO nocTynaTe cIeDyUOzIM O6pa3OM:

1. ПоворачиBaitepykyHac troknBHa npabLeHHu acobOy cTpeIKNi Bbl6npaTe HxKHyIO Bam aBTOMaTHuecKyIO nporpaMMy.PapamMeTpblДлЯ nporpaMMnpoBaHHa BO3MNTe N3 HNKeCleDyUoSei Ta6NIuBl.

I I P N M E U A H N E:

IIO nCTeueHn IIOBnHb BVpeMeHn pInrOToBJIeHn Bbl 6yJeTe npEduPexJdeHb3ByKOBbIM CnHaIOM O HeoXoImMoCTn nepeBepHyTb pInrOTabJIeMoe 6JIHO.

IIO nCTeueHn BpeMeHn np6op BbIKIOuaETcN pa3daOTcN 5 3ByKObIX CnHaJIOB. NmUy MOKHO BbHyTb N3 NeuN.

KombuHaPpeKMOB MKNPOBOHOBNeuN rpnla (GRILL perynilpoBka BpemeH/TaMep)

B 3tOM peKIMe MmKPOBOLHOBa ney h rpnIb pa6OtaOT PoochepeiHO B nepHOJ yCTaHOBJIeHHOro BpeMeHN B CneDuOSeI npOpOpuN:

BbI He cMOxete yCTaHOBnTb BpeM npriTOBJIeHn, ecII Bbl He oTKpbIIN DBepu!

1. BbIepeTe pRn nOMoU npuKnypRaBHeHn BpeM npriToTobHeHn PnUIN BnpomExyTke OT 5 ckyHd Do 95 MInHyT.
2. HακMιTe Na ΚνΟπΚy START/+30SEC./CONFIRM.

I PIPMeyAHNE:

• Kaюe nocleduoche haKaTne Ha KhoNky START/+30SEC./CONFIRM yBelenuBaet Bpemra pa60tby np60paHa 30 cekynd.
• Ecni BO Bpemra pabotb npnbopa Bbl haKmTe Ha KhoNky CONVECTION, To Ha 3 cekyHdbI NOBtca NOKa3aHne Bbl6paHHoro paHee TempepaTyphoro peKIma.

IIO nCTeueHn BpeMeH np6op BbIKJIOaETcN pa3daOTc8 5 3ByKOBbIX CNrHaJIOB. NIIu7 MOKHO BblHyTb N3 neuN.

Ocobbie yHkunn

3anipanne

• Дlya 6лokировки приобoga нахмITE на Кногку STOP/CLEAR/CLOCK и одановкеMuHa Кногку START/+30SEC./CONFIRM.

I PIMMEUHNE:

Ha nncnnee nokakeTc cooTBetCTbYIOUaI INHOpMaunr.
- ΦyHKcHn BCex KHOJOK n peYunipOBok 60KnpuyOTca.
- Дя сятыся блокорвки сюва нажмITE Кногку STOP/CLEAR/CLOCK und odновремно Кногку START/+30SEC./CONFIRM.

YnCTKa/YxOД 3a npH6OpOM

BbIKIOHTe MKNPOBOJHOByIO NeHy N BbIbTe BNkY 3 pO3eTKN.

BhTypeHHa emKoctb neu

BHytpenHocTb neu DoJHKHa 6bITb BcERda YnCToI. PAnTHa OT 6pb3r N BbITEKUnx JnDkoCTe Ha CTeHKax Neu MoKHO ydaJIITb pIn NOMOUs BlaJXHO TpAINK. EcIn Ney CnIbHO 3aRpa3HnIacb, To dJa ee OOnCTKn DoNyCKaETcra PrIMHeTb HeCNlbHbIe MOUShne CpeDCTBa. Hn B Koem Cnyae He npIMHeHrTe arpeCcnBhIe MOUShne CpeDCTBa.
- Потрипс CMOTPOBOE OKOшko ChTyprn И саружи ВlaЖног Трпко, рergyларно удалгіte co CTeКлп пт ha ot 6pbI3r N BbITEKшnx JИДКOSTe.

HapyKhbte CteHKn

Hapyxhble cTeHNKn KOpnyca neu pa3pe7aetc npotnpatb TOnbKO BnaJHoN TpIKnO. CMOTpIte, UTo6bI BOa He nonaja B OTBepCTnKopnyca n He npOHKnla BO BHyTpbeo.
Для ounstkn nepeknluoyatele noIb3yItecb taKke TOnIbKO BnaJHoTprnkoi.Для ounstkn fynkuhoHaIbHOro nepeknluoyatel OTKpoTe cHaJaIa DBepu MInKpOBoIHOBOI Neu, YTO6bl 3TNIM caMbIM PpeDOTBpaHTb ee CnyauHoe BKNIOUeHne.

PpHaJaJIeXHoCTn

BpemrO T BpemEn H peKOMeHdyetc qnCTntb TaKKe cTeKJIHHoe 6IIO, IcIIOb3yra MOUoee CpeDCTBO dIIN IOcydbI INI npOMOIte eRo B IOcydOMOeHNO MaunHe.
BpaaioeecKoIbUO IN BHytpenHnI ONI neH peKOMeHnyETcYHCTNtBpeyIpyHO.KoIbUO MOxHO BbHyTb I npOMbITb BpyHuYIO.ДЯ 3TOrO MOxHO NcPONb3OBaTB CJIabIe MOUJIe cpeDCTBa DJIY NOCyDbI IIN CpeDCTBa DJIY ONUCTKN OKOHbIX CTekOI.ПocNe 3TOrO XopoIoo PpOcuyHb.T.ByIbTe BHNMaTeJbHbI pRi BCTaBJIeHn KoiIbua O6paTHO, OHO DoJIKHO CNIdTeB nPaBInbHO.

3anaxn

• UTo6bI ydaJIITb He npraTHbIe 3aapanHn3 MKNpOBOJHOBOI neu, nOCTaBbTe B Hee YaUy n3 NODXODJeRO MaTePnaJa HAnoJIHeHHyO BOIOJ C NIMMOHHbIM COKOM N BKIOChte ee npImepHo Ha 5 MNHyT. Pocne 3TOrO npOTpTe Neyb MArKoN u ChcToI TpRlKOi.

BnytpenHe oCbeueHne

• EcINB03HnKHeT Heo6xOJIMOCtB IOnHHITb BHyTpEHNHe OCBeueHHe Neu, 6paTInTeCb 3a NOMOuB V 6JIiKaIyU peMOHTHyU MaCTepCKyU.

TexHnueckne daHHbIe

MoeIb: MWG 775 H

3NeKtpOnItaHne: 230B,50Tc

Iotppe6JIeMaMA MoUHocb:

$$ M M K P O B O J H O B A n e y b: \dots 1 3 0 0 B a T T $$

$$ \text {r p i n j a :} \quad 1 2 0 0 \mathrm {B a T T} $$

$$ \Gamma_ {\text {O p r a n i n}} \text {B o 3 d y x :} \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots $$

Ouehenha-BbIX. MouHocTb
MINKPOBOLHOROTO n3nyeHnra: 800 BaTT/2450 M

EmKoCTb DuxOBKn: 21 nItpoB

Klacc 3aunbl: I

Bec HeTTo: 14,1 Kr

3TO n3dJIeHHe npOJIO BCE Heo6XODmBIE n aKtYaJIbHbIe npOBepKn, npEiINcaHbIe DnpeKTHBOI CE, K npIM. Ha 3JIeKTPOMaHTNHITyO COBMecTUMOCbI N COOTBeTCTBVe Tpe6OBaHnM K Hn3KOBoJbTHOH TEXHKe, OHO bIo ToKaJKe CkOHCTpyuPObAHO I NOCTpoEH O CyETOM PocNeDHnx Tpe6OBaHn IIO TEXHKe 6e3OpacHOCTN.

Mbl octablanem 3a coob npaba HO texnueckne n3mehenra!

CHATRONIC

INTERNATIONAL GMBH

D-47906 Kempen/Germany · Industriering Ost 40

Internet: http://www.clatronic.de·email: [e-mail]
