USER MANUAL CCHH 145 - CCHH 145 CANDY

USER MANUAL CHEST FREEZER EN Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as:

- the kitchen area for personnel in shops, offices and other working environments

- on farms, by clientele of hotels, motels and other environments of a residential type

- at bed and breakfasts (B & B)

- for catering services and similar applications not for retail sale. This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions.

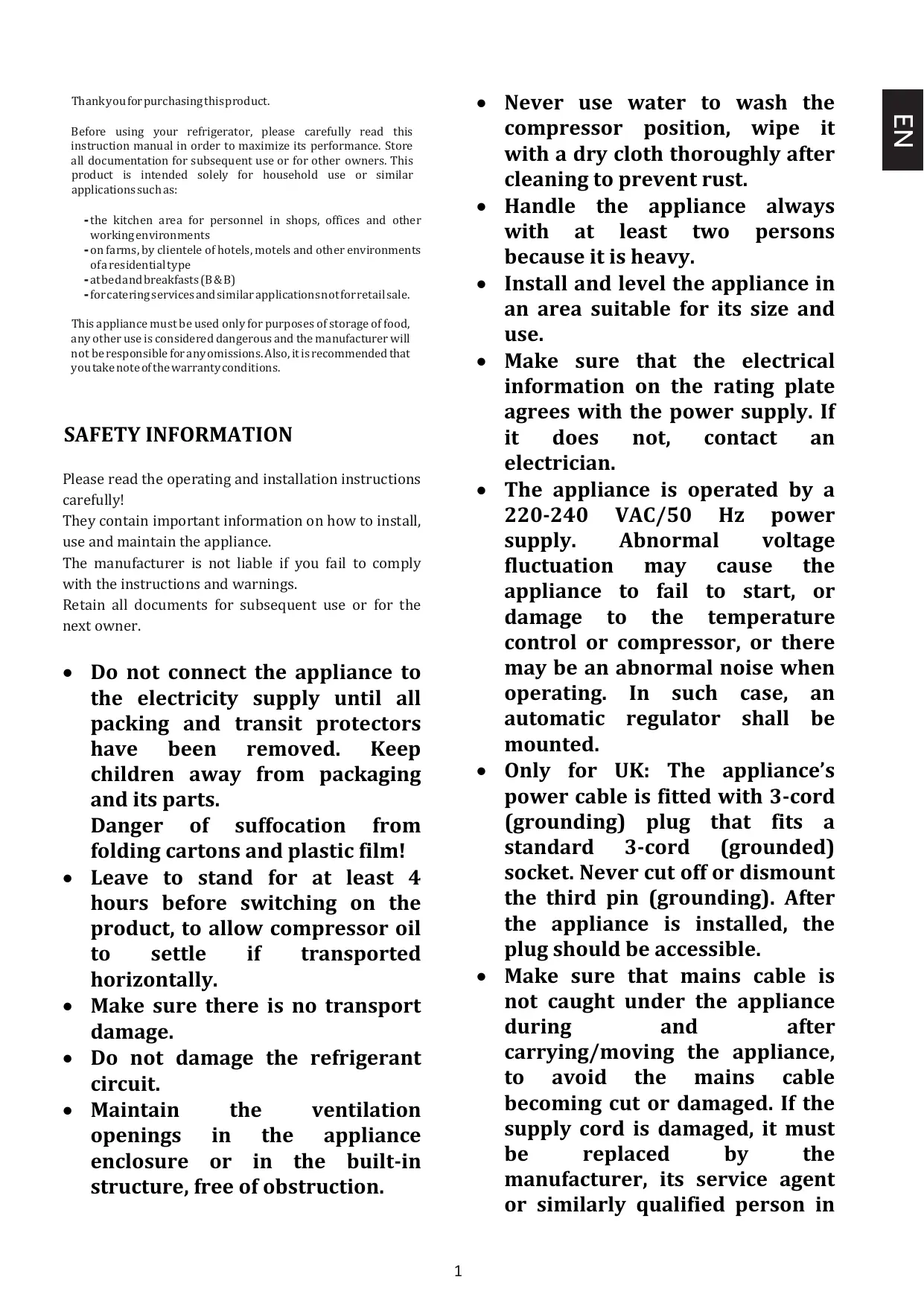

SAFETY INFORMATION Please read the operating and installation instructions carefully!

They contain important information on how to install, use and maintain the appliance. The manufacturer is not liable if you fail to comply with the instructions and warnings. Retain all documents for subsequent use or for the next owner.

 Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed. Keep children away from packaging and its parts.

Danger of suffocation from folding cartons and plastic film!  Leave to stand for at least 4 hours before switching on the product, to allow compressor oil to settle if transported horizontally.  Make sure there is no transport damage.  Do not damage the refrigerant circuit.  Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.

 Never use water to wash the compressor position, wipe it with a dry cloth thoroughly after cleaning to prevent rust.

 Handle the appliance always with at least two persons because it is heavy.  Install and level the appliance in an area suitable for its size and use.  Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.  The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.  Only for UK: The appliance’s power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.  Make sure that mains cable is not caught under the appliance during and after carrying/moving the appliance, to avoid the mains cable becoming cut or damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in

Thank you for purchasing this product.

order to avoid a hazard.

Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water. Do not install the appliance near heaters or inflammable materials. FOR appliances with a freezer compartment: if there is a power failure do not open the lid. Frozen food should not be affected if the failure lasts for less than the hours indicated on the rating label (Temperature rise time). If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen. If you find that the lid of the appliance is difficult to open just after you have closed it, don’t worry. This is due to the pressure difference which will equalize and allow the lid to be opened normally after a few minutes. Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance, it is not recommended to store materials that require strict temperatures. Do not excessively pull or fold the power cord or touch the plug with wet hands. Do not store products which contain flammable propellant (e.g. spray cans) or explosive substances in the appliance. Risk of explosion! Do not place unstable articles (heavy objects, containers filled

with water) on top of the refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with water.

Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer. Do not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries. At risk here are children, people who have limited physical, mental or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance. Check that children and vulnerable people have understood the hazards. A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance. Only children aged 8 years and above may use the appliance. Children should not play with the appliance. Children aged from 3 to 8 years are allowed to load and unload this appliance. FOR appliances with a freezer compartment: do not store bottled or canned liquids (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst! FOR appliances with a freezer compartment: never put frozen

(cyclopentane). It does not damage the ozone layer and does not increase the greenhouse effect. If refrigerant escapes, it may injure your eyes or ignite.

If the refrigerant circuit should be damaged: - Switch off the appliance and pull out the mains plug, - Keep naked flames and/or ignition sources away from the appliance, - Thoroughly ventilate the room for several minutes, - Inform customer service. WARNING: Do not damage the plug and/or the power cord; this could cause electrical shocks or fires. WARNING: Do not use multiple portable socket-outlets or portable power supplies. We do not recommend the use of extension leads and multi-way adapters. Do not attempt to sit or stand on the top of the appliance. You could injure yourself or damage it. This appliance is not designed for stacking with any other ones. The product is designed and built for domestic household use only. Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements. Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. - Clean regularly surfaces that can

food straight from the freezer compartment in your mouth.

Risk of low-temperature burns! Keep plastic parts and the door seal free of oil and grease. Otherwise, plastic parts and the door seal will become porous. Before performing any operation, unplug the power cord from the power socket. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not use pointed or sharpedged objects such as knives or forks to remove the frost. Never use hairdryers, electrical heaters or other such electrical appliances for defrosting. It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire. Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact always our customer service. Supervise children while the appliance is being cleaned or maintained. Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break. WARNING: The tubes of the refrigeration circuit convey a small quantity of an environmentally friendly but flammable refrigerant (R600a) and insulating gas

come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days. - Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. - Two-star frozen-food compartments(if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making icecream and making ice cubes. - One-, two- and three -star compartments, if present in the appliance, are not suitable for the freezing of fresh food. - If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mould developing within the appliance.  FOR Wine Coolers: this appliance is intended to be used exclusively for the storage of wine  FOR a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance  FOR appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs

Scrapping old appliances

This appliance is marked according to the European directive

2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules: - WEEE should not be treated as household waste; - WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present. In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

For better energy saving we suggest :        

Installing the appliance away from heat sources and not exposed to direct sunlight and in a well ventilated roo.

Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuos functionaliting of the compressor. Do not excessively stuff foods so as to ensure proper air circulation. Defrost the appliance in case there is ice to facilitate the transfer of cold. In case of absence of electrical energy, it is advisable to keep the refrigerator door closed. Open or keep the doors of the appliance open as little as possible Avoid adjusting the setting to temperatures too cold. Remove dust present on the rear of the appliance

EN This refrigerating appliance is not intended to be used as a built-in appliance

-Subtropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to

38 °C’; -Tropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C’;

Turn thermostat (1) to adjust the temperature between Min (warmer) and Max (colder ).

Green = CONTROL (The appliance is running) Red = ALARM (Interior temperature too high)

The storage temperature will decrease from Min.

It’s suggested to set the temperature at -18°C Super Freeze fun on (if available) 24 hours in advance.

The storage me for purchased deep-frozen products varies and depends on the type of product and its packaging. Therefore, strictly ons observe the producer/manufactures instr on the packaging.

CLEANING AND MAINTENANCE Always ensure that the power supply is switched o prior to conduc ng any maintenance or cleaning of the appliance.

If you leave your appliance out of use for an extended period,leave it open to prevent odour and unpleasant smells building up inside.

Install the appliance st location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

-Extended temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’; -Temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C’;

freezer regulary. The detail is as below part.

Clean the inside of your freezer at least once a year.

Close the appliance door, replace the plug in the socket and turn the appliance on.

10. Now re- the frozen food.

Do not use harsh chemicals,abrasives,ammonia, chlorine bleach,concentrated detergents,solvents or metal scouring pads.Some of these chemicals may dissolve,damage and/or discolour your freezer.

To prevent frozen food from defros ng, carry out the defros ng procedure within a maximum of two hours to reduce signi cant rise in temperature of the frozen food that would shorten the storage life.

Never use metallic scouring pads,brushes,abrasive

Clean door gasket every three months according to ins pliable to assure a proper seal.For positons, such as seams,solts,holes,and so on,the simple tools may be detachable shelves,trays,drawers and similar accessories can be cleaned through removed from the appliance and washed in the basin.

1. Door difficult to open? again for a few minutes. This is normal and means that door seal is working correctly. Just wait few minutes and you will be able to open the door easily. 2. No opera on (appliance not running/ge ng cold) Is there a power failure? Is the plug in good condi on and properly plugged into the socket?

DEFROSTING The appliance should be defrosted once the thickness of ice on the walls reaches 5-6 mm.

Do not use any electrical, sharp or mechanical objects to assistant in defros ng the ice removal process, unless supplied or approved by manufacturer or approved service centre.

3. Appliance not working su ciently/ ‘Red light’ is on

Is the lid of the appliance closed properly? Is there heavy ice forma on on the inner walls? Is the appliance exposed to direct sunlight or heat source? Have too much warm foods been put in the appliance? The clima c class can be found on the ra ng lable in the back of the appliance. It spec s the ambient temperatures at which the appliance will operate correctly.

To remove ice from the inner walls, use a plas c or wood scraper without sharp edges. Never use a metal scraper.

Proceed as follows: 1. Make sure to unplug the appliance. 2. Dry your hands thoroughly to prevent skin damage by contact with ice (it is advised to use gloves). 3. Remove all frozen food from the appliance, put it into a container, cool box, put the frozen cool blocks on top of the frozen food to help keep it very cold, and place the container or cool box in a cool, dry room. 4. Pull out the water drain plug (if available) located at the bo om of the appliance. Otherwise you must wipe up the melt water at the bo om of the appliance compartment with a sponge or towel. 5. Scrape the ice carefully from the inner of appliance and put it in to your kitchen sink, for defros ng. 6. Thoroughly clean the inside of the appliance compartment, rinse it with warm water and remove any spilt food or liquids.

____SN __ ____N ___ ____ST __

____T Ambient temperature

+10 °C to 32 °C +16 °C to 32 °C +16 °C to 38 °C______ +16 °C to 43 °C______

4. The appliance makes noise.

This noise is produced when the motor in the compressor operates and also by refrigerant owing in the cooling system circuit. These noises are normal. 5. Condensa on build up on external walls Under certain atmospheric condi ons, condenda on can from on external walls of the appliance. This is normal and won’t a ct the func on of the appliance.

tablespoon of baking soda to litre/quart of water.

Rinse thoroughly with water and wipe dry.Do not use cleaning powders or other abrasive cleaners. Do not wash removable parts in a dishwater.

Wipe the appliance with an absorbent cloth or sponge thoroughly dry and allow to air for about

3 to 4 minutes. Replace the drain-plug (if available).

EN AFTER-SALE SERVICE

1. Resolving faults by yourself If you suspect any fault, before conta ng the -sales service directly or via your approved dealer, make sure you have observed all instru ons and advice in this user manual. 2.

to save energy and maintain best performance , please,defrost the freezer regularly.Refer to User’s

DECLARATION OF CONFORMITY Consult the enclosed warranty card for available a er-sales services.

The manufacturer of the product/s described herein, to which this descrip on refers, declares on its sole responsibility that the product/s meet the relevant fundamental safety, health and protec on requirements of the relevant UK and EU requirements and that the corresponding test reports are available for examina on by the relevant authori es and can be requested from the seller of the appliance, especially with regard to CE Declara on of Conformity issued by the manufacturer or with the manufacturers approval.

In order to receive immediate help, make sure you have ready the following essen al data to iden fy your appliance:

Brand of appliance Model Serial number The problem or reason Date of purchase Purchased from/supplier To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/ Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance

Moreover, the manufacturer declares that the parts of the appliance described in this user manual, which come into contact with fresh food, do not contain any toxic substances.

The manufacturer works constantly at the further development of all products. Please therefore bear this in mind as the form, set up and technology are subject to change, without prior no ce.

Thermostats, temperature sensors,printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.

Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 years, after placing the last unit of the model on the market.

For further information about the product, please consult https://eprel.ec.europa.eu/ or scan the QR code on the energy label supplied with the appliance

GUARANTEE Minimum guarantee is: 2 years for EU Countries,

3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

PRECAUTIONS If your cabinet is to be discard,you must remove the door and leave the shelves in place.This will reduce the possibility of danger to children. And professional persons.
