NOVA - Baby car seat BEBE CONFORT - Free user manual and instructions

Brand	Bébé Confort
Model	NOVA
Product type	Car safety carrycot / Baby car seat group 0
Maximum child weight	9 kg
Age range	From birth to approx. 6 months (baby cannot sit up alone, roll over or sit up)
Estimated dimensions (L x W x H)	Approx. 80 x 40 x 30 cm
Equipment weight	Approx. 5.5 kg
Main materials	Textile, plastic, foam
Main functions	Carrycot for strolling (pram), car bed (secured by seat belt), baby carrier
Included items	Hood, covers, crotch strap, car safety kit, carrycot, cover, harness, carrying handles, mattress, apron
Safety	Compliant with decree no. 91-1292 December 1991; group 0; secured by 2- or 3-point seat belt on rear seat; mandatory retention harness
Warning	Do not use at height without approved support; replace after an accident; do not add extra mattress
Care and cleaning	Cover washable (check label), car kit cleaned with damp cloth. Do not iron.
Spare parts and repairability	Use only genuine Bébé Confort parts; under 24-month warranty, contact the retailer.
Warranty	24 months against material and manufacturing defects
Optional accessories	Rain cover, mosquito net (adult supervision required)
Vehicle use	Installation perpendicular to the road on the rear seat, tighten the seat belt
Compatible seat belt type	2- or 3-point belt, with or without retractor

Frequently Asked Questions - NOVA BEBE CONFORT

How to install the carrycot in the car?

Place the carrycot perpendicular to the road on the rear seat. Pass the seat belt (2 or 3 points) through the supplied car kit and tighten firmly. Move the front seats as far forward as possible so that the child does not touch them.

Up to what weight can the child use the carrycot?

The maximum child weight is 9 kg (group 0). The carrycot is suitable for babies who cannot sit up alone, roll over or sit up.

Can I wash the cover?

Yes, the cover is washable. Check the care label sewn on the fabric for washing instructions. Do not iron.

What to do in case of a car accident?

The carrycot must be imperatively replaced after an accident, even minor. Impacts may damage the structure and compromise safety.

Can I use the carrycot without the car safety kit?

No, the car safety kit is mandatory to ensure the car bed function. It can only be used with the designated carrycot.

How to adjust the retention harness?

Use the harness adjustment button (I) to adjust the straps. After placing the child, pull the strap to tighten the harness properly. Make sure it is not twisted.

Can the carrycot be used as a bed at home?

Yes, you can use the carrycot as an occasional bed on a flat, horizontal, firm and dry surface. Never leave the child unattended.

Is the hood removable?

The hood (A) is removable. It can be removed for cleaning or storage. Always use it to protect the child from sun or rain.

Which accessories are compatible with the Nova carrycot?

Only accessories sold and approved by Bébé Confort are compatible, such as the rain cover or mosquito net. Others may be dangerous.

Where to find the serial number of the carrycot?

The serial number is usually found on the identification label attached to the carrycot (under the mattress or near the handle). Have it handy for any service request.

USER MANUAL NOVA BEBE CONFORT

Congratulations on your purchase.

For the maximum protection and comfort of your child, it is essential that you read through the entire manual carefully and follow all instructions.

FR

EN - Instructions for use/Warranty

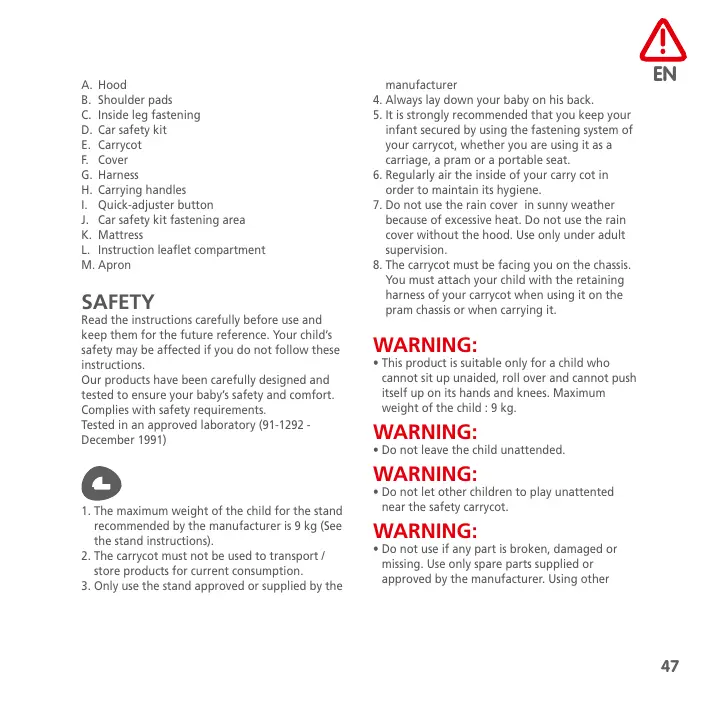

A. Hood
B. Shoulder pads
C. Inside leg fastening
D. Car safety kit
E. Carrycot
F. Cover
G. Harness
H. Carrying handles
I. Quick-adjuster button
J. Car safety kit fastening area
K. Mattress
L. Instruction leaflet compartment
M. Apron

SAFETY

Read the instructions carefully before use and keep them for the future reference. Your child's safety may be affected if you do not follow these instructions.

Our products have been carefully designed and tested to ensure your baby's safety and comfort. Complies with safety requirements.

Tested in an approved laboratory (91-1292 - December 1991)

1. The maximum weight of the child for the stand recommended by the manufacturer is 9kg (See the stand instructions).
2. The carrycot must not be used to transport / store products for current consumption.
3. Only use the stand approved or supplied by the

manufacturer

1. Always lay down your baby on his back.
2. It is strongly recommended that you keep your infant secured by using the fastening system of your carrycot, whether you are using it as a carriage, a pram or a portable seat.
3. Regularly air the inside of your carry cot in order to maintain its hygiene.
4. Do not use the rain cover in sunny weather because of excessive heat. Do not use the rain cover without the hood. Use only under adult supervision.
5. The carrycot must be facing you on the chassis. You must attach your child with the retaining harness of your carrycot when using it on the pram chassis or when carrying it.

WARNING:

• This product is suitable only for a child who cannot sit up unaided, roll over and cannot push itself up on its hands and knees. Maximum weight of the child: 9 kg.

WARNING:

• Do not leave the child unattended.

WARNING:

• Do not let other children to play unattended near the safety carrycot.

WARNING:

• Do not use if any part is broken, damaged or missing. Use only spare parts supplied or approved by the manufacturer. Using other

accessories could be dangerous. The handles and the bottom should be inspected regularly for signs of damage and wear.

WARNING:

• It is dangerous to use or place this product on a raised surface except on the stand sold and approved by the manufacturer.

WARNING:

• To avoid the risk of suffocation, keep all plastic bags and packaging out of reach of babies and young children.
  Always use the harness provided with the item.
• Ensure that all the locking devices are engaged before use.
• Do not add any additional matress other than the one provided with the safety carrycot.
• Use only on a firm ground which is horizontal, level and dry.
• Be aware of the risk of open fire and other source of strong heat, such as electric bar fires, gas fires, etc., in the near vicinity of the safety carrycot.

1. Approved for group à 0 (up to 10kg or approx 10 months).
2. Use of the car safety kit is obligatory to provide the car cot function of the carrycot.

3. This car safety kit may only be used with the carrier for which it is intended.

4. For optimum safety of your baby in the event of lateral impact in a car cot, it is important not to position the child's head on the door side.

5. The carrier may only be fitted on the back seat of cars which are fitted with 2 or 3 point safety belts, whether they are the inertia reel type or not, which comply with regulation no. R16/ECE/EEG.
6. The carrycot is fitted to the rear seat of the vehicle at a right angle to the road, and solidly fixed to the seat.
7. Firmly tighten the carrycot against the seat of the vehicle. Please check that the belt is well tightened before driving.
8. Put the front seats as far forward as they will go so that the child does not come into contact with them.
9. Do not use carrier contact points other than those described.
10. It is recommended that the handles are not left in carrying position during use of the carrycot as a car cot. It is advisable to put them back into the carrycot.
11. For your safety and your child's, always fix the carrier in the vehicle; always strap your child in with the safety harness, however short the journey you are making.
12. After putting your child in place, ensure that the belt is suitably tight by pulling the strap. You should also check that the belt is not twisted.

13. In some vehicles, the safety belt strap may be too long and positioned too high. This prevents the carrycot from being fixed securely. If this happens, choose another location in the car. If you have any questions relating to this issue, you should contact the manufacturer.

14. Even minor shocks which happen as a result of a collision with another vehicle can transform your baby into a real projectile.

15. The user must always ensure that luggage or items that are likely to cause injury to the occupant of the carrier in the event of a collision must be securely stowed away.
16. Always check that no part of the safety kit or harness is trapped under a seat or in the door of the vehicle.
17. Never place heavy objects on the rear parcel shelf to avoid them being thrown during an accident.
18. Never make any modifications to the construction or materials of the car safety kit and the belt.
19. The child restraint must not be used without the cover. should not be replaced with any other than the one recommended by the manufacturer as the cover constitutes an integral part of the restraints performance.
20. Do not use the rain cover and the mosquito without the hood. Do not use the mosquito net inside the car. In case of emergencies it may restrict access to the child. Use only under adult supervision.
21. The temperature inside a car can get very high, especially after lengthy exposure to the sun. In these conditions it is strongly recommended to cover the harness with cloth or other material which will prevent the harness fitting/ fixtures, and other metal components, becoming too hot and burning your child.
22. Use only the accessories sold or approved by the manufacturer. The use of other accessories may be unsafe.
23. The rigid elements and plastic parts of a child car

seat must be fitted and positioned in such a way that, under the conditions of normal vehicle use, they cannot become trapped under a mobile seat or in the door of the vehicle. This child car seat is only effective when used in accordance with the manufacturer's instructions. Under no circumstances should you modify this car seat in any way.

1. It is essential that the carrycot be replaced after an accident.

Maintenance

After dismantling (make sure you have well noted how the various pieces are assembled on the seat in order to assemble them back properly).

• For washing the garment, please consult the instructions on the label.
• Never iron.
• Only use a damp cloth to clean the car safety kit.

Environment

Keep plastic covering away from children to avoid suffocation. For environmental reasons, when you have stopped using this product, we ask that you dispose of the product in the proper waste facilities in accordance with local legislation.

Questions

Please contact your local Bébéconfort distributor or visit our website, www.bebeconfort.com When doing so please have the following information to hand:

• Serial number.
• Age (height) and weight of your child.

Warranty

Our 24 months warranty reflects our confidence in the high quality of our design, engineering, production and product performance. We confirm that this product was manufactured in accordance with the current European safety requirements and quality standards which are applicable to this product, and that this product is free from defects on materials and workmanship at the time of purchase.

Our 24 months warranty covers all manufacturing defects in materials and workmanship when used in normal conditions and in accordance with our user manual. To request repairs or spare parts under warranty for defects in materials and workmanship you must present your proof of purchase, made within the 24 months preceding the service request.

Our 24 months warranty does not cover damage caused by normal wear and tear, accidents, abusive use, negligence or the consequence of failing to comply with the user manual. Examples of normal wear and tear include wheels and fabric worn down by regular use and the natural breakdown of colors and materials over extended period of time and use.

What to do in case of defects:

Should problems or defects arise, your first point of contact is your [Bébé Confort] dealer or retailer.

Our 24 months Warranty is recognized by them

(1). You must present your proof of purchase,

made within the 24 months preceding the service request. It is easiest if you get your service request pre-approved by [Bébé Confort] Service. In principle, we pay for shipment and for return freight connected to service requests under the warranty. Damage not covered by our warranty or on products outside of warranty can be handled at a reasonable fee.

This Warranty is in compliance with to European Directive 99/44/EG of 25 May 1999.

(1) Products purchased from retailers or dealers that remove or change labels or identification numbers are considered unauthorized. Products purchased from unauthorized retailers are also considered unauthorized. No warranty applies to these products since the authenticity of these products cannot be ascertained.

visite oulosso sitiO Web www.bebeconfort.com.

• HNKoRda He octabnIte pe6eHka 6e3 npncMOTpa.

BHIMAHHE:

He N03BOLJIte DZPMTHDMETRnHPa8t 63E pnmCOTPAJROM C nepEHCOHKOPIHOH.

BHIMAHHE:

He IcnoN3yIte,ecn KAKA-NiBO Detanb CmOHaNA, NOBpeKdena HIN OTCYCTBYET. IcnoN3Hne TOLKBO 3aNaChbte qaTcH, NocTAbNREMbe HNOOpBeHHe npOn3BODiTeHE. IcNoN3BoAHNpApYrX akccceCyapOB MOKeT 6bIb OnaChbM. PekomeHdyetcpeyIAPHO npOBePrtb PyuN i OCHOBaHne nepEOCHOI KOP3nHb Ha HAnHne NOBpeJdenn HIN N3HOCA.

BHIMAHHE:

• ONAchO pa3MeaHTb INI NcNOBb3OBaTb 3TO n3dJIeNHe Ha BbCOKo NObepxHOCTn 6ez nOCTaBKn, npOdaBaEMo IN peKOMeHDoBAnHO npONBDOJITNEm.

BHIMAHHE:

• Bo n36ekhme pncska yduuheny xpaanhte nlaactHKOBME naKetbI, b KOTOPbe dAnHoe i3dennpe 6bilo 3aBepHyto, B HeDcctynHom dIra ManbIe H detei Mecte.
  HeNbO3aBtBaTcKONKoBe3nUdyuXH B KOMNJIKeTe PEmHH6E203nAChOnTH.
• YBeDnteB TOM, YTO BCE 3aInpaioune UCTPOCTBa BXOATB KONTACT 3aUenHnne HpeNd INCNOB3OBAHmE.
• He nccnlo3ybepyrneMatpacb, kpoMe NOCTABEMORG BMECTC nepeHcHoiK OKP3HOH.
  pa3pewaaTcTaNbTb TOnbKO Ha TBepyO cyxyIO

NIOCKyIO ROpN3OHTaNbHbYIO NOBepXHOCTb.
ИзбаягейханждениOTKрьTOROогн ИДpyTNXNTOCHUNOBINTCENBHROHArpeBaHnA，TaknxKakra30BbeNIIeNKTPuYeCKNEHarpBeaTeI，BNHOncPcDCTBHeHON6bIO3OToNTpeHOCHOHOPK3MHbIINOLKAnK.

1.Odo6peNoIg rpynbl aO（do 10Kr nn pnpmeHO do 10 mecaueB)
2.Пи Ипольшовни посян соркимы в abTomob6иopleябноИспoly6ьатcpeдтва 6e03aNoCTNв АгмОБиile.
3.CpeDCTBA 6eOZANCHOTN B ATOBMO6IpePbAeTcN CIOJbO8aT BoTko CpeHocHOKOp3HIOH, C KOTOPOH OHN OCTABNIOCTC.
4.ДдОБсЕСЕЧЕНИЗБЕОПАССТСВЕВЕРеБЕСКИ пгОпОпЕЧЕНМОТКLOнБЕСHINBAЖно рамMuTeAчтбЕРБЕСКЮLOВКФьнkaшMuDEРi.
5. IpeHoHCHyoKoP3NHy Pa3peJeaTeCtYcTaNabNtBbTaTolbko Ha 3aDHee CnIeHe BAtOMob6nla, KOTopoBeO6OpyDObaHO DByx- NIn TpExTOChyHMPeHMn 6E0NaNACOnCTn (C 6paBa6HHnHnatKaJnteMe NIn 6e3), COOTBETCTByOuIMnCTaHdApTy R16/EEC/EEG.
6. IpeHocHna KOp3HaNHa yCTaHbAINBaETcRa 3aJHee CnIeHBe TpAHcNPtHO T CpeCTBa NOd pIpaBnblbym Yrnom IO OTHoWEnHIO K DOpore H naJeKHO 3aKpePJIeTcRa H cNiEbe
7.npOHO 3aFHKUPOBAtpeHcCHyO KOp3HNHa KpeCte ABTOMOJIPL. PpeD HauJOM DnJEKeHHN yEeHbTcR,HTo PemHe b6eONaChOTn HAdEKeHtZAKPENJIH.

8e. HengBnHytB nepeHne HcIeHbKa KaoMxO H6nKe BnepE, T06bl pe6EHok C HmHHe CTOnKHyNcJ.
9.HeIcNoBlyteYKOHTaKTHYeTOUCKINKOLAACKN,OTUNHNEOTONCAHNbHKs.
10. Pekomehdyetcne Hceotabnpykmb NOLOJeHNHpeNoCHKnpnNCNOL3OBAHn peHecHOH KOp3HHb ABTOMOBHe Heo6XoDmO BCTABHTb INB CNeuaJIbHbE HNIH bPeHOCHOH KOp3Hne.
11.ДЯобсесенья вашеве Бзогонocstи n 6beonacshoctn b waeero pebeshka neobxodmno nadezhko 3akpenjnta nepenochyu kopznihy na 3adhem cndheb aBtOMOBnla, npncTeRnBaT bpebeshka cneuaIbHbI mepemHem 6eonacshoctn n noKDnaIbBbTaNo er oer OOryo nOIOroBnHK, dacke eCNIpoe3kDa 6ketdKOPOTKoi.
12. Nocse yknaibbainha pe6eHnka B kop3nHy Heo6xOdImo 6yeiDtbcya, Yo OH naedHexno npicteHTy pemHm. Heo6xOdImo taKne 6yeiDttcb, Yo pEmhNe he nepeKpyen.
13. Ha hekotopbix tpaHcNOptbIXx cpeIcTBax peMeHb 6eOnaCHOt M MoKet 6bI cNlKoM dNnHHbIM MoKet 6bI paCnIoNoH cNlKoM bICOkO. 3To He No3B0JInae HadeKeHO 3aKePentb KOp3Hy. B 3ToM cNcyae HkyHO b6PaTb dyPoE MEcTONoLKeHHe B AToM o6JIne. Ppi B03NHKOBEHIN BONpOCB B 3To M OTHoEHIN OBpatmtTeck K npOnBODIpTeIO.
14.Дампг� МИнмальом CTOLKHOBENN CpyrMn TpaHcNpOThb MpeCtCBM pe6eHOK NOHePCHN MOKET BInACTb IN KOP3HbN.
15. He6xOdIIMO yEeBntyC, 70 TaBaJz IIN dApyrte Bceiu, KOtporbIe MOrT hAneCTn BpeD peBekHy K oP3HNe npi AbaRpn, DOnkHHb BybT hAneJHO 3aKpENJIH na

DOCTaTOUHOM paCCTOAHN OT KOp3INbI.

16.HeoXoJIMO y6eJntbC8, TTO HN OdH N3JeMeHT cpeCTB 63eOanachOCTn B ABTOMoJIn eIIN pEmH4 63eOnaChOCTn He npaln oD CnEHe I He npKJat DBeBIO.
17. He paskmeuath Tjekelbe npedmetb Ha noankie 6aaknka Bo n36ekanhe nnonadnna Hs ha pe6ekenka npn abanin.
18.3anpezaetcra BHOCTb 3MmehenBn 18 KOHTpyKUHIOI NII 3MaHEITb MaTePbAIB, n3 KOTobpIX cIeJIaH bCpeCTBa 6E3NaCHOCTN b ABOMOUIne I pEmHH 3E3NaCHOCTN.
19.3anpeaetcaHcNIOH3OBaTbYcPOrCTBa ORpaHnEHnDINbEHNHeYpe6BnKa 63KpbIeK, a TAKKe 3aMeHNbTbXHa YcPOrCTBa, He OIOBpENHeH pNO3BQoDInTelem. KpbIeKu RbIAOTcR HeOTbEMJIeMOaCTbOy cPOrCTB ORpaHnEHn DINbEHNHe pEObHa.
20.He nCnOlb3OBaTb PnACTKOBbl HENPOMOKaEMMb m AnTHKOMapHIny CetKy cexyo6 Te3 He. Ta HcNcIb3OBaTb AHTKOMAPHIny CetKy BHYtpr ABTOMO6Bm.B HnEPBdINeHHBX CNYaTaynx OHa MKeet OrpAnHIVBaTb DoCTyn K p6Ekyh. UcNcIb3OBaTb ToTBko ND npICMOTPM B3POCSbX!
21.Temnepatya BHTyn ABTOMOBJMOKet 6bIy OChEB bYcOKO,OCbEHO cENI ABTOMbJI HAXODITCA BMeCTe,OTKbIbTOM IaNpBIMx COJIHNeHbIX NyeB. B TAKIN cnYayax peKOMeDyETcA hKpBbATb CpeCDtBa 6BeONaCHOCTN B ATOMBIO TEKAHbIO NIn DpyrIM MATEPAMON,TOb6I INbEKbATb HArpeBaHH KpenIeHH pEmHeN iDpyrN MeTAJIneCcknx qaCTei, KOtOpBE MOYTHaHECTOn OKR pEbeHKy.
22.Испόнь3ОВаТ товькоakceccуapbl,

noctabarnemyi noo6bpehnyn noo3bodentene. Iocnlo3banae apyrnx akccecyapor he6e3onacho

1. JezKTHKe 3eMEmbHTbI IN IaJcTNIKOBBe YaCTINDeTCKOHNOP3NbHbONDkHbTaCahABnIBaBcTaTAK, YTObI pRi HOpMAhBOMcNPONLbOBAHHaBbOMoBIOH O NHn E nonAANI NODpNDBnIXHOe CnDEHeN B DBePNOH pOnEM. FapAnHTpyetc3ΦΦEKNBHOCT McNPOB3OABAHdHaONKOP3NbTOKnO pRn CTPOROM CNeDObAHHu NHTCPYKUIMN pOn3BDoNTeN. 3aNPeAeTC MoDnPhiuipPoBaTdaHNHyO KOp3NY.
2. Heo6XdoHm6ObatBbHOZaEMHbTnepeHOChHyO KOPIHYNOCHEAABPHY

OBCJLYKMBAHNE

CHIMMITE 6OBINKY (y6EJIITECB, YTO CMOJETE CHOBA npaBnIbH yOCTAHOBITb pa3NHyUe qAeTn Ha MeTo pnp C6Opke).

-Информаяни STСКРDE NOKРБТУР NBIEDEHA B INCHTPyRUHAN Ka THTKETe.
-He yTIOXKNTb!
- PIPN OCHTKe CpeCTB 6eONACHOChT B ATOBOMINE NcNbONJIyBE TOnIbKO BnAChKyIO TKAhJ.

Okpykaioza cpeda
