USER MANUAL MW 9675 SEVERIN

Mikrowelle MW 7854 MW 7861 MW 9284

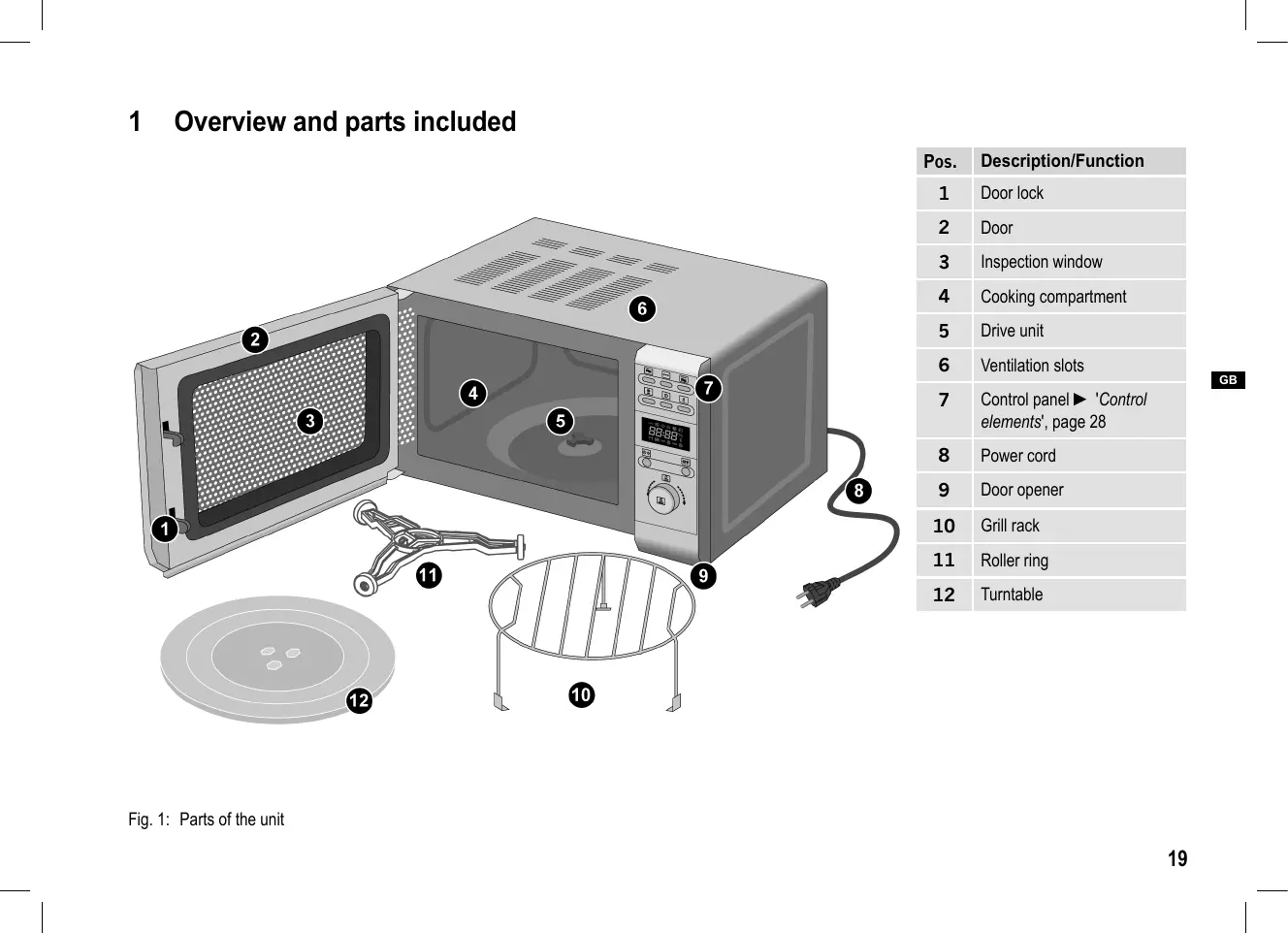

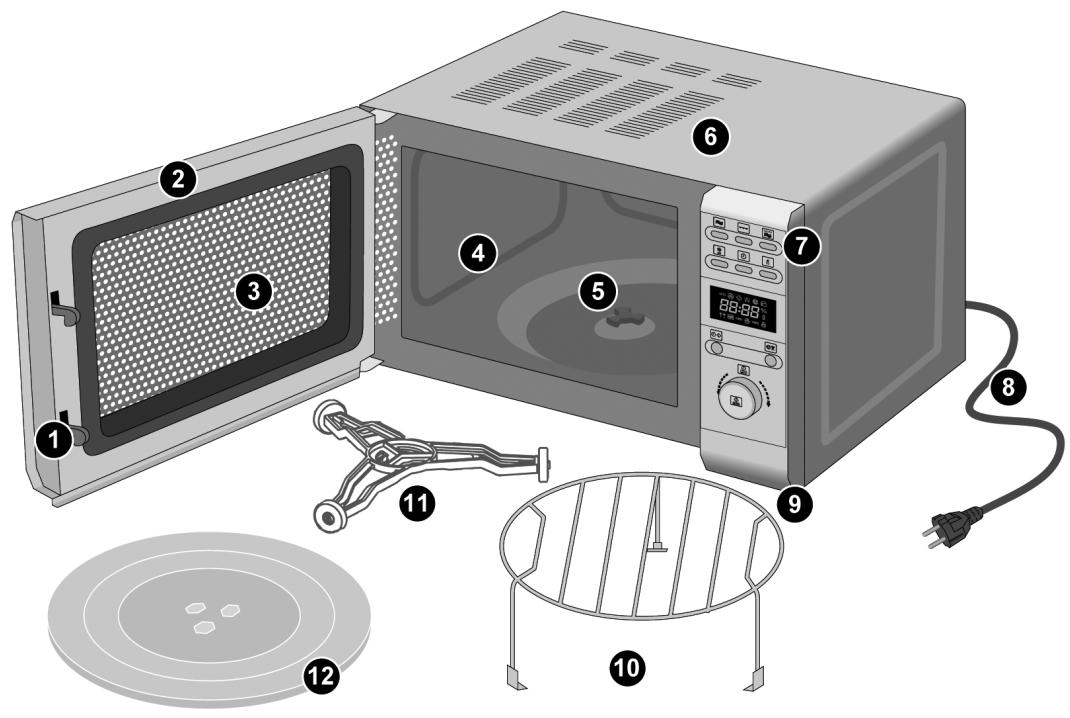

Overview and parts included

Description/Function

Overview and parts included 19

For your safety 21 Technical specifications 26 Before using for the first time 27 4.1 4.2 4.3

We wish you much pleasure and satisfaction with this SEVERIN quality product, and thank you for your confidence. For over 120 years, the SEVERIN brand name has been synonymous with consistency, German quality and developmental strength. Each unit has been produced with great care and tested extensively. With proverbial 'Sauerland' thoroughness, precision and honesty, the family-owned business - based in Sundern, Germany - has drawn customers worldwide with innovative products since the company was established in 1892. With its eight product groups - coffee, breakfast, kitchen, BBQ, household, floor-care, personal care and cooling & freezing - SEVERIN offers more than 250 products, a truly comprehensive range of small electrical appliances, with the right product for every occasion. Get to know the wide SEVERIN product range, and visit us at www. severin.de or www.severin.com. Your SEVERIN team

Always follow the Instructions for Use

Please read the instructions carefully before using the appliance, and keep them in a safe place. If the appliance is handed over to a third party, these instructions should accompany it. Failure to comply with the instructions could result in serious personal injury or damage to the appliance. Important safety information beyond the contents of this chapter is prominently marked, as below, and should be followed at all times in order to prevent accidents and damage to the appliance: WARNING Denotes information that must be followed in order to avoid serious personal injury or death. CAUTION Indicates information which must be followed in order to prevent damage to the appliance. HINT Presents hints and other useful information.

Danger to certain categories of persons

There is an increased risk of injury for children and for people with reduced capabilities: • This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved. • Children must not be permitted to play with the appliance. • Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised. • Caution: Keep any packaging material well away from children – it is a potential source of danger, e.g. of suffocation. • Persons with sensitivity disorders, especially those with reduced sensitivity to differences in temperature, must definitely exercise increased caution when using the appliance. 21

GB This microwave oven is intended for defrosting and heating food and beverages only. Any other use must be considered improper and may lead to personal injuries or material damage.

• The appliance is intended for domestic or similar applications, eg in offices and similar locations. It is not suitable for commercial use, eg in commercial kitchens. • The appliance is not intended to be operated by means of an external timer or separate remotecontrol system. • The appliance is not intended to be used for drying purposes. • The unit must not be installed inside a cupboard. • WARNING: It is highly dangerous to heat up liquids or any kind of solid food items in closed containers in the unit, since there is a real danger of explosion.

• Eggs in their shells or whole hard-boiled eggs must not be heated up in a microwave oven, since they may explode even after the microwave heating process has finished.

Electricity The device is powered by electricity, and so there is always a risk of electric shock. The following precautions are therefore to be taken: • This appliance must only be connected to an earthed safety socket installed in accordance with the regulations. Do not use extension cords or multiple socket strips. • The appliance must only be connected to the mains if the voltage marked on the rating label corresponds to the supply voltage. • Do not kink or pinch the power cord. Keep both the cord and the appliance itself well away from heat sources (eg hot-plates, gas flames). • When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself. Do not carry the unit by its power cord.

• Do not immerse the appliance in water or any other liquid, do not clean it under running water and do not put it in a dishwasher.

• Do not touch the plug with wet hands. • Do not operate the unit outdoors. • In the case of an emergency or malfunction, disconnect the appliance from the mains immediately. Ensure, therefore, that the plug the appliance is connected to is accessible and can be removed from the wall socket at any time. • Always remove the plug from the wall socket before any cleaning or maintenance work is carried out, or before assembling or disassembling the appliance. • Do not attempt to open or dismantle the unit, and do not attempt to make any technical modification. • As long as it is connected to the mains, a current is present inside the unit, even if it is switched off. The unit is disconnected from the mains only once the plug has been removed from the wall socket.

• Always remove the plug from the wall socket after use.

Danger of burns and scalding • Use extreme caution when removing liquids from the oven after microwaving them: they may have heated up beyond boiling-point without visible evidence of bubbling. • The contents of baby bottles or glass containers with baby food must be thoroughly stirred or shaken to ensure that the temperature is evenly distributed. To avoid painful and dangerous scalding, always check the temperature before feeding a child.

• Do not switch the unit on unless food has been placed inside the oven.

• Do not operate the appliance without the roller ring and turntable properly fitted. • Do not leave the appliance unattended while in use. • Do not use the appliance to dry food or clothing. There is a danger of such items catching fire. • Do not use the appliance to heat up warming pads, house slippers, sponges or wet cleaning cloths etc., as this may cause injury, combustion or fire. • Do not use the appliance to heat up pillows or pads filled with grain, cherry stones or gel. • Use only kitchenware suitable for use with microwave ovens, ►'Selecting suitable kitchen utensils', page 27. Do not use any utensils with metal decoration such as gold rims etc. Do not use any metal containers when heating up food or beverages using the microwave function. 24

• Should any smoke be noticed during operation, switch the unit off immediately.

Danger from microwave radiation Microwave radiation poses a risk of burns. • Do not remove the protective cover (silver plate on the right interior compartment wall) in front of the microwave outlet inside the cooking compartment. • Do not operate the oven with the door open. Lack of hygiene If the cooking appliance is not kept properly clean, there may be deterioration of the surfaces, subsequently affecting service life and leading to potentially dangerous situations. Lack of hygiene may result in germs forming inside the appliance. • Clean the appliance at regular intervals. • Remove any food residues after use. • Do not store any food items inside the oven.

There is also a health risk if unsuitable cleaning agents are used:

• Only cleaning agents and utensils specified in this manual should be used for cleaning the appliance. • Do not use any steam cleaning appliances for cleaning. Danger of damage to the unit Incorrect handling of the appliance can cause damage: • Always place the unit on a dry, level, non-slip and heat-resistant surface. • Before the appliance is stored away, remove the plug from the socket and allow the unit to cool down completely. • To prevent the appliance from overheating, ensure that the ventilation slots are not obstructed in any way.

• WARNING: Do not use the cooking appliance, if the door or its seals show any sign of damage, but have it repaired by qualified personnel. • Check the device for damage prior to every use. In the event that you detect damage due to transport, immediately contact the dealer where you have purchased the device. • Never operate a defective device. Never operate a device that has fallen down. • If the power cord of the unit shows any sign of damage, it must be replaced by the manufacturers or by Customer Service, or similarly qualified personnel to avoid any danger. • Any maintenance or repair work requiring the removal of any microwave radiation protection cover represents a serious hazard to unqualified persons. The unit must not be opened, except by qualified personnel.

In case of a defective appliance

A defective appliance can cause material damage 25

• The unit does not contain any components that can be serviced or repaired at home. Repairs must only carried out by SEVERIN Service (see

►'Customer Service Centres', page 212).

Device category and type

Microwave oven with grill function MW 7854

approx. 1200/700 W (microwave) approx. 900 W (grill)

Dimensions (W x H x D)

452 mm x 262 mm x 356 mm

Do not dispose of in domestic garbage. This product complies with all binding CE labelling directives.

CAUTION - Hot surface. Allow appliance and its components to cool down.

Safety class I General information on microwave ovens

(Group II, Class B in compliance with EN 55011) Electromagnetic energy is generated inside the unit, causing the molecules in the food (mainly water molecules) to oscillate and subsequently causing the food to become hot. Food with high water content will therefore heat up faster than relatively dry food. Any utensils, container or plates used are heated up only indirectly as a result of the food temperature. This appliance is a group 2 class B ISM device. Group 2 contains all ISM devices (industrial, scientific, medical) generating radio frequency energy and/or using radio frequency energy in the form of electro-magnetic radiation to process materials; it also comprises spark erosion devices. Class B specifies devices designed for domestic use, or any similar devices integrated in the general power grid supplying domestic units.

Before using for the first time

4. Push in the rotary control

1. Remove any exterior and interior packaging materials and protective foil.

2. Press the door opener to open the oven.

5. The appliance should be set up at a site which meets the following requirements:

• near an earthed safety socket (minimum fuse protection 10 A), •

positioned horizontally and protected from shock and vibration,

well away from any heated or inflammable surfaces and objects

well away from walls (> 20 cm top, > 10 cm rear, > 5 cm on the sides). lights up.

4.1 Setting the clock

For the timer to function properly, the internal clock must be set correctly: key. 1. Press the � The display shows: Hr:12 This indicates that the time is shown in the 12-hour-format.

3. Turn the rotary control

1. Press the door opener to open the oven.

4. Clean the unit, ► 'Cleaning and care', page 32.

2. Press the � The display shows: Hr: 24 The time is now shown in the 24-hour-format. Press the again to return to the 12-hour-format.

6. Push in the rotary control

4.2 Fitting the turntable

3. Remove the grill rack, turntable and roller ring from the cooking compartment.

6. Connect the appliance to the mains.

� The display shows a certain time and the symbol

to confirm. to set the minutes.

5. Turn the rotary control

2. Place the roller ring into the centre of the cooking compartment.

3. Put the turntable onto the drive unit so that the holding lugs are connected.

4.3 Selecting suitable kitchen utensils

GB Round, transparent containers are most suitable for microwave cooking.

As microwave radiation cannot penetrate metal, do not use any metal containers or kitchen utensils with metal rims when using the microwave or combination programmes. The following table provides an overview of the containers suitable for microwave cooking: Materials

Heat-resistant ceramic/ glass

Microwave-suitable plastic

Aluminium foil / tray

Microwave ► 'Microwave cooking', page 29 Grill ► 'Using the grill function', page 29 Combination programme ► 'Using the combination programme', page 30

GB Defrost function ►

'Defrosting food and liquids', page 30 Setting the clock ► 'Setting the clock', page 27 Setting the weight Timer ► 'Setting the timer', page 31 Cancel/Back Rotary control/Quickstart

WARNING! Fire hazard! –– Use only containers suitable for the chosen operating mode, ► 'Selecting suitable kitchen utensils', page 27. WARNING! Danger of burns! –– Be careful when you take the hot food or beverages carefully out of the cooking compartment, as the containers themselves may have heated up as a result of their hot content. –– To prevent any danger of explosion, do not heat up liquids or food in sealed containers. –– Use extreme caution when removing liquids from the oven after microwaving them: they may have heated up beyond boiling-point without visible evidence of bubbling. HINT: The cooking, heating or defrosting process may be interrupted at any time by pressing the key. Press the key again to cancel the process altogether.

6.1 Microwave cooking

When food is to be microwaved, it should be covered in a suitable way to prevent it from drying out. 1. Put the food to be heated in a microwave-suitable container (►'Selecting suitable kitchen utensils', page 27) and place it on the turntable. 2. Close the door. 3. Press the to operate the microwave function. � The display shows 100% and . 4. Press the settings.

key repeatedly to switch between the individual power

HINT: The power settings are given as percentages, corresponding to the following values: 100%: approx. 700 W 80%: approx. 560 W 60%: approx. 420 W 40%: approx. 280 W 20%: approx. 140 W 00%: This setting allows the components to cool down after prolonged operation, and removes any water vapour or steam from the cooking compartment.

5. Turn the rotary control

6. Push in the rotary control

to set the desired processing time. to start the cooking process.

1. Put the food to be heated or cooked in a microwave-suitable container

(►'Selecting suitable kitchen utensils', page 27) and place the container on the turntable. 2. Close the door. . 3. Push in the rotary control � The food is heated at maximum power for 30 seconds. Push in the rotary control repeatedly to increase the heating time in 30– second stages.

Fire hazard! –– When using the grill function, always ensure a minimum distance of 2 cm from the top of the interior compartment. HINT: Before the microwave appliance is used for the first time, let it heat up on the grill setting (without the microwave function activated) for approximately 10 minutes. This will remove the smell typically encountered when first switching on a grill. A little smoke may be emitted; this is quite normal, but ensure there is sufficient ventilation. 1. Put the food to be heated or cooked in a container suitable for grilling (►'Selecting suitable kitchen utensils', page 27) and place the container on the turntable. 2. Close the door.

� The display shows 0:00 and 4. Turn the rotary control 5. Push in the rotary control

to set the desired processing time. to start the cooking process.

6.3 Using the combination programmes

The appliance features two combination programmes: • COMB1: The microwave function is active for 30% of the preprogrammed time, while the grill function is active for the remaining 70%. •

GB COMB2: The microwave function is active for 55 % of the preprogrammed time, while the grill function is active for the remaining

1. Put the food to be heated or cooked in a heat-resistant glass or ceramic container, and place it on the turntable.

2. Close the door. key. 3. Press the � The display shows 0:00 and between and . 4. Turn the rotary control 5. Push in the rotary control

to start the cooking process.

6.4 Defrosting food and liquids

1. Put the food to be heated or cooked in a microwave-suitable container (►'Selecting suitable kitchen utensils', page 27) and place it on the turntable. 2. Close the door.

7. Turn the food over. 8. Close the door. 9. Push in the rotary control

to continue the defrosting.

6.5 Using the cooking programme

The appliance offers several cooking programmes for different dishes which heat the food according to weight/amount and automatically determine the required power setting and duration of the cooking/heating process. 1. Put the food to be heated or cooked in a heat-resistant glass or ceramic container, and place it on the turntable. 2. Close the microwave door.

to set the desired processing time.

3. Press the � The display shows 100g and

key repeatedly until the display shows the desired weight.

to start defrosting.

5. Push in the rotary control � Once two thirds of the programmed defrosting time has elapsed, the process stops and a beep signal is heard .

3. Turn the rotary control selection.

anti-clockwise, to call up the programme

4. Turn the rotary control

to select the desired programme.

Type of food/beverage (measuring unit to be set)

Milk/coffee (200 ml cup)

Spaghetti (g) (spaghettis in a microwaveable tray, cover completely with water)

Potatoes (230 g pieces)

Heating up according to weight (g)

The appliance has a timer, enabling you to start a programme at a certain time. This function can be combined with any programme (except defrosting and quick-start).

1. Put the food to be heated or cooked in a microwave-suitable container (►'Selecting suitable kitchen utensils', page 27) and place it on the turntable. 2. Close the door. 4. Press the

to start the heating/cooking process.

6.6 Pausing/interrupting the process

1. You can interrupt the cooking process at any time by pressing the key, or by pressing the door opener. 2. Press the

3. Select the desired heating/cooking method.

key repeatedly to set the desired amount/ weight.

6. Push in the rotary control

key again to cancel the process altogether.

HINT: A process that has been interrupted in this way may be continued by simply closing the door and . pushing in the rotary control

5. Turn the rotary control

7. Turn the rotary control

8. Press � The symbol shows on the display, and the indicators of the programme selected light up.

Cancelling the timer setting

key to bring up the current timer setting.

key to cancel the setting.

Child safety lock / Acoustic signal

The appliance is equipped with a childproof safety device which locks it and rejects any key input with a double-beep.

• Press and hold the key for 3 seconds. Follow the same procedure to unlock the appliance again. HINT: With the childproof safety device activated, the door can still be opened.

WARNING! Electric shock hazard! –– Remove the plug from the wall outlet before cleaning the appliance. –– Do not immerse it in water.

1. Ensure that the appliance is not operating, has cooled down and is disconnected from the mains, and that the cooking compartment is empty.

2. Remove the turntable and roller ring from the cooking compartment.

When any control button is pressed or the rotary control turned, a correct input is acknowledged by a beep signal.

To cancel the signal, press and hold the button for three seconds.

3. Wipe the cooking compartment and door with a damp cloth. For stubborn stains, a non-caustic, non-abrasive cleaning agent may be used.

Note: Cancelling the beep signal in this way only affects the use of control button or rotary control; the signals indicating programme sequences will still be active.

To re-activate the signal, press and hold the button again for three seconds.

5. Clean the turntable and roller ring with warm soapy water.

4. The housing can be cleaned with a damp cloth.

6. Leave all components to dry. 7. Replace the roller ring and turntable.

10.1 Solving problems yourself WARNING! Risk of injury. The appliance does not contain any components that you can service or repair yourself.

Sparks are detected during operation.

Unsuitable kitchen utensils.

Use only microwaveable kitchen utensils, without any metal parts or decoration.

Metal objects inside the cooking compartment.

Ensure there are no metal objects inside the cooking compartment when microwaving.

The turntable jerks or does not move smoothly.

The roller ring and cooking compartment base are not clean.

Clean both parts, ►'Cleaning and care', page 32.

The food or beverages are not cooked or hot enough.

Increase the power setting.

Cooking/heating time too short.

Select a longer cooking/heating time.

The food or beverages are burnt, overcooked or too hot.

Too much power. Select a lower power setting.

–– Never use a defective appliance!

–– Do not attempt to carry out any repair work yourself. If a defect is found, contact our Customer Service Department (see ►'Customer Service Centres', page 212). Before you contact our Customer Service or send the appliance in, please use the following table to check whether the problem can be solved at home. Problem

The appliance does not switch on.

The power plug is not inserted properly.

Insert the plug into the wall outlet.

The appliance does not react to any key input.

The childproof safety device is activated.

Deactivate the childproof safety device ► 'Childproof safety lock', page 32.

The cooking process does not closed properly. start.

Close the door firmly.

Cooking/heating time too long.

Select a shorter cooking/heating time.

–– If the suggestions in the table do not lead to a satisfactory result and the problem persists, contact our Customer Service Department (see ►'Customer Service Centres', page 212). –– Should you require replacement parts or accessories for your oven, please visit our online shop under the section 'Service/Ersatzteilshop' on our website www.severin. de.

10.2 Accessories and spare parts

GB Replacement parts or accessories can be conveniently ordered via the internet on our homepage http://www.severin.de under the section 'Service /

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse. This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If a repair should become necessary, please contact our Customer Service by telephone or email, see ►Customer Service on page 212.

11 Storage and disposal

Prior to storage or disposal, remove the plug from the wall socket and clean the appliance thoroughly.

This product complies with all CE labelling directives necessary for its CEmarking.

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials which can be recycled. Proper disposal protects the environment and human health.

Your local authority or retailer can provide information on the matter.

Dimensions (L x H x P)

452 mm x 262 mm x 356 mm
