Product type	Solo microwave
Brand	Severin
Model	MW 7851
Capacity	20 L
Microwave power	800 W
Power levels	5
Control type	Rotary knobs
Timer	Up to 35 minutes
Turntable	Yes, 245 mm diameter
Interior light	Yes
Child safety lock	Yes
Dimensions (W x D x H)	452 x 357 x 259 mm
Weight	10.5 kg
Power supply	230 V / 50 Hz
Power consumption	1200 W
Door opening	Side opening with handle
Material	Stainless steel / plastic
Cleaning	Wipe with damp cloth; do not use abrasive cleaners
Spare parts availability	Contact Severin service or authorized dealers
Repair index	Not specified
Country of origin	China
Certifications	CE, EMC

Frequently Asked Questions - MW 7851 SEVERIN

What is the capacity of the Severin MW 7851 microwave?

The Severin MW 7851 has a capacity of 20 liters, suitable for medium-sized dishes.

How do I set the timer on this microwave?

Turn the timer knob clockwise to the desired time up to 35 minutes. The microwave starts immediately.

What is the microwave power output?

The microwave power is 800 watts with 5 power levels for different cooking needs.

Is there a child safety lock?

Yes, the child safety lock can be activated to prevent unsupervised use. Refer to the manual for activation.

Can I use metal utensils in the Severin MW 7851?

No, metal utensils should not be used as they can cause sparks and damage the microwave. Use microwave-safe containers.

How do I clean the microwave interior?

Wipe the interior with a damp cloth and mild detergent. Do not use abrasive cleaners. The turntable can be washed with warm soapy water.

What are the dimensions of the Severin MW 7851?

The dimensions are 452 x 357 x 259 mm (width x depth x height).

Does the microwave have a turntable?

Yes, it has a removable turntable of 245 mm diameter for even heating.

Where can I find replacement parts for the MW 7851?

Contact Severin customer service or authorized dealers for genuine spare parts.

What is the power consumption of this microwave?

The power consumption is 1200 watts during operation.

USER MANUAL MW 7851 SEVERIN

Instructions for use

Microwave oven GB

Before using the microwave oven, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

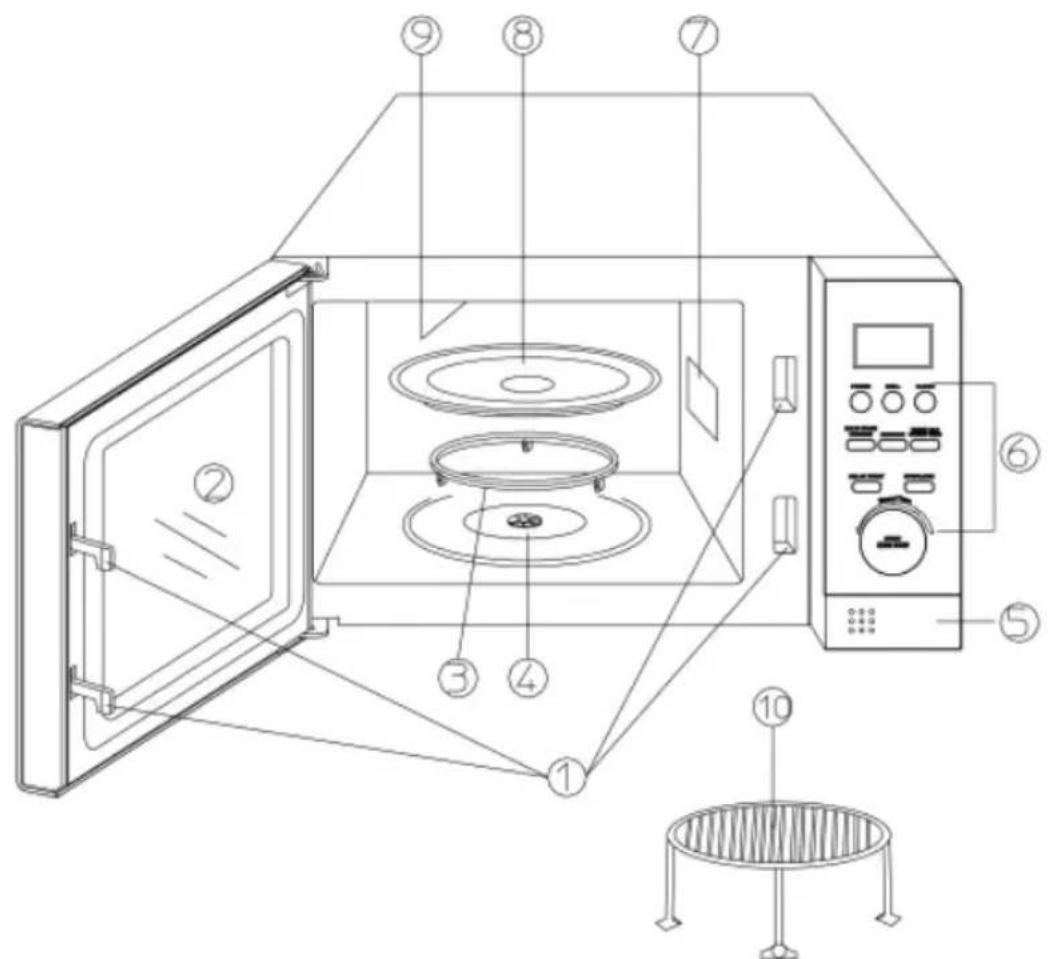

Parts of the appliance

1. Door locks
2. Inspection window
3. Roller ring
4. Drive unit
5. Door opener
6. Operating buttons and rotary control
7. Protective cover and interior lighting
8. Glass turntable
9. Grill element
10. Grill rack

Control panel detail

Button	Function
	Microwave
	Grill / Grill and microwave combination
	Clock
	Operating button for individual programming
	Defrosting
	Cooking timer / Weight
	Delayed operation timer
	Stop / Interrupt
Ic	Function
	Start / Quick start
	Automatic cooking programmes / Time

Important safety instructions

Positioning the unit:

● Always place the microwave oven on a sufficiently stable, level and heat-resistant surface, ensuring that it is protected from any heat source or excessive humidity.

Do not operate the appliance outdoors. ●

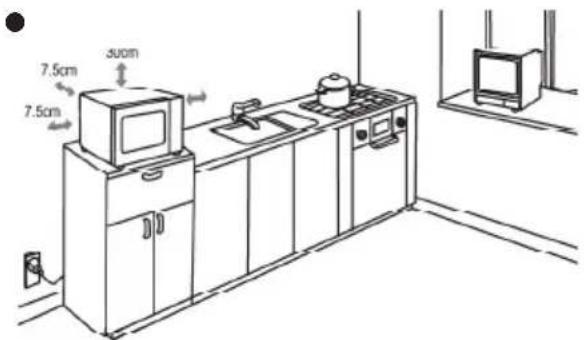

Sufficient ventilation must be ensured at all times. Therefore, do not place any objects on the unit, and make sure that the following minimum distances from any wall or other object are maintained:

One side: 7.5 cm; other side unobstructed

Rear: 7.5 ~cm

Top: 30.0 cm

The feet on the base of the unit must not be removed.

The unit must not be installed inside a cupboard; when positioning the unit, also ensure that it is not placed directly underneath a shelf or any other similar object.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives.

Before using for the first time:

- Remove any exterior and interior packaging materials. All these materials are suitable for recycling.

- Do not remove the grey-brown protective cover (7) next to the light on the right of the interior.

- Caution: Keep any packaging materials well away from children, as they are a potential source of danger e.g. from suffocation.

● After unpacking, and before every use, check the unit and its power cord carefully for any signs of damage. Also ensure that the door, including the inspection window, door seals and locks, are not damaged or bent and that it closes firmly against the support. This is important to ensure that no microwave energy is allowed to escape during operation. For the same reason, the entire casing as well as the inside of the oven must be carefully checked.

Should the unit show any signs of damage, it must not be used under any circumstances until it has been repaired by a qualified technician.

- This appliance may only be used by children (at least 8 years of age) provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved. The same applies to persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge. Children must not be permitted to carry out any cleaning or maintenance work on the appliance.

● Children under 8 years of age must be kept well away from the appliance and its power cord while connected to the mains, or while it is cooling down after use.

● Before the appliance is used for the first time, or after extended periods of non-use, it should be thoroughly cleaned as described in the section General Care and Cleaning.

- Insert the drive unit, the roller ring and the glass turntable into the unit.

- Do not operate the appliance without the drive unit, roller ring and glass turntable properly fitted.

● Before the microwave oven is used for the first time, let the appliance heat up on the grill setting

(without the microwave function activated) for 10 minutes. A slight odour may be emitted; this is quite normal, but ensure there is sufficient ventilation.

Note: Never switch the unit on in the microwave function unless the food to be heated or cooked has been placed inside the oven. Operating the appliance empty could result in damage to the unit.

Important notes:

- When heating liquids in your microwave oven, the liquid may heat up beyond boiling-point without visible evidence of bubbling. It is therefore important to exercise extreme caution when handling any containers, e.g. when removing them from the oven.

The risk of such over-boiling may be reduced by placing a heat-resistant glass rod in the liquid during the heating process.

- Eggs in their shells (or whole hard-boiled eggs) must not be heated up in a microwave oven, since they may explode even after the microwave heating process has finished.

- Caution: It is also highly dangerous to heat up liquids or any kind of solid food items in closed containers in the unit, since there is a real danger of explosion.

- The content of baby bottles or glass containers with baby food must be thoroughly stirred or shaken to ensure that the temperature is evenly distributed. To avoid painful and dangerous scalding, always check the temperature before feeding a child.

- When heating or cooking food contained or wrapped in combustible materials such as plastic or paper, there is a danger of those materials igniting. It is also possible that food will dry out or even ignite if the selected cooking time is excessive. Fat or oil can also ignite. It is therefore important to constantly supervise the appliance during operation. Highly inflammable liquids such as concentrated alcohol must of course not be heated up.

- Should any smoke be noticed during operation, keep the door closed to inhibit or smother any flames. Switch the unit off immediately and remove the plug from the wall socket.

- To prevent burns, a suitable oven-cloth must always be used when removing food items from the oven, since the utensils and cooking containers heat up not only during use of the grill function, but also during microwave operation.

- Special food thermometers (as used in conventional baking ovens) are not suitable for use with microwave ovens.

- Caution: Certain types of food can catch fire. Do not, under any circumstances, leave the appliance unattended when using the microwave, grill or combination functions.

- This microwave oven is intended for heating up food and beverages only. Caution: any attempt to dry food or clothing, to heat up warming pads, house slippers, sponges, wet or moist cleaning cloths etc. may cause injuries, combustion or fire.

- No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

● Always switch the appliance off and remove the plug from the wall socket:

before cleaning, -

in case of any malfunction. -

- Caution: The exterior surfaces of the appliance become hot during operation. There is also a danger of steam being emitted through the ventilation slots: Danger of scalding.

- Do not allow the appliance or its power cord to get near to hot cooking plates or naked flames. Do not let the power cord hang free and keep it away from any hot parts.

- It is important that the appliance is thoroughly cleaned at regular intervals and that any food residues are removed. Excessive wear may otherwise be caused to the exposed surfaces and the

life expectancy of the appliance considerably reduced. In addition, its safety and proper operation may also be affected.

This appliance is intended for domestic or similar applications, such as in ●

staff kitchens, offices and other commercial environments, -

agricultural areas, -

hotels, motels etc. and similar establishments, -

bed-and-breakfast guest houses. -

• Caution: Any maintenance or repair work requiring the removal of any microwave radiation protection cover represents a serious hazard to unqualified persons. This includes the replacement of the special power cord or an interior light bulb. The unit must not be opened, except by qualified personnel. If repairs are needed, please send the appliance to one of our customer service departments. The address can be found in the appendix to this manual.
• This appliance is a group 2 class B ISM device. Group 2 contains all ISM devices (industrial, scientific, medical) generating radio frequency energy and/or using radio frequency energy in the form of electro-magnetic radiation to process materials; it also comprises spark erosion devices. Class B specifies devices designed for domestic use, or any similar devices integrated in the general power grid supplying domestic units.

The microwave function (Group II in compliance with EN 55011:1998+A1+A2)

Electromagnetic energy is generated inside the unit, causing the molecules in the food (mainly water molecules) to oscillate and subsequently causing the food to become hot. Food with high water content will therefore heat up faster than relatively dry food. The heat is generated gradually inside the food. Any utensils, container or plates used are heated up only indirectly as a result of the food temperature.

Always use suitable kitchen utensils:

• Do not place the food directly onto the glass turntable; always use a suitable plate or cooking container. Make sure that the container does not protrude over the rim of the glass turntable.
• Metal objects are to be avoided since microwaves are reflected from metal surfaces and might not reach the food to be cooked. Any metal in the oven could also cause sparks, resulting in possible damage to the unit.
• As a general rule, cutlery or metal containers must not be used in the microwave oven. Some food wrappings contain aluminium foil or wires underneath a layer of paper and are therefore also unsuitable for use with microwave appliances.

Should the use of aluminium foil be recommended in a recipe, ensure that the food is tightly wrapped in the aluminium foil (avoiding any air blisters). Ensure a minimum distance of 2.5 cm between the aluminium foil and the interior walls of the oven.

- Always make sure that the cooking container or plate used does not contain any metal decoration such as a gold rim or colour containing metal particles. Lead crystal objects are also not suitable. Always make sure that no parts of the cooking containers used are hollow (e.g. the handles). Porous materials may have absorbed water during cleaning and are again not suitable. Cooking containers or utensils made of ‘Melamine’ plastic material absorb energy and are also unsuitable.

Using the microwave function -

• Containers made from heat-resistant glass or porcelain are particularly suitable for use in microwave appliances.
• Plastic is suitable only if it is heat-resistant up to at least 180^ C. Cooking bags etc. should be punctured to be able to release any high pressure during cooking.

Plastic cooking containers especially designed for use with microwave ovens are available at

most kitchenware dealers.

Using the grill function -

• With this function, any heat-resistant containers or plates suitable for conventional ovens may be used, though not any plastic items.
• The food to be cooked can be put directly onto the grill rack, which is then placed on the glass turntable.

Using the microwave/grill combination -

- With this combination function, the microwave and grill functions are activated alternately. The containers or plates must therefore be suitable for use in a microwave appliance as well as being heat-resistant. Because of the relatively high temperatures, plastic items must not be used. The special grill rack provided with this unit is suitable for use with the microwave oven. Make sure that the container or plate used does not contain any metal parts.

Operation

General information on programming the unit

Connect the appliance to an earthed socket installed in accordance with the regulations.

Press the button to activate the electronic system.

The display shows 1:01, and the clock symbol appears.

Setting the clock :

1. Press ☐ once to select the 12-hour display format, or twice to select the 24-hour format.
2. Turn the rotary control ☐ to set the correct hour.
3. Press ☐.
4. Turn the rotary control ☐ to set the correct minutes.
5. Press ☐ to finish setting the time.

The time setting process can be cancelled by pressing ☐.

The clock must be set when the appliance is connected for the first time, and also if a power failure has reset the clock.

To ensure optimum results, this appliance uses state-of-the-art electronics.

When any control button is pressed, the correct input is acknowledged by one-beep signal. -

- While a programme sequence is running, the current setting can be called up by pressing the appropriate button. E.g., if during the microwave programme the 📄 button is pressed, the display will show the selected power setting.

A programme can be interrupted by pressing once.

To restart a programme, press the rotary control.

To cancel a programme, press twice.

General operating sequence

- Place the food to be heated in a suitable container. Place the container onto the turntable in the oven.

• When food is placed in the microwave, it should be covered to prevent it from drying out. Glass or plastic covers especially designed for use with microwave appliances are available at most kitchenware dealers.
• When using the combination or grill function, do not cover the food to be cooked. The grill rack

may be put directly on the glass turntable with the food itself on the rack.

Close the door and set the desired programme. -

- As the programme is started, the turntable starts to rotate. During operation, the interior light remains on.

If, during operation, the door is opened or the button is pressed (e.g. to stir or to turn the food in order to ensure that the temperature is evenly distributed), the timer and programme functions are automatically suspended. The programme will automatically resume only after the door is closed again and the rotary control is pressed.

Press ☑ twice to interrupt the programme.

- A 4-beep signal indicates that the pre-programmed cooking time has elapsed; at the same time, the interior lighting switches off and the display shows 'ENDE'.

Open the door and remove the container with the food. -

- In order to achieve an even heat distribution through the food, the container should be set aside for several minutes.

Note: If the door is not opened immediately after the pre-programmed operating time has elapsed, a 4-beep signal is heard every 2 minutes.

Note: The following steps are used for setting the cooking time:

0 - 5 minutes : 10-second steps

5 - 10 minutes : 30-second steps

10 - 30 minutes : 1-minute steps

30 - 90 minutes : 5-minute steps

The cooking times generally depend on several factors. -

• Microwave radiation penetrates the surface of the food. For larger pieces of food, a longer cooking time is therefore needed than for the same amount of food if cut into pieces. The food should also be evenly distributed on the plate.
• To ensure that any germs in the food are safely destroyed, the food needs to be exposed to high temperatures for a sufficiently long period.
• As a basic rule: half the amount - half the time recommended double the amount - almost double the time recommended.

Cooking timer ⏻️ :

1. Press ☐ once. An additional digital clock appears in the display.
2. Turn the rotary control 📁 to set the desired cooking time.
3. Turn the rotary control ☐ to start the cooking timer.
4. A beep signal indicates that the pre-set time has elapsed.

The maximum pre-programmable time is 90 minutes.

The microwave function :

To programme the unit for cooking, the correct mode (microwave), the required power setting and the cooking time must be selected, before the programme sequence can be started. The power setting is selected by repeatedly pressing 📋. The cooking time can be pre-set to a maximum of 90 minutes.

	Power settings
		Type
1 x	900W	High	Heating up liquids, cooking

2 x 75	0W Medium high Defrosting and heating up deep-frozen dishes
3 x 45	0W Medium high Defrosting and heating up deep-frozen dishes
4 x 30	0W Medium Cooking delicate food
5 x 15	0W Defrosting Defrosting food
6 x 80	0W Defrosting Defrosting delicate food.

Example: to programme the microwave function for a cooking time of 5 minutes at 750 W.

1. Press twice. The display shows 750 W.
2. Turn the rotary control 📄 until the display shows 5:00.
3. Press the rotary control ☐ to start the programme.

Quick-programming :

The most commonly used microwave time-settings can be called up simply by pressing the rotary control. With this function, the microwave power setting is always 100%. During the first 2 minutes of operation, each press on the rotary control adds 30 seconds to the cooking time; thereafter, one minute is added with each press. The maximum pre-programmable time is 12 minutes.

Note: the cooking process starts as soon as the rotary control is pressed.

Example: to programme the microwave function for a cooking time of 2 minutes at 100% power.

1. Press the rotary control 4 times. The display shows 2:00 and the microwave operation starts.

Grill function :

The grilling process uses radiation heat to cook the food. The programme is suitable for cooking ‘au gratin’ or for grilling thin pieces of meat.

The programme is selected by pressing 📄. The maximum programmable cooking time is 90 minutes.

Example: to programme the unit for a grilling time of 30 minutes.

1. Press once.
2. Turn the rotary control 📁 until the display shows 30:00.
3. Press the rotary control 📁 to start the cooking process.

As the meat needs to be turned after one side is sufficiently browned, and taken out once it is done on both sides, this process should be closely monitored.

Grill/microwave combination programmes :

For this grill/microwave combination, two programme settings are available.

The cooking time can be pre-set to a maximum of 90 minutes.

Setting 1:

The microwave function is active for 30% of the pre-programmed time, the grill function for 70%.

This programme is suitable for cooking fish or cooking ‘au gratin’.

Example: to programme the unit for a cooking time of 30 minutes at setting 1

1. Press twice. KOMBI 1 appears in the display.

2. Turn the rotary control 📋 until the display shows 30:00.

3. Press the rotary control ☐ to start the cooking process.

Setting 2:

The microwave function is active for 55% of the pre-programmed time, the grill function for 45%. This programme is suitable for cooking potatoes or poultry.

Example: to programme the unit for a cooking time of 12 minutes at setting 2

1. Press three times. KOMBI 2 appears in the display.

2. Turn the rotary control 📁 until the display shows 12:00.

3. Press the rotary control 📄 to start the cooking process.

Delayed operation timer

The microwave can be pre-programmed in such a way that it starts operating at a pre-determined time. However, always check first that the time on the unit has been correctly set prior to using the timer delay function.

1. Set the time (see Setting the clock).
2. Set the desired programme. However, do not press rotary control ☐ yet.
3. Press
4. Use the rotary control 📁 to select the desired hour setting (between 0-23), at which you want the unit to start operating.
5. Press ☐. The selected hour setting and the current minutes are shown.
6. Use the rotary control ☐ to select the desired minute setting (between 0-59), at which you want the unit to start operating.
7. Press 📄. The display returns to the current time. The selected programme will start at the pre-programmed time. A beep signal indicates the programme is starting.

Defrost programme :

This programme is useful for defrosting meat and poultry simply by setting their weight.

1. Press once for meat or twice for poultry.
2. Use the button to set the appropriate weight (100g to 1800g)
3. Press the rotary control 📁 to start the defrost programme. The remaining defrosting time is shown in the display.

Helpful notes:

• Two beep signals indicate that 2/3 of the programmed defrosting time has elapsed. Turn the food over, taking out any that is already defrosted. Press the rotary control to continue the programme.
• Food stored in plastic containers that are not suitable for use in microwave ovens should be left for a while after being taken from the freezer. Wait until the food can be easily detached from the plastic, before it is put into the oven inside a container suitable for use with microwave ovens.

Setting multiple programmes

Prior to operation, the microwave can be set for up to 3 programmes to run consecutively, e.g. defrosting first, followed by the microwave and then the drill function.

Example: using the defrost function first, followed by the microwave and then the grill function.

1. Use the button to select a reduced microwave setting for defrosting.

2. Turn the rotary control to select the required defrosting time.

3. Press ≈ ... to confirm.
4. Use the button to select a high microwave setting.
5. Turn the rotary control 📁 to select the required microwave cooking time.
6. Press ⚠ ≈ … to confirm.
7. Use the button to select the grill function.
8. Turn the rotary control ☐ to select the required grilling time
9. Press the rotary control ☐ to start the multiple programme selection.

Note: The defrost programme, the automatic cooking programmes and the quick-programme are not suitable for multiple programming.

Hint: This function is especially helpful when using the microwave to cook food at different power settings. While a higher power setting is selected initially, the power can be reduced at a later stage in order to keep the food hot, and to ensure that the heat is evenly distributed when the food is already done.

Automatic cooking programmes

These programmes are helpful when cooking or heating up food without having to select any particular settings, e.g. for power or cooking time.

1. Select the desired programme from the table below.
2. Turn the rotary control 📋 until the display shows Auto 1 to Auto 10.
3. Use the button to select the desired weight or quantity.
4. Press the rotary control ☐ to start the programme.

Menu Weight Display
Auto 1 Heating up liquids	200 ml 200 ml
	400 ml 400 ml
	600 ml 600 ml
Auto 2 Vegetables	150 g 150 g
	300 g 300 g
	450 g 450 g
	600 g 600 g
Auto 3 Popcorn	99 g 099 g
Auto 4 Pasta	100 g (in cold water, 400 ml) 100 g
	200 g (in cold water, 800 ml) 200 g
	300 g (in cold water, 1200 ml) 300 g
Auto 5 Heating up	200 g 200 g
	300 g 300 g
	400 g 400 g
	500 g 500 g
	600 g 600 g
	700 g 700 g
	800 g 800 g
Auto 6 Pizza	150 g 150 g
	300 g 300 g
	450 g 450 g
Auto 7 Potatoes	200 g 200 g
	400 g 400 g
	600 g 600 g
Auto 8 Ready meals	250 g 250 g
	500 g 500 g
Auto 9 Beef	200 g 200 g
	300 g 300 g
	400 g 400 g
	500 g 500 g
	600 g 600 g
Auto 10 Pork	100 g 100 g
	200 g 200 g
	300 g 300 g
	400 g 400 g
	500 g 500 g

Childproof safety device:

This safety device prevents children from operating the appliance without supervision.

To activate the safety device, press 📋 for 3 seconds.

A long beep signal is heard.

To switch off the safety device, press 📷 again for 3 seconds.

A long beep signal is heard.

Note: Should you experience a problem when switching the appliance on, first verify that the safety device is not activated.

Interior lighting:

The interior light comes on when the door is opened; it also remains on during operation. It goes out once a programme has finished.

General Care and Cleaning

● Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
- Do not clean the unit with water: ensure that no water is allowed to enter the ventilation slots on the inside or outside of the unit.
- The entire unit may be wiped with a slightly damp lint-free cloth and a mild household detergent. Wipe thoroughly dry afterwards.
- Do not use abrasives or harsh cleaning solutions. Steam cleaning appliances or commercially available cleaning sprays for conventional baking ovens are not to be used.
- The interior surfaces must be cleaned thoroughly after each operation cycle. The inside of the door, the door frame, the roller ring as well as the guiding track area underneath the glass turntable must be kept clean at all times.
● The grill rack, glass turntable and roller ring may be cleaned with warm soapy water.

Technical specifications

Outside dimensions: 483 mm (L) x 402 mm (D) x 281 mm (H)

Glass turntable: ∅ 270 mm

Clearance above the glass turntable: 185 mm

Unit weight: approx. 14.5 kg

Operating voltage: 230-240V\~50 Hz

Total power consumption: 1400 W

grill: 1000 W

- microwave: 1400 W

Microwave output: 80 W - 900 W

Disposal

Old or damaged units should be rendered unusable by removing the power cord. Should you be unsure about the recycling facilities for such appliances in your area, please inquire of the relevant local authority department.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of three years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
