USER MANUAL GSC 3,6 ATIKA

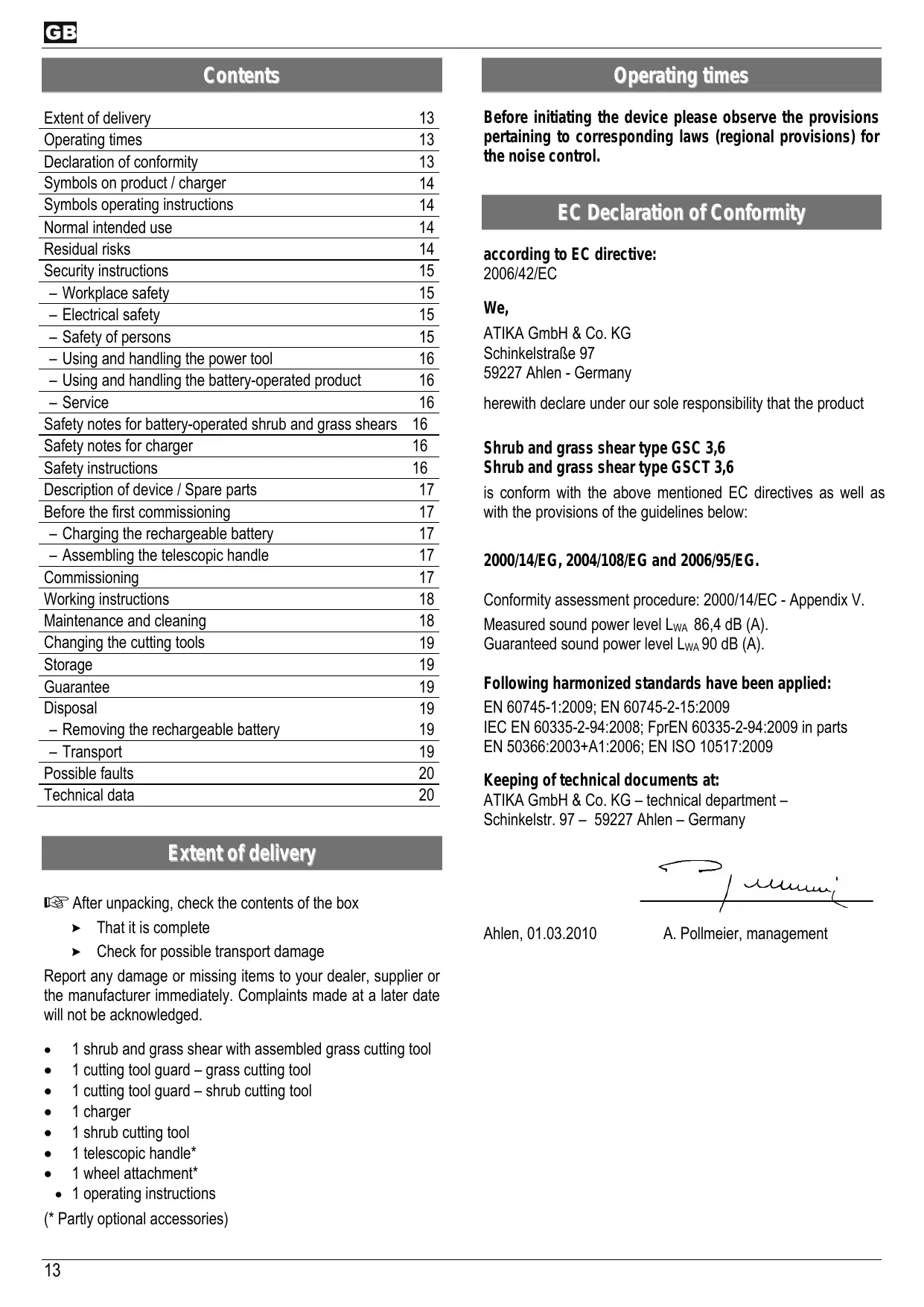

Contents Operating times Extent of delivery Operating times Declaration of conformity Symbols on product / charger Symbols operating instructions Normal intended use Residual risks Security instructions – Workplace safety – Electrical safety – Safety of persons – Using and handling the power tool – Using and handling the battery-operated product – Service Safety notes for battery-operated shrub and grass shears 16 Safety notes for charger Safety instructions Description of device / Spare parts Before the first commissioning – Charging the rechargeable battery – Assembling the telescopic handle Commissioning Working instructions Maintenance and cleaning Changing the cutting tools Storage Guarantee Disposal – Removing the rechargeable battery – Transport Possible faults Technical data

Before initiating the device please observe the provisions pertaining to corresponding laws (regional provisions) for the noise control. EC Declaration of Conformity according to EC directive: 2006/42/EC We, ATIKA GmbH & Co. KG Schinkelstraße 97 59227 Ahlen - Germany herewith declare under our sole responsibility that the product Shrub and grass shear type GSC 3,6 Shrub and grass shear type GSCT 3,6 is conform with the above mentioned EC directives as well as with the provisions of the guidelines below: 2000/14/EG, 2004/108/EG and 2006/95/EG. Conformity assessment procedure: 2000/14/EC - Appendix V. Measured sound power level LWA 86,4 dB (A). Guaranteed sound power level LWA 90 dB (A). Following harmonized standards have been applied: EN 60745-1:2009; EN 60745-2-15:2009 IEC EN 60335-2-94:2008; FprEN 60335-2-94:2009 in parts

EN 50366:2003+A1:2006; EN ISO 10517:2009

Keeping of technical documents at: ATIKA GmbH & Co. KG – technical department – Schinkelstr. 97 – 59227 Ahlen – Germany Extent of delivery After unpacking, check the contents of the box ! That it is complete ! Check for possible transport damage Report any damage or missing items to your dealer, supplier or the manufacturer immediately. Complaints made at a later date will not be acknowledged. 1 shrub and grass shear with assembled grass cutting tool

• 1 cutting tool guard – grass cutting tool
• 1 cutting tool guard – shrub cutting tool
• 1 shrub cutting tool
• 1 telescopic handle*
• 1 operating instructions

(* Partly optional accessories)

Ahlen, 01.03.2010 A. Pollmeier, management Symbols on product Symbols operating instruction Carefully read operator’s manual before handling the machine. Observe instructions and safety rules when operating. Threatened hazard or hazardous situation. Not observing this instruction can lead to injuries or cause damage to property. Wear hardhat, eye and ear protection.

Important information on proper handling of the saw. Not observing this instruction can lead to faults in the chain saw. Wear safety shoes.

User information. This information helps you to use all the functions of the chain saw optimally. Assembly, operation and servicing the chain saw. Here you are explained exactly what to do. The tools are very sharp. Do not cut in your fingers and toes. Danger by after-running cutting tool! Danger – objects may be thrown out at high speed. Keep other persons away from the work area. Safety distance at least 6 m. Do not operate the device near cables, power or phone lines. Keep a safety distance of 10 m to overhead power lines when working with the device. Do not expose to rain. Protect against humidity. Electrical devices do not go into the domestic rubbish. Symbols on charger Protection class II Always use the charger in dry rooms only. The charger is equipped with a safety isolating transformer. Safety temperature limiting Negative polarity Electrical devices do not go into the domestic rubbish.

The numbers refer to the figures on the pages 2 through 3. Normal intended use

• This product is designed for easy cutting work on lawn edges and shrubs in house and hobby gardens only.
• The intended usage also includes compliance with the operating, servicing and repair conditions prescribed by the manufacturer and following the safety instructions included in the instructions.
• Any other use is deemed not to be intended use. The manufacturer is not liable for any type of damage resulting from this: the user bears the sole risk.
• Unauthorized modifications to the machine preclude any liability of the manufacturer for resulting damages of any kind.
• The relevant accident prevention regulations for the operation as well as the other generally acknowledged occupational medicine and safety rules must be complied with. Residual risks Even if used properly, residual risks can exist even if the relevant safety regulations are complied with due to the design determined by the intended purpose. Residual risks can be minimised if the “Safety information” and the “Intended usage” as well as the whole of the operating instructions are observed. Observing these instructions, and taking proper care, will reduce the risk of personal injury or damage to the equipment.
• Risk of injuries of fingers and hands by the cutting tool (grass and shrub cutting tool).
• Injury by catapulted workpiece parts.
• Risk from electricity, by using non-standard electrical connections.
• Touching live parts of opened electrical components.
• Impairment of hearing when working on the machine for longer periods of time without ear protection. In addition, in spite of all the precautionary measures taken, non-obvious residual risks can still exist.

Safety Notes General Power Tool Safety Warnings Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool/garden product” in the warnings refers to your mains-operated (corded) garden product or batteryoperated (cordless) garden product.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for out-door use. Use of a cord suitable for out-door use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, nonskid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench be-fore turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dustrelated hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Safety notes for battery-operated shrub and grass shears

• Keep away all body parts from the cutting blades. Do not attempt to remove cut material or to hold material to be cut while the cutting tool is in operation. Only remove jammed material after the unit was switched off. A single moment of inadvertence when using the hedge shear may result in severe injury.
• Make sure that all protective devices and handles are attached before using the unit. Never attempt to put into service an incomplete unit or a unit that was improperly modified.
• Hold the power tool on the insulated handle surfaces as the cutting blades may come into contact with the unit's mains supply cable. A contact of the cutting blades with a live conductor may apply hazardous voltage to metallic parts of the unit and cause electric shock.
• Carry the hedge shear on its handle with the cutting tool stopped. Always install the guard when transporting or storing the hedge shear. A careful handling of the unit minimises the risk of injury by the cutting tool.
• Keep the cable away from the cutting area. During the work, the cable may be hidden by shrubbery and accidentally cut.
• This device is not intended to be used by persons (including children) with restricted physical, sensory or mental abilities or a lack of experience and/or know-how unless they are supervised by a person responsible for their safety or they have been instructed by such a person on the use of the device.
• Supervise children to make sure they do not play with the device.
• Adhere to national regulations that might specify an age limit for the user of the unit. Safety notes for chargers
• Do not use the charger in moist or wet ambience. There

is an increased risk of an electric shock when water penetrates into the charger. Only use the charger for the dedicated power tool. Its use for other power tools may result in injuries and fire. Keep the charger clean. Contamination may result in electric shock. Do not operate the charger on combustible surfaces (such as paper, textiles). There is a risk of fire as the charger heats up during the charging process. Before each use, check the charger, charger cable and cable connector for damages. Do not use damaged chargers. Have your charger only be repaired by qualified specialized personnel with genuine spare parts. This will ensure that the device is kept in a safe condition. Safety instructions

• Within his area of work the operator is responsible for third parties.
• Do not leave the power tool in direct sunlight and protect it against heat. Otherwise, there is a risk of explosion.
• Remove unconditionally any foreign objects (e.g. wires).
• Before starting the machine, make sure that your hands and feet are kept at a safe distance to the cutting tool.
• Be sure that the cutting tool already moves before you start cutting.
• Caution! The cutting tool stops delayed after the machine is switched off. Do not try to slow down the cutting tool by the hand.
• Turn off the machine and wait until the cutting tool is stationary when: − the cutting tool comes into contact with soil, stones, nails or other foreign objects (B check whether the cutting tool/machine is damaged) − carrying out repair works − carrying out servicing and repair works, − removal of faults (including blocking of knives) − transporting and storage − leaving unattended (even during short interruptions)
• Maintain the machine carefully: − Before continuing to use the machine, the protective devices must be inspected to ensure that they work perfectly and with their intended function − Damaged guards and parts must be properly repaired or exchanged by a recognized, specialist workshop; insofar as nothing else is stated in the instructions for use. − Damaged or illegible safety warning labels should be replaced immediately. Do not carry out repair operations on the machine other than those described in section “Maintenance” but contact the manufacturer or authorized customer service centre. Use only original spare parts, accessories and special accessory parts. Accidents can arise for the user through the use of other spare parts. The manufacturer is not liable for any damage or injury resulting from such action.

Description of device Pos.

Name Shrub and grass shear Battery warning lamp Trip switch ON/OFF switch Switch Handle Charging female connector LED - charging indicator Receiver (wheel set) Cover Grass cutting tool Shrub cutting tool Cutting tool guard -grass cutting tool Wheel set Clamping screw Telescopic handle holder Charger cable male connector Charger Telescopic handle * Handle Unlocking knob Adjusting knob Cutting tool guard – shrub cutting tool Safety label - 1 Safety label - 2 Order number Do not use the machine during the charging process. Â The charging process is completed (after approx. 4 hours) when the charging indicator LED lights green. Â After completed charging, disconnect the charging cable connector (17) at first and then the charger from the mains. Telescopic handle* (*Partly optional accessories) Assembling the telescopic handle

Only use the telescopic handle together with the grass cutting tool to cut edges on the ground. Slide the wheel set (14) on the receiver (9) and fix it using the clamping screw (15). Insert the telescopic handle (19) into the telescopic holder (16) until it engages with a click.

Adjusting the operating height

Press the adjusting knob (22). Â You can release the adjusting knob while pulling or pushing the telescopic handle. Â The adjusting knob engages in the next position.

Press on the unlocking knob (21) and pull the telescopic handle out of its holder (16). (* Partly optional accessories) Commissioning Before the first commissioning Switching On / Off Charging the rechargeable battery L Always use the supplied charger to charge the lithium ion battery integrated in the machine.

• Only charge the battery at temperatures between 10°C and 40°C. Otherwise, the battery may be damaged or its service life may be reduced.

Mains connection: Compare the voltage given on the machine model plate e.g. 230 V with the mains voltage and connect the hedge trimmer to the relevant and properly earthed plug. Fully charge the lithium ion batteries before first use or after a longer storage period of the machine. Plug the charger cable male connector (17) into the charging female connector (7) on the machine and connect the charger to an electrical socket. Â The charging indicator LED (8) will light up red. Î Charging is in progress.

The machine will warm up during the charging process. This is normal.

If the machine is used together with the telescopic handle, it can only be turned on/off on the handle (20). When the battery is run down the battery warning lamp (2) comes up red and the machine stops automatically. Do not continue to operate the ON/OFF switch as the battery may be damaged. Charge the lithium ion batteries ( „Charging the battery“). Switch off  Release On/Off switch. The cutting tool stops delayed after the machine is turned off. Therefore wait until the cutting tool is stationary before you restart the product. Working instructions You may not start to operate the machine until you have read these operating instructions, observed all the instructions given and installed the machine as described! Always keep your hands and feet at a safe distance to the cutting tool. Adjusting the working height The unit can be fixed at working heights of 25 or 40 mm.  Loosen the clamping screw (15) and adjust the wheel set to your desired position. Position 0° Grass height 25 mm Position 30° Grass height 40 mm  Re-tighten the clamp screw. Maintenance and Care Vibrations If persons who have blood circulation problems are too often exposed to vibrations damages to the nervous system or to blood vessels may occur. You can reduce vibrations: - by thick and warm working gloves, - shorter working time (have longer breaks). See a doctor if your fingers swell, you don’t feel well or your fingers become numb. Working with the shrub shear Scare animals off the hedge before starting to cut in order to prevent them from being injured. Before each maintenance and cleaning work − Stop the engine. − Wait until the cutting device does not longer move. − Wear protective gloves Maintenance and repair work other than those described in this chapter is only allowed to be carried out by service staff. For maintaining and cleaning, removed security devices must unconditionally be mounted properly and proved again. Use only original parts. Other parts can result in unexpected damages and injuries. Due to its double sided knives the shrub shear can be guided forward and backward or by oscillating movements from one to another side. ƒ The maximal diameter to cut depends on the wood’s type, age, moisture and hardness. ƒ Best time for hedge trimming: ⇒ Leaved hedge: June and October April and August ⇒ Conifer hedge: ⇒ Quickly growing hedge: from May and then every 6 weeks Working with the grass shear Guide the device along the lawn edge at a reasonable and uniform speed.

Make sure that the knives do not come into contact with border and other stones or walls. The knives may be damaged. To trim long lawn edges use the telescopic handle (partly optional). To trim different working heights use the wheel set (partially optional). The unit can be adjusted to 3 working positions Push the switch (5) backwards. Â The handle (6) can be turned into the desired position. Â Release the switch (5) and make sure that it engages. The handhold is fixed. Maintenance The cutting tool will not come to a standstill immediately after cut-off. Before starting any service work wait until all parts are stationary. To guarantee a long and reliable usage of the shrub and grass shear carry out the following maintenance works regularly. Check the machine for obvious defects such as − loose, hung out or damaged cutting tools − worn or damaged components − correct assembly and faultless covers and protective devices Necessary repair works or maintenance works have to be carried out before the usage of the machine. Cleaning

Clean the machine thoroughly after each application so that the faultless function is kept.

• Clean the case with a soft brush or a dry cloth.
• Keep handles dry and free of oil and grease. Water, solvents and polishing agents shall not be applied.
• Check that the ventilation slots for the motor cooling are free (risk of overheating).
• Clean the gear unit using a soft brush.
• Lubricate the gear wheels using acid-free grease (petroleum jelly).

• Clean the cutting device on a regular basis using a brush or a cloth. L Never clean the knives with water Î Risk of corrosion! L Oil the cutting tools regularly. Never use any grease! Use for instance environmentally acceptable spray oil. Changing the cutting tools Risk of injury to the fingers and hands when carrying out work on the cutting tool. The cutting tools are subject to heavy wearing. Immediately exchange cutting tools when the faultless function is not guaranteed.

If you have used the product with assembled telescopic handle press the unlocking knob (21) and pull the telescopic handle out of its holder (16). Loosen the clamping screw (15) and remove the wheel set. Lift the locking tab (a)  and slide away the cover (10) in arrow direction . Remove the cutting tool. Clean the gear unit and lubricate the gear wheels if required (acid-free grease such as petroleum jelly). Place the cover. The catching tabs must be aligned with the V marks. Slide the cover (10) until it engages with a click. Disposal Give devices, accessories and packaging to an ecofriendly recycling. For EU countries only. Electrical devices do not go into the domestic rubbish. Give devices, accessories and packaging to an ecofriendly recycling. According to the European Directive 2002/96/EC on electrical and electronic scrap, electrical devices that are no longer serviceable must be separately collected and brought to a facility for an environmentally compatible recycling. Lithium ion batteries do not fall under domestic rubbish. According to the European Directive 2006/66/EC on batteries and rechargeable accumulators, defective batteries/accumulators must be recycled. Bring batteries/accumulators, which are no longer usable, to local collecting points or dealers. Removing the rechargeable battery Fully run down the lithium ion battery before removing.

1. Turn on the product and allow it to operate until it is stationary.

2. Remove the screws and the housing cover.

3. Disconnect the battery from its connectors and remove it.

Storage Store unused equipment with fitted cutting tool cover in a dry, locked place out of the reach of children. Before a longer storage observe the following in order to prolongate the service life of the machine and to guarantee a smooth running operation: B thoroughly clean the machine. B Lubricate the gear wheels using acid-free grease (petroleum jelly). B Oil all moving parts (knives) with environmentally compatible oil. L Never use any grease. B Push the guard on the cutting tool. Guarantee Please observe the enclosed terms of guarantee.

Transport The lithium ion battery has passed the test procedures according to the guideline "Transport of dangerous goods" ST/SG/AC.10/11/Rev.3 Part III, 38.3 The battery is safe against internal excess pressure, extreme temperatures and short circuits or external forces. The lithium ion content of the rechargeable battery (either as separate part or integrated in the device) is below the required limit and thus does not fall under national or international dangerous goods regulations. However, when transporting multiple batteries, dangerous goods regulations may be relevant and special safety requirements must be met, e.g. identification of the packaging. Technical datas GSC 3,6 3.6V 1.3Ah Lithium ion 80 mm 110 mm 8 mm 40 min

Type Rated battery voltage Capacity Rechargeable battery Cutting width - grass shear Cutting length - shrub shear Distance of knives Operating time, approx. Charging time, approx. Sound pressure level LPA Measured sound power level LWA Measuring uncertainty KPA / KWA Guaranteed sound power level LWA Hand arm vibration Measuring uncertainty K Telescopic handle Weight of the shrub shear Weight of the grass shear GSCT 3,6 3.6V 1.3Ah Lithium ion 80 mm 110 mm 8 mm 40 min 74,6 dB (A) 86,4 dB (A)

Possible faults Before each maintenance and cleaning work: ― switch off device ― wait until the cutting tool comes to a stop ― wear protective gloves After each fault clearance, put into operation and recheck all security installations. Fault Machine does not start after switching on Possible cause

Machine with assembled telescopic  handle does not start after switching on Machine does not work with full  performance

Machine does not cut properly Machine cuts with interruptions

Engine is running, cutting device  does not move Cutting device gets hot Removal Lithium ion battery run down Lithium ion battery defective ON/OFF-switch defective Internal fault Telescopic handle not correctly engaged in its holder  Charge the lithium ion battery  Contact the customer service Lithium ion battery run down Lithium ion battery defective Gear unit contaminated Cutting tool blunt/worn ON/OFF switch defective Internal fault Cutting device blocked Internal fault

 Missing lubrication => friction  Cutting blades are blunt  Cutting tool has nicks Cutting time with fully charged  Missing lubrication => friction battery too short  Cutting blades contaminated  Rechargeable battery is low  Battery service life exhausted  Check the plug-type connections Charge the lithium ion battery Contact the customer service Clean the gear unit (see section "Cleaning") Have the cutting tool reground or replace it Contact the customer service  Remove object  Manufacturer or responsible customer service must be called  Oil the cutting device  Have the cutting tool reground or replace it  Check the cutting tool  Oil the cutting blades  Clean the cutting blades  Charging the rechargeable battery  Contact the customer service
