USER MANUAL TL 100 BEURER

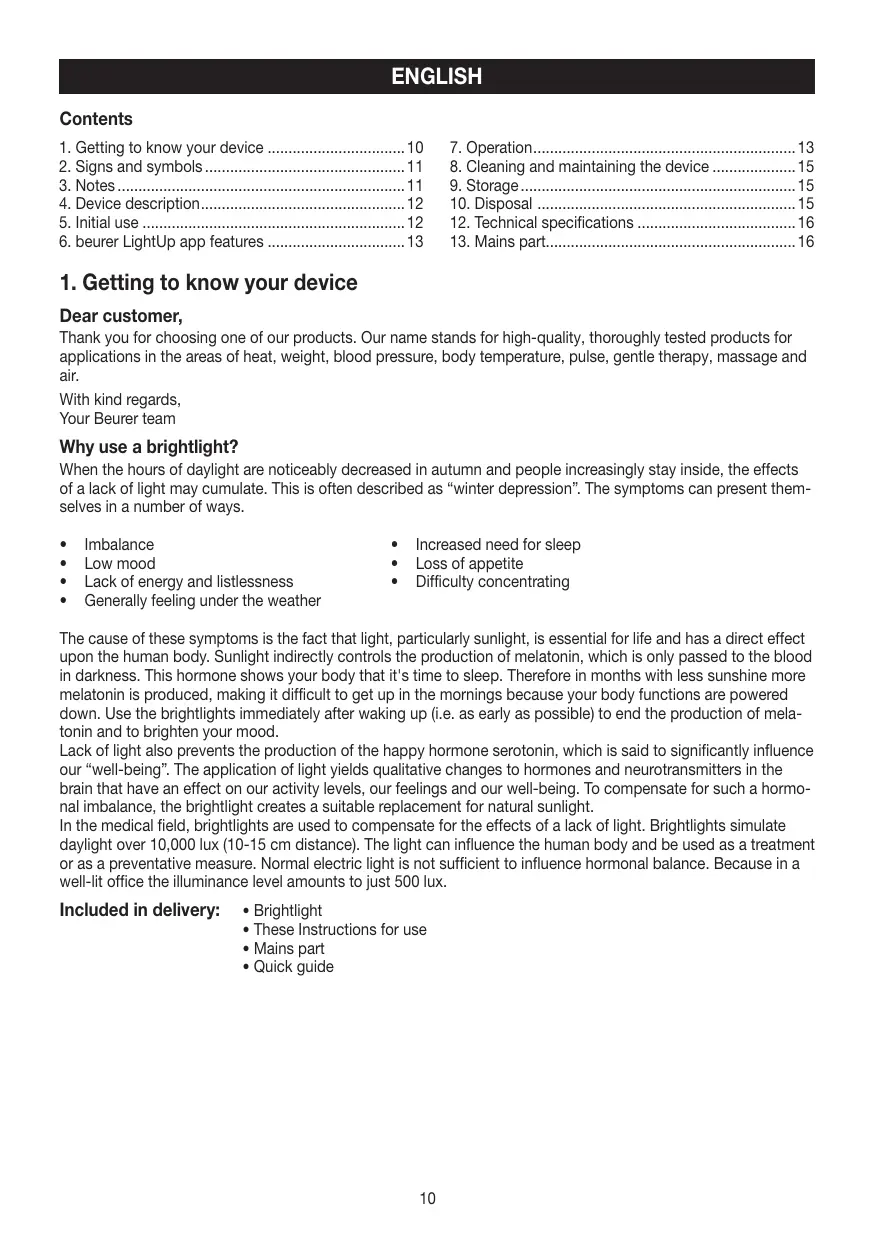

1. Getting to know your device

Dear customer, Thank you for choosing one of our products. Our name stands for high-quality, thoroughly tested products for applications in the areas of heat, weight, blood pressure, body temperature, pulse, gentle therapy, massage and air. With kind regards, Your Beurer team Why use a brightlight? When the hours of daylight are noticeably decreased in autumn and people increasingly stay inside, the effects of a lack of light may cumulate. This is often described as “winter depression”. The symptoms can present themselves in a number of ways.

Imbalance Low mood Lack of energy and listlessness Generally feeling under the weather

Increased need for sleep Loss of appetite Difficulty concentrating The cause of these symptoms is the fact that light, particularly sunlight, is essential for life and has a direct effect upon the human body. Sunlight indirectly controls the production of melatonin, which is only passed to the blood in darkness. This hormone shows your body that it's time to sleep. Therefore in months with less sunshine more melatonin is produced, making it difficult to get up in the mornings because your body functions are powered down. Use the brightlights immediately after waking up (i.e. as early as possible) to end the production of melatonin and to brighten your mood. Lack of light also prevents the production of the happy hormone serotonin, which is said to significantly influence our “well-being”. The application of light yields qualitative changes to hormones and neurotransmitters in the brain that have an effect on our activity levels, our feelings and our well-being. To compensate for such a hormonal imbalance, the brightlight creates a suitable replacement for natural sunlight. In the medical field, brightlights are used to compensate for the effects of a lack of light. Brightlights simulate daylight over 10,000 lux (10-15 cm distance). The light can influence the human body and be used as a treatment or as a preventative measure. Normal electric light is not sufficient to influence hormonal balance. Because in a well-lit office the illuminance level amounts to just 500 lux. Included in delivery:

• These Instructions for use

2. Signs and symbols

The following symbols appear in the Instructions for use or on the device. Read the Instructions for use. Warning Warning

Note Note on important information. Warning notice indicating a risk of injury or damage to health. Manufacturer Safety note indicating possible damage to the unit/accessory. Protection class II Serial number OFF/ON The CE labelling certifies that the product complies with the essential requirements of Directive 93/42/EEC on medical products. Disposal in accordance with the Waste Electrical and Electronic Equipment EC Directive – WEEE IP21 Protected against foreign objects equal to or greater than 12.5 mm in diameter and against vertically falling drops of water. Mode of operation: continiousoperation Direct current

Please read these instructions for use carefully and keep them for later use, be sure to make them accessible to other users and observe the information they contain. Safety notes Warning

• This brightlight is only intended for radiation on human bodies.
• Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Services address.
• Ensure that the brightlight is positioned on a stable base.
• The device must only be connected to the mains voltage that is specified on the type plate.
• Never submerge the device in water or other liquids and do not use it in the bathroom.
• Must not be used on people with disabilities, children under three years of age or people with reduced sensitivity to heat (e.g. people with skin alternations due to illness), after taking pain relief medication, alcohol or drugs.
• Keep packaging material away from children (risk of suffocation!).
• The device should not be covered, uncovered, or packed and stored when warm.
• Always unplug the mains part and allow the device to cool down before touching it.
• Do not touch the device with wet hands when it is plugged in and do not allow water to spray on the device. Only operate the device if it is completely dry.
• Ensure that you only insert and remove the mains part with dry hands and that you only press the ON/ OFF button with dry hands.
• Keep the mains cable away from hot objects and naked flames.
• Danger of strangulation due to excessively long cables.
• Protect the device from heavy impact.
• Do not pull the mains part out of the socket using the mains cable.
• If the mains part or its housing is damaged, this must be replaced by Customer Services or the retailer, as a special tool is needed for repair.
• Disconnection from the power supply network is only guaranteed when the mains part is unplugged.
• Do not use the device in the presence of flammable anaesthetic gas connections with air, oxygen or nitrogen oxide.

No calibration and no preventive checks or maintenance are to be carried out on this device. You cannot repair the device. The device contains no parts that you can repair. Do not make any changes to the device without the manufacturer's permission. If the device has been changed, thorough tests and checks must be carried out to ensure the continued safety of further use of the device.

• Do not position the device in a location where it is difficult to disconnect it from the mains supply.
• Check the device before each use. Do not use the device if it is damaged in any way. The continuous use of a damaged unit can be dangerous and may cause injury or improper results.
• The main material of the case is made of … Be cautious of potential allergic reactions to these materials. General notes Important
• Always consult a doctor before using the brightlight if you are taking medication such as pain relief medication, medication to reduce high blood pressure or antidepressant medication.
• Diabetics and people who suffer from retinal diseases must be examined by an optician before using the brightlight.
• Please do not use the brightlight if you suffer from an eye disease such as cataracts, glaucoma, diseases of the optic nerve or inflammation of the vitreous body.
• If you have health concerns of any kind, consult your GP!
• Remove all packaging material before using the device.
• Light sources are excluded from the guarantee. Repairs Important
• Do not open the device. Do not attempt to repair the device yourself. This can result in serious injury. Failure to comply will result in voiding of the warranty.
• For repairs, please contact Customer Services or an authorised retailer.

Take the device out of the plastic wrapping. Check the device for damage or faults. If you notice any damage or faults on the device, do not use it and contact customer services or your supplier. Positioning the device Place the device on an even surface. The position should be chosen to ensure a distance of between 20 cm and 60 cm between the user and the device. The lamp is most effective at this distance. Ensure that there is a mains socket close to the set-up area. Arrange the mains cable so that no-one will trip over it. Power supply Important To prevent possible damage to the device, the brightlight must only be used with the mains part described here.

1. Insert the mains part into the connection provided for this purpose on the rear of the brightlight. The mains part

must only be connected to the mains voltage that is specified on the type plate.

2. After using the brightlight, unplug the mains part from the mains socket first and then disconnect it from the

App connection You can control all of the device's functions with the “beurer LightUp” app on your smartphone. To control the device's functions with the app on your smartphone, proceed as follows:

1. Ensure that your smartphone is connected to the Internet and that the brightlight is switched on.

2. Download the “beurer LightUp” app from the Apple App Store (iOS) or Google Play Store (Android).

Note: Depending on the settings for your smartphone, additional charges may be incurred for connecting to the Internet or transferring data.

3. Open the “beurer LightUp” app.

4. Activate Bluetooth® on your smartphone. Under the Bluetooth® menu item on your smartphone, select the brightlight TL 100. The blue Bluetooth® LED on the brightlight will light up once the connection to the smartphone has been established.

5. Select the “TL 100” device in the app settings. You can now use the app to control the brightlight and to adjust

the moodlight (with brightness control and timer in each case).

6. beurer LightUp app features

After downloading the “beurer LightUp” app and connecting the brightlight to a smartphone via Bluetooth® (see chapter “Initial use”), you can control the brightlight and the moodlight from the app. Daylight You can switch the daylight on and off using the app. In addition, you can also use the app to adjust the brightness and set a timer for the daylight. Moodlight You can use the app to adjust the moodlight. The app allows you to select from ten pre-configured moodlight settings (with brightness control and timer in each case). After activating a moodlight setting, a moodlight with change of colour begins to light up. The pre-configured moodlight settings can only be adjusted from the app. Note: The moodlight and “beurer LightUp” app must not be considered medical products. Adjustments to the daylight function must be made on the device itself!

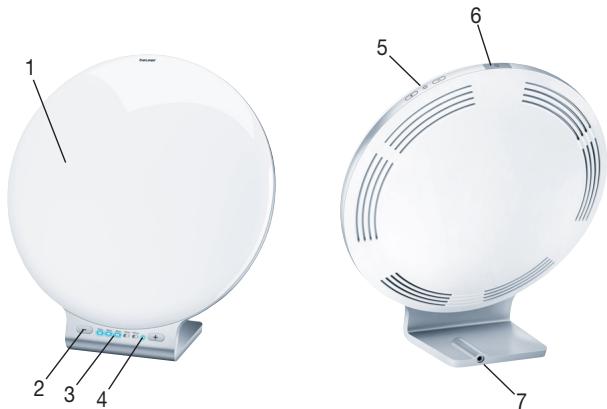

Insert the mains part into the connector. Switching on the lamp Press the on/off button.

LED display/timer The brightlight TL 100 indicates your current treatment time with the aid of 5 LEDs. The treatment time can be set at the following 5 levels. The timer function is not activated when the light is switched on for the first time. The light now shines until it is switched off again or a treatment time is set (timer = 0 min). In order to use the timer, set the desired level from 1 to 5 using the +/− buttons. On level 1, a treatment time of 15 minutes is set. The other levels are as follows: Treatment time Number of lit LEDs 15 minutes 30 minutes 45 minutes 90 minutes 120 minutes

The light switches off automatically after this treatment time. If you wish to deactivate the timer function, you can press the - button until the LEDs go out.

Brightness adjustment The brightlight TL 100 has 10 brightness levels. The desired brightness level can be set using the +/− buttons on the side – this level should be set so that it is pleasant for the eye during the treatment. When the device is switched off, the last level that was set is saved. When the device is next switched on, it restarts with the saved brightness level. Note: The device can also be used up to level 5 as a reading lamp.

Enjoying the light Position yourself as close as possible to the light, at a distance of between 20 and 60 cm. You can continue to go about your day-to-day activities during application, including reading, writing, making telephone calls, etc.

• Keep looking directly into the light for a short period of time as it is absorbed and shows an effect via the eyes/retina.
• Use the brightlight as often as you like. However, the treatment is at its most effective if you carry out the light therapy according to the prescribed time period of at least 7 successive days.
• The most effective time of day for the treatment is between 6am and 8pm and we recommend that it is used for 2 hours per day.
• Do not look directly into the light for the entire application period as this may cause over-stimulation of the retina.
• Start with a brief application period and gradually increase the time over the course of a week. Note: You may experience pain in the eyes and head after the first few applications. This pain should disappear in further sessions as the nervous system becomes accustomed to the new stimuli.

Things to consider We recommend a distance of between 20 and 60 cm from the face to the light during application. The duration of the application depends on the distance: Distance Duration Up to 20 cm ½ hour/day Up to 40 cm 1 hour/day Up to 60 cm 2 hours/day In principle, the closer you are to the light source, the shorter the application time.

Enjoying the light over longer periods Repeat application on at least seven consecutive days during darker periods of the year, or for longer depending on your individual needs. Application should take place during the mornings where possible.

Switching off the light Press the on/off button. The LEDs switch off. Unplug the mains part from the mains socket. Important! The light remains hot after use. Allow the light to cool down sufficiently before putting it away and/or packing it away.

Mood light with change of colour In addition to the normal daylight, the brightlight TL 100 also features a moodlight with change of colour. Press and hold the on/off button for 2 seconds. The moodlight with change of colour will switch on. As with the normal daylight, the moodlight also features a timer and brightness adjustment. To switch off the moodlight with change of colour, press and hold the on/off button again for 2 seconds. If you wish to have a coloured light permanently displayed while the colour-change operation is in progress, briefly press the on/off button. Press the on/off button again to switch off the permanent coloured light.

8. Cleaning and maintaining the device

The device should be cleaned from time to time. Important Ensure that no water gets inside the device. The device must be switched off, disconnected from the mains and allowed to cool down each time before cleaning. Do not clean the device in a dishwasher. Use a slightly damp cloth to clean the device.

• Do not use any abrasive cleaning products and never submerge the device in water. Do not touch the device with wet hands when it is plugged in and do not allow water to spray on the device. Only operate the device if it is completely dry. We hereby guarantee that this product complies with the European R&TTE Directive 1999/5/EC. Please contact the specified service address to obtain further information, such as the CE Declaration of Conformity.

If you are not going to use the device for an extended period of time, disconnect it and store it in a dry place, out of the reach of children. Follow the storage instructions provided in the “Technical data” chapter.

For environmental reasons, do not dispose of the device in the household waste at the end of its useful life. Dispose of the device at a suitable local collection or recycling point. Dispose of the device in accordance with EC Directive – WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal.

11. What if there are problems?

Important Problem Possible cause Solution Device does not light up On/off button switched off Switch on the on/off button. No electricity Connect the mains part properly. No electricity The mains part is faulty. Contact customer services or your retailer. LEDs have reached the end of their service life. LEDs faulty. or repairs, please contact Customer Services or an authorised retailer.

Model No. TL 100 Dimensions (W, H, D) 366 x 335 x 203 mm Weight 1130 g (approx. 1243 g with mains part) Light LED Output 36 W Brightness 10,000 lux (10-15 cm) Radiation Radiant power outside of the visible range (infrared and UV) is low enough that no eye or skin damage is anticipated. Operating conditions 5°C to +35°C, 15 - 90% relative humidity atmospheric pressure range 86-106 kpa Storage conditions -20 °C to +50 °C, 15 - 90% relative humidity atmospheric pressure range 86-106 kpa Product classification External power supply, protection class II, IP21 Color temperature of LEDs 5,300 K (+/− 300 K) Accessories Mains part, Instructions for use Subject to technical changes. This device meets the requirements of the European Directive 3/42/EEC and 2007/47/EEC Medical Devices 9 as well as the Medical Devices Act. This device complies with European Standard EN60601-1-2 and is subject to particular precautions with regard to electromagnetic compatibility. Please note that portable and mobile HF communication systems may interfere with this unit. More details can be requested from the stated Customer Services address or found at the end of the instructions for use.

Model No. MP 45 – 240150 – AG Manufacturer Mitra Power Solutions Co., LTD Input 100 – 240 V ~ 50/60 Hz Output 24 V DC, 1.5 A, only in conjunction with TL 100 Protection The device is double-protected. Polarity of the DC voltage connection IP22, protection class II Subject to errors and changes Classification

Technical Description Concerning Electromagnetic Emission Table 1: Declaration - electromagnetic emissions Guidance and manufacturer’s declaration - electromagnetic emissions The model TL 100 is intended for use in the electromagnetic environment specified below. The customer or the user should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment – guidance RF emissions CISPR 11 Group 1 The models TL 100 use RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment. RF emissions CISPR 11 Class B Harmonic emissions

Class C Voltage fluctuations/ flicker emissions

Not applicable The model TL 100 is suitable for used in domestic establishment and in establishment directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

Technical Description Concerning Electromagnetic Emission Table 1: Declaration - electromagnetic emissions Guidance and manufacturer’s declaration – electromagnetic immunity The TL 100 is intended for use in the electromagnetic environment specified below. The customer or the user should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance level Electromagnetic environment – guidance Electrostatic discharge (ESD)

±6 kV contact ±8 kV air ±6 kV contact ±8 kV air Floors should be wood, concrete or ceramic tile. If floors are covered with synthetic material, the relative humidity should be at least 30% Electrical fast transient/burst

±2 kV for power supply lines ±1 kV for input/output lines ±2 kV for power supply lines Mains power quality should be that of a typical commercial or hospital environment. Surge

±1 kV line to line ±2 kV line to earth ±2 kV line to earth Mains power quality should be that of a typical commercial or hospital environment. Voltage dips, short interruptions and voltage variations on power supply input lines

<5% UT (>95% dip in UT) for 0.5 cycle 40% UT (60% dip in UT) for 5 cycles 70% UT (30% dip in UT) for 25 cycles <5% UT (>95% dip in UT) for 5 seconds <5% UT (>95% dip in UT) for 0.5 cycle 40% UT (60% dip in UT) for 5 cycles 70% UT (30% dip in UT) for 25 cycles <5% UT (>95% dip in UT) for 5 seconds Mains power quality should be that of a typical commercial or hospital environment. If the user of the model TL 100 requires continued operation during power mains interruptions, it is recommended that the TL 100 therapy light is to be powered from an uninterruptible power supply or a battery. Power Frequency (50/60HZ) magnetic field

3 A/m Not applicable Not applicable NOTE UT is the a.c. mains voltage prior to application of the test level.

Table 3: Guidance & Declaration - electromagnetic immunity concerning Conducted RF & Radiated RF Guidance and manufacturer’s declaration – electromagnetic immunity The model TL 100 is intended for use in the electromagnetic environment specified below. The customer or the user should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance level Electromagnetic environment – guidance Portable and mobile RF communications equipment should be used no closer to any part of the model TL 100, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter. Recommended separation distance Conducted RF lEC 61000-4-6 Radiated RF lEC 61000-4-3 3 Vrms 150 kHz to 80 MHz

3 V/m 80 MHz to 2.5 GHz 3 V/m

d=1.2 P 80MHz to 800MHz d=2.3 P 800MHz to 2.5 GHz where P is the maximum output power rating of the transmitter In watts (W) according to the transmitter manufacturer and d Is the recommended separation distance in meters (m). Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey,a should be less than the compliance level in each frequency range.b Interference may occur In the vicinity of equipment marked with the following symbol: symbol:

NOTE 1 At 80 MHz end 800 MHz. the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the model TL 100 is used exceeds the applicable RF compliance level above, the model TL 100 should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the model TL 100. b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3V/m.

Table 4: Recommended separation distances between portable and mobile RF communications equipment and the model TL 100 Recommended separation distances between portable and mobile RF communications equipment and the model TL 100 The model TL 100 is intended for use in electromagnetic environment in which radiated RF disturbances is controlled. The customer or the user of the model TL 100 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the model TL 100 as recommended below, according to the maximum output power of the communications equipment. Rated maximum output power of transmitter

Separation distance according to frequency of transmitter 150 kHz to 80 MHz 80 MHz to 800 MHz 800 MHz to 2,5 GHz

For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) accordable to the transmitter manufacturer. NOTE 1 At 80 MHz and 800 MHz. the separation distance for the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
