USER MANUAL Airforce 3000 Bazooka CECOTEC

Safety instructions 12

1. Parts and components 117

2. Before use 117

3. Assembling the appliance 117

4. Operation 118

5. Cleaning and maintenance 118

6. Troubleshooting 119

7. Technical specifications 119

8. Disposal of old electrical

and electronic appliances 119

1. Technical support and warranty 120

2. Copyright 120

3. Declaration of Conformity 120

SOMMAIRE

EU01_102509 - AirForce 3000 Bazooka

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.

• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service.

• ⚠ Warning: To recharge the battery, use only the power supply unit provided with the tool.

• ⚠ Warning:

o Switch off and disconnect the tool from the mains before cleaning or maintenance.
o Read the instruction manual.
o Do not expose to rain.
o Wear eye protection.
o Keep bystanders away.

• Warning: Never allow children, people with physical, sensory or mental limitations or a lack of experience and knowledge and/or people unfamiliar with these instructions to use the tool.
• WARNING: Never operate the tool while people, especially children, or pets are nearby.
• The leaf blower is a tool designed to clean outdoor surfaces, such as gardens and patios, using a powerful air flow to blow leaves and light debris. It is not intended for blowing heavy or wet materials, nor for indoor use.
• Do not overreach and maintain your balance at all times. Always be sure of your footing on slopes. Walk, never run.
• WARNING: Do not touch dangerous moving parts before switching off the tool or until they have come to a complete stop.
• Always wear sturdy footwear and long trousers while operating the tool.
• Switch off the tool and ensure that it is disconnected from the power supply in the following circumstances:

o Whenever you stop using the tool.
o Before clearing/unblocking an obstruction.
o Before checking, cleaning or working on the tool.
o Before checking the tool for damage.

o If the tool starts to vibrate abnormally, stop using it and check immediately for damage.
- ⚠ Warning: never operate the tool with defective guards or covers, without safety devices, or if the power cord is damaged or worn.
- Do not connect a damaged cord to the power supply or touch a damaged cord before it is disconnected from the power supply, as damaged cords can lead to contact with energised parts at low voltage.
- Keep extension cords away from moving hazardous parts to avoid damage and contact with energised parts.
- Connect the tool only to a power supply circuit protected by a residual current device (RCD) with a tripping current not exceeding 30 mA.
- Recommendation: Avoid using the tool in adverse weather conditions, especially when there is a risk of lightning.
- Disconnect the machine from the mains if the cable becomes damaged or entangled during use.
- Wear ear protection and safety goggles. Wear them at all times while operating the machine.
- Always wear suitable footwear and long trousers when using the appliance. Do not use the appliance if you are barefoot or if you are wearing sandals. Avoid wearing loose-fitting clothes or clothes with laces or ties that hang down.
- Do not use the tool on paved, gravel or other loose material surfaces, as the air flow may lift and project objects, causing injury or property damage.
- Always allow the machine to cool completely before storing, especially if stored in an enclosed space or near flammable materials. This will prevent fire hazards and prolong the life of the machine.
- Always wear a suitable filter mask in conditions where there is a lot of dust or airborne particles. This will reduce the risk

of respiratory problems and protect your health while using the leaf blower.

- Never point the blower nozzle at people, pets or fragile surfaces. The air flow may project particles or objects, causing injury or damage.

IMPORTANT TO READ CAREFULLY BEFORE USE. KEEP IT FOR FUTURE REFERENCE.

Training

a) Read the instructions carefully. Familiarise yourself with the proper use and operation of the machine.
b) Never allow children or people unfamiliar with these instructions to use the tool. Local regulations may restrict the age of the user.
c) Please note that the operator or user is responsible for accidents or hazards that may occur to other people or their property.

Preparation

a) Wear ear protection and safety goggles. Wear them at all times while operating the machine.
b) Always wear suitable footwear and long trousers when using the appliance. Do not use the appliance if you are barefoot or if you are wearing sandals. Avoid wearing loose-fitting clothes or clothes with laces or ties that hang down.
c) Do not wear loose clothing or jewellery that could get into the air intake. Keep long hair away from air intakes.
d) Use the appliance in the recommended position and only on a firm and level surface.
e) Do not operate the appliance on a paved or gravel surface, as ejected material could cause injury.

f) Before using the appliance, always visually check that the bolts and other fixing elements are securely fastened, that the housing is not damaged and that guards and grids are in place. Replace worn or damaged components in sets to preserve balance of the appliance. Replace damaged or illegible labels.
g) Before using the appliance, check that the power cable and extension lead are not damaged, broken or worn out. If the cable is damaged during use, disconnect it immediately from the power supply. DO NOT TOUCH THE CABLE BEFORE DISCONNECTING THE POWER. Do not use the appliance if the cable is damaged or worn.
h) Never use the appliance in there are people, especially children, or domestic animals nearby.

Operation

a) Before starting the appliance, make sure that there is no foreign object inside the machine.
b) Keep face and body away from the power inlet opening.
c) Do not insert your hands or any other part of your body or clothing inside the appliance.
d) Keep your feet firmly on the ground and maintain your balance at all times. Do not lean forward when using the appliance. Keep your body balanced. Never stand higher than the base of the appliance.
e) Always keep away from the material to be blown when using this appliance.
f) When blowing materials, be very careful not to blow pieces of metal, stones, bottles, cans or other foreign objects.
g) If the cutting mechanism hits any foreign object or if the tool starts to make any unusual noise or vibration, switch off the power supply immediately and allow the machine to

stop. Disconnect the machine from the power supply and follow the steps below before restarting and operating the machine:

I) inspect for damage;
II) replace or repair damaged parts;
III) check for loose parts and tighten them.

h) Do not allow processed material to accumulate in the discharge area: this may prevent proper discharge and may cause material to back up through the inlet opening.

i) If the appliance jams, turn off the power supply and disconnect the machine from the power supply before clearing debris.
j) Never use the machine with defective guards or shields, or without safety devices such as the waste tank.
k) Keep the power supply clean of debris and other accumulations to prevent damage to the power supply or possible fire.
l) Do not transport this appliance if connected to the power supply.
m) Stop the appliance and unplug it from the socket. Ensure that all moving parts have come to a complete stop

- whenever you stop using the appliance;

- before unblocking or unclogging the tube;

- before checking, cleaning or working on the tool.

n) Do not tilt this appliance when connected to the power supply.

Maintenance and storage

a) When stopping the machine for maintenance, inspection or storage, or to change an accessory, switch off the appliance, disconnect it from the power supply and ensure that all moving parts have come to a complete stop. Allow the

appliance to cool down before carrying out any inspections, adjustments, etc. Take care of the appliance and keep it clean.

b) Store the appliance in a dry place, out of the reach of children and pets.
c) Always allow the appliance to cool down before storing it.
d) When carrying out maintenance on the tool, please note that even if the power supply is switched off due to the interlocking function of the protection, the machine can still be operated.
e) Replace worn or damaged parts for safety reasons. Only use original spare parts and accessories.
f) Never attempt to override the protection lock.

The symbols used by this tool are shown below. Make sure you understand their meaning before using the tool.

Symbol	Meaning
	Read all instructions carefully before operating the appliance.Follow all warnings and safety instructions.
	Do not expose to rain or damp places.
	Warning: Before cleaning or servicing the appliance, disconnect it from the mains.
	Danger: Beware of thrown objects.Keep bystanders away.
	Always wear eye protection.
	Use hearing protection.
	Wear safety footwear.
	Class II tool

INSTRUCTIONS DE SÉCURITÉ

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content

• Leaf blower
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

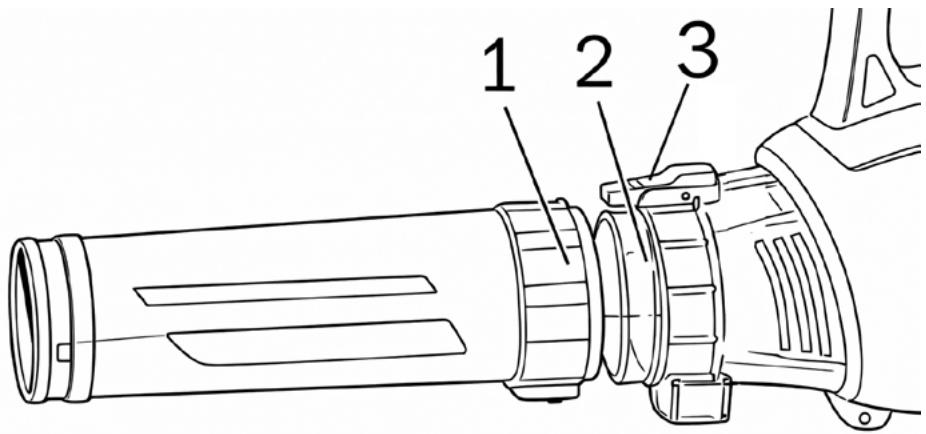

3. ASSEMBLING THE APPLIANCE

Fig. 2

1. Insert the nozzle in the proper position (1), aligning it correctly with the main housing (2).
2. Press until the nozzle lock button (3) holds it securely in place.

ENGLISH

4. OPERATION

1. Connect the power cable adapter to the mains.
2. Slide the switch to position 1 to start the blower. Ensure the nozzle is securely fastened by the lock button. Fig. 3

To stop the tool, release the trigger, slide the switch to position 0, and unplug it from the mains.

Note:

• Always make sure that all parts are properly assembled before using the tool.
• Do not use the blower in wet areas or in the rain.
• Always disconnect the blower from the mains before performing any maintenance or adjustments.

5. CLEANING AND MAINTENANCE

Periodically clean the blower. To do so, take into account the following aspects:

• Use a dry or slightly damp cloth to clean the tool.
• Prevent water from coming in contact with the motor or any electrical components to prevent damage.
• Do not use harsh chemicals or solvents, as they may damage the tool's materials.

When inspecting the nozzle, the following should be taken into account:

• Periodically check the nozzle and vents to make sure they are free of residue, such as leaves or accumulated dust.
• In case of clogging, remove the residues carefully with a soft brush or compressed air.

Maintenance

• Store the tool in a dry, clean place, protected from humidity and direct sunlight.
• If the blower will not be used for an extended period of time, cover it to prevent dust accumulation or store it in its box.
• Before each use, tighten all nuts, bolts and screws to ensure safety and proper operation of the tool.
• Inspect moving and fastening parts for wear or damage.
• For safety reasons, replace any damaged or worn components immediately.
• Always use recommended original spare parts and accessories to ensure optimum performance.
• Never attempt to open or repair the motor or internal components yourself. For more complex repairs, please contact the official Cecotec Technical Support Service.
• Make sure that the trigger and lock button are working properly before using the tool.

6. TROUBLESHOOTING

Problem	Solutions
The motor does not operate	- Check the power supply and the cord.- Check for voltage.- Clean the tool.- Contact Cecotec's Official Technical Support Service
Motor power has decreased	- Make sure that there are no foreign objects inside the motor.- Contact Cecotec's Official Technical Support Service.

7. TECHNICAL SPECIFICATIONS

Product reference: EU01_102509

Product: AirForce 3000 Bazooka

Motor rated power: 3000 W

Blowing speed: 850 m³/h

Air speed: 225 km/h

No-load speed: 19000 rpm

Voltage: 230-240V, 50 Hz

Vibration uncertainty K: 1.5 m/s ⁴

Sound pressure level LpA: 90.5 dB(A)

Uncertainty K_pA = 3 dB(A)

Sound power level LwA: 101.5 dB(A)

Uncertainty K_wA = 3 dB(A)

Weight: 2.6 kg

Technical specifications may change without prior notice to improve product quality.

Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

ENGLISH

For detailed information on how to properly dispose of electrical and electronic appliances and/or batteries, consumers should contact their local authorities.

Information regarding national packaging recycling systems and their marking can be found on our website.

Compliance with the above guidelines will help to protect the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations.

Repairs should be carried out by qualified personnel.

If you detect any incident with the product or have any query, please contact Cecotec's Official Technical Support Service on [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

11. DECLARATION OF CONFORMITY

MANUFACTURER: CECOTEC INNOVACIONES S.L

ADDRESS: Av. Reyes Católicos, No. 60, 46910, Alfafar, Valencia (Spain).

DESCRIPTION: Leaf blower

PRODUCT IDENTIFICATION: AirForce 3000 Bazooka

FUNCTION: Corded Leaf Blower

MODEL: A01_EU01_102509

It certifies that the product described has been designed, manufactured and tested and complies with all applicable requirements.

EU DIRECTIVES IMPLEMENTED:

• Directive 2006/42/CE on machinery.
• Directive 2014/30/EU on the harmonisation of the laws of the Member States relating to electromagnetic compatibility.
• Directive 2011/65/EU and delegated directive (EU) 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

APPLICABLE HARMONISED NORMS:

• EN 60335-1:2012 +A11:2014 +A13:2017 +A14:2019 +A1:2019 +A2:2019 +A15:2021
• EN 50636-2-100:2014
• EN 62233:2008
• EN IEC 55014-1:2021
• EN IEC 55014-2:2021
• EN IEC 61000-3-2:2019+A1
• EN IEC 61000-3-3: 2013+A1+A2
• IEC 62321-1:2013; IEC 62321-2:2021; IEC 62321-3-1:2013; IEC 62321-4:2013+A1:2017; IEC 62321-5:2013; IEC 62321-6:2015;
• IEC 62321-7-1:2015; IEC 62321-7-2:2017; IEC 62321-8:2017.
