USER MANUAL Toothcare Eliteswing Premium CECOTEC

Safety instructions 8

1. Parts and components 61

2. Before use 61

3. Operation 61

4. Cleaning and maintenance 63

5. Troubleshooting 64

6. Battery disposal 64

7. Technical specifications 64

8. Disposal of old electrical and electronic

appliances 65

1. Technical support and warranty 65

2. Copyright 65

3. Simplified EU Declaration of Conformity 66

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Please read these instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

• Make sure that the mains voltage matches the voltage specified on the product's rating label and that the plug is earthed.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental

capabilities or lack of experience and knowledge if they have been given appropriate supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

• The appliance must be powered at a low safety voltage as stated on the marking.
• This device should only be used with water or specific solutions.
• To avoid risk of burns, electric shock, fire, or injury:
• Do not attempt to connect or disconnect the charger with wet hands. To disconnect it, pull on the adapter, not the cable.
• Ensure the mains voltage matches the voltage specified on the appliance's rating label and that the socket is properly earthed.
• Check the charging cable regularly for visible damage. If the cord or adapter is damaged, malfunctioning, or has been dropped, it must be repaired by Cecotec's official Technical Support Service to avoid any danger.
• Disconnect the charger from the mains when the product is charged.
• Keep the product and cord away from fire and other heat sources.
• Never leave a product unattended while plugged in.
• You must charge the product with the charger supplied by Cecotec. Do not use any other charger type.
• Use the appliance only for the purposes described in this manual.
• Use only tips and accessories recommended or supplied by Cecotec.

• Do not drop or insert any foreign object into any opening.

• Do not use the appliance if you are wearing oral jewellery. Remove it before use.

• Do not use the device if you have an open wound on your tongue or your mouth. If you have been advised by your physician to receive antibiotic pre-medication prior to dental procedures, you should consult your dentist before using this device or any other oral-hygiene device.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Store the appliance and its instruction manual in a safe and dry place when not in use.
• The product may cause bleeding gums when first used. This is completely normal and will stop happening with frequent use. Adjust the intensity of the appliance to reduce the presence of bleeding gums.
• Do not use the device without assembling a brush head.
• Do not place the device in a hot or wet place, nor in places with direct sunlight.
• During cleaning or maintenance, make sure that the device is switched off and is not charging.
• Do not try to open, disassemble, or repair the appliance by yourself. There are no serviceable parts inside the appliance.
• To avoid burns, do not attempt to clean your mouth with water above 40 °C.
• Do not use the device for any purpose other than oral hygiene.
• To avoid injury, do not press the tip between your gums or teeth.

Battery instructions

• This appliance contains an irreplaceable battery.
• This appliance includes a Li-ion battery. Do not incinerate or expose it to high temperatures, as it may explode.
• WARNING: to recharge the battery, use only the power cord supplied with the appliance.
• Leaks from the battery or cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid comes into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Keep batteries out of the reach of children when there is a risk of ingestion.
• Battery ingestion can cause burns, soft tissue perforation and death. Severe burns may occur within two hours of ingestion.
• In case of battery ingestion, please seek medical help immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
• Do not subject batteries to mechanical shock.
• Do not leave the battery charging for an extended period of time when not in use.
• After long periods of storage, it may be necessary to charge and discharge the batteries several times to obtain maximum performance.
• Dispose of the battery properly.

• The recommended room-temperature range during charging is between 4 °C and 40 °C.

• The recommended room temperature range for battery storage is between 0 to 50°C.

• The recommended room-temperature range during charging is between 5 and 50 °C.

INSTRUCTIONS DE SÉCURITÉ

1. Brush head
2. Display
3. Power/mode selection button
4. Toothbrush handle
5. Charging base
6. LED indicator light
7. Charging cable inlet

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.
• Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

Box content

• Toothbrush
• 2 brush heads
• Charging base
• Instruction manual

3. OPERATION

The electric toothbrush has undergone a complete discharge and charge cycle before leaving the factory. However, due to inventory time variations and normal natural discharge, the battery in your newly purchased product may not be fully charged. It is recommended to fully recharge it before use. Ensure your local power supply voltage matches the voltage range

indicated on the products rating plate. Connect the electric toothbrush base to the charging cable, select a compatible adapter, and plug it into a safe power socket.

A full charge takes about 15 hours, and the indicator on the display shows the charging status at all times.

After being fully charged, promptly remove the charging head from the socket; do not leave it continuously plugged in.

Brush head installation

When installing the brush head, align the bristle front end with the handle front. Align and insert the drive shaft into the hole at the bottom of the brush head, push firmly until fully seated, leaving a 0.2-1 mm gap between the brush head bottom and handle top.

Fig. 2

Functions

1. Timer function: In each operating mode, the brush head pauses briefly (0.5 seconds) every 30 seconds to prompt users to change brushing position, automatically stopping after 4 sets of 30 seconds (approximately 120 seconds total).
2. Pressure sensor function: During brushing, the rear LED indicator light remains off under normal pressure. If excessive pressure is applied during brushing, the rear LED indicator light will turn red to remind users to adjust the pressure.
3. Auto shut-off function: When the device remains inactive for 10 seconds in standby mode, it automatically enters auto shut-off mode and the display turns off. As soon as the user picks up or shakes the toothbrush, it will automatically activate and the display will turn on.
4. Travel lock function: When the device is switched on, press and hold the button for more than 5 seconds to activate the travel lock. The engine will emit an audible alert and the display will show a warning to unlock it. When locked, pressing the button once will cause the display to show the unlock prompt again. To unlock, press and hold the button for over 3 seconds or press twice. When unlocked, the device will emit a sound.
5. Charging status: While the device is charging, the display shows a battery icon that remains lit until 100% is reached. The device cannot be used while charging.
6. Low voltage protection function: When the battery has less than 25% charge, the last cell of the battery icon lights up red. When the voltage is below 3.3 V (to protect the battery from excessive discharge), the product automatically switches off.
7. Incorrect discharge prevention function: When the product is in standby mode, if it is continuously shaken for over 3 minutes, the device will automatically enter auto shut-off mode and the display will turn off. To reset the standby mode, simply press the button once. (This prevents users from forgetting to activate the travel lock when travelling and avoids frequent start-ups that discharge the battery).

Mode selection

You can choose between 4 different modes: Cleaning, Deep, Protecting, Soft. The selected mode will be shown on the display.

Using the toothbrush

Moisten the brush head and apply a small amount of toothpaste.

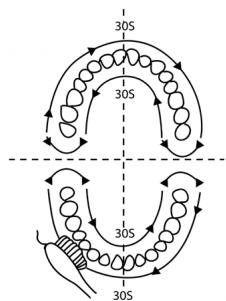

1. Place the brush head in your mouth with the bristles at a slight angle (45 degrees) against your teeth. Press the power button to activate brushing mode and the toothbrush will begin operating. Continuously press the power button to cycle through four modes. The selected mode will be shown on the display.
2. Gently press the brush head against your teeth and brush each quadrant for 30 seconds. If brushing stops automatically, simply press the power button to turn it off. Every 30 seconds, there will be a brief pause to remind you to change cleaning area (as shown in Figure 4).
3. After completing all four quadrants, the brushing mode automatically stops. Remove the brush head from your mouth to prevent toothpaste foam splatter. (Within 5 seconds of switching to brushing mode, press and hold the power button to stop brushing mode).

Fig. 3 Fig. 4

4. CLEANING AND MAINTENANCE

User cleaning and maintenance tasks must not be performed by children. Before rinsing with clean water, please turn off the device and remove the brush head. It is recommended to replace the brush head every 3 months.

• Rinse the brush head with clean water, shake off excess water after cleaning, and do not use hot water for cleaning.
• Rinse the body with clean water, do not scrub or damage the waterproof rubber seal. Do not immerse this device in water for extended periods. Do not use hot water for cleaning.
• Dry with a clean cloth and store in a dry, safe place.

Fig. 5.

5. TROUBLESHOOTING

Problem	Possible cause	Solution
The brush head does not move	Low battery	Charge the toothbrush
The brush head vibrates weakly
Short operating time until it stops working	The battery has reached the end of its useful life	Charge the toothbrush
	Insufficient charging period	Charge the device for at least 5 hours
The button does not change mode	You are not pressing the button hard enough	Press the button firmly for it to work The button is not touch-sensitive

NOTE: If the device still does not function properly after trying the above solutions, stop using it and contact Cecotec's Official Technical Support Service.

6. BATTERY DISPOSAL

This device contains a lithium battery. Before disposing of the product at the end of its useful life, remove the battery and dispose of it in accordance with local regulations.

For this purpose, (Fig. 6):

IMPORTANT: Ensure the device is completely discharged.

1. Using a tool, pry and remove the toothbrush base.
2. Use a tool to loosen the two fixings on the buttons inside.
3. Press the shaft holding the brush head against a hard, flat surface so that the inside of the toothbrush comes out at the bottom.
4. Remove the inner part of the toothbrush and separate the battery.
5. Cut the red and black wires that connect the battery to the mainboard and remove the battery. Be careful not to short-circuit the wires.

7. TECHNICAL SPECIFICATIONS

Product: ToothCare EliteSwing Premium

Product reference: EU01_122536

Product input: 5 V =, 1 A

Battery (not replaceable): Lithium-ion, 3.7 V, 2000 mAh, 7.4 Wh

IPX7

To recharge the battery, it is recommended to use an adapter with the following characteristics: Input: 100-240 V\~, 50/60 Hz

Output: 5 V =, 1 A

Technical specifications may change without prior notice to improve product quality.

Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its service life, you must remove the batteries/accumulators and take it to a collection point designated by local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help to protect the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

11. SIMPLIFIED EU DECLARATION OF CONFORMITY

Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality

standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Img. 1

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

5. PROBLEEMOPLOSSING

https://cecotec.es/es/information/declaration-of-conformity

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

1

2

3

4
Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6.1

Fig./Img./Abb./Afb./Rys. 6.2

Fig./Img./Abb./Afb./Rys. 6.3

Fig./Img./Abb./Afb./Rys. 6.4

Fig./Img./Abb./Afb./Rys. 6.5
