USER MANUAL Bolero Coolmarket Chest 78 E CECOTEC

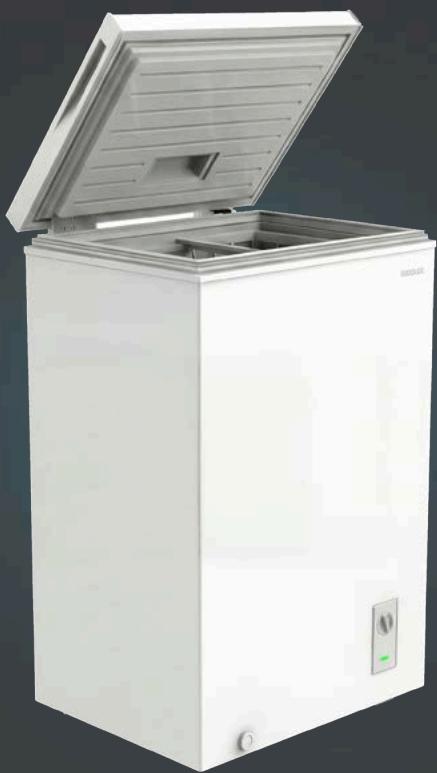

BOLERO COOLMARKET CHEST 78 WHITE E

Congelador/Freezer

SAFETY INSTRUCTIONS....4

ESPAÑOL....165

ENGLISH....181

FRANÇAIS....195

DEUTSCH....211

ITALIANO....227

PORTUGUÊS....242

NEDERLANDS....258

POLSKI....273

ČEŠTINA....288

MAGYAR....302

ΕΛΛΗΝΙΚΑ......317

TÜRKÇE....332

العربية 346

CATALÀ....358

FIGURES....372

NOTA

EU01_122370 Bolero CoolMarket Chest 78 White E

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Please read these instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

Icon	Type	Meaning
[WHWS]	WARNING	Risk of serious injury or death
	RISK OF ELECTRIC SHOCK	Risk of dangerous voltage
	FIRE	Warning: Risk of fire/flammable materials
	CAUTION	Risk of injury or damage to property
	IMPORTANT/NOTE	Correct system use

- NOTE: Pay particular attention to the phrases contained in these icons, as they warn of a potential hazard that can cause serious injury to you and others. The instructions will tell you how to reduce the risk of injury and what can happen if you do not follow them.

- Read these instructions carefully before assembling or using the appliance, as they contain important information that will help you get the best out of your equipment. It is your responsibility to make sure every user is informed about the warnings and precautions stated in this instruction manual.

- WARNING: These instructions for use are generic. This means that certain functions or components are valid for your freezer, while others are not.

- When a malfunction occurs, it can seriously damage the freezer or result in death or injury to the user, or create electrical or fire hazards.

- CAUTION: check the freezer and its packaging for damage. Never use the freezer if it is damaged, contact Cecotec's Official Technical Support Service immediately.

- This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given appropriate supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

- Do not store flammable, explosive, volatile or highly corrosive substances such as aerosol cans with

flammable propellant in this appliance, as they may cause damage, accidents or fire.

- Do not place flammable items near the freezer to prevent fire.

- This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.

- Do not install the appliance outdoors.

- Avoid direct sunlight exposure.

- Do not install the freezer near heat sources such as heaters, ovens, etc.

- To avoid food contamination, please follow the instructions below:

A. Opening the door for a long period of time may cause a significant increase in temperature in the appliance's compartments.

B. Regularly clean the surfaces that might be in contact with food and accessible evacuation systems.

C. If the freezer appliance remains empty for a long period of time, unplug it, defrost it, clean it, dry it, and leave the door open to prevent interior mould formation.

D. Store raw meat and fish in suitable containers so that they do not come into contact with or drip onto other food items.

E. The two-star frozen food compartments are suitable for storing pre-frozen food, ice cream and ice cubes*.

F. The 1, 2 and 3 star compartments are not suitable for

freezing fresh food*.

G. For appliances without a 4-star compartment: not suitable for freezing foodstuffs*.

*Please verify the applicability based on your product's compartment type. This feature varies according to the model purchased.

"4-star" symbol: Freezer compartment at -18°C or below, capable of fast-freezing a specified quantity of food.

“3-star” symbol: Freezer compartment at -18°C or below.

"2-star" symbol: Freezer compartment at -12°C or below.

“1-star” symbol: Freezer compartment with target temperature and storage conditions of -6°C .

• WARNING: when positioning the appliance, make sure the power cord is not trapped or damaged.
• ⚠️ WARNING: do not place multi-socket adaptors or portable power supplies on the rear of the appliance.
• WARNING: keep the ventilation grilles of the appliance enclosure or the cabinet where the

appliance is located clear.

- WARNING: do not use mechanical devices or other means to speed up the defrosting process other than those recommended by Cecotec.

- WARNING: do not use electrical devices inside the food storage compartments unless they are of a type recommended by Cecotec.

- WARNING: do not damage the cooling circuit.

- Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by Cecotec's Official Technical Support Service, or similarly qualified persons, to avoid any hazard.

- Do not use the appliance if the cord, plug or housing is damaged or malfunctioning, if it is partially disassembled or if components are missing or damaged.

- WARNING: If the lighting is damaged, please contact Cecotec's Official Technical Support Service. Do not try to repair it on your own

- WARNING! It is dangerous for anyone other than authorised personnel to carry out maintenance or repairs involving the removal of covers. To prevent the electric shock risk do not attempt to repair the appliance yourself.

• In case of malfunctioning, repairs must be carried

out by Cecotec's Technical Support Service; otherwise the warranty will be void.

- Before installing or repairing the freezer, you must disconnect it from the mains.

- To unplug the appliance, pull from the socket, never from the cord.

- When installing or moving the appliance, be careful not to pinch, squeeze or damage the power cord. Do not bend the cable excessively, do not place heavy objects on it.

- Do not place carbonated or soft drinks in the freezer, as this creates pressure in the can, which could explode and result in injury and/or damage to the appliance.

- Ice-cream “popsicles” can cause freezer burns. This can happen if they are ingested after removal from the freezer.

- Do not remove items from the freezer with wet hands as this may cause skin abrasions or freezer burns. Bottles and cans should not be placed in the freezer, as they may burst when their contents freeze.

- See the storage times recommended by the manufacturer.

- Do not allow children to play with the controls or the freezer. This is a heavy appliance. Caution must be taken when moving it. It is dangerous to alter specifications or attempt to modify this appliance in

any way.

- WARNING: in the case of doors or covers equipped with locks and keys*, these must be kept out of the reach of children and not in the vicinity of the appliance to prevent children from being locked inside.

*Depending on the freezer model.

- Be careful when closing the freezer door.

- ⚠️ WARNING: the refrigerant used in your appliance and the insulation materials must be disposed of correctly.

- To avoid the risk of suffocation, keep the packaging material away from children.

- WARNING: If the interior light is damaged, contact Cecotec's Official Technical Support Service. Do not try to repair it yourself.

- Make sure the appliance plug is accessible after installation.

- Do not place food directly against the air outlet on the interior of the appliance.

- To avoid injuries or death caused by electric shock, do not use the appliance with your hands wet or over a wet surface.

- Do not use the appliance with an extension cable or a multi-socket adaptor. Make sure the appliance is plugged in directly to a power supply. The plug must be inserted into a suitable power socket,

which must be properly installed and earthed in accordance with local Standards and Regulations. If an electric shock occurs, grounding can provide a path of minimum current resistance, thus reducing the risk of electric shock.

• Do not modify the plug supplied with the freezer.
• Improper connection of the equipment grounding wires may result in a risk of electric shock. If you are in doubt as to whether the equipment is properly grounded, consult a qualified electrician.

- The power plug must be firmly in contact with the power outlet, otherwise a fire may result.

- It is not recommended to use this product with plugs or main switches with AFC/GFCI function, as this may cause false activation. It does not pose a safety risk if triggered. If the activation persists, it is recommended to replace the sockets or the main circuit breaker without AFC/GFCI (Arc Fault Circuit Interruption / Ground Fault Circuit Interruption) function.

- This appliance is not intended to be operated by means of an external timer or separate remote-control system.

- In case of gas leakage, do not unplug the freezer or other electrical appliances, as sparks may cause a fire.

- When positioning the appliance, make sure there is

enough free space at the rear, as it is the main heat outlet. This will allow for adequate ventilation.

• Do not place any other appliance on the freezer and do not wet it.
• To avoid hazards due to instability of the appliance, install it according to the instructions in this manual.
• This freezer is not designed for built-in or integrated installation.

- If any abnormal phenomenon occurs, such as burning smell, it is necessary to stop operation and cut off the power supply.

- It is advisable to wait for at least 4 hours before connecting the appliance to allow oil to flow through the compressor.

- Cecotec disclaims all liability for any damage or injury caused as a result of failure to follow the installation and/or operating instructions contained in this instruction manual.

- Cecotec shall not be held liable for any damage, accident, or incident resulting from the misuse of this appliance. It is the responsibility of the user to operate and maintain the appliance according to the instructions and recommendations detailed in this manual. Failure to follow instructions may result in personal injury, property damage, or loss of product warranty.

- We are constantly working on the development and improvement of our appliance models and ranges.

Therefore, we reserve the right to make changes to the design, equipment and accessories of all models and ranges without prior notice.

Temperature range

- The appliance temperature range information can be found on its marking. Indicates the optimum room temperature for proper operation of the appliance.

Climate class	Optimal room temperature
SN	From +10 °C to +32 °C
N	From +16 °C to +32 °C
ST	From +16 °C to +38 °C
T	From +16°C to +43°C

Notes:

- Taking into account the limiting values of the ambient temperature range for the climates for which the freezer is designed and that internal temperatures may be affected by factors such as freezer location, ambient temperature and frequency of door opening, it may be necessary to modify the setting of any temperature control device according to these factors.

- If the appliance is operated in an environment other than the specified climate type (i.e. beyond the rated ambient temperature range), it may not be able to

maintain the desired compartment temperatures.

Free of Freon

- This freezer uses freon-free refrigerant (R600a) and foaming insulation material (cyclopentane), which are environmentally friendly, do not cause damage to the ozone layer, and have a very low impact on global warming. R600a is flammable and does not leak during normal use when sealed in a refrigeration system. In case of refrigerant leakage due to damage to the refrigerant circuit, be sure to keep the appliance away from open flames and sources of ignition and open the windows to ventilate the room where the appliance is located as soon as possible.

- This symbol means: Warning, risk of fire/flammable materials.

- WARNING: the refrigerant and the insulator gas are flammable. When disposing of the appliance, only dispose of it at an authorised waste-disposal facility. Do not expose it to flames.

- WARNING: the appliance contains refrigerant and gases in the insulation. The appliance and gases must be disposed of professionally, as they may cause injuries to eyes or ignition. Make sure the refrigeration-circuit pipe is not damaged before disposing of it correctly.

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019

https://cecotec.es/es/information/declaration-of-conformity

ESPAÑOL

ENGLISH

1. Parts and components

Fig. 1

1. Door
2. Hinges
3. Freezer body
4. Drainage
5. Control panel

NOTE:

• The graphics in this manual are schematic representations and may not exactly match the product.
• To improve quality, our products are constantly updated and their appearance and specifications may change.
• To get the most out of the appliance in terms of energy efficiency, place all accessories in their original position.
  ● Accessories may vary depending on the freezer model.

2. Before use

• This appliance comes in a packaging designed to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content

• Freezer
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. Installation

3.1 Positioning

• Do not transport the freezer in a horizontal position. Its transport and handling must be carried out by several people.
• Once the packaging has been removed, clean the outside of the freezer thoroughly with a soft, dry cloth and the inside with a cloth dampened with lukewarm water and, in any case, a neutral, non-abrasive detergent. Electrical parts should only be cleaned with a dry cloth.
• The location you choose to install the appliance must be well ventilated. Do not place the freezer in a narrow space or near heat sources such as a hob, radiators, etc. Avoid direct sunlight to ensure effective freezing and save energy consumption. Do not place the appliance in a damp place to avoid rust or loss of power. The result of dividing the amount of cooling power of the appliance by the total space of the room in which it is installed must be less than 8 g/m ³ .

Note: The amount of refrigerant used by the appliance is specified on the rating plate.

• For efficient operation, adequate air circulation is necessary, since during operation, the appliance gives off heat, therefore, at least 30 mm of free space should be left at the top (2), more than 100 mm at the sides (1) and more than 50 mm at the rear.
• Place the appliance on a solid, flat floor to keep it stable, otherwise vibrations and noises will occur. Placing the appliance on soft, uneven or unstable surfaces such as carpets, straw or polyvinyl chloride mats, etc., may reduce the efficiency of the freezer, increase the risk of malfunction and potentially cause damage to the appliance or its environment.
• In any case, you can also place solid support plates under the freezer to avoid colour alteration due to heat dissipation.
  ● The place where the appliance is installed must be well ventilated.

3.2 Levelling

● The appliance must be well levelled to avoid vibrations.
- If necessary, adjust the front levelling feet to compensate for the unevenness of the floor.
● The levelling feet can be easily rotated by slightly tilting the appliance*.
- Turn the levelling feet counterclockwise to raise the freezer and clockwise to lower it.

*Levelling feet are only available on selected models.

CAUTION: Two or more people are needed to rotate and tilt the freezer on its back, allowing access to all sides.

3.3 Preparation

• Once the appliance is properly installed and cleaned, do not switch it on immediately.
• When installing the freezer, wait at least 4 hours before starting it up. This will ensure that the coolant is fully stabilised, and maximum cooling capacity is guaranteed, while avoiding possible damage.
• IMPORTANT: Check that the electrical voltage and frequency match the data indicated on the nameplate of the freezer.
• Plug the freezer into the power outlet and set the desired temperature, after about 1 hour* open the door and check if the temperature inside the freezer has dropped. If so, this means that the cooling system is working properly.

*Time may vary depending on factors such as ambient temperature, relative humidity, ventilation, etc.

• Let the appliance idle for 24 hours to allow the compartment to cool to the proper temperature.
  ● Once the appliance has cooled down completely, put the food in

NOTE: It may take several hours for food to freeze completely, try to open the freezer door as little as possible to prevent the inside temperature from rising considerably.

● In summer, when temperatures are high, food may take longer to cool completely.

If the appliance is installed in a damp location, ensure that the earth cable and leakageit breaker in the house's electrical panel are working properly. If vibration noises occurto contact of the appliance with the wall or if the wall turns black due to air convectionand the compressor, keep the appliance further away from the wall. This appliance maythe interference in mobile phones, landline phones, radio receivers, or televisions near thegerator, so in this case, keep the appliance as far away from these objects as possible.

4. Operation

Control panel (Figure 2)

Fig. 2

1.- Operation light

2.- Thermostat

● After switching on the appliance, the RUNNING indicator light will come on, indicating that the compressor is running.
- Adjust the temperature inside the freezer using the thermostat on the control panel:

Setting 0: Refrigeration OFF position. NOTE: The freezer is still supplied with power.

Setting 1: Temperature between -8 and -12 °C.

ENGLISH

Setting 2-3: Temperature between -12 and -15 °C. Setting 4: Temperature between -15 and -18 °C.

Setting 5-6: Temperature between -18 and -20 °C.

Setting 7: Temperature between -20 and -24 °C.

• If the appliance is disconnected or there is a power failure, wait 3 to 5 minutes before reconnecting it.
• Setting 4 is recommended for normal residential use.

IMPORTANT: These temperatures are approximate and may vary depending on many factors, such as outside temperature, relative humidity, ventilation, type and quantity of food stored, etc.).

IMPORTANT: The temperature is homogeneous, but variations may occur in certain parts of the freezer interior.

ATTENTION: The control panel may vary depending on the freezer model.

NOTE: Do not store liquids in closed containers, such as bottles or cans.

5. Food storage instructions

• The freezer is designed for freezing food, long-term storage of frozen food and production of ice cubes.
• Do not store poisonous or dangerous substances in the freezer. Your freezer is designed to store only edible products.
• There should always be some space between the food inside to allow air to circulate.
  ● Food should be kept in airtight containers to avoid drying out or giving off odours.
  ● Hot food must be cooled before being placed in the freezer.
  ● Reducing the frequency of door opening can reduce electricity consumption.
• Do not open the door frequently or leave it open longer than necessary.
  ● The lower the selected temperature, the higher the energy consumption.
• If the room temperature is high, the selected temperature is also low and the freezer is full, the compressor may run continuously, causing frost or ice to form on the evaporator. If this happens, increase the freezer temperature.
  ● Ensure good ventilation. Do not cover grilles and ventilation openings.
• Before freezing, wrap and seal fresh food with aluminium foil, film, freezer bags, airtight containers, etc.
• For more efficient freezing and thawing, divide food into small portions.

ENGLISH

• It is advisable to label and date all frozen foods. This will help to identify foods and to know when they should be used before they spoil.
• Observe the storage times recommended by food suppliers.
  ● Food must be fresh when you freeze it (especially fruit and vegetables).
• Do not freeze bottles or cans containing liquids, particularly beverages containing carbon dioxide, as they may explode during freezing.
• Do not put hot food in the freezer. Cool them to room temperature before placing them in the drawer.
• To avoid increasing the temperature of already frozen food, do not place fresh, unfrozen food directly next to it. Place food at room temperature in the part of the freezer where there is no frozen food.
• Do not use ice cubes or eat ice cream or popsicles immediately after removing them from the freezer.
• Do not refreeze thawed food. If the food has thawed, cook it, allow it to cool and then freeze it.
  ● Consume thawed food immediately.
  ● Too low a temperature setting may shorten the lifespan of the freezer.
  ● The entire freezer is suitable for the storage of frozen food products.
  ● Leave enough space around the food to allow air to circulate freely.
• For proper storage, refer to the label on the food package.
• It is important to wrap the food in such a way as to prevent water from entering.
• Before storing food, make sure that the packaging is not damaged as the food may deteriorate. If the container is swollen or damp, it may not have been stored under optimal conditions.
• To limit the defrosting process, place frozen food immediately in the freezer after purchase.
• If food has thawed, even partially, do not refreeze it. Consume them as soon as possible.
• In the event of a prolonged power failure or equipment breakdown, remove stored frozen foods and check if they are still edible. Then store them in a sufficiently cool place or in another freezer.
• To thaw foods, remove them from the freezer and let them thaw at room temperature or in the refrigerator. For quick defrosting, you can use the microwave defrost function.
• If you only want to thaw part of a package, remove the portion you need and immediately close the rest. This will prevent freezer burn and reduce icing of the remaining food.
• ATTENTION: Storing too much food during operation after initial connection may

ENGLISH

adversely affect the freezing effect.

• IMPORTANT: Prolonged storage at inadequate freezing temperatures can cause loss of quality or spoilage of food and may even cause food poisoning. The minimum temperature in most cases should be -18°C or lower.
• Observe the expiry date and the storage instructions on the package. The following table shows approximate shelf life, which depends on many factors.

Food item	Storage time (months)
Bread	3
Fruit (except citrus)	6-12
Vegetables	8-10
Meatless leftovers	1-2
Daily food
Butter	6-9
Mild cheese (e.g. mozzarella)	3-4
Strong cheese (e.g. parmesan, cheddar)	6
Fish and seafood
Oily fish (e.g. salmon, mackerel)	2-3
White fish (e.g. cod, sole)	4-6
Shrimps	12
Shelled clams and mussels	3-4
Cooked fish	1-2
Meat
Poultry	9-12
Beef	6-12
Pork	4-6
Lamb	6-9
Sausages	1-2
Ham	1-2
Leftovers with meat	2-3

Energy saving recommendations:

• Close the door carefully and make sure that it is completely closed after use, otherwise the freezer will consume more energy and more ice will form.
• Do not place the freezer near stoves, radiators or other heat sources. If the ambient temperature is high, the compressor will run more frequently and longer, resulting in higher energy consumption.
• Ensure that there is sufficient ventilation at the base, sides and rear of the appliance.
• To obtain more storage space, e.g. for large refrigerated or frozen products, you can remove the central drawers and accessories. The top and bottom drawers and accessories should be removed at the end, if necessary. (IMPORTANT: Accessories may vary depending on the freezer model).
• Arrange the interior space uniformly to contribute to optimal energy use.
• Open the door only as far as necessary to minimize cold loss. Opening the door promptly and closing it properly reduces energy consumption.
  ● The door seals must be in perfect condition.
• Check the contents of the freezer at regular intervals to ensure the integrity of the food.
  ● Prepare the fresh food you want to freeze in small portions to ensure rapid freezing.
• Wrap all food in aluminium foil or plastic freezer bags and make sure to remove air.
  ● Place small items in the basket (not available on all models).
• Do not put hot food in the freezer. Let it cool down first.

6. Cleaning and maintenance

ATTENTION: Before cleaning the appliance, disconnect it from the mains. Wait 3 to 5

minutes before restarting, as frequent starting may damage the compressor. Do not touch

ENGLISH

the plug with wet hands; doing so may result in electric shock. Avoid spilling water on the appliance, so that it does not rust or cause an accident. Do not reach into the bottom of the appliance, as this may cause damage.

Cleaning the interior and exterior

• Food residues in the appliance can cause unwanted odours, so it should be cleaned regularly, at least once a month.
• The inside of the refrigerator should be cleaned regularly to avoid unpleasant odours.
• Use a soft cloth or sponge to clean the inside of the product. You can use two tablespoons of baking soda and one liter of warm water. Then rinse with clean water and dry thoroughly. After cleaning, open the door and allow it to air dry before turning it on.
• For hard-to-reach areas, such as corners, a soft-bristled cloth or brush is recommended to ensure that contaminants and bacteria do not accumulate.
• Clean the dust that accumulates on the rear panel and side plates of the appliance regularly.
• If you have used mild soap, be sure to rinse it with clean water. Next, dry it with a dry cloth.
• Do not use any abrasive materials or corrosive products to clean the appliance, hard or wire brushes, organic solvents (alcohol, acetone, benzene, isoamyl acetate, etc.), boiling water, acidic or alkaline products, as they may damage the surface or the interior and deform or damage plastic parts.
• Clean the exterior surface with a soft cloth dampened with soapy water, neutral detergent, etc., and then wipe dry.
• Check the door gasket regularly to ensure that there is no debris. Clean the gasket with a soft cloth lightly dampened with soapy water or diluted mild soap. Carefully dry the door gasket and clean the ventilation slots with a wooden stick wrapped with cotton.
• Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affecting the electrical insulation.
• It is advisable to run the freezer continuously once it has been started. As a general rule, its operation should not be interrupted; otherwise, its service life may be affected.

Interruption of the appliance's use for extended periods

If the appliance is not to be used for several months, first switch it off and disconnect the plug from the mains socket.

Remove all the food.

● Clean and dry the interior completely. To avoid mould or unpleasant odours, leave

ENGLISH

the door slightly open.

• Store the appliance in a ventilated and dry place, away from heat sources; place the appliance carefully and do not place heavy objects on it.
• Keep the appliance out of the reach of children, so that they do not play with it.

Power failure or cooling system fault

• If the appliance stops operating for a prolonged period of time, the food may defrost.
• Try to open the appliance door as little as possible, so that you can keep food in good condition for hours, even in summer.

• If you know that a power cut is going to occur in advance:

• Select the highest temperature one hour in advance, so that the food is completely frozen. Do not introduce new food. Adjust the temperature back to the original setting when power is restored.

• You can also put ice in an airtight container.

Note: It is best not to interrupt the operation of the appliance; this could affect its plan.

Defrosting

• After some time, a thin layer of frost may form on the surface of the inner wall of the appliance (or on the evaporator), which may affect the performance if it is thicker than 5 mm. It is recommended to remove this frost.

• The freezer is designed for year-round use with minimal cleaning and maintenance. We recommend that you do the following each time you clean it for odor-free and efficient operation:

• Disconnect and unplug the freezer.

• Remove the food and cover it properly to prevent it from melting.
• Remove the drain plug located on the bottom inside of the freezer and then the drain cover located on the front outside. You can take advantage of room temperature for natural defrosting or use a specific ice scraper (plastic or wood) to remove frost/ice. Collect the defrosting water in a container and keep an eye on it to avoid overflowing. Replace the drain plugs at the end of defrosting.

Note: Never use sharp metal tools to scrape the scrap/ice, as this image the surface of the appliance.

WARNING: Use extreme caution during this process. Risk of cuts.

1. You can also use an adequate amount of hot (not boiling) water to accelerate thawing and blot excess water with a dry towel after thawing.
2. After defrosting, cleaning the interior and drying, plug it in, set the desired temperature and return the food to the freezer when appropriate.

Safety check after maintenance

Check that the power cable is not broken or damaged.

Check that the plug is correctly inserted into the socket.

Check that the plug does not overheat.

ATTENTION: If the power cord and plug are damaged or dusty, electric shock and fire may occur. If there is any malfunction, disconnect the power cable and contact the official Cecotec Technical Support Service.

7. Troubleshooting

For the following minor malfunctions, please try to solve the problem yourself before contacting the official Cecotec Technical Support Service.

Fault	Possible causes	Possible solutions
The appliance does not work.	The appliance is not plugged into the mains.	Unplug the cable and plug it in again.
	Circuit breakers or fuses are damaged.There is no electricity.	Check the electrical panel of your electrical installation
The appliance makes noise.	The appliance is not stable.	Place the freezer on a level surface.
	The appliance touches the wall.	Move the appliance away from the wall.
The appliance has low cooling efficiency.	The food inside is hot or there is too much food.	Introduce food in the appliance when it is at room temperature.
	You open the door too often.	Keep the door closed.
	Something is caught in the door gasket.	Remove the object obstructing the door gasket.

ENGLISH

	The appliance receives direct sunlight or is close to a heat source.	Remove the appliance from the heat source.
	The place where the appliance is placed is not well ventilated.	Ventilate the room.
	The selected temperature is too high.	Adjust the temperature.
The appliance gives off unpleasant odours.	There is spoiled food inside.	Dispose of food which is spoiled.Clean the appliance.
	There is food with a strong odour inside.	Pack the strong smelling foods.
Compressor runs for a long time	High ambient temperature results in long operating time	This is normal
	Too many foods are introduced at the same time	Do not put in too much food at the same time
	Food is introduced while still hot	Wait for the food to cool before putting it in the freezer.
	The door is opened too often	Open the door only when it is absolutely necessary
	The layer of frost on the inside is too thick	Needs defrosting
The door does not close properly	Some object jams the door	There is too much food or it is not placed in the correct way.
	There is too much food in storage	Do not overload the refrigerator with food
	The door gasket is deformed.	Heat the gasket with an electric dryer or hot water, then let it cool and replace it.If the problem persists, contact Cecotec's Official Technical Support Service
The external part is hot	When the appliance is in operation, heat is dissipated to the outside through the metal tubes inside the freezer.Higher ambient temperature in summer causes an increase in the outside temperature	It is normal for the outside temperature to be higher.Increase the heat dissipation space or place the appliance in a cooler, more ventilated location.
Condensation forms on the outside	Condensation may form when the humidity in the room is high	This is normal. Wipe off condensation with a dry cloth
It is difficult to open the door	The difference in air pressure between the inside and outside of the freezer can sometimes make it difficult to open the door.	Wait a few moments and then try to open the door slowly.

Note: If none of these situations match your problem, do not attempt to disassemble or repair the appliance yourself. All repairs must be carried out by qualified personnel. Contact Cecotec's Official Technical Support Service. Repairs must be carried out by an authorised technician and only original spare parts must be used.

When the appliance is not to be used for a long period of time, disconnect it from the mains, remove all food and clean it. Leave the door ajar to avoid unpleasant odours.

These instructions are intended for qualified technicians, do not attempt to carry them out if you do not have the necessary training and knowledge, as any damage caused by an incorrect repair will void the warranty.

Unauthorised self-maintenance or maintenance will affect the safe use of the product and the application of the warranty policy.

NOTE:

• Certain sounds during normal operation are expected and do not affect proper operation.
• Avoidable sounds:
• Noise caused by an unlevelled appliance: adjust the position using the adjustable, folding front feet (not available on all freezer models). In any case, use a flat and stable base to locate the freezer.
  ● Noise from contact with adjacent furniture or cabinet: move the appliance away.
• Normal operating sounds are primarily due to compressor operation (start-up) and the cooling system (thermal expansion and contraction caused by refrigerant flow).

8. Technical specifications

You can find more information on this model and access its database by scanning the QR code (also found on the energy label).

Product	Bolero CoolMarket Chest 78 White E
Reference	EU01_122370
QR code
Rated voltage	220 - 240 V~
Rated frequency	50 Hz
Rated current	1.5 A
Total gross volume	78 L
Climate class*	N, ST
Energy Efficiency Class	E
Refrigerant	R600a (33 g)
Insulator	Cyclopentane

(*) Freezer intended for use at room temperatures between 16 °C and 38 °C.

Information related to energy efficiency can be found in the European Commission's public database EPREL:

1. Open the EPREL database homepage

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019

1. Search by model reference.

You can find more information on this model and access its database by scanning the QR code (also found on the energy label).

IMPORTANT: Technical specifications may change without prior notice to improve product quality.

IMPORTANT: The values stated have been obtained in a laboratory environment in accordance with the relevant regulations. These values may vary depending on the environmental conditions and use of the freezer.

ATTENTION: These data is subject to regulatory changes.

Made in China | Designed in Spain

9. Recycling of electrical and electronic equipment

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its service life, you must remove the batteries/accumulators and take it to a collection point designated by local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help to protect the environment.

10. Technical support and warranty

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

11. Copyright

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

12. Simplified Declaration of Conformity

Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website:

https://cecotec.es/es/information/declaration-of-conformity

FRANÇAIS

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019

https://cecotec.pt/pt/information/declaration-of-conformity

NEDERLANDS

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019

https://cecotec.es/es/information/declaration-of-conformity

POLSKI

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019

https://cecotec.es/es/information/declaration-of-conformity

ΕΛΛΗΝΙΚΑ

Kuzu	6-9
Sosisler	1-2
Jambon	1-2
Etli art leftoverar	23

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019

لا تخزن #: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer :

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019

https://cecotec.es/es/information/declaration-of-conformity

CATALÀ

1. Peces i components

Fig. 1

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019

FIG 2

www.cecotec.es

Cecotec Innovaciones S.L. Av. Reyes Católicos, 60 46910, Alfafar, Valencia (Spain)
