Product type	Induction cooktop
Brand	Cecotec
Model	Bolero Squad I 2100 Flex
Cooking technology	Induction
Number of cooking zones	2 cooking zones
Flex zone	Yes, for pots of different sizes
Total power	2100 W
Power supply	220-240 V ~ 50/60 Hz
Control type	Touch controls
Boost function	Yes
Utensil detection	Yes, stops if unsuitable pan
Timer	Integrated with automatic shut-off
Child safety	Control lock
Overheating protection	Yes
Safety shut-off	Automatic shut-off if forgotten
Cooking surface	Ceramic glass
Cleaning	Steam cleaning prohibited
Maintenance	Clean after cooling with a soft cloth
Installation	Must be carried out by an authorized specialist
Dimensions (W x D x H)	59 x 52 x 5.5 cm (estimated)
Net weight	10 kg (estimated)
Warranty	2 years
Spare parts	Available through after-sales service

Frequently Asked Questions - Bolero Squad I 2100 Flex CECOTEC

What types of pans can I use on this induction cooktop?

Use pans suitable for induction, with a magnetic base. The integrated utensil detection only activates with compatible pans.

How do I install the Bolero Squad I 2100 Flex cooktop?

Installation must be carried out by an authorized specialist. Make sure the cabinet and worktop are suitable and approved.

What should I do if the cooktop surface is cracked?

If the surface is cracked, disconnect the appliance immediately to avoid any risk of electric shock, then contact after-sales service.

Can I use an external timer or remote control with this cooktop?

No, this appliance is not designed to work with external timers or remote control systems.

How do I clean the cooktop?

Clean after cooling with a soft cloth and a product suitable for ceramic glass surfaces. Never clean with steam.

Is it safe to leave children near the cooktop?

Children under 8 years old must be kept away from the appliance and supervised at all times. Metallic objects can become hot.

What should I do in case of a fire starting on the cooktop?

Never use water. Turn off the appliance and cover the flames with a lid or a fire blanket.

Why is my pan not detected?

Check that the pan is compatible with induction and that its base is flat and of a suitable size for the cooking zone. The Flex zone allows positioning larger pans.

What is the maximum power of this cooktop?

The total power is 2100 W and may vary depending on the number of cooking zones used and the selected setting.

How does the Flex function work?

The Flex zone combines multiple cooking zones to accommodate large pans or rectangular griddles, offering greater cooking flexibility.

USER MANUAL Bolero Squad I 2100 Flex CECOTEC

BOLERO SQUAD I 2100 FLEX

Placa de Inducción/ Induction plaque

1. Parts and components 66
2. Before use 66
3. Installation 67
4. Operation 70
5. Cleaning and maintenance 77
6. Troubleshooting 78
7. Technical specifications 82
8. Disposal of old electrical and electronic appliances 82
9. Technical support and warranty 83
10. Copyright 83

SOMMAIRE

Before using the appliance, read the following instructions carefully. Keep this instruction manual for future reference or new users.

- It is recommended that the installation and connection of the appliance be carried out by authorised specialists. The manufacturer is not liable for damage caused by installation or connection errors.

• This symbol means 'Caution: hot surface.' The temperature of the accessible surfaces may be high when the appliance is in operation.
• The appliance must be properly fitted and installed in a suitable and approved kitchen unit and worktop.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• WARNING: if the surface is cracked, unplug the appliance to avoid electric shock.
• The appliance heats up during use. Avoid touching the heating elements inside.
• WARNING: the appliance and its accessible parts may heat up during use. Avoid touching the cooking areas. Children under 8 years of age should be kept away from the appliance unless continuously supervised.
• Do not allow your body, clothes or any other object which is not suitable cookware to come into contact with the induction hob surface until the surface is cold.
• Do not steam-clean the appliance.
• Metal objects such as knives, forks, spoons, and lids should not be placed on the surface of the hob, as they may become hot.
• The cookware handles may be hot to the touch after use. Check that the handles do not protrude above another cooking area in use.
• Stop operation of the hob by means of its control device and not by means of the container detector after use.
• The appliance is not intended to operate by means of an external timer or a separate remote-control system.
• WARNING: unattended cooking on a greasy or oily hob can be dangerous and may cause a fire. NEVER try to extinguish

the fire with water. You must switch off the appliance and cover the flames with, e.g., a fireproof lid or blanket.

• CAUTION: always supervise the cooking process.
• WARNING: risk of fire. Do not place objects on the hob surface.
• Do not place heavy objects on the induction hob.
• Do not lean on the hob.
• WARNING: only use hob protectors designed by the kitchen-appliance manufacturer or found to be suitable by the latter in the instructions for use, or corresponding built-in hob protectors. The use of unsuitable protectors can cause accidents.
• The appliance must not be installed behind a decorative door to avoid overheating.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Remove all labels and stickers from the ceramic glass.
• Do not modify the appliance in any way.
• The induction hob cannot be used as a support or work surface.
• The appliance must be earthed in accordance with local regulations.
• Do not place the appliance on top of a dishwasher or tumble dryer to avoid steam damage.
• Turn off the cooking areas after use.

• Monitor the cooking of very fatty or oily foods to avoid fire.

• Be careful not to burn yourself while or after using the appliance.

• Make sure that no cords of any fixed or mobile appliance touch the glass or hot cookware.
• Magnetic objects (credit cards, calculators, etc.) must not be placed near the appliance when plugged in.
• Never cover the appliance with a cloth or protective film to prevent overheating and fire.
• Cookware with worn or damaged bottoms can damage the ceramic glass.
• Sand or other abrasive materials may damage the ceramic glass.
• Do not use abrasive products or agents to clean the induction hob.
• Prevent objects of any size from falling onto the ceramic-glass panel.
• Avoid hitting the edges of the hob with cookware.
• Ensure that the appliance is sufficiently ventilated in accordance with these instructions.
• Do not place or leave empty cookware on the induction hob.
• Sugar, synthetic materials, or aluminium foil must not come into contact with the cooking areas. These may cause breakage or other damage to the ceramic-glass panel due to cooling: switch on the appliance and remove them from the cooking area immediately (being careful not to burn yourself).
• Never place hot containers on the control panel.
• If there is a drawer under the built-in appliance, make sure there is enough space between the contents of the drawer and the bottom of the appliance (at least 2 cm). This is essential to ensure proper ventilation.
• Never store flammable objects (e.g., aerosols) in the drawer

under the induction hob. Drawers and their contents must be heat resistant.

• Unplug the appliance from the mains before carrying out any maintenance work. Failure to follow this warning may result in electric shock leading to an accident or death.
• Precautions in the event of a fault: if you notice a fault, switch off and unplug the appliance.
• The appliance must be repaired by qualified professionals. Do not try to fix the appliance yourself.
• Always make sure that cookware is well centred on the cooking area. The bottom of the cookware should cover as much of the cooking area as possible.
• The magnetic field of the device may alter the functioning of cardiac pacemakers or insulin pumps. For further information, please contact the purchase store or refer to a doctor. These devices must comply with EU Council Directive 90/385/EEC of 20 June 1990 and with EN 45502-2-1, EN 45502-2-2.
• Do not use aluminium or synthetic containers to prevent them from melting due to the residual heat of the cooking areas.
• NEVER try to put out the fire with water. Turn off the appliance and smother the flame with, e.g., a fireproof lid or blanket.
• USING POOR QUALITY COOKWARE OR ANY INDUCTION ADAPTER FOR NON-MAGNETIC COOKWARE IS A BREACH OF WARRANTY. CECOTEC IS NOT LIABLE FOR ANY DAMAGE CAUSEDTOTHEINDUCTIONHOBAND/ORITSSURROUNDINGS.

INSTRUCTIONS DE SÉCURITÉ

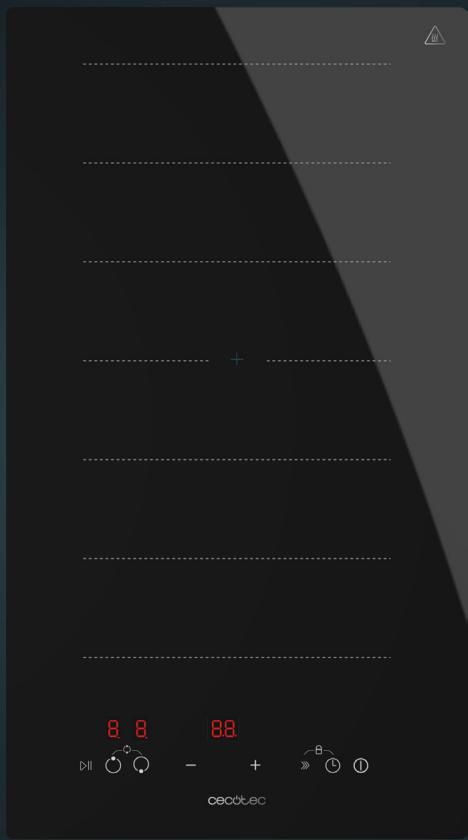

1. Cooking area (Maximum 1800/2000 W)
2. Cooking area (Maximum 3000/3500 W)
3. Cooking area (Maximum 1800/2000 W)
4. Glass plate
5. Power icon (ON/OFF)
6. Control panel

Control panel

Fig. 2

1. FLEX area control icons
2. Lock icon
3. Pause/Start
4. Upper cooking-area selection icon
5. Bottom cooking-area selection icon
6. Power/Time setting icons
7. Booster function icon
8. Timer icon
9. Power icon (ON/OFF)

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance includes a safety package to protect it during transport. Unpack the appliance and keep the original packaging and materials in a safe place. It will help prevent any damage if the appliance needs to be transported in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

3. INSTALLATION

• Cut out the worktop where the hob is to be fitted according to the measurements given in the table below and Figure 3.
• For installation and use, you must keep a space of at least 5 cm around the recess.
• Make sure the counter thickness is at least 30 mm. Select a worktop with a heat-resistant and insulated material (wood or other similar fibrous or hygroscopic materials should not be used as worktop material unless varnished) to avoid electric shock or deformation caused by heat radiation from the hob.

Note:

The safety distance between the sides of the hob and the interior surfaces of the counter must be at least 3 mm.

Fig. 3

A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
268 (+4 -0)	500 (+4 -0)	50 minimum	50 minimum	50 minimum	50 minimum	3 minimum

Fig. 3 key:

1.- Seal

Please note

- The safety distance between the induction hob and the kitchen hood above must comply with the kitchen hood manufacturer's recommendations. If there are no instructions given, maintain a minimum distance of 760 mm. Fig. 4

Fig. 4 key:

1.- Wall

- In any case, make sure the induction hob is well ventilated and the air inlet and outlet are not blocked. Make sure that the induction hob is in perfect condition. Fig. 5

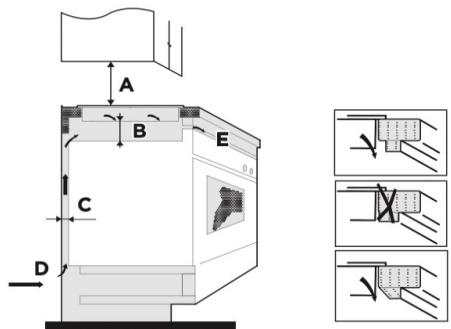

Fig. 5

A (mm)	B (mm)	C (mm)	D	E
760	Min. 50	Min. 20	Air inlet	Air outlet 5 mm

Proper ventilation

Fig. 6.

To avoid accidental contact with the bottom of the hob when it has become too hot, or receiving an unexpected electric shock during use, it is necessary to place a wooden insert, fixed with

screws, at a minimum distance of 50 mm from the bottom of the induction hob. Follow the indications in Figure 6.

Warning

• There are ventilation holes around the outside of the induction hob. You must ensure these gaps are not blocked by the worktop when installing the hob.
• Please note that the glue that binds the plastic or wooden material to the furniture must withstand a temperature of more than 150° C to prevent the coating from peeling off.
• The rear wall and the adjacent and surrounding surfaces must be able to withstand a temperature of 90° C.

Before installing the hob

• Make sure the counter in which you install the hob is levelled, complies with the space requirements, and is made of a heat-resistant and insulated material.
• If you install the induction hob over an oven, the latter must have a cooling fan.
• The installation must comply with all the safety requirements and the applicable rules and regulations.
• The main wiring is fitted with a suitable isolating switch that allows complete disconnection from the mains, which has been installed and positioned in accordance with local wiring rules and regulations.
• The isolating switch must be of an approved model and provide 3 mm contact separation on all poles (or on all active [phase] conductors if local wiring regulations allow this variation of requirements).
• If in doubt about the installation, seek advice from local building authorities and regulations.
• Use heat-resistant and easy-to-clean finishes (such as ceramic tiles) on the walls surrounding the hob.

After installing the hob

• The power cord should not be accessible through the cabinet doors or drawers.
• Make sure that there is an adequate flow of fresh air from the exterior of the cabinet to the hob base.
• If the hob is installed above drawers or cabinets, you must install a thermal protection barrier under the hob base.
• The user must be able to access the isolating switch easily.

Fixing brackets

• You must place the hob on a stable and smooth surface (you can use the packaging). Do not apply force to the hob.
• Screw the four brackets to the bottom of the hob, then install the latter in the worktop recess (as shown in Figure 7).
• Adjust the bracket position to the thickness of the worktop. Fig. 8

Fig. 8 key:

1. Induction hob
2. Bracket
3. Worktop

Warning:

Brackets should not, under any circumstance, touch the interior surfaces of the worktop after installation. Fig. 8

Caution:

• It is recommended that qualified personnel or technicians install the hob. You should not install it on your own.
• Do not install the induction hob directly over a dishwasher, a refrigerator, a freezer, a washing machine, or a dryer, as moisture could damage the electric system of the hob.
• The induction hob must be installed in a manner that ensures the best heat radiation to obtain the best results.
• The wall and the area over the work surface must be heat resistant.
• To avoid any damage and ensure a correct fixing of the hob, we recommend sealing the latter using a sealing gasket or heat-resistant adhesive.
• You should not use steam cleaners.

Connecting the induction hob to the mains

• The induction hob must be connected to the mains by a suitably qualified person.
• Before connecting the hob to the power supply line, check that:
• The domestic electrical installation is suitable for the power consumed by the induction hob.
• The mains voltage matches the voltage stated on the rating label of the appliance.
• The power cord supplied with the hob is sized to withstand the specific load indicated on the product label.
• To connect the hob to the mains, do not use adapters, reducers, or branching devices, as they may cause overheating or fire.
• The power cord should not be in contact with any hot parts and must be positioned so as to avoid its temperature exceeding 75 °C.

Warning

• Check with an electrician whether your home wiring system is suitable without modifying it.
• Any modifications should only be carried out by a qualified electrician.
• The power supply must be connected in accordance with the relevant regulations. The connection method is shown in Figure 9.

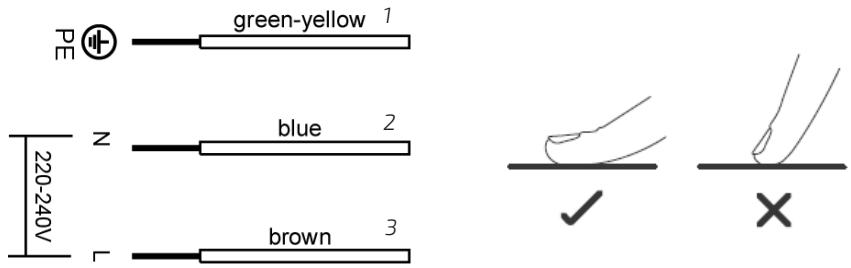

Fig. 9 key:

1.- Earth protection cable (green, yellow).
2.- Neutral (blue).
3.- Phase (brown/black).

• If the cable is damaged, it must be replaced by Cecotec, the supplier or similarly qualified personnel to avoid hazards.
• If the appliance is connected directly to the mains, a single-pole residual current circuit breaker with a minimum contact separation of 3 mm must be installed.
• The person in charge of the installation must ensure that a correct electrical connection has been made and that it complies with safety regulations.
• Do not bend or press the cord.
• Check the cord for damage regularly.
• The yellow/green wire of the power cord must be earthed at the power supply terminals and at the appliance.
• Cecotec shall not be liable for accidents resulting from the use of an unearthed or improperly earthed appliance.
• If the appliance has a power socket, it must be installed in such a way that the socket is accessible.

Note:

The bottom surface and the power cable of the induction hob must not be accessible after installation.

4. OPERATION

Icons

• The icons react to touch, so there is no need to apply any pressure.
• Use the base of your finger, not the tip. Fig. 10
• You will hear a beep every time the hob detects a finger.
• Make sure the icons are always clean and dry and that no objects (for example, a utensil or a cloth) are covering them. Even a thin film of water can make it difficult to operate the icons.

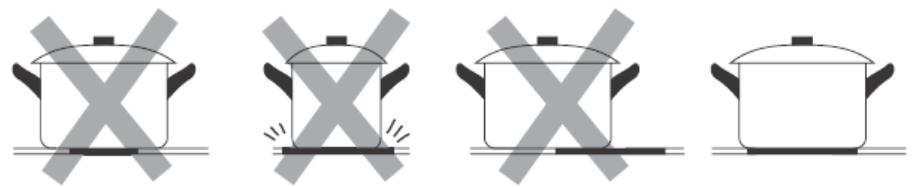

Selecting suitable cookware

• Use only cookware with a suitable base for induction hobs.
• Look for the induction symbol on the packaging or on the bottom of the cookware.

You can check if your cookware is suitable with a magnet test. Move a magnet towards the cookware base (Fig. 11). If the cookware attracts it, this means that it is suitable for the induction hob. If you do not have a magnet:

1. Pour some water in the cookware you wish to check and place it on one of the cooking areas.

2. If U does not appear on the display flashing and water heats up, the cookware is suitable. Cookware made of the following materials is not suitable: pure stainless steel, aluminium or copper without magnetic base, glass, wood, porcelain, ceramic, and earthenware.

3. Do not use cookware with serrated edges or with a curved base. Fig. 12

4. Make sure the base of the cookware is smooth, flat against the glass, and of same size as the cooking area. Use cookware whose diameter is the same as the cooking area selected. The use of a slightly wider cookware will increase the efficiency of the energy used. If you use smaller cookware, efficiency will be affected. Always place the cookware at the centre of the cooking area. Fig. 13
5. Always lift the cookware off the induction hob, do not slide it, as it could scratch the glass. Fig. 14
6. The cooking areas adapt automatically, to a certain extent, to the diameter of the cookware. However, the bottom of the cookware must have a minimum diameter that corresponds to the corresponding cooking area. However, the bottom of the cookware must have a minimum diameter that is suitable for the cooking area in question.

Cooking areas	Diameter of the cookware base
	Minimum (mm)	Maximum (mm)
180 mm	140	180
180 mm	140	180

Start cooking

Fig. 15

1. Press and hold the power icon for approximately 1 second. After turning on the hob, it will beep and all the indicator lights will show – or – –, indicating the induction hob has entered standby mode.
2. Place suitable cookware on the cooking area you wish to use. Make sure the bottom of the cookware and the cooking-area surface are clean and dry.
3. When pressing the cooking-area selection icon, the indicator light next to the icon will flash.
4. Adjust the power level by pressing the + and/or - icons.

- If power is not selected within 1 minute, the hob will turn off automatically. You must turn it on again and retry from step 1.

- You can change the power any time while cooking.

If on the display and the power setting flash alternately

This can mean:

• You have not placed the cookware on the correct cooking area.
• The cookware you are using is not suitable for the induction hob.
• The cookware is too small or is not correctly centred on the cooking area.

If you do not place suitable cookware on the cooking area, the latter will not heat up.

The display will turn off automatically after 2 minutes if you do not place any cookware.

Finish cooking

Fig. 16

1. Press the cooking-area selection icon of the cooking area you wish to turn off.
2. To turn off the cooking area, press – until the value is 0 or press the + and – icons simultaneously. Make sure the display shows "0".
3. Turn off the hob completely by pressing the power icon.

Caution with hot surfaces

Fig. 17

The hob will show H for any cooking area that is still hot to the touch after use. The H will disappear when the surface has cooled down and reached a safe temperature. You can also use a hot hob to save energy if you wish to heat more frying pans.

FLEX area

• This area can be used as a single area (a) or as two different areas (b), depending on the cooking requirements at any given time.
• The Flex area consists of two independent inductor coils that can be controlled separately.

a. As a single area:

1. To activate the Flex area as a single large area, press both cooking-area selection icons at the same time, as shown in Figure 18.
2. It is recommended to use cookware with a circular base of 250 or 280 mm, or rectangular or oval cookware with a size suitable for the cooking area. Fig. 19.

We do not recommend using any other type of cookware, as this may affect the heating of the appliance.

b. To use the Flex area as two different areas, you have two options.

1. Place a cooking utensil on the upper or bottom side of the Flex area (Figure 20).
2. Place two cooking utensils on the Flex cooking area (Figure 21).

Important:

Make sure that the diameter of the cookware is larger than 14 cm.

Locking the icons

• You can lock the icons to avoid any unintentional use (e.g. children accidentally turning on the cooking areas).
• When the lock is active, all icons will be disabled except the power icon, so you can turn off the hob with this icon in case of emergency, but you must unlock all icons when you turn the hob back on.

To lock the icons

Simultaneously press the Timer icon and the Booster function icon, the timer indicator light will show "Lo".

To unlock the icons

Simultaneously press and hold the Timer icon and the Booster function icon to unlock.

Timer

- You can set the timer in two different ways:

1.- You can use it as a minute hand. In this case, no cooking area will be switched off when the timer ends.
2.- You can set it so one or several cooking areas turn off after the programmed time has elapsed. The maximum time is 99 minutes.

Using the timer as a minute hand

Fig. 18

1. Make sure the hob is on.
2. Press the timer icon, the timer indicator light will start flashing and the timer display will show "10". Figure 22
3. Set the time by using the - or + icons of the timer. Figure 23
4. Press the - or + icons simultaneously to cancel the timer, the time display will show 00. Figure 24
5. Once time is confirmed, the countdown will start automatically. The display will show the remaining time and the timer indicator light will flash for 5 seconds.

If you press the timer icon while the timer indicator light is flashing, it will stop flashing immediately. Figure 25

1. When the countdown ends, it will beep for 30 seconds and the timer indicator light will show - - . Figure 26

Please note

You can use the timer even if you have not selected any cooking area.

Tips

- Press the + or - icons on the timer once to increase or decrease the time in 1-minute intervals.

- Press and hold the + or – icons on the timer to increase or decrease the time in 10-minute intervals.

Use of the timer to turn off one or more cooking areas:

1. Press the cooking-area selection icon of the area you wish to programme the timer for. Figure 27
2. Press the timer icon, the timer indicator light will start flashing and the timer display will show "10". Figure 28
3. Set the time by using the - or + icons of the timer. Figure 29
4. Press the – or + icons simultaneously to cancel the timer, the time display will show 00. Figure 30
5. Once time is confirmed, the countdown will start automatically. The display will show the remaining time and the timer indicator light will flash for 5 seconds.
6. If you press the timer icon while the timer indicator light is flashing, it will stop flashing immediately

Note: the red dot next to the power level indicator light will light up to indicate you have selected the cooking area. Figure 31

1. When the countdown ends, the corresponding cooking area will turn off automatically. Figure 32

Note:

The other cooking area will continue operating if previously switched on.

Booster function

Booster function gives a power bonus to the selected cooking area. E.g., it can be used to quickly boil a large amount of water.

Activating the Booster function:

• Press the cooking-area selection icon of the desired cooking area and select a power level. Figure 33
• Press the Booster function icon »». Make sure the display shows "P".

Deactivating the Booster function:

• Press the cooking-area selection icon of the cooking area you wish to deactivate.
• Deactivate the function by pressing the Booster icon ». Make sure the display shows "0".
• The Booster function can operate on any cooking area.
• The Booster function is automatically deactivated after 5 minutes, and the cooking area returns to its original setting.

- For example, if you selected power level 9, the cooking area will return to said setting after 5 minutes.

Pause function

• You can pause the cooking process instead of switching off the appliance.
• Pressing the Pause/Start icon disables all icons except the Power icon.
• To pause cooking, press the Pause/Start icon. ▷ I. The display will show "II".
• To start cooking, press again. The same parameters as previously selected will be maintained.

Auto switch-off

The induction hob features an auto switch-off system as well. It activates when the cooking area stays on for too long with the same setting. The default auto switch-off times are shown in the following table:

Power level	1	2	3	4	5	6	7	8	9
Default operation time (hours)	8	8	8	4	4	4	2	2	2

When you remove the cookware, the induction hob will stop heating immediately and the hob will turn off automatically after 2 minutes.

Warning:

Users with a pacemaker should seek medical advice before using this induction hob.

Advice for cooking

• Be careful when frying, as oil and grease heat up very quickly. With extremely high temperatures, oil and grease can ignite spontaneously, causing a serious fire hazard.
• When food starts boiling, reduce the power.
• Using a lid will reduce the cooking time and save energy due to heat retention.
• Reduce the amount of liquid or grease to shorten cooking times.
• Start cooking with a high power setting and reduce it as food heats up.

Detection of small items

If you place unsuitable or non-induction cookware (e.g. aluminium) or other small objects (e.g. a knife, fork, or key) on the hob, the induction hob will automatically enter standby mode within 1 minute.

Setting the power level

The following settings are for guidance only. The exact setting will depend on several factors, such as the cookware, the quantity of food, its moisture content, etc. Test the induction hob to find the settings that suit you best.

Heat setting	Suitable for
1 - 2	- lightly heating small amounts of food- melting chocolate, butter, and food that burns quickly- simmering- gradually heating
3 - 4	- reheating- quickly cooking- cooking rice
5 - 6	- crepes/omelettes
7 - 8	- stir-frying- cooking pasta
9	- stir-frying at a higher temperature- grilling- boiling soup- boiling water

Cooking beef steaks:

• For juicy and tasty results:
• Leave the meat at room temperature for about 20 minutes before cooking it.
• Heat a frying pan.
• Brush both sides of the meat with oil. Spray a small amount of oil in the hot frying pan and place the meat.
• Turn the steak only once during cooking. The exact cooking time will depend on the steak thickness. Times may vary from 2 to 8 minutes per side. Press the steak to measure the cooking doneness: the firmer it is, the more "well done" it is.
• Let the steak stand on a hot dish for some minutes to prevent it from going soft before serving.

Sauté:

• Choose a compatible flat-bottomed wok or large frying pan.
• Have all the ingredients ready. Sauté quickly. If cooking large quantities,
• cook the food in several smaller batches.
• Preheat the frying pan briefly and add two tablespoons of oil.
• Cook the meat first, set aside and keep warm.
• Sauté the vegetables. When they are hot but still crisp, turn down the cooking power level.
• Place the meat back in the frying pan and add the sauce of your choice.
• Stir the ingredients gently to make sure they are heated through.

• Serve immediately.

• CLEANING AND MAINTENANCE

Dirt	Cleaning icon	Important
Usual dirt on glass (fingerprints, marks, food stains, etc.)	1. Unplug the induction hob from the mains.2. Apply a worktop cleaner while the glass is still warm (not hot).3. Rinse and dry with a clean cloth or a paper towel.4. Reconnect the induction hob to the mains if you wish to continue using it.	If you unplug the induction hob from the mains, the hot surface indicator light will disappear, but the cooking area will be hot. Be especially careful.Strong or some nylon scouring pads and strong/abrasive cleaning products can scratch the glass. Always read the label to check if your cleaning product or scouring pad is suitable.Never leave any cleaning remains on the induction hob: glass may get stained.
Spills of sugar and other hot melted food on glass	Remove them immediately with a spatula or a suitable scraper for induction hobs, but be careful with the hot cooking area:1. Unplug the induction hob from the mains.2. Hold the cookware at a 30° angle and scrape the dirt or spillage onto a cool area of the hob.3. Clean the dirt or spill with a cloth or paper towel.4. Follow steps 2 to 4 from the 'Usual dirt on glass' section.	Remove melted and sugary food stains or spills as soon as possible. If left to cool on the glass, they may be difficult to remove or may even permanently damage the glass surface.
Dirt on the icons	1. Unplug the induction hob from the mains.2. Absorb the dirt.3. Clean the icons area with a sponge or a damp and clean cloth.4. Dry the area completely with a paper towel.5. Reconnect the induction hob to the mains if you wish to continue using it.	The induction hob may beep and turn off, and the icons will not work while there is liquid on them.Make sure you dry the icons area before turning on the induction hob again.

1. TROUBLESHOOTING

Problem	Possible causes	Possible solutions
The induction hob does not switch on	There is no power supply	Make sure the hob is connected to the mains and it is on.Check if there has been a power failure. If the problem persists, please contact the official Cecotec Technical Support Service.
The icons do not respond or the LED display malfunctions	The icons are locked.	Unlock the icons. Check the “Locking the icons” section for instructions.
	The display is damaged.	Replace the display board.
The LED does not turn on when the unit is connected	There is no electricity.	Check if the plug is properly connected to the mains and if the latter works.
	The auxiliary power board and the board connected to the display malfunction.	Check the connections.
	The auxiliary power board is damaged.	Replace the power board.
	The display is damaged.	Replace the display board.

The cooking power indicator light turns on, but the cooking areas do not heat up	High temperature of the induction hob.	The room temperature may be high. The air inlet or outlet may be blocked.
	The fan is faulty.	Check if the fan operates as usual.If not, replace the fan.
	The power board is damaged.	Replace the power board.
It is difficult to use the icons	There may be a slight film of water on the icons, or you may be using your fingertip to press the icons.	Make sure the icons area is dry and use your finger base to press the icons.
The glass is damaged	Cookware with rough edges.Use of inappropriate and abrasive scouring pads or cleaning products.	Use cookware with flat and smooth bases. See the section on “Selecting suitable cookware” and the section on “Cleaning and maintenance”.
Some cookware makes crackling or popping noises	This may be due to the construction of your cookware (layers of different metals that vibrate differently).	This is normal for cookware and does not indicate a fault.
The induction hob makes a slight buzzing sound when used at high power	This is due to the induction cooking technology.	It is usual, but the noise should decrease or completely disappear by lowering the power setting.
Fan noise from the induction hob	A cooling fan built in in this induction hob has been activated to prevent overheating of the electronic components. It may still operate even after turning off the induction hob.	This is usual and you do not need to worry. Do not unplug the hob from the mains if the fan is still running.
The fan motor produces unusual noises	The motor fan is damaged.	Replace the fan.
Cookware does not heat up and does not appear on the display	The induction hob does not detect the cookware because it is not suitable for induction cooking.The induction hob does not detect the cookware because it is too small for the cooking area or is not centred in it.	Only use cookware designed for induction hobs. Check the "Selecting suitable cookware" section.Centre the cookware and make sure its base matches the size of the cooking area.
When you try to heat both cooking areas, the display shows "u"	The power board and the board connected to the display malfunction.	Check the connections.
	The display board of the communication unit is damaged.	Replace the display board.
	The main board is damaged.	Replace the power board.
Heating stops suddenly during operation and the display shows a flashing "u"	The cookware is not suitable.	Use a suitable cookware.
	The cookware diameter is too small.
	The hob has overheated.	The unit has overheated.Wait for the hob temperature to return to normal.Press the Power icon to restart the appliance.
	The cookware detection circuit is damaged.	Replace the power board.
The induction hob or a cooking area has turned off unexpectedly, emits a sound, and an error code is displayed (usually alternating with one or two digits on the cooking timer display)	Technical fault.	Write down the error letters and numbers,unplug the induction hob from the mains, and contact the official Cecotec Technical Support Service.

Note:

• These instructions are intended for qualified technicians, do not attempt to carry them out if you do not have the necessary training and knowledge, as any damage caused by an incorrect repair will void the warranty.
• Do not try to disassemble the unit on your own to avoid hazards and damages to the induction hob.

Error codes and possible solutions

The induction hob is fitted with a self-diagnostic function. With this function, the technician can check the operation of different components without de-installing the induction hob from the worktop.

Error code	Problem	Possible solutions
E1	Board sensor failure (open circuit).	Contact the official Cecotec Technical Support Service.
E2	Board sensor failure (short circuit).
E7	Failure of the ceramic-glass sensor.
C1	High temperature of the hob sensor.	Wait for the sensor to return to normal operating temperature.Press the Power icon.
E3	IGBT transistor temperature sensor failure (open circuit).	Contact the official Cecotec Technical Support Service.
E4	IGBT transistor temperature sensor failure (short circuit).
C2	Insulated-gate bipolar transistor high temperature.	Wait for the IGBT transistor to return to normal operating temperature.Press the Power icon.If the problem persists, please contact the official Cecotec Technical Support Service.
EL	Supply voltage lower than rated voltage.	Inspect the power supply line.
EH	Supply voltage higher than rated voltage.
EU	Communication fault	Contact the official Cecotec Technical Support Service.

Please note

These instructions are intended for qualified technicians, do not attempt to carry them out if you do not have the necessary training and knowledge, as any damage caused by an incorrect repair will void the warranty.

7. TECHNICAL SPECIFICATIONS

Product reference: 00257

Product: Bolero Squad I 2100 Flex induction hob

Cooking areas: 2 areas (or one Flex area)

Supply voltage: 220-240 V\~, 50/60 Hz

Installed electric power: 3500 W

Product dimensions: 288 x 520 x 59 mm

Inset dimensions: 268 x 500 mm

Cooking area size: 180 x 385 mm

Energy consumption per cooking area or area calculated per kg ( EC_{electric\ cooking} ): Area 191.1 Wh/Kg Energy consumption of the induction hob calculated per Kg ( EC_hob ): 191.1 Wh/Kg

Cooking areas	Cookware diameter (mm)	Quantity water mcw (g)	Test power consumption Ecw (Wh)	Test energy consumption per kg of water (Wh/Kg)
Front	150	1030	198.1	192.3
Medium	270	3420	645.8	188.8
Rear	180	1500	288.1	192.1

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the

correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

Attention aux surfaces chaudes

Img. 17

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./ Rys. 8

Fig./Img./Abb./Afb./Rys. 9
Fig./Img./Abb./Afb./Rys. 10

Fig./Img./Abb./Afb./Rys. 11

Fig./Img./Abb./Afb./Rys. 12

Fig./Img./Abb./Afb./Rys. 13

Fig./Img./Abb./Afb./Rys. 14

Fig./Img./Abb./Afb./Rys. 15

Fig./Img./Abb./Afb./Rys. 16

Fig./Img./Abb./Afb./ Rys. 17
Fig./Img./Abb./Afb./ Rys. 18

Fig./Img./Abb./Afb./Rys. 19

Fig./Img./Abb./Afb./Rys. 20

Fig./Img./Abb./Afb./Rys. 21

Fig./Img./Abb./Afb./Rys. 23

Fig./Img./Abb./Afb./Rys. 22

Fig./Img./Abb./Afb./Rys. 24

Fig./Img./Abb./Afb./Rys. 25

Fig./Img./Abb./Afb./Rys. 26

Fig./Img./Abb./Afb./Rys. 27

Fig./Img./Abb./Afb./Rys. 28

Fig./Img./Abb./Afb./Rys. 29

Fig./Img./Abb./Afb./Rys. 30

Fig./Img./Abb./Afb./Rys. 32

Fig./Img./Abb./Afb./Rys. 31

Fig./Img./Abb./Afb./ Rys. 33

www.cecotec.es
