USER MANUAL POSEIDON 2 NILFISK

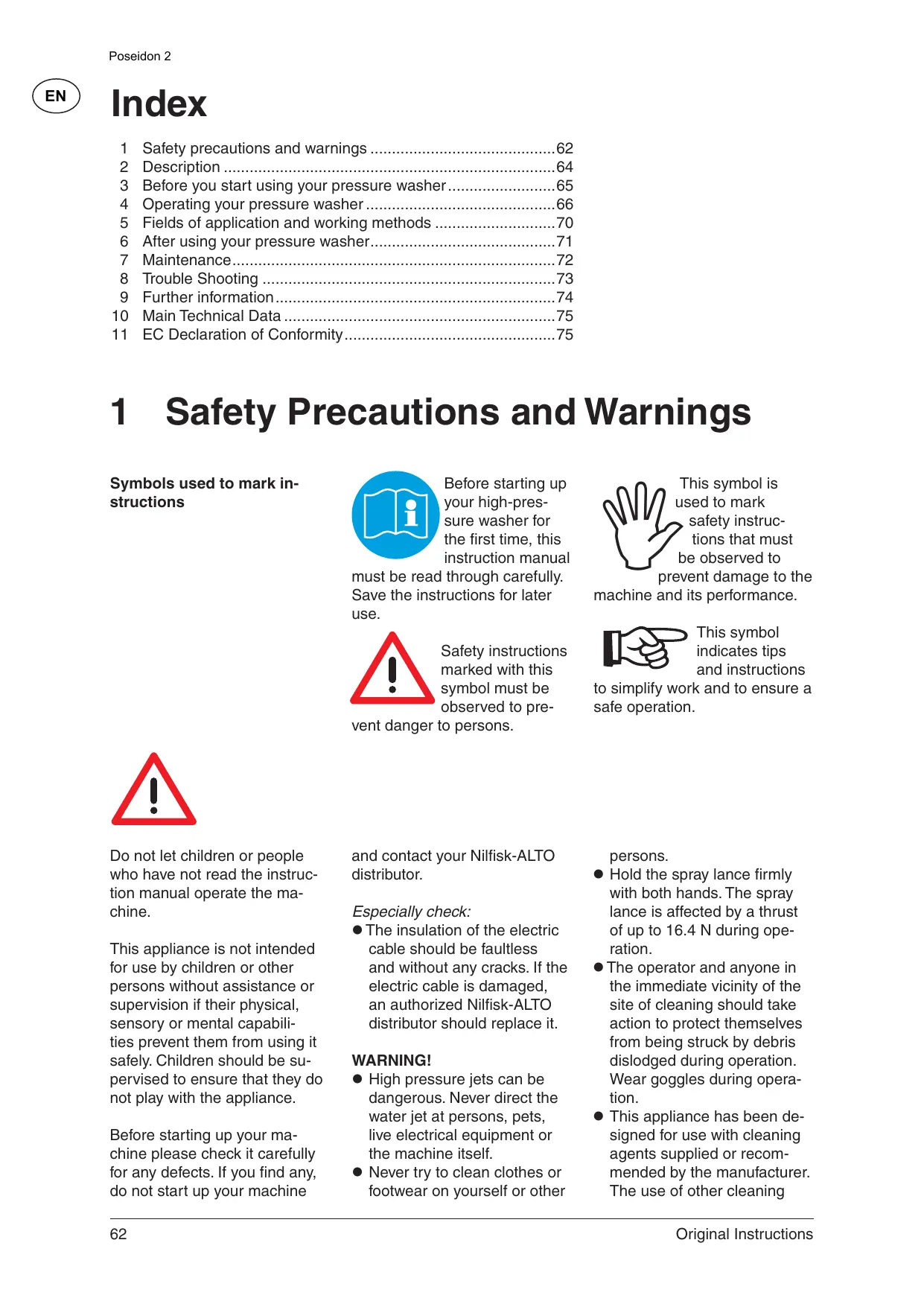

Œ) Index Description …… Maintenance …. Trouble Shooting . Further informatio: Main Technical Data = © © © -J O U1 R G Safety precautions and warnings … Before you start using your pressure washei Operating your pressure washer Fields of application and working methods After using your pressure washer…. EC Declaration of Conformity. 1 Safety Precautions and Warnings Symbols used to mark in- structions Do not let children or people who have not read the instruc- tion manual operate the ma- chine. This appliance is not intended for use by children or other persons without assistance or supervision if their physical, sensory or mental capabili- ties prevent them from using it safely. Children should be su- pervised to ensure that they do not play with the appliance. Before starting up your ma- chine please check it carefully for any defects. If you find any, do not start up your machine Before starting up your high-pres- sure washer for the first time, this instruction manual must be read through carefully. Save the instructions for later

Safety instructions marked with this symbol must be observed to pre- vent danger to persons.

and contact your Nilfisk-ALTO distributor. Especially check: e The insulation of the electric cable should be faultless and without any cracks. If the electric cable is damaged, an authorized Nilfisk-ALTO distributor should replace it. WARNING! © High pressure jets can be dangerous. Never direct the water jet at persons, pets, live electrical equipment or the machine itself. © Never try to clean clothes or footwear on yourself or other This symbol is used to mark safety instruc- tions that must be observed to prevent damage to the machine and its performance. This symbol indicates tips and instructions to simplify work and to ensure a safe operation. persons. © Hold the spray lance firmly with both hands. The spray lance is affected by a thrust of up to 16.4 N during ope- ration. e The operator and anyone in the immediate vicinity of the site of cleaning should take action to protect themselves from being struck by debris dislodged during operation. Wear goggles during opera- tion. © This appliance has been de- signed for use with cleaning agents supplied or recom- mended by the manufacturer. The use of other cleaning

Original Instructions

agents or chemicals may adversely affect the safety of the appliance. To ensure the appliance safety only use original spare parts from the manufacturer or approved by the manufac- turer. © High pressure hoses, fittings and couplings are important for the safety of the appli- ance. Only use hoses, fittings and couplings recommended by the manufacturer. © Do not use the appliance if a supply cord or impor- tant parts of appliance are damaged, e.g. safety device , high pressure hose and trig- ger gun. © Remove the plug from the socket outlet during cleaning or maintenance and when replacing parts or converting the machine to another func- tion. © Appropriate ear protection must be used. © Never use the machine in an environment where there could be a danger of explo- sion. If any doubt arises, please contact the local authorities. e ltis not allowed to clean asbestos-containing surfaces with high pressure. Do not spray flammable liquids. © Always switch off the mains disconnecting switch when leaving the machine unat- tended. © This high pressure washer must not be used at tempera- tures below 0°C. WARNING! Inadequate extension cables can be dangerous. |f an exten- sion cord is used, it shall be suitable for outdoor use, and the connection has to be kept dry and off the ground. lt is recommended that this is ac- complished by means of a ca- ble reel which keeps the socket at least 60 mm above the ground. Cables on reels should always be completely unwound to prevent the cable from over- heating. Extension cables should com- ply with the below-mentioned requirements for length and cable dimensions.

mäx. mäx. 12.5m 20 m e lfthe electric cable is damaged, it must be re- placed by the manufacturer or his service agent or simi- larly qualified person in order to avoid a hazard. Mains power connection — 0 | The following should be ob- served when connecting the high pressure washer to the electric installation: © Only connect the machine to an installation with earth con- nection. e The electric installation shall be made by a certified elec- trician and comply with IEC 60364-1. e ltis strongly recommended that the electric supply to this machine should include a re- sidual current device (GFCI). Water connection Connection to the public mains according to regulations. Machine not suit- able for connec- tion to the potable water mains. This high pressure washer is only allowed to be connected With the drinking water mains, when an appropriate backflow preventer has been installed, Type BA according to EN 1717. The length of the hose between the backflow preventer and the Poseidon 2 high pressure washer must be at least 10 metres to absorb possible pressure peaks (min diameter !2 inch). Operation by suction (for example from a rainwater ves- sel) is carried out without back- flow preventer. As soon as water has flown through the BA valve, this water is not considered to be drinking water any more. IMPORTANT! Only use wa- ter without any impurities. lf there is a risk of silt, sand or sediment in the inlet water (i.e. from your own well), an addi- tional filter should be mounted. Safety devices Locking device on spray handle (7a) (see illustration at the end of this manual): The spray handle features a locking device. When the button is activated, the spray handle cannot be operated. Thermal sensor: A thermal sensor protects the motor against overloading. The machine will restart after a few minutes when the thermal sen- sor has cooled. Pressure safety device An integrated hydraulic safety valve protects the system from excessive pressure. Original Instructions

2.2 Operation elements

is high-pressure washer has en developed for domestic use for cleaning: Car, motorbike, boat, cara- van, trailer, patio/drive/flag- stones, woodwork, brickwork, barbecue, garden furniture, lawn mower

Section 5 describes the use of

the high-pressure washer for vaious cleaning jobs. See illustration at the end of this manual.

Start/stop switch Water inlet (with filter) High pressure connection (only machines without hose reel) High pressure hose Electric cable Button for regulation of pressure and water volume Ergo 2000 spray handle With lock (7a) Flexopower Plus spray lance Turbohammer Plus spray lance Only use the high-pressure washer for purposes described in this manual. The safety precautions must be observed to prevent damage to the machine, the surface to be cleaned or severe personal injuries. Detachable detergent con- tainer Nozzle cleaning tool Dosing of detergents Hose reel Hose hook (only machines without hose reel) Model tag Button for telescopic handle Telescopic handle Turnable cable hook Specifications: See model tag (15) of machine. We reserve the right to alter the specifications.

Original Instructions

Poseidon 2 3 Before you start using your pressure washer

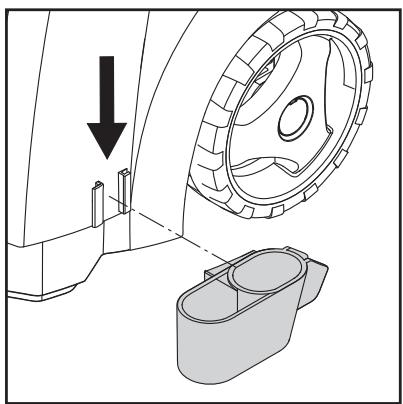

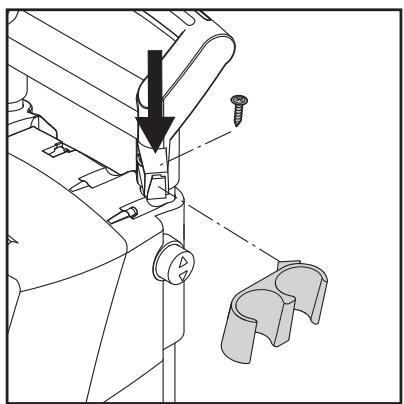

3.1 Mounting of holders for

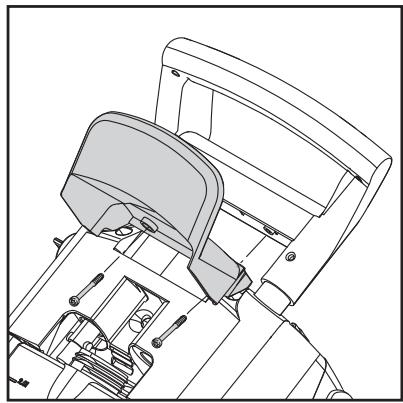

3.2 Mounting of hose hook

(only models without hose reel)

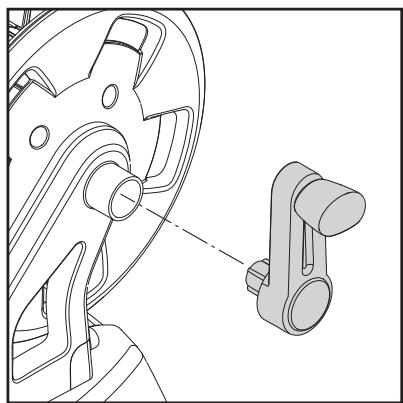

3.3 Mounting of hose reel

handle (only models with hose reel) Mount the holders for spray lance on the machine. Mount the hose hook (14) on the handle (2 screws). Note: the hose hook can be mounted on the front as well as on the back. Front position is to be used if the product is used together with a special wall hook for wall storage.

1. Click the hose reel handle

on to the trolley handle (no Screws). Original Instructions

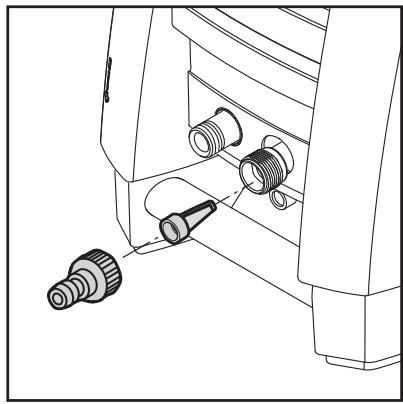

3.4 Mounting of quick

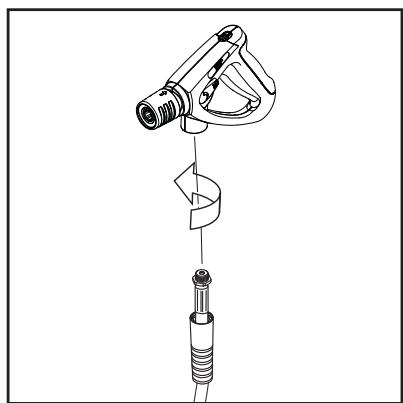

3.5 Mounting of high

tight on to the water inlet (2). Note: The inlet filter must al- ways be fitted in the water inlet pipe to filter out sand, limestone and other impurities as these will damage the pump valves. Caution: Failure to fit the filter will invalidate the guarantee. Attach the high pressure hose (4) to the spray handle (7). 4 Operating your pressure washer

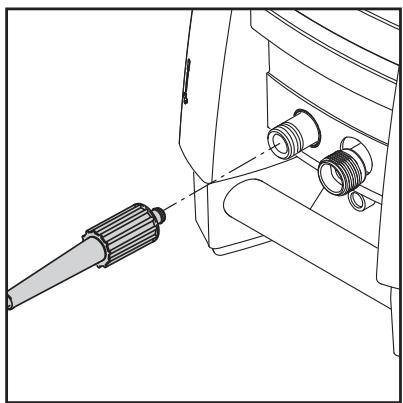

4.1 Connection of high pres-

sure hose Machines without hose reel: At- tach the high pressure hose (4) to the high pressure connection of the machine (3). Only max. 7 m additional exten- sion hose can be added. Machines with hose reel: Un- wind the high pressure hose completely.

Original Instructions

4.2 Mounting of spray

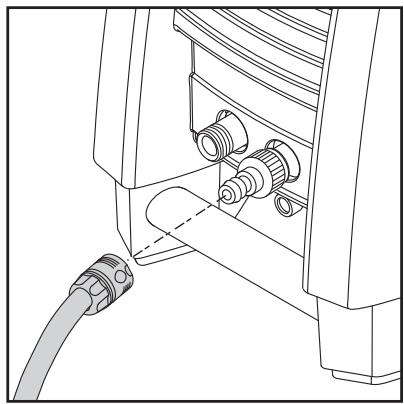

4.3 Water connection

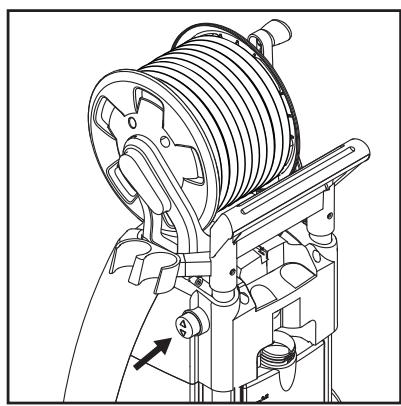

4.4 Telescopic handle

NOTE! Always remove any dirt from the nipple before connecting the spray lance to the spray handle. An ordinary 1/2" garden hose of min. 10 m and max. 25 m will be suitable. NOTE: Connec- tion to the public mains according to regulations. Poseidon 2

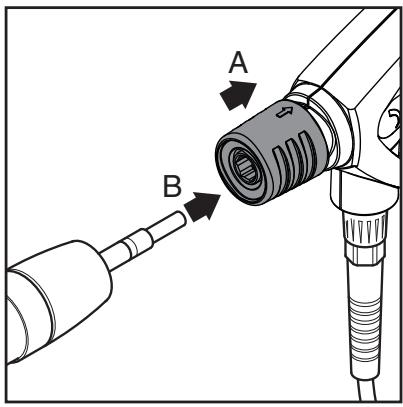

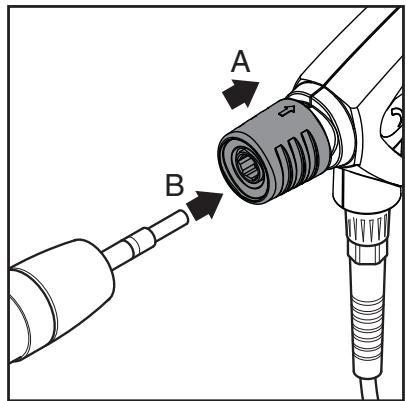

1. Pull the blue quick-release

grip (A) of the spray gun backwards.

2. Insert the nipple of the spray

lance (B) into the quick-re- lease connection and release it.

8. Pull the spray lance (or other

accessory) forwards to check that it is securely attached to the spray gun. IMPORTANT! Only use wa- ter without any impurities. lf there is a risk of silt, sand or sediment in the inlet water (i.e. from your own well), an addi- tional filter should be mounted.

1. Let the water run through the

water hose before connecting it to the machine to prevent sand and dirt from penetrat- ing the machine. Note: Check 1 that the filter is fitted in the water inlet pipe and that it is clean and free from debris.

2. Connect the water hose to

the water supply by means of the quick connector (inlet water, max. pressure: 10 bar, max. temperature: 60°C).

8. Turn on the water.

The machine features a tele- scopic handle. To raise or lower the handle, press the button (16) and move the handle up- wards or downwards. When a click is heard, the handle is in right position. Original Instructions

4.5 Start and stop of the ma-

chine (when connected to a water supply)

4.6 Start the machine (when

connected to open con- tainers (suction mode))

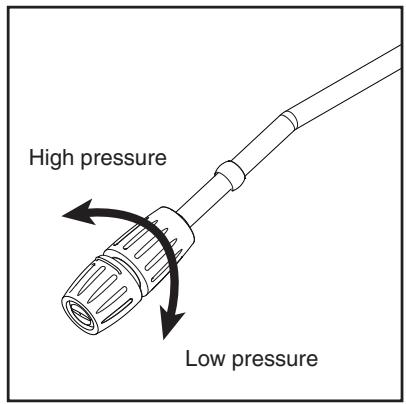

4.7 Pressure regulation on

the Flexopower Plus- spray lance The spray lance is affected by a thrust during opera- tion - therefore always hold it firmly with both hands. IMPOR- TANT: Point the nozzle at the ground.

1. Check that the machine is in

upright position. NOTE: Do not place the ma- chine in tall grassl!

2. Release the trigger lock.

8. Activate the trigger of the

spray handle and let the wa- ter run until all air has es- caped from the water hose.

5. Activate the trigger of the

spray handle. Always adjust the distance and thus the pressure of the nozzle to the surface, which is to be cleaned. The washer can take in water from a rain water tank as an example. The hose for the water supply must not be too long, approx. 5 m. Make sure that the water tank is not placed on a lower level than the machine. Use an external filter if the wa- ter contains impurities.

1. Make sure that the water

hose is filled completely with water before connecting to the machine. Place the entire High pressure Low pressure Do not cover the machine during operation. Note: If the ma- chine is left or not used for 5 minutes, it must be switched off on the start/stop switch "O" (1):

1. Turn the start/stop switch to

3. Shut off the water supply and

activate the trigger to relieve the machine of pressure.

4. Lock the spray handle.

When releasing the trigger of the spray handle, the machine automatically stops. The ma- chine will start again when you re-activate the spray handle. hose in a tank or bucket. To avoid water spillage, crimp the water inlet hose down in the water and then connect the hose to the machine with the quick coupling and finally uncrimp the water inlet hose.

8. Turn the start/stop switch to

position "l" and let the water run, until the air has escaped from the water hose and the pump.

4. Mount spray handle, lance

and nozzle again. The pressure can be regulated on the Flexopower Plus spray lance.

Original Instructions

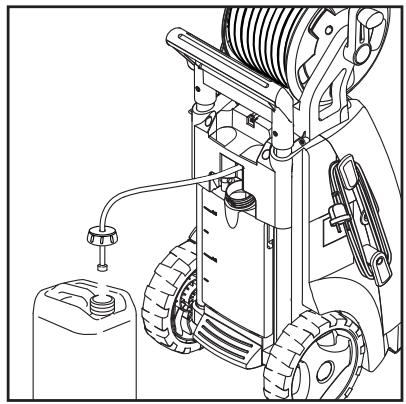

4.8 Operation with detergents

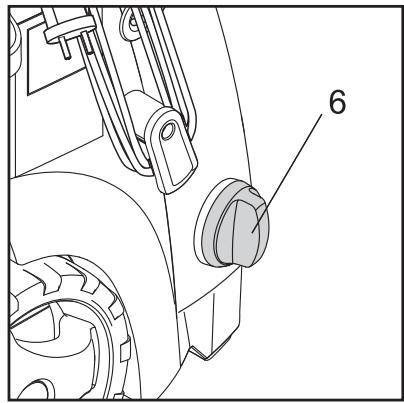

4.9 Regulation of pressure /

water volume Application of detergents is NOT possible if an extension hose is applied.

1. Fillthe container with a de-

spray lance and adjust it to low pressure (see section 47).

4. Apply the detergent from

5. Let the detergent act for the

time stated on the packing of the detergent and flush with pure water. Separate detergent container

1. Remove the cover with suc-

tion hose from the detergent container.

2. Mount the cover with suction

hose on the separate deter- gent container. The cover has a standard thread and fits common detergent con- tainers. If your container does not have a standard thread, detach the filter from the suc- tion hose and remove the cover. Remount the filter in the suction hose. Extra detergent hose can be pulled out of the machine. Working pressure and water volume can be regulated on the machine by turning the button for regulation of pressure / wa- ter volume (6). Original Instructions

Poseidon 2 5 Fields of application and working methods

Efficient high presure cleaning is achieved by following a few guide- lines, combined with your own personal experience of specific cleaning tasks. Accessories and detergents, when correctly cho- sen, can increase the efficiency of your pressure washer. Here is some basic information about cleaning. Foam or detergent should be applied onto dry surfaces so that the chemical product is in direct contact with the dirt. Detergents are applied from bottom to top, for example on a car bodywork, in order to avoid "super clean" areas, where the detergent collects in higher concentration and streams downwards. Let the detergent work for several minutes before rinsing but never let it dry on the surface be- ing cleaned. Note: lt is important that the detergents do not dry up. Otherwise the surfac that has to be cleaned can be damaged. In order to break down tough layers of dirt, additional mechanical effect may be required. Special wash brushes offer this supplemen- tary effect that cuis through dirt (especially by car washing).

Original Instructions

Poseidon 2 6 After using your pressure washer

6.1 Storing the washer

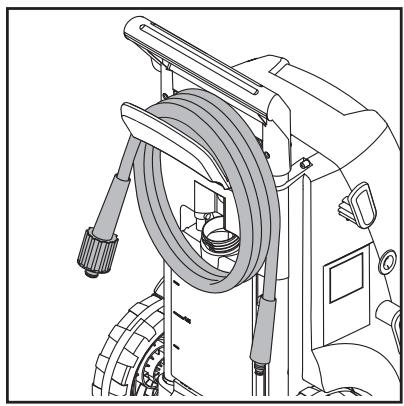

6.2 Winding up of electric

cable and high pressure hose The machine should be sto- red in a frost-free room! Pump, hose and accessories should always be emptied of water prior to storing as follows:

1. Stop the machine (turn the

start/stop switch (1) to posi- tion “O” and detach water hose and accessory. . Restart the machine and activate the trigger. Let the machine run until no more water runs through the spray handle.

8. Stop the machine and un-

plug. Wind the electric cable round the hooks placed on the side of the machine.

4. Separate spray handle and

To avoid accidents, the electric cable and the high pressure hose should always be wound

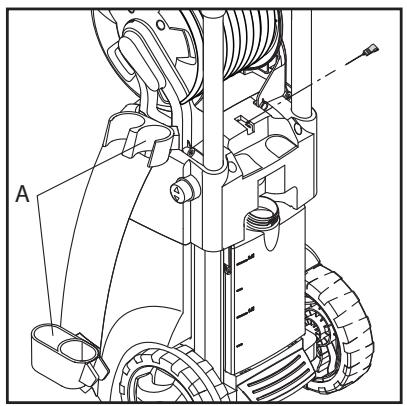

6.3 Storage of accessories

5. Machines without hose reel:

Detach high pressure hose, coil it up and place it on the hose storage. Machines with hose reel: Coil the high pressure hose up on the hose reel.

6. Place spray handle, nozzles

and other accessories in the holders of the machine. Should the machine by mistake be frozen, it will be necessary to check it for damage.

NEVER START-UP A FROZEN

MACHINE. Frost damages are not covered by the guarantee! up carefully.

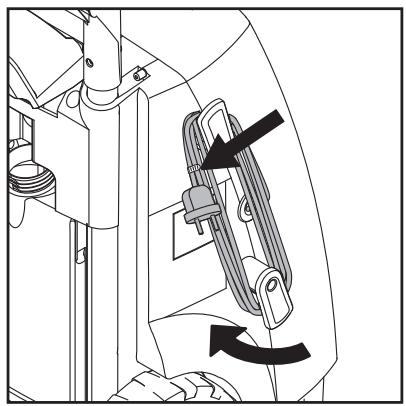

1. Wind up the electric cable on

the appropriate hooks. Built- in clip for good holding. The lower hook can be turned to release the electric cable.

2. The high pressure washer

comes in two models: A) with hook for storage of high pres- sure hose (14) - B) with a hose reel (13). The standard accessories (spray handle, spray lance (A) and nozzle cleaning tool) can be stored on the pressure washer. Original Instructions

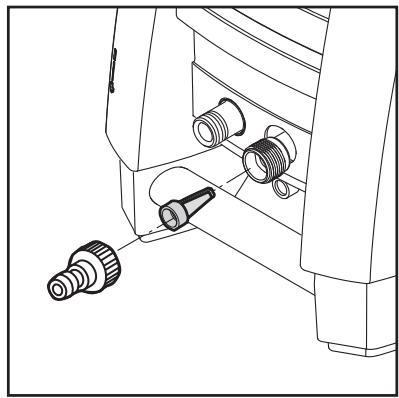

Poseidon 2 7 Maintenance 74 Cleaning of water inlet filter

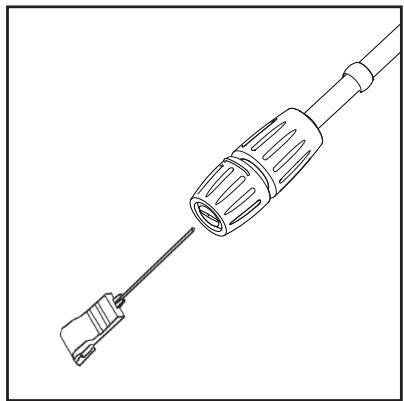

7.2 Cleaning of nozzle

7.3 Cleaning of machine

7.4 Greasing of couplings

WARNING! Always disconnect the electrical plug from the socket prior to maintenance or cleaning. To ensure a long and problem free working life, please take the following advice: © Wash off water hose, high pressure hose, spray lance and accessories before mounting. The machine should be kept clean so as to let cooling air To ensure easy connection and that o-rings do not dry up, the © Clean the connectors of dust and sand. © Clean the nozzles. Any repair should always be made in an authorized work- shop with original spare parts. Clean the water inlet filter regu- larly once a month or more fre- quently according to use. Care- fully loosen the filter with a pair of pliers and clean it. Check that it is intact before re-mounting it. The inlet filter must always be fitted inside the water inlet pipe to filter out sand, limestone and other impurities, as they will damage the pump valves. CAUTION: Failure to fit the filter Will invalidate the guarantee. A clogging up in the nozzle causes a pump pressure which is too high. This is why cleaning is required immediately.

1. Stop the machine and dis-

2. Clean the nozzle. IMPOR-

TANT: The cleaning tool (11) should only be used when the nozzle is detachedl!

8. Flush the nozzle backwards

with water. pass freely through the ma- chine vents. couplings should be greased regularly.

Original Instructions

8 Trouble-shooting Poseidon 2 Please ensure that you check the following before contacting the Nilfisk-ALTO service organization: Symptom Cause Recommended action Machine refuses to start Machine not plugged in Defective socket Fuse has blown Defective extension cable Plug in machine. Try another socket. Replace fuse. Switch off other machines. Try without the extension cable. Fluctuating pressure Pump sucking air Valves dirty, worn out or stuck Pump seals worn out Check that hoses and connections are air- tight. Clean and replace or refer to local Nilfisk- ALTO distributor Clean and replace or refer to local Nilfisk- ALTO distributor. Motor busses Low voltage or low temperature Activate the trigger of the spray handle. Machine stops Fuse has blown Incorrect mains voltage Thermal sensor activated Nozzle partially blocked Replace fuse. Switch off other machines. Check that the mains voltage corresponds to specification on the model tag. Leave the washer for 5 minutes to cool down. Clean the nozzle (see section 7.2) Fuse blows Fuse too small Change to an installation higher than the amp. consumption of the machine. You may try without the extension cable. Machine pulsating Air in inlet hose/pump Inadequate supply of mains water Nozzle partially blocked Water filter blocked Hose kinked Allow machine to run with open trigger until regular working pressure resumes. Check that the water supply corresponds to specifications required (see model tag) NB! Avoid using long, thin hoses (min. 1/2") Clean the nozzle (see section 7.2) Clean the filter (see section 7.1) Straighten out hose. Machine often starts and stops by itself Pump/spray handle is leaking Contact your nearest Nilfisk-ALTO Service Centre. Machine starts, but no water comes out Pump/hoses or accessory frozen No water supply Water filter blocked Nozzle blocked Wait for pump/hoses or accessory to thaw. Connect inlet water. Clean the filter (see section 7.1) Clean the nozzle (see section 7.2) Pump pressure drops Button for regulation of Adjust the button to correct working pres- pressure / water volume not sure. correcily adjusted In case problems other than the above occur, please contact your local Nilfisk-ALTO distributor. UK: Customer Services at Penrith - 01768 868995 Original Instructions

9.1 Recycling the washer

9.2 Warranty conditions

Make the old cleaner unusable immediately.

1. Unplug the cleaner and cut

the electric cable. Do noi discard electrical appli- ances with household waste. As specified in European Direc- Nilfisk-ALTO guarantees this high pressure washer for 1 year. If your high pressure washer or accessories are handed in for repair, a copy of the receipt must be enclosed. Guarantee repairs are being made on the following condi- tions: © that defects are attributable to flaws or defects in materi- als or workmanship. (wear and tear as well as misuse are not covered by the guar- antee). @ that the directions of this instruction manual have been thoroughly observed. © that repair has not been car- ried out or attempted by oth- er than Nilfisk-trained service staff. © that only original accessories have been applied. © that the product has not been exposed to abuse such as knocks, bumps or frost. © that only water without any impurities has been used. © that the high pressure wash- er has not been used for rental nor used commercially in any other way. tive 2002/96/EC on old electri- cal and electronic appliances, used electrical goods must be collected separately and recycled ecologically. Contact your local authorities or your nearest dealer for further information. Repairs under this guarantee include replacement of defec- tive parts, exclusive of packing and postage/carriage. Besides, we refer to your national law of sale. The machine should be for- warded to one of the service centres of the Nilfisk-ALTO organisation with description/ specification of the fault. Repairs not covered by the guarantee conditions will be invoiced. (I.e. malfunctions due to Causes mentioned in section Troubleshooting Chart of the instruction manual).

Original Instructions

Product: Type: Description: The design of the unit correspondés to the following pertinent regulations: Applied harmonised standards: Applied national standards and technical specifications:
