USER MANUAL UR 1200 VIVANCO

Inserting the batteries

Open the battery compartment on the underside of the remote.. Then insert 2 AAA batteries. Make sure that the polarity is correct: the "+" and "-" markings on the batteries and in the compartment must match.

• To check functionality, press the button. If everything is correct the red lamp

flickers when the button is pressed.

Adapting to appliances

In order to control your appliances you must adapt or set the remote control to them. There are two ways of doing so:

Direct control code entry using the enclosed list

Example: setting to control a Panasonic television set:

Panama	003,004,010,023,166,296,308,309,332,37'
Panashiba	376''
Panasonic	023,050,065,066,067,068,102,125,142,143,316,332,356,385,386,397,436''
Panavision	023,332''

1. The enclosed list gives, for example, the Panasonic Code 436.
2. Please make sure you have selected the correct list for television sets (TV).
3. To prepare code entry, keep the OK button and the TV button pressed simultaneously(!) until the lamp (LED) lights constantly.
4. Then enter the code numbers as follows:

5. 1st number of code (hundreds): Press the VOLUME+ button-4 times for the 4 of 436. Press as often as the number indicates. (1=once, 2 = twice, etc.)

6. 2nd number of code (tens): Press the VOLUME- button 3 times for the 3 of 436.

7. 3rd number of code (ones): Press the CH/SKIPA button 6 times for the 6 of 436.
8. Finally, press the OK button again briefly. The lamp (LED) goes out.
9. To enter a 0, do not press any button.
10. If lamp flashes twice code was not accepted

and code input can be started again.

1. Then test the control code setting by trying to control (in this example) your television set. If it does not work at all or not correctly try a different code from the list or code search (see below).

2. To make the setting for a DVB (SAT, CBL), receiver or a cable box, press the SAT/DVB (SAT, CBL) button instead of TV and enter a DVB (SAT, CBL) code accordingly.

3. You terminate the mode by pressing any device button or by code input interruption of more than 10 seconds.

Code search

If the brand of your appliance is not in the list or none of the codes given fits, we recommend a code search.

Manual code search

1. Switch on the appliance to be controlled. Program is running.
2. To prepare code search, press the OK button and the appliance button, e.g. TV, simultaneously until the lamp (LED) lights constantly.
3. Then point the remote control at the appliance to be controlled.
4. Briefly press the ON/OFF button once. The lamp (LED) blinks.

5. Press the ON/OFF button about any 1 second so often until the appliance, e.g. your TV reacts by power off.

6. You can invert search direction by pressing

the OK button and then u again.

• If your appliance has switched itself off, you must switch it back on again, e.g. on the appliance or with the original remote control, to continue searching.
• When your appliance reacts you can also try out other buttons without interrupting the search. If some buttons do not work properly, simply continue searching by pressing ON/OFF

again.

1. When your appliance reacts correctly, press the appliance button, e.g. TV for end of searching and saving of found code. The lamp (LED) goes out.
2. The last code entered remains stored. The search stops after approx. 30 seconds of inactivity.

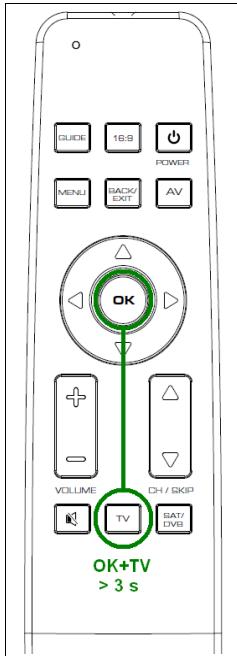

Automatic code search

1. Switch on the appliance to be controlled. Program is running.
2. To start the code search, press the OK button and the

appliance button, e.g. TV, simultaneously for more than 3 seconds until the lamp (LED) goes off briefly.

1. Then point the remote control at the appliance to be controlled while the remote control emits a different ON/OFF signal every 1-2 seconds.
2. You can reverse search direction at any time by pressing OK button.
3. When your appliance reacts, press any button except OK within 1-2 seconds, to end the search and save code..
4. If you ended the search too late, continue to search using the Manual Code Search (see above).
5. Finally, test the control code setting by trying to control, for example, your TV appliance. If it does not work correctly, please try the code search again. The code search then begins with the found code in the sequence.

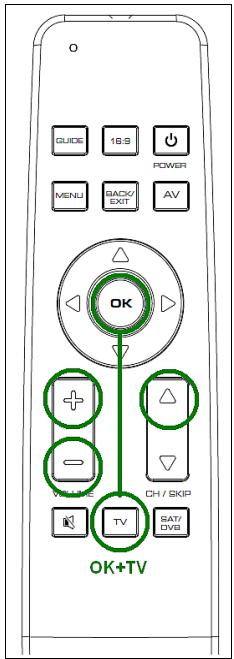

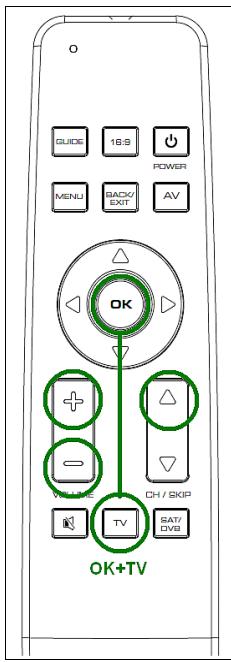

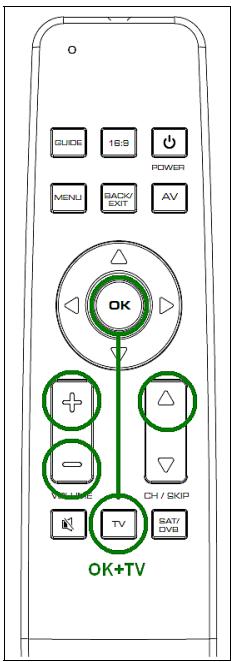

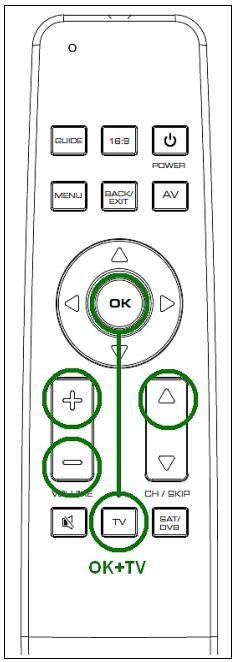

Code identification

You can read off the 3-digit codes you have set at any time:

1. Select the appliance to be controlled using the TV or SAT/DVB (SAT, CBL) button.

2. Then count off the code. First press OK+VOLUME+ briefly and count the number of times the hundred blinks, then press OK+ VOLUME- briefly and count the number of times the ten blinks and finally, press OK+CH/SKIPΔ briefly the number of times the one blinks.

3. No blink means 0.

Reset To Factory Settings

Press OK+ button until the lamp blinks twice in order to reset the remote to factory settings.

Operation

You operate your universal remote control basically in the same way as if you were using the original remote control. As the symbols on a universal remote control could differ from those on the original remote controls, you may have to try out all the buttons in order to find the right functions.

Specifications

Batteries: 2x AAA batteries, R03, UM4

Range: max. 7 m

Not for 400 kHz equipment

Two Year Guarantee

This product is covered by a two year warranty against faulty parts and workmanship. Exclusions to this warranty are missing codes, normal wear and tear and misuse.
