Product Type	Universal Remote Control
Brand	Vivanco
Model	UR 44
Number of controllable devices	Up to 8
Power supply	2 AAA alkaline batteries (R3)
Infrared range	Approximately 10 meters
Compatibility	Televisions, satellite receivers, DVD players/recorders, CD players
Programming methods	Direct code entry, code search, automatic search
Device buttons	4 dual buttons: TV1/TV2, SAT1/SAT2, DVD1/DVD2, VCR1/VCR2
Punch-through volume function	Yes
Indicator light	Red (flashes during use)
Dimensions (estimated)	Approximately 200 x 50 x 25 mm
Weight (estimated)	Approximately 100 g (with batteries)
Material	ABS plastic
Color	Black (standard model)
Maintenance	Clean with a soft, dry cloth
Safety	Keep out of reach of children, do not expose to moisture
Support	Phone line: [phone] / e-mail: [e-mail]

Frequently Asked Questions - UR 44 VIVANCO

How to program my Vivanco UR 44 remote control?

You can program the remote by direct code entry (find the code of your device in the provided list) or by automatic search. Consult the manual for detailed steps.

Do the remote batteries need to be specific?

Use 2 AAA alkaline batteries (R3). Respect the polarity indicated in the compartment.

What to do if the remote does not work?

First check the batteries (condition and polarity). If this does not solve the problem, reset the remote by removing the batteries for 30 seconds. Also try reprogramming your device.

How to adjust the TV volume when operating another device?

The remote has a punch-through function: the volume can be controlled directly without pressing the TV button. Consult the manual to activate this function.

Can I control more than 4 devices?

Yes, the remote has 4 dual buttons (TV1/TV2, SAT1/SAT2, DVD1/DVD2, VCR1/VCR2) allowing control of up to 8 devices in total.

Where to find the code list for my remote?

The code list is provided with the manual. You can also contact Vivanco support at [phone].

How to perform an automatic code search?

Turn on your device. Press the corresponding device button (e.g., TV). Hold the SET button for about 5 seconds until the red indicator lights up. The remote sends test signals; as soon as the device turns off, press SET briefly to memorize the code.

The red indicator does not light up, what to do?

This usually indicates that the batteries are discharged or incorrectly inserted. Replace with new batteries and check the contact.

Can I use the remote with a device not listed?

Yes, use the code search or automatic search function to find a compatible code.

How to contact Vivanco customer service?

You can call [phone] or send an email to [e-mail].

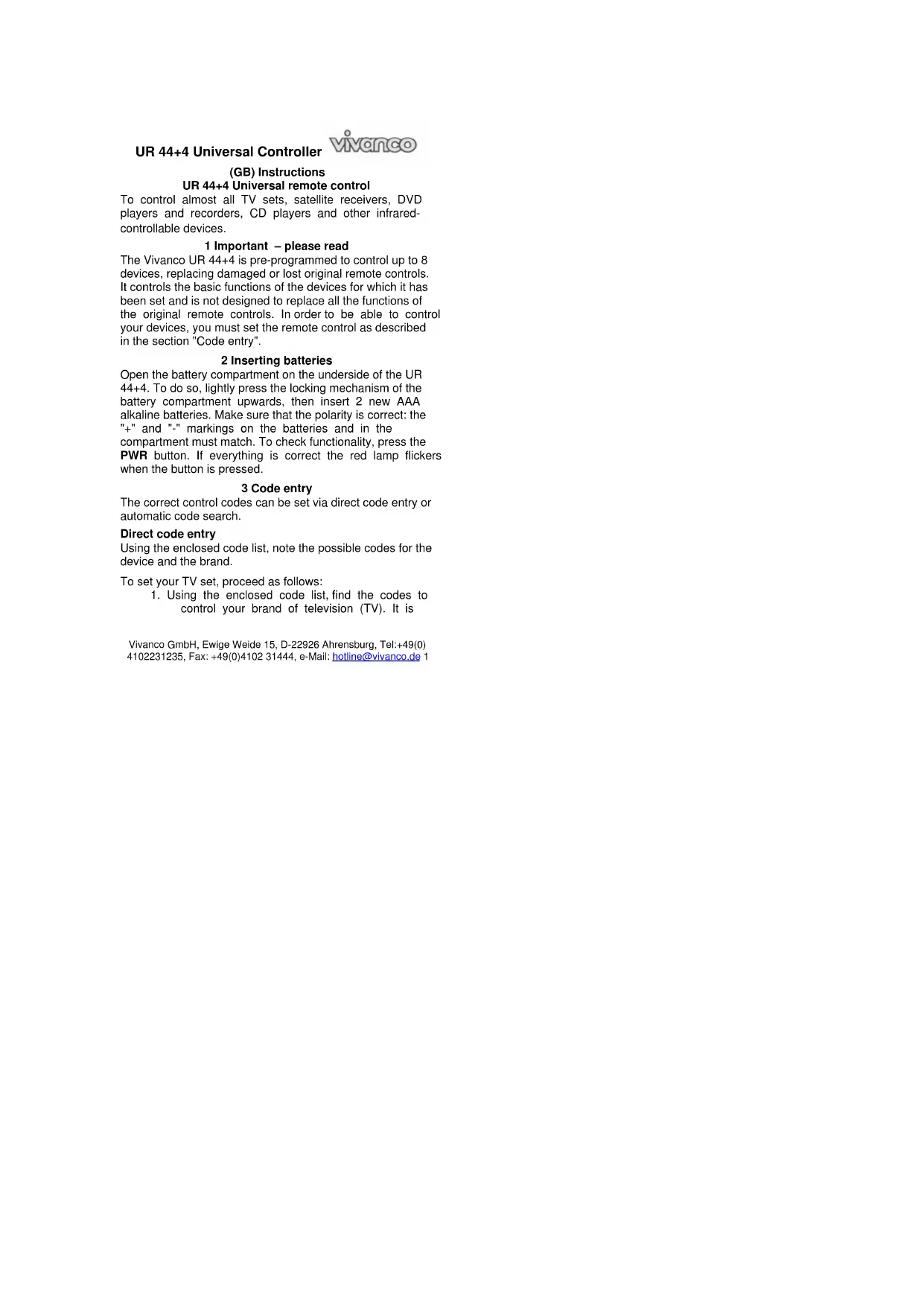

USER MANUAL UR 44 VIVANCO

To control almost all TV sets, satellite receivers, DVD players and recorders, CD players and other infrared-controllable devices.

1 Important - please read

The Vivanco UR 44 + 4 is pre-programmed to control up to 8 devices, replacing damaged or lost original remote controls. It controls the basic functions of the devices for which it has been set and is not designed to replace all the functions of the original remote controls. In order to be able to control your devices, you must set the remote control as described in the section "Code entry".

2 Inserting batteries

Open the battery compartment on the underside of the UR 44 + 4 .To do so, lightly press the locking mechanism of the battery compartment upwards, then insert 2 new AAA alkaline batteries. Make sure that the polarity is correct: the "+" and "-" markings on the batteries and in the compartment must match. To check functionality, press the PWR button. If everything is correct the red lamp flickers when the button is pressed.

3 Code entry

The correct control codes can be set via direct code entry or automatic code search.

Direct code entry

Using the enclosed code list, note the possible codes for the device and the brand.

To set your TV set, proceed as follows:

1. Using the enclosed code list, find the codes to control your brand of television (TV). It is

Vivanco GmbH, Ewige Weide 15, D-22926 Ahrensburg, Tel: +49(0)

4102231235, Fax: [phone], e-Mail: [e-mail] 1

possible that there are several suitable codes and you should find out the most suitable.
2. Switch on a program on your TV.
3. Press the SET button, hold it down and at the same time press a device button, e.g. TV*), until the red lamp comes on.
4. Then enter one of selected three-digit codes. Key 0: please press key 10.
5. When the first and second number buttons are pressed the lamp goes out briefly; when the third is pressed it stays out.
6. Try out the functions. If everything is okay, you can set the remote control as described in steps 1 to 5 for other devices. If it is not okay, try another code for the same brand.

The letters on the device buttons TV1/TV2*),SAT1/SAT2*, DVD1/DVD2*), VCR1/VCR2*) are for your orientation only.

1. You can set each type of device under any of the buttons.
2. If you do not find a suitable code for a device, look for it using the code search.

*: All 4 keys of the device can be assigned twice so that 8 different devices can be controlled altogether. If you press a key once according to these instructions you can enter a device code for the first assignment or control the first device. If you press a key twice within one second you can set the key for a second device, or control a second device via the key.

Code search

To control a TV:

1. Switch on a program on your TV (on the TV itself or with the original remote control).
2. Press the SET button, hold it down and at the same time press a device button, e.g. TV*), until the red lamp comes on.
3. Then press the SET button again briefly, the lamp starts to blink.

Vivanco GmbH, Ewige Weide 15, D-22926 Ahrensburg, Tel:[phone], Fax: [phone], e-Mail: [e-mail] 2

1. Press the PWR button approx. every 2 seconds.
2. When the TV switches itself off, briefly press the device button (TV^*) to store the code found.
3. The lamp goes out and the search is ended.
4. Try out the functions. If everything is okay, you can set the remote control as described in steps 1 to 6 for other devices. Then press the device buttons SAT DVD* or VCR* instead of TV*. If it is not okay, continue searching as described in 1 to 6.

Automatic code search

To control a TV:

1. Switch on a program on your TV (on the TV itself or with the original remote control).
2. Press the device button with which you want to control a device, e.g. TV*.
3. Then press the SET button for approx. 5 seconds until the red lamp comes on.
4. Release the SET button and point the UR 44+4at the device to be controlled. The UR 44+4 then begins to emit a test signal about every 2 seconds.
5. When the TV switches itself off, briefly press the SET button to store the code found.
6. The lamp goes out and the search is ended.
7. Try out the functions. If everything is okay, you can set the remote control as described in steps 1 to 6 for other devices. Then press the device buttons SAT^* DVD* or VCR* instead of TV*. If it is not okay, continue searching as described in 1 to 6.

4 Controlling devices

To control a specific device, first press a device button, e.g. TV^* to control the TV set and then the required function buttons.

Vivanco GmbH, Ewige Weide 15, D-22926 Ahrensburg, Tel: +49(0)

4102231235, Fax: [phone], e-Mail: [e-mail] 3

Volume control

With some devices that have no volume control, such as video recorders, DVD players, etc. you can control the volume of the TV without having to press the TV button first (Punch Through).

5 Hotline

If you have any questions regarding the UR 44+4, please call the Vivanco Hotline: Tel: [phone] Alternatively, send an e-mail to: [e-mail]
