USER MANUAL RM336PES OREGON SCIENTIFIC
+ECO Solar Projection Clock Model: RM336PES / RM336PESA / RM336PESU
User Manual
+ECO Solar Projection Clock
Model: RM336PES / RM336PESA / RM336PESU
USER MANUAL
CONTENTS
Earth Friendly 2
Overview 2
Front View 2
Top View 2
Bottom View 3
Solar Panel 3
Getting Started 3
Solar Panel 3
Backup Power 4
Clock and Calendar 5
Clock Reception 5
Manually Set Clock 5
Alarm 5
Projection 6
Sleep projection timer 6
Backlight 6
Reset 7
Specifications. 7
Precautions 7
About Oregon Scientific. 7
EU-Declaration of Conformity 8
FCC Statement 8
EARTH FRIENDLY
The +ECO line embodies our commitment to environmental concerns. Aware of threats facing the world we live in, Oregon Scientific™ has combined technological know-how, practicality and style to create this line of environmentally friendly products. These products provide practical solutions while enabling you and us to fulfill our environmental responsibility.
Simply detach the solar panel and face it directly towards the sun for a few hours to receive the amount of energy necessary to power the device.
Together we can improve the world we live in.
OVERVIEW

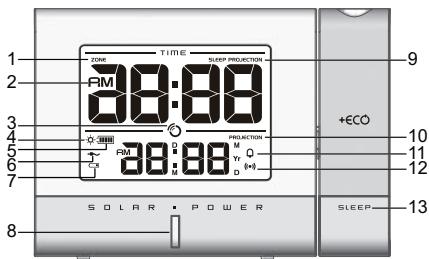

FRONT VIEW
- ZONE: time zone offset
- AM/PM
- : clock signal reception indicator
- : rechargeable battery is low / solar panel detached
P/N: 300102498-00001-10 REV1
- : rechargeable battery level indicator
- : AC adapter connected
- : outdoor remote sensor battery low / main unit back-up batteries low / no battery
- Rechargeable battery status LED indicator
- SLEEP PROJECTION: sleep projection function is ON
- PROJECTION: appears when selecting alarm projection option (ON/OFF)
- : daily alarm is ON
- () : alarm time is displayed
- SLEEP : enable continuous projection; activate projection sleep timer; adjust timer settings (0, 15, 30, 45, 60 minutes)

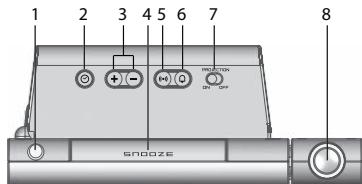

TOP VIEW
- Light sensor
- : toggle display (calendar / alarm time); set clock
- + / - : increase / decrease value of the setting; activate / deactivate clock reception signal
- SNOOZE: activate snooze alarm; turn on backlight / projector; flip projected image 180^
- () : view alarm status; set alarm
-
: activate / deactivate alarm function
-
PROJECTION ON-OFF: enable / disable continuous projection
- Projector

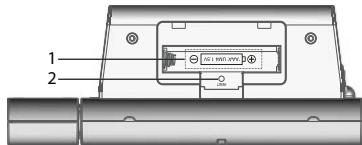

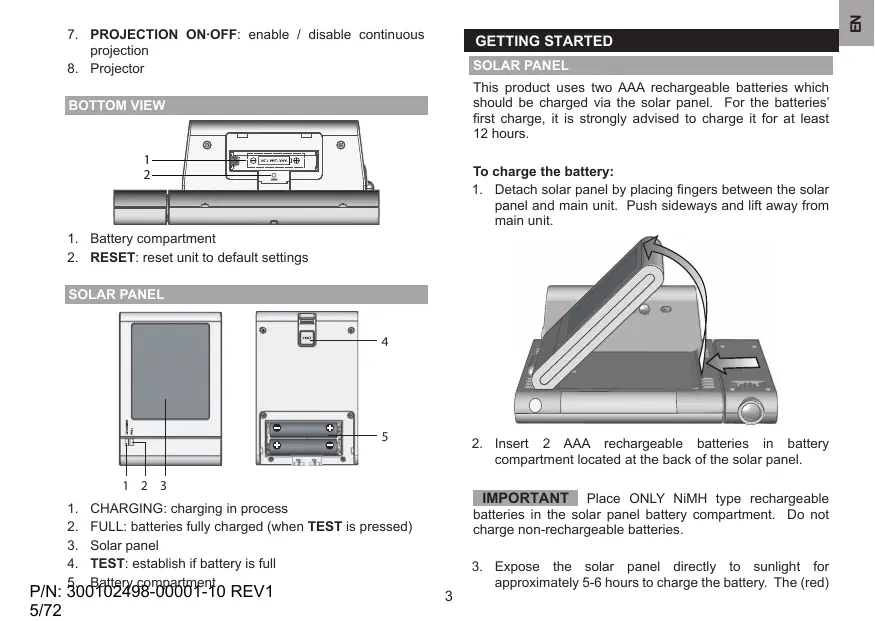

BOTTOM VIEW
- Battery compartment
- RESET: reset unit to default settings
SOLAR PANEL
- CHARGING: charging in process
- FULL: batteries fully charged (when TEST is pressed)
- Solar panel
- TEST: establish if battery is full
- Battery compartment
P/N: 300102498-000001-10 REV1
GETTING STARTED
SOLAR PANEL
This product uses two AAA rechargeable batteries which should be charged via the solar panel. For the batteries' first charge, it is strongly advised to charge it for at least 12 hours.

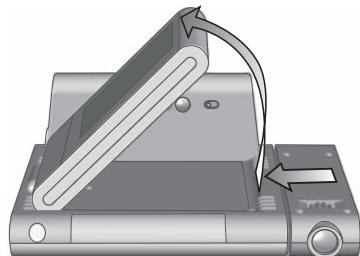

To charge the battery:
- Detach solar panel by placing fingers between the solar panel and main unit. Push sideways and lift away from main unit.
- Insert 2 AAA rechargeable batteries in battery compartment located at the back of the solar panel.
IMPORTANT Place ONLY NiMH type rechargeable batteries in the solar panel battery compartment. Do not charge non-rechargeable batteries.
- Expose the solar panel directly to sunlight for approximately 5-6 hours to charge the battery. The (red)
CHARGING LED on solar panel will light up indicating there is sunlight and unit is charging.
TIP Press and hold TEST located at the back of the solar panel. (Green) FULL LED indicates batteries have been fully charged.
- Align holes with protruding plastic. Push solar panel towards main unit and snap into place.
5-6 hours of battery charging will normally provide power to operate unit for 2 months (without using projection feature) or 1 week (using sleep and alarm projection feature daily).
When the rechargeable battery is nearly flat or when solar panel has been detached, the (green) LED indicator on the main unit and will flash.
TIPS
- For best results when charging the battery, place the solar panel directly with view to sunlight.
- Direct solar panel as follows:
| Solar panel facing: | if you reside in the: |
| North | Southern Hemisphere |
| South | Northern Hemisphere |
- Do not scratch the solar panel's surface or wipe it with strong detergent.
- Do not expose the solar panel to rain, snow or moisture.
- The duration of the rechargeable battery's charging or operating time is determined by either the intensity of sunlight or the position of the solar panel towards the sun.
BACKUP POWER
1 piece AAA battery
In the case when the rechargeable battery is flat or nearly flat or when the solar panel has been detached, the AAA battery can act as backup power supply for the main unit.
- Remove the battery compartment located at the base of the unit.
- Insert the battery, matching the polarities.
- Press RESET after each battery change.
NOTE When the rechargeable battery power is exhausted or when the solar panel has been detached, the backlight and projection functions will be disabled and the performance of the radio controlled clock may be affected.
Power adapter (not included)
The adapter powers the unit and can also be used for charging the rechargeable battery. When connected to the main unit, will be displayed and projection feature can reach its maximum brightness.
Plug AC/DC adapter into socket. Make sure the adapter is not obstructed and is easily accessible to the unit.
To completely disconnect from power, the adapter should be disconnected from the main unit.
NOTE The main unit and adapter should not be exposed to wet conditions. No objects filled with liquid, such as vases, should be placed on the main unit and adaptor.
CLOCK AND CALENDAR
CLOCK RECEPTION
This product is designed to synchronize its clock automatically with a clock signal.
RM336PES: EU: DCF-77 signal: within 1500km (932 miles) of Frankfurt, Germany.
RM336PESU: UK: MSF-60 signal: within 1500km (932 miles) of Anthorn, England.
RM336PESA: US: WWVB-60 signal: within 3200km (2000 miles) of Fort Collins Colorado.
To enable / disable clock signal reception:
Press and hold + to enable or - to disable clock signal reception.
NOTE Reception takes 2-10 minutes. If the signal is weak, it can take up to 24 hours to get a valid signal. If signal reception is unsuccessful, place your unit next to a window, press and hold + to force another signal search.
Clock signal reception indicator:
| STRONG SIGNAL | WEAK / NO SIGNAL |
| |
MANUALLY SET CLOCK
To set the clock manually, disable the clock signal reception
P/N: 306102498-00001-10 REV1
7/72
- Press and hold .
- Press +I -to change the settings.
- Press to confirm.
The settings order is: time zone, 12/24 hr format, hour, minute, year, calendar format (month - day / day - month), month and day.
NOTE Time zone offset sets the clock +/-23 hours from the received clock signal time. If you have deactivated the clock signal reception, do not set a value for time zone.
NOTE If you enter +1 in the time offset setting, this will give you your local time plus one hour. If you are in the US (RM336PESA) set the clock to:
0 for Pacific time +1 for Mountain time
+2 for Central time +3 for Eastern time
To toggle displays:
Press to toggle between alarm time and calendar.
ALARM
To set the alarm:
- Press and hold () to enter alarm setting.
- Press +I - to set hour, minute, projection ON/OFF.
- Press (to confirm.
Q indicates alarm is ON.
TIP When the alarm setting option of PROJECTION ON has been selected, the projection feature will be activated 15 minutes before the set alarm time and will remain on until the alarm is turned off.
To activate / deactivate alarm: Press Q.
To silence the alarm:
- Press SNOOZE to silence it for 8 minutes (the projection will also remain on during this time)
OR
- Press any key to turn the alarm off and activate it again after 24 hours.
To display alarm: Press (o).
PROJECTION
The continuous projection feature operates under the following circumstances:
If adapter is connected
- PROJECTION switch is in ON position
If no adapter connected
- Sleep timer activated
- Alarm projection selected
To activate continuous projection:
- Slide PROJECTION switch to ON (when adapter is connected).
NOTE To conserve energy, the installed light sensor inside the unit will disable the continuous projection feature when it detects a certain level of brightness in the surroundings.
To project image momentarily:
Press SNOOZE.
To deactivate continuous projection:
- Slide PROJECTION switch to OFF.
To flip projected image by 180^ :
While image is projected, press SNOOZE.
To focus image:
To display image vertically:
SLEEP PROJECTION TIMER
To activate sleep projection timer:
Press SLEEP.
To select duration:
Press SLEEP repeatedly.
NOTE If the adapter is connected and PROJECTION switch is in ON position, the projection will remain on despite sleep timer having reached "0".
BACKLIGHT
To activate backlight momentarily:
Press SNOOZE.
RESET
Press RESET to return to the default settings.
SPECIFICATIONS
| TYPE | DESCRIPTION |
| L x W x H | 145 x 55 x 102 mm (5.7 x 2.2 x 4 in) |
| Weight | 274 g (9.66 oz) without battery |
| Signal frequency | 433 MHz |
| Power | 2 x UM-4 (AAA) rechargeable batteries;
5V AC adaptor (not included)
1 x UM-4 (AAA) battery (for backup) |
PRECAUTIONS
- Do not subject the unit to excessive force, shock, dust, temperature or humidity
- Do not cover the ventilation holes with any items such as newspapers, curtains etc.
- Do not immerse the unit in water. If you spill liquid over it, dry it immediately with a soft, lint-free cloth.
- Do not clean the unit with abrasive or corrosive materials.
- Do not tamper with the unit's internal components. This invalidates the warranty.
-
Only use fresh batteries. Do not mix new and old batteries.
Images shown in this manual may differ from the actual display.
-
When disposing of this product, ensure it is collected separately for special treatment.
- Placement of this product on certain types of wood may result in damage to its finish for which Oregon Scientific will not be responsible. Consult the furniture manufacturer's care instructions for information.
- The contents of this manual may not be reproduced without the permission of the manufacturer.
- Do not dispose old batteries as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.
- Please note that some units are equipped with a battery safety strip. Remove the strip from the battery compartment before first use.
NOTE The technical specifications for this product and the contents of the user manual are subject to change without notice.
NOTE Features and accessories will not be available in all countries. For more information, please contact your local retailer.
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientific.com) to learn more about Oregon Scientific products. If you're in the US and would like to contact our Customer Care department directly, please visit:
www2.oregonscientific.com/service/support.asp
For international inquiries, please visit: www2.oregonscientific.com/about/international.asp
Hereby, Oregon Scientific, declares that this +ECO Solar Projection Clock (model: RM336PES / RM336PESA / RM336PESU) is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the signed and dated Declaration of Conformity is available on request via our Oregon Scientific Customer Service.
RoHS
COMPLIANT
COUNTRIES RTTE APPROVED COMPLIED
All EU countries, Switzerland
and Norway
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
NOTE
This equipment has been tested and found to th the limits for a Class B digital device, pursuant
P/N: 300102498-00001-10 REV1
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio / TV technician for help.
The following information is not to be used as contact for support or sales. Please visit our website at www2. oregon scientific.com/service for all enquiries.
We
Name: Oregon Scientific, Inc.
Address: 19861 SW 95th Ave., Tualatin, Oregon 97062 USA
Telephone No.: 1-800-853-8883
declare that the product
Product No.: RM336PES / RM336PESA / RM336PESU
Product Name: +ECO Solar Projection Clock
Manufacturer: IDT Technology Limited
Address: Block C, 9/F, Kaiser Estate,
Phase 1, 41 Man Yue St.,
Hung Hom, Kowloon,
Hong Kong
is in conformity with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation.
