2. Moon phase reading

4. Indoor temperature with temperature trend

5. Clock signal reception indicator

/ : Increase / decrease settings; activate / deactivate clock reception signal

8. Outdoor temperature with temperature trend

9. Outdoor humidity with humidity trend

12. Clock with weekday

13. MEM: View current, maximum and minimum

3. EU / UK: Select the nearest radio signal

REMOTE SENSOR (FIG 3)

3. Battery compartment

1. Remove the battery compartment.

2. Insert the batteries, matching the polarities (see FIG 2).

3. Press RESET after each battery change.4

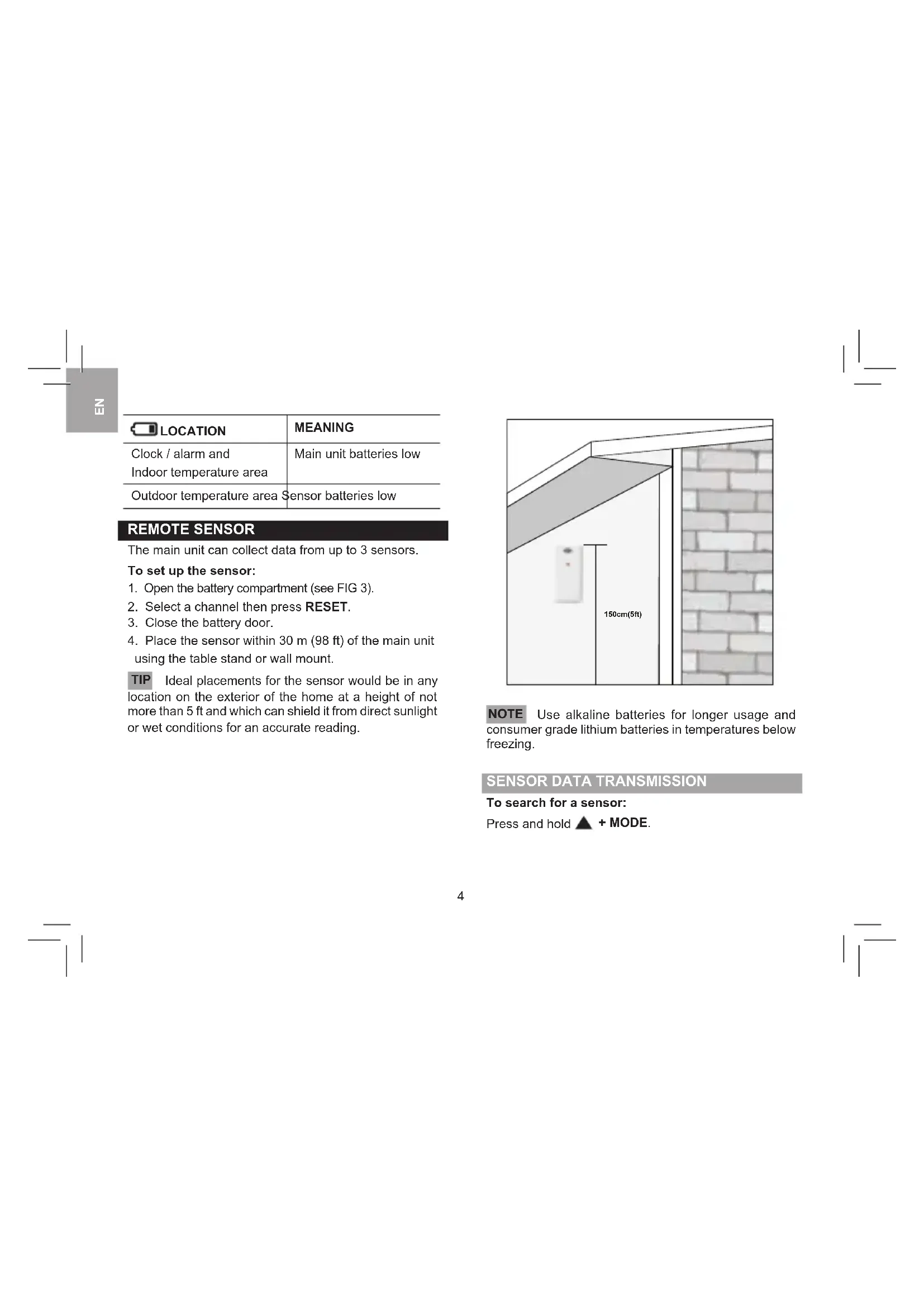

LOCATION MEANING Clock / alarm and Indoor temperature area Main unit batteries low Outdoor temperature area Sensor batteries low REMOTE SENSOR The main unit can collect data from up to 3 sensors. To set up the sensor:

1. Open the battery compartment (see FIG 3).

2. Select a channel then press RESET.

3. Close the battery door.

4. Place the sensor within 30 m (98 ft) of the main unit

using the table stand or wall mount. TIP Ideal placements for the sensor would be in any location on the exterior of the home at a height of not more than 5 ft and which can shield it from direct sunlight or wet conditions for an accurate reading. 150cm(5ft) NOTE Use alkaline batteries for longer usage and consumer grade lithium batteries in temperatures below freezing.

SENSOR DATA TRANSMISSION

To search for a sensor: Press and hold + MODE.5

The sensor reception icon in the remote sensor area shows the status: ICON DESCRIPTION Main unit is searching for sensor(s). A channel has been found. The sensor cannot be found. TIP The transmission range may vary depending on many factors. You may need to experiment with various locations to get the best results. CLOCK CLOCK RECEPTION This product is designed to synchronize its clock automatically with a clock signal. EU / UK: Slide EU / UK to select the signal received.

• EU: DCF-77 signal: within 1500 km (932 miles) of Frankfurt, Germany.

• UK: MSF-60 signal: within 1500 km (932 miles) of Anthorn, England. US:

• WWVB-60 signal: within 3200km (2000 miles) of Fort Collins Colorado. To enable / disable signal reception: Press and hold to enable or to disable signal reception. NOTE Reception takes 2-10 minutes. If the signal is weak, it can take up to 24 hours to get a valid signal. If signal reception is unsuccessful, place your unit next to a window, press and hold to force another signal search. Clock signal reception indicator: STRONG SIGNAL WEAK SIGNAL

To set the clock manually, disable the signal reception rst.

or to change the settings.

3. Press MODE to conrm.

4. The settings order is: time zone, 12/24 hr format, hour,

minute, year, calendar mode (day – month / month – day), month, day and language. EU: Time zone offset sets the clock +/- 23 hours from the received clock signal time. US: Select the time zone: (P) Pacic,(E) Eastern, (C) Central or (M) Mountain.6

NOTE The language options are English (E), German (D), French (F), Italian (I), and Spanish (S). To select display mode: Press MODE to choose between clock with seconds / weekday / calendar / moon phase. WEATHER FORECAST This product forecasts the next 12 to 24 hours of weather within a 30-50 km (19-31 mile) radius with a 75% accuracy. Sunny Partially Cloudy Cloudy Rainy Snowy

WEATHER WARNING MESSAGE

The weather warning messages provide indications of probable circumstances that may arise based on the weather station’s calculations. The meanings for the warnings are illustrated below: Warning Meaning Risk of high temperatures Risk of fast wind speeds Risk of a storm Risk of foggy conditions Risk of icy conditions

TEMPERATURE AND HUMIDITY

To toggle temperature unit: Press °C / °F. To auto-scan between sensors: Press and hold + MEM to display each sensor’s data for 3 seconds. To end press

To toggle between current, minimum and maximum records for the selected sensor: Press MEM repeatedly. To clear the records: Press and hold MEM. ICE WARNING If the channel 1 sensor falls between 3°C to -2 °C (37°F to 28°F), LED indicator will ash, and will stop ashing once the temperature is out of this range. WEATHER TRENDS The temperature, humidity and pressure trend icons are based on recent sensor readings.

MOON PHASE In moon phase mode, press or to scan through the years (2001 to 2099). New Moon Full Moon Waxing Crescent WaningGibbous First quarter Last quarter Waxing Gibbous Waning Crescent NOTE Star icons around the moon phase will be displayed from 6 o’clock in the evening to 6 o’clock the next morning. BACKLIGHT Press LIGHT to activate backlight for 5 seconds. RESET Press RESET to return to the default settings. PRECAUTIONS

• Use only fresh batteries of the required size and type. Do not mix old and new batteries, different types of batteries.

• Do not dispose old batteries as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

• If you do not plan to use the product for a long time, remove the batteries. Batteries can leak chemicals that can damage electronic parts.8

• Do not subject the device to excessive force, shock, dust, temperature or humidity.

• Do not immerse the device in water. If you spill liquid over it, dry it immediately with a soft, lint-free cloth.

• Do not clean the device with abrasive or corrosive materials.

• Do not tamper with the device’s internal components. Doing so invalidates the warranty.

• Images shown in this manual may differ from the actual display.

• When disposing of this product, ensure it is collected separately for special treatment.

• The contents of this manual may not be reproduced without the permission of the manufacturer. NOTE The technical specications for this product and the contents of the user manual are subject to change without notice. NOTE Features and accessories will not be available in all countries. For more information, please contact your local retailer. To download an electronic version of the user manual, please visit http://global.oregonscientic.com/customerSupport.php. SPECIFICATIONS TYPE DESCRIPTION MAIN UNIT L x W x H 94 x 51 x 182.5 mm (3.70 x 2.01 x 7.19 in) Weight 236 g (8.3 oz) without battery Temperature range -5°C to 50°C (23°F to 122°F) Resolution 0.1°C (0.1°F) Signal frequency 433 MHz Humidity range 25% - 95% Humidity resolution 1% Power 3 x UM-3 (AA) 1.5 V batteries REMOTE UNIT (THGR511) L x W x H 50 x 22 x 96 mm (1.97 x 0.87 x 3.78 in) Weight 49 g (1.73 ounces) without battery Transmission range 30 m (98 ft) unobstructed Temperature range -20°C to 60°C (-4°F to 140°F) Humidity range 25% - 95% Power 2 x UM-4 (AAA) 1.5 V batteries
