USER MANUAL PNEUMATIC 6000 S AEG

GB Instructions for use

Please read and save these instructions.

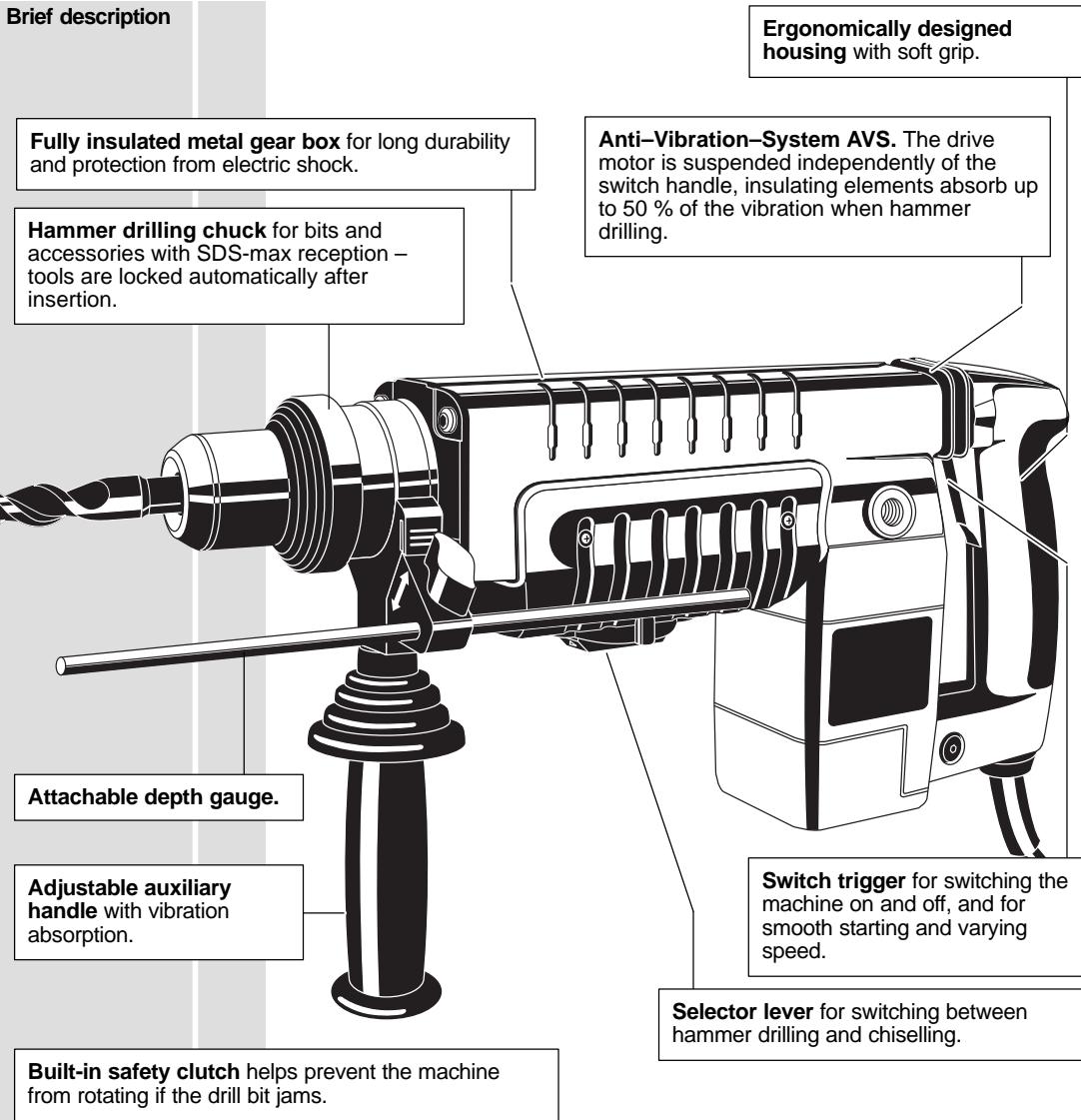

Introduction	You demand the best and buy quality - quality provided by Atlas Copco. We have built for you a reliable and lasting tool. Working effectively and without endangering your health is only possible if these instructions for use are being read carefully before first using this tool. We want to satisfy our customers and would like you to buy again AEG Electric Power Tools from Atlas Copco.
Technical Data	Nominal power 1020 W No-load speed 0-550 min-1 Speed under load max 0-420 min-1 Rate of percussion under load max. 3130 min-1 Drilling capacity in Concrete 38 mm concrete with core drill 150 mm Weight 7,9 kg
Advice for your safety	Please note safety instructions on red sheet 4000 3330 24! Dust that arises when working on material containing asbestos or stonework containing crystalline silicic acid is harmful to the health. Please follow accident prevention regulations. Appliances used at many different locations including open air must be connected via a current surge preventing switch. Always wear goggles when using the machine. It is recommended to wear gloves, sturdy non-slipping shoes and apron. Sawdust and splinters must not be removed while the machine is running. Do not pierce the motor housing as this could damage the double insulation (use adhesives). Always disconnect the plug from the socket before carrying out any work on the machine. Only plug-in when machine is switched off. Keep mains lead clear from working range of the machine. Always lead the cable away behind you. Always use the additional handle, even if the machine has a safety clutch since this safety clutch only engages when the machine blocks with a jerk. When drilling in walls ceiling, or floor, take care to avoid electric cables and gas or waterpipes.
Measured sound value	Typically the A-weighted noise levels of the tool are: Sound pressure level = 91 dB (A). Sound power level = 104 dB (A). Wear ear protectors!
Measured vibration value	Typically the weighted acceleration is 5,8 m/s2.
Usage	The pneumatic hammer can be universally used for hammer drilling and chiselling in stone. Do not use this product in another way as stated for normal use.
Mains connection	Connect only to a single-phase AC current supply and only to the mains voltage specified on the rating plate. Connection to sockets without earth protection is possible as the appliance features protective insulation to DIN 57 740/ VDE 0740 and CEE 20. Radio suppression complies with the European standard EN 55014. When fitting the plug, make sure that the brown (live) wire of this appliance is connected to the plug terminal marked L or coloured red, and the blue (neutral) wire of this appliance is connected to the plug terminal marked N or coloured black. Under no circumstances must the wires of this appliance be connected to the earth terminal of the plug marked either E, with the earth symbol or coloured green or green/yellow.
ENGLISH	PNEUMATIC 6000 S

Modifications: Text, diagrams and data are correct at the time of printing. In the interest of continuous improvement of our products, technical specifications are subject to alteration without prior notice.

Function of rotary pneumatic hammer

The impact needed for hammer drilling in stone is created by a pneumatic hammer striking mechanism. Similar to hitting a common chisel with a hammer, a plunger hits the axially moving chisel. The electric motor moves the plunger back and forth crank drive piston freely moving piston. There is a pneumatic cushion between piston and freely moving piston (pneumatic hammer mechanism). This results in a highly effective hammering action.

Exerting greater power does not increase the machine's effectiveness.

Inserting hammer drill bit or chisel	Always disconnect the plug from the socket before carrying out any work on the machine. The following tools can be inserted in the drill-hammer chuck using the SDS-max shank: - Hammer-drill for concrete and brickwork - Pointed chisel, flat chisel, hollow chisel, tile chisel - Adapter for geared drill chuck or Only use accessories with SDS-max shank!
Inserting tools	1. Clean and grease the shank of the bit. 2. Push bit into chuck turning it lightly, the chuck locks the bit in to the chuck automatically. 3. Check that the bit is properly locked into place. It must be possible to move it back and forth.
Tool removal	4. Pull back plastic ring in direction of arrow and remove bit.
Switching between hammer drilling, chiselling	Depending on the inserted tool the machine can be operated with additional rotation (SDS-max-drills) or without additional rotation (SDS-max-chisels). For additional rotation turn the dial accordingly.
	hammer drilling rotary stop (chiselling) adjusting position spindle locking position
	In "adjusting position" the chisel can be turned by hand to the required angle. Afterwards lock the spindle with the selector lever while turning the chisel slightly. To help the lever lock into position twist the inserted bit slightly when switching gears. Do not switch when the machine is under load. During no-load operation the pneumatic hammer mechanism is not yet activated even if the hammer mechanism is switched on. A safety device suppress the snap die from idle stroking on the tool used (hammer drill/chisel). To activate the pneumatic hammer mechanism all you have to do is to firmly push the running machine against the working material. This unlocks the snap die from the safety device, and drilling with light pressure is now possible.
ENGLISH	3	PNEUMATIC 6000 S
On-off switch	Switching on: Press on-off switch Switching off: Release on-off switch The speed can be infinitely varied by pressing the On-/Off switch.
Depth gauge	The depth gauge can be attached either to the right or to the left hand side of the auxiliary handle. Push the depth gauge holder into the auxiliary handle until the locking mechanism engages. To remove the depth gauge depress the locking mechanism and remove the depth gauge from the handle. For drilling identical depths insert the depth gauge into the boring of the depth gauge holder, push it back by the required drilling depth and fasten it.
Handle	In order to twist the additional handle loosen it as shown in illustration and move to the required position. Refasten additional handle. The auxiliary handle can also be attached to the side of the housing. This position should be preferred when drilling into the floor or into the ceiling, for example. Remove the auxiliary handle from the front position and screw it down at the side of the machine.
ENGLISH	4	PNEUMATIC 6000 S
Advices for operation	Exerting greater pressure does not increase the machine's effectiveness!
	The Anti-Vibration-System will work at an optimum when normal working pressure is applied; the shock absorber is then only slightly pressed together.
	If the applied working pressure is too high, the shock absorber is strongly pushed together and the vibrations are noticeably transmitted to the handle.
Hints	Take the drill out of the hole from time to time to remove dust. Switch to percussion-drilling for concrete, hard bricks and tiles, stone, hard cement, and marble (but not when drilling the surface of marble). For tiles, paving-stones, soft bricks and tiles, soft cement, breeze-block and plaster, switch to normal drilling. Use percussion carbide tipped masonry drill-bits. When drilling a hard, smooth surface (e.g. tiles), cover the point to be drilled with adhesive tape in order to prevent the drill bit tip from skidding.
Maintenance	Should the hammer action deteriorate send it to one of our Service Stations. The ventilation slots of the machine must be kept clear at all times. The machine is fitted with carbon brush that automatically switch it off if they are worn, before the motor can be damaged. If the carbon brushes cut-out or the hammer capacity declines please contact your authorized AEG service station. This will ensure long service life as well as constant readiness for working of the machine. The location of your nearest service station is shown in our “Service addresses” leaflet attached to each product. Use only AEG accessories and spare parts. Should components need to be replaced which have not been described, please contact one of our AEG service agents (see our list of guarantee/service addresses). If needed, an exploded view of the tool can be ordered. Please state the ten-digit No. as well as the machine type printed on the label and order the drawing at your local service agents or directly at: Atlas Copco Elektrowerkzeuge GmbH, Postfach 320, D-71361 Winnenden.
Accessories	The range of accessories with part numbers is shown in our catalogue.
ENGLISH	5	PNEUMATIC 6000 S

Det不同程度 of the stenological and physiological characteristics of the muscle, including the number of muscles in the muscle, are included. The muscle is divided into three groups: the first group (the muscle) consists of the muscle with a single muscle, the second group (the muscle with two muscles), and the third group (the muscle with three muscles). The muscle is divided into three groups: the first group (the muscle) consists of the muscle with a single muscle, the second group (the muscle with two muscles), and the third group (the muscle with three muscles).

EC-DECLARATION OF CONFORMITY

We declare under our sole responsibility that this product is in conformity with the following standards or standardized documents. EN 50144, EN 55104, EN 55014, EN 61000-1, HD 400 in accordance with the regulations 89/392/EEC, 73/23/EEC, 89/336/EEC
