USER MANUAL URC6420, URC 6420 (2 EN 1) ONE FOR ALL

Is your device brand listed? (see page 4).

URC-6420_21t_RDN-4300611:Simple_base_10x22 30-06-11 17:15 Pagina 4

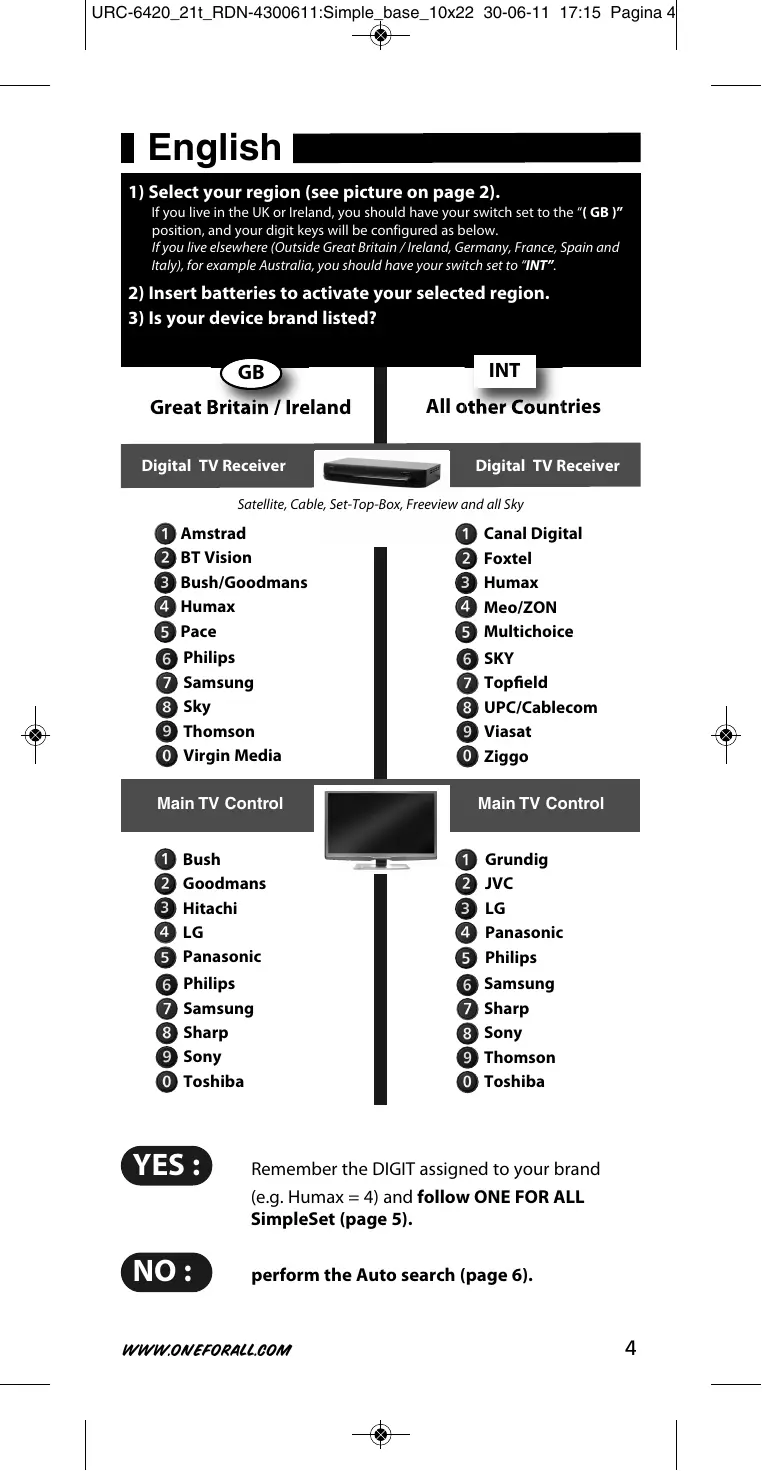

English 1) Select your region (see picture on page 2). If you live in the UK or Ireland, you should have your switch set to the “( GB )” position, and your digit keys will be configured as below. If you live elsewhere (Outside Great Britain / Ireland, Germany, France, Spain and Italy), for example Australia, you should have your switch set to “INT”.

2) Insert batteries to activate your selected region. 3) Is your device brand listed?

GB Great Britain / Ireland Digital TV Receiver

INT All other countries Digital TV Receiver

Satellite, Cable, Set-Top-Box, Freeview and all Sky

Remember the DIGIT assigned to your brand (e.g. Humax = 4) and follow oNE FoR All SimpleSet (page 5).

oNE FoR All SimpleSet Satellite, Cable, Set-Top-Box, Freeview and all Sky

Allows you to set up most popular device brands within a few minutes. Simply find the DIGIT KEY assigned to your brand (page 4) and follow steps A-B.

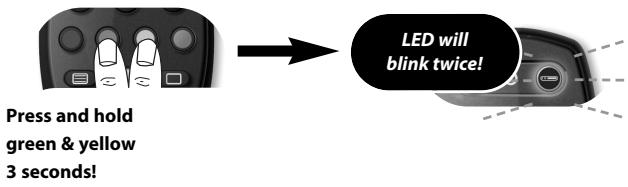

A LED will blink twice!

Press and hold green & yellow 3 seconds!

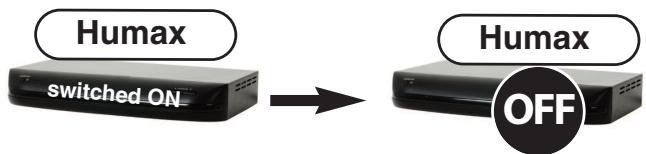

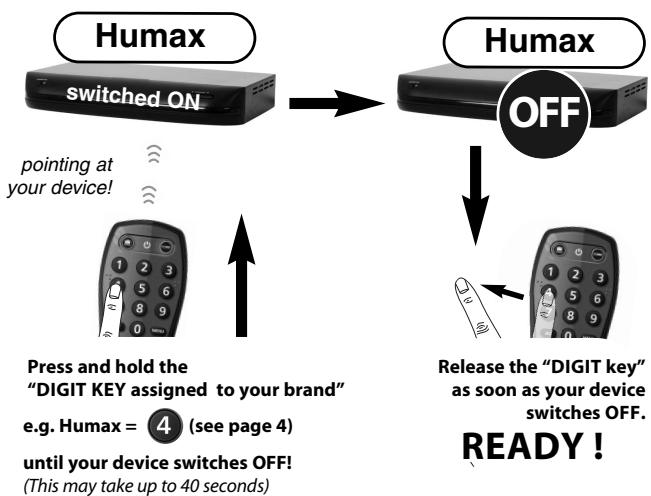

B Make sure your device is switched ON (not on standby).

switched ON Humax Acer

pointing at your device!

Press and hold the “DIGIT KEY assigned to your brand” e.g. Humax =

until your device switches oFF! (This may take up to 40 seconds)

Release the “DIGIT key” as soon as your device switches oFF.

Your particular device does NoT switch oFF? Follow the Auto search procedure on page 6. Your particular device does NoT switch back oN? Switch your device back ON manually (or using the original remote) and repeat SimpleSet making sure to release the “DIGIT KEY assigned to your brand” as soon as your device switches OFF. Your oNE FoR All is not working properly? There may be a better configuration for your device brand. Please repeat SimpleSet. If still not successful please follow the Auto search procedure.

Auto search Satellite, Cable, Set-Top-Box, Freeview and all Sky

Is the way to set up all brands not covered by SimpleSet

A LED will blink twice!

Press and hold green & yellow 3 seconds!

B LED will blink twice!

Press and release oK !

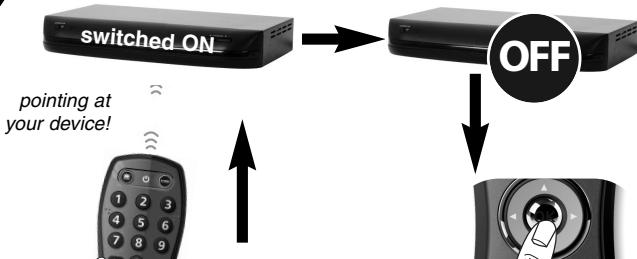

C Make sure your device is switched ON (not on standby). Acer

pointing at your device!

Press and release oK as soon as your device switches oFF (within 3 seconds)!

the remote will send a different POWER signal (AUTOMATICALLY EvERY 3 sECONDs) going through all the brands stored in the memory!

Your device switched OFF but it does not switch back ON? You may have pressed the OK key (to save your settings) too late. 1) Switch your device back ON manually (or using the original remote). 2)

Press and hold “green & yellow” for 3 seconds. LED will blink twice (Main TV Control = press and hold red & blue for 3 sec.).

Point the ONE FOR ALL at your device and press cH(repeatedly) until your device switches OFF.

Press and release oK as soon as your device switches OFF.

If this is not successful you may want to repeat Auto Search and make sure to press OK as soon as your device switches OFF to save your settings!

Your ONE FOR ALL is not working properly? There may be a better configuration for your device brand. Please repeat the Auto Search procedure!

Auto search not successful? Perform the COPY feature.

WWW.ONEFORALL.COM URC-6420_21t_RDN-4300611:Simple_base_10x22 30-06-11 17:16 Pagina 7

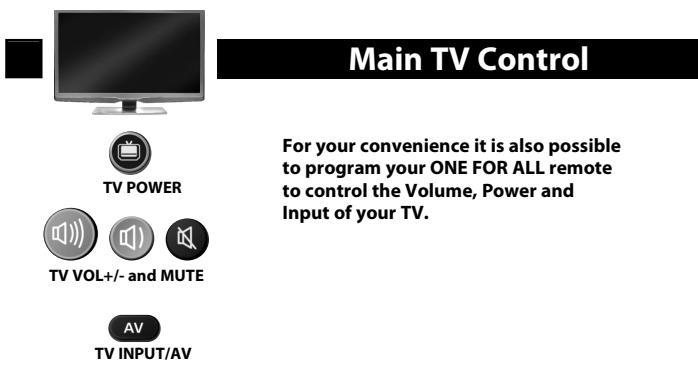

Main TV control For your convenience it is also possible to program your oNE FoR All remote to control the Volume, Power and Input of your TV.

TV PoWER TV Vol+/- and MuTE TV INPuT/AV If your TV brand is listed for your region (see page 4) please follow the same steps (A - B from SimpleSet on page 5), except;

• during step A press and hold red & blue for 3 seconds.

• During step B press and hold the “DIGIT KEY assigned to your TV brand” (e.g. 1 for Bush)

If your TV brand is NoT listed for your region (see page 4) please follow the same steps (A - c from Auto search on page 6), except;

• during step A press and hold red & blue for 3 seconds.

learning (coPY) The learning feature allows you to learn (copy) one or more functions from your (working) original TV and/or Digital TV Receiver remote control onto your oNE FoR All remote. Example: How to learn (copy) the “I/II (mono/stereo)“ function from your original remote onto the “red key” on your ONE FOR ALL remote control.

Align both remotes also in height

Place both remote controls on a flat surface. Make sure that the ends you normally point at your device are facing each other.

Both LED’s will blink twice!

Press and hold COPY 3 seconds!

C First; Press the ”red” key.

Both LED’s will flash rapidly!

then; Press & briefly hold the “I/II (mono/streo)” key. Both LED’s will light up twice to confirm successful COPYING.

• If you want to copy other functions, simply repeat step C for each key you want to copy. • If you get a long blink, please repeat step C. • You can COPY onto every key except the COPY key.

D Press and hold COPY 3 seconds to exit the COPY feature !

Both LED’s will blink twice!

Delete a coPIED function: 1) Press and hold COPY for 3 seconds until both LED’s blink twice. 2) Press the corresponding key (e.g. red key) you wish to delete for 3 seconds until both LED’s blink twice. 3) Press and hold COPY for 3 seconds. Both LED’s will blink twice.

Align both remotes also in height

INT Suomi Digital TV Receiver Satellite, Cable, Set-Top-Box, Freeview and all Sky

Although all customer service information is updated before printing it may happen that during the time of use changes have occurred. Please check our website (www.oneforall.com) for our latest customer service information.

WWW.ONEFORALL.COM URC-6420_21t_RDN-4300611:Simple_base_10x22 30-06-11 17:25 Pagina 111

India UEI Electronics Private Ltd offers you, the customer, oNE YEAR WARRANTY for your Remote. The Remote is warranted against manufacturing defects arising from faulty design, poor workmanship and materials for a period of one year (“the period”) from the date of its original purchase by you, on the following terms and conditions. To obtain warranty service, please call us at the numbers applicable to your local area mentioned on the Customer Service Page of the User Manual or available on www.oneforall.co.in This warranty will be valid only when the original invoice/ purchase receipt (indicating date of purchase, product description, dealer’s name etc.) is presented with the defective Remote. Universal reserves the right to refuse free-of-charge warranty replacement if the above document cannot be presented or if the information contained in it is incomplete, illegible or incorrect. This Warranty does not apply if the type, serial number on the Remote has been altered, deleted, removed or otherwise made illegible. Universal’s liability, under this warranty, shall be strictly limited to the first/original sale by the dealer/retailer to you (the first user), and will not apply or extend to any secondary or subsequent sale/transfer of the Remote by you. You shall be liable for all expenses incurred in delivering the defective Remote to us at the applicable addresses, however, we shall bear the cost of delivery to you for the replacement Remote. While Universal shall make all efforts to replace the defective Remote at the earliest, it is made expressly clear that Universal is under no obligation to do so in a specified period of time. Universal reserves the right to retain the defective Remote, at its own discretion. Please note that the replacement of the Remote, shall not extend the warranty period beyond one year from the original purchase. No fresh warranty shall apply to the replacement Remote. This Warranty covers only manufacturing defects in the Remote which occur under conditions of normal operation of the Remote and in consonance with their proper and prescribed use. This Warranty does not cover the damage resulting from adaptations, adjustments, modifications made to the Remote or normal wear and tear, misuse, reckless use, damages caused due to natural disasters, Acts of God. This Warranty does not extend to accessories or products used with the Remote, batteries, broken or marred cabinets, cartons, carrying cases or any other item used in connection with the Remote. This Warranty does not apply if the Remote has been tampered with, altered, serviced by any agency, person not authorized by Universal. It is your responsibility to check and verify from Universal, the authenticity of the authorization, which any servicing agency may represent to you. This Warranty is in lieu of all implied conditions and warranties under applicable law and is confined to replacement of the defective Remote and does not cover any special, consequential, incidental or resulting liability, damage, loss arising from such defects. This warranty, in no event, shall extend to the payment of any monetary consideration or compensation whatsoever. This Warranty does not affect your statutory rights under applicable Indian laws. This Warranty is valid only within the territory of India. In the event of a dispute arising in relation to or connected with this Warranty, the decision of Universal shall be final and binding. For more information, write to:

uEI Electronics Private ltd 5th Floor, East Wing Khanija Bhavan # 49 Race course Road Bangalore 560 001

Dansk Universal Electronics Inc./ONE FOR ALL garanterer hermed over for den oprindelige køber, at dette produkt ikke bør fremvise materielle eller tekniske fejl ved normal og korrekt brug inden for en periode af et (1) år fra den oprindelige købsdato. Produktet erstattes u/b, hvis det har vist sig at være defekt inden for garantiperioden på et (1) år. Denne garanti omfatter ikke emballage, etui, batterier, ødelagte/skæmmede kabinetter eller andre enheder, der er benyttet sammen med produktet. Erstatningspligten gælder kun under de ovenfor anførte forhold. Opstår der fejl inden for garantiperioden, bedes De venligst ringe til os på nummeret nævnt under "Kundeservice" i manualen. Bemærk venligst, at vi skal have Deres købsnota for at kunne fastslå, hvorvidt De er berettiget til garantiservice. Hvis du har købt dette produkt med et formål der ikke har relation til dit erhverv, forretning eller branche så husk, at du muligvis har legale rettigheder under din nationale lovgivnings bestemmelser om salg af forbrugervarer. Denne garanti påvirker ikke disse rettigheder. Norsk UNIVERSAL ELECTRONICS INC./ONE FOR ALL garanterer dette produktet for materielle og tekniske feil som oppstår ved normal og riktig bruk for en periode på 1 år fra kjøpsdato. Produktet vil bli erstattet kostnadsfritt hvis det viser seg å være defekt innen 1 år. Denne garantien gjelder ikke pakning, emballasje, batterier, ødelagte eller skadede kabinett eller noen annen gjenstand brukt i forbindelse med produktet. Annet ansvar enn nevnt over gjelder ikke. For å få garantiservice i garantiperioden, vennligst ring oss på det telefonnummeret som står på kundeservice-siden. Vennligst merk at vi trenger gyldig kvittering fra forhandler. Hvis du har kjøpt dette produktet til formål som ikke har relasjon til ditt erhverv, forretning eller bransje, så husk at du kan ha legale rettigheter etter nasjonale lovgivnings bestemmelser om salg av forbrukervarer. Denne garanti påvirker ikke disse rettigheter. Svenska UNIVERSAL ELECTRONICS INC./ONE FOR ALL lämnar till köparen ett års garanti från inköpsdatum - att denna produkt är felfri avseende material och tillverkning. Om produkten är felaktig under normal användning bytes denna mot en ny utan kostnad för köparen under garanti-tiden. Garantin omfattar ej förpackning, bärväska, batterier - skadat hölje eller andra enheter som används i anslutning till produkten. För att erhålla garanti-service under garanti-tiden vänligen kontakta vår kundsupport på det telefonnummer som återfinns på sidan för kundservice i bruksanvisningen. Spar ditt inköpskvitto för att styrka din garanti på produkten. Om du har köpt denna produkt för ett syfte som inte är besläktad till din bransch, affärsverksamhet eller yrke kom ihåg att du kan ha andra nationella lagar som täcker försäljning av konsumentvaror. Denna garanti påverkar inte dessa rättigheter. Suomi UNIVERSAL ELECTRONICS INC./ONE FOR ALL myöntää tuotteilleen yhden (1) vuoden takuun alkuperäisestä ostopäivästä lukien koskien tuotteissa takuuaikana ilmeneviä materiaali- ja valmistusvikoja. Tuote vaihdetaan takuunalaisissa vikatapauksissa veloituksetta uuteen samanlaiseen tai vähintään vastaavilla ominaisuuksilla varustettuun tuotteeseen. Takuu ei koske mm. paristoja, kantolaukkuja, pakkauksia, suojakoteloita tai muita oheistuotteita. Toimintaohjeet takuuhuoltoa varten saat soittamalla puhelinnumeroon, joka on mainittu Asiakaspalvelu-sivulla. Muista liittää lähetykseen kopio ostokuitista. Huomaa, että tuotteemme eivät yleensä sisällä käyttäjän huollettavaksi tarkoitettuja osia, joten esim. laitteen kuoren avaaminen johtaa takuun raukeamiseen. Jos olet hankkinut tämän tuotteen tarkoitukseen, joka ei liity kauppaan, liiketoimintaan tai ammattiin, sinulla saattaa olla oikeuksia, jotka perustuvat oman maasi kansalliseen kuluttajatuotteita koskevaan lainsäädäntöön. Tämä takuu ei koske näitä oikeuksia. EÏÏËÓÈο ∏ UNIVERSAL ELECTRONICS INC./ONE FOR ALL ÂÁÁ˘¿Ù·È ÛÙÔÓ ·Ú¯ÈÎfi ·ÁÔÚ·ÛÙ‹ fiÙÈ ·˘Ùfi ÙÔ ÚÔ˚fiÓ ‰ÂÓ ÚfiÎÂÈÙ·È Ó· ·ÚÔ˘ÛÈ¿ÛÂÈ ÚÔ‚Ï‹Ì·Ù· Û ۯ¤ÛË Ì ٷ ˘ÏÈο Î·È ÙËÓ Î·Ù·Û΢‹ ÙÔ˘ οو ·fi Ê˘ÛÈÔÏÔÁÈΤ˜ Û˘Óı‹Î˜ ¯Ú‹Û˘ ÁÈ· ÙËÓ ¯ÚÔÓÈ΋ ÂÚ›Ô‰Ô ÂÓfi˜ (1) ¤ÙÔ˘˜ ·fi ÙËÓ ·Ú¯È΋ ËÌÂÚÔÌËÓ›· ·ÁÔÚ¿˜. ∆Ô ÚÔ˚fiÓ ı· ÂÈÛ΢·ÛÙ› Î·È ·Ó ¯ÚÂÈ·ÛÙ› ı· ·ÓÙÈηٷÛÙ·ı› ¯ˆÚ›˜ ¯Ú¤ˆÛË ·Ó ·Ô‰ÂȯÙ› fiÙÈ Â›Ó·È ÂÏ·Ùو̷ÙÈÎfi ̤۷ ÛÙË ‰È¿ÚÎÂÈ· ÂÁÁ‡ËÛ˘ ÙÔ˘ ÂÓfi˜ (1) ¤ÙÔ˘˜. ∆· ÌÂÙ·ÊÔÚÈο ¤ÍÔ‰· ı· ‚·Ú‡ÓÔ˘Ó ÙÔÓ Î¿ÙÔ¯Ô. ∆· ¤ÍÔ‰· ÂÈÛÙÚÔÊ‹˜ ‚·Ú‡ÓÔ˘Ó ÙË UNIVERSAL ELECTRONICS/ONE FOR ALL. ∏ ÂÁÁ‡ËÛË ‰ÂÓ Î·Ï‡ÙÂÈ ˙ËÌÈ¿ ‹ ÌË ÏÂÈÙÔ˘ÚÁ›· Ô˘ ÚÔηÏÂ›Ù·È ·fi ÚÔ˚fiÓÙ· ‹ ˘ËÚÂۛ˜ Ô˘ ‰ÂÓ ÚÔ¤Ú¯ÔÓÙ·È ·fi ÙË UNIVERSAL ELECTRONICS/ONE FOR ALL, ‹ Ô˘ ÚÔ·ÙÔ˘Ó ·fi ÌË Î·Ï‹ ÙÔÔı¤ÙËÛË ÙÔ˘ ÚÔ˚fiÓÙÔ˜ Û‡Ìʈӷ Ì ÙȘ Ô‰ËÁ›Â˜ ¯Ú‹Ûˆ˜. ∞˘Ùfi ÈÛ¯‡ÂÈ Â›Û˘ Î·È ÛÙȘ ÂÚÈÙÒÛÂȘ fiÔ˘ ÙÔ ÚÔ˚fiÓ ¤¯ÂÈ ÌÂÙ·ÔÈËı›/ ÂÈÛ΢·ÛÙ› ·fi ¿ÏÏÔ˘˜ Î·È fi¯È ·fi ÙË UNIVERSAL ELECTRONICS/ONE FOR ALL ‹ ·Ó ÙÔ Ï¿ıÔ˜ ÔÊ›ÏÂÙ·È Û ·Ù‡¯ËÌ·, η΋ ÌÂÙ·¯Â›ÚÈÛË, ·Ì¤ÏÂÈ·, η΋ ÂÊ·ÚÌÔÁ‹, η΋ ÂÁηٿÛÙ·ÛË, η΋ ‰È·Ù‹ÚËÛË, ÌÂÙ·ÙÚÔ‹, ÙÚÔÔÔ›ËÛË, ʈÙÈ¿, ÓÂÚfi, Ê˘ÛÈΤ˜ ηٷÛÙÚÔʤ˜, η΋ ¯Ú‹ÛË ‹ ·ÚÔÛÂÍ›·.. °È· Ó· ·ÔÎÙ‹ÛÂÙ ÂÁÁ‡ËÛË service ÁÈ· ÙË ‰È¿ÚÎÂÈ· Ù˘ ÂÚÈfi‰Ô˘ ÂÁÁ‡ËÛ˘, ·Ú·Î·ÏÒ ¤¯ÂÙ ˘’ fi„ÈÓ Û·˜ fiÙÈ ¯ÚÂÈ¿˙ÂÙ·È Ó· ¤¯ÂÙ ÙËÓ ·fi‰ÂÈÍË ·ÁÔÚ¿˜ ÁÈ· Ó· ¤¯ÂÙ ‰Èη›ˆÌ· service. ∞Ó ¤¯ÂÙ ·ÁÔÚ¿ÛÂÈ ·˘Ùfi ÙÔ ÚÔ˚fiÓ ÁÈ· ÏfiÁÔ˘˜ Ô˘ ‰ÂÓ Û˘Ó¿‰Ô˘Ó Ì ÙËÓ ÂÌÔÚÈ΋ Û·˜ ‰Ú·ÛÙËÚÈfiÙËÙ· ‹ ÂȉÈÎfiÙËÙ·, ·Ú·Î·ÏÒ Ó· ı˘Ì¿ÛÙ fiÙÈ ÌÔÚ› Ó· ¤¯ÂÙ ÓÔÌÈο ‰ÈηÈÒÌ·Ù· ‚¿ÛÂÈ Ù˘ ÓÔÌÔıÂÛ›·˜ Ô˘ ÈÛ¯‡ÂÈ ÛÙË ¯ÒÚ· Û·˜ ÁÈ· ÙËÓ ÒÏËÛË Î·Ù·Ó·ÏˆÙÈÎÒÓ ·Á·ıÒÓ. ∏ ÂÁÁ‡ËÛË ·˘Ù‹ ‰ÂÓ ÂËÚ¿˙ÂÈ ·˘Ù¿ Ù· ‰ÈηÈÒÌ·Ù·. Русский Компания (Компания Барнсли - Роминокс) Юниверсел Электроникс /Oneforall гарантирует покупателю отсутствие дефектов материалов и нарушений в работе данного товара при условии корректной эксплуатации в течении (1) одного года с даты покупки. Данный товар будет подвергнут замене в обязательном порядке без каких – либо дополнительных выплат в том случае, если в течение (1) одного года доказан факт брака в его производстве. Гарантийные обязательства не касаются картонных коробок, упаковки, батареек, транспортных упаковок, загрязнения упаковки, или других наименований, используемых с товаром. Любые другие обязательства, кроме перечисленных выше, исключаются. Для выяснения каких-либо вопросов по сервисному обслуживанию, пожалуйста, обращайтесь по телефону сервисного центра указанному выше. Пожалуйста, помните, что понадобится гарантийный талон, который выдается при покупке данного товара для получения полноценного обслуживания. В том случае, если Вы приобрели данный продукт с намерениями, связанными с Вашим бизнесом, профессиональными потребностями или для продажи, пожалуйста, примите к сведению, что необходимо иметь специальное разрешение от государственных органов на продажу конечному покупателю. Данная гарантия не является соответствующим разрешением.

Direct Code Set Up • If SimpleSet or Auto Search was not succesfull you may succeed using Direct Code Set Up.

B LED will blink twice!

LED will blink twice!

Press and hold red & blue 3 seconds!

Press and hold green & yellow 3 seconds!

C C Enter the code (4-digits) for your device.

0217 0 0163 0 0606 0 0455

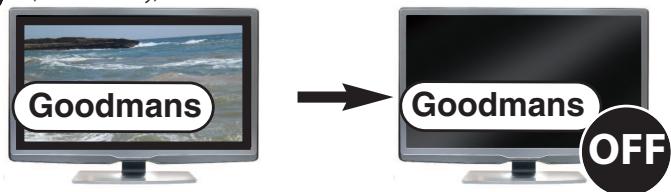

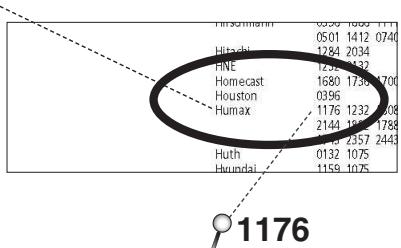

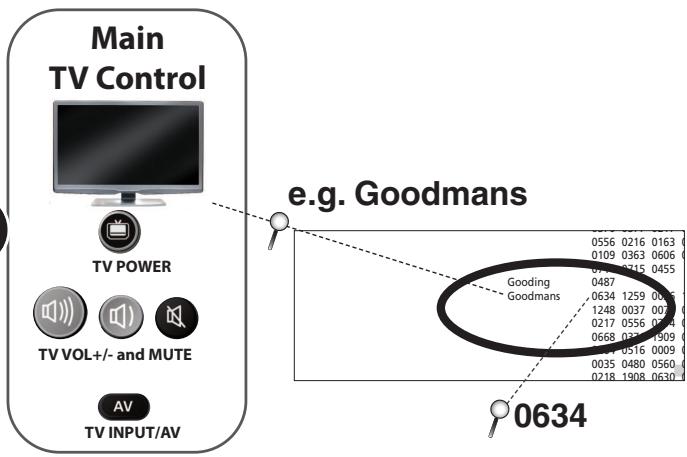

Find the code (4-digits) for your device (e.g. Goodmans TV) in the following pages. Codes are listed by device type and brand name. The most popular code is listed first. Make sure your device is switched on (not on standby).

Find the code (4-digits) for your device (e.g. Humax Digital TV Receiver) in the following pages. Codes are listed by device type and brand name. The most popular code is listed first. Make sure your device is switched on (not on standby).

Enter the code (4-digits) for your device.

Make sure your device is switched ON (not on standby).

switched ON D Make sure your device is switched ON (not on standby).

OFF Pressing POWER should switch OFF your device.

IF not all keys are working properly OR If your device does NOT switch OFF? --> Please repeat steps A - D trying the next code for your brand.

Pressing POWER should switch OFF your device.

TV POWER IF not all keys are working properly OR If your device does NOT switch OFF? --> Please repeat steps A - D trying the next code for your brand.

Fintec Firstar Firstline

JNC Jocel JTV Jubilee Juhua JVC

Proton Proview Provision
