USER MANUAL URC 7140 ONE FOR ALL

VAC: Video Accessory like Media Centres / AV Accessories / AV Selectors

DVD

DVD : DVD Player / DVD-R / Blu-ray / DVD Home Cinema /DVD Combi / DVD/HDD

LASER: Laserdisc

AMP

MIS: Miscellaneous Audio

AMP: Audio / Amplifier / Active Speaker System

TUNER: Audio / Audio Receiver/Tuner/Amplifier / (DVD) Home Cinema

1

2

3

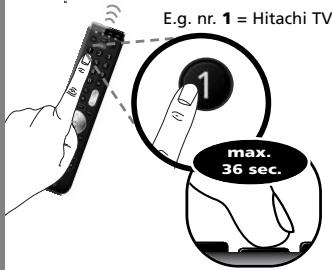

E.g. nr. 1 = Hitachi TV

English

Start by checking if the brand of your particular device is listed in the "SimpleSet" brand list and check which "number key" is assigned to your brand (e.g. Hitachi tv = 1).

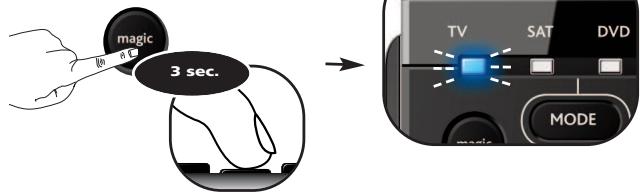

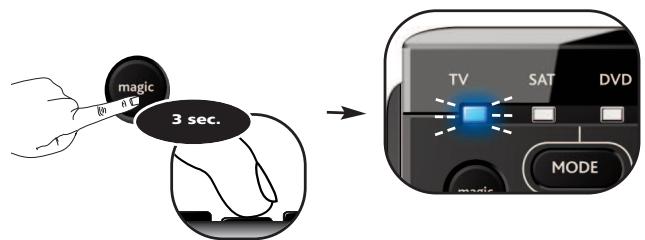

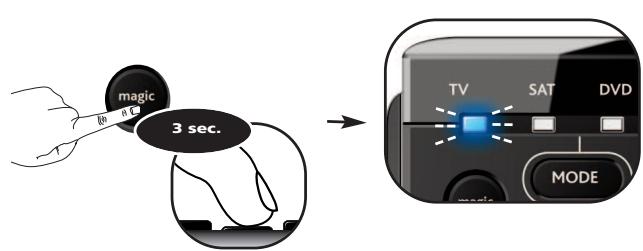

1) Press and hold MAGIC for 3 seconds until a mode indicator (Blue LED) stays lit.

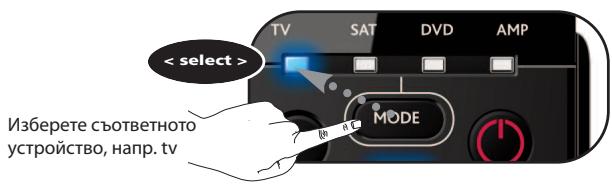

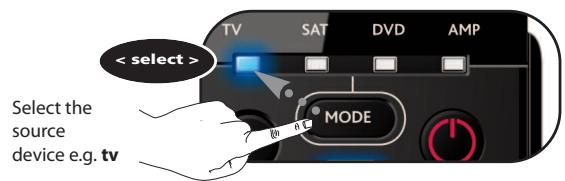

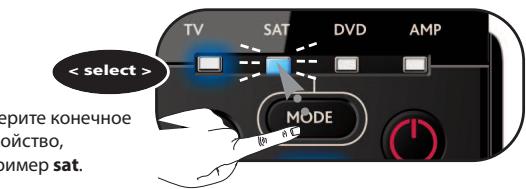

2) Select the device you wish to set up (e.g. tv).

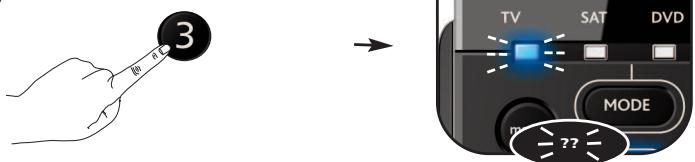

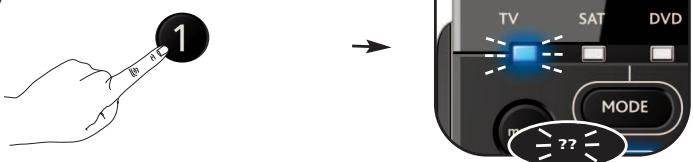

3) Press and hold the "number key" according to your brand (e.g. for Hitachi tv = press 1) until your device switches off (max. 36 seconds). The blue LED will switch off every 3 seconds as a 'power signal' is being sent. Make sure to release this "number key" as soon as your device switches OFF to complete the set up.

• If your brand is not listed in the "SimpleSet - brand list"? --> Go to the Direct Code Set up (page 8).
  The ONE FOR ALL is not performing commands properly? --> Simply repeat SimpleSet
• If SimpleSet is unsuccessful? --> Go to the Direct Code Set Up or try the Search Method.

Deutsch

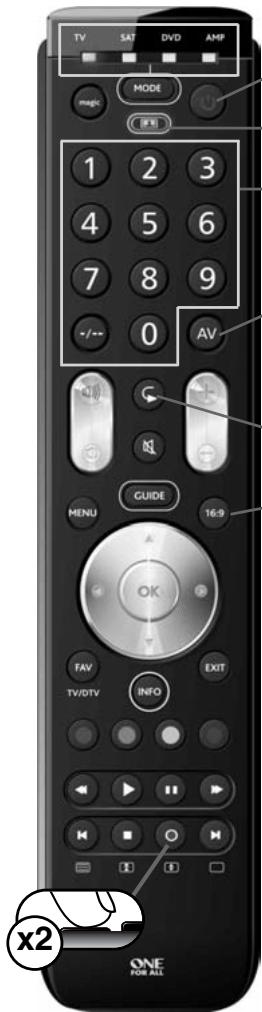

• Extra Features (see manual on our internet site)

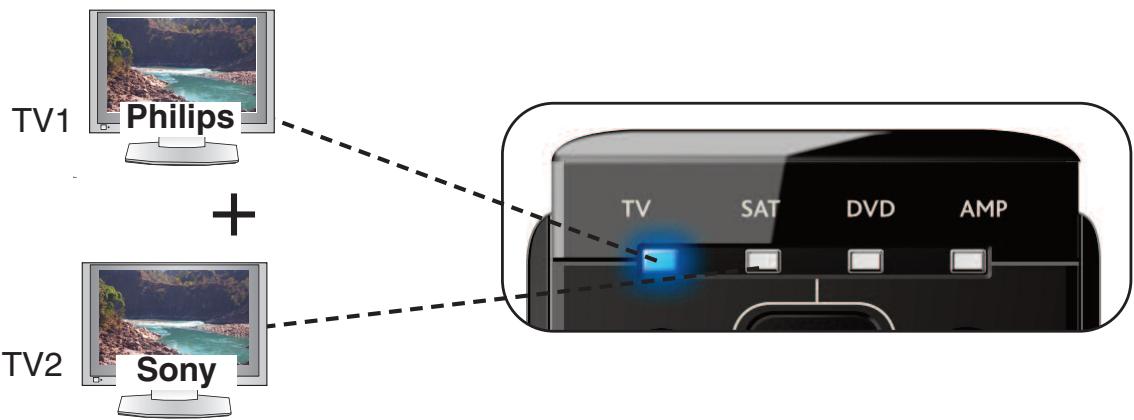

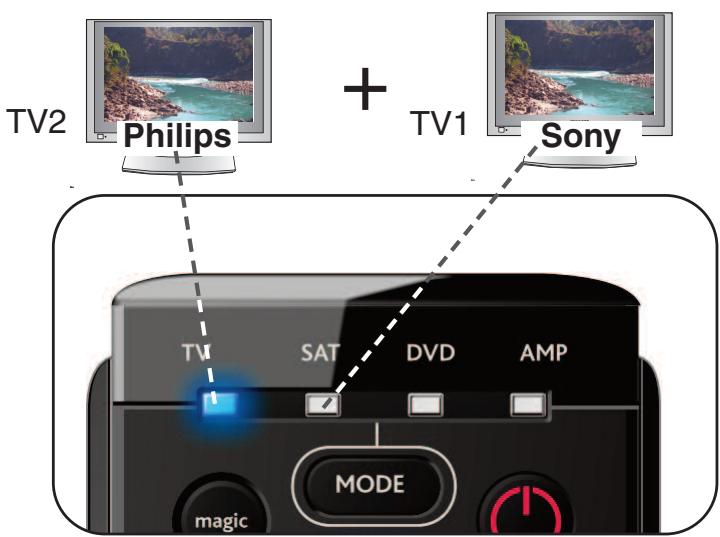

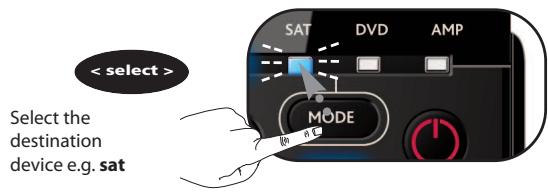

• Mode Reassignment - Changing a device mode to set up two (or more) devices of the same type.

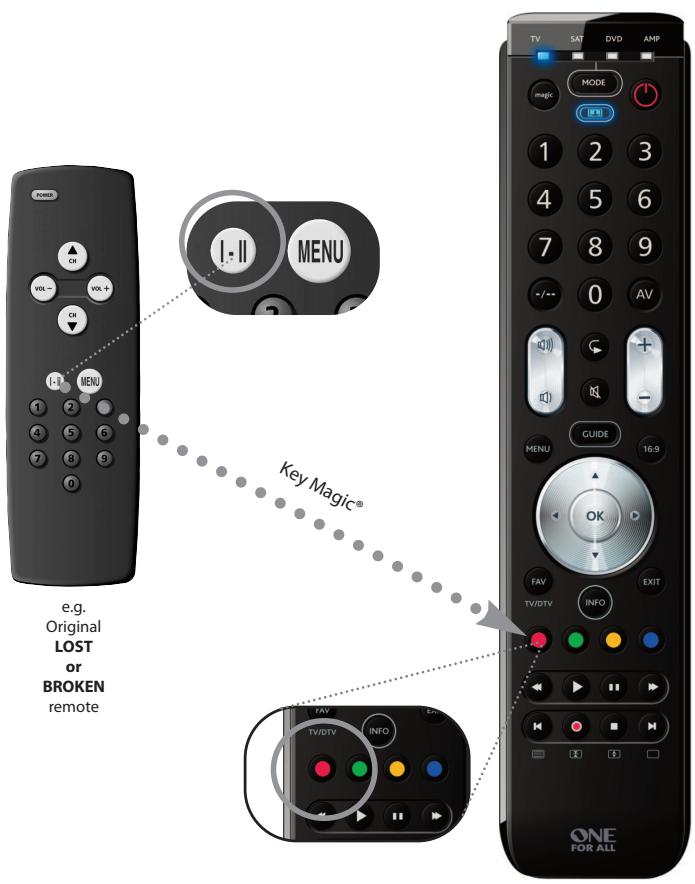

  Key Magic - Allows you to program functions from your original remote control even when LOST or BROKEN.

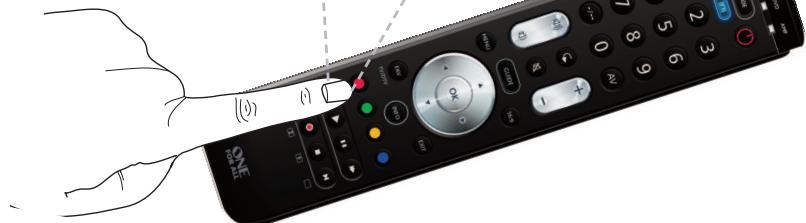

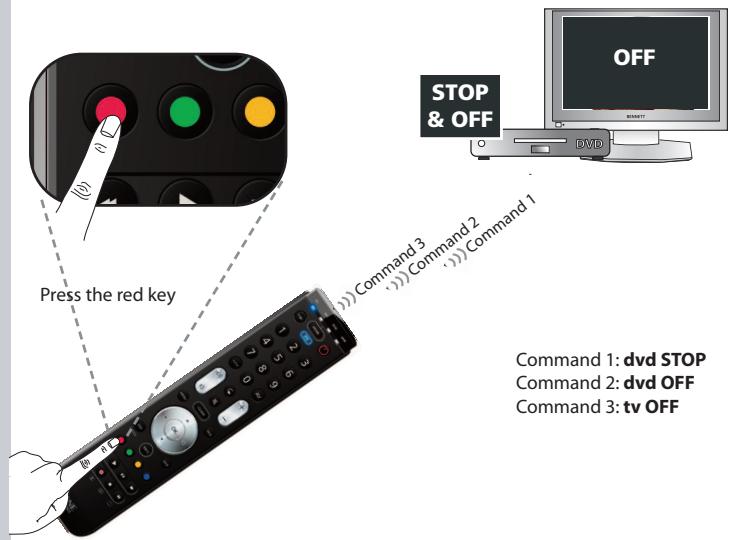

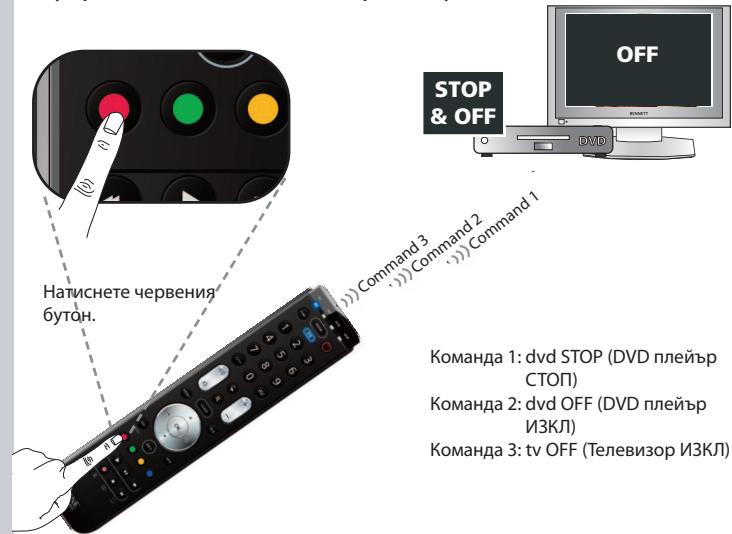

• Macro - Allows you to send a sequence of commands with the press of a single key.

Direct Code Set Up

1

Find the code for your device in the Code list (page 92 - 105). Codes are listed by device type and brand name. The most popular code is listed first. Make sure your device is switched on (not on standby).

2

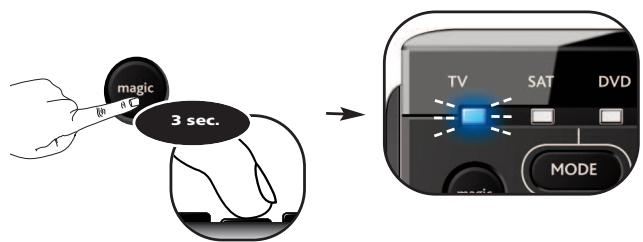

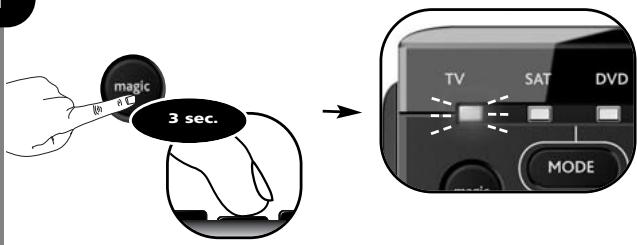

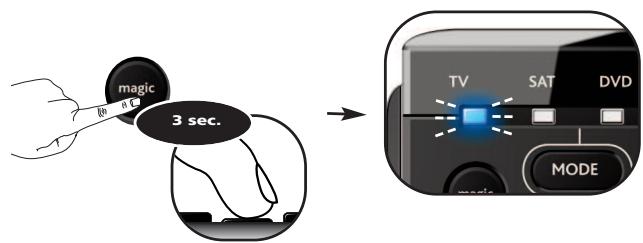

Press and hold magic for 3 seconds until the blue LED (any LED) stays on.

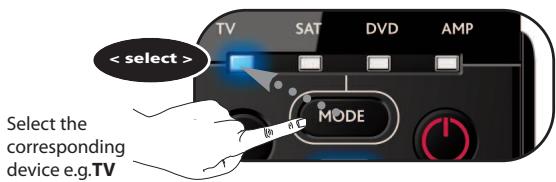

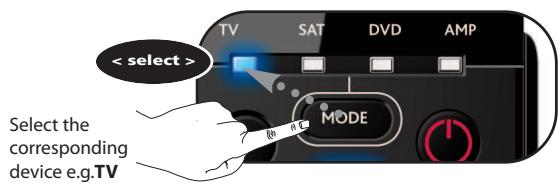

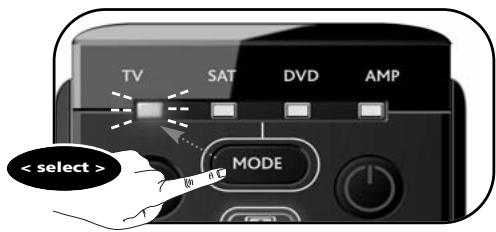

Select the corresponding device e.g. TV

3

4
1

7

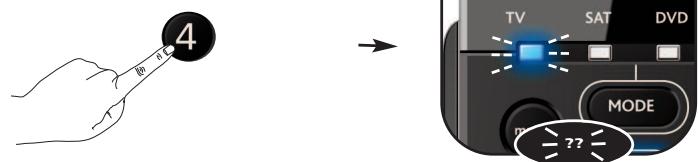

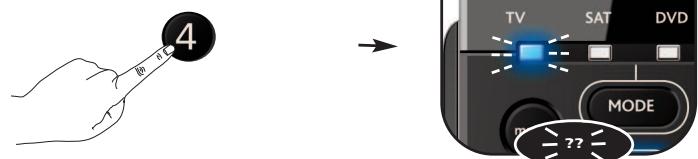

Enter the 1st code listed for your device type & brand (e.g. TV Hitachi = 1576)

-> The blue LED will blink twice and then Switch off.

5

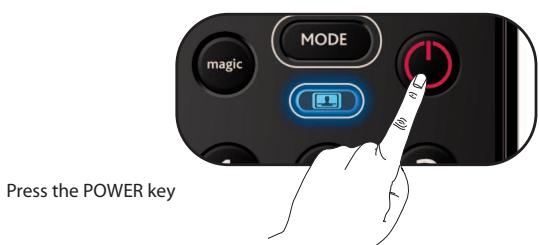

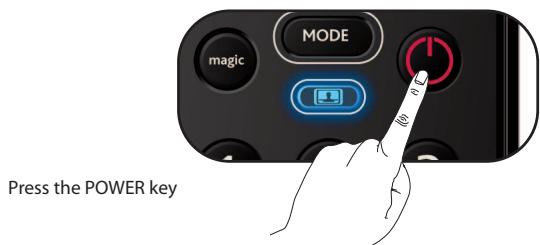

Press POWER.

If your device does NOT switch off? Please repeat steps 1 - 5 trying the next code listed for your brand.

If NOT successful?
Try the Search Method.

Congratulations! You should now be able to switch your device back ON and control your device successfully.

Search Method

The Search Method allows you to find the code for your device by scanning through all the codes contained in the memory of the ONE FOR ALL. The Search Method may also work if your brand is not listed at all.

Example: To search for your TV code: Switch on television (not on standby) and aim your ONE FOR ALL at your TV.

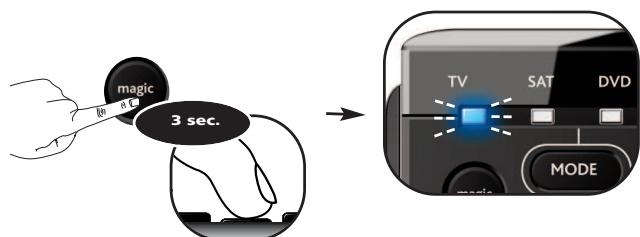

1. Press and hold MAGIC for 3 seconds until the blue LED (any LED) stays on.

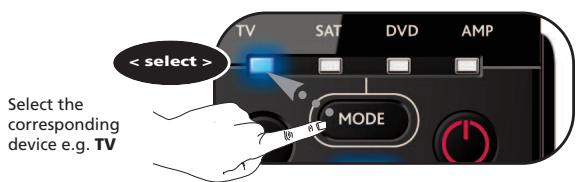

2. Select the corresponding device e.g. TV
3. Press 9 9 1. The blue LED will blink twice (showed by going out twice).
4. Next, press POWER.

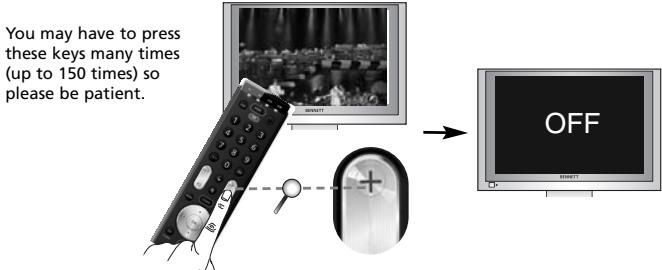

5. Press CH + (over and over) again until your device switches OFF.

1. As soon as your television turns off, press the magic key to store the code.

Congratulations! You should now be able to switch your device back ON and control your device successfully.

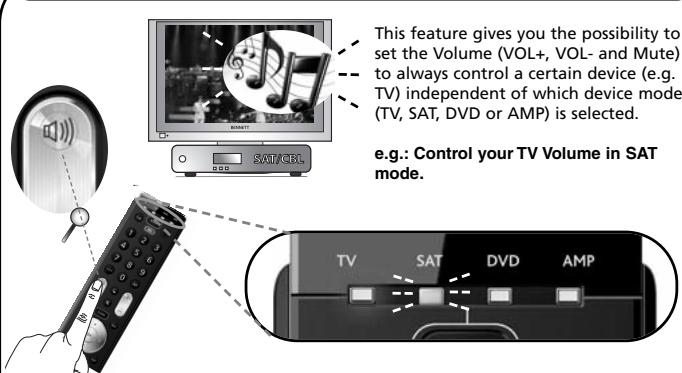

Volume Control

In this example we will set Volume Control (VOL+, VOL- and Mute) to "TV volume":

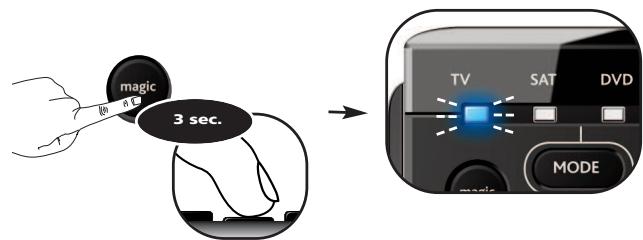

1. Press and hold MAGIC for 3 seconds until the blue LED (any LED) stays on.
2. Press 9 9 3. The blue LED will blink twice.
3. Select the corresponding device e.g. TV.
4. Press and hold the magic key for 3 sec. The blue LED will blink twice and then Switch off.

Now you have set the Volume Control to "TV volume". The VOL+, VOL- and Mute keys will always control "TV volume" independent which device mode key (TV, SAT, DVD or AMP) is selected.

How to deactivate Volume Control

1) Press and hold MAGIC for 3 seconds until the blue LED stays on.
2) Press 993.
3) Press Vol +. The blue LED will blink 4 times.

All devices will send out their own VOL+ , VOL- and MUTE .

How to remove a device from Volume Control

1) Press and hold MAGIC for 3 seconds until the blue LED stays on.
2) Press 9 93.
3) Select the device mode you wish to deactivate from Volume Control.
4) Press Vol -. The blue LED will blink 4 times.

The removed device will send out its own VOL+ , VOL- and MUTE.

The Learning Feature

(How to copy functions from your original working remote onto the ONE FOR ALL 4)

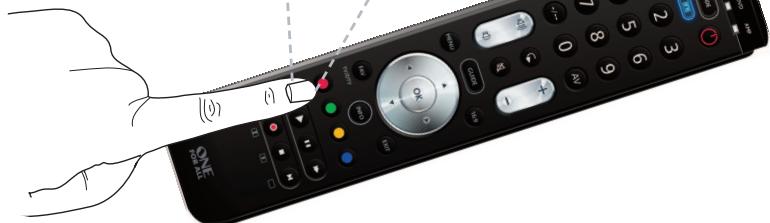

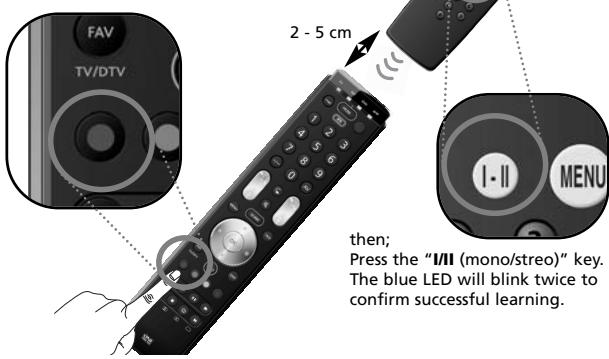

Example: How to learn (copy) the "I/II (mono/stereo)" function from your original remote onto the "red key" on your ONE FOR ALL remote control.

1

Press and hold magic for 3 seconds until a mode indicator (Blue LED) stays lit.

2

3

4

-> The blue LED will blink twice.

Press 975.

ATTENTION: Place both remote controls on a flat surface. Make sure that the ends you normally point at your device are facing each other. Align both remotes also in height

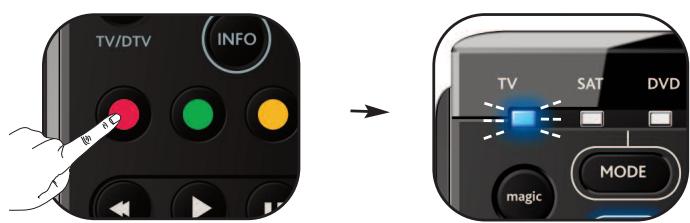

First; Press the "red" key. The TV LED will flash rapidly.

• If you want to copy other functions within the same mode, simply repeat step 4 pressing the next key you want to copy by learning.
• You can learn approximately 100 functions.

5

Press and hold the magic key for 3 sec.

-> The blue LED will blink twice and switch off.

Congratulations! You successfully learned (copied) the "I/II (mono/stereo)" function from your original remote control onto your ONE FOR ALL remote control. NOW whenever you press the "red key" (in TV mode) you will obtain the "I/II (mono/streo)" function.

How to delete a learned function to obtain the original function?

1) Press and hold MAGIC for 3 seconds until a mode indicator (Blue LED) stays lit.
2) Press 976.

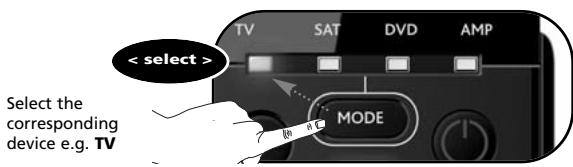

3) Select the corresponding device mode (e.g. TV).
4) Press the key to be deleted (e.g. red key) twice.

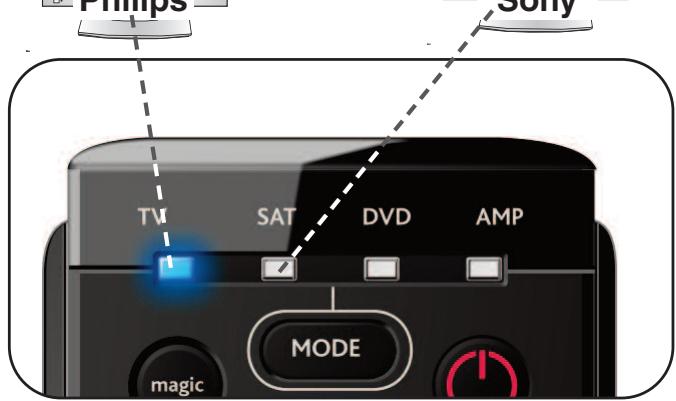

ONE FOR ALL Combi Control

By now you probably have set up the ONE FOR ALL remote to control all (or most of) your devices. Wouldn't it be convenient if you wouldn't have to select a device type all the time. You can make this possible with ONE FOR ALL Combi Control. Combi Control enables you to control up to 3 devices simultaneously (e.g. control TV + SAT simultaneously).

"Combi Control" settings

(combination 1) --> control TV + SAT (see p. 111)

(combination 2) -> control TV + SAT + AMP (see p.111)

(combination 3) -- control TV

"Combination 1" is programmed automatically when you set up a TV and SAT.

Example) How to activate "Combination 2" (See the key pad configuration on page 111).

1
3 sec.

Press and hold magic for 3 seconds until a mode indicator (Blue LED) stays lit.

2

Press Combi Control.

3

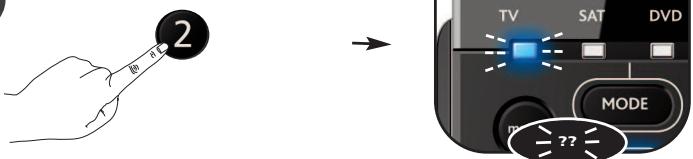

Press 2 (to select combination 2).

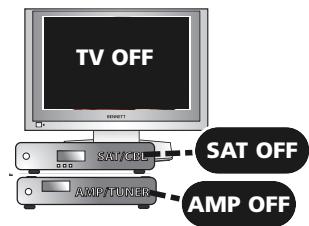

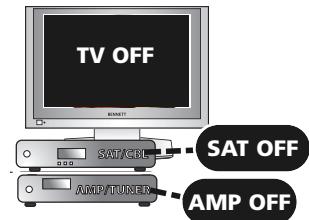

Master Power (in Combi Control)

In Combi Control the POWER key will switch ON/OFF all devices within the activated Combi Control Setting – simply by pressing it for 3 seconds.

E.g. within Combi Control combination 2 you can switch OFF your TV, SAT and AMP by by pointing towards these devices and simply press and hold the POWER key for 3 seconds.

3 sec.

Deutsch

Bedienungsanleitung

Master Power (in Combi Control)

Master Power (in Combi Control)

Master Power (in Combi Control)

In SAT -> Volume TV (VOL+, VOL-és Mute)

Master Power (in Combi Control)

3 sec.

rezim SAT -> televator VOL+, VOL- a Mute

V tomto prkladu nastavime ovladani hlasitosti (VOL+, VOL- a Ztisei) na „hlasitost televizoru":

Master Power (in Combi Control)

Master Power (in Combi Control)

Example: To search for your TV code: Switch on television (not on standby) and aim your ONE FOR ALL at your TV.

Master Power (in Combi Control)

Master Power (in Combi Control)

Master Power (in Combi Control)

Master Power (in Combi Control)

Писпосьовани Функци Combi Control Клавиш ПИТАНЕ 6удETВКLOЧТи BBKLOЧТь СЕУстpoиCTBA,akTNBIMPOВАнБHьBE Hасторк Combi Control,prostbtmннakTuHem n UdpexahmEN B Teчehne 3 cekynd (Master). Hanpimep,с кOMбинameи 2 Функци Combi Control можно ВькLOчТь TV (tebeN3Oр),STB (tepe-nPcIstabKa) n AMP (ycnInuTeNb),hanpaBIMДY B cTOnOHy 3tInx yctpoiCTb n Udpekвягай Клавиш ПИТАНЕ B Teчehne 3 cekynd.

Türkce

Kullanna kilavuzu

·Arama Yontemi 73
Volume Control (Ses Kumandasi) 73
-Ögrenme (kopya) 74
- ONE FOR ALL Combi Control 75
·MasterPower. 75

Master Power (in Combi Control)

(combination 3) -> TV

"Combination 1" (KoM6Hnaua 1) ce nporpaamra ABOMATAHNO, KORATO HACTPOBATE teleneb3op n SAT.

Hapr. "KombuHaZua 2" (Mona, HamepeTe CbOTBeTHnTe ekpAni 3a KnaBnAtypaTa Ha cTp. 111).

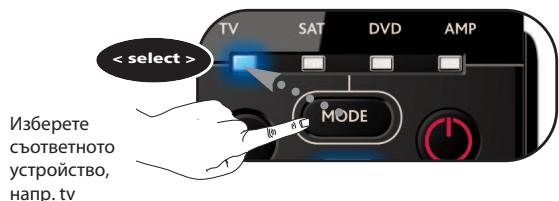

1

HaTINCHETe n 3aIpbXte magic 3a 3 cekyHn, IOKaTO INNdkaTOPbT 3a pejM (cH N CBETJINHeH INNdkaTOP) OCTaHe CBETHaT.

2

HaTncheTe 2 (Kom6uHaLna 2).

Master Power (in Combi Control)

B Combi Control (Kom6bHnpan KOnTPOJI) 6yTohBT POWER (3aXpaHbaHe) ue N3KJL/BKJI. BCWuKu YcTOPICTBa B AKTUbHpaHTa HAcTOPIka 3a KOM6bHnpan KOnTPOJI - TpR6Ba cAmo da Ro HATINCHETe 3a 3cKynDna (Master (FlaBeH)) HanPImep B Kom6bHaunra Combi Control combination 2 (KoM6bHnpan KOnTPOJI, KOM6bHaunya) 2) MoKeTe Da I3KJIIOUHTE TeteBnOp, STB u AMP, KaTo ro HaocHTe KbM Te3n YcTOPICTBa n HATINCHETe 3a TaDbPkNtte 6yToHa POWER (3axpaHbaHe) 3a 3cKynDn.

Româna

Manual de instruetiuni

• Metoda de cautare 81
  Volume Control (Controlul volumului) 81
  ·Invatarea (coperea) 82
• ONE FOR ALL Combi Control 83
  ·MasterPower 83

Master Power (in Combi Control)

In Combi Control tasta PORNIRE va porni/opri alla tuite dispositivele din cadrul setarii Combi Control activate -pur si simplu apasand- o timp de 3 secunde (Master). De ex. cu combinataia Combi Control 2 putei opri televizorul, STB si AMP orientand telecomanda spre acoste dispositive si apasand continuu tasta PORNIRE timp de 3 secunde.

Slovenský

Master Power (in Combi Control)

Master Power (in Combi Control)

U značajki Combi Control tipkom za uključivanje/isklučivanje moistete uključiti/isklučiti sve urežade iz aktivirane Combi Control postavke - jegnostavno je 3 sekunde držite pritsnutom (Master). Npr. u Combi Control kombinacji 2 moistete isklučiti televizor, STB i AMP tako da pokažete na te urežade i jegnostavno tipku za uključivanje/isklučivanje 3 sekunde držite pritsnutom.

TV

A.R. Systems 0037 0556

Accent 0009 0037 0556

Accusound 0860

Acer

Acoustic Solutions 1667 1523 1865 1037 1163

Adcom 0625

ADL

Admiral 0093 0264

Advent 1613

AEA 0037

AEG 06061556

Aftron 0891

Agashi 0264

Aqora 15850037

Aiko 0009 0037 0556 0371 1681

0035 0880 0264

Aim 0037 0412 0556 0753 0208

0706 0698 0634 0606 0499

Airis 183320501531

Aiwa 070519161505

Akai 1326 0208 0371 0037 0035

0009 0753 0729 0714 0706

0698 0715 0556 0548 0480

0264 0178 0606 1037 0473

0812 1248 1308 1865 1163

1523

Akashi 0860 0009

Akiba 0037 0556

Akira 0753 0037

Akito 0037 0556

Akura 1770 0714 1687 1709 1667

1037 0037 0556 1645 0668

15850412000902641982

1983 1363 2059

Alba 1037 1585 0714 0037 0668

0556 0009 0371 0587 0487

0443 2050 1865 1163

Alkos 0035

Allstar 0037 0556

Amitech 1849

Amstrad 0009 0264 0371 0037 0556

0412 1037 1324 1982

Anam 0037 0556 0009 0650

Anam National 0037 0650 0556

Andersson 1163 1585

Anglo 0009 0264

Anitech 0009 0264 0037 0556

Ansonic 0037 0556 0009 0668 0292

AOC 0625 1588 2111 2214

Apollo 0473

AquaVision

Arc en Ciel

Arcelik 0714

Ardem 0714 0486 0633 0037 0715

0556

Arena

Aristona 0556 0037

ART 1037

Art Mito

Asberg 0037 0556

Asora 0009

Astra 0037 0556

Asuka 0264

ATD 0698

Atec 1606

Atlantic 0037 0556

Atori 0009

Audiosonic 0009 0037 0820 0556 1308

16810109071420502059

0715 0264 0486 1983

Audioton 0486 0264

Audioworld 0698

AWA 0009 0412 0037 0556 0606

0108 0264 0178 0698 1681

Axxent 0009

Axxon 0714

B&D 1217

Baier 1324

Baird 0109 0343 0208 0606

Bang & Olufsen 0565

Base 0780

Basic Line 0037 0668 0556 0009 1037

Bauer 0009 0698 0706 0264

Baur 0009 0195 0512 0037 0556

1505

BBK 1523 1645

Beaumark 0178

Beko 0714 0486 0035 0715 0037

0556 2125 1308 0606 0808

1652

Belson 0698 2032

Belstar	1037
Bennett	0556	0037
BenQ	1562	1523	2214
Bensten	1326
Beon	0037	0556
Beond	1833
Berthen	0668	0556
Bestar	0037	0556
Bestwell	1326
Black Diamond	0614	0820	1037	0556	1163
	0753	0587
Black Strip	0035
Blaupunkt	0195	2106	0170
Blusens	1849
Blue Diamond	2106
Blue Media	1606
Blue Sky	0037	1324	1037	0714	1709
	0487	0668	0715	0625	1652
	1909	0556	0808	1363	1916
Boca	1652
Boman	1324
Boots	0009
Bork	1363
BPL	0037	0556
Brandt	0625	0109	0287	0335	0343
	0560
BrandtElectronique	0287	0335
Brimax	1709
Brinkmann	0037	0556	0668	0486
Brionvega	0037	0556
Brother	0264
Bruns	0486
Bush	0614	1037	2032	1326	0714
	2127	1585	0037	0668	2125
	1652	0371	1556	0009	0264
	0487	0208	0698	0556	1667
	1248	1982	1916	1682	0587
	1687	1308	2053	2050	2214
	1983	1865	1720	1954
Cameron	1523	0556
Camper	0037	0556	0486
Capsonic	0264
Carad	0610	0037	0556	0668	1037
Carena	0037	0556
Carrefour	0037	0556
Carver	0170
Cascade	0009	0037	0556
Casio	0037	0556
CAT	1682
Cathay	0037	0556
CCE	0037	0556
Celestialcelllo	0820
Centrex	0780	0891	1536	0698
Centrum	1037
Centurion	0037	0556
CGE	0074
Chimei	1666
Cimline	0009
Cinex	1556	1982
City	0009
Clarity	1720
Clarivox	0037	0556
Clatronic	0037	0371	0714	0264	0556
	0009	0606	1324	1163
Clayton	1037
Cobolt	0891
Concorde	0009
Condor	0037	0556	0009	0264
Conia	1687	0754	1645	0820	1523
	2032
Conrac	0808
Conrad	0037	0556
Contec	0009	0264	0037	0556
Continental Edison	0109	0287	0487
Cosmel	0009	0037	0556
CPTEC	0625	1363
Crosley	0074
Crown	0009	0712	0486	0037	0556
	0487	0714	0606	0715	0208
	0653	1037	1652	0668
Curtis Mathes	0093
CWR-Tech	1324
Cyberpix	1667
Cytronix	1298
D.Boss	0037
Daewoo	0634	1849	0499	1909	0037
	0556	0009	1137	0880	0698
	0714	0706	2037
Dansai	0037	0556	0264	0035	0009
	0208
Dansette	0412
Dantax	0486	1652	1916	0714	0606
	1037	0715
Datron	0625
Datsura	0208
Dawa	0009	0037	0556
Daytek	0698	0706	0264
Daytron	0009	0037	0556
de Graaf	0208	0548
DEC	0860	0891	1326	0896
Decca	0037	0556	1137
Deitron	0037	0556
Denko	0264
Denver	0037	1770	1324	0556	0606
	1849	0587	2050	1709
Desmet	0037	0556	0009
Dew	1770
DGM	2059
Diamant	0037	0556
Diamond	0264	0698	0009	0371	0860
	0820	0896	1681	0706
DiBoss	0037	0556
Dick Smith Electronics	1326
Digatron	0037	0556
Digitome	1667
Digiline	0037	0556	0668
DigiLogic	0037	0556
DigiMax	0891
Digital Device	1606
Digitek	1709
Digitex	0820
Digitor	0037	0556	0888
DigiX	0880
DiK	0037	0556
Dixi	0009	0037	0556
DL	0891	0780	0037	0587	1363
	1326
DMTECH	1849	2001
Domeos	0668	0037	1037
DSE	0888	1556	0820	0698	1682
	2032	1326
DTS	0009
Dual	0343	0037	0556	1137	1037
	2032	1324	1163	1667	1585
	0714
Durabrand	0037	0556	1652	1037	0714
Dux	0037	0556
D-Vision	0037	1982	0556
DVX	0891
Dynatron	0037	0556
E.S.C.	0037	0556
e.max	1324	0606	1531
Easy Living	1248	1709	1613	1217	1308
	2005	1556	1666
Easy Touch	2059
Ecco	0773	0706	0698
	2125	0037	1037
EGC	0487
Edison-Minerva	0610	0292	0037	0556
Elbe	0610	0292	0037	0556
Electron	1585
Elekta	0009	0037	0556	0264
Elfunk	1208	1037
ELG	0037	0556
Elin	0037	0556	0548	0009
Elite	0037	0556
Elonex	1776
Elta	0009	0264
Emerson	0714	0178	0037	0556	0371
	1909	0486	0668
e-motion	1709	2106
Enzer	0753	0773	0860
Erisson	1682
Erres	0037	0556
Etron	0037	0556	0820	0009
Eurofeel	0264
EuroLine	0037	02050
Euroman	0264	0037	0556
Europa	0037	0556
Europhon	0037	0556
Evesham	1248	1667	1606	1536
Excel	0037	0556
Excello	1037
Exquisit	0037	0556
Fagor	0037	0556
Family Life	0037	0556
Fenner	0009
Ferguson	0625	0335	1037	0287	0109
	0560	0343	0037	0556	0035
	0653	0108	0548	0443	1916
	2053	1954	1865	2106
Fidelity	0512	0037	0556	0371	0412
	0264
Finlandia	0208	0548	0287	0343
Finlux	0037	0556	0714	1585	1667
	0715	0480	1556	0473	0606
	0808	1248	1163
Fintec	1982

Firstline	0037	0556	0668	0714	0009
	1909	0208	1037	0808	1363
	1163	1308
Fisher	0208
Flint	0037	0556	0610	0264
Foehn & Hirsch	0178
Formenti	0037	0556	0486
Fortress	0093
Fraga	0037	0556
Freesat	1636
Friac	0009	0037	0556	0499	0610
Frontech	0264	0009
Fuchsware	0780
Fujitcom	1709
Fujitsu	0009	0037	0556
Fujitsu General	0009
Fujitsu Siemens	1666	1298	1248	1163	0808
Funai	1817	1394	1037	1666	1595
	0668	0264	0412	1505	0714
Furichi	0860
Futronic	0264	0860	0698
Future	0037	0556
Gaba	1037	0037
Galaxi	0037	0556
Galaxis	0037	0556
Galeria	0009
Garza	0556
GBC	0009
GE	0343	0178	0560	0287	0109
	0335	0625
GEC	0037	0556
Geloso	0009
General	0109	0287
General Electric	0343	0287
General Technic	0009
Genesis	0009	0037	0556
Genexxa	0037	0556	0412	0009
Gericom	1606	1721	1298	1217	0880
	0808
G-Hanz	1681	1363
Giant	0009
GoGen	1163	1667	0037	1037
Gold	1833	1770
Goldfunk	0668
GoldStar	0037	0009	0178	0556	0109
	0606	0714	0715
Gooding	0487
Goodmans	0634	1248	1667	1687	1585
	1037	1983	0037	0499	0556
	0714	0668	1909	1163	0264
	0009	0487	0371	0343	0035
	0480	0560	0335	0880	1308
	0587	1645	1682	1720	2053
	2127	1523	1709	0808
Gorenje	1585	1667
GP	0753
Gradiente	0653	0170	0037	0556
	0714	0371	0037	0556	1163
Granada	0037	0556	0226	0108	0208
	0473	0335	0560	0225	0343
	0548
Grandin	0037	1652	0556	0009	0610
	0714	0715	0668	1037	0880
Grundig	0195	0508	1223	2059	0443
	2127	1687	1037	0487	0037
	0706	0556	0587	0009	1916
	1308	0178	0343	1667	2053
	1248	2125	1324	1645	2007
Grunkel	1163
GVA	1326
H&B	0808	2001
Haaz	0706
Haier	0698	0264
Halifax	0264
Hammerstein	0264
Hanns.G	1613
Hannspree	1613	1776	2214
Hanseatic	0037	0556	0499	0292	0634
	0009	0714	0808	0486	0625
	2001
Hantarex	0009	0037	0556
Hantor	0037	0556
Harwa	0773
Harwood	0009	0412	0037	0556	0487
Hauppauge	0037	0556
HCM	0009	0412	0037	0556	0264
Hedzon	0556	0037
Hema	0009
Hicon	1298
Hifivox	0109
Highlander	1531
Highline	0264	0037	0556
Hikona	1983
Hinari	0208	0037	0556	0009	0443
	0487	0264
Hisawa	0610	0714
Hisense	1363	0208	2037	0698	0891
	0860	0780
Hitachi	1576	0481	0578	0719	2207
	0225	0108	0744	1585	1037
	1484	2127	1687	1667	0634
	0473	0343	2214	1163	0499
	2005	0480	0443	0037	0556
	0109	0548	0178	1137
Hitachi Fujian	0108	0037	0225	0556	0860
	0499
Hitsu	0009	0610
Höher	0714	1556	1163
Home Electronics	0606
Hornyphon	0037	0556
Hugoson	1666	1217
Humax	1539	2057
Hyper	0009
Hypon	0037	0556	0714	0715	0264
	1037	0668	0486
Hyundai	0037	0860	0556	1531	1326
	0698	0753	1681	1770	0264
	0888	1037	1606	0706	1556
	1163
Iberia	0037	0556
ICE	0264	0037	0371	0009	0556
Ict	0037	1137	0556
iDEAL	1556
IIsonic	1613
liyama	1217
Imperial	0037	0074	0508	0556
Indiana	0037	0556
Ingelen	0487	0610	0714
Ingersoll	0009
Inno Hit	0009	1037	0037	0556	1163
	1585
Innovation	0037	0556
Innowert	1298
Inotech	0773	0820
Inspira	1324	1556
Interactive	0037	0556	0512	0109
Interbuy	0009	0037	0264	0512	0556
Interfunk	0037	0556	0512	0109
Internal	0037	0556	0499	1909
Intervention	0037	0371	0486	0487	0264
	0009	0556
Irradio	0009	0037	0556	0371	0714
Isis	1163	1037
Isukai	0037	0556
ITS	0037	0371	0264	0009	0556
ITT	2125	0480	0473	0548	0208
	0610	1523	2057	1163
ITT Nokia	0548	0473	0480	0208	0606
	0610
ITV	0037	0264	0556
JDV	1982
JEC	0035
JGC	1709
JMB	0037	0499	0634	0556	0443
JNC	1536	0896
Jocel	0712
JTV	0860
Jubilee	0556
JVC	0653	1818	1163	0606	1653
	0371	0093	0650
Kaisui	0037	0556	0009
Kambrook	0264
Karcher	0037	0556	0610	0264	0714
	1556	0606	1982	2125	1308
Kathrein	0556	0037	0880
Kawa	0371
Kendo	0610	0037	0556	0512	1585
	1037	0486	1163	1137
Kennex	1037
Keymat	1326
Kingsbrook	1037
Kiota	0371
Kiton	0556	0037	0668
Kneissel	0037	0610	0499	0556	0292
Kobra	1298
Kolster	0037	0556
Konichi	0009
Konka	0037	0556	0371	0714	0587
	0754	0606
Kontakt	0487
Korpel	0037	0556
Kosmos	0037	0556
Kotron	0412	0264
Koyoda	0009
Kross	1536
Küppersbusch	0037	1667
Kyoshu	0412	0264
LaSAT	0486
Lavis	1037	0037
Leader	0009
Lescon	0037	0556

Legend	0009
Lenco	0009	0037	0556	0587	1037
	1983
Lenoir	0009
Lentec	1531
Levis Austria	0037	0556
Leyco	0264	0037	0556
LG	2182	1423	1663	0178	0037
	1305	0714	0606	1721	0556
	0715	1681	0698	2057
Liesenkötter	0037	0556
Lifetec	0037	0668	1037	1137	2001
	0009	0512	0556	0714	0264
	1248
Linetech	1163
Linsar	1585	1667	1163	1037
Lloyd's	0009
Lodos	1037
Loewe	0512	0633	1884	0556	0292
Logik	0698	1865	0773	0009	0264
	0371	0880	1217	1037	1687
	1645	0037
Logix	0668
Luker	1982
Luma	0037	0556	0009
Lumatron	0037	0556	0264
Lumenio	0037
Lux May	0037	0009	0556
Luxor	0480	0208	0548	0473	1037
	1667	1163
LXI	0178
Madison	0037	0556
Magnavox	0037	0556	0780	0753
Magnum	0714	0037	0556	0715	1556
Mandor	0264
Manesth	0037	0556	0264	0035
Manhattan	0037	0556	0668	1037
Magma	1298	1709	1606
Marantz	0037	0556	0412
Mark	0037	0556	0009	0714	0715
Marks & Spencer	1770
Mascom	1556	0556	0037	2125	1585
Master's	0499	0037
Masuda	0371	0009	0264	0037	0556
Matsui	0443	1163	1037	2007	1916
	0037	0195	0556	0487	0009
	0371	0035	0208	0335	0714
	1666	0880	1667	0744
Matsushita	0650
Matsuyama	0587
Maxam	0264
Maxdorf	0773	0698	0706	0264
Maxim	1982	1556
MCE	0009
Mediator	0037	0556
Medion	0714	0808	0037	0668	0556
	0512	1137	0698	1037	1248
	0880	1916	1556	2001	1667
	1849	1163
MegaDrive	1248
Megas	0610
Megatron	0178
MEI	1037	0037	0556
Melectronic	0037	0512	0109	0343	0009
	0480	0287	0556	0634	0195
	0714	1652
Memorex	0009	0178	0650
Memory	1983
Memphis	0009
Mercury	0037	0009	0698	0264	0556
	0706
Merritt	0548
Metz	1533	0746	0447	1163	0195
	0037	0556	0587	0668	1037
MGA	0178	0037	0556
Micromaxx	0037	0556	0668	1037	0808
	1324	2001	0714
Microspot	1614
Microstar	0808
MicroTEK	0820	0698	0860	0706	0264
Mikomi	1163	0744	1585	1667	0037
Minato	0037	0556
Minerva	1248	0487	0195	0108
Ministry of Sound	1667
Minoka	0412	0037	0556
Mirai	1666	1852	1651
Mitsai	1556
Mitsubishi	0108	0093	0512	0178	0037
	0556	0208	1037
Mivar	0609	0292
Monaco	0009
Moree	0037
Morgan's	0037	0556
Motorola	0093
MTC	0512
MTLogic	0714	1308	2050
Multitec	0037	0556	0486	0668	1037
	1556	1982
Multitech	0009	0486	0037	0556	0264
Murphy	2005	1849	0443
Musikland	0037	0556
Mx Onda	1687	1983	1645
MyCom	0178
Myryad	0556	0037
NAD	0178
Naiko	0037	1982	0606	0556
Nakimura	0037	0556
Narita	1982
NAT	0226
National	0226
NEC	0170	0587	1775	0009	0037
	0556	0499	0653
Neckermann	0037	1505	0556	0512
NEI	0037	0556	0371	1037
NEO	0754	1324
Neon	1770
Netsat	0037	0556
Neufunk	0037	0009	0556	0610	0714
New Tech	0037	0009	0556	0343
Nikai	1163
Nikkai	0037	0556	0264	0035	0009
	1667
Nikkei	0714
Nikko	0178
Nintaus	0891
Nogamatic	0109
Nokia	0480	0548	0473	0208	0606
	0610	0109
Nordmende	0560	0891	0109	0287	2001
	0343	0195	0037	0556	0335
	1248	0714	0443	2007	1585
	1667	1163	1308	0625
Normerel	0037	0556
Nortek	0668
Novak	0037	0556
Novatronic	0037	0556
Novex	1523
Novita	1585
Nu-Tec	0698	0820	0037	0556	0706
	0264
O.K.Line	1037	1324	1556
Oceanic	0208	0473	0548	0480	2001
Odeon	0264
Okano	0037	0556	0264	0009
OKI	1037	2125	1667	1585	1308
	1163
Ölevia	1588
Omega	0264
Omni	0780	0891	0698
Onei	1667
Onimax	0714
Onn	1709	1556	2125	0556	1667
	1770
Onwa	0371
Onyx	1709	1770
Opera	0037	1308	0556	0714
Optimus	0650
Optonica	0037	0556
Orava	1037	1163
Orbit	0037	0556
Orion	2007	2032	2005	0037	0443
	0714	0556	0009	0264	0412
	1916	0880	2001	1954	1037
Online	0037	0556
Ormond	0668	1037	0037	0556
Osaki	0264	0037	0412	0556
Osio	0037	0556
Osume	0037	0556
OTIC	1687	1645	1983
Otto Versand	1505	0093	0512	0037	0556
	0195	0109	0226	0009	0343
Pacific	0037	1916	0556	1137	0714
	1037	0443	1324
Palladium	0037	0714	1137	1505	0556
	1982
Palsonic	0264	0412	0037	0698	0556
	0773	1326	1681
Panache	1585
Panama	0009	0264	0037	0556
Panasonic	0650	1636	1650	0226	1310
	0037	0556	0548	0108
Panavision	0037	0556
Papouw	0037	0556
Pathe Cinema	0292
Pathe Marconi	0109
Pausa	0009
Perdio	0037	0556
Perfekt	0037	0556
Philco	0074	0037	0556
Phillips	0556	0037	1506	0605	0343
	0009	1505

Phocus	1308	0714	1652
Phoenix	0037	0556	0486
Phonola	0037	0556
Pilot	0556	0037	0712	0706
Pioneer	1260	1457	0170	0679	0037
	0556	0343	0109	0287	0486
	0512
Pionier	0486
Plantron	0037	0556	0264	0009
Playsonic	0714	0037	0715	1652
Polar	0037
Polaroid	1523	1720	1645	1687	2125
Polcom	0109	0074
Poppy	0009
Portland	1909
Powerpoint	0487	0037	0556	0698	1770
Premier	0009	0264	0891
President	0860
Prima	0009	0264	0412
PrimeView	1606
Princess	0698	1326
Prinston	1037
Pro Vision	0499	0037	0556	1037	0714
	1324	1531
Profex	0009
Profi	0009
Profilo	1556
Profitronic	0037	0556
ProLine	0634	1613	1037	0625	0037
	0556
Prosonic	0037	0556	1865	0371	0880
	0668	0714	2001	1324	1770
	2106	1709	1163	0606	2125
	1849	0715	2050	1523
Protech	0037	0556	0009	0264	0668
	0486	1037
Proton	0178
Proview	1687	1645
PVision	2001
Pye	0037	0556	0412
Pymi	0009
Quadro	0753	1326	0556	0037	1163
Quartek	1606
Quasar	0650	0009
Quelle	0037	1505	0109	0512	0074
	0668	0556	0195	0264	1037
	0009
Radialva	0109	0037	0556	0287
Radiola	0037	0556
Radiomarelli	0037	0556
Radianette	0714
RadioShack	0037	0556	0178
Radiotone	0009	0037	0556	0412	0668
	0264	1037
Rank Arena	0753
RCA	0625	0093	0560	0335	0343
	0753
Realistic	0178
Recor	0037	0556
Rectiligne	0037	0556
Red	2032
Red Star	0037	1556	0556
Redfusion	0548
Reflex	0037	0556	1037	0668
Relisys	1298	1585	1645
Reoc	0714	0634	1909
Revox	0037	0808	0556
Rex	0264
RFT	0292	0264	0037	0556	0486
Ricoh	0037	0556
Rinex	0773	0698	0264	0706
R-Line	0037	0556
Roadstar	1037	0715	0009	0037	0556
	0714	0668	0264	1916	1326
Rodex	0037	0556
Rolsen	0037	0556	2037	2001
Rowa	0264	0698	0712	0009	0706
	0587	0037	0556
Royal	0606
Royal Lux	0412	0335
Rukopir	0556	0037
Saba	0625	0109	0560	0343	0287
	0335	0548	0650	0714	1588
Sagem	0610	0618	1596
Saisho	0634	0009	0264
Saivod	1982	0037	0556	1163	1556
	0668	0712	1037
Salora	0548	0208	0480	1556	2125
	2001
Salsa	0335
Samsung	2051	0812	0618	0178	0587
	2094	1619	0093	0556	1249
	0009	0037	0264
Sansui	0037	0729	1709	0706	0556
	0371	0888	0753	1531	0698
	0264	0714	1248	1681	1556
Santon	0009
Sanyo	0208	1208	0292	0009	0037
	0556	0486	0170	1037	1667
	1163	1585
Save	0037	0556
SBR	0037	0556
Schaub Lorenz	0548	0714	0606	0486	1324
	1363	1667	2125	1308	1163
Schneider	1137	0037	0556	0343	0371
	0668	1037	0714	1909	1982
	1916	1324
Schöntech	1037
Scott	0178	1523	1983
Sears	0178
Seaway	0634
Seelver	0556	1037	0037
SEG	1037	0037	1163	0556	0668
	0487	0009	0264	0634	1909
	2125	1523
SEI	1505	0037	0556
Sei-Sinudyne	1505	0037	0556
Seitech	1217	1324
Seleco	0371	0264
Sencor	0714
Sencora	0009
Sentra	0035	0009
Serie Dorada	0178
Serino	0610	0093	1193
Sharp	0093	1193	1659	1393	2214
	0653	1163
Shintoshi	0037	0556
Shivaki	0037	0556	0443	0178
Show	0009	0698	0264	0706	0037
Siemens	0195	0037	0556
Siera	0037	0556	0587
Silva	0037	0556
Silva Schneider	0753	1556	2125
Silver	0037	0556	0715
SilverCrest	1037	0037	0556
Singer	0009	0698	1556	0037	0556
	0335
Sinotec	0773	0606	0698
Sinudyne	1324	1505	0037	0556	0606
Sky	1614	0037	0880	0178	0556
	1613	1606	1775
Skysonic	0753
Sliding	0880	1324
SLX	0668
Smaragd	0487
S-Media	1217
Soemtron	1298
Sogo	2050
Solavox	0548	0037	0556
Sonic	0753
Soniko	0037	0556
Sonig	1298
Sonitron	0208
Sonnclair	0037	0556
Sonoko	0037	0556	0009	0264
Sonolor	0208	1505	0548
Sontec	0037	0556	0009
Sontech	1983
Sony	1505	1825	1651
Sound & Vision	0037	0556
Soundesign	0178
Soundwave	0037	0556	0715
Soyea	0773
Soyo	1709
Spectra	0009
Sangyong	0009
Staksonic	0009
Standard	0037	0556	1037	0009	1709
Starion	1037
Starlite	0009	0037	0556	0264	0412
Stern	0264
Stevison	1982	1556
Strato	0037	0556	0264	0009
Strong	1163	1037	0037	0556
Sungoo	1248	2037
Sunic Line	0037	0556
Sunkai	0610	0037	0556	0487
Sunny	0037
Sunstar	0371	0037	0556	0009	0264
Sunstech	2001
Sunwood	0037	0556	0009
Supersonic	0009	0208	0556	0698	0264
	0037
SuperTech	0009	0037	0556
Supervision	0698	0264
Supra	0178	0009	0037
Susumu	0335	0287
Sutron	0009
SVA	0698	0264	0208	0706
Svasa	0698	0208	0706	0264
Swedx	1606

Swisstec	1775	1614	1606	1613	0880
	1776	1849	2059
Sysline	0037	0556
T+A	0447
Tandberg	0109
Tandy	0093
Targa	0618
Tashiko	0170
Tatung	1720	0037	1248	1556	0556
	1324	1916
TCL	1916	0625
TCM	0714	0808	2001	1308
Teac	0698	1645	2168	0037	1037
	0556	0512	0712	0668	0706
	0264	1909	0178	0009	0412
	0170	0714	1363	0587	1770
	1709	2032	1983
TEC	0009	0335	0037	0556
Tech Line	0037	1585	0556	0668	1163
Technica	1982
Technics	0650
Technika	2106	2032	1865	2168	2059
	1849	1667	1983	1585	2125
TechniSat	0037	0556
Technisson	0714	1652
Techno	1585	1037
Technol Ace	0698	0264	0634
Technosonic	0625	2032	1982	0499	0556
	1324	0880	0037	1326	0714
Technotrend	1531
Techvision	1709	2032	1531
Techwood	1163	1037	1667
Tecnimagen	0556
Teco	1523
Tedelex	0698	0706	0606	0037	0009
	0208	0891	0587	0556	1709
	1531	1681	0264
Teiron	0009
Tek	0820	0037	0698	0009
TELE System	2125
Teleavia	0109	0287	0343
Telecor	0037	0556
Telefunken	0625	1667	0560	0587	0074
	0109	0698	0712	0343	0820
	0896	0754	0780	0891	0287
	0335	1681	1536	0753	0706
	0037	0556	0486	0714	1556
	1585	1588	1163
Telefusion	0037	0556
Telegazi	0037	0264	0556
Telemeister	0037	0556
Telesonic	0037	0556
Telestar	0037	0556
Telestar	0037	0556	0668	0009	1037
Teleview	0037	0556
Tempest	0009	0337	0556	0264
Tennessee	0037	0556
Tensai	0037	0556	0009	0371	0715
	1037
Tension	0009
Tesla	1037	0037	0668	0714	1652
	0715	1137	0371	0753	0556
	0610
Devion	1248	1298	1645	0556	1556
	1667	0668	0808	2032	1137
	1687	1037	1585	0714	0037
Texet	0009
Thes	1849
Thomson	0625	0560	0343	0287	0109
	0335	0037	0556	1588
Thorn	0108	0109	0225	0343	1505
	0074	0499	0037	0556	0335
	0512	0035
Thorn-Ferguson	0108	0109	0335	0499	0035
TMK	0178
Tokai	0037	0556	0668	0009	1037
Tokaido	1037
Tokyo	0035
Tongtel	0780	0587
Top Show	0698	0773	0009	0264	0706
Topline	1037	0668
Toshiba	1508	0508	0035	0714	1667
	0109	0195	0618	1916	0009
	0698	0037	1556	0650	1037
	1163	1652
Tosumi	1982	1770
Toyoda	0371	0009	0264
Trakton	0009	0264
TRANS-continentis	0668	1037	0556	0037	0486
Transonic	0037	0556	0587	0512	0264
	0698	0712	0009	1363	1326
	0780
Triad	0037	0556	0009
Trio	1687	1248	1645
Tristar	0264
Triumph	0556	0037
TVTEXT 95	0556
Uher	0037	0556	0486	0480
Ultravox	0037	0556
UMC	1606	1775	1614	1849	2059
	2106	2168
Unic Line	0037	0556	0473
United	0714	1983	0037	0715	0556
	1916	1037	0587	1982	1652
	1849	1770	1523	2125	1163
Unitek	1709
Unitron	1681
Universal	0714	0037	0556
Universum	0808	1037	0037	1163	0668
	0480	0195	0473	0512	0264
	0556	0074	1505	0109	0009
	0170	0618
Univox	0037	0556
V7 Videoseven	0178	0880	1217	1666	0618
	1651	1505
Vanguard	0037	0556
Venturer	1865
Venus	1326
Vestel	1037	1163	1585	1667	0037
	0668	0556
Vexa	0009	0037	0556
Victor	0653
VideoSystem	0037	0556
Vidtech	0178
ViewSonic	1588	2111
Vision	0037	0264	0556
VisionPlus	2106
Vistron	1363
Visual Innovations	2106
Vivax	1326	1308	0037	1709
Vivo	2032
Vortec	0037	0556
Voxson	0037	0556	0178
Vue	1236
Walker	1667
Waltham	0287	0037	0556	0668	0109
	1037	0443
Watson	1037	1248	0556	0037	0009
	0668
Watt Radio	0486
Wega	0037	0556
Wegavox	0009	0037	0556
Welltech	0714	1652
Weltblick	0037	0556
Weltstar	1037
Weston	0037	0556
Wharfedale	1983	0896	1613	1667	0891
	1324	0860	0698	0706	0037
	1037	1681	0714	0556	1556
White
Westinghouse	0037	0556	1909
Wilson	0556
Windsor	0668	1037
Windy Sam	0556
Wintel	0714
World-of-Vision	0880	1298	1606	1217
Woxter	1531
XDome	0508
Xenius	0634
Xiron	1983
XLogic	0698	0860
Xomax	1770
Xoro	1217	1324
Xrypton	0037	0556
Yakumo	1613
Yamaha	0650	1576
Yamishi	0037	0556
Yokan	0037	0556
Yoko	0037	0556	0264	0009
Ytawāi	1531
YU-MA-TU	0037
Yūsmart	1613
Zenith	1909
Zepto	1585

SAT

@sat	1300
@Sky	1334
ABsat	1323	0713
Acoustic Solutions	1284
ADB	0642	0887	1459	1367	2367
	2737
Adcom	0200
AEG	2738	2813
AGK	2139
Agora	1284
Airis	1659	1993	3012
Akai	2811	0200
Akira	2813	2738

Akura	1626
Alba	2296	1284	1811	1659	0713
	2433	2034
Alcor	2931
Allsat	0200
Alltech	0713
Allvision	1232	1334	1412
Alpha	0200
Altech UEC	1959	1960	2059
Amitronica	0713
Ampere	0396	0132
Amstrad	0132	0847	1693	1801	1175
	1662	2139	1848	0396	0713
	0501
AMTC	2738
Anglo	0713
Ankaro	0713
Ansonic	2418
Apro	1672
Arcon	0132	1075
Arena	1736
Armstrong	0200
Arnion	1300
ASA	0740
Asat	0200
ASCI	1334	0114
Asda	1284
ASLF	0713
AssCom	0853
Aston	1129
Astra	0713
Astratec	1743	1929
Astrell	1986	2418
Astro	0173	0501	0658	1099	1100
	0200
Atlanta	2418
Atlantic Telephone	1333
Atom	2289
Audiola	2418	3012
Audioline	1429
Aurora	0879	0642	1333	1433
Austar	1459	0642	0879	1173
Auvisio	2531	2738	2813
Avalon	0396
Avanit	1631
AWA	1659
Axil	1658	1777	1993	1659	2418
	3148	2738
Axis	1111
Axitronic	1626
B.net	1672
B@ytronic	1412	0740
Balmet	1658
Belson	2418	2139	2811
Best Buy	1993	2139	2728	2842
Big Sat	1658	1572
Black Diamond	1284
Blaupunkt	0173
Blusens	2871	2938
Blue Sky	0713
Boca	0132	1366	0713	1232	1474
	1579	2308	2813
Boshmann	1413	1631
Boston	0132
Boxer	1458	1692	2429
Brainwave	0658	1672
British Sky	1175	0847	1662
Broadcasting	0713
Broco	0713
BSkyB	1175	1662	0847
Bubu Sat	0713
Bultech	2738
Bush	2167	1284	1626	1974	1672
	2418	2433	1645	0560	2813
	1811	1743	2376	1291	0642
	1935
Cale	2718
Cambridge	0501
Canal Digitaltaal	0853	2466	1499
Canal Digital	1853	1622	1780	0853	1004
	1046	2553	1334
Canal Plus	2107	2657
Canal+	0853	2107	2657	1853
CanalSat	2107	2657	0853
CanalSatellite	0853	1339	2107	2657	1853
CDV	1993
CGV	1413	1567	2034
Challenger	1956
Cherokee	1323
Chess	1334	0114	0713	1579	1626
CityCom	1176	1232	1075	1777	0658
Clatronic	2738	1413
Clayton	1626
Clemens Kamphus	0396
Cobra	0396	3038	3212	2531
Colombia	0132
Columbia	0132
Com Hem	1176	1915	2357
Comag	1413	1232	1579	1412	1366
	1474	0132	2101	2308	2813
Comsat	1413
Comwell	1956
Condor	1700
Conia	2167
Connexions	0396
Conrad	0501	0132
Coship	1658	2117	1672
Cristor	2257
Croner	2813
Crown	1284
Crypto	3012	3148
Crystal	3012
CS	1631
Cyfra+	1076	1853	1409	0853
Cyfrowy Polsat	0853
Cyrus	0200
Daeryung	0396
Daewoo	0713	1743	1974	1111
DAK	1993
Dantax	1626
D-box	1114	0873
Deltasat	1075
Denver	2418	2738
DGTEC	1542	1631	2058
Dick Smith Electronics	2813
Dicra	2842	2738	3012
Digenius	1161
Digi Raum Electronics	1176
Digit1	3067
Digitality	1334
DigiCrystal	2117
DigiFusion	1645	1743	1929
Digihome	2034	1284	1935
DigiLogic	2034	2241
DigiQuest	2718	2738	2278	1658	1300
	1631	2289
DigiSat	1232
DigiSky	1658
Digital	2308
Digital Vision	1929
Digital+	1853	1046	0853	0842
DigitalAlb	1232
DigitalBox	2289	3012	1631	1100	1886
DigitalAll World	1595
Digital+	1659
Digitaltrade	1659
DigitalTurk	1076
Dikom	2531	2938	2842
Dilog	1780
DiPro	1543	1367	2278
Distratel	1704
Distribat	0200
Diunamai	2531
Di-Way	2289	2931
DMT	1075
DNT	0200	0396
Doro	1672
DRE	1176
Dream Multimedia	1237	1651	1652	1923
DSE	2418	2813
DStv	0642	0879
DTI Electronics	3067
Dual	2034
Durabrand	1284	2241	2034
DVX	2167	1993
Dyon	2738	2813
Echolineck	1366
Echostar	0853	0396	0713	1323	1409
Eco-Star	1413
Edison	1631	2306
Einhell	0132	0713	0501
Elap	0713	1611	1129	1567	1413
Elbe	2418
Electron	1956
Elless	0740
Elsat	0713
Emtec	1659
Energy Sistem	1631	2289	2418
Engel	1777	0713	1251	1801
EuroLine	1251
Europa	0501	0200
Europhon	0132	0713	1334
Europsat	1413	1611
Eurosat	1567	1886
Eurosky	0132	0114	0501	0740
Eutelsat	0713
Eutra	0740
Evesham	2034
Evolve	1993

Eycos	2117
F&U	2139	3012
Fagor	1611
Fenner	0713
Ferguson	1291	2352	1743	1929	1931
	1935	1932
Fidelity	0501
Finepass	1780
Finlux	1626	1232
FinnSat	0740
Flair Mate	0713
FMD	1251	1658	1413	0114
FoneStar	1777	2242
Foxtel	1356	0879	1176	1173
FPE	1993
Free Wave Technology	1743
Freecom	0501	0173
Freesat	2376	1692
Freesat+	2443
Fte Maximal	0713	1932	1886
Fuba	1801	2750	0396	0173	1161
	1251
Fuji Onkyo	1631	2728	2101
Galaxis	1111	1176	0853	0879
Galaxy	1956
Garnet	1075
Gecco	1412
General Satellite Get	1176
	1004
Globo	1251	1626	1412	1429	1334
	1474	0740	1579
GOD Digital	0200
GoGen	2738
Gold Box	0853
Gold Vision	1631
Golden Interstar	1572
GoldMaster	1334	1722
Goodmans	1284	2433	2034	1291	0560
	2376
Gradiente	0887
Gran Prix	0740
Grandin	1626
Grosos	1409	1658
Grundig	0173	0847	2367	1291	1284
	2376	2433	0879	0853	0501
	1780	2034
Guepard	2871
Haier	2418
Hailo	2289
Hallo	1626
Hama	1567
Handan	1622	1780
Hanseatic	1099	1100
Hansel & Gretel	0132
Hauppauge	1672
HB	1801	1736
HDT	1159
Hills	1232
Hirschmann	0396	1886	1111	0173	2308
	1232	0501	1412	0740
Hitachi	2034	1284
HNE	1232	0132
Homecast	1680	1736	1700
Houston	0396
Humax	1176	1232	2289	1808	1631
	1427	2736	1915	2144	1882
	1788	1675	1670	1743	2357
	2443
Huth	0132	1075
Hyundai	1159	1075
i-Box	1652
i-CAN	1367	2737	2367
ID Digital	1176
ID Sat	2289	1334	1631
IDTE	1159
i-Joy	2370	2938
Illusion Sat	1631	2257
Image	1993
Imperial	1429	1334	2289	1099	1100
	1197	1195	0200	1672	1631
iNETBOX	1652
Ingelen	0396
Inno Hit	1626
International	0132
Inves	1993	1743
inVion	2418
iotronica	1413	0132
IQ	2813
Irradio	3067	2505
ITT	2418
ITT Nokia	0873
Jadeworld	0642
Jaeger	1334
KabelBW	1882	1915	1195	1197	1046
	2176	1176
Kamm	0713
Kaon	1004	1300
KaTelco	1111
Kathrein	1561	2569	0707	1567	0658
	1717	0114	0173	0200	0713
	1323
Kentron	3067
Kenwood	0853
Key West	0132
Kiton	0114
Kocmoc TB	1333
Kongque	1300
Konig	1631	2289	1567
Kooltek	2718	2811	3330
Koscom	1956
KPN	1986	1545
Kreiling	0658	0114	1626
Kreiselmeyer	0173
K-SAT	0713
Kyostar	0132
L&S Electronic	0132	1334
LaSAT	0132	0740	0173
Lauson	2531	2505
Leiko	1626
Lemon	1334
Lenco	0713
Lenoxx	1611
Lenson	0501
Lexus	0200
LG	1414	1075
Lifesat	0132	0713
Linsar	1284	3012	2842
Listo	1626
Lodos	1284
Logik	1284	2034	2842
LogiSat	2813
Logix	1075
Lorenzen	1161	1579	0132
Luxor	1935	2034	0873	0501
M vision	1812
Macab	0853
Madritel	0642
Majestic	2738	3012	2842
Manata	0713	0132
Manhattan	1572	1300
Maplin	2034
Marantz	0200
Mascom	2738
Maspro	0713	0173
Matsui	1626	0173	1743	1929	1284
	0200
Maximum	1075	1334	1986
Mediabox	0853
Mediacom	1206
MediaSat	0501	0853	2107
Mediaset	2750	2739	2278	1916
MediaStar	1173	1572
Medion	1232	0713	0132	1075	1412
	1626	1334	0740	1579
Medison	0713
Mega	0200
Megasat	2289	1631	2718	1886	1658
	3038	2813	0740	2034	1284
	2738
Meo	2466
Metronic	1704	2167	3155	1691	1659
	0713	1631	2738	2418	0132
	1993	1986	1413	2269	1672
Metz	0173
MiCO	1811	1993
Micro	2308	2813	0501	0713
Micro electronic	0713	2308	2813
Micro Technology	0713
Microstar	1075	1161
Microtec	0713
Morgan's	0132	0713	0200	1232	1412
	1409
Motorola	0856
mp man	3067
Multichoice	0879	1333	1433	0642	1959
	1960	2059	2060
Mustek	2718
Mx Onda	1659	2938	3067
Myryad	0200
Mysat	0713	2738
MySky	1356	1850	1693	1848
NEC	1617
Neom	1993
Neotion	1334
Netgem	1322
Neuf TV	1322
Neuhaus	0501	0713
Neuling	1232	1474	0132
Neusat	0713
Neviling	1161
Nevir	1659	3067	2938

Newton	0396
NextWave	1956
Nichimen	0560
Nikko	0713	0200
Nilox	2278
Noda Electronic	1704
Nokia	1114	0873	1023	1223	0853
Noos	0853
Nordmende	1611
Nova	0879	1959	1960	2059	2060
NPG	2289	1631	2931	2531
Numericable	2466	0853
Octagon	2352
OctalTV	1429
OKI	1567	1658
Olin	2931	2289
Omni	1993
Onn	1284	2034
Openbox	1956
Opensat	1956
Opentel	1232	1412
Optex	1777	1232	1993	0114	0713
	1611	1626	1413
Optus	0879	0853	1356
Orbis	1334	1412	1232
Orbitech	1099	1195	1197	1100	0200
	0501	0114
P/Sat	1232
Pace	0842	1175	1682	1693	1717
	1356	2657	1423	2160	1848
	0847	0887	1662	2467	1850
	2059	1323	2060	2466	0200
	0853
Pacific	1284
Packard Bell	1111
Palcom	1611	1161	1409	2117
Palladium	0501	0396
Palsat	0501
Panasat	0879
Panasonic	0847	1304	1404
Panda	0173
Patriot	0132
peekTON	1658	1993	2418	3012
Philips	0099	0842	2107	2176	1076
	1114	1499	0853	0200	1672
	1743	0173	1429	2466
Phoenix	2418	1658	1956
Pilottime	1339
Pino	1334
Pioneer	0853	1308
Planet	0396
PMB	1611	0713
Polytron	0396
Portugal Telecom	2466
Preisner	0132	0396	1366
Premiere	1114	1915	0873	1176	1195
	1100	1882	1675	1788	1111
	0658	1717	2176	1499
Premium	1736
Primacom	1111
Pro Basic	2205	0853	2531
ProLine	1284	1659
Prosat	1173
QNS	1404
Quadral	1323
Radiola	0200
Radix	0396
Rank Arena	2718
RCA	1291
Regal	1251
RFT	0200
RiksTV	2367	1692	2429
Rimax	2938
Roadstar	0713	0853
Rollmaster	1413
Rover	0713
Rownsonic	1567
SAB	1956	1251	1300	1631
Saba	2205
Sagem	1114	1690	2107	2553	2564
	1004	1692	1691	0820	2429
Sagemcom	1692	2429
Saivod	2418
Salora	1232
Samsung	1243	1916	2176	1700	1795
	2467	1570	1662	1693	3160
	1458	1206	0853	1175
Sansui	1545	1251
Sanyo	1626
SAT	0501
Sat Control	1300
Sat Industrie	1611
Sat Partner	0501
Sat Team	0713
SAT+	1409
SatCatcher	1956
Satec	0713
Satlink	1567
Satplus	1100
SatyCon	1631
Schaub Lorenz	2034	2418
Schneider	1251	2842	1206
Schwaiger	1474	1334	1658	1412	1631
	0740	1111	1429	1672	2308
	0132	1075	2813
Sedea Electronique	0132	1626	0114
Seeltech	1993
Seemann	0396
SEG	1251	1626	0114	1075	1993
	1659	1284	2034
Servimat	1611
ServiSat	1251	0713
Set-One	2728
Shark	1631
Sharp	1935	2034
Sherwood	1611	1409
Shinelco	2278	2938	2738
SHOI	2938
Siemens	0173	1626	1657	1334	2737
	1429	0861	2418	1672
Signatek	2139	2418	2813	2738
SignalMAX	1956
Silver Schneider	0740
SilverCrest	2101	2308	1579
Simz	2241
Skantin	0713
SKR	0713
SKT	0132
Sky	0856	1175	0887	1693	0847
	1662
Sky Deutschland	1114	1915	0873	1197	1176
	1195	1100	1882	1675	1788
	1499	1111	0658	1717	2176
	0099	1159
Sky Italia	1693	1848	2467	1850
Sky New Zealand	0856	0887
Sky XL	1412	1251
SKY+	1175	1662
Skymaster	1409	1611	0713	1075	1334
	1567	2205	1545	2728	2241
Skymax	0200	1413
Skypex	0740
skyplus	1232	1334	1175	1412	1579
	1658	0740
SkySat	0713	0501	0114
SL	0132	1474	0740	1579	1672
SM Electronic	0713	1075
Smart	0132	1631	0396	1232	0713
	1413	1404	2289	2117	1474
SmartVision	1658
Sogecable	0842
Sogo	2139	2842
Soniq	1567
Sony	0847	1558	0853
SOVOS	1974
SPinternet	3148
SR	0132
Star Sat	0132
Starbox	1812
Starcom	0114	2546	2718
Starland	0713
Stream	1848
Stream System	1300
Strong	0820	1367	1409	2813	1543
	0713	2235	1626	1801	2418
	0853	1284	1159	1300	0879
Sumin	1412
Sunny	1300
Sunsat	0713
Sunstar	0132	0642
Sunstech	1993	2139	2738
SupportPlus	2167
Supratech	1413	2139	3067
Systec	0132	1334
Sytech	2139	2418	2842	3012
S-ZWO	1722
Tahnon	1704
TBoston	2418	1658	1659	2546	1251
	2718	2139
Teac	1322	1595	2813
Technika	2034	1284	1672	1626
TechniSat	1195	1197	1100	1099	0501
	1322	0200	0114	0396
Technoit	2278
Technomate	1610
Technosat	1206
Technosonic	1672	0560
Technotrend	1429	1672
Technowelt	0132
Techwood	0114	1284	1626	2034	1935
	1932	1931	1251

TELE System	1611	1801	1159	1409	1251
	0396	2718	2739	2750	2764
	3195	3060	2813	3330	3211
Tele2	1795
TeleClub	1367
Telecom	0713
Telefunken	2871
Tekea	0396	0501
Telestar	0501	1099	1100	0114	0200
	1429	1251	1334	1626	1672
	1195	1197
Teletech	0114
Televes	2505	2101	0501	0132	1300
	1334	1409	1474	2566
Telewire	1232
Telsey	2738
Tesla	1626
Tevion	1334	1672	0560	0713	1409
	1622	1567	2205
Thomson	0842	0847	1291	2176	2107
	1853	1658	1046	1175	0853
	1662	2160	0820	1459	1935
	1932	1931	0713	1543
Tiny	1672
Tioko	0132
Titan	1886	2205
Tividi	1429	1736
TNT SAT	2235	1692	2564
Tokai	0200	3067
Tonna	1777	1611	0501	0713
Topfield	1986	1545	1783	1722	1206
	1208	1824
Toshiba	1284
TPS	0820
TrekStar	2813
Triasat	0501
Triax	0501	0200	0396	0713	0853
	1251	0114	1291	0132	1474
	1099	1626	1611	1700	1413
	2101	1886
Tricolor TV	1176
Trio	1075
Triones	1658
TT-micro	1429
Turnsat	0713
TV Cabo	2160
Twinner	0132	0713	1611
UEC	0879	1356
Umax	1993
Unisat	0200	0132
United	1251	2418	2842	1626	2278
	3214
Unitymedia	1429	1882	1176	1195	1197
Univers	1886	1932
Universum	0173	0114	1099	0740
Van Hunen	1161
Vantage	1458	2297
Vaova	1993
Variosat	0173
VEA	2418
Ventana	0200
Versatel	1795
Vestel	1284	1251	0114
VH Sat	1161
Viasat	1323	1023	0820	1682	1195
	2235	1197
Viola Digital	1672
Vision	1626	1886
VisionNet	1812
Visiosat	1413	0560	0713	0114	1129
	1658
Vitecom	1413	2531
Volcasat	2418
Volia	1780
Voo	0853
Walker	2034
Wavelength	1232	1413
Welho	2357
Wetekom	0501
Wharfdale	1284	2034	0200	1935
Winbox	1801
Winix	2278
Wisi	0173	0396	0501	0132	1412
	0740	1232	1986
Worldsat	1543	0114	1251
Woxter	2418	2139	2813
XMS	1075
Xoro	3012	2738	2813	3330
XSat	0713	0847	1323
Xtreme	1300
Yakumo	1413
Yamada	1993	2139
YES	0887
Yukai	1659
Zap	2160
ZapMaster	0740
Zehnder	1777	1251	1334	1075	1232
	1413	1412	0114	1631	2235
	1886	2242	2034	0740	2289
Zenith	0856
Zeta Technology	0200
Ziggo	1657	1499	2443
Zinwell	1176	1173
Zodiac	1801	2505	3067
Zon	2160

CBL

@Home	1666	2015	0660
ADB	1730	1920
Akado	2043
Alice	1961	1624
Altibox	2030
Amino	1481
Belgacom TV	2047
BT Vision	2294
Cablecom	1582	1961
Cisco	2589	2401	2047
ClubInternet	2132
Com Hem	0660	1666	0691	2447	2015
	0817
Darty Box	2436
Du	2401
Fastweb	1730
France Telecom	0817
freebox	1976	1482
GuestComm	2030
Humax	2043	2142	0660	1813	2447
	1885	1983	2165	1981	1958
	2620
Kabel Deutschland	1981	1983	2165	1958
KabelBW	1813	1958	1981	1983	1060
Kiss	2132
Kreatel	1385	2030
Macab	0817
Meo	2401
Motorola	1562	2401	2030
Noos	0817	1624	2436
NTL	1060	1068
Numericable	2436	0817
Ono	1068	1562
Optus	1060
Orange	0817	2407	1624

Orange	08	2407	2624
Pace	1068	2401	2620	1060
Philips	1619	2294	0817	1582	1958
Portugal Telecom	2401
Premiere	2620	1813
Sagem	0817	1624	2436	2407
Samsung	2407	2015	1060	1666	1987
	0691	2610	2368
Scientific Atlanta	2401	2436	2047	0477	2132
Sky	2620
Sky Deutschland	2620	1813	1619	1885
Stofa	2015
Stream TV	1481
Tele Danmark	0817
Telecom Italia	1961
Telenet	1920
Telewest	1068	1060	1987
TellaSonera	1385
T-Home	2132
Thomson	1582	1981	1983	2407	1958
TP	2407
Unitimedia	2610
UPC	1582
Visasat	2030
Viken Fibernet	2030
Virgin Media	1060	1068	1987
Visiopass	0817
YouSee	0817	2368
Ziggo	2401	2015	0691	0660	2142

VAC

Argosy	2270
ATMT	2270
Captiva	2270
Digitech	2260
Elonex	1272
Eminent	2260
Fujitsu Siemens	1272
Galaxy	2238
Hewlett Packard	1272
hFX	1272
INOi	2270
Iomega	2270 2238
ISTAR	2260
LaCie	2238

me2	2270
Memup	2270
Microsoft	1272
Oidata	2270
Packard Bell	2238
Pinnacle Systems	1447
PopBox	2260
Popcorn Hour	2260
RaidSonic	2238
Ricavision	1272
Trust	1272
Via Technologies	1272
Western Digital	2558
XBox	1272

MISC

Aiwa	0159
Apple	1115
Sony	0159
Xitel	1115
Yamaha	2021 2116

AMP

Acoustic Solutions	1501 1446
Audiovox	1408
Cambridge Audio	1730
Curtis Mathes	0300
Denon	0272
Logitech	1408
Marantz	2138
Pioneer	0300 0823
upXus	1446
Yamaha	0848

TUNER

Aiwa	0121	1058	1158	1258	1822
Akiai	0609	1220
Anam	0609
Arcam	1089	1189	1269	1289
Atoll Electronique	1308
Audiolab	1089	1189	1269	1289
Balanced Audio Technology			1089	1189	1269
	1289
Bang & Olufsen	0799
Bonnc	1189
Bose	1629
Bush	1089	1189	1269	1289	0797
Cambridge Audio	1647	1189
Centrum	1220
Clatronic	1220	0797
Copland	1089	1189	1269	1289
Cosmotron	0797
Denon	1360	2857	1104	2861
DIK	0797
Dual	1220
eBench	0797
Electrocompaniet	1189
Elta	0797
Genexxa	0186
Goldmund	1089	1189	1269	1289
Goodmans	0609	0797
Grundig	1089	1189	1269	1289	0797
Harman/Kardon	1304	1310	1089	1306	1189
	1269	1289
Hitachi	1220
Integra	1805
JBL	1306
JVC	0074	1374
Kenwood	1313	1027	1570	0186
KompernaB	0797
LG	1524
Lifetec	0797
Linn	1089	1189	1269	1289
Loewe	1089	1189	1269	1289
Marantz	1089	1189	1269	1289	2117
Mark	1089	1189	1269	1289
Matsui	0797
Medion	0797
Melectronic	0609
Meridian	1089	1189	1269	1289
Micromega	1089	1189	1269	1289
Microstar	0797
Mx Onda	0797
Myryad	1189	1089	1269	1289
NAD	0320	0609
Naim	1089	1189	1269	1289
Okano	0609
Onkyo	1805	0135	1320
Optimus	0186
Palladium	0797	1220	1524
Panasonic	1518	1763	1765	1309	1308
	1316
Paramount Pictures	1220
Philips	1189	1269	1089	1289	1266
	2459
Pioneer	1023	0186	1123	1089	1189
	1269	1289	1284	1459	1623
	1935
Prima Electronic	0797
Proceed	1189
ProLine	0797
Proson	0609
Quad	1089	1189	1269	1289
Radiola	1089	1189	1269	1289
Revox	1089	1189	1269	1289	0186
Revoy	1089	1189	1269	1289
Roadstar	0797
Rotel	0793
Samsung	1868	2137
Sansui	0609	1089
Schneider	1220
Sharp	0186
Siemens	0609
Silva Schneider	1524	0797
Sony	1158	1759	1758	1058	1658
	1258	1454	1558	1441	1112
	1822	2172
Soundwave	0609
Tag McLaren	1189
TCM	0797
Teac	0797	0609
Technics	1763	1518	1309	1308	1765
	1316
Thomson	1354	1194
Thorens	1189	1089	1269	1289
Universum	1220	0797	0609	1089	1189
	1269	1289
Victor	0074
Watson	0797
Welltech	0797
Wharfedale	0609
Yamaha	0176	1276	0712	1776	1949
	1815	0376	2061	2342	0186

LASER

Denon	0059
Grundig	0059
Microboss	0726
Mitsubishi	0059
NAD	0059
Pioneer	0059
Telefunken	0059

DVD

3 Plus	0490
3D LAB	0539
4Kus	1158
Acoustic Solutions	0730	0713
AEG	0788	0770	0790	1894	1233
	1923	0675	2173
AFK	1152	1923
AGK	2139
Aim	0672	0790
Airis	1224	1321	0672	0826	1345
Aiwa	0695	0869	0533	2020	2043
Akai	0790	0788	1115	0898	0713
	1233
Akira	1321
Akura	2112	0898	1367	1493	1383
Alba	0713	0723	0695	0730	0539
	0672	1530
All-Tel	0790
Amitech	0770	1894
Amstrad	0713	1115	1367	1571	1493
	1894	0790	0770	2139	2172
AMW	0872
Ansonic	0759	0831	1493

AMW	0872
Ansonic	0759	0831	1493
Apex Digital	0672
Arena	1115
Aria	0893
Arianet	0893
Aristona	0539	0646
ASCOMTEC	1923
Asono	1224
ATACOM	1224
Audio Authority	2555
Audiosonic	1527	1923	1383
Audioworld	0790
Audix	1152	0713

Autovox	0713
AVideo	2173
AWA	0730	0872	1555
Axion	0730
Basic Line	0713
Baze	0898	0672
BBK	1224
Bellagio	0872	1004
Bellwood	0826
Belson	1923	2139	2172
Belsonic	1493
Berthen	1643
Best Buy	0857	2139	2172	1894
Binatone	1923
Biostek	1601	1623
Black Diamond	0713
Blusens	1233	1321
Blue Sky	0713	0695	0672	0651	0790
BlueTinum	1493
BNI	1321
Boghe	1004
Boman	0788	0898
Bose	2023	1895
Brainwave	0770	1115
Brandt	0651	0551	0503
Bush	0713	0831	0695	0730	0723
	1483	1832	1367	1530	1383
Cambridge Audio	0751
CCE	1917
Celestial	0672
cello	2112
Centrex	0672	1004
Centrum	0713	0893	1923	0675
CGV	0770	0751
Chili	1493
Cinetec	0713	0872
Cinex	1367
CI Digital	1643	2173
Classic	0730	1917
Clatronic	0788	0672	0675	1233
Clayton	0713
CMX	1643	1601
Coby	0730
Codex	1233
Compacks	0826
Conia	0672	1623	1321
Contel	0788
Continental Edison	0872	0831
Crown	0770	0651
C-Tech	0768	1152
Curtis	1493
Cybercom	0831
CyberHome	1023
Cytron	0651	0831	1347
Daenyx	0872
Daewoo	1483	0770	1918	0872	0213
Dalton	1036
Dansai	0770	1115
Dantax	0723	0695	0713
Daytek	0872
Dayton	0872
DCE	0831
Deca	0770
Denon	0634	1634	0490	2258
Denver	0788	0898	1321	1923	1601
	1493	0672
Dew	2112
Diamond	0651	0768	0751	0723	0790
	1152	0770	1115
Dick Smith Electronics	0213
Dicra	2173
Digihome	0713
DigLogic	0713
Digital	2173
Digital i	0893
Digitech	1832
Digitor	0651
Digitrex	0672	1004
Digix Media	0826
DiK	0831
Dimarson	1233
Dinamic	0788
Disney	0831
DK digital	0831	1643
DMTECH	0790	1614	2173
Dragon	0831
DSE	1152	1527	0675	0213	1832
Dual	0831	0713	0651	0730	0790
	1023	1530	1115
Durabrand	0675	0831	1530	0713
D-Vision	1115	1367
DVX	0768	1832	1152
e:max	1233	1321	1643	2173	0770
e-Bench	1152
E-Boda	0723
Eco	1555
Eclipse	0723	0751
E-Dem	1224
Electrohome	0770
Elenberg	1832
Elfunk	0713
Elin	0770
EIta	0770	0788	0790	1115	1233
	1894	1643	2173
EItax	1321	1623
Emerson	0869
Enzer	0770
EuroLine	0788	1115	1233	1884	1555
	0675	1643
F&U	2172	2139
Ferguson	0651	0898	0713
Finlux	0741	0770	0672	0751	1884
Fintec	0713	1530	1367
Firstline	0869	0651	1530
Fisher	1919
Funai	0695	0675
Futronic	0893
Gericom	1004
Global Link	1224
Global Solutions	0768	1152
Global Sphère	0768	1152
Gold	1601	2112
GoldStar	0741
Goodmans	0713	1004	0723	1383	0751
	0730	0651	0790	1923	1530
GoWell	1643
GPX	0741
Gran Prix	0831	0898
Grandin	0672	0713	2173
Grundig	0695	0539	0651	0790	0713
	0670	0652	0723	0551	1004
	1483	1832
Grunkel	0770	1493	0831
H&B	0713	1233	1894	1614
Haaz	0768	0751
Hanseatic	0741	0790	1884	1614
Harman/Kardon	0702
HCM	0788
HE	0730	1923	1493
Henß	0713
Hicon	0672
Hikona	1383
HIMAX	0857
Hitachi	0664	0573	0857	0713	1748
Hiteker	0672	1923	1623
HoHer	0826	0831	1004	1224	2173
	0713	1530	1643
Home Electronics	0730	0770
Home Tech Industries	1224	1923
HYD	1233
Hyundai	1527	0788	0768	1152	1530
	2112
ICP	1152
Ingelen	0788
Inno Hit	0713
Integra	2147
Irradio	0741	1115	1224	1233	1894
	0869	0770
ISP	0695
ITT	1233
Jamo	1036
JBL	0702
JDB	0730
JDV	1367	1555
JGC	1530
JMB	0695
JVC	0623	1901	1164	0539	0503
	1860	1597
Kansas Technologies	1233	1530
Karcher	1367
Kazuki	1493	1623
Kendo	0713	0831	0672	1347
Kennex	0770	0713	0898
Kenwood	0534	0490	1906
KeyPlug	0770	1643
Kiro	0770
King Vision	1643	1493
Koda	1230
Koss	0651
KXD	0857	1321	1923
Lawson	0768	1152
Leiker	0872
Lenco	0651	0770	0713	0831	1383
Lenoxx	1923
Lexia	1152	0768
LG	0741	1906	2189	0869	2419
Lifetec	0651	0831	1347
Limit	1152	0768
LiteOn	1158	1416	1644
LM	1643

Lodos	0713
Loewe	0539	0741
Logic3	0772
LogicLab	0768	1152
Logik	0713	1832
Luker	1367
Lumatron	1115	0741	1321	0713	0730
	0898	1832
Luxman	0573
Luxor	1004	0713	0730
Magnet	1884
Magnavox	0503	0675	0539	0713	1354
Magnex	0723
Majestic	1345
Manhattan	0713
Manta	1493
Marantz	0539	2432
Mark	0713	0695
Marks & Spencer	2112
Marquant	0770
Mastec	1006
Matsui	0651	0713	0672	0695
Maxdorf	0788
Maxim	0713	1367
Maya	1345
MBO	0730	1917
Mecotech	0770
Mediencom	0751
Medion	0831	2189	1347	2425	0651
	1345	1006	0652	1416	1644
	0741
MEI	0790
Memorex	0831
Memory	0730	1383
Metz	0571	0713
MiCO	0723	0751
Micromaxx	0695	1347
Micromedia	0503	0539
Micromega	0539
Microsoft	1708	0522
Microstar	0831
Minax	0713
Minoka	0770	1115
Mirror	0652
Mitsubishi	0713
Mizuada	0857
Multitech	1367
Mustek	0730	1917
Muvid	1643	2173
Mx Onda	0651	0751	0723	1383	1601
Mystral	0831	1894
NAD	0741	0692
Naiko	0770	1367	1004
Narita	1367
NEC	0869	0692	1918	0741
Neom	1493	1643
Neon	2112
NeoXeo	0826
Nevir	0831	0770	0672
Nexus	0790
Next Base	0826
Nfren	0826
Nikkai	1923
Nordmende	1614	0831	1530
Nortek	1643	2173
Nu-Tec	1493
Oasis-Media	1601
Oceanic	1614
Omni	1832
One For All	2555
Onkyo	0627	0503	1769	2147
Onn	2112
Onyx	2112
OoplA	1158
Optimus	0571
Orava	1923	0713
Orbit	0872
Orion	0695	1006	1233	0898	0713
Oritron	0651
OTIC	0826	1383
Pacific	1152	0790	0768	0759	0713
	0831
Packard Bell	0831
Palladium	0695	0713	1367
Palsonic	0672	1251
Panasonic	0490	1834	1908	1905	1910
	1579	1641
Papouw	0533
peekTON	1224	0898
Philips	0539	2056	1340	0646	1354
	1813	1506	1846	0675	0503
	1158	2049	2084	2093	2334
	2434
Philo	1345
Pioneer	0571	1965	0631	1900	1571
	0142	1531	2442
Play It	1643
Pointer	0770
Portland	0770
Powerpoint	0872	2112
Prinz	0831
Prism	1006	0831
Pro Vision	1923	1321	1493	0730	1272
Pro2	1272	1345
ProCaster	1004
ProLine	0651	0672	0790	1004	0652
	1483
Proscan	0522
Proson	0713
Prosonic	1614	2112	1923
PVision	1614
Pye	0646	0539
Radionette	0741	0869	1906
Radiotone	0713
RCA	0522	0651
RE-BL	2555
REC	0490
Red Star	0759	0770	0788	0898	1923
	1345
Relisys	1347
Reoc	0768	1152
Richmond	1233
Roadstar	0713	0730	0898	1227	1832
Rolsen	1614
Ronin	0872
Rotel	0623
Rowa	0759	1004
Rownsonic	0723
Saba	0651	2173	1643	0551
Sabaki	0768
Saivod	0759	0831	1367	0770
Sakyno	1152	0768
Salora	0741	1614
Sampo	1347
Samsung	0199	0573	0298	1635	1932
	0744	1075	1748	2107	2269
	0490
Sansui	0695	0768	0770	1152	1230
	0723	0751	1832	1884	1115
	0826	1894
Sanyo	0670	0695	0213	0790	1919
	0713
ScanMagic	0730
ScanSonic	0857
Schaub Lorenz	0788	0770	1152	1643	2173
Schneider	0831	0539	0788	0713	0651
	0869	0790	1884	1367	0646
	1227
Schöntech	0713
Scientific Labs	0768	1152	0652
Scott	0651	0672	1036	1233	1383
	2173
Seeltech	1224	1643
SEG	0713	0768	1152	0872	1530
	1483
Sencor	1623
Shanghai	0672
Sharp	0713	0695	2250
Sherwood	0741	0213
Sigmatek	0857	1224	2139	2172
Siltex	1224
Silva	0788	0898	0831
Silva Schneider	0831	1906	0741
SilverCrest	1152	0768	1643	2173
Singer	0723	0751	0768	1152
Sinotec	0770	1115
Sistemas	0672
Skymaster	0730	0768	1152
Skyworth	0898
Sliding	1115
Slim Art	0770
Slim Devices	0533
SM Electronic	0730	0768
Smart	0713
Sogo	2172	1493	2139
Sonashi	0831
Soniko	0788
Sontech	1383
Sonwa	1004
Sony	0533	1070	1516	1981	1536
	1633	2020	0864	0772	2555
	2043	1824	2132	2457
Sound Color	1233
Soundmaster	0768	1152
Soundmax	0768	1152
Soundwave	1530
Spectra	0872
Standard	0651	1152	0768	0788	0831
	0898
Star Clusters	0768	1227	1152

Starmedia	0893	1224
Stein	1601
Stevison	1367
Strato	1527	1152
Strong	0713
Sunfly	0857
Sunkai	0770
Sunstech	2139	0831	1601	2172	1614
Sunwood	0788
Superior	1643	2173
Supervision	0730	0768
Supratech	2172	0893	2139
SVA	0672
Symphonic	0675
Synn	0768	1152
Syscom	0826
Sytech	1601	2139	0831
Tandberg	0713
Tangent	1321	1623
Targa	0652	1158	1227	1644	1906
	0741	0869
Tatung	0770
TBoston	2172	2139
Tchibo	0741
TCM	0741
Teac	0741	0790	0571	0768	0692
	1006	1152	0759	1227	0675
	1224	1913	2112	1383
TEC	0898
Technica	1367
Technics	0490	1905	1908	1910
Technika	0770	1115	0831	1530	1383
	1152
Technisson	0672
Technosonic	1115	1367
TechnoStar	1643
Techwood	0713	1530	0539
Tecnimagen	1233
Tedelex	1004	0768	0770	1152
TELE System	2173
Telefunken	0790	0788	1923	1832	1483
	1115	0770	1345	1555
Teletech	0713	1152	0768
Tensai	0651	0770
Tevion	0651	1036	1152	0768	1004
	2425	0898	1227	1347	0652
Textorm	1493
Theta Digital	0571
Thomson	0551	0522	0831
Tokai	0898	1894	0788	1233
Top Suxess	1224
Toshiha	0503	1510	0452	1769	0695
Tosumi	1367	2112
TRANS-continentis	0872	0826	0831	1233
Transonic	0672
Trevi	0831
Trio	0770
TruVision	0857
TSM	1224
TVE	0713
United	0788	0730	1383	0790	0672
	0695	1115	0768	1233	1555
	0713	1152	0826	1832	1367
	0675	2112
Universal
Multimedia	0768	1152
Universum	0741	0713	1918	1913	1227
	0790	1530
Uptek	0893
upXus	1345
Vecturech	1493
Venturer	0790	1769
Vestel	0713	1530
Viewmaster	1224
Voxson	0730	0831
Waitec	1224	1894	1917	0730
Waltham	1530
WB Electronics	2555
Welkin	0831
Wellington	0713
Weltstar	0713
Wharfedale	0768	1832	0790	0723	0751
	1152	0652	0770	1115	1383
Wilson	0831	1233
Windy Sam	0573
Waxter	2139	2172	1224
XBox	0522	1708
Xenon	1923
Xiron	1383
XLogic	1832	0770	0768	1152
XMS	0788	0770
Xoro	1251
Yakumo	1004	0652
Yamada	1004	0872	1493	1416	1158
	0652	1623	2139
Yamaha	1840	0539	0646	0817	0490
	1158	1354
Yamakawa	0872
Yukai	0730	1917
Zenith	0503	0741

In the UK 0901-5510010 (£ 0,50 per minute) FAX: [phone] [e-mail] (*)	Ireland 016015986 FAX: [phone] [e-mail] (*)	Australia 1 300 888 298 FAX: [phone]
New Zealand 0508 663 4 255 FAX: [phone]	South Africa 0860 100551 011 417 3074 / 011 417 3075 FAX: [phone] [e-mail]	Deutschland 06966984962 FAX: [phone] [e-mail] (*)
Espana 917873180 FAX: [phone] [e-mail] (*)	France 0173036536 FAX: [phone] [e-mail] (*)	Italia 0248296093 FAX: [phone] [e-mail] (*)
Luxemburg/Luxembourg 4066615632 FAX: [phone] [e-mail] (*)	Portugal 800-831397 FAX: [phone] [e-mail] (*)	Schweiz/Suisse/Svizzera 0443420449 FAX: [phone] [e-mail] (*)
Österreich/Austria 01790876064 FAX: [phone] [e-mail] (*)	Nederland 0205174790 FAX: [phone] [e-mail] (*)	België/Belgique 022750851 FAX: [phone] [e-mail] (*)

() Just send a blank message, you'll get auto-reply
() Bitte senden Sie uns nur eine blanko Nachricht, Sie erhalten direkt eine automatische Rückantwort.
() Envoyez juste un message 'blanc', vous obtiendarez automatiquement un questionnaire à replir.
() Por favor envientos un mensaje en blanco, a su vez recibirà una responsa automática con un formulario a rellenar.
() Por favor envie-nos somente uma mensagem em branco,porque você receberá um e-mail de volta.
() Basta inviare un messaggio vuoto, riceverà un'auto reply (risposta automatica).
(*) U kurz ons een blanco mailbericht sturen, u ontvangt dan spoedig een auto-reply (met.daarin een gevevensformulier dat u kan invullen en terug sturen).

Magyar/Hungary 017774974	Polska 0-08003111302 www.oneforall.com	Türkiye www.oneforall.com
Česká/Czech 0239000517 oneforall@solid- czech.cz	Slovenská/Slovakia [phone] oneforall@solid- czech.cz	Ykpaşa/Ukraine www.oneforall.com
Danmark [phone] (8:30 - 16:00) FAX: [phone] [e-mail] www.fovitech.dk	Norge 22971712 www.oneforall.com	Sverige 087515266 www.oneforall.com
Suomi/Finland 0800-9-0323 FAX: [phone] [e-mail] www.avkomponentti.fi	Ελληνική/Helias/ Greece 2410 555599 FAX: [phone] [e-mail] www.digitech.gr	Руccskий/Russia 0495 787 3211 FAX: [phone] [e-mail] www.oneforall.ru
Бълария/Bulgaria www.oneforall.com	România www.oneforall.com	Hrvatska/Croatia [phone] FAX: [phone] [e-mail]
India • Toll Free number (Airtel/BSNL/Tata Indicom/BPL subscribers only): 1800-102-3299 • Other subscribers: 080-40351700 [e-mail]

India

UEI Electronics Private Ltd offers you, the customer, ONE YEAR WARRANTY for your Remote.

The Remit is warranted against manufacturing defects arising from faulty design, poor workmanship and materials for a period of One year ("the period") from the date of its original purchase by you, on the following terms and conditions.

To obtain warranty service, please call us at the numbers applicable to your local area mentioned on the Customer Service Page of the User Manual or available on www.oneforall.co.in

This warranty will be valid only when the original invoice/ purchase receipt (indicating date of purchase, product description, dealer's name etc.) is presented with the defective Remote. Universal reserves the right to refuse free-of-charge warranty replacement if the above document cannot be presented or if the information contained in it is incomplete, illegible or incorrect. This Warranty does not apply if the type, serial number on the Remote has been altered, deleted, removed or otherwise made illegible. Universal's liability, under this warranty, shall be strictly limited to the first/original sale by the dealer/retailer to you (the first user), and will not apply or extend to any secondary or subsequent sale/transfer of the Remote by you.

You shall be liable for all expenses incurred in delivering the defective Remote to us at the applicable addresses, however, we shall bear the cost of delivery to you for the replacement Remote. While Universal shall make all efforts to replace the defective Remote at the earliest, it is made expressly clear that Universal is under no obligation to do so in a specified period of time. Universal reserves the right to retain the defective Remote, at its own discretion. Please note that the replacement of the Remote, shall not extend the warranty period beyond one year from the original purchase. No fresh warranty shall apply to the replacement Remote.

This Warranty covers only manufacturing defects in the Remote which occur under conditions of normal operation of the Remote and in consonance with their proper and prescribed use. This Warranty does not cover the damage resulting from adaptations, adjustments, modifications made to the Remote or normal wear and tear, misuse, reckless use, damages caused due to natural disasters, Acts of God. This Warranty does not extend to accessories or products used with the Remote, batteries, broken or married cabinets, cartons, carrying cases or any other item used in connection with the Remote. This Warranty does not apply if the Remote has been tampered with, altered, serviced by any agency, person not authorized by Universal. It is your responsibility to check and verify from Universal, the authenticity of the authorization, which any servicing agency may represent to you.

This Warranty is in lieu of all implied conditions and warranties under applicable law and is confined to replacement of the defective Remote and does not cover any special, consequential, incidental or resulting liability, damage, loss arising from such defects. This warranty, in no event, shall extend to the payment of any monetary consideration or compensation whatsoever. This Warranty does not affect your statutory rights under applicable Indian laws. This Warranty is valid only within the territory of India. In the event of a dispute arising in relation to or connected with this Warranty, the decision of Universal shall be final and binding.

For more information, write to:

UEI Electronics Private Ltd

5th Floor, East Wing

Khanija Bhavan

49 Race course Road

Bangalore 560 001

Dansk

Universal Electronics Inc./ONE FOR ALL GARantor hermed over for den oprodinlge kaber, at dit tepe like kber fremnise materielle eteknisk fej veled normal og korkecht drugien for an enpoe af 1) fr a der oprodinlge kabstdo. Etertestuaf u/6, his det hav stig vare defiek inden for garantipieno pa et (1) ar. Denne garanti onfamer itk eallage, etu, batterie, adelagite/skaemmede kabineter ell andre inheder, der er benyrett semmen med productet. Erstaningspigten geld kun de under ofovernt afothe foreld. Opostr der fej indien for garantipieno, bedes De ventilng tire ois auf nummernt neamt under "Kundeservice" manulien. Bemark verilgt, at si hav Ke ded Nesbokat for atk kunst falle, hvvidct De berettig tll gartiservice. Hvis du har kabet dit producte um folle der ikke har relation dl tith erhivent erlenbrish uakus, at du mulligis helegal rettgihder und din natioale loviginings bestemessler om salg af forbrugervener.Den garanti pavirkerlike disse rettgihder.

Norsk

UNIVERSAL ELECTRONICS INC./ONE FOR ALL GARANTERDEttesdutpotet for materielle og technise feil som oppostarved normal og nigtig bruk en periode p 1 a rfa kjepsdata. Produetiv vll estatatostkndfrs det visser garev dfeckntin 1 ar.Denrantgantien gelder kipaking, emballase, baterie, adelage ete skadede cabinet eero anen gionstandbruk tforbindese med produet. Annet ansvar en nevt over gijderke. For f3 garantiservice iGarantiterioden, vennligt ring osp atdetonnummerot sstar p kundeservse-siden.Vennligt merk at v trener gyldig kittering fra forhander. Hvis du har kjapt de ttes potettd toform si likeh relasjon t difthenvr, forening eri transje, sa husk at du kan h a tegale rettgertter ettner nasione lgovnings bestemmelser om sgav af brokruvener. Dean geranti pavirker icke disregethert.

Svenska

UNIVERSAL ELECTRONICS INC./ONE FOR ALL LAMM TILL KOPPER ETTS GRANI FROM INKOPSDatum - ATT Denna ProduktU r felfni avsende materi oth lvekronng. O producien ar felaktg und normal anvandlng dynes denat met ny utan kostnad for koper undarantigen. Garanti onomfatt er jfpackrning, bavska, batterien - skadat hola ene andherer anemoh sorn anvands unslutting tullnol. For et arrhalla garrani service-undiveren ta nangen kontakta var kundsupport auf te teflennummer som atterfnis p sidian for kundservice i braksunvisingen. Sparst ditt inkopskvito for at styka din garanti pdkuten. Om du har koptd Dennaprodent for tct syte mone tnt e biszladtd tld hnbrans, affsverskamhet eylrke kom hag att du kan ha andra nationella lagar som tackerfolssing ay konsumentervar.Denna garanti paverkar inte dessa rhtigether.

Suomi

UniversalALTEcONics INC./ONE FOR ALL warrants to the original purchaser that this product will be free from defects in materials and workmanship under normal and correct use for a period of one (1) year from the date of original purchase. This product will be replaced free of charge if it has been proven to be defective within the one (1) year warranty period. This warranty does not cover cartons, carrying cases, batteries, broken or marred cabinets or any other item used in connection with the product. Any further obligation than listed above is excluded. To obtain warranty service during the warranty period, please call us at the number mentioned on the Customer Service page. Please notice that we need your purchase receipt so that we may establish your eligibility for service.

If you have bought this product for purposes which are not related to your trade, business or profession, please remind that you may have legal rights under your national legislation governing the sale of consumer goods. This guarantee does not affect those rights.

Deutsch

TV: Television/HDTV/LCD/Plasma/Projector/Rear Projector.92

SAT

SAT: Satellite Receiver / Set-Top-Box / IPTV / DVB-S / DVB-T / Freeview (UK) / TNT (F) / Digitonne (NL) / SAT/HDD 97

CBL: Cable Converter/Set-Top-Box/IPTV/DVB-C 101

VAC: Video Accessory like Media Centres / AV Accessories / AV Selectors 101

DVD

DVD: DVD Player / DVD-R / Blu-ray / DVD Home Cinema / DVD Combi / DVD/HDD 102

LASER: Laserdisc 102

AMP

MIS: Miscellaneous Audio 101

AMP: Audio / Amplifier / Active Speaker System 101

TUNER: Audio / Audio Receiver/Tuner/Amplifier / (DVD) Home Cinema 101

Power

• Master Power (in "Combi Control")

• Combi Contol

"Source Selection" (in AMP)

(e.g. "1" = TUNER, "2" = DVD etc.)

• AV/Input / 20 / C/P (in TV)
• TV/SAT" / TV/DTV (in SAT)
• TV/DVD / 20 (in DVD)
• Function/Source selection (in AMP)

Previous Channel (in TV/SAT/DVD)
- Repeat (in AMP)
16:9 (in TV/SAT)
open/close (in DVD/AMP)

If the LED's become dim; please replace the batteries.
- Wenn die LED verdunkelt,itte Batterien auswechseln.

• Si la luz del LED se vuye tenue, sustituya las pilhas.

• Si l'intensité des diodes diminué, remplacez les piles.

• Se o LED brilhar dufus, substitua as pilhas.

How to set up two (or more) devices of the same type.

page 2

Key Magic

Allows you to obtain functions

from your LOST or BROKEN

original remote control.

page 3

Missing function after Set Up procedure

Key Magic®

Obtain your Missing function through

our Customer Service requesting a

(5-digit) Key Magic® function code.

Then, simply follow the procedure

from page 3.

Macro

Allows you to send a sequence

of commands with the press

of a single key.

page 4

e.g. Macro on "red key"

Command 3 Command 2 Command 1

Macro on "red key" =

command 1: dvd STOP

command 2: dvd OFF

command 3: tv OFF

What is my

"Set Up Code again?

Find out which code is currently

set under each of the 4 device

modes.

page 5

My Code is?

1556

This feature gives you the possibility to program 2 (or more) of the same device types onto the ONE FOR ALL remote (e.g. two tv's).

In the following example you wish to set up an additional television. Therefore we will reassign (change) "sat" mode into "tv" mode.

e.g. How to reassign "sat" into "tv" so you can control your second television as well:

1
Press and hold magic for 3 seconds until a mode indicator (Blue LED) stays lit.

2
Press 992.
--> The blue LED will blink twice.

3

4
Press and release the magic key.

5

6
Press and release the magic key. --> The blue LED will blink twice.

Congratulations! You have successfully reassigned "sat" mode to become a second "tv" mode.

Now simply follow "ONE FOR ALL SimpleSet", "Direct Code Set Up" or the "Search Method" to program your television in sat mode.

Key Magic® is an exclusive ONE FOR ALL feature. The design of the ONE FOR ALL ensures that many functions of your original remote control can be operated - even those that do not have their own key on the ONE FOR ALL keypad. Frequently used functions can be assigned to a key of your choice using the Key Magic® feature of your ONE FOR ALL. In order to program a certain function with Key Magic® you need to know the corresponding function code. As the function codes vary with different types of devices, they cannot be found in the manual. You can request your function codes through our consumer service help-line or by letter, fax or e-mail.

When you contact us please make sure to mention the following:

• The Current code you are using (see "What is my Set Up Code again?")
  Device-type, Brand & Model-number of the corresponding device.
• Model-number of the original LOST or BROKEN remote control.
• How the function was labeled on your original remote control.

then;

Customer Service will provide you:
- A func-code (5-digit) for every requested function.

Once you obtain your function code(s) from customer service, programming the code is easy:

Example: How to get the "I/II (mono/stereo)" function from your original LOST or BROKEN remote onto the "red key" on your ONE FOR ALL remote control.

1

2

Press and hold magic for 3 seconds until a mode indicator (Blue LED) stays lit.

3

Press 994.

-> The blue LED will blink twice.

4

Press and release

the magic key.

5

Enter the 5-digit function-code provided by Customer Service.

(e.g. 00123)

6

Press the key to which the function will be assigned (e.g. red key).

->The blue LED will blink twice.

Congratulations! You have successfully programmed the "I/II (mono/streo)" function from your original remote control onto your ONE FOR ALL remote control. NOW whenever you press the "red key" (in tv mode) you will obtain the "I/II (mono/streo)" function.

How to reset a key to obtain its original function?

1) Select the corresponding device mode (e.g. tv).
2) Press and hold magic for 3 seconds until a mode indicator (Blue LED) stays lit.
3) Press 9 9 4.
4) Press the corresponding key (e.g. red) twice.

You can program your ONE FOR ALL to issue a sequence of commands at the press of one single key. Any sequence of commands you regularly use can be reduced to one key press for your convenience.

For example, you may want to create the following macro:

1st command:

dv-->STOP

2nd command:

dv-->OFF

3rd command:

tv->OFF

To set up the Macro mentioned above on the e.g. "Red" key on your ONE FOR ALL:

1

Press and hold magic for 3 seconds until a mode indicator (Blue LED) stays lit.

2

Press 995.

->The blue LED will blink twice.

3

Press the key to which the function will be assigned (e.g. red key).

4

5

Press the STOP key

6

7

8

9

Press and hold magic for 3 seconds --> The blue LED will blink twice and then switch off.

Congratulations! You have successfully programmed a macro on the "red" key. NOW, when you press the red key: 1st:DVD will STOP, 2nd:DVD switches OFF, 3rd: tv switches OFF. The remote will do this in every device mode whenever you press the red key.

How to reset the macro key to obtain its original function?

1) Press and hold magic for 3 seconds until a mode indicator (Blue LED) stays lit.
2) Press 9 95.
3) Press the corresponding macro key (e.g. the red key).
4) Press and hold magic key for 3 sec. --> The blue LED will blink twice.

You either set up your ONE FOR ALL by:
- ONE FOR ALL SimpleSet
- Direct Code Set Up
Search Method

Example! How to find out which "Set Up Code" is currently set in tv mode:

1

Press and hold magic for 3 seconds until a mode indicator (Blue LED) stays lit.

2

3

Press 990.

-> The blue LED will blink twice.

4

Press 1 for the 1st digit of your 4-digit set up code and count how many times the LED blinks. If the LED does not blink, the digit is "0".

5

Press 2 for the 1st digit of your 4-digit set up code and count how many times the LED blinks. If the LED does not blink, the digit is "0".

6

Press 3 for the 1st digit of your 4-digit set up code and count how many times the LED blinks. If the LED does not blink, the digit is "0".

7

Press 4 for the 1st digit of your 4-digit set up code and count how many times the LED blinks. If the LED does not blink, the digit is "0".

Congratulations! You have successfully blinked out your current Set Up Code in tv mode.

Your "Set Up Codes":

Operational Reset

The Operational reset will erase all learned functions across all modes and some other programmed functions like Key Magic and Macros.

1) Press and hold magic for 3 seconds until a mode indicator (Blue LED) stays lit.
2) Press 980. The blue LED will blink twice.

Moduszuweisung

Macro on "red key" =

Commande 1: dvd STOP

Commande 2: dvd OFF

Commande 3: tv OFF

Commando 3 Commando 2

When you contact us please make sure to mention the following:

e.g. Macro on "red key"

Macro

Macro on "red key" =

command 1: dvd STOP

command 2: dvd OFF

command 3: tv OFF

A kódom?

1556

Mi is a

"Beallitokodom?"

e.g. Macro on "red key"

Naredba 1 Naredba 2 Naredba 3

Makronaredba na crvenoj tipki =

Naredba 1: ZAUSTAViDVD

Naredba 2: ISKLJUČI dvd

Naredba 3: ISKLJUÇI tv

- Makronaredba

Makro pā den "røde tast" =

Commando 1: dvd STOP

Commando 2: dvd FRA

Kommando 3: tv FRA

• Makro

Lader dig sende en rakte

Makro for den rode tasten =

Kommando 1: dvd STOPP

Kommando 2: dvd AV

Kommando 3: tv AV

Hva er

konfigurations

koden min?

Pntote Ouvtoa to nktpo magic.

5

Eioayayetov 5yio Kwoikó Aetoupyiacnouac Edoae to tmu Eaunnpctonnc Nlaatw. (n.x.00123)

6

Piote to nKtpo oTo onio 0a avtioxioe i aeitoupyia (π.x. Kokkivo nKtpo).

HμπλεluxviaLEDθααvaβoβriδu φopéc.

Euynapntpiaoloknnpwaatee enituxia tv npovpaumatou troaletoupiac "I/II (moovopvivko/otepeoovwkiro) ano to apxiko sac tnlexeiptipio 0to tneiepiortpno ONE FOR ALL. Twp, onote natate to "kokvo nknkpoto (me emiayevnp ti aeitoupyia nleopaoc) th evepyonoeitai n letoupyia I/II (moovopvivko/otepeoovwkiro).

Pioc eanavapopoue eva nktpo stnv apxik tou leitoupyia;

Pntote Ouvtoa to nktpo magic.

5

Eoiayayete Tov 5yio Kwoikko Aetoupyiac nouac Edoae to tmu Eaunnpntnnc Nlaatwv. (n.x.00123)

6

Piote to nIrkpo oTo onoio 0a avTIOxIe i Nleitoupyia (n.x. KOKkivo nIrkpo).

BbIaHume, kakoi Koid

Hacmpouku npuceoeh

Kaxdomy u3 4 pexumoe

pa6ombyycmpoicmea.

ctp 5

Kakoi Koid?

1 blink

5 blinks

5 blinks

6 blinks

1st nr. : 1

2nd nr. :5

3rd nr. :5

4th nr. : 6

1556

3a yHKnI no3BONAE 3anporpammmpoBaTb 2 (uHn 6Oone) oDHOTINhXyCTpoCTBa (HaNPmep, dBA TEeBn3opa) c nOmozbu Ondoro DY ONE FOR ALL. Hnke nokaah nopAOK hactpoKn BTOPOrO TneBn3opa.ДЯЗТOrO Heo6xOIMo NpeHa3NaHTb (m3MeHtB), K pImepy, peKIM "sat" Ha peKIM "tv".

TV2

TV1

4
Haxmnte nOTnyCTnTe KlaBnuIy magic.

5

Пример. КасиMuHtB pexIM "sat"Ha "tv":
1
Haxmte u ydepkmbaite Klaabuuy magic B teuehe 3 ckyh, noka ropnt INdkatop pejima (CnHn INdkatop).

2
HaxmTe 992
->CnHm nHdkaTOP MmHET DBaXDbI.

3

6
Haxmnte n OTnyCTne KnaBnuy magic.

Pocne noIyueHnKoIOB cyHKn, nporpaMMnpOBaHne KoIOB He Bbl3bBaet CNOxHocte:

Haxmnte 3 nIe npB0u cHpbl yetbipex3NaHOrO KoJa HactpoKn I NocHTaIte, CKoIbko pa3 MIRHT eNINkAToP. Ecnn ININkAToP He MInaet, Torga 3Ta cHpa"0".

7

Haxmnte 4 npeBOni uNpbl ueTbipex3NaHOrO KoJa HacTpoKn i NocHTaIte, CKoJIbKO pa3 MInrHet UHNikKaTOP. Ecnn INHdkaTOP He Miraet, Torga 3Ta uNphiPa "0".

Iozdpablaem! Bby y3hann Tekyuyn KOD HacTpoiKn pejima tv.

HaTnchete 6yToHa POWER.

7

8

HaTnCHete 6yToHa POWER

9

HaTuscheteu 3aApbXte 6yToHa magic, 3a Da CbXpaHnTe HaCtpoKnTe Cn.

CINHRTCBETNIHEN INNDKATOPIe npemirhe DbA TbTN Iue Ce N3KJIouN.

Yecntto!Bneporpamnpaxte ycneuho MaKpokomHa ha "cepBHeN"6yToH. CETA,ako HATNCHE Tce cepBHeN 6yToH:1-Bo:dvd nneBpbT ue cnpe (STOP),2-po: dvid nneBpbT ce n3KnIouBa(OFF),3-to:TaeBnIOpBT tv)ce n3KnIouBa(OFF). NCTAHUHOHOTO ynpabNeHMe ue n3bIbNABa Te3N KOMaHd BbB BCEKN pexIM Ha yctpoiCTbTa, kORAto HATNCHE Tce cepBHeN 6yToH.

Kak da Bbphete opunnHaHaTa fynkua Ha 6ytoh,Ha KoITo e 3aJaDeHa MaKpokomHaDa?

1) Hatachete n 3aipbxte magic 3a 3cekyHn,doKaTo nHdkaTopbT 3a peKIM (CnH CBtTIHNEN INHdkaTop) OCTaHe CBeTHaT.
2) HatncheTe 9 95.
3)HaTnCHete CbOTBeTHna 6yToH 3a MaKpOKoMaHda (HaNP. YepBeHna 6yToH).
4) Hatachete n 3aDpBxTe 6byToHa magic 3a 3 cek. -> CnHnT CBeTInHeu INHnKAtop 1e npemirhe DBA pTn.

HactpoTeBaWetoDuctaunHOynypabHeHNEONEFORALLnoeINOTcIeHNTeMeToDn:

SimpleSet Ha ONE FOR ALL
-Диuropeктан actpoKaHaKoI
- MeToI Ha TbpcHe

CneBdaunrte CtbnKIe BN NOKaKaT, KaK Da pa36peTe KO "KoD 3a HacTpoKa" e 3aJaen B MOMTa 3a BCEk npemHa yctpoiCTBO.

1

HaTnCHete n 3aJpbXte magice 3a 3cekyHdI,doKATO INDnKaTopbT 3a pexim (CIN CBETNIHeH INDnKaTop) OCTaHE CBETHaT.

2

3

4

HaTtHcHeTe 1 3a 1-ta 4nΦpa O Ta BaaIIa 4-nΦpen Koi 3a NaCTpoIka N npe6poIte, KOJIko BtNt Ze mIgHe CBetOdnOHDnT (LED) INdKATop. AKO LED INdKATopBT He mIgA, UΦpatae e "0".

5

HaTnCHe 2 3a 1-Ta ZnOpa OT BaAun 4-ntpEn KOD 3a HactpoJa n ppe6poTe, KOJIKO PbTu 1e MInrhe CBeToDIOHnIaT (LED) INHdkaTOp. Ako LED INHdkaTOpbT He MInrA, ZnOpaTa e "0".

6

HaTnHcHete 3a 1-ta 山 aO rBawna 4- 山 pEn KoJ 3a hAeTPOka N npe6poTe, KOKIO pTbTn ige MmHRe CBetOdnOHDnTt (LED) nHdNkatOp. AKO LED nHdNkatOpBt He mIra, uMfpa t e "0".

7

HaTtCHeTe 43a 1-Ta zHpOa OT BaAINa 4-zHpEHN KOJ 3a HAcTpoKa n Ipe6poIe, KOnKo nbTu ige MInr He CBToDnOHDnIaT (LED) INdNkAtop. Ako LED INdNkAtopbT He MInra, ZHpOpa e "0"
YeCTnTo! BVe Bb3pnOn3BeOxTe ycNeuHo Upe3 MInaHe Baunr TeKyu KoJ 3a NaCTpOJaB pexm tv (TeneBn3Op).

BauTe"KoOBe 3a HacTpoiKa":

HynipaneHa hactpoiknte

HynpaheHa hactpoKnTe ige n3tpne BCnuKn 3auehen yHKun BBB BCnuKn peKmN n HkON nporpaHn yHKUn, KaTO Key Magic u MaKpOKoMaHdnte.

1) Hatnche n 3aApbKte magic 3a 3 cekyHn, dokato HndkaTopbT 3a pexim (cHn CBTnnHeH NndkaTop) octane CBtHaT.
2) Hatnche 980. CnHnT cBeTnHe HnDnKaTOp ue npemurhe Dba TbTu.
