USER MANUAL SV-9310 ONE FOR ALL

DVB-T Indoor Tube Antenna

DVB-T Innen Stab Antenne

Thank for your purchasing this SV-9310 DVB-T (Freeview) Indoor Tube Antenna.

ONE FOR ALL continuously strives to develop, produce and market high-quality innovative products to meet your needs. Please read this manual carefully and keep this manual for further reference.

The Product

1. SV-9310 DVB-T antenna
2. Antenna Stand
3. Coaxial Cable (x1)
4. AC Adapter (x1)
5. F to IEC connector
6. Instructions Manual

Features & specifications:

• Specially designed for digital terrestrial broadcasting reception to fit your DVB-T (Digital Video Broadcasting Terrestrial) receiver or DAB (Digital Audio Broadcasting) radio.
  Extreme low noise amplifier design.
• Compact and stylish design.
• Convenient Powering design through:
• Power Adapter 6 VDC/100mA
• DVB-T Receiver through Coaxial cable (5VDC40mA)
• The antenna tube can be adjusted in horizontal and vertical position
  VHF 174~240MHz.
  UHF 470~862MHz.
  Gain VHF 18dB min. / UHF 15dB min.

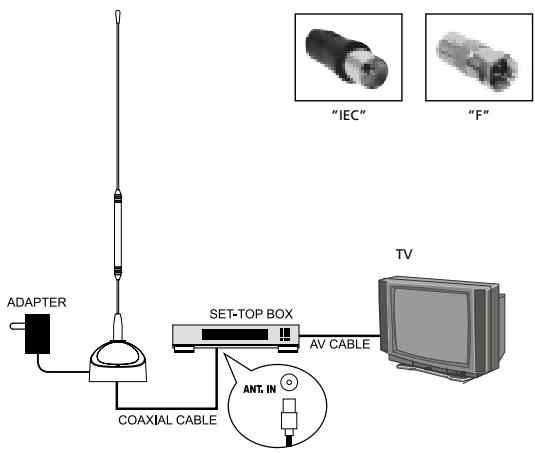

1. Assemble the SV-9310 DVB-T (Freeview) Indoor Tube Antenna by screwing it onto the stand.
2. Connect the SV-9310 DVB-T Indoor Tube Antenna with coaxial cable to your DVB-T Receiver or Digital TV Set.

Connect "IEC Male" or "F Male" end of coaxial cable to "IEC Female" or "F Female" connector on DVB-T Receiver or Digital TV Set.

1. Some "DVB-T receivers" or "Digital TV's" are able to supply your SV-9310 DVB-T Indoor Tube Antenna with POWER (5 VDC/40mA). You may have to enable this - please refer to the manual of your DVB-T Receiver or Digital TV.

If your DVB-T receiver or Digital TV can supply the antenna with 5 VDC/40mA from the F/IEC connector (the LED on the front of SV-9310 DVB-T Indoor Tube Antenna will light up), then please continue with step 4. Otherwise:

Use the included AC Adapter for powering the SV-9310 DVB-T Indoor Tube Antenna.

Connect Adapter plug to the DC input jack of the SV-9310 DVB-T Indoor Tube Antenna.

Connect AC Adapter to the AC Outlet.

1. Adjust the orientation of the SV-9310 DVB-T Indoor Tube Antenna for best performance.

Helpful hints

1. For the best reception performance, place the SV-9310 DVB-T Indoor Tube Antenna far away from big power consuming devices that may be sources of interference (e.g. air conditioner, elevator, hair dryer and microwave oven etc.).
2. Place the SV-9310 DVB-T Indoor Tube Antenna as high as possible to prevent interception between the SV-9310 DVB-T Indoor Tube Antenna and the DVB-T signal source.
3. Place the SV-9310 DVB-T Indoor Tube Antenna near to the windows for better performance.
4. Move (turn) the SV-9310 DVB-T Indoor Tube Antenna to achieve the best possible reception.
5. If none of the above steps provide any help you can finally try to place the DVB-T Antenna horizontally instead of vertically by tilting the tube. This may work in case the signal source is being transmitted by a horizontal placed transmitting antenna.

Fonctions & specifications:
