USER MANUAL BCL182 MAKITA

GB Cordless Cleaner Instruction Manual

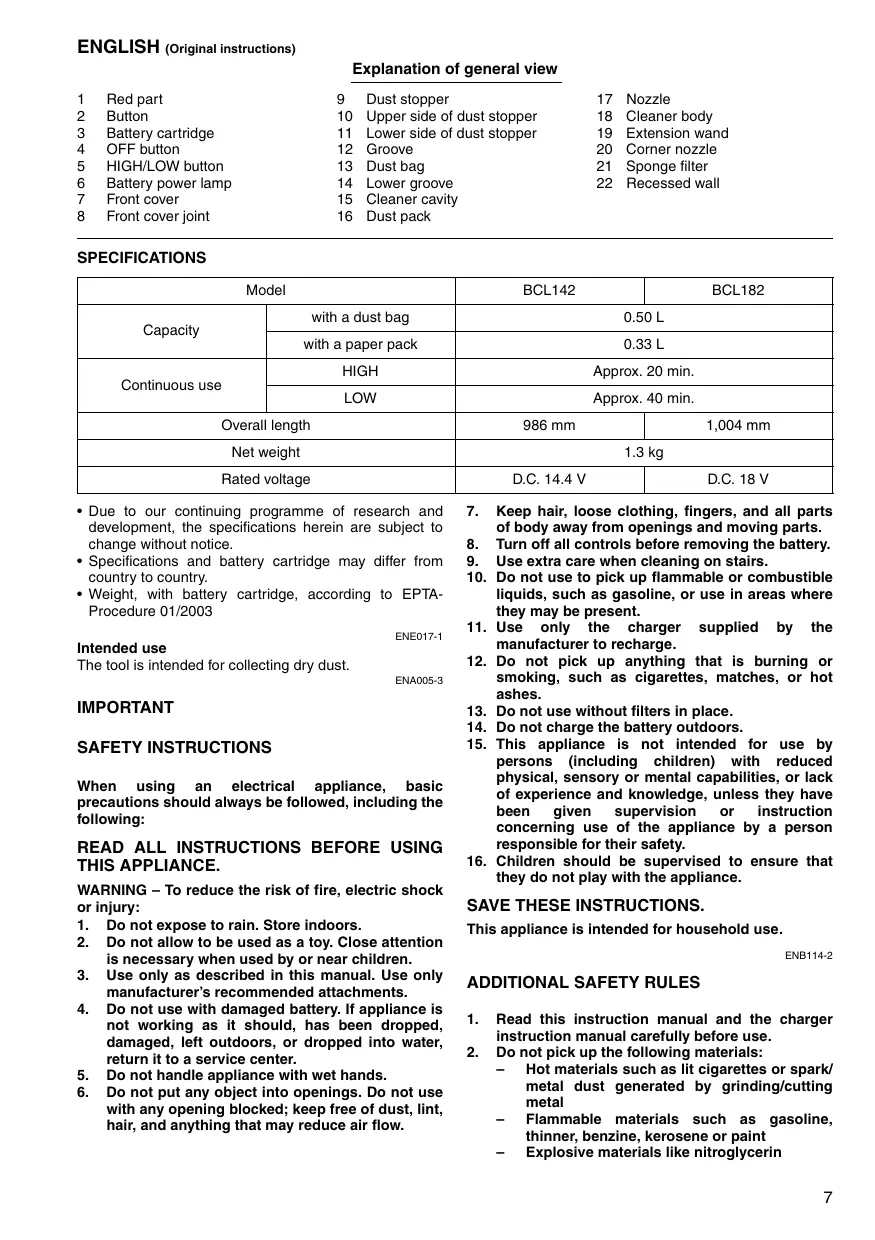

ENGLISH (Original instructions) Explanation of general view

Red part Button Battery cartridge OFF button HIGH/LOW button Battery power lamp Front cover Front cover joint

Dust stopper Upper side of dust stopper Lower side of dust stopper Groove Dust bag Lower groove Cleaner cavity Dust pack

Nozzle Cleaner body Extension wand Corner nozzle Sponge filter Recessed wall SPECIFICATIONS Model BCL142 BCL182 with a dust bag

Rated voltage D.C. 14.4 V

• Due to our continuing programme of research and development, the specifications herein are subject to change without notice.
• Specifications and battery cartridge may differ from country to country.
• Weight, with battery cartridge, according to EPTAProcedure 01/2003 ENE017-1 Intended use The tool is intended for collecting dry dust.

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING

THIS APPLIANCE. WARNING – To reduce the risk of fire, electric shock or injury:

1. Do not expose to rain. Store indoors.

2. Do not allow to be used as a toy. Close attention

is necessary when used by or near children.

3. Use only as described in this manual. Use only

manufacturer’s recommended attachments.

4. Do not use with damaged battery. If appliance is

not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.

5. Do not handle appliance with wet hands.

6. Do not put any object into openings. Do not use

with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.

D.C. 18 V Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts. Turn off all controls before removing the battery. Use extra care when cleaning on stairs. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present. Use only the charger supplied by the manufacturer to recharge. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes. Do not use without filters in place. Do not charge the battery outdoors. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. SAVE THESE INSTRUCTIONS. This appliance is intended for household use. ENB114-2

Read this instruction manual and the charger instruction manual carefully before use. Do not pick up the following materials: – Hot materials such as lit cigarettes or spark/ metal dust generated by grinding/cutting metal – Flammable materials such as gasoline, thinner, benzine, kerosene or paint – Explosive materials like nitroglycerin

Ignitible materials such as Aluminum, zinc, magnesium, titanium, phosphorus or celluloid – Wet dirt, water, oil or the like – Hard pieces with sharp edges, such as wood chips, metals, stones, glasses, nails, pins or razors – Powder to clot such as cement or tonor – Conductive dust such as metal or carbon – Fine particle like concrete dust Such action may cause fire, injury and/or property damage. Stop operation immediately if you notice anything abnormal. If you drop or strike the cleaner, check it carefully for cracks or damage before operation. Do not bring close to stoves or other heat sources. Do not block the intake hole or vent holes. SAVE THESE INSTRUCTIONS. ENC007-6

Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery. Do not disassemble battery cartridge. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight. Do not short the battery cartridge: (1) Do not touch the terminals with any conductive material. (2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50°C (122°F). Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire. Be careful not to drop or strike battery. Do not use a damaged battery. SAVE THESE INSTRUCTIONS. Tips for maintaining maximum battery life

Charge the battery cartridge before completely discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power. Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.

Charge the battery cartridge with room temperature at 10°C – 40°C (50°F – 104°F). Let a hot battery cartridge cool down before charging it. FUNCTIONAL DESCRIPTION CAUTION:

• Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool.
• Take care not to trap finger(s) between cleaner and battery as shown in diagram when loading battery. Trapping finger(s) may cause injury. (Fig. 1) Installing or removing battery cartridge (Fig. 2)
• Always switch off the tool before insertion or removal of the battery cartridge.
• To remove the battery cartridge, withdraw it from the tool while sliding the button on the front of the cartridge.
• To insert the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Always insert it all the way until it locks in place with a little click. If you can see the red part on the upper side of the button, it is not locked completely. Insert it fully until the red part cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.
• Do not use force when inserting the battery cartridge. If the cartridge does not slide in easily, it is not being inserted correctly. Battery protection system The cleaner is equipped with the protection system, which automatically cuts off the output power for its long service life. The cleaner stops during operation when the cleaner and/or battery are placed under the following situation. This is caused by the activation of protection system and does not show the cleaner trouble.
• When the cleaner is overloaded: At this time, release the switch trigger and remove causes of overload and then pull the switch trigger again to restart.
• When the remaining battery capacity gets low: Recharge the battery cartridge. Switch action (Fig. 3) To start the cleaner, simply press the “HIGH/LOW” button. To switch off, press the “OFF” button. To change the cleaner speed, press the “HIGH/LOW” button. The first press on this button is for high speed and the second press for low speed and then each press on this button repeats the high/low speed cycle alternatively. Battery power lamp (Fig. 4)
• When the remaining battery capacity gets low, the battery power lamp blinks.
• When the remaining battery capacity gets much lower, the tool stops during operation and the battery power lamp lights up for about ten seconds. At this time, remove the battery cartridge from the tool and charge it. NOTE:
• The time at which the battery power lamp start blinking or lighting up depends on the temperature at work place and the battery cartridge conditions. ASSEMBLY CAUTION:
• Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool. Disposing of Dust CAUTION:
• Empty the cleaner before it becomes too full, or the suction force weakens.
• Be sure to empty out the dust inside the cleaner itself. Failure to do so may cause the sponge filter to be clogged or the motor to be damaged.
• Never throw away the dust stopper because it should be used whenever either the dust bag or the dust pack is used.

1. Push the button to open the front cover. Opening it

until a click is heard allows a positive stop at that position. (Fig. 5) NOTE:

• The cleaner is constructed in such a way that the front cover comes off when trying to force the front cover open at the angle of more than 90°. If the front cover comes off, insert it into the front cover joint in place. (Fig. 6) CAUTION:
• When closing the front cover, be careful not to pinch your fingers.

2. Pull out both the orange-colored dust stopper and

dust bag together at the same time. (Fig. 7)

3. Remove the dust stopper and empty the cleaner.

(Fig. 8 & 9) Use the dust stopper also when installing dust pack. Be careful not to take the upper side for the lower side by mistake because they are different each other. (Fig. 18)

2. Insert the protrusion of the dust pack into the groove

in the dust stopper as shown in the figure. (Fig. 19)

3. There is no distinction between the upper and lower

sides of the dust pack. You may insert its protrusion of any side into the lower groove of the dust stopper. (Fig. 20)

4. Overlap the frame of dust stopper with that of the

dust pack. (Fig. 21)

5. Place the dust stopper and the dust pack together

into the cleaner cavity in the same direction of arrow on the dust stopper. Insert them all the way into the slots in the cleaner cavity. (Fig. 22)

6. Place the entire container part of the dust pack

inside the tool itself. (Fig. 23)

7. Close the front cover completely.

• Forgetting to install the dust bag or the dust pack, failure to insert the dust stopper together with the dust bag or the dust pack all the way into the slots or using a broken or ripped bag, may allow dust to get into the motor. This may result in motor failure.
• Do not fold the cardboard at its opening when installing the paper pack.
• Never throw away the dust stopper because it need to be used repeatedly whenever either the dust bag or the dust pack is used.
• The paper pack for the cleaner is an important component for maintaining the tool performance. Using other than the genuine paper pack may cause smokes or ignition. Dust bag and paper pack Install either dust bag or paper pack before using cleaner. Use the dust stopper when installing either dust bag or paper pack. Dust bag is usable many times repeatedly by cleaning it out. Paper pack is a throw-away type. Throw away the entire paper pack without emptying when it has become full. OPERATION Installing dust bag Nozzle (Fig. 25) Attach the nozzle to clean off tables, desks, furniture, etc. Nozzle slips on easily. Use the dust stopper when installing dust bag. Be careful not to take the upper side for the lower side by mistake because they are different each other. (Fig. 10)

1. Insert the protrusion of the dust bag into the groove

in the dust stopper as shown in the figure. (Fig. 11)

2. There is no distinction between the upper and lower

sides of the dust bag. You may insert its protrusion of any side into the lower groove of the dust stopper. (Fig. 12)

3. Overlap the frame of dust stopper with that of the

4. Place the dust stopper and the dust bag together

into the cleaner cavity in the same direction of arrow on the dust stopper. Insert them all the way into the slots in the cleaner cavity. (Fig. 14)

5. Place the entire cloth part of the dust bag inside the

tool itself. (Fig. 15)

6. Close the front cover completely. (Fig. 16)

• To connect attachments, such as nozzle, twist-insert attachment in direction of arrow to ensure secure connection during use. To disconnect attachment, twistextract also in direction of arrow. (Fig. 24) Cleaning (Suction) Nozzle + Extension wand (Straight pipe) (Fig. 26) The extension wand fits in between the nozzle and the cleaner itself. This arrangement is convenient for cleaning a floor while standing erect. Corner nozzle (Fig. 27) Fit on the corner nozzle for cleaning corners and crevices of a car or furniture. Corner nozzle + Extension wand (Straight pipe) (Fig. 28) In tight quarters where the cleaner itself cannot squeeze in, or in high places hard to reach, use this arrangement. Cleaning without nozzle (Fig. 29) You can pick up powder and dust without nozzle. Installing the paper pack

Unfold the entrance of the paper pack before setting it on the dust stopper. (Fig. 17)

MAINTENANCE CAUTION:

• Always be sure that the tool is switched off before attempting to perform inspection or maintenance. After use NOTE:
• Putting the cleaner against the wall without any other support cause the cleaner to fall down and be damaged. (Fig. 30) Cleaning From time to time wipe off the outside (cleaner body) of the cleaner using a cloth dampened in soapy water. Clean out also the suction opening, dust bag/dust pack mounting area and the dust stopper. (Fig. 31) CAUTION:
• Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. NOTE:
• Dust pack is a throw-away type. When the sponge filter is clogged with dust, remove it from the cleaner and then wipe it off or wash in water. Removing and installing the sponge filter (Fig. 33 & 34) To remove the sponge filter, remove the dust bag or dust pack and then pinch and take it out. Press in the whole edge of the sponge filter against the recessed wall inside the dust bag/dust pack mounting area. CAUTION:
• After cleaning sponge filter, be sure to install it on the cleaner. If washed in water, dry it up before installing. An insufficiently dried sponge filter may shorten the service life of the motor. Wash the dust bag in soapy water when it is clogged with dust and the cleaner power becomes small. Dry it out thoroughly before use. An insufficiently dried bag may cause poor suction and shorten the service life of the motor. (Fig. 32) Things to Check Before Asking for Repairs Symptom Area to be investigated
• Is dust bag or paper pack full of dust? Weak suction power Not working Fixing method
• Empty dust bag or paper pack.

• Is dust bag clogged?

• Dust down or wash the dust bag.

• Is paper pack clogged?

• Is battery cartridge exhausted?

• Charge the battery cartridge.

• Is battery cartridge exhausted?

• Charge the battery cartridge. NOTE:
• Do not attempt to repair cleaner by yourself. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts. ACCESSORIES CAUTION:
• These accessories or attachments are recommended for use with your Makita cleaner specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

Extension wand (Straight pipe) Nozzle Nozzle for carpet Shelf brush Corner nozzle Round brush Flexible hose Paper pack Various type of Makita genuine batteries and chargers
