Brand	FAGOR
Model	VCE-506
Product type	Canister vacuum cleaner
Rated power	2000 W
Voltage / Frequency	230 V ~ 50 Hz
Main filter	Washable HEPA filter
Air outlet filter	Replaceable air outlet filter
Tank capacity	Approx. 2 L (estimated)
Cord length	Approx. 6 m (estimated)
Included accessories	Floor brush, parquet brush, 2 nozzles, telescopic tube, flexible hose
Power adjustment	Dial on body: MIN (delicate fabrics) to MAX (hard floors) + manual adjustment on handle
Cord winding system	Automatic cord rewind pedal
Filter saturation indicator	Red indicator on tank
Safety	Tank safety lock, automatic shut-off in case of overheating (not specified but likely)
Maintenance	Clean HEPA filter with warm water, replacement recommended once a year
Noise level	Approx. 78 dB (estimated)
Weight	Approx. 5 kg (estimated)

Frequently Asked Questions - VCE-506 FAGOR

How to empty the FAGOR VCE-506 vacuum cleaner tank?

Unplug the appliance and remove the flexible hose. Press the tank safety lock (3) and pull the handle (2) upwards to remove the tank. Press the lower housing lock (22) to open the tank and empty the dirt. Close the housing and put the tank back in place.

How to clean the HEPA filter?

Unplug the vacuum and remove the tank. Open the tank housing by rotating it. Remove the filter protection grid (20) and take out the HEPA filter. Clean it with warm water, dry it thoroughly, then reassemble everything in reverse order.

How often should I change the HEPA filter?

It is recommended to change the HEPA filter at least once a year, or sooner if suction power decreases noticeably.

How to adjust the suction power?

Use the power adjustment dial (5) on the vacuum body: MIN position for delicate fabrics, MAX for hard floors. You can also manually adjust the power via the slider on the handle (12).

What to do if the vacuum does not turn on?

Check that the power outlet works and the cord is properly plugged in. Make sure the on/off pedal (7) is depressed. If the problem persists, contact an authorized technical service.

How to use the brush for hard floors and carpets?

The brush (15) has two positions: for hard floors (position a) and for carpets/rugs (position b). Adjust it according to the floor type for optimal efficiency.

How to rewind the power cord?

After use, unplug the vacuum, then press the automatic cord rewind pedal (4) while guiding the cord by hand so it winds properly.

Can I vacuum liquids with this vacuum?

No, this vacuum is designed only for dust and dry dirt. Never vacuum liquids or damp materials, as this would damage the appliance.

How to store the vacuum?

Store it upright by inserting the telescopic tube hook into the slots under the vacuum (Fig. 6) or by hanging the brush on the back of the carrying handle (Fig. 7). The nozzles can be stored on the accessory holder (14).

What does the red indicator on the tank mean?

The red indicator lights up when the filter is saturated. Empty the tank and clean the HEPA filter. If the light stays on, replace the filter.

USER MANUAL VCE-506 FAGOR

The manufacturer reserves the right to modify the models described in this User's Manual.

Crude Plus Carbon Total Suction, Carbon ZOOM 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100%

ASPIRADOR / VACUUM CLEANER / ASPIRATEUR / STAUBSAUGER /

ASPIRAPOLVERE / HΛEKTRIKH ΣΚΟΥΠΑ / PORSZÍVÓ / VYSÁVAČ / ODKURZACZ /

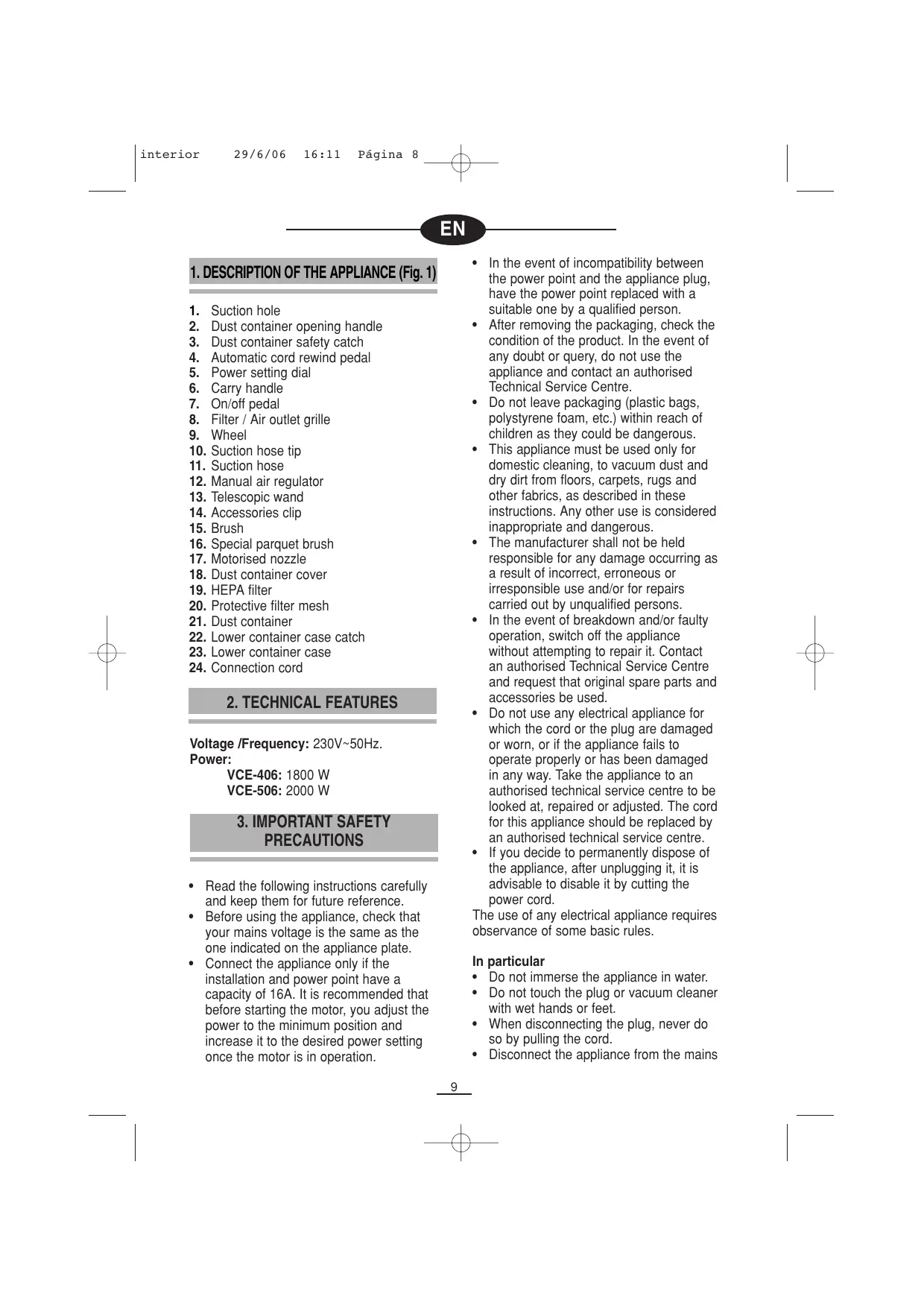

1. Suction hole
2. Dust container opening handle
3. Dust container safety catch
4. Automatic cord rewind pedal
5. Power setting dial
6. Carry handle
7. On/off pedal
8. Filter / Air outlet grille
9. Wheel
10. Suction hose tip
11. Suction hose
12. Manual air regulator
13. Telescopic wand
14. Accessories clip
15. Brush
16. Special parquet brush
17. Motorised nozzle
18. Dust container cover
19. HEPA filter
20. Protective filter mesh
21. Dust container
22. Lower container case catch
23. Lower container case
24. Connection cord

2. TECHNICAL FEATURES

Voltage /Frequency: 230V\~50Hz.

Power:

VCE-406: 1800 W

VCE-506: 2000 W

3. IMPORTANT SAFETY PRECAUTIONS

• Read the following instructions carefully and keep them for future reference.
• Before using the appliance, check that your mains voltage is the same as the one indicated on the appliance plate.

• Connect the appliance only if the installation and power point have a capacity of 16A. It is recommended that before starting the motor, you adjust the power to the minimum position and increase it to the desired power setting once the motor is in operation.

• In the event of incompatibility between the power point and the appliance plug, have the power point replaced with a suitable one by a qualified person.

• After removing the packaging, check the condition of the product. In the event of any doubt or query, do not use the appliance and contact an authorised Technical Service Centre.
• Do not leave packaging (plastic bags, polystyrene foam, etc.) within reach of children as they could be dangerous.
• This appliance must be used only for domestic cleaning, to vacuum dust and dry dirt from floors, carpets, rugs and other fabrics, as described in these instructions. Any other use is considered inappropriate and dangerous.
• The manufacturer shall not be held responsible for any damage occurring as a result of incorrect, erroneous or irresponsible use and/or for repairs carried out by unqualified persons.
• In the event of breakdown and/or faulty operation, switch off the appliance without attempting to repair it. Contact an authorised Technical Service Centre and request that original spare parts and accessories be used.
• Do not use any electrical appliance for which the cord or the plug are damaged or worn, or if the appliance fails to operate properly or has been damaged in any way. Take the appliance to an authorised technical service centre to be looked at, repaired or adjusted. The cord for this appliance should be replaced by an authorised technical service centre.
• If you decide to permanently dispose of the appliance, after unplugging it, it is advisable to disable it by cutting the power cord.
  The use of any electrical appliance requires observance of some basic rules.
• Do not immerse the appliance in water.
• Do not touch the plug or vacuum cleaner with wet hands or feet.
• When disconnecting the plug, never do so by pulling the cord.
• Disconnect the appliance from the mains

In particular

to change the filter, to clean it or when you have finished using it.

• Do not use your vacuum cleaner outdoors, nor on wet surfaces, nor pick up damp or wet dirt.
• Do not pick up inflammable liquids such as cleaning fluids, petrol, etc., or their vapours.
• Do not pick up objects which are hard, sharp or excessively large, nor matches, hot ashes, cigarette butts and similar.
• Do not allow children or handicapped persons to use the appliance.
• Do not leave the appliance near to ovens, heaters or hot radiators.
• Do not move the appliance by pulling the cord or the suction hose. Use the carry handle.
• Do not use the vacuum cleaner without its filters.
• Replace the filters before picking up fine dust or cleaning new carpets.
• Do not pick up very fine dust such as cement, very fine sand or flour, etc.
• Do not use the appliance if there is any obstruction in the airways, as this may dangerously overheat the motor.

4. ASSEMBLY AND OPERATION

To extend the telescopic wand (13) to the desired length, push the catch forward then insert the brush (15), the parquet brush (16) or one of the nozzles (17), then insert the suction hose (11) into the other end of the telescopic wand. (Fig. 2)

Insert the suction hose into the suction hole (1), bringing the suction hose tip (10) and the suction hole together until they fit firmly.. To release it, press the button on the suction hose and pull. (Fig. 3)

Pull the connection cord (24), and connect it to the mains.

Caution: A yellow mark on the power cord indicates the ideal length. Do not pull more cord out when this mark is visible, and never exceed the red mark as this could cause irreparable damage to the automatic cord rewind function.

Push the on/off pedal (7) to operate the vacuum cleaner. When you wish to stop it, push the same pedal again. Before operating the vacuum cleaner, turn the power down to the minimum, using the power setting dial (5), and then select the power you desire.

Using the power setting dial (5), you can regulate suction power according to type of flooring, from Minimum (used for curtains and delicate fabrics) to Maximum (for intense dirt and hard flooring). Generally speaking, except in cases of vacuuming extreme dirt or delicate fabrics, it is advisable to use the vacuum cleaner in the intermediate power-saving position between MAX and MIN.

Suction power may be regulated manually with the manual air regulator on the handle (12) (Fig. 4)

Closed window: greater suction power.

Open window: lower suction power.

The parquet brush (11) has two operating positions according to the type of flooring (Fig. 5):

a) Hard flooring position
b) Rug and carpeting position.

When finished using the vacuum cleaner, stop it, disconnect it and step on the automatic cord rewind pedal (4). Make sure that the cord winds up straight, helping it with your hand where necessary.

Storage: To store the appliance, you may place it in a vertical position, inserting the hook on the telescopic wand into the storage area located in the lower part of the vacuum cleaner (Fig. 6) or hooking the brush into the storage area of the back part of the carry handle (Fig. 7)

The nozzles (17) may be kept on the accessories clip (14) on the telescopic wand.

5. EMPTYING THE DUST CONTAINER

The dust container must be emptied when the filter indicator window turns red while the vacuum cleaner is operating at maximum power and the nozzle is totally free.

Unplug the appliance and remove the suction hose from the suction hole.

Press the safety catch on the dust container (3) and remove the container by pulling its handle (2) upwards.

Important: Do not use this handle to carry the appliance.

Press the catch on the container case (22) to open the container and empty it.

Clean away any dust which may have accumulated in the container and close the lower case (23), replacing the container.

6. CLEANING AND CHANGE OF FILTERS

Unplug the appliance and remove the suction hose.

HEPA filter (19)

Clean the HEPA filter when it is full.

Change the filter when you see that suction power is significantly decreased. It is advisable to change the HEPA filter at least once a year.

Caution: Do not operate the vacuum cleaner without the HEPA

filter as this could damage the motor.

To clean or change the HEPA filter:

1. Remove the container as explained in the section entitled Emptying the Dust Container
2. Turn the container case until it opens (Fig. 8).
3. Remove the upper part of the case and the filter.
4. Release the protective filter mesh (20) by pulling it upwards.
5. Turn the HEPA filter until it is released from the case.
6. Clean the HEPA air filter and support with lukewarm water and dry both HEPA filter and support thoroughly.

7. Put the pieces back together.

To prolong the life of the HEPA filter, it is protected by a mesh which filters larger particles of dust. Clean the mesh often with the aid of a soft brush where necessary and taking care not to break it. You may also wash it in lukewarm water, being careful to dry it thoroughly before reassembling it.

Air outlet filter (8)

The air outlet filter filters the air as it comes out. To change it, remove the grille holding it and replace it with a new one when changing the filter (Fig. 9).

7. CLEANING

Before any cleaning operation, unplug the appliance. The vacuum cleaner and accessories may be cleaned with a damp cloth. Do not use solvents or abrasive products to clean the appliance.

DO NOT IMMERSE THE APPLIANCE IN WATER OR ANY OTHER LIQUID

8. INFORMATION FOR THE CORRECT DISPOSAL OF ELECTRICAL AND ELECTRONIC APPLIANCES

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household

appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

To remind you that you must collaborate with a selective collection scheme, the symbol shown appears on the product warning you not to dispose of it in traditional refuse containers.

For further information, contact your local authority or the shop where you bought the product.
