USER MANUAL VCE-406 FAGOR

VCE-406:1800W VCE-506:2000W

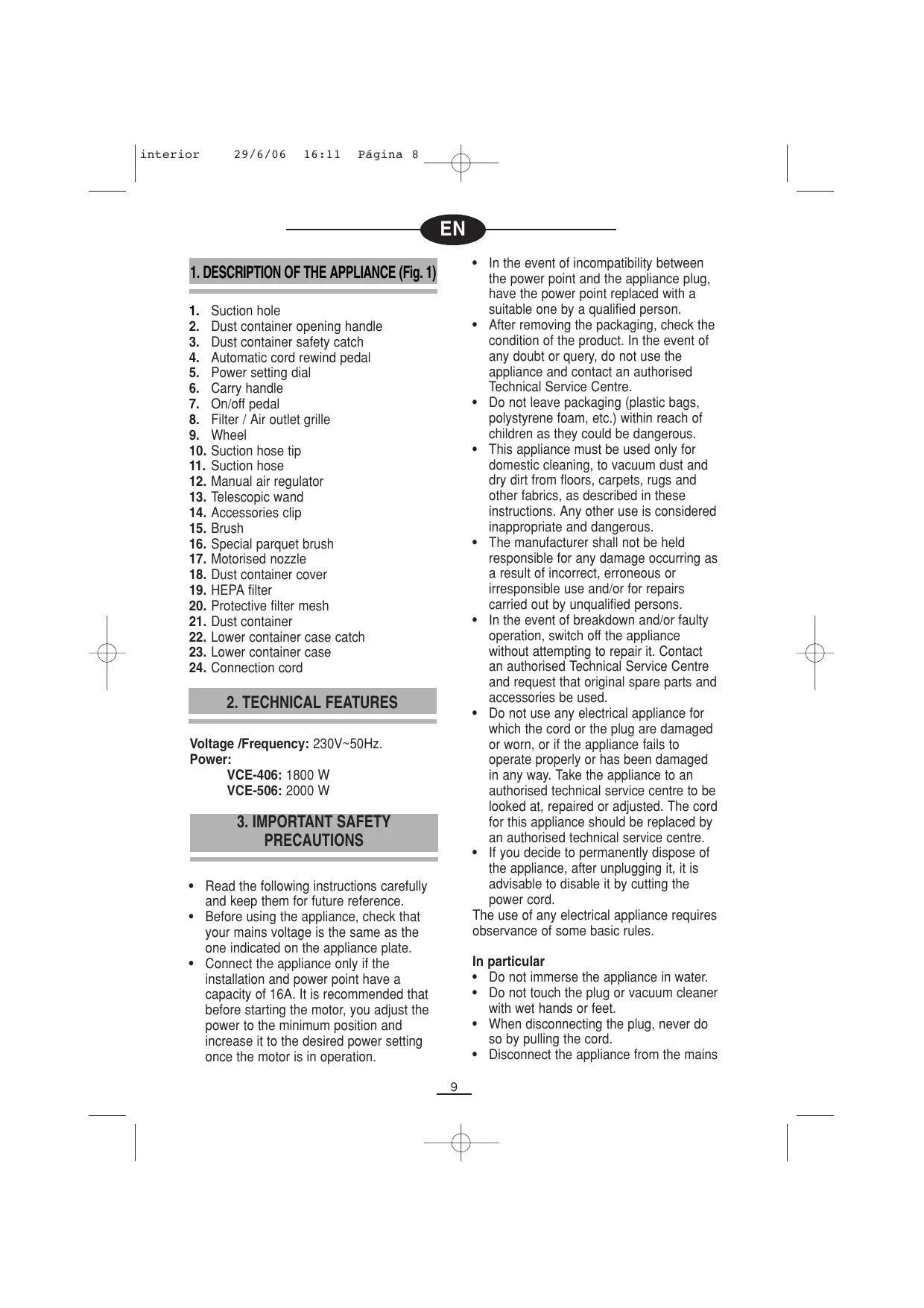

1.DESCRIPTION OF THE APPLIANCE (Fig.1)

1. Suction hole
2. Dust container opening handle
3. Dust container safety catch
4. Automatic cord rewind pedal
5. Power setting dial
6. Carry handle
7. On/off pedal
8. Filter / Air outlet grille
   9.Wheel
9. Suction hose tip
10. Suction hose
11. Manual air regulator
12. Telescopic wand
13. Accessories clip
14. Brush
15. Special parquet brush
16. Motorised nozzle
17. Dust container cover
18. HEPA filter
19. Protective filter mesh
20. Dust container
21. Lower container case catch
22. Lower container case
23. Connection cord

2. TECHNICAL FEATURES

Voltage /Frequency: 230V 50Hz

Power:

VCE-406:1800W

VCE-506:2000W

3. IMPORTANT SAFETY PRECAUTIONS

• Read the following instructions carefully and keep them for future reference.
• Before using the appliance, check that your mains voltage is the same as the one indicated on the appliance plate.

• Connect the appliance only if the installation and power point have a capacity of 16A. It is recommended that before starting the motor, you adjust the power to the minimum position and increase it to the desired power setting once the motor is in operation.

• In the event of incompatibility between the power point and the appliance plug, have the power point replaced with a suitable one by a qualified person.
  After removing the packaging, check the condition of the product. In the event of any doubt or query, do not use the appliance and contact an authorised Technical Service Centre.

• Do not leave packaging (plastic bags, polystyrene foam, etc.) within reach of children as they could be dangerous.
• This appliance must be used only for domestic cleaning, to vacuum dust and dry dirt from floors, carpets, rugs and other fabrics, as described in these instructions. Any other use is considered inappropriate and dangerous.
• The manufacturer shall not be held responsible for any damage occurring as a result of incorrect, erroneous or irresponsible use and/or for repairs carried out by unqualified persons.
• In the event of breakdown and/or faulty operation, switch off the appliance without attempting to repair it. Contact an authorised Technical Service Centre and request that original spare parts and accessories be used.
• Do not use any electrical appliance for which the cord or the plug are damaged or worn, or if the appliance fails to operate properly or has been damaged in any way. Take the appliance to an authorised technical service centre to be looked at, repaired or adjusted. The cord for this appliance should be replaced by an authorised technical service centre.
• If you decide to permanently dispose of the appliance, after unplugging it, it is advisable to disable it by cutting the power cord.

The use of any electrical appliance requires observance of some basic rules.

In particular

• Do not immerse the appliance in water.
• Do not touch the plug or vacuum cleaner with wet hands or feet.
• When disconnecting the plug, never do so by pulling the cord.
• Disconnect the appliance from the mains

to change the filter, to clean it or when you have finished using it.

• Do not use your vacuum cleaner outdoors, nor on wet surfaces, nor pick up damp or wet dirt.
• Do not pick up inflammable liquids such as cleaning fluids, petrol, etc., or their vapours.
• Do not pick up objects which are hard, sharp or excessively large, nor matches, hot ashes, cigarette butts and similar.
• Do not allow children or handicapped persons to use the appliance.
• Do not leave the appliance near to ovens, heaters or hot radiators.
• Do not move the appliance by pulling the cord or the suction hose. Use the carry handle.
• Do not use the vacuum cleaner without its filters.
• Replace the filters before picking up fine dust or cleaning new carpets.
• Do not pick up very fine dust such as cement, very fine sand or flour, etc.
• Do not use the appliance if there is any obstruction in the airways, as this may dangerously overheat the motor.

4. ASSEMBLY AND OPERATION

To extend the telescopic wand (13) to the desired length, push the catch forward then insert the brush (15), the parquet brush (16) or one of the nozzles (17), then insert the suction hose (11) into the other end of the telescopic wand. (Fig. 2)

Insert the suction hose into the suction hole (1), bringing the suction hose tip (10) and the suction hole together until they fit firmly.. To release it, press the button on the suction hose and pull. (Fig. 3)

Pull the connection cord (24), and connect it to the mains.

Caution: A yellow mark on the power cord indicates the ideal length. Do not pull more cord out when this mark is visible, and never exceed the red mark as this could cause irreparable damage to the automatic cord rewind function.

Push the on/off pedal (7) to operate the vacuum cleaner. When you wish to stop it, push the same pedal again. Before operating the vacuum cleaner, turn the power down to the minimum, using the power setting dial (5), and then select the power you desire.

Using the power setting dial (5), you can regulate suction power according to type of flooring, from Minimum (used for curtains and delicate fabrics) to Maximum (for intense dirt and hard flooring). Generally speaking, except in cases of vacuuming extreme dirt or delicate fabrics, it is advisable to use the vacuum cleaner in the intermediate power-saving position between MAX and MIN.

Suction power may be regulated manually with the manual air regulator on the handle (12) (Fig. 4)

Closed window: greater suction power.

Open window: lower suction power.

The parquet brush (11) has two operating positions according to the type of flooring (Fig. 5):

a) Hard flooring position
b) Rug and carpeting position.

When finished using the vacuum cleaner, stop it, disconnect it and step on the automatic cord rewind pedal (4). Make sure that the cord winds up straight, helping it with your hand where necessary.

Storage: To store the appliance, you may place it in a vertical position, inserting the hook on the telescopic wand into the storage area located in the lower part of the vacuum cleaner (Fig. 6) or hooking the brush into the storage area of the back part of the carry handle (Fig. 7)

The nozzles (17) may be kept on the accessories clip (14) on the telescopic wand.

1. Put the pieces back together.

To prolong the life of the HEPA filter, it is protected by a mesh which filters larger particles of dust. Clean the mesh often with the aid of a soft brush where necessary and taking care not to break it. You may also wash it in lukewarm water, being careful to dry it thoroughly before reassembling it.

Air outlet filter (8)

The air outlet filter filters the air as it comes out. To change it, remove the grille holding it and replace it with a new one when changing the filter (Fig. 9).

7. CLEANING

Before any cleaning operation, unplug the appliance. The vacuum cleaner and accessories may be cleaned with a damp cloth. Do not use solvents or abrasive products to clean the appliance.

DO NOT IMMERSE THE APPLIANCE IN WATER OR ANY OTHER LIQUID

8. INFORMATION FOR THE CORRECT DISPOSAL OF ELECTRICAL AND ELECTRONIC APPLIANCES

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household

appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. To remind you that you must collaborate with a selective collection scheme, the symbol shown appears on the product warning you not to dispose of it in traditional refuse containers. For further information, contact your local authority or the shop where you bought the product.
