Product Type Air Conduction Headset Microphone
Brand 3M
Model MT16H21FWS5E-580SV
Dimensions 192 x 164 x 76 mm
Weight 215 g (with battery and cable)
Power Supply AAA 1.5 V battery (not included)
Battery Life Approximately 200 hours continuous use
Coupling Type Double-shell circumaural
Passive Noise Reduction (NRR) 26 dB SNR (according to EN 352-1)
Microphone Adjustable boom microphone, dynamic type
Frequency Response (headphone) 20 Hz – 20 kHz
Frequency Response (microphone) 100 Hz – 10 kHz
Impedance (headphone) 32 Ω
Main Functions Hands-free communication, noise attenuation, volume control, microphone mute
Maintenance and Cleaning Clean with a soft, dry cloth; do not use solvents or abrasives
Safety CE certified according to EN 352-1 (hearing protector); do not use in explosive atmospheres
Spare Parts and Repairability Earpads, shells, microphone boom available; repair by 3M authorized center
Available Colors Yellow and black
Warranty 1 year (excluding normal wear)
Intended Use Communications in noisy environments (industry, construction sites, etc.)

Frequently Asked Questions - MT16H21FWS5E-580SV 3M

How to install the battery in the 3M MT16H21FWS5E-580SV headset?
Open the battery compartment on the headband by turning the cover counterclockwise. Insert a AAA 1.5 V battery following the indicated polarities. Close the cover by turning clockwise.
Can this headset be used with a mobile phone?
Yes, it is compatible with most smartphones via the provided CTIA cable. Connect the 3.5 mm connector to your phone; hands-free communication works automatically.
What is the noise reduction level of this headset?
The headset offers passive attenuation of 26 dB SNR (Single Number Rating) according to EN 352-1. This is suitable for moderately noisy industrial environments.
How to replace the earpads on the 3M headset?
The earpads are clipped onto the shells. Gently pull to detach them, then align the tabs of the new earpad with the notches and press until it clicks.
Is the microphone removable?
Yes, the microphone boom detaches by gently pulling it out of its housing. To reattach, insert it until it clicks. Be careful not to force it.
What to do if the sound is too low or distorted?
First check the volume on your device. Then make sure the battery is sufficiently charged. If the problem persists, test with another audio cable.
Can I use this headset to listen to music?
Yes, it can play music, but its design is optimized for voice communication. Audio quality is adequate for voices and standard media.
How to clean the 3M headset?
Use a soft, slightly damp cloth to wipe the shells and headband. Never immerse the headset in water and do not use harsh chemicals.
Is the headset compatible with hard hats?
Yes, this model is often mounted on hard hats using an adapter kit (sold separately). Please refer to the manual for assembly steps.
Where can I find spare parts for this headset?
Spare parts (earpads, cable, microphone boom, battery) are available from 3M authorized dealers or on the official website. Use the model number to order.

User questions about MT16H21FWS5E-580SV 3M

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Earphones in PDF format for free! Find your manual MT16H21FWS5E-580SV - 3M and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MT16H21FWS5E-580SV by 3M.

USER MANUAL MT16H21FWS5E-580SV 3M

natural_image Black and white headboard with black clamps and a panda-themed design, no visible text or symbols

WS SportTac, WS5, WS Workstyle

A
3M MT16H21FWS5E-580SV - 1

natural_image Black and white photo of a flat-screen electric charger with a cable, no visible text or symbols

A:19
3M MT16H21FWS5E-580SV - 2

A:20
3M MT16H21FWS5E-580SV - 3

natural_image Coiled black electrical plug with two terminal connectors (no text or symbols visible)

B
B:1

B:2 P:3

3M MT16H21FWS5E-580SV - 6

natural_image Illustration of a person wearing headphones, hands adjusting head (no text or symbols)

3M MT16H21FWS5E-580SV - 7

natural_image Side profile illustration of a person wearing an ear with a medical device (no text or symbols visible)

3M MT16H21FWS5E-580SV - 8

natural_image Illustration of hands holding a device with arrows indicating motion (no text or symbols)

B:6

C
C:1
3M MT16H21FWS5E-580SV - 10

natural_image Close-up of a hand holding a small object with a black arrow pointing to it, no visible text or symbols.

C:2 C:3 C:4
3M MT16H21FWS5E-580SV - 11

natural_image Close-up of hands holding a small electronic device with a black circular button and arrow indicator (no visible text or symbols)

3M MT16H21FWS5E-580SV - 12

natural_image Gray, rounded object with two dark circular cutouts on its surface (no text or symbols visible)

3M MT16H21FWS5E-580SV - 13

natural_image Close-up of a gray plastic or plastic housing component (no visible text or symbols)

C:5
3M MT16H21FWS5E-580SV - 14

natural_image Close-up of a black electronic device with visible wiring and components (no text or symbols)

C:6
3M MT16H21FWS5E-580SV - 15

natural_image Close-up of hands using a handheld device to adjust a circular component (no visible text or symbols)

C:7
3M MT16H21FWS5E-580SV - 16

natural_image Close-up of hands holding a black cable with wires (no visible text or symbols)

C:8
3M MT16H21FWS5E-580SV - 17

natural_image Close-up of a mechanical component with no visible text or symbols

D
Attenuation values, SNR
MT16H21FWS5*-*****

Frequency (Hz) 2) 63 125 250 500 1000 2000 4000 8000
Mean attenuation (dB) 3) 15.1 11.1 18.2 27.0 23.8 33.4 37.7 38.9
Std deviation (dB) 4) 3.8 2.6 2.3 2.2 2.1 3.6 2.2 3.3
Assumed Protection Value (dB) 5) 11.8 8.5 15.8 24.8 21.7 29.8 35.5 35.5

1) Weight 352g
NRR=20 SNR=26 db H=29 db M=23 db L=19 db

E

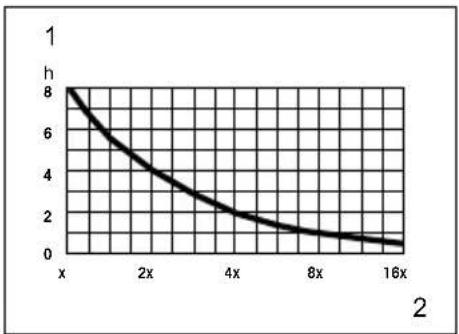

Input signal / usage time
3M MT16H21FWS5E-580SV - 18

G

Criterion Levels
MT16H21FWS5*-_*****H= 103 dB(A)
M= 96 dB(A)
L= 93 dB(A)

F

Max AUX input signal level = 1,5 V rms

AUX input signal level: 20 mV rms = 82dB

H
3M MT16H21FWS5E-580SV - 19

natural_image Black object with curved lines and a black cross mark, labeled 'H:1' (no other text or symbols)

3M MT16H21FWS5E-580SV - 20

natural_image Black hard hat with straps and straps, labeled H:2 H:3 (no other text or symbols)

3M MT16H21FWS5E-580SV - 21

natural_image Black hard hat with multiple circular earbuds and straps, arranged on a plain white background (no text or symbols visible)

|
3M MT16H21FWS5E-580SV - 22

natural_image Close-up of a black automotive airbus connector with two terminal connectors and a cable (no text or symbols visible)

J
3M MT16H21FWS5E-580SV - 23

natural_image Close-up of hands holding a smartphone with a white square on its screen (no visible text or symbols)

3M MT16H21FWS5E-580SV - 24

natural_image Close-up of a hand holding a black mechanical component (no visible text or symbols)

3M MT16H21FWS5E-580SV - 25

natural_image Close-up of hands holding a dark object, possibly a device or tool, with no visible text or symbols.

3M MT16H21FWS5E-580SV - 26

natural_image Close-up of a human head with earphones and black ear tags (no visible text or symbols)

WS SportTac, WS5, WS Workstyle

EN 2-8

BG 9-16

CS 17-23

DA 24-30

DE 31-38

EL 39-46

ES 47-54

ET 55-61

FI 62-68

FR 69-76

HR 77-83

HU 84-90

IS 91-97

IT 98-104

LT 105-111

LV 112-119

NL 120-126

NO 127-134

PL 135-141

PT 142-148

RO 149-156

RU 157-163

SK 164-170

SL 171-177

SV 178-184

TR 185-191

EN

(1) What is What?
(2) Fitting and Adjustment
(3) Usage/Functions

3:1 Inserting the batteries
3:2 Charging your headset
3:3 Switching the headset on and off
3:4 Bluetooth™ pairing
3:5 Managing phone calls
3:6 Adjusting surround-sound volume
3:7 Adjusting call volume
3:8 Adjusting streamed-music volume

3:9 Changing settings in the configure menu

3:10 Connecting external equipment by cord

(4) Other Functions
(5) Important User Information
(6) Technical Data

6:1 Attenuation values
6:2 Input signal level/usage time for audio input J22 (A:12)
6:3 Sound exposure when using audio input J22 (A:12)
6:4 Sound exposure when using the 3.5 mm audio input (A:11)
6:5 Criterion levels
6:6 Battery type
6:7 Battery life
6:8 Bluetooth™

(7) Storage

(8) Maintenance/Cleaning

9:1 Cleaning
9:2 Removing/Replacing the outer shell
9:3 Removing/Replacing the ear cushions

(9) Spare parts/Accessories

WS SportTac, WS5, WS Workstyle

This product has been tested and approved against the personal protection equipment (PPE) directive 89/686/EEC, and is also in compliance with the electromagnetic compatibility (EMC) directive 2004/108/EC for CE marking. NOTE: Read these instructions carefully before use and save for future reference.

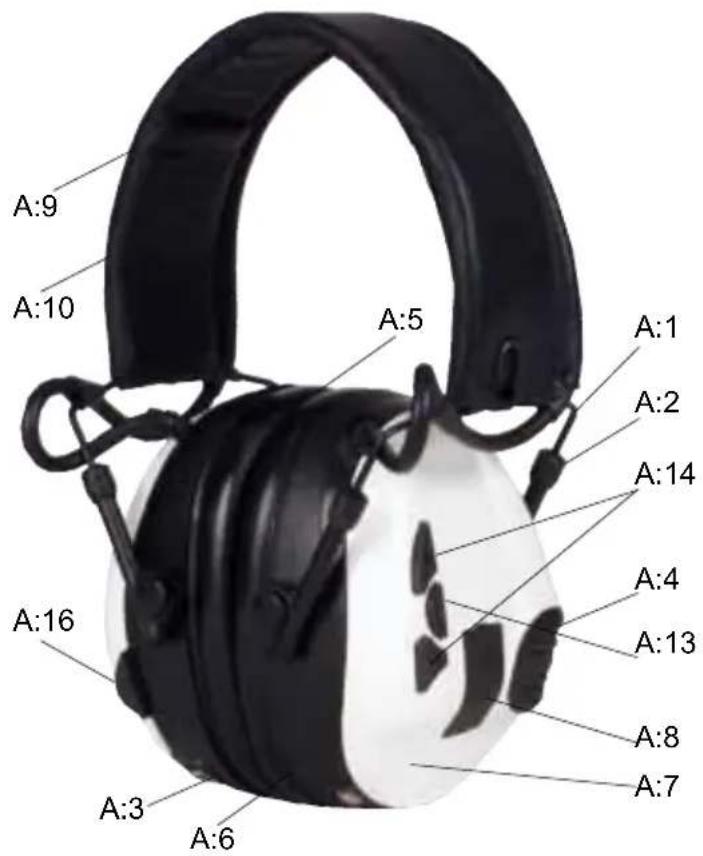

1. WHAT IS WHAT

(A:1). Headband wire (stainless steel)
(A:2) Two-point fastener (headband wire)
(A:3) Ear cushion (PVC foil and Polyester foam)
(A:4) Microphone for surround sound
(A:5) Attenuation cushion (Polyester foam)
(A:6) Inner shell
(A:7) Outer shell
(A:8) Clamp
(A:9) Headband (sheet metal)
A:10). Headband padding (Thermoplastic Elastomer or Leather)
(A:11) AUX audio input, 3.5 mm stereo
(A:12) Audio input, J22
(A:13) On/Off/Mode
(A:14) VOL+, VOL-
(A:15) Speech microphone
(A:16) Bluetooth button
(A:17) Charger jack
(A:18) Charger
(A:19) Rechargeable AAA NiMH batteries
(A:20) Stereo cable 3,5mm. FL6CE

2. FITTING AND ADJUSTMENT

(B:1) Open the headband.
(B:2) Slide out the shells. Tilt the upper part of the shell outwards to ensure the wires are positioned away from the headband.
(B:3) Adjust the height of the shells by sliding them up or down whilst holding the headband in place.
(B:4) The headband should be positioned across the top of the head.
(B:5) Before folding the hearing protector, press the shells together. Leave about 4 mm of the headband wire visible.
(B:6) Fold the headband as shown. Ensure that the ear cushions are not creased and that they lie flat against each other. Note: Be sure to remove the cord from the audio input (A:11) before folding the headband.

3. USAGE/FUNCTIONS

3:1 Inserting the batteries

Remove the left outer shell.

(C:1) Insert a blunt tool or finger under the edge of the clamp and pull outwards 3–4 mm.

(C:2) Press/slide the clamp down. Remove the shell.

Insert the rechargeable AAA NiMH batteries included with the product. Ensure that the poles are correctly aligned.

The headset can also operate on alkaline batteries.

Warning! Do NOT charge alkaline batteries as this may damage the headset.

Replace the outer shell:

(C:3) Ensure that the clamp is fully pressed down.
Position the shell from the top down, ensuring that the hook on the top of the shell (C:4) fits in the hole on the inner shell (C:5).

(C:6) Press/slide the clamp up once the shell is in place.

3:2 Charging your headset

Connect the charger to the charger jack on the headset (A:17).

Charge the headset for 8 hours to achieve the maximum battery capacity.

EN

Warning: Use only original charger. Use of another charger can damage the headset.

Warning: Do NOT charge alkaline batteries as this may damage the headset.

Max charging temperature: +40 °

3:3 Switching the headset on and off

Press and hold the On/Off/Mode button (A:13) for two seconds to switch the headset on or off.

3:4 Bluetooth pairing

The headset can be paired with and connected to Bluetooth units that support A2DP, HFP and HSP profiles.

NOTE that you can only stream stereo sound/music from a unit (mobile phone, computer, etc.) that supports the A2DP Bluetooth profile.

  • Ensure that the headset is charged and switched off.
  • Press and hold the On/Off/Mode button (A:13) for five seconds.
    This puts the headset into pairing mode, which is confirmed by repeated voice message: "Bluetooth pairing mode".

- Activate your telephone's Bluetooth function and search for new units. After a few seconds "Peltor WS5" will appear on the screen.

- Select "Peltor WS5".

• If the phone asks you for a password, enter: 0000

- Pairing is confirmed when you hear the voice message: "pairing complete".

Once the Bluetooth pairing function is activated it will automatically establish connection with the headset next time it is used with a confirmation void message "connecting Bluetooth", and then: “connected” when the units are connected. You can pair and store up to 4 units. The headset will automatically try to connect to the most recently connected unit first.

3:5 Managing phone calls

To manage phone calls, the headset must be paired with and connected to a mobile phone with Bluetooth capability, see Bluetooth pairing.

Answering calls

Incoming phone calls are indicated with a ring tone in the headset. Answer by pressing briefly on the Bluetooth button (A:16).

Rejecting a call

Reject a call by pressing and holding the Bluetooth button (A:16).

Voice dial

Press briefly on the Bluetooth button (A:16).

Redial

Press and hold the Bluetooth button for 2 seconds (A:16).

3:6 Adjusting surround-sound volume

Increase volume. Press the (upper) + button (A:14).

Decrease volume. Press the (lower) - button (A:14).

3:7 Adjusting call volume

You can adjust volume during a call by pressing the (+) or (−) buttons. Press the On/Off/Mode button (A:13) and then (+) or (−) to adjust the surround-sound volume during a call.

3:8 Adjusting streamed-music volume

You can adjust volume while streaming music by pressing the (+) or (−) buttons. Press briefly on the On/Off/Mode button (A:13) and then (+) or (−) to adjust the surround-sound volume during music streaming.

3:9 Changing settings in the Configure menu

The headset has a Configure menu where you can adjust settings.

To access the menu, press and hold the (−) and (+) buttons for 2 seconds (with the headset switched on).

Access to the Configure menu is confirmed by a voice saying: "menu".

To change the settings, use the (-) and (+) buttons. To move on through the

Configure menu, press briefly on the On/Off/Mode button (A:13).

See quick guide for information on how the menu is set up and where the functions are located.

Bass Boost

Bass Boost gives a fuller bass sound to streamed stereo music.

Music Limiter Mode

There are two settings for limiting the sound level when streaming music/audio with Bluetooth

• ON

The limiter will reduce the volume level to 82 dB(A) Leq over 8 hours

- OFF limits the total sound exposure over 8 hours to 82 dB(A) Leq If the volume is set above 82 dB (A) it will be reduced to a very low volume, once the daily dose is reached.

This is confirmed by a voice saying: "daily dose reached".

The dosimeter will reset every 24 hours.

Warning: Daily dose could be exceeded if batteries are removed and replaced, or if factory default is activated.

Balance

Changes the left-right balance of the surround sound.

Equalizer

Changes the frequency character of the surround sound.

  • Low
  • Normal
    • High
  • Extra High

External Input (only applies to audio input J22 - A:12)

  • OFF – use this mode when the J22 audio input is not in use
  • ON – use this mode if a cord is plugged into the J22 audio input
  • Microphone – use this mode if a boom microphone is plugged into the J22 audio input

Side tone volume (applies only to Hands Free Bluetooth sound)

  • OFF
  • LOW
    NORMAL
  • HIGH

Side tone noise reduction

• ON
• OFF

Reset to Factory Default

Resets all functions to the factory settings.

3:10 Connecting external equipment via a cord

External equipment can be connected via the J22 audio input (A:12) or the 3.5 mm jack (A:11). For information on various cords, see Spare Parts/Accessories (I).

EN

4. OTHER FUNCTIONS

• The last settings are stored when the headset is switched off.
- Automatic power-off after two hours of no active functions. Automatic power-off is indicated by a voice message: "automatic power off".
- Low battery level is indicated by a voice message: "low battery".

5. IMPORTANT USER INFORMATION

The hearing protector must be worn, adjusted, cleaned and maintained in accordance with this manual.

  • The hearing protector features active volume. Check that this feature works before using the unit. If distortion or flaws are discovered, consult the manufacturer's instructions for maintenance and battery replacement.
    • Always wear the hearing protector at all times during exposure to hazardous noise
  • Certain chemical substances may damage this product. Contact the manufacturer for more information.
  • The hearing protector is fitted with an electric audio input. Check that this feature works before using the unit. If distortion or flaws are discovered, consult the manufacturer's instructions.
  • If sound distortion increases or the volume becomes too weak, it is time to charge or replace the batteries. Never replace or insert batteries with the unit switched on. Ensure that the batteries are correctly aligned before using the product.
    • Store product without the batteries.
    • Under extremely cold conditions, warm the hearing protector before using.
  • The wearer should ensure that the ear-muffs are regularly inspected for serviceability.
  • The fitting of hygiene covers to the cushions may affect the acoustic performance of the ear-muffs

Note: If these recommendations are not followed, attenuation may be adversely affected leading to hearing impairment.

WARNING!

The sound from the active-volume circuit on the hearing protector may exceed the external sound level.

IMPORTANT! For the best protection, brush aside hair around the ears so the ear cushions fit snugly against the head. Spectacle frames should be as thin as possible and fit close to the head to minimise acoustic leakage.

Operating temperature: -20 °C to +55 °

6. TECHNICAL DATA

6:1 Attenuation values, SNR (D)

The attenuation values and noise levels for the headset are tested and approved according to EN 352-4: 2001, EN 352-6 : 2002, EN 352-8 2002 and applicable parts of EN 352-1 2002. Certificate issued by FIOH (registration no. 0403).

Explanation of the attenuation data tables:

  1. Weight
  2. Frequency (Hz)
  3. Average attenuation (dB)
  4. Standard deviation (dB)
  5. Expected attenuation (dB)

6:2 Input signal level/usage time for audio input J22 (E)

Maximum permitted audio signal in relation to usage time.

To prevent harmful effects on hearing, the input signal should not exceed the specified values (average speech sound level). The long-term average value of the earphone volume is measured at a level corresponding to no more than 82 dB(A) sound level.

  1. Hours/day
  2. Average level/electric signal X = 20 mV

6:3 Sound exposure when using audio input J22 (F)

6:4 Sound exposure when using the 3.5 mm audio input

The earphone level for music is measured at no more than 82 dB(A) equivalent sound level. Max input level 1,5 Vrms.

6:5 Criterion levels (G)

A criterion level is the amount of noise (measured as A-weighted sound pressure) outside the hearing protector that gives 85 dB(A) inside. The noise level depends on the type of noise. H is high-frequency dominated noise, M is noise that is not dominated by any given frequency, and L is low-frequency dominated noise.

6:6 Battery type

All types of AAA 1.2–1.5V batteries can be used (NiMH, NiCd, Alkaline, Lithium, Manganese, etc), but only NiMH and NiCd batteries can be recharged.

6:7 Battery life

The expected battery life may vary depending on the brand of batteries and the temperature in which the product is used. Low battery level is indicated by a voice saying: "low battery". The headset functions will not work optimally if the battery is low.

2*AAA NiMH

Mode Life time
Surround + Bluetooth (active) >12h
Surround only + Bluetooth Off >80h

2*AAA Alkaline

Mode Life time
Surround + Bluetooth (active) >12h
Surround only + Bluetooth Off >80h

6:8 Bluetooth

2.1

A2DP 1.2

HSP 1.2

HFP 1.5

AVRCP 1.0

The headset is designed for Bluetooth standard V.2.1 (headset and handsfree profiles + A2DP) and is certified according to: EN 300 328 (radio test), EN 301 489-1/-17 (EMC test), EN 60 950 (electric safety, low voltage directive), FCC part 15.247 (US radio test) and I.C. (Canadian radio test).

7. STORAGE

Do not store the hearing protector at temperatures exceeding +55°C, for example on a dashboard or windowsill. Do not store the hearing protector at temperatures below -55°C.

NOTE: Ensure the cord is removed from the audio input before folding the headband.

(H:1) WRONG. All headband wires must be tucked-in fully before the headband is folded.

(H:2) RIGHT. The ear cushions should lie flat against each other.

(H:3) WHEN DAMP. Turn the shells outwards. Remove the ear cushions so that the attenuation cushions can dry. Reinstall them. See Maintenance/Cleaning section for further details.

Remove the batteries when storing the hearing protector for a long time. Check the functioning of the unit after replacing the batteries.

EN

8. MAINTENANCE/CLEANING

This product is covered by the WEEE directive 2002/96/EC and is recyclable. Dispose the product in accordance with national regulation. Use local recycling system for electronic products.

8:1 CLEANING

Clean/disinfect the shells, headband and ear cushions regularly with soap and warm water. Note: Do not immerse in water!

8:2 REMOVING/REPLACING OUTER SHELLS

See 3:1

8:3 REMOVING/REPLACING EAR CUSHIONS

(C:7) Slide your fingers under the edge of the ear cushion and pull straight out.
(C:8) Insert a new ear cushion by pressing until it snaps into place.

9. SPARE PARTS/ACCESSORIES

HY68 SV Hygiene kit

Easy to replace hygiene kit consisting of two attenuation cushions and snap-in ear cushions. Replace at least twice a year to ensure constant attenuation, hygiene and comfort, or if any of the parts of the hygiene kit are defective. The headset and particularly the ear cushions can deteriorate over time and should be inspected regularly to ensure that there are no cracks and sound leakage. If an ear cushion is damaged, it must be replaced. See Maintenance/Cleaning section.

Cords for audio inputs (receiving only)

FL6H J22 to 3.5 mm mono contact

FL6M J22 to 2.5 mm mono contact

FL6N J22 to 3.5 mm stereo contact

FL6CE 3.5 mm to 3.5 mm stereo

Audio cord for two-way communication (Type ICOM)

TAMT06 Cord with push-to-talk button (PTT) and microphone, J22 contact

Other spare parts/accessories

MT53/1** Boom microphone (l:1) for communication in extremely noisy environments

HY400 Headband padding. For an optimal fit on a smaller head, use HY400 headband padding. The padding is easy to attach to the standard padding. See the installation instructions (J).

The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by 3M is under license. Other trademarks and trade names are those of their respective owners.

'3M does not accept liability of any kind, be it direct or consequential (including, but not limited to, loss of profits, business and/or goodwill) arising from reliance upon any information herein provided by 3M. The user is responsible for determining the suitability of the products for their intended use. Nothing in this statement will be deemed to exclude or restrict 3M's liability for death or personal injury arising from its negligence.'

BG

WS SportTac, WS5, WS Workstyle

WS SportTac, WS5, WS Workstyle

WS SportTac, WS5, WS Workstyle

WS SportTac, WS5, WS Workstyle

WS SportTac, WS5, WS Workstyle

WS SportTac, WS5, WS Workstyle

WS SportTac, WS5, WS Workstyle

WS SportTac, WS5, WS Workstyle

WS SportTac, WS5, WS Workstyle

Bass Boost (Renforcement des basses)

WS SportTac, WS5, WS Workstyle

Ovaj proizvod ispitan je i odobren kao osobna zaštitna oprema (PPE) u skladu s direktivom 89/686/EEC, usaglašen je sa zahtjevima za elektromagnetsku kompatibilnost (EMC) direktive 2004/108/EC te ispunjava zahtjeve za postavljanje CE oznake na proizvod.

NAPOMENA: Pažljivo pročitajte ove upute prije prve upotrebe i spremite ih za buduće korištenje.

1. UGRADBENI DIJELOVI

(A:1) Žičani obruč za glavu (nehrđajući čelik)
(A:2) Spona za pričvršćivanje u dvije točke (na žičanom obruču za glavu)
(A:3) Jastučići za uši (PVC folija i poliesterska pjena)
(A:4) Mikrofon za okolni zvuk
(A:5) Prigušni jastučići (poliesterska pjena)
(A:6) Unutarnja školjka
(A:7) Vanjska školjka
(A:8) Spona
(A:9) Obruč za glavu (limena oplata)
A:10) Postava obruča za glavu (termoplastični elastomer ili koža)
(A:11) AUX audio ulaz, 3,5 mm stereo
(A:12) Audio ulaz, J22
(A:13) Uklj./isklj./načini rada
(A:14) Glasnoća (VOL)+, VOL-
(A:15) Mikrofon za govor
(A:16) Gumb za Bluetooth
(A:17) Priključak za punjač
(A:18) Punjač
(A:19) Punjive AAA NiMH baterije
(A:20) Stereo kabel 3,5 mm. FL6CE

2. UGRADNJA I PODEŠAVANJE

WS SportTac, WS5, WS Workstyle

WS SportTac, WS5, WS Workstyle

Bass Boost (Bassastyrking)

WS SportTac, WS5, WS Workstyle

WS SportTac, WS5, WS Workstyle

Equalizer (stabilizers)

WS SportTac, WS5, WS Workstyle

Reset to Factory Default

WS SportTac, WS5, WS Workstyle

Voice dial (talestyring)

WS SportTac, WS5, WS Workstyle

WS SportTac, WS5, WS Workstyle

WS SportTac, WS5, WS Workstyle

  1. Ore/zi
  2. Nivel mediu/semnal electric X = 20 mV

WS SportTac, WS5, WS Workstyle

WS SportTac, WS5, WS Workstyle

WS SportTac, WS5, WS Workstyle

WS SportTac, WS5, WS Workstyle

WS SportTac, WS5, WS Workstyle

Pty Limited950 Pacific Highway,

Pymble, N.S.W. 2073

+61 1800 024 464

Austria

3M Belarus Representation Office

Mogilevskaya str 18, office 4220007

Minsk

+375 172 22 97 90

Belgium

3M Belgium N.V. / S.A.

Hermeslaan 71831 Diegem

+32 2 722 53 10

Bulgaria

33M Bulgaria Representation Office

1715 Sofia, Mladost 4 Business Park, sgrada 4

+359 2 960 19 11

Croatia

3M Croatia Representation Office

3M Egypt Trading Ltd.

Sofitel Tower, 19th Floor,

Corniche el-Nil St.Maadi, Cairo

+202 525 9007

Estonia

3M Eesti filial

Mustamäe tee 410621 Tallinn

+372 6 115 900

Finland

Suomen 3M Oy PL 90,

Lars Sonckin kaari 602601

Espoo

+358 9 52 521

France

3M France

Bd de l'Oise 95006 Cergy Pontoise

Cedex

+33 1 30 31 65 96

Germany

3M Deutschland GmbH

PLC3M Centre, Cain Road Bracknell,

RG12 8HT

+44 870 60 800 60

Greece

3M Hellas Limited

Upper Georges StreetDun Loaghaire,

Co. Dublin

+353 1 800 320 500

Italy

3M Italia S.p.A.

Via San Bovio 3,

Loc. San Felice20090 Segrate (MI)

+39 2 70351

Kazakhstan

3M Kazakhstan Representation Office

GlenfieldAuckland, NZ

+64 800 364 357

Norway

3M Norge A/S,

Avd. Verneprodukter, Postboks 100,

Hvamveien 6,

2026 Skjetten +47 63 84 75 00

Poland

3M Poland Sp.

z o.o.Aleja Katowicka 117,

Bucharest Business Park,

Krylatsky Hills Business Park,

Krylatskaya st., 17, bldg. 3121614,

Moscow

+7 495 784 74 74

Serbia

3M Representation Office

Beograd Milutina Milankovica 2311070

Novi Beograd

+381 11 3018459

Slovakia

3M Slovakia Representation Office

3rd floor, Kyiv, 03680,

+380 44 490 57 77

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : 3M

Model : MT16H21FWS5E-580SV

Category : Earphones
