USER MANUAL HD 600 C KARCHER

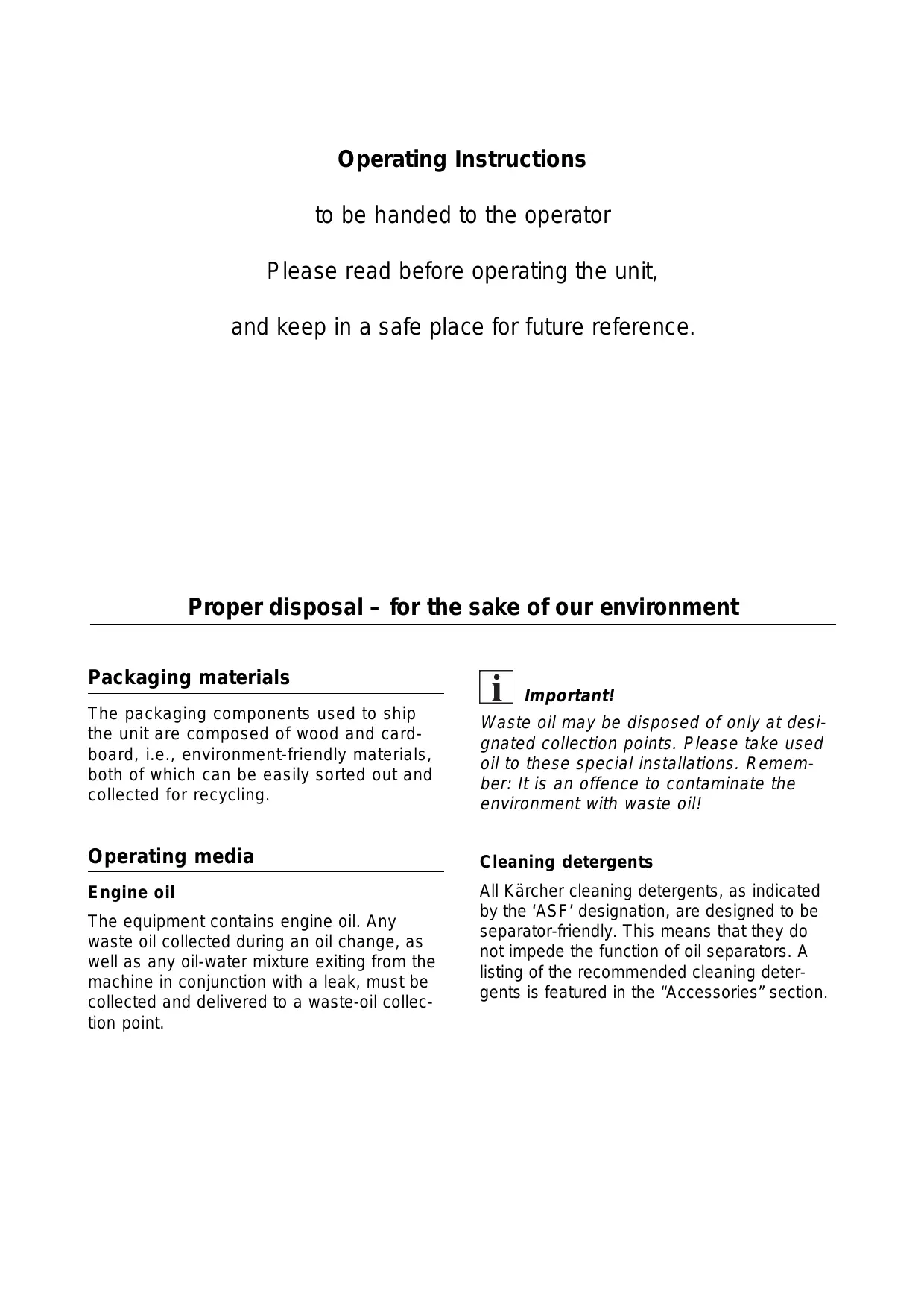

Operating Instructions to be handed to the operator Please read before operating the unit, and keep in a safe place for future reference. Proper disposal - for the sake of our environment Packaging materials The packaging components used to ship the unit are composed of wood and card- board, i.e., environment-friendly materials, both of which can be easily sorted out and collected for recycling. Operating media Engine oil The equipment contains engine oil. Any waste oil collected during an oil change, as well as any oil-water mixture exiting from the machine in conjunction with a leak, must be collected and delivered to a waste-oil collec- tion point. 1 Important! Waste oil may be disposed of only at desi- gnated collection points. Please take used oil to these special installations. Remem- ber: It is an offence to contaminate the environment with waste oil! Cleaning detergents All Kärcher cleaning detergents, as indicated by the ‘ASF’ designation, are designed to be separator-friendly. This means that they do not impede the function of oil separators. A listing of the recommended cleaning deter- gents is featured in the “Accessories” section.

HD 600 / 1000 / 1400 C(H) Table of Contents English A. For Your Safety

1. System Operating Hazards

Safety Instructions and Information Danger Sources Hazards posed by Accessories Noise Protection Workplaces Authorised Operators Personal Protective Equipment Safety Measures on the Installation Site Protective Devices . Emergency drill . Guidelines and Regulations . Proper Use of the Equipment B. System Operation

1. Operator controls

2. Switching off in case of emergency

Flow diagram Description of functions D. Specifications BW EH HD 600 C(H) HD 1000 C(H) HD 1400 C(H) Dimension diagram E. Maintenance up W ND + System overview Notes on maintenance Maintenance Schedule Oil change Decalcification F. Troubleshooting G. Accessories H. System Installation SN Oo UP &W ND Placement Connections High-pressure Installation Mounting detergent reservoirs Hard-water Treatment Preparations for Commissioning Space Assignment Plan

1. System Operating Hazards

This system is equipped with an overpressu- re protection feature which was subjected to a safety inspection. Improper operation or abuse of this feature constitutes an hazard to health and life of the operator and/or third persons. Any persons charged with the installation, commissioning, operatio n, maintenance or service of the machine are obligated: m to be appropriately qualitied # to diligently observe these Operating Instructions.

2. Safety Instructions and

Information Throughout the present Operating Instru- ctions the following symbols are used: AN Danger! Denotes an immediate and present danger. Failure to observe this notice could lead to severe injury or death. Caution! Denotes à potentially hazardous situation. Failure to observe this notice could lead to minor injuries or property damage. 1 Important! Denotes operating hints and important information.

Sections of the water volume contained in the system are under high pressure. High- pressure water jets may exit from damaged system components, posing injury and/or scalding hazards. General Hazard Overview AN Danger! nm injury hazard through exiting water jet of high-pressure or high-temperature water. Even after the Emergency-STOP master switch has been activated, the system contains high pressure. After a system stop, release remaining system pressure by opening a high-pressure gun. m Burn injury hazard through hot system components. During hot-water operation, do not touch non-insulated pipe installations and hose couplings. Grasp the jet lance by the grip surfaces only. nm injury hazard through flying debris. Flying debris or objects can cause injury to persons or animals. Never aim the water jet at fragile or loose objects. m Explosion hazard. The use of this system in enclosed in- door areas is prohibited. m Explosion hazard. injury hazard arising from system dama- ge. Beside water, no other liquid media may be used. This also precludes the intro- duction of flammable or corrosive liquids to the system. m Health hazard through cleaning deter- gents. Due to the possible adding of detergents to the system water, the water exiting from the system must not be used as drinking water.

HD 600 / 1000 / 1400 C(H) A. For Your Safety English Hazards posed by defective equipment AN Danger! injury hazard through exiting water jet of high-pressure or high-temperature water. Only operate the system with the unit cover closed. Before each system start, check high-pres- sure hose, tubing, valves and high-pressure lance for damages. Replace leaking components immediately, and correct any leaks in connections or couplings without delay. Hazards during work on the system Repair or service work may be carried out only by: Æ manufacturer-approved customer service depots # trained professional personnel. AN Danger! M injury hazard through exiting water jet of high-pressure or high-temperature water. Release system pressure before perfor- ming work on system components. In the case of hot-water operation, allow unit to cool before commencing work. m Electric shock hazard. Switch OFF and secure master switch before commencing work on the system.

4. Hazards posed by Accessories

À sharp and powerful waterjet exits from the orifice of the spray lance nozzle. When operating the spray lance, keep in mind the following: AN Danger! = Deadly electrical shock hazard. Do not aim the waterjet at - electrical devices and systems - atany parts of the system proper All live components within the working area must be spray-water protected. AN Danger! nm injury hazard. Hazard of chemical burns caused by cle- aning detergents. Scalding hazard through hot water. Do not aim waterjet at persons or ani- mals. Strictly observe safety instructions on detergent labels. # Accident hazard due to hidden damage. Clean tires and valve stems from a minimum distance of 30 cm. M injury hazard through exiting water jet of high-pressure or high-temperature wa- ter. Only original Kärcher high-pressure ho- ses are optimised for the demanding use in the system. No warranty claims are accepted in the event that other types of hoses are used. The waterjet exiting from the spray lance causes a recoil force which is deflected up- ward by the downward angle of the spray lance nozzle. nm injury hazard through recoil action. The force of the recoil action may throw you off balance, and you may fall down. The spray lance may whip around and injure persons standing nearby. Select a secure foothold position and firmly grasp the handgun. Never wedge the handgun trigger in the open position. 5.959-490 À 12578 (12/99)

English A. For Your Safety HD 600 / 1000 / 1400 C(H) m njury hazard through defective hose coupling. Check hose coupling daily for tightness and absence of leakage. AN Danger! mn Health hazard posed by toxic sub- stances. Do not spray clean the following materi- als, because substances known to pose a risk to human health may be swirled up: - Materials containing asbestos - Materials that could possibly contain toxic substances hazardous to human health. m Poisoning Hazard. Chemical burn hazard. Fire hazard. Protect cleaning detergent storage against access by unauthorised persons. Observe all safety instructions for cle- aning detergents.

The sound level of the plant is approximate- ly 80 dB (A). Because of this, the wearing of a hearing protection aid at the place where itis installed is not stipulated. However, atthe workplace proper, (i.e., handgun) a noise hazard must be assumed to be present under normal circumstances (pursuant to Regulation VBG 87). Accordin- gly, suitable hearing protection must be worn while working in noise-polluted areas.

The pump unit, where the system is only switched on and off. Other workplaces are, depending on the system installation, at the accessory devices (spraying devices) which are connected to the taps.

7. Authorised Operators

The operation of the system is restricted to persons over the age of 18 who have been properly instructed. An exception is made with youths over age 16 who need to ope- rate the system as part of their training, and if such use of the system is duly super- vised (Regulation VBG 87). Additional local ordinances must be obser- ved. The system operator is responsible for third persons within the working area. The areas of responsibility covering the va- rious operator functions on the machine must be precisely delineated and stringent- ly observed. Overlapping areas of competence present a safety risk. The system owner is responsible for: # making the Operating Instructions availa- ble to the system operator # ensuring that the operator has read and understood the Operating Instructions.

8. Personal Protective Equipment

When cleaning resonating compon- © ents, hearing protection must be worn to prevent hearing loss. m For protection against spray-water, water repellent protective clothing must be worn.

9. Safety Measures on the

Installation Site AN Danger! Risk of injury from the system falling down. The wall attachment must be carried out professionally. When doing so considerati- on must be given to the load-bearing capa- bility of the wall.

m The system is shut down by the emer- gency-OFF master switch. m Protection against contact with all unit parts which are hot, with the exception of the water inlet and high-pressure outlet, is provided by the housing.

m Turn unit switch to position “O0” # Close water inlet. m Release water pressure by opening a high-pressure spray gun.

12. Guidelines and Regulations

minthe Federal Republic of Germany the operation of this system is subject to the Regulations for Liquid Spraying Devices (VBG ZH 1/406), published by the Princi- pal Organisation of the Commercial Employers’ Liability Insurance Associati- on. The guidelines may be ordered from Carl Heymann Verlag KG, Luxemburger Strasse 449, D-50939 Cologne, Germa- ny. - Among other requirements, the Regu- lations foresee a system inspection by a certified professional in intervals of no more than 12 months. The results of the inspection must be documented in writing. - À testing log for entering the inspec- tion results is located at the end of this manual. - Kärcher customer service engineers qualify as certified professionals, and are authorised to carry out the afore- mentioned inspection. # Also applicable are the (German) Regu- lations governing liquid spraying devices, VBG 87, and the Ordinance on Hazar- dous Substances VBG ZH 1/220 (Gef- StoffV). # Please further observe any local regulati- ons governing electrical connection, and water and waste-water drainage connec- tions. Inquiries about these regulations can be made at the relevant supply company. m Connection work may be undertaken only by Kärcher Customer Service or by authorised professional personnel under observance of these regulations.

13. Proper Use of the Equipment

This system feeds water under high pressure to downstream high-pressure cleaning de- vices. As required, cleaning agent is drawn in and mixed with the water. Fixed installation of the system is in a dry room protected from sub-zero temperatures. An on-site installation may be no warmer than 40 °C. Distribution of the water under high pressure takes place via a fixed-installation pipes. 1 Important! Only clean water may be used as a high- pressure medium. Water contamination of any kind would cause premature compo- nent wear or lead to deposits within the sy- stem. Requirements in water quality: pH value 6.5...9.5 electrical conductibility under 2000 uS/cm setting solids under 0.5 mg/l * filtering solids {particle size under 0.025 mm) under 20 mg/l hydrocarbons under 20 mg/l chloride under 300 mg/l calcium under 85 mg/l ** total hardness under 15°dH * iron under 0.5 mg/l manganese under 0.05 mg/l copper under 0.02 mg/l free of bad smells

• test volume 11 / settling time 30 minutes + at higher values, decalcifying measures are necessary 5.959-490 À 12578 (12/99)

Push button Function 1|Emergency-OFF master switches the system on and off, switch starts the system-available time, serves simultaneously as Emergency-STOP switch

Metering valve for detergent |for adjusting the concentration of detergent in the water jet

Remote unlock (option) starts the system after system-available time has expired B1 5.959-490 A 12578 (12/99)

HD 600 / 1000 / 1400 C(H) B. System Operation English

2. Switching off in case of emergency

4. Adjustment settings

m Turn Emergency-Off master switch to position “0” = Close water inlet = Reduce water pressure by operating the handgun

3. Operation at the pump unit

Initial operation = Open water inlet Set Emergency-Off master switch to position “” m Press start button = Carry out cleaning process. After running time The pump stops if there is a pause during cleaning of more than 1 second. The adju- stable “available” time is started simultane- ously. Caution! Risk of damage. With emptied detergent reservoir the pump draws air. After closing ofthe hand gun the automatic switch-off of the pump is disturbed. Longer pump run- ning time without water consumption cau- ses pump damage. Therefore level of detergent reservoir should be checked regularly and refilled. “Available” time The system starts automatically within the “available” time as a result of the fall in pressure when the handgun is opened. The system-available time is adjustable bet- ween 2 and 8 minutes. Restoring the availability time # Switch off master switch and switch it on again, or press the remote-unlock button The adjustment settings described below are made at the initial start-up of the unit by the service engineer. Changes to them are undertaken as follows. AN Danger! Danger of electric shock. Before opening the control cabinet, turn off the master switch and secure it against being turned on. Open unit cover

| «4208 # Lift up cover at the front edge. = Swing up support (a) and secure end of support from slipping by inserting it in the holding device (b). Close unit cover Caution! Danger of getting hands trapped. When clo- sing the unit cover arrange the hands in such a way that they cannot get trapped between the unit cover and the lower part of the hou- sing. = Hold on to support (a). m Raise unit cover slightly. # Fold support down and lay it down. = Swing unit cover down. 5.959-490 A 12578 (12/99)

English B. System Operation HD 600 / 1000 / 1400 C({H) Detergent dosage Detergent is drawn in directly on the suc- 25 tion side by the high-pressure pump out of an external detergent reservoir. EH 600 C : : 2 —æ—HD 600 CH The metering amount is set at the deter- HD 1000 € gent metering valve (2) in the unit. The set —#HD 1000 CH TT value corresponds to the proportional amount 1,5 pa 100 CH of detergent in the jet spray. £ “Available” time The system-available time is adjusted by means of the potentiometer (a) on the : electronic control circuit. 1 Important! To vent the detergent suction line, turn the metering valve to position 4 %. For faster venting compress the suction hose at the float tank while pump is run- ning. The following graphs show the amount of detergent drawn in for the positions of the metering valve.

25 HD 1000 C : n ZE Ho 1000 cH The time can be adjusted between 2 and 8 HD 1400 C minutes. À simple scale is printed on the —+— HD 1400 CH printed circuit board with reference values.

HD 600 / 1000 / 1400 C(H) B. System Operation English Softener accessory kit (optional) # Enquire about the local hardness of water from the supply company respon- sible or determine it using à hardness tester (Order no. 6.768-004). = The adjustment is made at the rotary potentiometer (b) on the softener PCB.

The correct setting can be taken from the table. Water 5110, 15) 20! 25 hardness(°dH) Scale 8] 71 6! 5145 Pause time(Sec.)| 50] 40] 31] 22| 16 Example For a water hardness of 15 ‘dH, set scale value 6. This gives a pause time of 31 seconds, i.e. the solenoid valve opens every 31 seconds (short, audible click).

5. Stopping the System

# Turn the system's Emergency-STOP master switch to the 0 (OFF) position. = ShutOFF the water supply. = Open the handgun until the water pres- sure has dissipated. = Using the locking feature, secure the handgun against being opened acciden- tally.

The water-bearing parts of the system must be protected from freezing, since they could otherwise be destroyed. If the system is to be operated also in freezing tempera- tures, it must be installed in a frost-free location. Outdoor water lines must be frost-protected {i.e., through insulation or line heaters, or by draining during freezing temperatures).

If à system is to be shut down during cold periods, it must first be flushed with an antifreeze solution. As a rule, antifreeze products also contain corrosion inhibitors. 5.959-490 À 12578 (12/99)

High-pressure pump Pressure switch high pressure Pressure switch low pressure Flow control Float tank Water inlet Detergent metering, manual Precompression pump hot water (only in HD xxxx CH) High-pressure outlet Pressure gauge (operating pressure) Accessory kit, softener (option)

2. Description of functions

Full pumping capacity On take-off of the entire flow rate, the water flows via Æ water inlet (6), Æ floattank (5), M precompression pump hot water (9) (only in HD xxxx CH), M high-pressure pump (1), to high-pressure outlet (10). Part take-off If only part of the water capacity fed by the pump is required, the remaining volume flows via the Æ flow control (4) back m to the suction side of the high-pressure pump (1). Detergent Detergent is drawn in by the high-pressure pump (1) via the manual detergent mete- ring device (7) Automatic pump start Ifthe system pressure drops during the available time owing to the opening of a consuming device, then the high-pressure pressure switch (2) starts the pump. Automatic switch-off Ifthe water flow in the flow control device (4) rises as a result of little or no water take- off, the pressure also rises at the low-pres- sure pressure switch (3). If the pressure exceeds a threshold value, the switch-off procedure begins: m After one second the pumps stops and the “available” time begins. m fa take-off of water happens inside the “available” time, the pump starts up again. # When the system-available time has expired, the system is set in operation by switching off the Emergency-Stop master switch and switching it on again, or by pressing the remote unlock button (option). 5.959-490 À 12578 (12/99)

1 Pressure gauge 2 Oil reservoir 3 Vibration damper 4 Strainer water inlet 5 Threaded oil-drain plug 6 High-pressure pump 7 Precompression pump {only HDxxxxCH) 8 Pressure switch, high pressure 9 Pressure switch, low pressure 10 Metering valve for detergent, manual 12 Float tank

The basis of a reliably operating system is regular maintenance in accordance with the following maintenance schedule. Use only manufacturer's original spare parts or parts recommended by him, such

m Spare parts and wearing (consumable) parts M Accessory parts = Operating media m Cleaning media. AN Danger! Danger of accident when carrying out maintenance work on the system. For all maintenance tasks: = Turn off water supply by closing the water tap. M injury hazard through exiting water jet of high-pressure or high-temperature water. Release system pressure before perfor- ming work on system components. In the case of hot-water operation, allow unit to cool before commencing work. m Electric shock hazard. Switch OFF and secure master switch before commencing work on the system. Who is allowed to carry out maintenance tasks? = Operator Tasks which are given the designation “Operator” may be carried out only by instructed personnel, who are able to operate the high-pressure systems safely and maintain them. = Customer Service Tasks which are given the designation “Customer Service” may be carried out only by Kärcher Customer Service engi- neers. Maintenance contract To ensure that your system operates relia- bly, we recommend that you take out a maintenance contract. Please take the matter up with your responsible Kärcher Customer Service. 5.959-490 À 12578 (12/99)

Interval Procedure Subject Assembly Activity By whom Daily Check All handguns Check whether handgun closes Operator handgun properly. Check function of safeguard against inadvertent operation. Replace defective handguns. Check fill Detergent reservoir, Check fill level, if necessary fill up Operator level accessory kit softener (optional) Check Outlet lines & hoses leading |Check hoses for damage. Replace |Operator high-pressure |to workstations defective hoses immediately. hoses Accident Hazard! Weekly, Check system |Entire system Check pump and line system for Operator/ or after 40 |for leaks leaks. If oil is present in the drip pan |Customer operating under pump, ofif a leak exceeds 10 |Service hours drops of water per minute, call customer service immediately. Keep weep holes unblocked. Check oil Pump Ifthe oil appears milky, it must be Operator/ quality changed. In this case itis Customer recommended to change the pump {Service oil seal also. (Customer service.) Check oil level [Pump If required, top up with oil Operator (part no. 6.288-061). Check Manometer Check system water pressure Operator working (pressure gauge). If pressure is too pressure high or too low, investigate and remedy the cause (see also the section on Trouble Shooting). Check hose Hose quick-couplings Pump must be running. Operator quick- between system tap and Check for leakage in tandem and couplings high-pressure hose to individual operation. handgun. Connect clutch and check clutch locking function. Customer Replace defective clutches. Service Check Vibration damper A defective dashpot is readily Operator dashpot identifiable through increased pump vibration. Customer Replace defective dashpot. Service E3 5.959-490 A 12578 (12/99)

E. Maintenance HD 600 / 1000 / 1400 C(H) English Interval Procedure Subject Assembly Activity By whom monthly, Clean strainer |Strainer, water inlet Switch off unit, turn off water, Operator or after 200 bleed pressure. Dismantle strainer operating and clean it. hrs. Check float Float reservoir When the float valve is closed, itis |Operator valve not possible for water to escape at the overflow. Check Pressure switch Pump is stands still as there is no |Operator automatic take-off of water. Open handgun. If switching on pressure in the high-pressure network sinks below 30 bar, the pump must switch on. Tighten hose [All hose clamps in/on the unit |Tighten hose clamps with torque |Operator clamps wrench. Torque: 28 mm nominal diameter: 2 Nm 29 mm nominal diameter: 6 Nm Semi- Oil change HD-Pumpe CAUTION! Hot Oil Scalding Operator annually, Hazard. Prior to oil change, allow or after pump to cool for 15 minutes. 1000 Drain oil and fill with 0.75 litres of operating oil, Part No. 6.288-061. Do NOT hours use alternate oil products! Check unit for |Entire water system Functional faults on valves or Operator lime deposits pumps may indicate calcification. |trained in Use procedures outlined on the decalcificat following pages. procedures Tighten Control cabinet Tighten all terminal strips of Electrician terminal strips components master mains power circuit. Annually |Safety check |Entire system Safety inspection pursuant to Expert/ guidelines covering liquid spraying | Customer devices. Refer to section A.12. service Tighten hose |All hose clamps in/on the unit |Tighten hose clamps with torque |Operator clamps wrench. Torque: 28 mm nominal diameter: 2 Nm 29 mm nominal diameter: 6 Nm 5.959-490 A 12578 (12/99) E4

AN Danger! Risk of getting burnt from hot oil and hot system components. Let pump cool down for 15 minutes before making oil change. L Important! Used oil may be disposed of only atthe collecting points designated for this purpo- se. Please hand in used oil resulting from the oil change at such à place. Pollution of the environment with waste oil is a punisha- ble offence. Oil types and oil quantities: see Technical Data. Carry out the oil change as follows: = Hold container for used oil ready. = Remove cover of oil reservoir (@). = Screw out threaded oil-drain plug @ and catch used oil. = Screw in threaded oil-drain plug @. = Pour in new oil slowly up to position “Max” on oil reservoir. = Put on cover of oil reservoir (). = Convey used oil to the designated col- lection point.

AN Danger! Explosion hazard through flammable gases! Smoking is prohibited when carrying out decalcification procedures. Ensure adequa- te ventilation. Caution! Acid hazard! Protective goggles and gloves must be worn. Lime deposits throughout the water lines of the high-pressure system create increased pipe-run resistance and may result in the failure of calcified components. According to official regulations, only ap- proved boiler scale dissolvants (de-scaling acid) with test mark may be used. For scale removal in the high-pressure sy- stem, the use of KÂRCHER scale dissol- vants should be given preference (RM 100 ASF, hydrochloric acid-free, part no. 6.287-008, or RM 101 ASF, containing hydrochloric acid, part no. 6.287-013). These products are balanced for use in conjunction with the materials present throughout the system. After decalcification we recommend neutralising the remaining acid residues by flushing the system with an alkaline solution (pH value 7-8). The instructions for use and accident pre- vention regulations (dilution according to la- bel specifications), and in particular VBG1, 84, 14, and 44-47 must be observed.

HD 600 / 1000 / 1400 C(H) E. Maintenance English Proceed as follows: Begin by decalcifying the float reservoir: Close water supply. Remove the float reservoir lid. Remove the hose connecting the pump suction side with the float reservoir, pump side. Block the free end of the hose. Pour in 7-percent de-scaling solution. After the conclusion of decalcificati- on, remove all scale residues from the reser- voir! Decalcifying high-pressure system: Disconnect high-pressure hose from water supply inlet and hang into float reser- voir. Next, use the decalcifying acid soluti- on pre-mixed in the float reservoir for short- term system operation in circulation (idle pressure) mode. Allow chemicals to activa- te, and conclude by flushing the system. 5.959-490 À 12578 (12/99)

English F, Troubleshooting HD 600 / 1000 / 1400 C(H) AN Danger! Risk of accident when carrying out tasks on the system For all tasks: = Turn off water supply by closing the water tap. m Risk of injury from water jet which may also be hot. Before carrying out work on the system, bleed pressure and wait until the system has cooled down. m Danger of electrical shock. Before car- rying out work on the system, switch off master switch and secure it. Who is allowed to remedy faults? = Operator Tasks which are given the designation “Operator” may be carried out only by instructed, skilled personnel. Instructed, skilled personnel are those who are able to operate the high-pressure systems safely and maintain them. # Electricians Tasks which are given the designation “Skilled electrician” may be carried out only by persons who have a professional training in electrical engineering = Customer Service Tasks which are given the designation “Customer Service” may be carried out only by Kärcher Customer Service engi- neers. F1 5.959-490 A 12578 (12/99)

HD 600 / 1000 / 1400 C(H) F. Troubleshooting English Problem Possible Cause Remedy by whom High-pressure |Leaking suction-side tubing system |Check fastener and hose |Operator pump fails to connections come up to = pressure Water starvation Correct the cause Operator Leaking high-pressure hose Replace hose Customer Service Leaking pipeline system Overhaul Customer Service Defective flow control Check flow control, Customer overhaul unit Service Defective valve in pump Replace valves Customer Service Pronounced Defective dashpot replace Operator pump knock, A = n Peu pressure Pump is drawing air Check suction line Operator gauge pointer | Detergent reservoir empty Refill detergent reservoir |Operator oscillates Water inlet temperature too high Reduce water temperature |Operator Water inlet blocked Clean strainer at water Operator inlet, check water inlet Defective valve seat or valve spring | Replace as required Customer Service Defective or calcified Check precompression Operator precompression pump pump (only in HD xxxx CH) Water jet is Nozzle of handgun blocked Clean nozzle Operator uneven Water supply not sufficient Check water supply Operator No drawing-in |Dosage set at too little Set dosage higher Operator of detergent PTE A E Suction filter in detergent reservoir |Clean suction filter Operator dirty Detergent suction hose leaking Replace suction hose Customer Service Metering valve cleaning agent, Check metering valve, Customer manual, defective replace if necessary. Service 5.959-490 À 12578 (12/99) F2

English F. Troubleshooting HD 600 / 1000 / 1400 C(H) Problem Possible cause Remedy by whom System does not start | Pressure switch defective Replace pressure switch | Customer up when switching on Service or when pressing the Motor protection switch has Check voltage of the Customer remote unlock button : : : (option) triggered owing to excess current |three phases Service / or failure of one phase of the Electrician power supply system Motor protection switch falsely set | Set in accordance with |Customer circuit diagram Service / Electrician Site power supply interrupted switch on Operator Emergency-STOP master switch |switch on Operator off Motor protection switch for control |check Customer system and precompression pump Service / has been triggered Electrician Control-circuit fuse on transformer | replace, check cause Customer defective Service / Electrician PCB defective replace, check Customer Service Pump starts during Pressure switch or cable to replace Customer available time but not |pressure switch defective Service by opening the handgun System does not Pump draws air from empty Refill detergent Operator switch off. detergent reservoir reservoir, remove air from suction hose Pressure switch for low pressure |Replace pressure switch | Customer defective Service / Electrician F3 5.959-490 A 12578 (12/99)

HD 600 / 1000 / 1400 C(H) G. Accessories English Handguns with different spray lances Dependent on the cleaning application, dif- ferent spray lance extensions are required, ranging from 250 mm for one-hand operati- on to 2040 mm for cleaning high objects. Fm … e=——— Nozzles Several nozzles with different spray angles are available for the system. The nozzles are mounted on the spray lance by means of a union nut, and are easily changed. Design- | Spray | Order No. ation angle | 2.883- HD 600 C (H) 25036 25° -821 15060 15° -391 HD 1000 C(H) 25060 25° -402 25100 ° -408 HD 1400 C(H) 2 x 25050 25 2x-399 Force of recoil from the handgun when using these nozzles: HD 600 C 160 bar 28N HD 1000 C 150 bar 30N 120 bar 35N HD 1400 C 2 x 120 bar 2x28N The spraying device (i.e., handgun) is con- nected by means of an in-line quick-cou- pling. Accessory kit, Stand Used for setting up the pump unit when wall-mounting is not possible for technical or architectural reasons. Accessory kit, Softener As à protection against calcification when operating in hot-water mode with hard water. Meters softener into the water. The metered amount can be adapted to the degree of hardness of the water. Cleaning detergents Cleaning detergents facilitate any cleaning task. À selection of cleaning agents is listed in the table on the following page. When using detergents it is essential to observe the instructions supplied on the product la- bels. The following types of cleaning detergents must not be used with this system: © Detergents containing nitric acid © Detergents containing active chlorine Using these types of detergents will result in damage to unit components. 5.959-490 À 12578 (12/99)

English G. Accessories HD 600 / 1000 / 1400 C(H) Area of Contamination type Cleaning agent Approx. pH value application Application method g ag 1 %-solution Automotive, RM 55/1000-liquid ASF ** slightly alkaline petrol stations, Dust, road grime, mineral oils RM 22/80-powder ASF alkaline motor carriers, (on painted surfaces) RM 81-liquid ASF alkaline vehicle fleets RM 803-liquid ASF alkaline RM 820-hot wax ASF neutral Vehicle protection RM 821-spray wax ASF neutral RM 824-Super-P erlwachs ASF neutral RM 22-powder ASF alkaline Oils, RM 55-liquid ASF slightly alkaline : : greases, RM 81-liquid ASF alkaline Metal working dust RM 31-liquid ASF strongly alkaline industry Lo Du and similar (heavy contamination) contamination RM 39-liquid slightly alkaline {with corrosion protection) RM 55-liquid ASF slightly alkaline Food Light to medium contamination, RM 81diquid ASF alkaline processing greases/oils ou : industry large surfaces RM 58 liquid ASF alkaline (foaming cleanser) RM 31-liquid ASF * strongly alkaline Smoky resin RM 33-liquid * strongly alkaline Cleaning and disinfecting RM 32-D-liquid alkaline Disinfecting RM 735-D-liquid alkaline Lime RM 25-liquid ASF * strongly acidic ! RM 59-liquid ASF acidic mineral deposits (foaming cleanser) RM 25-liquid ASF strongly acidic Sanitary Lime, (basic cleaning) installations urinal deposits, RM 59-liquid ASF acidic soaps, etc. (foaming cleanser) RM 68-liquid ASF acidic *= for short-term use only. Two-step method. Flush with clean water. #=ASF = abscheidefreundlich G2 5.959-490 À 12578 (12/99)

The system must be installed in dry indoor surroundings free from explosion hazard. The components shall be placed on firm and level ground, and the system must be easily accessible for the purpose of mainte- nance procedures. The room temperature must not exceed 40 °C. Possible ways in which the unit can be set up are as follows: # Mounted on the wall # Setup on the ground using the Stand accessory kit (optional) If wall mounting is used, the wall should be tested for its load-bearing capability. The supplied mounting materials are suitable for walls made of concrete or solid brick with a wall thickness from 11.5 cm. Information on mounting on other types of wall construction can be gained from “Planning manual HD- ST”. (For drill-hole layout see specifications table). If the unit is set up using the Stand acces- sory kit, the procedure is described in the supplied assembly instructions. AN Danger! Risk of injury from the water jet or parts flying off. The screw unions of all connecting hoses and pipelines must be tight. Use only unda- maged and manufacturer-recommended screw unions and high-pressure hoses.

The water connection, the high-pressure network and the electrical connections may be carried out only by authorised skilled personnel in compliance with local regulati- ons. The water supply and the power con- nection must be made available for conti- nuous operation. The prescribed connected values can be seen in the technical data. The water quality must meet the require- ments as specified in section “A.13 Proper use of the equipment”. In Germany the following regulations apply: m VDMA Einheitsblatt 24416 directive “Festinstallierte Hochdruck Reinigungs- systeme” (Fixed-installation high-pressu- re cleaning systems) m VDE regulations = Local power-supply company regulations The water supply must be equipped with a shutoff valve, and must be connected with the high-pressure by means of a flexible high-pressure hose. Insufficient supply line cross section or insufficient admission pres- sure will result in water starvation. In the event of excessive admission pres- sure or the occurrence of pressure peaks in the mains network, the installation of a pressure regulator upstream of the system is mandatory. A water drain must be present at the instal- lation site.

3. High-pressure Installation

The link between the fixed-installation pipe network and the system must be executed in the form of a flexible high-pressure hose connection. The permanent pipe network installation must consist of as many straight runs as possible. All high-pressure tubing must be installed pursuant to regulations, using vibration-dampened strain relief and fixed pipe or tubing clamps, while allowing for longitudinal expansion/contraction due to the effects of temperature and pressure.

To keep pressure losses in the high-pres- sure lines as low as possible, the following recommendations should be used as man- datory guidelines: Flow rate Pipeline Hose line 600 l/h DN 15 (2") DN 8 1000 l/h DN 15 (2") DN 8 1400 l/h DN 15 (2") DN 8 It should be understood that the above gui- delines still require additional allowances for the overall tubing length, the number of directional changes and armatures.

4. Mounting detergent reservoirs

A Danger! Danger of being poisoned, suffering acid burns and fire hazard as a result of impro- per handling of detergents. Store detergents in a place which is inac- cessible to children. Be certain to observe the instructions on the packaging. The cleaning agent reservoir should be set up in such a way that the base of the reser- voir is not more than 2 m below the unit.

5. Hard-water Treatment

An over-high hardness of water (>15° dH) can lead to deposits and functional faults. Where hardness of water is relatively high, use the Softener accessory kit.

6. Preparations for Commissioning

m Thoroughly rinse entire HD system Check entire HD system for correct assembly and lack of leaks. m Only for HD xxxx CH units: Push and secure enclosed overflow hose incl. hose clip on hose liner at float tank. Conduct hose end through the opening located in the base of the plant. # Complete electrical connections in accor- dance with the Specifications contained in the Operating Instructions. # Check the function of decalcifying com- ponent (if required). # Check water supply for required delivery volume and maximum allowable tempe- rature. m Check pump oil level. Remove threaded plug from oil reservoir. mBefore using for the first time, cut off the tip of the cover of the oil reservoir on the water pump. m Only for HD xxxx CH: Check direction of rotation of the precompression pump. Direction of rotation has to be in unison with the arrow on the housing. # Make adjustment settings as described in section B.4.

Only for accessory kit, Softener: m Remove the spring (c) from the cover support (b) in the liquid-softener reser- voir (a). m Fill reservoir with Kärcher liquid softener RM 110 (Order No. 2.780-001) a = 7

7. Space Assignment Plan

’ , LA L Læ L COLA PE Electrical connection at side or from underneath HP OUTLET >» ’ . Dimension 22 x 2.5 Ty IV LIALATILIIIS LOL: re Ti — WATER INLET a 8 3/4"

English 1. Customer Service HD 600 / 1000 / 1400 C(H) System Type: Works No. Commissioned: (date) Inspected: Results/Comments: Signature Inspected: Results/Comments: Signature Inspected: (date)... iiernenrn Results/Comments: Signature Inspected: (date)... iiernenrn Results/Comments: 1 5.959-490 À 12578 (12/99)
