Product Type	IP Surveillance Camera
Brand	ABUS
Model	TVIP11560
Dimensions (W x H x D)	70 x 120 x 70 mm
Weight	300 g
Power Supply	PoE (Power over Ethernet) or 12V DC power adapter
Resolution	1080p (1920 x 1080 pixels)
Viewing Angle	90°
Night Vision	Yes, integrated infrared LEDs (range up to 20 m)
Motion Detection	Yes, with push notifications
Audio	Integrated microphone and speaker (two-way audio)
Connectivity	Ethernet RJ45
Storage	Cloud or microSD card (up to 128 GB)
Protocols	IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, RTSP, ONVIF
Security	SSL/TLS encryption, password authentication
Operating Temperature	-10 °C to 50 °C
Protection Rating	IP65 (weather-resistant)
Mounting	Wall or ceiling mount (bracket included)
Maintenance and Cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Spare Parts and Repairability	Not applicable (non-disassemblable device). In case of failure, contact ABUS after-sales service.
General Information	IP surveillance camera for indoor/outdoor use. Compatible with video management systems.

Frequently Asked Questions - TVIP11560 ABUS

How to install the ABUS TVIP11560 camera?

Attach the bracket to the wall or ceiling, then mount the camera. Connect the Ethernet cable (PoE) or power adapter. Follow the ABUS app instructions for network configuration.

How to reset the camera to factory settings?

Press and hold the reset button (located at the back) for 10 seconds until the LEDs flash. The camera will restart with default settings.

Can I access the camera remotely?

Yes, download the ABUS app on your smartphone or use a web browser. Log in with your account to view the live stream and receive alerts.

How to record videos?

You can record on a microSD card (inserted into the camera) or subscribe to an ABUS cloud plan. Videos are also accessible via the app.

What to do if the image is blurry?

Check if the lens is dirty. Clean it with a soft cloth. Adjust the focus by turning the ring on the lens if available.

How to enable motion detection?

In the ABUS app, go to camera settings and enable motion detection. You can adjust sensitivity and define detection zones.

Is the camera compatible with voice assistants?

No, the TVIP11560 does not support voice assistants. It works via the ABUS app and web browsers.

How to connect the camera to Wi-Fi?

The TVIP11560 does not have built-in Wi-Fi. It connects exclusively via Ethernet cable. Use a powerline adapter or PoE switch if needed.

What to do if the camera becomes unresponsive?

Unplug the power and reconnect after 30 seconds. If the issue persists, perform a factory reset or contact ABUS support.

How to update the firmware?

In the ABUS app, go to camera settings and check for updates. Download and install the latest version. Do not cut power during the update.

USER MANUAL TVIP11560 ABUS

Exterior view of a white and silver ABIS phone device (no visible text or symbols on body)

White ARVIS smartphone with dual lens and control buttons (no visible text or symbols on body)

Bedienungsanleitung

Version 1.1

CE

12.3.3 Video / Audio....37

12.3.3.1 Video 38

12.3.3.2 Audio 39

12.3.4 Bild 40

Line drawing of a device with circular and rectangular buttons, labeled 'ABUS' at the base (no other text or symbols)

Line drawing of a broadband cable with two connectors (no text or symbols)

1m Netzwerkkabel

CD

Kurzanleitung

Simple line drawing of a stand with a handle and base (no text or symbols)

Konto-Informationen hinterlegen:

Environmental Noise Filter

12.3.6.5 Schnappschuss

White and silver USB flash unit (no visible text or symbols on body)

User guide

Version 1.1

CE

English translation of the original German user guide. Keep for future use.

Introduction

Dear Customer,

Thank you for purchasing this product.

This device complies with the requirements of the following EU directives: the EMC Directive (2014/30/EU), the R&TTE Directive (2014/53/EU) and the RoHS Directive (2011/65/EU). The declaration of conformity can be ordered from:

To maintain this condition and to ensure risk-free operation, you as the user must observe these operation instructions!

Before initial start-up, read through the complete operating instructions observing operating and safety instructions.

All company and product names mentioned in this document are registered trademarks. All rights reserved.

If you have any questions, please contact your installer or your local dealer!

Disclaimer

This user manual was prepared with greatest care. If you should notice omissions or inaccuracies, please inform us about these on the back of this manual given address.

The ABUS Security-Center GmbH assumes no liability for technical and typographical faults and reserves the right to make at any time modifications to the product or user manual without a previous announcement.

The company is not liable or responsible for direct and indirect subsequent damages which are caused in connection with the equipment, the performance and the use of this product.

No guarantee for the content of this document is taken.

Icon explanation

	A flash in the triangle is used if there is danger for the health, e.g. by an electric shock.
	An exclamation mark in the triangle points to an important note in this user manual which must be minded.
	This symbol can be found when you are to be given tips and information on operation.

Important safety advice

	The warranty will expire for damage due to non-compliance with these operating instructions. ABUS will not be liable for any consequential loss!
	ABUS will not accept liability for damage to property or personal injury caused by incorrect handling or non-compliance with the safety-instructions.In such cases the warranty will expire.

The following safety information and hazard notes are not only intended to protect your health, but also to protect the device from damage. Please read the following points carefully:

• There are no components inside the product that require servicing. Dismantling the product invalidates the CE certification and the guarantee / warranty.
• The product may be damaged if it is dropped, even from a low height.
• Install the device so that the image sensor is not subjected to direct sunlight. Pay attention to the installation instructions in the corresponding section of this user guide.
• The device is designed for indoor use.

Avoid the following adverse conditions during operation:

• Moisture or excess humidity
  • Extreme heat or cold
• Direct sunlight
• Dust or flammable gases, vapours, or solvents
• Strong vibrations
  • Strong magnetic fields (e.g. next to machines or loudspeakers)
• The camera must not be installed on unstable surfaces

General safety information:

• Do not leave packaging material lying around. Plastic bags, sheeting, polystyrene packaging, etc., can pose a danger to children if played with.
• The surveillance camera contains small parts which could be swallowed, and should be kept out of reach of children for safety reasons.
• Do not insert any objects into the device through the openings.
• Only use replacement devices and accessories that are approved by the manufacturer. Do not connect any non-compatible products.
• Please pay attention to the safety information and user guides for the other connected devices.
• Check the device for damage before commissioning. Do not put the device into operation if you detect any damage.
• Adhere to the operating voltage limits specified in the technical data. Higher voltages could destroy the device and pose a health risk (electric shock).

Safety information

1. Power supply: power supply unit 100-240 V AC, 50/60 Hz / 12 VDC, 1 A (included in the scope of delivery)
   Only operate this device on a power source which supplies the power specified on the type plate. If you are unsure which voltage is supplied at the installation location, contact your power supply company. Disconnect the device from the power supply before carrying out maintenance or installation work.

2. Overloading

Avoid overloading electrical sockets, extension cables, and adapters, as this can result in fires or electric shocks.

1. Cleaning

Only use a damp cloth to clean the device. Do not use corrosive cleaning materials. Disconnect the device from the power supply while doing so.

Warnings

Observe all safety and operating instructions before putting the device into operation for the first time.

1. Observe the following information to avoid damage to the power cable and plug:

2. Do not modify or manipulate the power cable or plug.

3. Do not bend or twist the power cable.
4. Do not pull the cable when disconnecting the device from the power – always take hold of the plug.

5. Ensure that the power cable is positioned as far away as possible from any heating equipment, as this could otherwise melt the plastic coating.

6. Follow these instructions. Non-compliance with these instructions could lead to an electric shock.

7. Never open the housing or power supply unit.

8. Do not insert any metallic or flammable objects into the device.

9. Use overvoltage protection to prevent damage caused by overvoltage (e.g. electrical storms).

10. Disconnect defective devices from the power immediately and contact your specialist dealer.

	During the installation into an existing video surveillance system make sure that all devices are disconnected from the low and supply voltage circuit.
	If in doubt allow a professional electrician to mount, install and wire-up your device. Improper electrical connection to the mains does not only represent at threat to you but also to other persons.Wire-up the entire system making sure that the mains and low voltage circuit remain separated and cannot come into contact with each other in normal use or due to any malfunctioning.

Unpacking

While you are unpacking the device please handle it with utmost care.

If you notice any damage of the original packaging, please check at first the device.If the device shows damages, please contact your local dealer.

Table of contents

1. Intended use 74

2. Scope of delivery....74

3. Features and functions....74

4. Camera description....75

5. Description of the connections ....75

6. Mounting / installation 76

6.1 Mounting the camera 76

6.2 Aligning the camera 76

1. Initial start-up....77

2. Accessing the network camera for the first time....78

3. Password prompt....79

4. User functions 80

11.1 Menu bar 80

11.2 Live image display 81

11.3 Video control 81

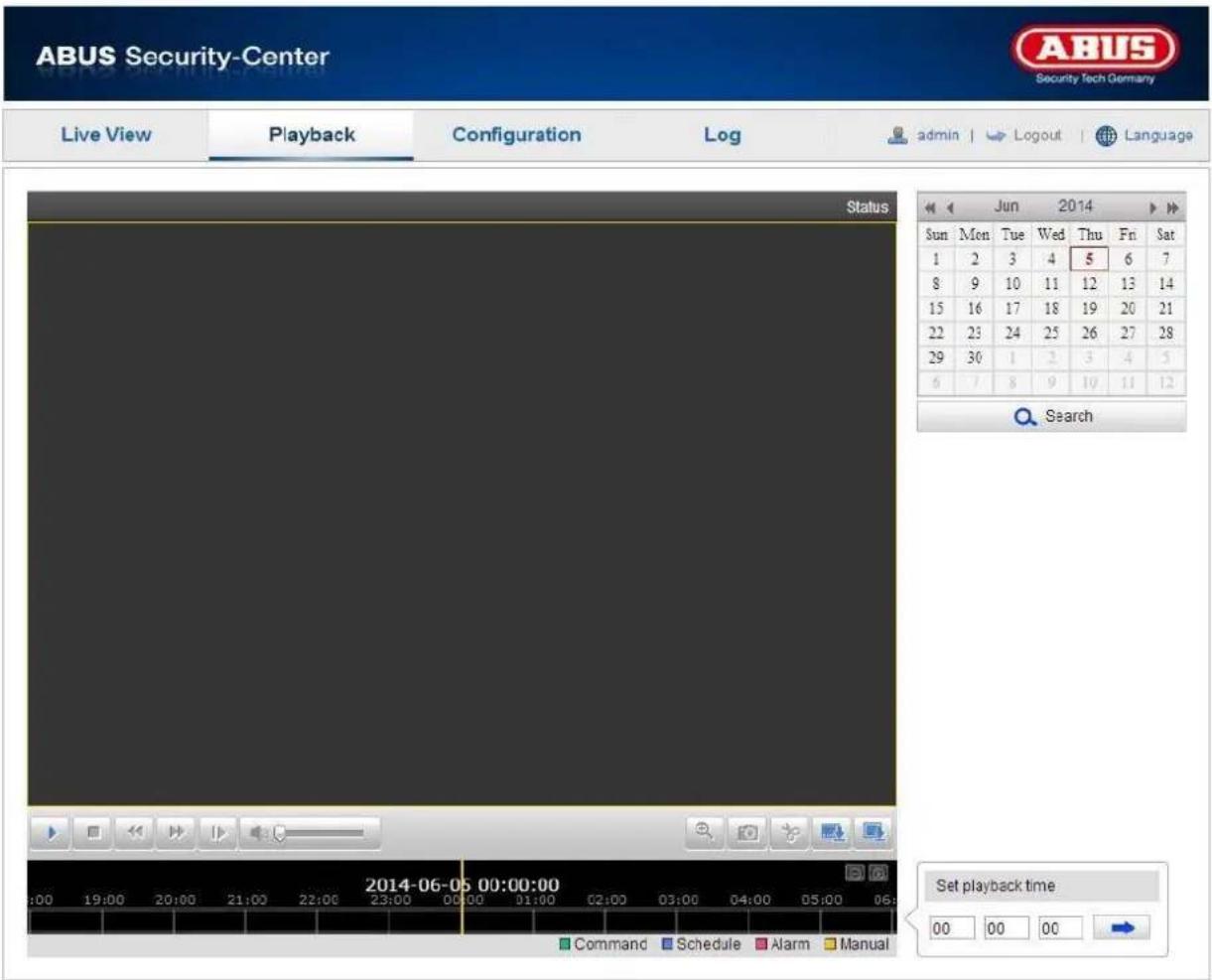

1. Playback....82

2. Configuration....83

12.1 Local configuration....83

12.2 Basic configuration....84

12.3 Advanced Configuration....85

12.3.1 System 85

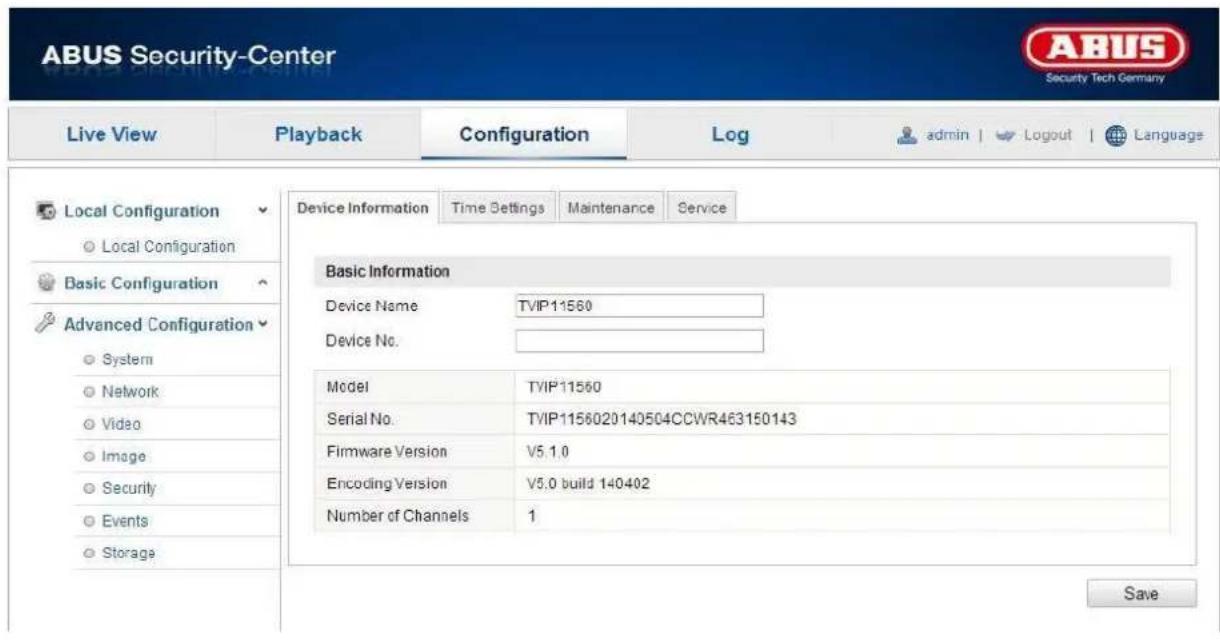

12.3.1.1 Device Information 86

12.3.1.2 Time Settings....87

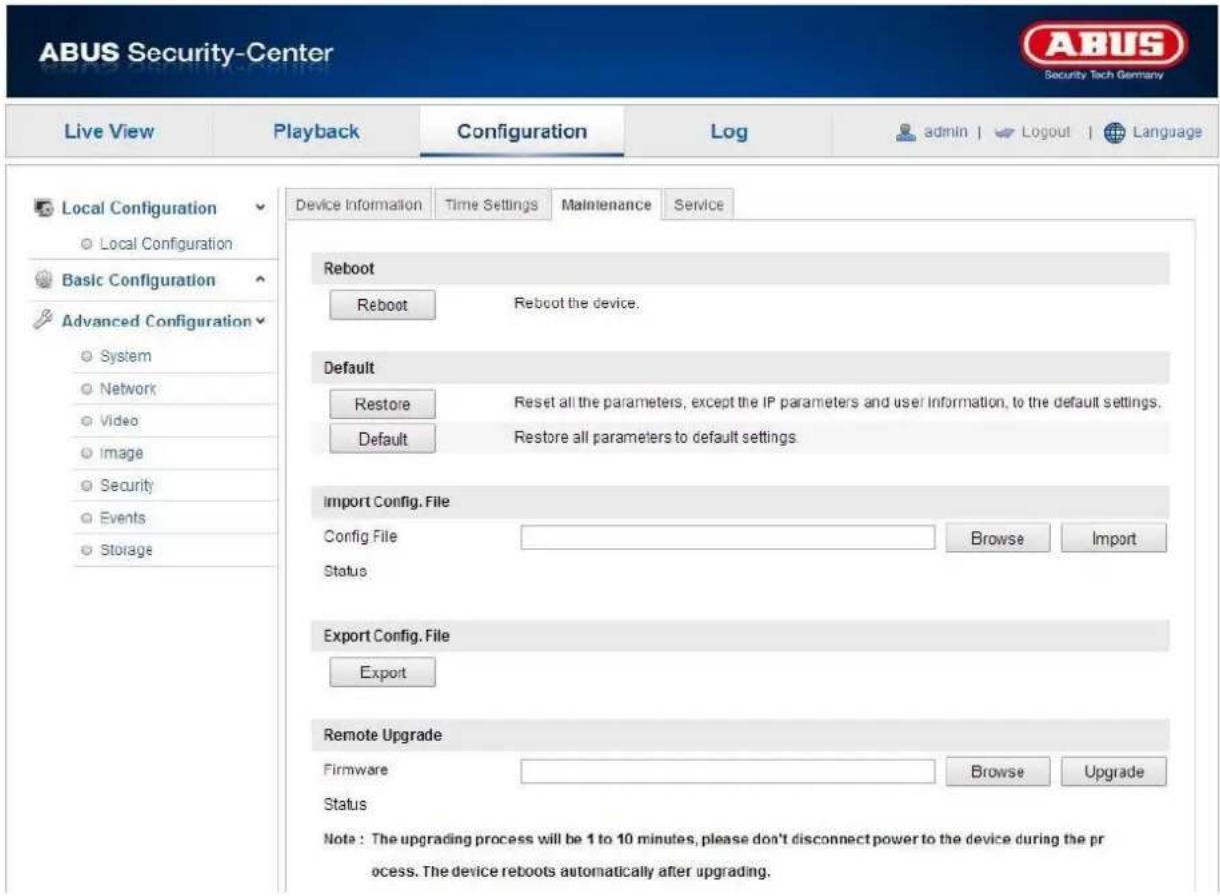

12.3.1.3 Maintenance 88

12.3.1.4 Daylight Saving Time 89

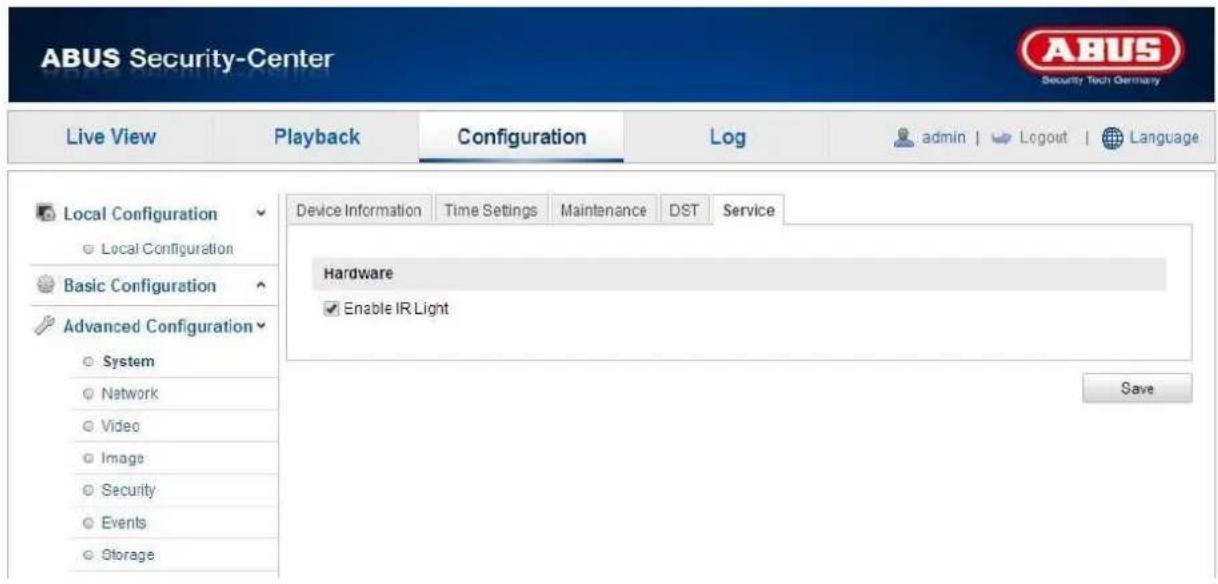

12.3.1.5 Service 90

12.3.2 Network....91

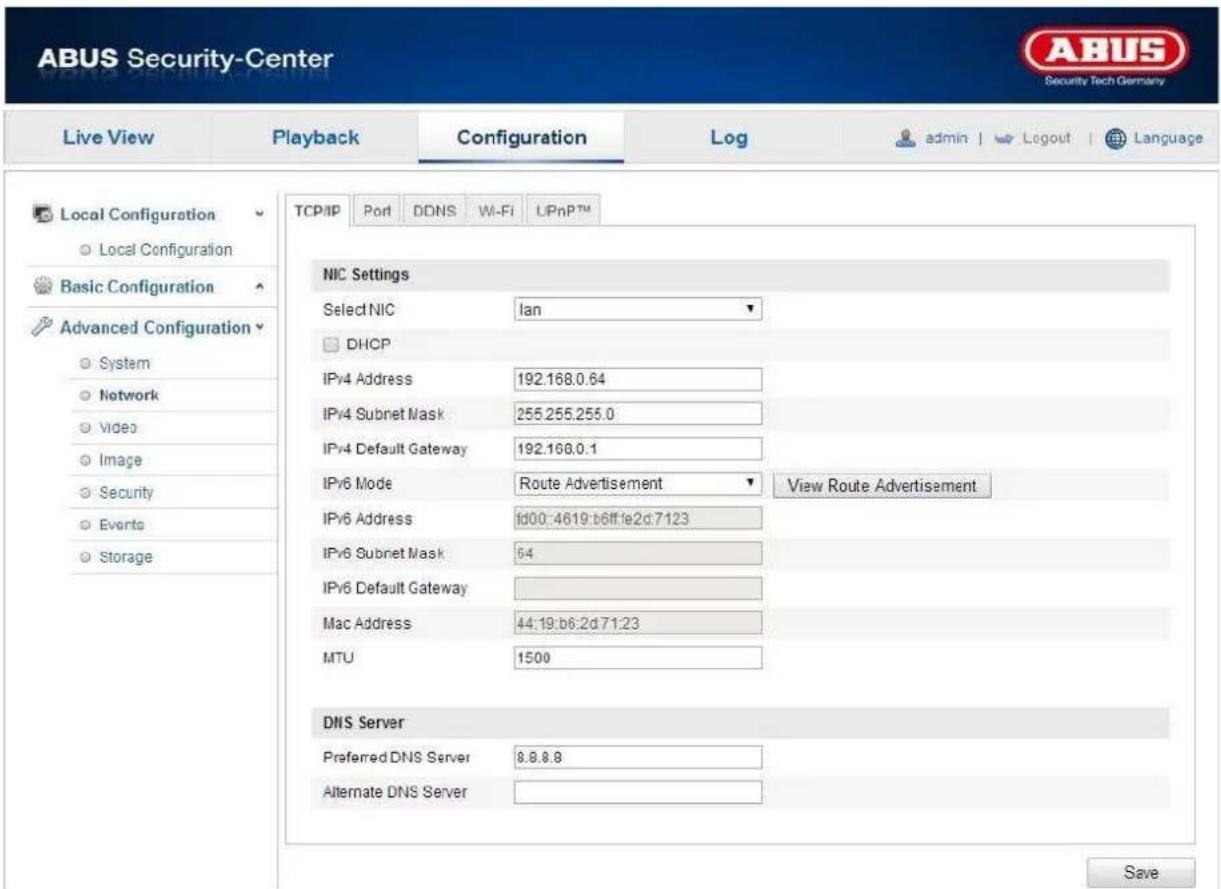

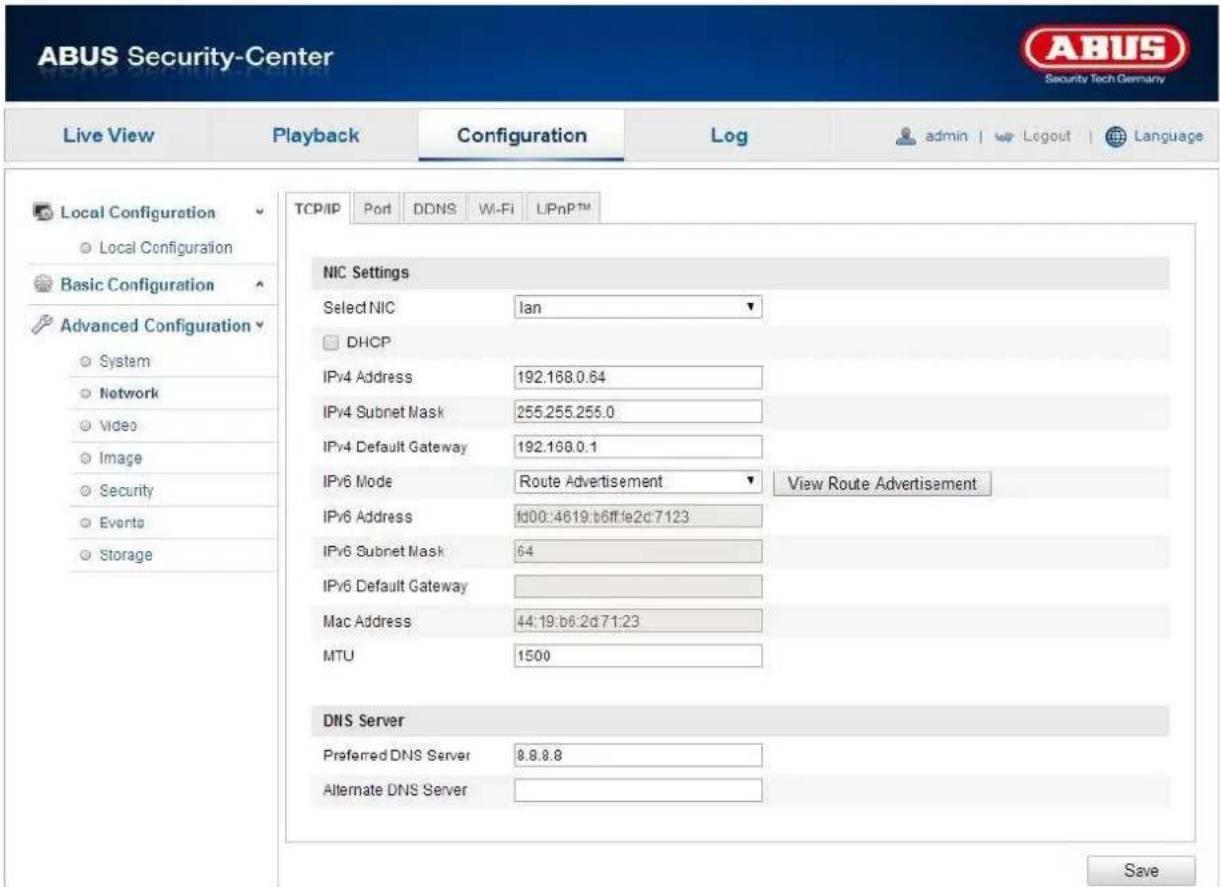

12.3.2.1 TCP/IP 92

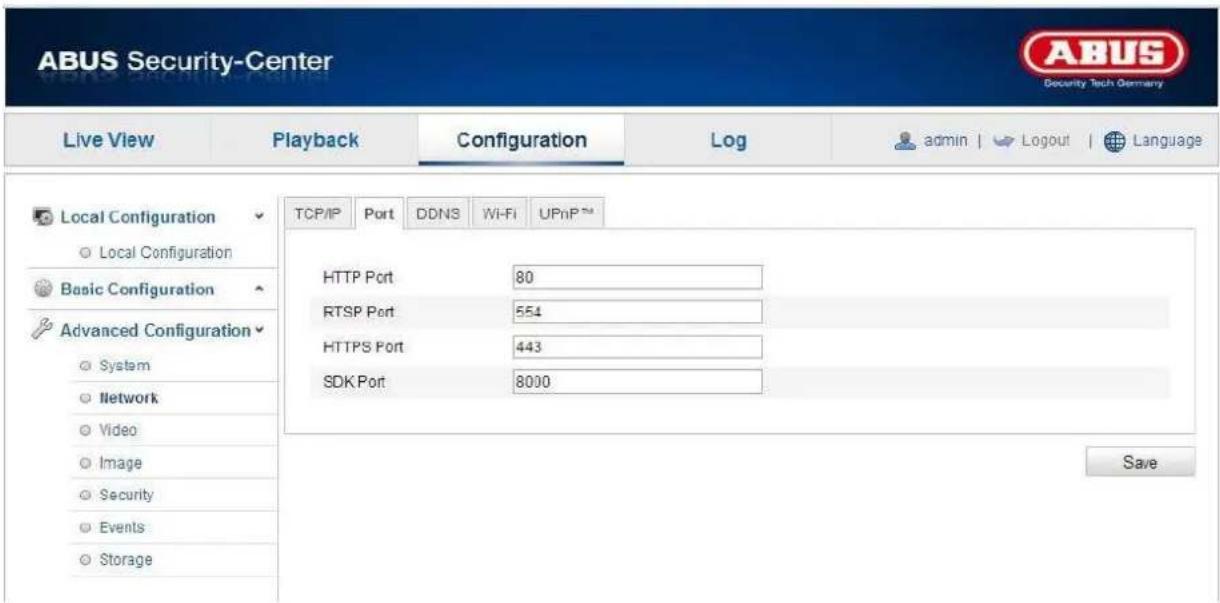

12.3.2.2 Port....93

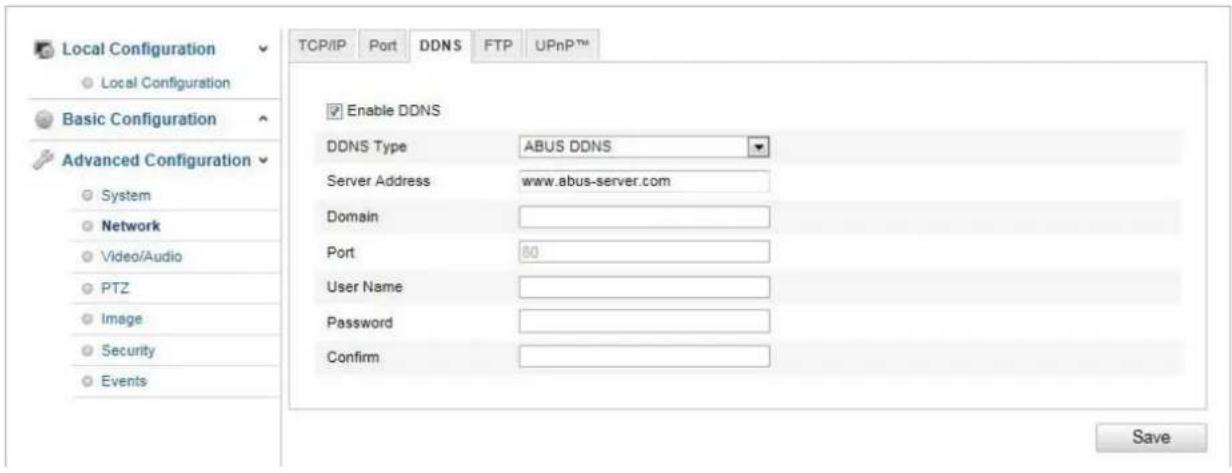

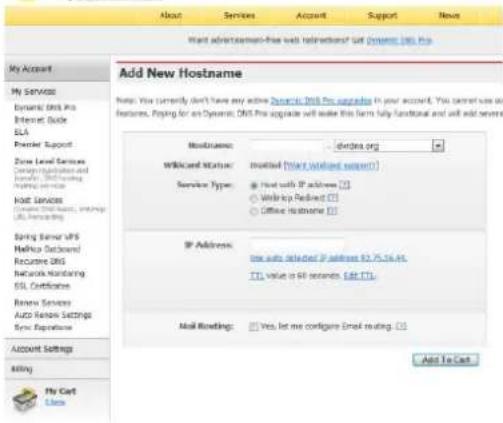

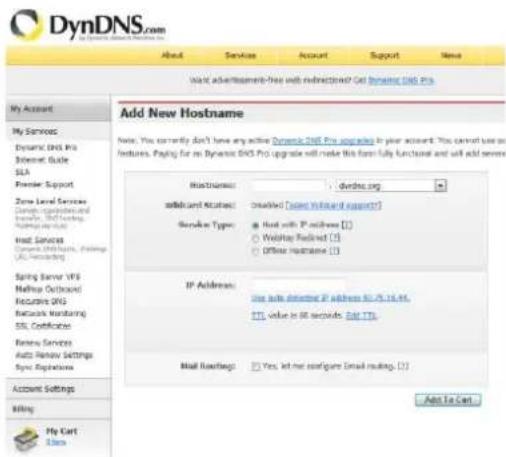

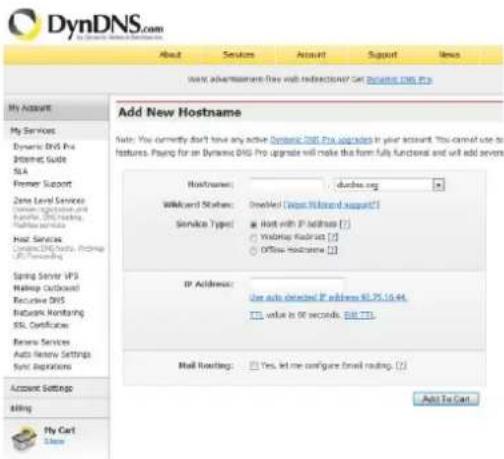

12.3.2.3 DDNS 94

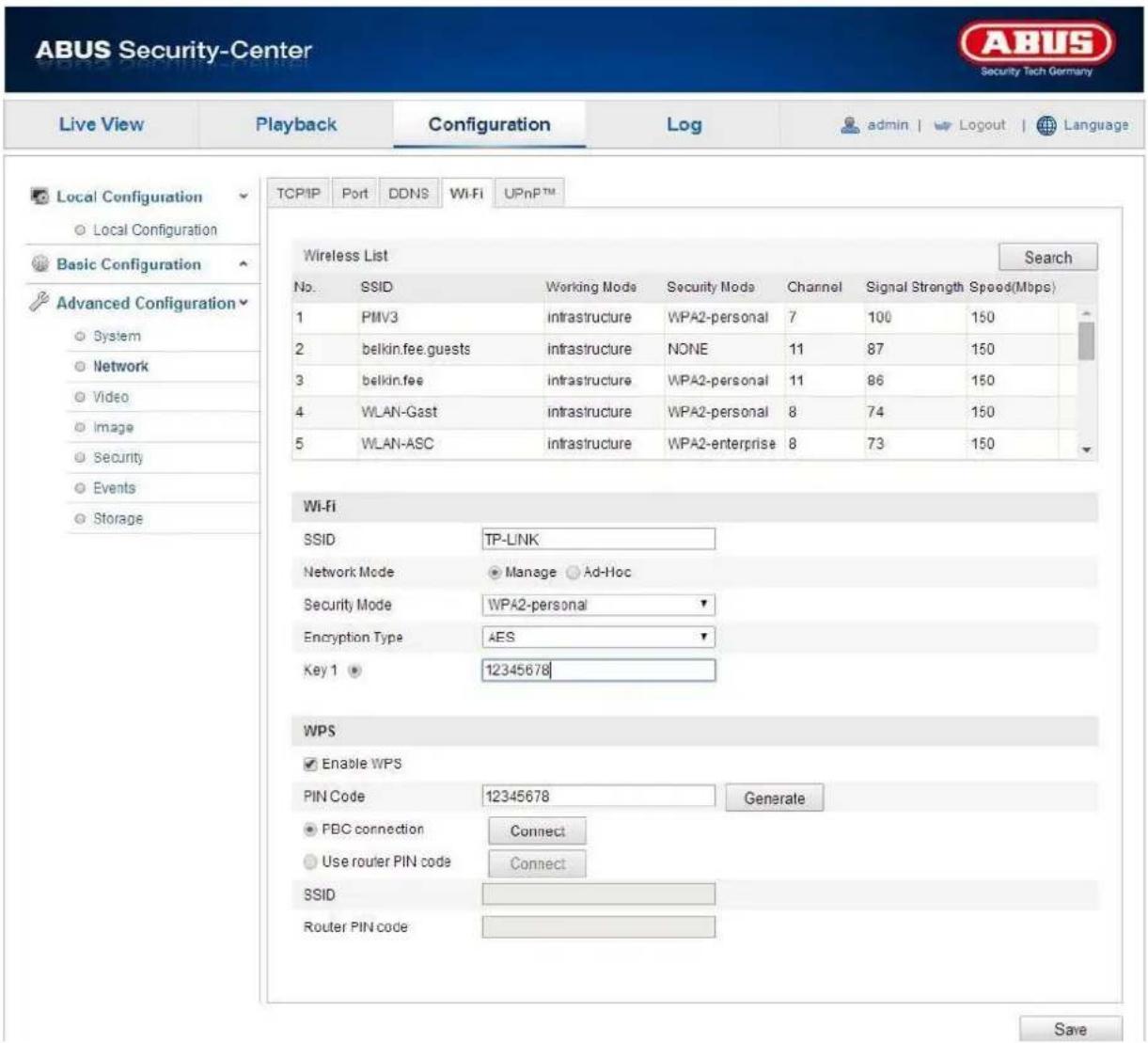

12.3.2.4 WLAN....98

12.3.2.5 UPnP™ 100

12.3.3 Video / Audio.... 101

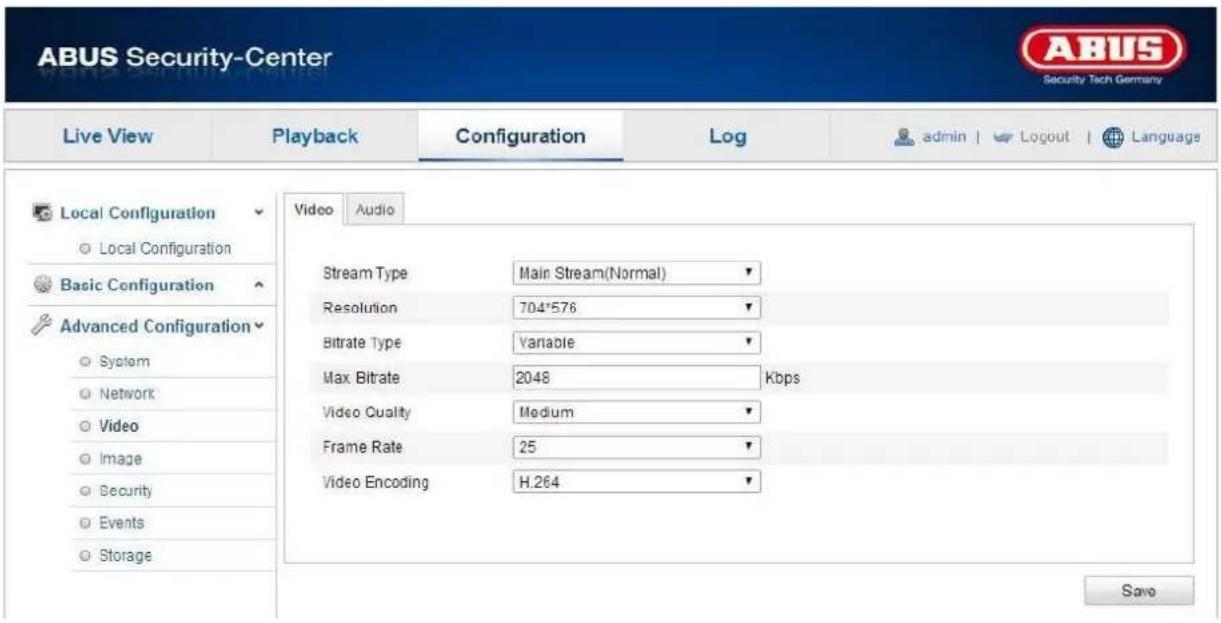

12.3.3.1 Video 102

12.3.3.2 Audio 103

12.3.4 Image 104

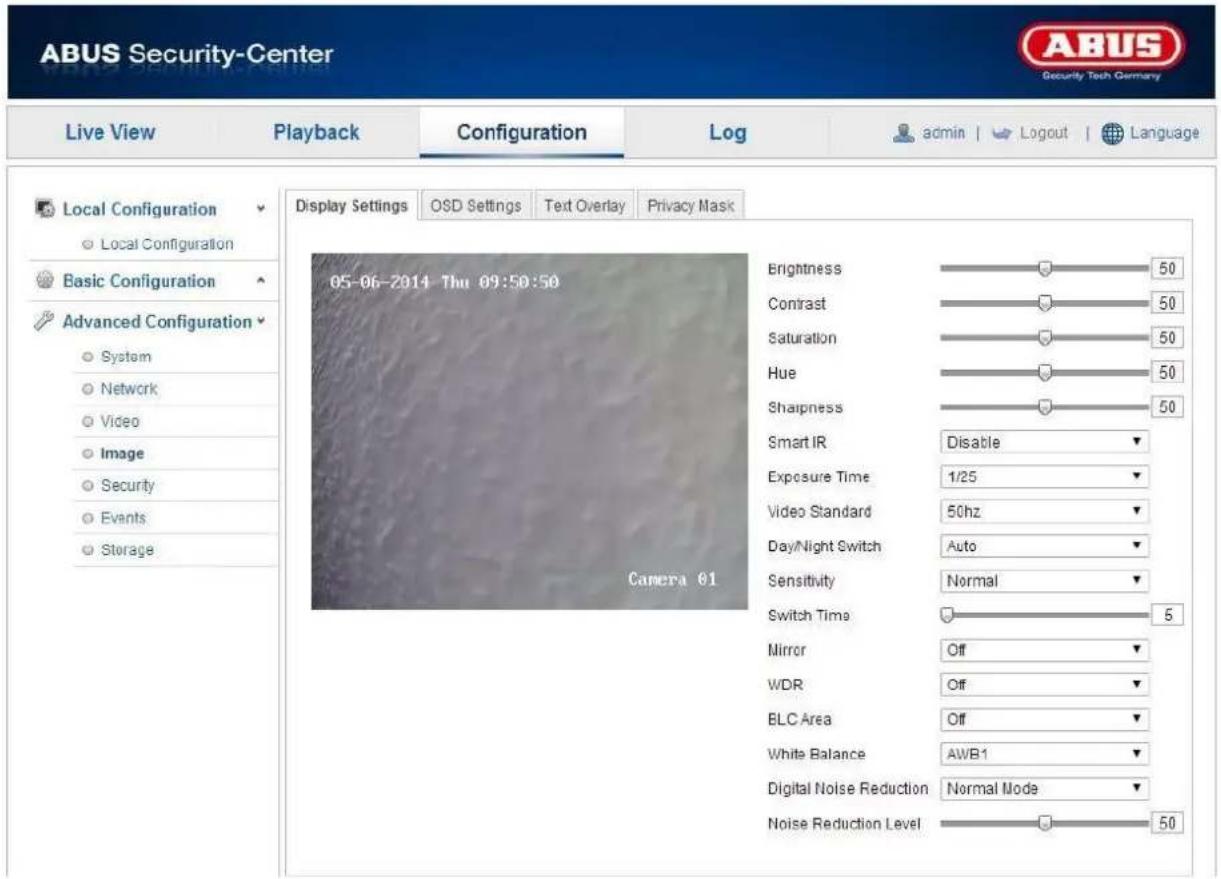

12.3.4.1 Display Settings 105

12.3.4.2 OSD Settings 107

12.3.4.3 Text Overlay.... 108

12.3.4.4 Privacy Mask.... 109

English

12.3.5 Security 110
12.3.5.1 Security 110

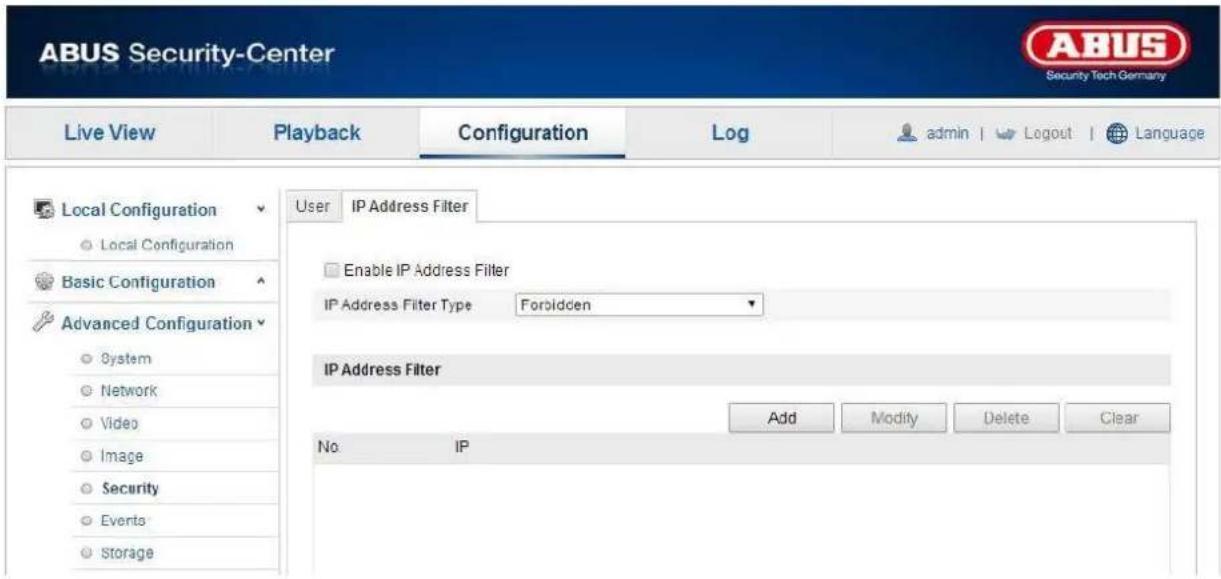

12.3.5.2 IP address filter 111
12.3.6 Events 112
12.3.6.1 Motion Detection 113

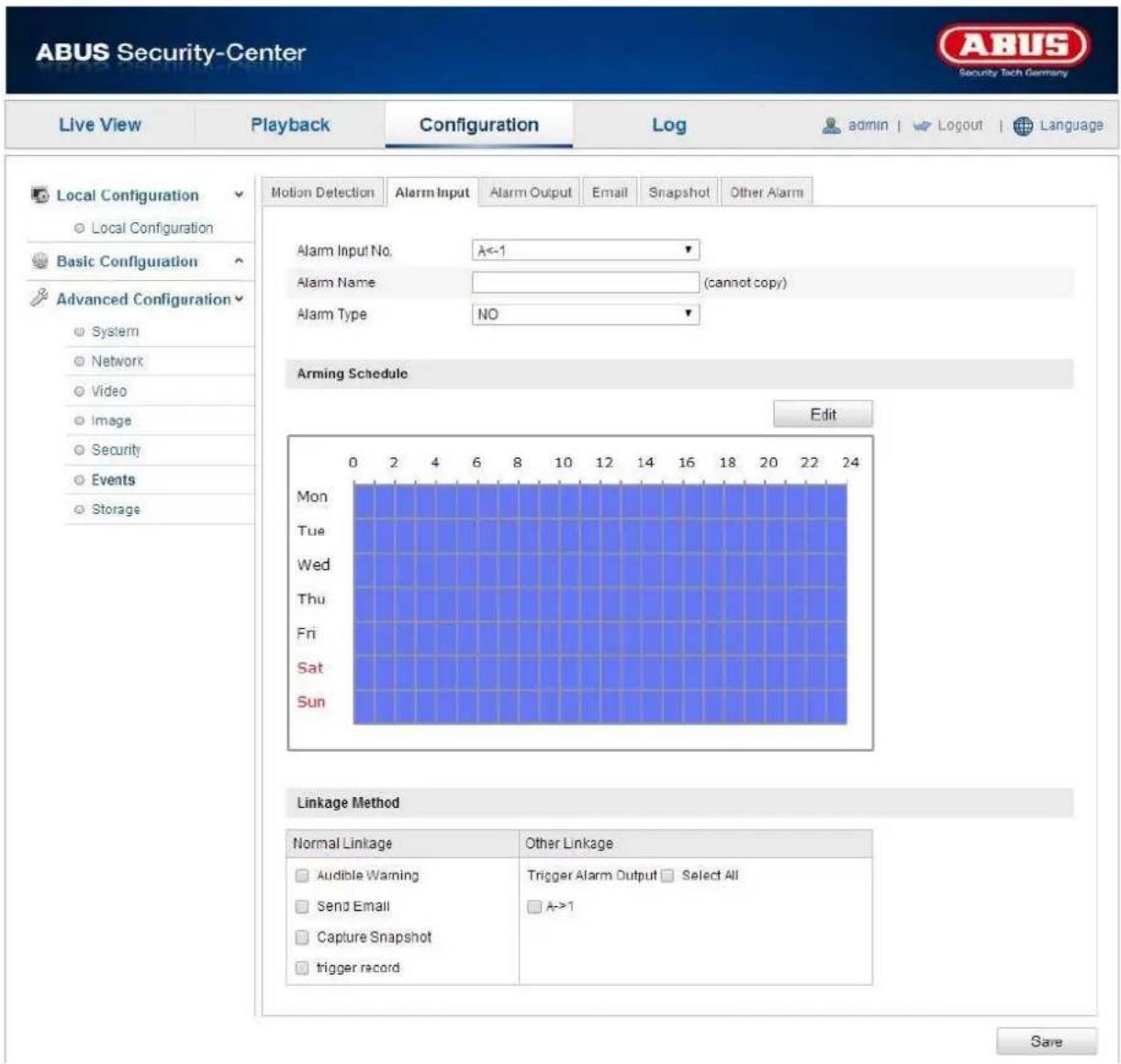

12.3.6.2 Alarm input.... 115

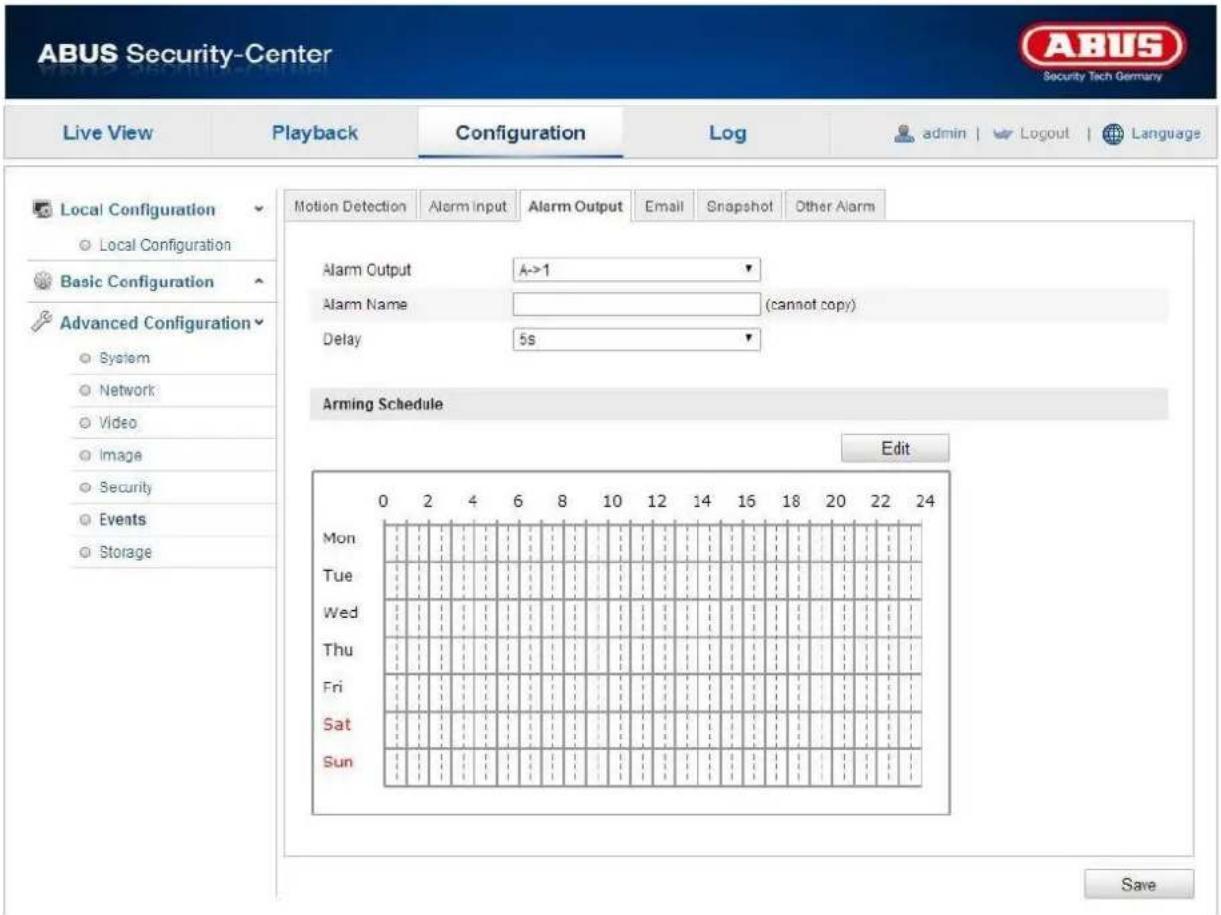

12.3.6.3 Alarm output.... 117
12.3.6.4 Email 119
12.3.6.5 Snapshot.... 121

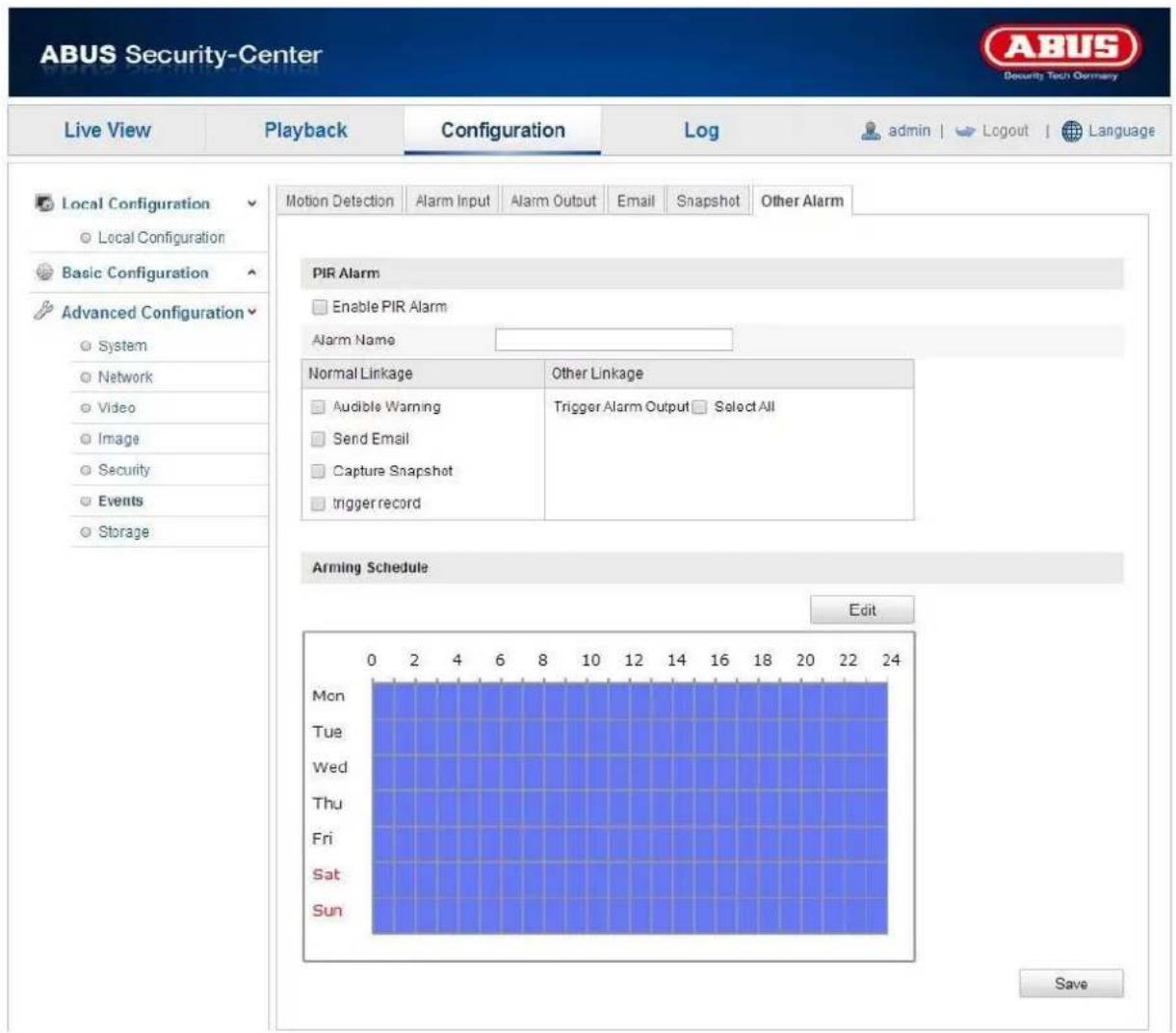

12.3.6.6 Other alarms 122
12.3.7 Storage 124

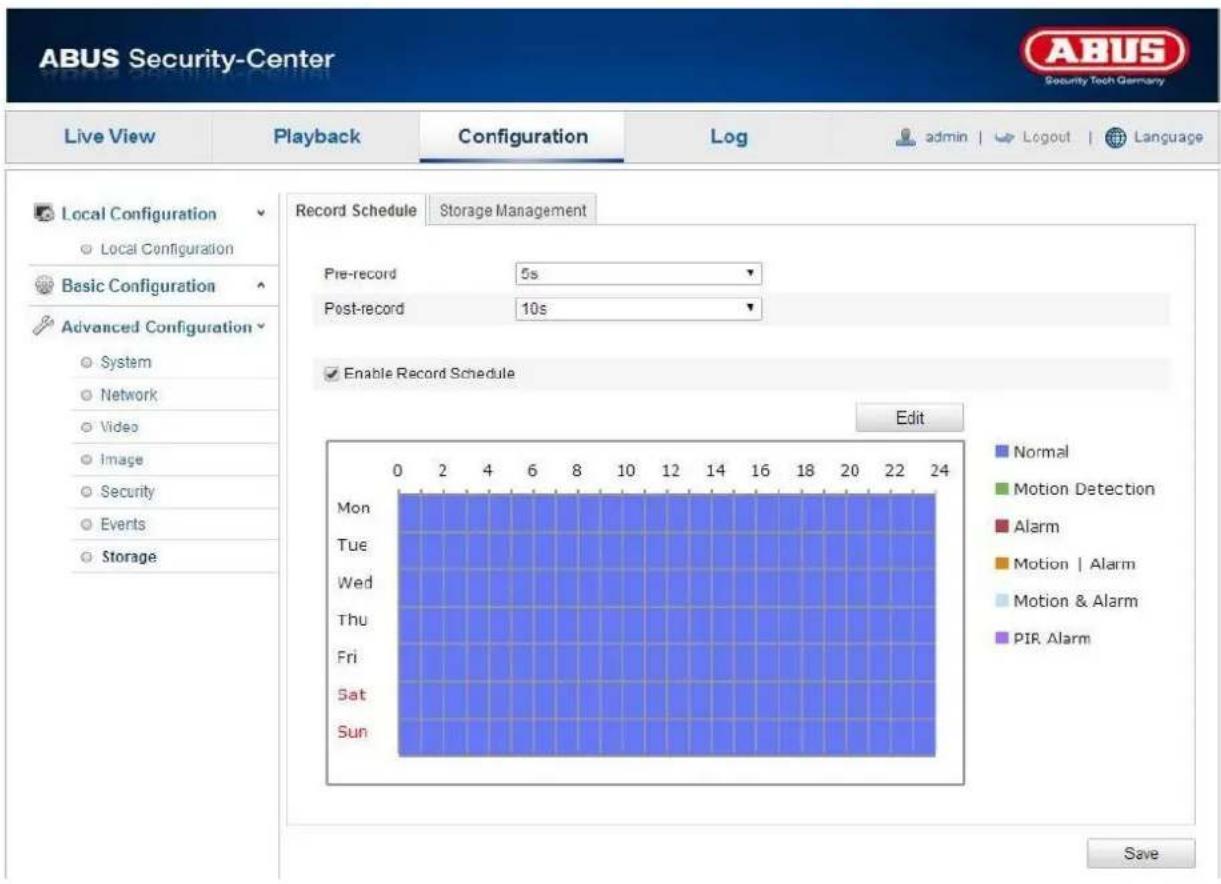

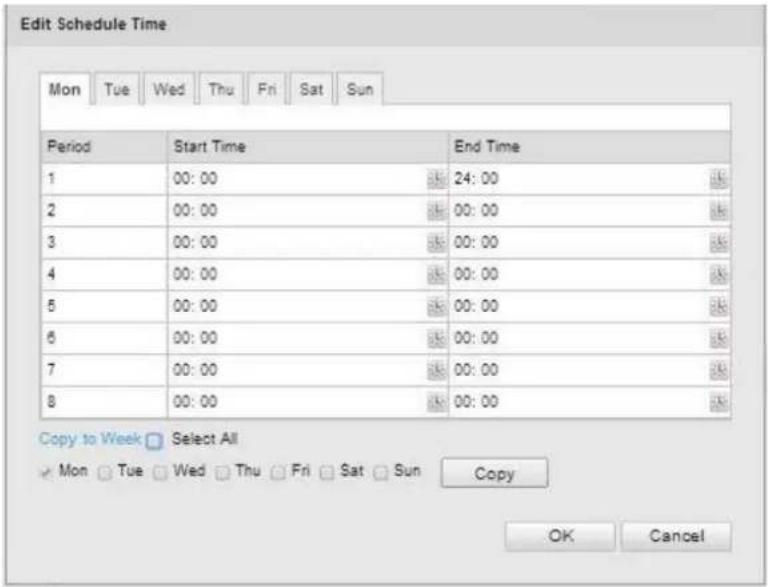

12.3.7.1 Recording schedule 125
12.3.7.2 Storage management 127
13. Log....128
14. Maintenance and cleaning 129
14.1 Maintenance 129
14.2 Cleaning 129
15. Disposal 129
16. Technical Data 130
17. GPL license information.... 130

1. Intended use

The WLAN 720p indoor camera with alarm function enables high quality surveillance. This camera is designed for indoor installation. The camera can be connected cable-free to the network via WLAN and has an integrated loudspeaker that can emit a loud tone in the event of an alarm.

In addition, the loudspeaker and the integrated microphone enable two-way audio communication via the camera's web interface using a microphone connected to the computer. External sounders, e.g., a siren or light, can be activated through the alarm output and will react in the event that something is detected. PoE (Power over Ethernet) makes it possible to power the camera using the network cable – additional power cable therefore does not need to be laid.

For a detailed description of functions, refer to Section 3, "Features and functions".

2. Scope of delivery

Line drawing of a standard electronic device with no visible text or symbols

WLAN 720p indoor camera with alarm function

Power supply unit

Line drawing of a broadband cable with two connectors (no text or symbols)

1 m network cable

CD ROM

Quick guide

Installation material

3. Features and functions

• Compact day/night WLAN alarm camera for surveillance in indoor areas
• Detailed high resolution, with 1280 x 720 pixels at 25 frames per second
• With built-in loudspeaker that can emit a loud tone in the event of an alarm
• Motion detection with passive infrared sensor
• Integrated IR LED, activated in the dark
• Internet and mobile access to live pictures via IPCam app and browser
  • Images can be sent by e-mail
• Integrated micro SD card slot for internal data storage as a back-up solution
• With alarm output for an external alarm device (e.g. siren, light)
• With alarm input for connecting an external signalling device (door contact, light barrier)

4. Camera description

5. Description of the connections

6. Mounting / installation

6.1 Mounting the camera

IMPORTANT!

The camera must be disconnected from the power supply during installation.

Use the drilling template supplied for drilling the mounting holes. The drilling distance is 44 mm.

6.2 Aligning the camera

Aligning the camera is done by using the ball joint. To do this undo the fixing screw and adjust the camera.

Simple line drawing of a mechanical support or stand (no text or symbols)

Setting the angle of inclination

Inclination: 0°–90°

Do not forget to tighten up the screws again.

7. Initial start-up

The network camera automatically detects whether a direct connection between the PC and camera should be made. A crossover network cable is not required for this.

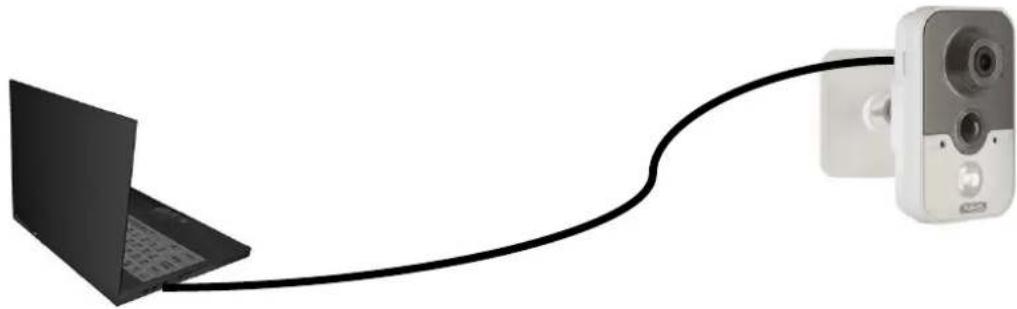

Direct connection of the network camera to a PC/laptop

1. Ensure that a CAT 5 network cable is used.
2. Connect the cable to the Ethernet interface of the PC/laptop and the network camera.
3. Connect the power supply to the network camera.
4. Configure the network interface of your PC/laptop to the IP address 192.168.0.2 default gateway to 192.168.0.1
5. Go to 8, to finish the initial set-up and establish the connection to the network camera.

Diagram showing a laptop connected to a camera via a cable, no text or symbols present

① Cat5 Ethernetkabel

Connecting the network camera to a router/switch

1. Ensure that a CAT 5 network cable is used.
2. Connect the PC/laptop to the router/switch.
3. Connect the network camera to the router/switch.
4. Connect the power supply to the network camera.
5. If a DHCP server is available in your network, set the network interface of your PC/laptop to "Obtain an IP address automatically".
6. If no DHCP server is available, configure the network interface of your PC/laptop to 192.168.0.2 and the default gateway to 192.168.0.1
7. Go to point 8 to finish the initial set-up and establish the connection to the network camera.

8. Accessing the network camera for the first time

The network camera is accessed for the first time using the IP Installer.

After the installation wizard is started, it searches for all connected ABUS network cameras and video servers in your network.

You can find the program on the included CD-ROM. Install the program on your PC and then run it.

If a DHCP server is available in your network, the IP address is assigned automatically for both the PC/laptop and the network camera.

If no DHCP server is available, the network camera automatically sets the following IP address: 192.168.0.100.

Your PC system must be located in the same IP subnetwork in order to establish communication with the network camera (PC IP address: e.g. 192.168.0.2).

The standard setting for the network camera is "DHCP". If no DHCP server is in operation in your network, then we recommend setting the IP address manually to a fixed value following initial access to the network camera.

9. Password prompt

When delivered, an administrator password is already defined for the network camera. However, the administrator should define a new password immediately for security reasons. After the new administrator password is stored, the network camera asks for the user name and password every time it is accessed.

The administrator account is set up in the factory as follows: User name "admin" and password "12345". Each time the network camera is accessed, the browser displays an authentication window and asks for the user name and password. Should your individual settings for the administrator account no longer be accessible, please contact our technical support team.

To enter a user name and password, proceed as follows:

Open Internet Explorer and enter the IP address for the camera (e.g. "http://192.168.0.100").

You are then prompted for authentication:

-> You are now connected with the network camera and can see a video stream.

10. User functions

Open the main menu on the network camera. The interface is divided into the following main areas:

11.1 Menu bar

Select the appropriate tab: "Live View", "Configuration" or "Log".

Button	Description
admin	Display of the user logged on
Abmelden	User logout
Sprache	Selection of the desired language

11.2 Live image display

You can access the full-screen view by double-clicking here.

Button		Description
		Activate 4:3 view
		Activate 16:9 view
[G4WB]		Display original size
		Adjust view to browser automatically
Sub-Stream	Main Stream	Selection of the streaming type for the live cast

11.3 Video control

Button	Description
	Deactivate live cast
	Activate live cast
	Deactivate/activate audio, adjust volume
	Microphone on/off; when the microphone is active, an intercom function from the PC to the camera is possible. (Audio output on the camera)
	Instant image (snapshot)
	Start/stop manual recording
	Start/stop zoom

11. Playback

In playback menu, you can reproduce the recorded data on the micro SD card. Select the required day in the calendar and click on "Search".

On the time scale, the recordings are shown for the selected day. The coloured marking shows the event of the recording.

At the playback time, you can set the time for the required recording.

12. Configuration

12.1 Local configuration

Under the "Local Configuration" menu item, you can make settings for the live view, file paths of the recordings and snapshots.

Record File Settings

You can define the recording path and the path for downloaded files here. To apply the changes, click "Save".

Save record files to

You can determine the file path that is to be used to manual recordings here.

The default path is C:\\\Web\RecordFiles.

Save downloaded files to

You can store the file path for downloaded videos here.

The following path is set by default: C:\\\Web\DownloadFiles

Picture and Clip Settings

Here you can store the path for snapshots taken during playback as well as for video clips.

Save snapshots in live view to

Select the file path for snapshots from the live view.

The following path is set by default: C:\\\Web\CaptureFiles

Save snapshots when playback to

You can store the path here for saving snapshots taken during playback.

The following path is set by default: C:\\\Web\PlaybackPics

Save clips to

You can specify the memory path for storing video clips here.

The following path is set by default: C:\\\Web\PlaybackFiles

12.2 Basic configuration

All settings that can be made under "Basic Configuration" can also be found under the menu item "Advanced Configuration". Please take note of the "Available in mode" column in the descriptions of the "Advanced Configuration".

12.3 Advanced Configuration

12.3.1 System

Menu item	Description	Available in mode
Device Information	Display of device information	Basic Configuration, Advanced Configuration
Time Settings	Configuration of the time specification	Basic Configuration, Advanced Configuration
Maintenance	System maintenance settings	Basic Configuration, Advanced Configuration
DST	Configuration of the automatic daylight savings time switch	Advanced Configuration
Service	Configuration of the special features	Advanced configuration

12.3.1.1 Device Information

Basic Information

Device Name

You can specify a device name for the Speed Dome here. Click on "Save" to apply the change.

Model

Model number display

Serial No.

Serial number display

Firmware Version

Firmware version display

Encoding Version

Encoding version display

Number of Channels

Display of the number of channels

12.3.1.2 Time Settings

Time Zone

Time zone selection (GMT)

Time Sync.

NTP

Using the Network Time Protocol (NTP) it is possible to synchronise the time of the Speed Dome with a time server.

Activate NTP to use this function.

Server Address

IP server address of the NTP server.

NTP Port

Network port number of the NTP service (default: port 123)

Manual Time Sync.

Device Time

Computer device time display

Set Time

Display of the current time using the time zone setting.

Click on "Sync. with computer time" to adopt the device time of the computer.

Apply the settings made with "Save".

12.3.1.3 Maintenance

Reboot

Click "Reboot" to restart the device.

Default

Restore

Click "Restore" to reset all the parameters to the default settings, with the exception of the IP parameters.

Default

Select this item to reset all parameters to the default values.

Import Config. File

Config. File

Select a file path to import a configuration file here.

Status

Display of the import status

Export Config. File

Click "Export" to export a configuration file.

Remote Upgrade

Firmware

Select the path to update the Speed Dome with new firmware.

Status

Display of the update status

Apply the settings made with "Save".

12.3.1.4 Daylight Saving Time

DST

Enable DST

Activate the "Enable DST" checkbox to adjust the system time automatically to summer time.

Start Time

Specify the time for switching to summer time.

End Time

Specify the time for switching to winter time.

Apply the settings made with “Save”.

12.3.1.5 Service

Hardware

Activating IR light

Activate the IR light or deactivate the IR light permanently.

Click “Save” to apply the settings.

12.3.2 Network

Menu item	Description	Available in mode
TCP/IP	Settings of the TCP/IP data	Basic Configuration, Advanced Configuration
Port	Settings for the used ports	Basic Configuration, Advanced Configuration
DDNS	Settings for the DDNS data	Advanced Configuration
Wi-Fi	WLAN access data settings	Advanced Configuration
UPnPTM	Settings for the UPnP data	Advanced Configuration

12.3.2.1 TCP/IP

To be able to operate the camera via a network, the TCP/IP settings must be configured correctly.

Select NIC:

Select the network interface for configuration. The camera can be connected to the network either via LAN or WLAN.

DHCP

If a DHCP server is available, click DHCP to apply an IP address and other network settings automatically. The data is transferred automatically from the server and cannot be changed manually.

If no DHCP server is available, please enter the following data manually.

IPv4 Address

Setting for the IP address of the networkcamera

IPv4 Subnet Mask

Manual setting of the subnet address for the network camera

IPv4 Default Gateway

Setting for the default router for the network camera

IPv6 mode

Manual: Manual configuration of IPv6 data

DHCP: The IPv6 connection data is provided by the DHCP server (router).

Route advertisement: The IPv6 connection data is provided by the DHCP server (router) in connection with the ISP (Internet Service Provider).

IPv6 address

Display of the IPv6 address. The address can be configured in the IPv6 "Manual" mode.

IPv6 Subnet Mask

Display of the IPv6 Subnet Mask

IPv6 Default Gateway

Display of the IPv6 Standard Gateway (standard router)

MAC Address

The IPv4 hardware address of the camera is displayed here. You cannot change it.

MTU

Setting for the transmission unit. Select a value between 500 - 9676. 1500 is set by default.

DNS Server

Preferred DNS Server

DNS server settings are required for some applications (for example, sending e-mails). Enter the address of the preferred DNS server here.

Alternate DNS Server

If the preferred DNS server cannot be reached, this alternative DNS server is used. Please store the address of the alternate DNS server here.

i	Apply the settings made with "Save".

12.3.2.2 Port

If you wish to enable external access to the Speed Dome, the following ports must be configured.

HTTP Port

The standard port for HTTP transmission is 80. As an alternative, this port can be assigned a value in the range of 1024 \~ 65535. If several network cameras are connected in the same subnetwork, then each camera should be given a unique HTTP port of its own.

RTSP Port

The standard port for RTSP transmission is 554. As an alternative, this port can be assigned a value in the range of 1024 \~ 65535. If several network camera are connected in the same subnetwork, then each camera should be given a unique RTSP port of its own.

HTTPS port

The standard port for HTTPS transmission is 443.

SDK port (control port)

The standard port for SDK transmission is 8000. Communication port for internal data. As an alternative, this port can be assigned a value in the range of 1025 \~ 65535. If several IP cameras are located in the same subnetwork, then each camera should have its own unique SDK port.

Apply the settings made with "Save".

12.3.2.3 DDNS

DDNS

DynDNS or DDNS (dynamic domain name system entry) is a system that can update domain name entries in real time. The network camera is equipped with an integrated DynDNS client that updates the IP address independently via a DynDNS provider. If the network camera is located behind a router, we recommend using the DynDNS function of the router.

The following diagram offers an overview of accessing and updating the IP address using DynDNS.

Enable DDNS

Activates or deactivates the DDNS function.

DDNS Type

Select the DDNS type. You can choose between "DynDNS" and "ABUS DDNS".

Server Address

Select a DDNS service provider. You must have registered access to this DDNS service provider (e.g. www.dyndns.org).

If you select "ABUS DDNS" as the DDNS type the server address is stored automatically.

Domain

Enter your registered domain name (host service) here (e.g. myIPcamera.dyndns.org).

Port

Store the port for port forwarding here.

User Name

User ID of your DDNS account

Password

Password of your DDNS account

Confirm

You need to confirm your password here.

Setting up a DDNS account

Set up a new account as follows under DynDNS.org:

Store your account information:

DynDNS.com

Note down your user data and enter this into the configuration of the network camera. Accessing the network camera over DDNS

If the network camera is located behind a router, then access via DynDNS must be configured in the router. On the ABUS Security-Center homepage www.abus-sc.com, you can find a description of DynDNS router configuration for common router models.

The following diagram offers an overview of accessing a network camera behind a router via DynDNS.org.

Port forwarding of all relevant ports (at least RTSP + HTTP) must be set up in the router in order to use DynDNS access via the router.

ABUS DDNS

1. To be able to use the ABUS DDNS function, you first need to set up an account at www.abus-server.com. Please read the FAQs on this topic on the website.
2. Select the "Enable DDNS" checkbox and select "ABUS DDNS" as the DDNS type.
3. Apply the data with "Save". The IP address of your Internet connection is now updated every minute on the server.

12.3.2.4 WLAN

To establish a Wi-Fi connection between the camera and the router, you must make the following settings.

Wireless list

Click "Find" to see the Wi-Fi networks that are available in the immediate area.

Note that hidden networks are not shown on the list.

Wi-Fi

SSID

Enter the name of the network here.

Network mode

You can choose either Manage or Ad-hoc.

Manage

Select this item for a connection to a network.

Ad-hoc

Select this item for a direct connection to a PC or laptop.

Security mode

Select the encryption mode of your network.

Encryption type:

Select the encryption type of the network.

Code 1

Enter the network code (password) for accessing the network.

WPS

The WPS function allows you to easily set up a wireless connection from the camera to a Wi-Fi network.

Enable WPS

Enable the function to use a WPS connection.

Check whether your router supports the WPS function.

PIN code

The PIN code is required for establishing the connection. The default setting is 12345678. Click “Generate” to generate a new code.

PBC connection

Enable this function if your router has a WPS button.

1. First press the WPS button on the router.
2. Then click "Connect" within two minutes.
3. The W-LAN connection between the camera and the router is established after a short time.

Router PIN code

You can manually establish a WPS connection here by entering the SSID and the router PIN code.

SSID: Enter the SSID of the network you want.

Router PIN code: Enter the router PIN code. Follow the instruction manual of the router manufacturer for reading the WPS PIN code.

Click "Save" to apply the settings.

12.3.2.5 UPnP ^TM

The UPnP (Universal Plug and Play) function makes it easy to control network devices in an IP network. This allows the network camera to be seen in the Windows network environment (e.g. as a network device).

Enable UPnP

For enabling or disabling the UPnP function.

Friendly Name

Display of the MAC address of the camera

Port Mapping

Enable Port Mapping

This enables Universal Plug and Play port forwarding for network services. If your router supports UPnP, then port forwarding for video streams is activated automatically on the router for the network camera using this option.

Port Mapping Mode

Select here whether you wish to conduct port mapping automatically or manually.

You can choose between "Auto" and "Manual".

Protocol Name

HTTP

The standard port for HTTP transmission is 80. As an alternative, this port can be assigned a value in the range of 1025 \~ 65535. If several IP cameras are located on the same subnetwork, then each camera should have its own unique HTTP port.

RTSP

The standard port for RTSP transmission is 554. As an alternative, this port can be assigned a value in the range of 1025 \~ 65535. If several IP cameras are located in the same subnetwork, then each camera should have its own unique RTSP port.

SDK (control port)

The standard port for SDK transmission is 8000. Communication port for internal data. As an alternative, this port can be assigned a value in the range of 1025 \~ 65535. If several IP cameras are located in the same subnetwork, then each camera should have its own unique SDK port.

External Port

You can only change ports manually here of the "Port Mapping Mode" was set to manual.

Status

Displays whether the external port entered is valid or invalid.

Apply the settings made with "Save".

12.3.3 Video / Audio

Menu item	Description	Available in mode
Video	Settings for video output	Basic Configuration, Advanced Configuration
Audio	Settings for audio output	Basic Configuration, Advanced Configuration

12.3.3.1 Video

Stream Type

Select the stream type for the network camera. Select "Main Stream (Normal)" for recording and live view with a good bandwidth. Select "Sub Stream" for live view with restricted bandwidth.

Resolution

Set the resolution of the video data here. Depending on the camera model you can choose from between 1280*720P; 1280*960;

Bitrate Type

Specifies the bit rate of the video stream. The video quality can be higher or lower depending on the intensity of the motions. You can select between a constant and variable bit rate.

Max. Bitrate

The bit rate of the video stream is set to a certain value. Set a maximum bit rate of between 32 and 16384 Kbps. A higher value means better video quality, however, this requires more bandwidth.

Video Quality

This menu item is only available if you have selected a variable bit rate. Set the video quality for video data here. The video quality can differ depending on the intensity of movement. You can select from six different video qualities: "Lowest" "Lower", "Low", "Medium", "Higher" or "Highest".

Frame Rate

Specifies the frame rate in frames per second.

Video Encoding

Select a standard for video encoding. You can choose between H.264, MPEG4 and MJPEG

i	Apply the settings made with "Save".

12.3.3.2 Audio

Audio coding

Select the encoding for audio transmission here.

You can choose between "G.711ulaw", "G.711alaw" and "G.726".

Volume

Set the output volume

Environmental noise filter

Activate this filter to eliminate ambient noise.

Click “Save” to apply the settings.

12.3.4 Image

Menu item	Description	Available in mode
Display Settings	Displaying parameter settings	Basic Configuration, Advanced Configuration
OSD Settings	Settings for the date and time formats	Advanced Configuration
Text Overlay	Adding text fields	Advanced Configuration
Privacy masking	Adding privacy masking	Advanced Configuration

12.3.4.1 Display Settings

You can use this menu item to set the picture quality of the Speed Dome, including brightness, sharpness, contrast and so on. Click on "Default" to restore the default values.

Please note:

The display setting parameters can vary depending on the model.

Brightness

Image brightness settings. A value between 0 and 100 can be set.

Contrast

Image contrast settings. A value between 0 and 100 can be set.

Saturation

Image saturation settings. A value between 0 and 100 can be set.

Hue

Setting for the hue. A value between 0 and 100 can be set.

Sharpness

Image sharpness settings. A higher sharpness value can increase image noise.

A value between 0 and 100 can be set.

Overexposure protection

When this function is activated, the IR light intensity is automatically reduced for objects that are too close.

This attempts to prevent object glare.

Exposure time

Setting the maximum exposure time. This setting is dependent on iris mode.

Video Standard

Setting for the exposure frequency

50Hz: fixed setting to 50 Hz network frequency

60Hz: fixed setting to 60 Hz network frequency

Day/Night Switch

Day/Night Switch Provides options for "Day", "Night" and "Auto".

Auto

Depending on the light conditions, the camera switches between day and night mode automatically. The sensitivity can be set between “Low”, “Normal” and “High”.

Exposure Mode

Shutter

Shutter Priority

1/50

Day

In this mode, the camera only outputs colour pictures.

Please note:

Only use this mode if the light conditions remain constant.

Night

In this mode, the camera only outputs black/white and pictures.

Please note:

Only use this mode if the light conditions are poor.

Sensitivity

Setting for the switching threshold for automatic day/night switching (Low, Normal, High).

A lower value means that there is a lower lighting level for switching to night mode.

Switch Time

Setting a delay time between recognising that a switching is required and carrying out the process.

Mirror

If the mirror function is active, the image is mirrored horizontally.

WDR

With the aid of the WDR function, the camera can return clear pictures even in disadvantageous backlight conditions. If there are both very bright and very dark areas in the picture area, the brightness level of the overall picture is balanced to provide a clear, detailed image.

Click on the checkbox to activate or deactivate the WDR function.

Set the Wide Dynamic Level higher to enhance the WDR function.

WDR

Wide Dynamic Level

54

BLC

Objects in front of a bright background can be shown more clearly with backlight compensation. The exposure of the objects is corrected, but the background is not shown in focus.

White balance

Here you select the lighting conditions in which the camera is installed.

You can choose from the following options: "MWB", "AWB1", "AWB2", "WB Locked", "Florescent Lamp",

"Standard Lighting", "Warm Lighting", "Natural Lighting".

MWB

You can adjust the white balance with the following values manually.

The white balance is performed once and saved.

Others

Use additional white balance options to adjust the function to the light levels (standard lighting, warm lighting, natural lighting, fluorescent lamp).

Digital Noise Reduction

You can activate (normal mode) or deactivate the noise reduction here.

Noise Reduction Level

Set the level for noise reduction here.

12.3.4.2 OSD Settings

You can use this menu item to select which date and time format are displayed in the live picture.

Display Name

Activate this checkbox if you wish to display the camera name.

Display Date

Activate this checkbox if you wish to display the date in the camera image.

Display Week

Activate this checkbox if you wish to display the day of the week.

Camera Name

Enter the camera name that is to be displayed in the image here.

Time Format

Choose here whether you would like to display the time in 24-hour or 12-hour format.

Date Format

Select the format for the date display here.

(M = month; D = day; Y = year)

Display Mode

Here you can select the display mode for the elements displayed.

You have the following options: "Transparent & Flashing", "Transparent & Not flashing", "Not transparent & Flashing", "Not transparent & Not flashing".

On-screen display size

This is where the on-screen display size can be set. Options: 16x16, 32x32, 48x48, 64x64, Auto.

In the auto option, the size is adjusted according to the resolution set. The on-screen display size setting can only be applied to the first video stream (main stream).

Apply the settings made with "Save".

12.3.4.3 Text Overlay

You can display up to four texts in the camera image. The maximum length for the texts is 45 characters. To display the text, activate the checkbox.

You can move the text window with the mouse.

Apply the settings made with "Save".

12.3.4.4 Privacy Mask

You can use privacy masks to hide certain areas in the live view to prevent that recording or viewing these areas in the live view is possible. A maximum of 4 rectangular privacy masks can be set up on the video image.

To set up a privacy mask, proceed as follows: Select "Enable Privacy Mask" checkbox. To add a privacy mask, click "Draw Area". You can now mark an area on the camera image using your mouse. You can then mark 3 additional areas. By clicking on "Delete All", you can delete all configured privacy masks.

Apply the settings made with "Save".

12.3.5 Security

Menu item	Description	Available in mode
User	User administration	Basic Configuration, Advanced Configuration
IP address filter	Filtering IP addresses for access to controlling the camera	Advanced Configuration

12.3.5.1 Security

With this menu item, you can add, edit or delete users.

To add a user or to edit one, click "Add" or "Modify".

A new window with the data and authorisations appears.

User Name

Here you assign the user name that needs to be entered for access to the camera.

Level

Select an individual user type for the user ID.

You can choose between two predefined levels: "Operator" or "User".

As an operator, the following remote functions are available to you: live view, PTZ control, manual recording, playback, two-way audio, search / query operating status.

As a user, the following remote functions are available to you: playback, search / query operating status.

To add further functions, click the corresponding checkbox.

Password

Here you assign the password that the corresponding user needs to enter for access to the camera.

Confirm

Confirm the password by entering it once more.

Apply the settings made with “Save”.Click on “Cancel” to discard the data.

12.3.5.2 IP address filter

Activating the IP address filter

Ticking the selection box activates the filter function.

IP address filter type

Allowed: The IP addresses detailed further below can access the camera.

Forbidden: The IP addresses detailed further below are blocked. An IP can be entered following the xxx.xxx.xxx.xxx format.

12.3.6 Events

Menu item	Description	Available in mode
Motion Detection	Settings for motion detection	Advanced Configuration
Alarm input	Setting for the alarm input	Advanced Configuration
Alarm output	Setting for the alarm output	Advanced Configuration
Email	Setting for e-mail dispatch	Advanced Configuration
Snapshot	Setting for the snapshot function	Advanced Configuration
Other alarms	Setting the PIR sensors	Advanced Configuration

12.3.6.1 Motion Detection

Area Settings

Activate motion detection by clicking the "Enable Motion Detection" checkbox.

By clicking on "Enable Dynamic Motion Analysis", movements are recorded in the preview image and the live view (dynamic recording according to motion).

To select an area, click on the "Draw Area" button. The entire area is selected by default. To discard this selection, click on "Clear All".

Drag the mouse pointer over the desired area. Set the sensitivity using the regulation control bar. To apply the setting for the area, click on "Stop Drawing".

Right: high sensitivity level

Left: low sensitivity level

Arming Schedule

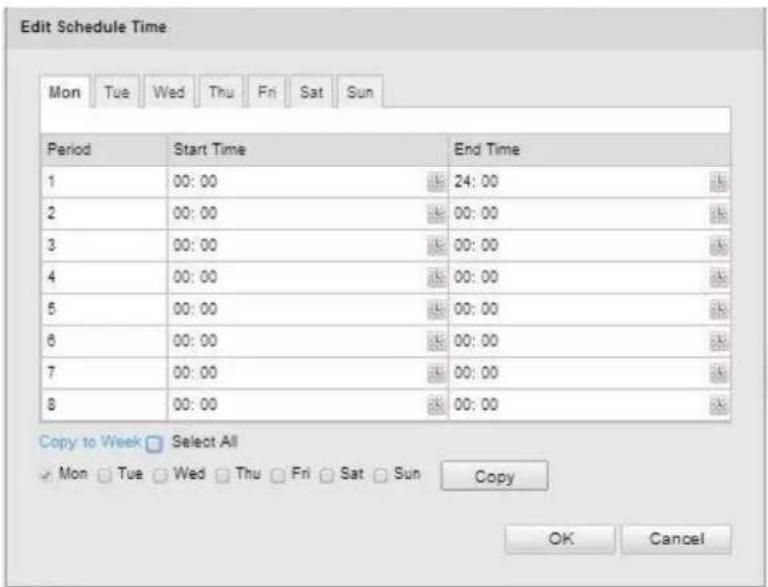

To save a schedule for motion-controlled recording, click on "Edit".

A new window appears. Specify here on which days of the week and at which times motion-controlled recording should take place.

Now select a week day for motion controlled recording. To store particular time periods, enter a start and end time. To set up all-day motion-detection, select 00:00 as the start time and 24:00 as the end time.

To apply motion detection for all week days, click the "Select All" checkbox. To copy motion detection to other week days, select the week day and click on "Copy".

To apply the changes, click "OK" and to discard them click on "Cancel".

Apply the settings made with "Save".

Linkage Method

Send Email: You receive an e-mail as notification, activate the checkbox for this to be performed.

Apply the settings made with "Save".

12.3.6.2 Alarm input

You can configure the alarm input of the camera with this menu item.

Alarm Input No.

Select the alarm input in order to configure it.

Alarm Name

You can specify a name for the alarm input here. Do not use the alarm input number or any special characters.

Alarm Type

Select the alarm type here. You can choose between "NO" (normally open) or "NC" (normally closed).

Arming Schedule

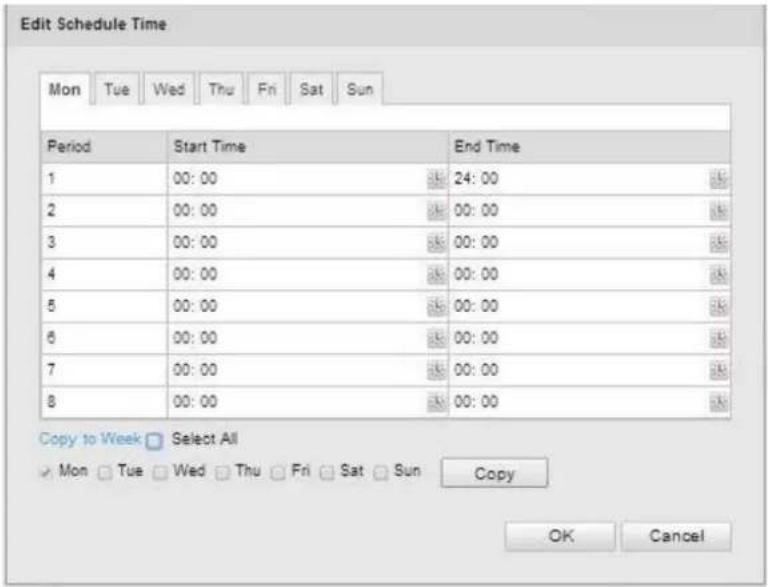

To save a schedule for the alarm input, click on "Edit".

A new window appears. Specify here on which days of the week and at which times the alarm input should be active.

Now select a week day for the alarm input. To store particular time periods, enter a start and end time.

To activate the alarm input all day, select 00:00 as the start time and 24:00 as the end time.

To apply the settings for all week days, click the "Select All" checkbox. To copy the settings to certain other week days, select the week day and click on "Copy".

To apply the changes, click "OK" and to discard them click on "Cancel".

Linkage Method

Make the setting here for which action an alarm should be performed.

Normal Linkage

Acoustic signal: An alarm tone sounds on the camera.

Send an e-mail: You receive an e-mail as notification, activate the checkbox for this to be performed.

Save instant image: Activate the checkbox to upload the alarm input to an FTP server.

Acvate recording: This activates the recording on the internal micro SD card.

Other Linkage

You can switch on the alarm output for when an alarm is detected.

Click on "Select All" to switch on the alarm output.

12.3.6.3 Alarm output

You can configure the alarm output here.

Alarm Output No.

Select the alarm output here so that you can configure it.

Alarm Name

You can specify a name for the alarm output here. Do not use the alarm output number or any special characters.

Dwell Time

Select the duration for switching the alarm output here.

Arming Schedule

To save a schedule for the alarm output, click on "Edit".

A new window appears. Specify here on which days of the week and at which times the alarm output should be active.

Now select a week day for the alarm output. To store particular time periods, enter a start and end time.

To activate the alarm input all day, select 00:00 as the start time and 24:00 as the end time.

To apply the settings for all week days, click the "Select All" checkbox. To copy the settings to certain other week days, select the week day and click on "Copy".

To apply the changes, click "OK" and to discard them click on "Cancel".

12.3.6.4 Email

You can make the settings for sending e-mails here.

Sender

Sender

Enter a name here that should be displayed as the sender.

Sender's Address

Enter the e-mail address of the sender here.

SMTP Server

Enter the IP address or host name of the SMTP server here. (For example: smtp.googleapis.com)

SMTP Port

Enter the SMTP port here. This is configured as 25 by default.

Enable SSL

Select the SSL function if the SMTP server requires this.

Interval

Set the interval between sending e-mails with picture attachments here.

Attached Image

Enable this function if images are to be attached to the e-mail in the event of an alarm.

Authentication

If the e-mail server in use requires authentication, enable this function to be able to log onto the server with authentication.

User names and passwords can only be entered once this function has been activated.

User Name

Enter the user name of the e-mail account here. This is the part before the @ character.

Password

Enter the password of the e-mail account here.

Confirm

Confirm the password by entering it again.

Receiver

Receiver1 / Receiver2 / Receiver3

Enter the name of the receiver here.

Receiver1's Address / Receiver2's Address / Receiver3's Address

Enter the e-mail address of the person to be notified here.

Apply the settings made with "Save".

12.3.6.5 Snapshot

You can make the configuration for time and event-controlled snapshots here to save them on the micro SD card.

Timing

Enable Timing Snapshot

Enable this function to save pictures at certain intervals.

Format

The format for the pictures is preconfigured as JPEG.

Resolution

Set the resolution of the picture here.

Quality

Select the quality for the saved pictures here.

Interval

Set the interval between saving two pictures here.

Event-Triggered

Enable Event-Triggered Snapshot

Enable this function to enable event-triggered pictures.

Format

The format for the pictures is preconfigured as JPEG.

Resolution

Set the resolution of the picture here.

Quality

Select the quality for the saved pictures here.

Interval

Set the interval between saving two pictures here.

Number of images

Set the number of images here which should be saved for one event.

12.3.6.6 Other alarms

PIR Alarm

Activating the PIR Alarm

You can activate the PIR sensor so that you can configure an event-controlled action.

Alarm Name

You can specify a name for the alarm input here. Do not use the alarm input number or any special characters.

Linkage Method

Make the setting here for which action an alarm should be performed.

Normal Linkage

Acoustic signal: An alarm tone sounds on the camera.

Send an e-mail: You receive an e-mail as notification, activate the checkbox for this to be performed.

Save instant image: Activate the checkbox to upload the alarm input to an FTP server.

Activate recording: You can activate the recording on the micro SD card.

Other Linkages

You can switch on the alarm output for when an alarm is detected.

Click on "Select All" to switch on the alarm output.

Arming Schedule

To save a schedule for the alarm output, click on "Edit".

A new window appears. Specify here on which days of the week and at which times the alarm output should be active.

Now select a week day for the alarm output. To store particular time periods, enter a start and end time. To activate the alarm input all day, select 00:00 as the start time and 24:00 as the end time.

To apply the settings for all week days, click the "Select All" checkbox. To copy the settings to certain other week days, select the week day and click on "Copy".

To apply the changes, click "OK" and to discard them click on "Cancel".

12.3.7 Storage

Menu item	Description	Available in mode
Recording schedule	Setting up a recording schedule	AdvancedConfiguration
Storage management	SD card management	AdvancedConfiguration

12.3.7.1 Recording schedule

You can make the configuration for time and event-controlled recordings here to save them on the micro SD card.

Pre-recording

Here you can set the duration for recording picture data before an event.

Post-recording

Here you can set the duration for recording picture data after an event.

Activating the recording schedule

Activate the schedule so that you can save the required schedule.

To save the schedule, click on "Edit" and a new window opens.

Now select a week day for the recording set-up. To store particular time periods, enter a start and end time. To activate the alarm input all day, select 00:00 as the start time and 24:00 as the end time.

To apply the settings for all week days, click the "Select All" checkbox. To copy the settings to certain other week days, select the week day and click on "Copy".

Select the recording mode for the required time period under the recording type.

You have the choice between the following recording types:

Normal: Permanent recording

Motion detection: Motion-controlled recording

Motion Alarm: Motion-controlled or alarm input-controlled recording. The camera records when motion is detected or when an alarm is triggered.

Motion & alarm: Motion-controlled and alarm input-controlled recording. The camera records only when motion is detected and the alarm input is triggered at the same time.

PIR Alarm: PIR sensor controlled recording

Note that the motion detection mask, the alarm input and the PIR sensor must be configured.

To apply the changes, click "OK" and to discard them click on "Cancel".

12.3.7.2 Storage management

Here you can format the inserted micro SD card and view the features.

Make sure you format the SD card before using for the first time.

13. Log

Camera parameters such as operation, alarm and exceptions can be saved in the log. The files can be exported if necessary.

1. Click on Log in the menu bar to call the search dialog.
2. Specify the search criteria including main type, sub-type, start time and end time.
3. Click on "Search" to search for log files. The corresponding log files are displayed in the log dialog.
4. Click on "Save Log" to export the log files and save them on your computer.

14. Maintenance and cleaning

14.1 Maintenance

Regularly check the product's physical state, e.g. check for damage of the housing.

If you suspect that safe operation cannot be guaranteed anymore, disconnect the product and ensure that it cannot be used by mistake. Remove the batteries.

You can assume that safe operation is not possible anymore when

• the device shows visible damage,
• the device does not function anymore

Please note:

The product is absolutely maintenance-free for you. There are no components on the inside of the product to be checked or services by you, never open it.

14.2 Cleaning

Wipe the product with a clean, dry cloth. If the device is very dirty, you can moisten the cloth with lukewarm water.

Ensure that no liquids can get into the device.

Do not use any chemical cleaners, since they could damage the housing surface or the screen (discolorations).

15. Disposal

Important: The EU Directive 2012/19/EU regulates the proper return, treatment and recycling of used electronic devices. This symbol means that in the interest of environmental protection the device must be disposed of separately from household or industrial waste at the end of its service life in accordance with applicable local legal guidelines. Disposing of used devices can be done at official recycling centers in your country. Obey local regulations when disposing of material. Further details on returns (also for non-European countries) can be obtained at your local authority. Separate collection and recycling saves natural resources and ensures that all the provisions for protecting health and environment are observed when recycling the product.

16. Technical Data

Model number	TVIP11560
Image sensor	1/3" progressive scan CMOS sensor
Camera type	Day/night
Resolution	1280 x 960, 1280 x 720, 704 x 576, 352 x 288, 176 x 144
Pixels (total)	1280 x 960
Pixels (effective)	1280 x 960
Day/night switching	Electromechanical IR-cut filter
Minimum illumination (colour)	2 lux
Minimum illumination (IR)	0 lux
Image compression	H.264, MJPEG
Frame rate	25 fps @ 1280x960
	25 fps @ 1280x720
Number of parallel streams	2
Electronic shutter control	1/3 - 1/100000 Sec.
White balance	Yes
Backlight compensation	WDR
Noise reduction	DNR
Motion detection	Yes
IR range	10 metres
Image overlay	Date, camera name, private zones
Alarm notification	E-mail
Supported browsers	Mozilla Firefox, Safari or Internet Explorer 6.x and higher
Supported software	ABUS VMS Express, IPCam App (iOS)
Network access	RJ-45 Ethernet 10/100 Base-T
Network protocols	IPv4, IPv6, TCP/IP, HTTP, UPnP, RTP/RTSP, SMTP, DHCP, NTP, DNS, DDNS
Power over Ethernet	IEEE803.af
Power supply	12 V DC
Current consumption	Max. 580 mA
Operating temperature	-10 °C – 50 °C
IP protection class	54
Dimensions (W x H x D)	60 x 60 x 157 mm
Certifications	CE, RoHS, REACH

17. GPL license information

Here we wish to inform you that the network surveillance camera TVIP11560 contain Open Source Software, which is licensed exclusively under the GNU General Public License (GPL). To ensure that your use of the programs conforms with GPL, please refer to the GPL license conditions.

TVIP11560

White and silver ABUS smartphone with dual lens and control buttons (no visible text or symbols)

Line drawing of a device with circular and rectangular buttons, labeled 'ABUS' at the base (no other text or symbols)

Line drawing of a broadband cable with two connectors (no text or symbols)

Simple line drawing of a mechanical support or stand (no text or symbols)

Illustration of a laptop connected to a camera via a cable (no text or symbols)

① Câble Ethernet Cat5

Activer mapping port

Environmental Noise Filter

White and silver ADOS smartphone with dual lens and head modules (no visible text or symbols)

Line drawing of a device with circular and rectangular buttons, labeled 'ABUS' at the base (no other text or symbols)

Line drawing of a broadband cable with two connectors (no text or symbols)

Voeding
1 m netwerkkabel

CD-ROM

Simple line drawing of a mechanical support base with a vertical rod and base (no text or symbols)

Accountgegevens invullen:

Links: hoge gevoeligheid

Activeringstijd

Timing-snapshot activeren

Exterior view of a white and silver ABUS digital camera with two lenses (no text or symbols visible)

Line drawing of a standard electronic device with no visible text or symbols

Line drawing of a broadband cable with two connectors (no text or symbols)

Simple line drawing of a mechanical support or stand (no text or symbols)

Diagram showing a laptop connected to a camera via a cable, no text or symbols present

① Cat5-ethernetkabel

Gem live-snapshot under

Environmental Noise Filter

Exterior view of a white and silver ASUS smartphone camera with dual lenses (no text or symbols visible)

Instrukcja obsługi

Version 1.1

CE

Line drawing of a speaker with circular head and buttons (no text or symbols)

Line drawing of a flexible network cable with two connectors (no text or symbols)

Simple line drawing of a mechanical support or stand (no text or symbols)

Illustration of a laptop connected to a camera via a cable (no text or symbols)

① Kabel Ethernet Cat5

8. Accessing the network camera for the first time

White and silver ABIS phone camera with dual lens and head modules (no visible text or symbols on body)

Line drawing of a speaker with circular head and buttons (no text or symbols)

Simple line drawing of a mechanical support base with a lever and base (no text or symbols)

Diagram showing a laptop connected to a camera via a cable, no text or symbols present

Exterior view of a white and silver ABUS smartphone device (no text or symbols visible on body)

Line drawing of a device with circular ports and a speaker grille (no text or symbols)

Line drawing of a broadband cable with two connectors (no text or symbols)

Simple line drawing of a stand with a handle and base (no text or symbols)

Diagram showing a laptop connected to a camera via a cable, no text or symbols present

① Cable de Ethernet Cat5

White and silver product photo of a ADUS smartphone with dual lenses (no visible text or symbols)

Line drawing of a device with a speaker grille and control buttons (no text or symbols)

Line drawing of a flexible network cable with two connectors (no text or symbols)

Simple line drawing of a stand with a handle and base (no text or symbols)

Diagram showing a laptop connected to a camera via a cable, with no text or symbols present.

① Cavo Ethernet CAT5

White and silver product photo of a ABUS smartphone with two lenses and a small connector (no visible text or symbols)

Bruksanvisning

Version 1.1

CE

12.3.2.2 Port....613

12.3.2.3 DDNS 614

12.3.2.4 W-LAN....617

12.3.2.5 UPnP™ 619

12.3.3 Video/audio 620

12.3.3.1 Video 621

12.3.3.2 Audio 622

12.3.4 Bild 623

Line drawing of a device with circular and rectangular buttons, labeled 'ABUS' at the base (no other text or symbols)

Line drawing of a broadband cable with two connectors (no text or symbols)

6. Montering/Installation

Simple line drawing of a stand with a handle and base (no text or symbols)

Diagram showing a laptop connected to a camera via a cable, with no text or symbols present.

① Cat5 ethernetkabel

10.3 Audio/video-styrning

Visa lpv6 standard-gateway (standardrouter)

Mac-adress

Spara kontouppgifter:

These operating instructions are published by ABUS Security-Center GmbH & Co.KG, Linker Kreuthweg 5, 86444 Affing, Germany. No reproduction (including translation) is permitted in whole or part e.g. photocopy, microfilming or storage in electronic data processing equipment, without the express written consent of the publisher.

The operating instructions reflect the current technical specifications at the time of print. We reserve the right to change the technical or physical specifications.

Note de l'éditeur

© Copyright 07/2016 by ABUS Security-Center
