before folding your carriage or stroller. _ Do not use the release levers to move or lift the stroller when the child is in it. _ WARNING This product is not suitable for jogging or skating. _ Apply the brake when loading or unloading children. _ WARNING do not add any matress.

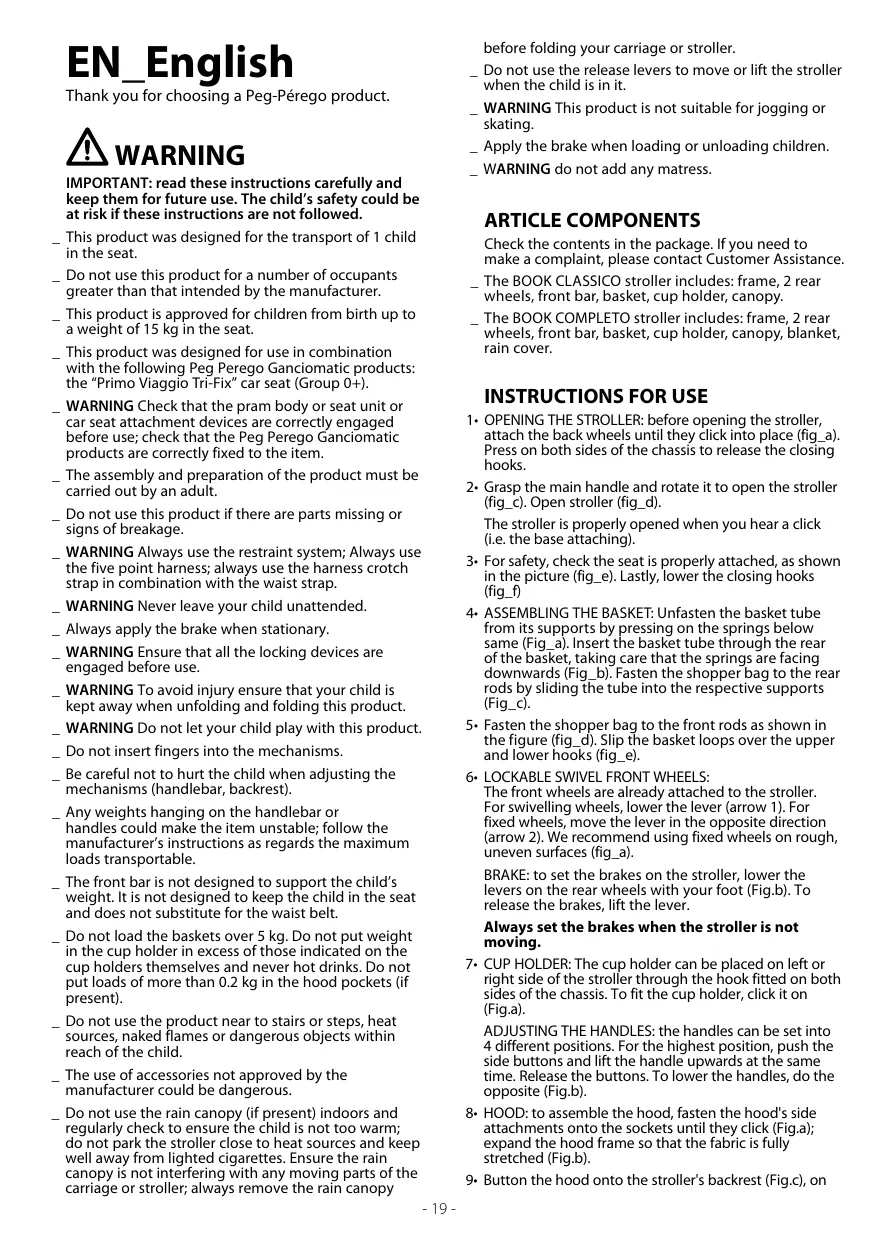

Thank you for choosing a Peg-Pérego product.

WARNING IMPORTANT: read these instructions carefully and keep them for future use. The child’s safety could be at risk if these instructions are not followed.

This product was designed for the transport of 1 child in the seat. Do not use this product for a number of occupants greater than that intended by the manufacturer. This product is approved for children from birth up to a weight of 15 kg in the seat. This product was designed for use in combination with the following Peg Perego Ganciomatic products: the “Primo Viaggio Tri-Fix” car seat (Group 0+). WARNING Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use; check that the Peg Perego Ganciomatic products are correctly fixed to the item. The assembly and preparation of the product must be carried out by an adult. Do not use this product if there are parts missing or signs of breakage. WARNING Always use the restraint system; Always use the five point harness; always use the harness crotch strap in combination with the waist strap. WARNING Never leave your child unattended. Always apply the brake when stationary. WARNING Ensure that all the locking devices are engaged before use. WARNING To avoid injury ensure that your child is kept away when unfolding and folding this product. WARNING Do not let your child play with this product. Do not insert fingers into the mechanisms. Be careful not to hurt the child when adjusting the mechanisms (handlebar, backrest). Any weights hanging on the handlebar or handles could make the item unstable; follow the manufacturer’s instructions as regards the maximum loads transportable. The front bar is not designed to support the child’s weight. It is not designed to keep the child in the seat and does not substitute for the waist belt. Do not load the baskets over 5 kg. Do not put weight in the cup holder in excess of those indicated on the cup holders themselves and never hot drinks. Do not put loads of more than 0.2 kg in the hood pockets (if present). Do not use the product near to stairs or steps, heat sources, naked flames or dangerous objects within reach of the child. The use of accessories not approved by the manufacturer could be dangerous. Do not use the rain canopy (if present) indoors and regularly check to ensure the child is not too warm; do not park the stroller close to heat sources and keep well away from lighted cigarettes. Ensure the rain canopy is not interfering with any moving parts of the carriage or stroller; always remove the rain canopy

ARTICLE COMPONENTS Check the contents in the package. If you need to make a complaint, please contact Customer Assistance.

_ The BOOK CLASSICO stroller includes: frame, 2 rear wheels, front bar, basket, cup holder, canopy. _ The BOOK COMPLETO stroller includes: frame, 2 rear wheels, front bar, basket, cup holder, canopy, blanket, rain cover.

INSTRUCTIONS FOR USE

1• OPENING THE STROLLER: before opening the stroller, attach the back wheels until they click into place (fig_a). Press on both sides of the chassis to release the closing hooks. 2• Grasp the main handle and rotate it to open the stroller (fig_c). Open stroller (fig_d). The stroller is properly opened when you hear a click (i.e. the base attaching). 3• For safety, check the seat is properly attached, as shown in the picture (fig_e). Lastly, lower the closing hooks (fig_f) 4• ASSEMBLING THE BASKET: Unfasten the basket tube from its supports by pressing on the springs below same (Fig_a). Insert the basket tube through the rear of the basket, taking care that the springs are facing downwards (Fig_b). Fasten the shopper bag to the rear rods by sliding the tube into the respective supports (Fig_c). 5• Fasten the shopper bag to the front rods as shown in the figure (fig_d). Slip the basket loops over the upper and lower hooks (fig_e). 6• LOCKABLE SWIVEL FRONT WHEELS: The front wheels are already attached to the stroller. For swivelling wheels, lower the lever (arrow 1). For fixed wheels, move the lever in the opposite direction (arrow 2). We recommend using fixed wheels on rough, uneven surfaces (fig_a). BRAKE: to set the brakes on the stroller, lower the levers on the rear wheels with your foot (Fig.b). To release the brakes, lift the lever. Always set the brakes when the stroller is not moving. 7• CUP HOLDER: The cup holder can be placed on left or right side of the stroller through the hook fitted on both sides of the chassis. To fit the cup holder, click it on (Fig.a). ADJUSTING THE HANDLES: the handles can be set into 4 different positions. For the highest position, push the side buttons and lift the handle upwards at the same time. Release the buttons. To lower the handles, do the opposite (Fig.b). 8• HOOD: to assemble the hood, fasten the hood's side attachments onto the sockets until they click (Fig.a); expand the hood frame so that the fabric is fully stretched (Fig.b). 9• Button the hood onto the stroller's backrest (Fig.c), on

both sides and inside the handle (Fig.d).

To remove the hood: unfasten the hood's side attachments from the chassis by pressing the external button (as shown in Fig.e) and unbutton it from the backrest, the sides of the stroller and inside the handle. 10• The hood has: - a fabric loop, for tying toys (Fig.a). - a window with UV protection, to see the child (Fig.b). 11• The hood can be adjusted to two positions (Fig. a). Undo the zip (Fig. b) and stretch the fabric flap to see the child and to let more air under the hood (Fig. c). 12• MUFF for complete Book: to put the muff on the stroller, button it up under the footrest and slide it upwards over the bumper, then button it again (Fig.a). Properly assembled muff. The muff has an extra little muff for the child's hands (Fig.b). 13• RAINCOVER for complete Book: to fit the rain canopy, extend it over the stroller and snap fit the buttons on both sides of the hood (Fig.a). Fasten the elastic loops including the chassis in the lower part of the stroller (Fig.b). • Do not use the rain canopy indoors and always make sure that the child is not too hot. • Do not place the rain canopy near heat sources and pay attention to cigarettes. • Make sure that the rain canopy does not interfere with any moving mechanism of the stroller. • Always remove the rain canopy before folding up the stroller. • Wash with a sponge and soapy water. Do not use detergents. 14• 5-POINT SAFETY HARNESS: to fasten, insert the two buckles of the waist strap (with attached shoulder straps, arrow a) into the leg divider strap until they click into place (arrow b). To unfasten them, press the button which is situated in the centre of the fastener (arrow c) and pull the waist strap outwards (arrow d). 15• To tighten the waist strap, pull on both sides in the direction of the arrow. To loosen it do the opposite. 16• To adjust the height of the safety harnesses, release the two buckles on the rear of the backrest. Pull the shoulder straps towards you (arrow a) until the buckles are released and insert them in the backrest loops (arrow b). Remove the shoulder straps from the sack (arrow c) and insert them in the most appropriate buckle (arrow d), then reattach the two buckles behind the backrest (arrow e). The buckles are securely attached when a click is heard (fig f). WARNING: To fasten the belts in the third eyelet, lift the fabric, as they are hidden in the lining. 17• FREEDOM OF MOVEMENT: After 6 months, at the discretion of the parents, the straps may be fastened differently, to give your child more freedom of movement, without jeopardising on safety. - Detach the two buckles on the rear of the backrest (as explained in paragraph 16). - Slide the two buckles out from the front; - Fasten the buckles, as shown in the figure, on both sides of the waist strap. 18• ADJUSTING THE FOOTREST: the footrest can be adjusted to 2 positions. To lower the footrest, push the two little side levers downwards and lower the footrest at the same time. To raise the footrest, push it upwards until it clicks. 19• ADJUSTING THE BACKREST: the backrest can be reclined into 8 positions. To lower the backrest, lift the handle

and lower the backrest at the same time. Block it in the desired position. To raise the backrest, lift the handle and raise the backrest at the same time. Block it in the desired position.

20• FRONT BUMPER BAR: to attach the front bumper bar remove the protection caps (Fig.a) and store them. After removing the caps, insert the ends of the bumper into the armrests until they click (Fig.b). 21• The bumper bar can be opened on one side so an older child can climb on and off more easily. To open the bumper bar, push the button on the side and pull the bar outwards (Fig.a) To remove the bumper bar, press the two buttons on the sides and pull the bar outwards (Fig.b). When the bumper bar is off, replace the protection caps onto the chassis armrests to close them. 22• COLLAPSING THE STROLLER: to collapse the stroller, put the front wheels into fixed position, close the hood (if on the stroller) and remove the car seat (if on the chassis). - Align the handle with the stroller chassis as shown in the picture (fig_a); - lift the fastening hooks on the two sides of the chassis (fig_b); - Pull the interior handle placed behind the seat (fig_c) and lift at the same time (fig_d). 23• Rotate the handle forward until completely closed (fig_e). Check that it has fastened to the closing hook on both sides. If it has not, fasten the closing hook properly as shown (fig_f). The collapsed stroller is free standing. 24• To make the stroller smaller still, the back wheels can be removed. Pull the pivot outwards and extract the wheel as shown (fig_a). TRANSPORT: the stroller can be carried comfortably locking the front wheels and grasping the main handle (fig_b). 25• REMOVING THE LINING: to remove the stroller's lining: - unthread the belt's leg divider from under the seat (fig_a); - slip the elastics off their hooks on both sides (fig_b); 26• - unscrew the belt on both sides, keeping your finger under the bolt (fig_c); - unfasten the lining from the armrests as shown in the picture (fig_d); - lift the flaps and release them from the velcro fabric to unbutton the seat's lining (fig_e); 27• - on the back of the pushchair: - remove the lining from the seat (fig_f); - with the help of a screwdriver, remove the elastic from its groove (fig_g); - undo the buttons on both sides on the backrest (fig_h); 28• Use the screwdriver to remove the screw in the main handle, on both sides (fig_i); - Store the screw after removing it. - Unthread the strap from the lining (fig_l); 29• Unfasten and remove the shoulder straps from the backrest as shown in the figure 16_a / 16_b; - push in the openings and pull off the side lining. Do this on both sides (fig_m); - remove the lining from above (fig_n).

REPLACING THE LINING: to put the lining back on: fit the lining onto the backrest fit the lining over the platform attach the side elastics (25b) fasten the lining's hooks to the armrests (26d) fasten the lining's buttons to the chassis and lower the velcro straps (26e)

- fasten the belt in the right position with the screwdriver (26c) - attach the leg divider under the seat. One part must be above the seat and one below (25a) - attach the belt at the desired height (point 16) 30• on the back of the stroller: - insert the two rigid flaps between the tube and the seat (fig_a); - thread the strap through the lining's eyelet. Replace the main handle's screw (fig_b). WARNING: stretch the strap to check it is securely fastened. - Button the lining onto the stroller's backrest (27h). 31• Insert the lining's elastic into the groove and stretch it from inside to fasten it (fig_c). Insert the rigid strap into its grooves until it clicks into place. Check it is securely fastened by pulling it (fig_d).

BAG: diaper-changing bag with pad for changing baby’s diaper (fig_c).

CLEANING AND MAINTENANCE PRODUCT MAINTENANCE: protect from the weather: water, rain, or snow; prolonged and continuous exposure to bright sunlight may give rise to colour changes of various different materials; store this product in a dry place.The maintenance have to be regularly.

CLEANING THE CHASSIS: periodically clean all plastic parts with a damp cloth. Do not use solvent or similar cleaning products; keep all metal parts dry to prevent rusting; keep moving parts clean (adjustment mechanisms, locking mechanisms, wheels, ...) and free of dust and sand and, if necessary, lubricate with light machine oil. CLEANING THE RAIN CANOPY: wash with a sponge and soapy water; do not use detergents. CLEANING FABRIC PARTS: brush fabric parts to remove dust and wash by hand at a maximum temperature of 30°C; do not wring; do not use chlorine bleach, do not iron; do not dry clean; do not apply solvent-based stain removers and do not dry in a tumble dryer.

Peg-Pérego S.p.A. is an ISO 9001 certified company. This certification is a guarantee for customers and consumers of the transparency and trustworthiness of the company's procedures and working methods. Peg Pérego can make changes at any time to the models described in this publication for technical or commercial reasons. Peg Pérego is at the disposal of its customers and consumers to ensure that all their demands and queries are fully satisfied. It is a key part of our policy to ensure we are always aware of our customers' views and requirements. We would therefore be very grateful if, after using a Peg Pérego product, you take the time to fill in our CUSTOMER SATISFACTION QUESTIONNAIRE, making a note of any comments or suggestions you might have. You can find the questionnaire on the Peg Pérego website: www.pegperego.com

GANCIOMATIC SYSTEM The Ganciomatic System is the quick practical system that enables you to attach the Primo Viaggio Tri-Fix car seat to the stroller in just one step.

32• Before attaching the car seat, you must: - insert the stroller's break; - put the backrest into the lowest position (flat, fig_a); - lift the flaps, release them from the velcro fastening and put the together (fig_b); - lift the Ganciomatic attachments from the chassis (fig_c); - put the car seat in mum-facing position and push it down until it clicks (fig_d); - Check that the child transport system is properly fastened. - Lift the stroller backrest to the highest position. - Important: do not remove the bumper bar from the stroller when you attach the car seat (read point 20 to see how to attach the bumper bar). - To release the car seat, read the car seat's instruction manual. 33• To lower the stroller's Ganciomatic fittings, move them inwards and rotate them downwards.

PEG-PÉREGO AFTER-SALES SERVICE If any parts of the item get lost or damaged, only use genuine Peg Pérego spare parts. For any repairs, replacements, information on the products and sales of genuine spare parts and accessories, contact the

Peg Pérego Assistance Service and state the serial number of the product, if present. tel. 0039/039/60.88.213 fax 0039/039/33.09.992 e-mail assistenza@pegperego.it website www.pegperego.com

34• The information on the BOOK stroller is under the seat and includes: product name, production date and item serial number. This information is required if complaints are made.

35• RAIN CANOPY: can be fastened to the hood (fig_a). MOSQUITO NETTING: can be fastened to the hood (fig_b).
