Product type	Double stroller adapters
Brand	PEG PEREGO
Model	Double adapters Ypsi/Z4
Chassis compatibility	Ypsi model number IP24*
Compatible items	PRIMO VIAGGIO LOUNGE, PRIMO VIAGGIO i-Size/i Plus, PRIMO VIAGGIO SL (after 01/07/18), YPSI BASSINET, COMPANION SEAT, YPSI SEAT
Max child weight (car seat)	13 kg
Max child weight (carrycot)	9 kg
Max child weight (Ypsi seat)	15 kg from 6 months
Recommended age	From birth to 15 kg depending on configuration
Adapter type	Adapters A (upper) and Adapters B (lower)
Attachment	Snaps onto folded chassis (A) or with red tab (B)
Possible combinations	See page 5 of the manual
Prohibited combinations	See page 6 of the manual
Safety	Never leave child unattended; always use harness; check attachment before each use
Cleaning	Clean with damp cloth; do not use solvents
Spare parts	Use only original PegPerego parts
After-sales service	Tel: [phone], France toll-free: 0 800 913 540, Email: [e-mail], Website: www.pegperego.com
Material	Plastic (according to safety standards)

Frequently Asked Questions - Double adapters Ypsi/Z4 PEG PEREGO

Which car seats are compatible with the Ypsi/Z4 double adapters?

The adapters are compatible with PRIMO VIAGGIO LOUNGE, PRIMO VIAGGIO i-Size/i Plus, and PRIMO VIAGGIO SL (produced after 01/07/18) car seats.

Can I use two car seats at the same time?

Yes, the double adapters allow you to install two car seats or a combination of car seat, carrycot, or Companion seat. Consult the manual for allowed configurations.

What is the maximum weight supported for each child?

With a car seat: 13 kg. With Ypsi carrycot: 9 kg. With Ypsi or Companion seat: 15 kg from 6 months.

How to install the A (upper) adapters?

Fold the chassis, lock the front wheels, shorten the handle. Lift the handle to fold completely, then attach the adapter by snapping it on. Then unfold the chassis.

How to install the B (lower) adapters?

Attach the adapter to the chassis by aligning it with the mushroom button. Ensure the brake cable is excluded, then close the red tab until it clicks. Repeat on the other side.

Can I use the Ypsi carrycot with the adapters?

Yes, the Ypsi carrycot is compatible. The maximum child weight is 9 kg and the product is suitable for children who cannot sit up on their own.

What are the prohibited combinations?

Prohibited combinations are listed on page 6 of the manual. In general, do not exceed the prescribed number of occupants and do not use incompatible accessories.

How to clean the adapters?

Clean them with a damp cloth and mild detergent. Do not use solvents or abrasive products.

Where can I purchase spare parts?

Use only original PegPerego parts. Contact after-sales service at 0 800 913 540 (France) or by email at [e-mail].

Are the adapters compatible with other PegPerego chassis?

No, they are specifically designed for the Ypsi chassis model IP24*. Do not use them on other models.

USER MANUAL Double adapters Ypsi/Z4 PEG PEREGO

EN Instructions for use

FR Notice d'emploi

double adapters ypsi

⚠ EN_WARNING: The Ypsi double adapters can be used only on the Ypsi chassis model number: IP24*

The Original Accessory

ADAPTERS A

Two mechanical bracket components labeled R and L, shown from different angles (no text or symbols beyond labels)

ADAPTERS B

Technical illustration of two mechanical components labeled L and R, showing different mounting or bracket designs (no text or symbols beyond labels)

Line drawing of a stroller with wheels and a diagonal-mounted lever, no text or symbols present

ADAPTERS A

Line drawing of a wheeled robotic vehicle with wheels and structural components (no text or symbols)

Mechanical device with lever and wheel, showing motion arrow (no text or symbols)

1

Diagram of a pen-like object with a downward arrow and circular features, no text or symbols present

Simple line drawing of a rolled-up document with a downward arrow and letter C (no text or symbols)

Diagram of a mechanical component with a downward arrow and labeled section (d), no readable text or symbols present.

2

Technical line drawing of a mechanical device with a wheel and lever (no text or symbols)

Diagram of a mechanical device with a tool and wheel, no text or symbols present

Technical line drawing of a mechanical device with a wheel and gear assembly (no text or symbols)

a

Diagram showing a mechanical device interacting with a human torso, with an arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical device with a wheel and lever (no text or symbols)

Illustration of a baby stroller with wheels and a checkmark indicating selection (no text or symbols)

b

Mechanical assembly diagram showing a lever mechanism with a directional arrow (no text or labels)

Diagram of a mechanical device with a wheel and lever mechanism, no text or symbols present

3

COMBINATION

Illustration of a two-wheeled baby bale with filter bands and wheels (no text or symbols)

Illustration of a two-wheeled stroller with two canopy blades (no text or symbols)

Illustration of a two-wheeled baby stroller with wheels and canopy (no text or symbols)

Line drawing of a baby stroller with two wheels and a funnel-shaped handle (no text or symbols)

Illustration of a two-child baby stroller with wheels and a diagonal brim (no text or symbols)

Illustration of a baby stroller with wheels and seat, no text or symbols present

Line drawing of a baby stroller with two seats and a canopy cover (no text or symbols)

Line drawing of a two-wheeled baby stroller with wheels and seat covers (no text or symbols)

COMBINATION

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Illustration of a stroller with wheels and a curved handle, enclosed in a circular frame (no text or symbols)

Illustration of a stroller with a seatbelt and wheels, enclosed in a circular frame (no text or symbols)

Illustration of a person in a stroller inside a circular frame (no text or symbols)

Illustration of a baby stroller with wheels and a canopy cover, enclosed in a circular frame (no text or symbols)

Illustration of a two-wheeled stroller with filter blades and wheels (no text or symbols)

Illustration of a baby stroller with two canopy structures, no text or symbols present

Illustration of a baby stroller with two wheels and a canopy, enclosed in a circular frame (no text or symbols)

IT\_Italiano

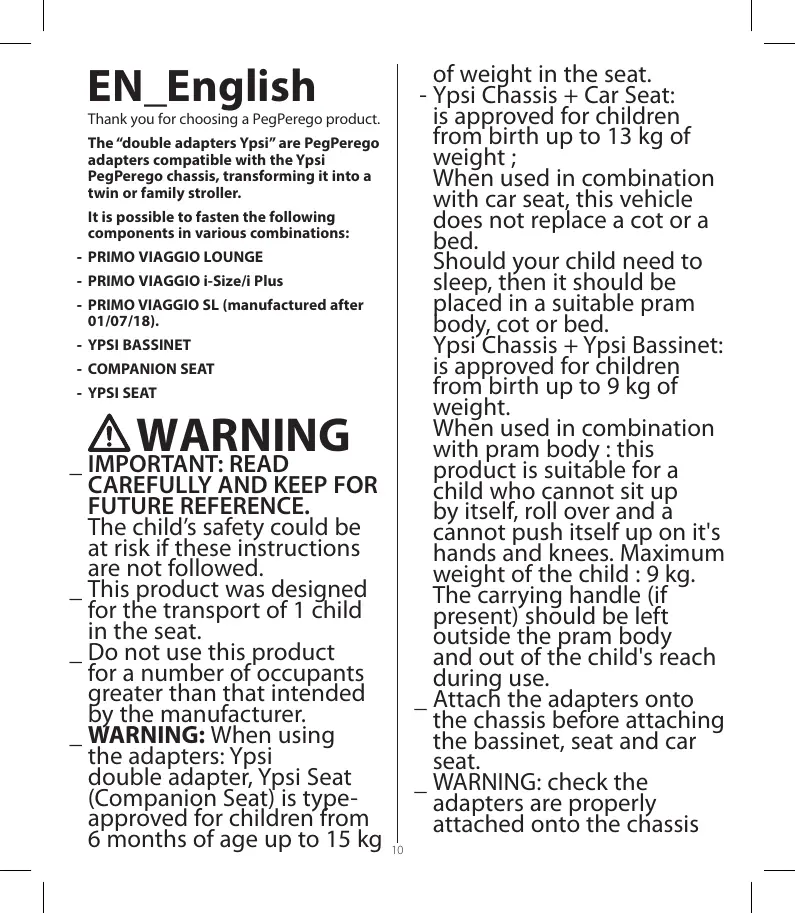

Thank you for choosing a PegPerego product.

The "double adapters Ypsi" are PegPerego adapters compatible with the Ypsi PegPerego chassis, transforming it into a twin or family stroller.

It is possible to fasten the following components in various combinations:

• PRIMO VIAGGIO LOUNGE
• PRIMO VIAGGIO i-Size/i Plus
• PRIMO VIAGGIO SL (manufactured after 01/07/18).
• YPSI BASSINET
• COMPANION SEAT
• YPSI SEAT

WARNING

- IMPORTANT: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

The child's safety could be at risk if these instructions are not followed.
- This product was designed for the transport of 1 child in the seat.
- Do not use this product for a number of occupants greater than that intended by the manufacturer.
- WARNING: When using the adapters: Ypsi double adapter, Ypsi Seat (Companion Seat) is type-approved for children from 6 months of age up to 15 kg

of weight in the seat.

• Ypsi Chassis + Car Seat: is approved for children from birth up to 13 kg of weight;
  When used in combination with car seat, this vehicle does not replace a cot or a bed.
  Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.
  Ypsi Chassis + Ypsi Bassinet: is approved for children from birth up to 9 kg of weight.
  When used in combination with pram body : this product is suitable for a child who cannot sit up by itself, roll over and a cannot push itself up on it's hands and knees. Maximum weight of the child : 9 kg.
  The carrying handle (if present) should be left outside the pram body and out of the child's reach during use.
• Attach the adapters onto the chassis before attaching the bassinet, seat and car seat.
• WARNING: check the adapters are properly attached onto the chassis

and the infant bassinet, seat and car seat are properly attached to the adapters every time before using.

WARNING: Never leave the child unattended.

WARNING: avoid serious injury from falling or sliding out. Always use a complete 5-point seat belt.

WARNING: when using the infant car seat in the car, check the adapters are not attached onto the infant car seat. Remove the adapters from the infant car seat before installing it in the car.

WARNING: the adapters must always be attached onto the chassis. Never use the bassinet, seat and car seat with the adapters attached unless it is being used on the chassis.

This product is not a toy. Do not let your child play with this product.

The assembly and preparation of the product must be carried out by an adult

Do not use this product if there are parts missing or signs of breakage.

Before fastening the various components to the chassis:

Car seat or seat or bassinet, fully extend the chassis' handlebar.

WARNING: The

COMBINATIONS on pages 6 barred by thee prohibition sign are not allowed.

- Any weights hanging on the handlebar or handles could make the item unstable; follow the manufacturer's instructions regarding the maximum loads transportable.

- Do not use the product near to stairs or steps, heat sources, naked flames or dangerous objects within reach of the child.

INSTRUCTIONS FOR USE

There are two types of adapters:

- those to be applied in the upper part of the chassis (ADAPTERS A)

- those to be applied to the lower part of the chassis (ADAPTERS B).

ADAPTERS A

Fastening the adapters to the upper part of the chassis (ADAPTERS A)

1 First, close the chassis.

Then, lock the front wheels into the fixed position (fig_a) and shorten the handlebar to its shortest position (fig b). Rotate the safety lever to the left (fig_c) and pull the frame's internal handle towards you (fig_d). Lift the handle until the frame is completely folded (fig_e).

2 When folded, the stroller will stand upright. Fasten the adapter as shown making sure it clicks into place to ensure it is secure.

3 The Ypsi chassis can be opened once the adapters have been fastened (fig_a).

To release Adapters A from the chassis

• close the chassis;
• press on the side of the adapter as show and lift it (fig_b).

ADAPTERS B

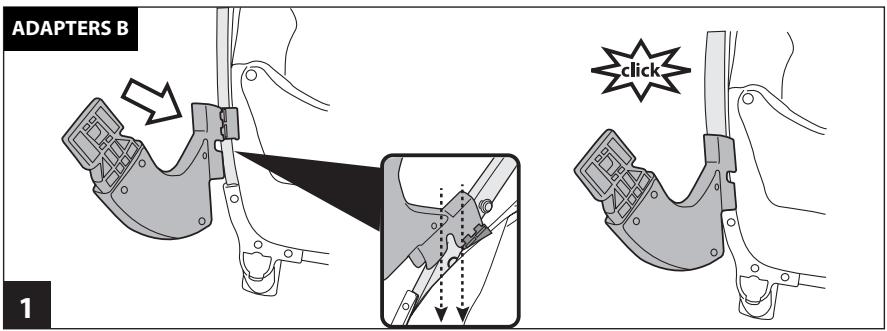

1 Fasten the adapter directly to the chassis, making it coincide with the chassis' mushroom button, as shown.

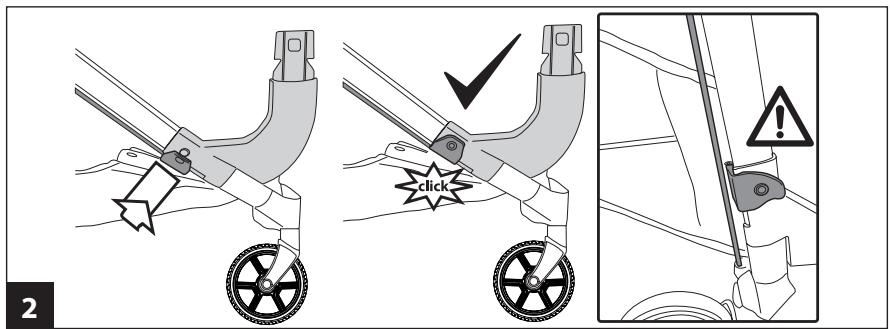

2 Before closing the red tab on the side of the adapter, take care to exclude the brake wire. Close the tab until it clicks. Once secure, proceed in the same way on the other side of the chassis.

To unfasten Adapters B from the chassis, perform these operations in reverse order.

COMBINATION

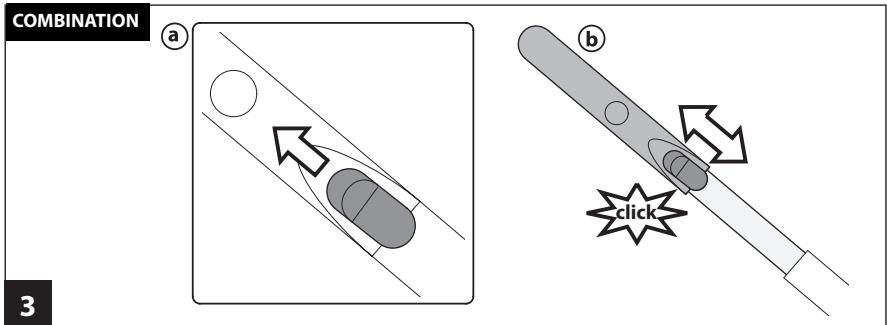

3 WARNING: Fully extend the chassis' handlebar.

ALL THE POSSIBLE COMBINATIONS:

Refer to the illustrated page 5.

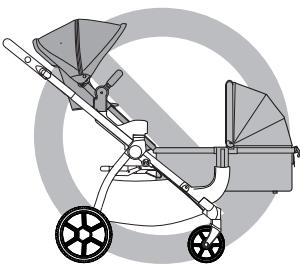

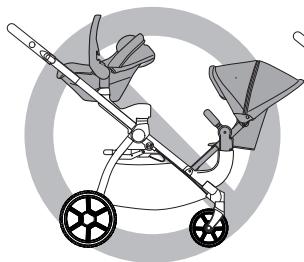

WARNING, FORBIDDEN COMBINATION:

Refer to the illustrated page 6.

PEGPEREGO S.p.A.

PegPerego SpA adopts a quality management system certified by TÜV Italia Srl in accordance with the ISO 9001 standard. PegPerego can make changes at any time to the models described in this publication for technical or commercial reasons.

PEGPEREGO AFTER-SALES SERVICE

If any parts of the item get lost or damaged, only use genuine PegPerego spare parts. For any repairs, replacements, information on the products and sales of genuine spare parts and accessories, contact the PegPerego Assistance Service and state the serial number of the product, if present.

tel. [phone]

fax [phone]

All intellectual property rights on the contents of this manual are property of PegPerego S.p.A. and are protected by the laws in force.
