Product Type	Passive Speaker
Brand	Pioneer
Model	S-3EX-W
Number of Ways	2-way
Speaker Type	Bookshelf
Nominal Impedance	6 ohms
Sensitivity	87 dB (1 W/1 m)
Frequency Response	40 Hz - 20 kHz
Power Handling	150 W
Dimensions (W x H x D)	25 cm x 40 cm x 30 cm
Weight	12 kg (each)
Power Supply	None (passive)
Enclosure Material	MDF with white finish
Connectivity	Screw terminals
Maintenance and Cleaning	Soft dry cloth, avoid abrasive products
Safety	Do not expose to moisture or heat sources
Spare parts and repairability	Contact an authorized Pioneer service center
General Information	Designed for high-quality music listening

Frequently Asked Questions - S-3EX-W PIONEER

What amplifier is recommended for the Pioneer S-3EX-W?

A stereo amplifier with a nominal power between 50 and 150 W at 6 ohms is recommended. Avoid very low power amplifiers (<30 W) to prevent clipping at high volume.

Can I use this speaker as a center channel?

The S-3EX-W is a bookshelf speaker designed for left/right main channels. It can be used as a center if oriented horizontally, but this may alter sound dispersion.

How to clean the white finish?

Use a slightly damp soft cloth (no detergent) to dust. Avoid chemicals that could damage the finish.

What is the impedance of the S-3EX-W?

Nominal impedance is 6 ohms. Check that your amplifier supports this load.

Can I bi-wire or bi-amp this model?

The supplied terminals allow bi-wiring if you remove the metal bridges. For bi-amping, ensure your amplifier supports it.

What is the maximum power handling?

The power handling is 150 W RMS. Higher power may damage the speaker.

How to place the speakers for best sound?

Place them at ear height, at least 30 cm from the rear wall, and aimed towards the listening position. The distance between speakers should form an equilateral triangle with the listener.

Does the S-3EX-W come with cables?

No, speaker cables are not included. You must purchase them separately (recommended gauge: 2.5 mm² for lengths up to 3 m).

What to do in case of crackling or distortion?

Check cable connections, impedance, and amplifier power. Distortion may come from an underpowered amplifier driven to high volume.

Where to find spare parts?

Contact an authorized Pioneer service center. Speakers and electronic parts are available through the after-sales network.

User questions about S-3EX-W PIONEER

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Loudspeaker in PDF format for free! Find your manual S-3EX-W - PIONEER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. S-3EX-W by PIONEER.

USER MANUAL S-3EX-W PIONEER

Pioneer sound.vision.soul

S-3EX

Speaker System / Enceintes acoustiques / Lautsprekersystem / Sistema di diffusori / Luidsprekersysteem / Sistema de Colunas / Sistema de colunas / Högtalarsystem / Højttalersystem / Høyttalersystem / Kaiutinjärjestelmä / Акустическая система

Discover the benefits of registering your product online at http://www.pioneer.uk (or http://www.pioneer.eu) Découvrez les nombreux avantages offerts en enregistrant votre produit en ligne maintenant sur http://www.pioneer.fr (ou http://www.pioneer.eu). Bitte nutzen Sie die Möglichkeit zur Registrierung Ihres Produktes unter http://www.pioneer.de (oder http://www.pioneer.eu) Registra il tuo prodotto su http://www.pioneer.it (o http://www.pioneer.eu) e scopri subito quali vantaggi puoi ottenere! Ontdek nu de voordelen van online registratie! Registreer uw Pioneer product via http://www.pioneer.nl - http://www.pioneer.be (of http://www.pioneer.eu) Registre su producto en http://www.pioneer.es(o en http://www.pioneer.eu) Descubra los beneficios de registrarse on-line: Registe o seu produto em http://www.pioneer.pt (ou em http://www.pioneer.eu). Descubra as vantagens de o fazer agora on-line. Registrera din produkt på http://www.pioneer.se (eller på http://www.pioneer.eu). Upptäck fördelarna med att göra det on-line nu. Registrer dit produkt på http://www.pioneer.dk (eller http://www.pioneer.eu). Oplev fordelene ved at gå online nu. Registrer produktet ditt på http://www.pioneer.no (http://www.pioneer.eu). Oppdag fordelene med dette på nettet i dag. Rekisteröi tuote sivustossa http://www.pioneer.fi (or http://www.pioneer.eu). Tutustu nyt online-rekisteröi tymisen etuihin. Зарегистрируйте Ваше изделие на http://www.pioneer-rus.ru (или http://www.pioneer.eu). Ознакомьтесь с преимуществами регистрации в Интернет

Operating Instructions / Mode d'emploi / Bedienungsanleitung / Istruzioni di utilizzo / Handleiding / Manual de instrucciones / Manual de instruções / Bruksanvisning / Brugsanvisning / Bruksanvisning / Käyttöohjeet / Инструкции по эксплуатации

Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference.

Before you start

What's in the box

About the EX series

Technology behind the S-3EX 4

CST....4

Ceramic Graphite Diaphragm....4

Magnesium Alloy Diaphragm 4

Bass Drivers....5

Bass Enclosure Construction 5

Crossover Networks 5

Collaboration with Air Studios 5

Installation and Placement

How to install 6

Mounting the Fall-Prevention Fastener 6

Choosing Where To Place The Speaker Systems .....6

Connections

Connecting to an amplifier 8

Connecting the cables 8

Single-Wire Connections 9

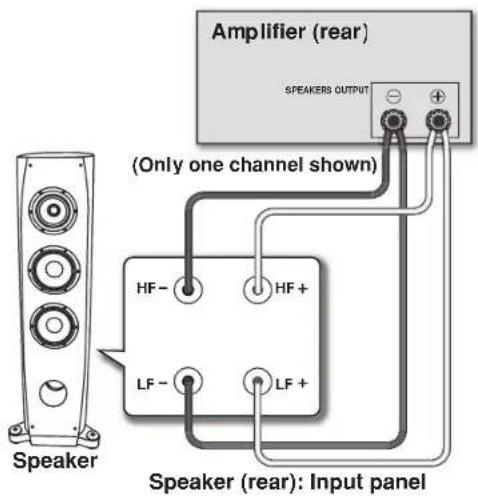

Bi-Wire Connections....9

Bi-Amplification Connections....10

Other Information

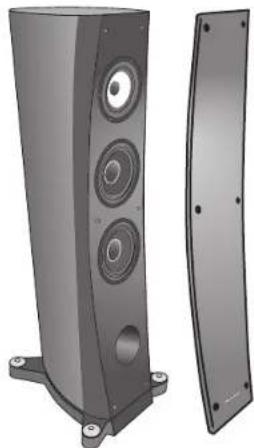

Attaching/Removing the Grille Cover 11

Cleaning the speaker cabinet....11

Specifications....11

PIONEER S-3EX-W - Other Information - 1

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For countries not mentioned above, please contact your local authorities for the correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

K058 A En

2 En

PIONEER S-3EX-W - Other Information - 3

PIONEER S-3EX-W - Other Information - 4

PIONEER S-3EX-W - Other Information - 5

The nominal impedance of this speaker system is 6 Ω. Connect the speaker system to an amplifier with a load impedance ranging from 4 Ω to 16 Ω (a model with "4 Ω to 16
Ω^* displayed on the speaker output terminals). In order to prevent damage to the speaker system resulting from input overload, please observe the following precautions:
Do not supply power to the speaker system in excess of the maximum permissible input.
When using a graphic equalizer to emphasize loud sounds in the high-frequency range, do not use excessive amplifier volume.
Do not try to force a low-powered amplifier to produce loud volumes of sound (the amplifier's harmonic distortion will be increased, and you may damage the speaker).

Caution: installation

When placing this unit, ensure that it is firmly secured and avoid areas where it may be likely to fall and cause injury in the event of a natural disaster (such as an earthquake).
Do not attach these speakers to the wall or ceiling. They may fall off and cause injury.
Do not install your speakers overhead on the ceiling or wall. If improperly attached, the speaker grille can fall and cause damage or personal injury.
Switch off and unplug your AV equipment and consult the instructions when connecting up components. Make sure you use the correct connecting cables.

Caution: in use

Do not place the speaker on an unstable surface. It could present a hazard if it falls, as well as damaging the equipment.
Do not use the speaker to output distorted sound for long periods of times. This can result in a fire hazard.
Do not sit or stand on the speaker, or let children play on the speaker.
Do not put large or heavy objects on top of the speaker.
Do not place magnetic objects such as screwdrivers or iron parts near the tweeter or midrange. Since the speakers use strong magnets, the objects may be attracted, causing injury or damaging the diaphragm.

CAUTION

These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts. D3-4-2-2-3_A_En

What's in the box

PIONEER S-3EX-W - What's in the box - 1

Spike bases x3

PIONEER S-3EX-W - What's in the box - 2

Mounting pads 3 types, 2 each

PIONEER S-3EX-W - What's in the box - 3

Metal catch x1

PIONEER S-3EX-W - What's in the box - 4

Screw (for metal catch) x1

Grille x1

Operating instructions

PIONEER S-3EX-W - What's in the box - 5

PIONEER S-3EX-W - What's in the box - 6

PIONEER S-3EX-W - What's in the box - 7

PIONEER S-3EX-W - What's in the box - 8

3 En

About the EX series

The EX series, incorporating the abundant technological know-how behind Pioneer's flagship TAD speaker series, was developed with the goal of creating the ultimate speaker possible in its price range.

The design and production of the EX series result from an international effort that represents the finest in Pioneer's speaker technology.

Technology behind the S-3EX

CST

The core driver of the system is the Coherent Source Transducer (CST), which draws on the technology used in TAD. The tweeter diaphragm is mounted concentrically within the apex of the midrange cone and provides a point source of sound from 400 Hz to 100 kHz. The CST ensures a perfect spectral balance between the direct and reflected sounds that arrive at the listener's ears, providing a more consistent sound throughout the listening room and improved imaging capability.

PIONEER S-3EX-W - CST - 1

Ceramic Graphite Diaphragm

The CST's tweeter features a ceramic graphite diaphragm that provides top-level strength and dampening characteristics that are practically unrivaled by any other available materials currently used in high-end audio speaker systems. Ceramic graphite's lightness and exceptional strength combine to create speakers whose diaphragm resonance can be pushed far beyond their audible range.

PIONEER S-3EX-W - Ceramic Graphite Diaphragm - 1

scatter

| Material | Inner Loss | Velocity (m/s) | | ---------------- | ---------- | -------------- | | Ceramic Graphite | 0.015 | 10000 | | Aluminum | 0.005 | 7000 | | Beryllium | 0.005 | 12000 | | Boron Alloy | 0.015 | 5000 | | Ceramic Carbon | 0.005 | 5000 | | Paper | 0.015 | 2000 | | Titanium | 0.005 | 5000 |

Magnesium Alloy Diaphragm

The CST's midrange features a magnesium alloy diaphragm whose characteristic lightness and high inner loss provide excellent transience and minimal coloration of midrange sounds.

4 En

PIONEER S-3EX-W - Magnesium Alloy Diaphragm - 2

PIONEER S-3EX-W - Magnesium Alloy Diaphragm - 3

PIONEER S-3EX-W - Magnesium Alloy Diaphragm - 4

PIONEER S-3EX-W - Magnesium Alloy Diaphragm - 5

The bass driver pictured below serves as the foundation of the S-3EX speaker system. The driver's strength is the result of the Aramid/Carbon composite material, originally created during the development of the S-1EX, that is used in its diaphragm. Pioneer's exclusive LDMC magnetic circuit technology has been incorporated in order to preserve linearity from low to high output levels and minimize distortion.

PIONEER S-3EX-W - Magnesium Alloy Diaphragm - 6

Bass Enclosure Construction

The unique form of the S-3EX is based upon logical necessity. In order to synchronize the arrival time of sound from the CST and the two bass drivers, each driver is mounted upon a baffle that serves to create a highly delicate curve known as the "precision curve" (see illustration below). Made of up to 100 mm thick MDF (Medium Density Fiberboard), this baffle is, moreover, strong enough to contain the force of the drivers. Additionally, the bass port has been carved out of an extremely thick block of MDF, resulting in the reduction of wind noise for clear, deep bass.

Crossover Networks

The crossover networks use only the finest components. Air cored coils, noninductive resistors, and film capacitors in the signal path are all carefully chosen and optimized for the CST driver to provide the greatest transparency to the signal. The bass drivers use silicon steel plate core inductors that minimize distortion and loss during energy transfer. All components are connected directly to their respective wiring materials, instead of a printed circuit board, allowing for minimal loss and maximum performance.

Collaboration with Air Studios

Since its establishment by George Martin in 1969, London, England's Air Studios has earned unequivocal respect from scores of artists who recognize it as the world's premier recording studio. The Air Studios seal that was awarded to the S-3EX indicates that these speakers are capable of producing the high-quality sound demanded by the world's top-class sound creators.

PIONEER S-3EX-W - Collaboration with Air Studios - 1
AIR STUDIOS

PIONEER S-3EX-W - Collaboration with Air Studios - 2

precision curve 3 m 1 m

PIONEER S-3EX-W - Collaboration with Air Studios - 4

PIONEER S-3EX-W - Collaboration with Air Studios - 5

PIONEER S-3EX-W - Collaboration with Air Studios - 6

Installation and Placement

How to install

This speaker system is supported by three points (the front two legs, and the back spike located between the back two legs).

Front Cabinet base Back Legs Nut (for spike) Back spike

1 Choose the location for speaker placement then put the spike bases on the floor.

PIONEER S-3EX-W - How to install - 2

PIONEER S-3EX-W - How to install - 3

PIONEER S-3EX-W - How to install - 4

2 Place the speaker on top of the spike bases.

3 If either the left or right back legs touches the ground before the back spike, resulting in the speaker not resting flat on its placed surface, adjust the back spike so it extends to the ground before either of the back legs.

4 Place the included mounting pads underneath the back legs to keep the speaker stable.

Choose the most appropriate thickness of mounting pad from the several types included.

PIONEER S-3EX-W - How to install - 5

Mounting pad

Mounting the Fall-Prevention Fastener

- Using the included screw, tightly secure the metal catch to the backside of the speaker.

PIONEER S-3EX-W - Mounting the Fall-Prevention Fastener - 1

Pass a commercially-available reinforced string through the metal catch to securely support the speaker to the wall. Be sure that the wall to which you fasten the speaker is strong enough to support the weight of the speaker. After fastening the speaker, make sure that it does not fall over.
• The speaker can incur damage in the event of a fall.
Do not attach the metal catch directly to the wall. It should only be used in conjunction with reinforced string to prevent the speaker from falling.

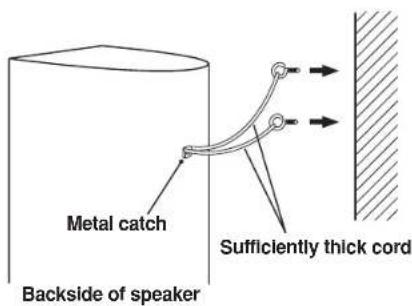

Metal catch Backside of speaker Sufficiently thick cord

- Pass two reinforced strings through the metal catch, and fasten the speaker to the wall as shown above.

Do not place the speaker where it will be in direct sunlight, and avoid positioning it near heaters and air conditioners. Doing so may cause warping and discoloration of the speaker cabinet and damage to the speaker.

Pioneer assumes no liability whatsoever for damages resulting from assembly, improper mounting, insufficient reinforcement, misuse of the product, acts of nature, etc.

PIONEER S-3EX-W - Mounting the Fall-Prevention Fastener - 3

Important

Do not place the speaker on an unstable surface. It could present a hazard if it falls, as well as damaging the equipment.
As a precautionary measure, be sure to not place the unit anywhere where it might fall on a sleeping individual in the event of an earthquake.
As this unit weighs some 48 kg, it is very dangerous to try and set the spike nut while tilting the speaker. Be sure to place the unit on a soft area (such as a blanket) so that it does not damage the floor, and carry out the installation with at least two people.

6 En

PIONEER S-3EX-W - Important - 2

PIONEER S-3EX-W - Important - 3

PIONEER S-3EX-W - Important - 4

Choosing Where To Place The Speaker Systems

Placement within the listening room will have a great impact upon the total performance of the S-3EX speaker system in terms of bass performance, tonal accuracy, and imaging. All rooms are different and so this section is intended as a guide only. Experimentation in your room will yield optimum results.

Use the graphic below as a guide to determine optimal speaker placement.

PIONEER S-3EX-W - Choosing Where To Place The Speaker Systems - 1
    note bottom of C: Distance "A" should be equal to or greater than distance "B." Each speaker should face the listening position.

PIONEER S-3EX-W - Choosing Where To Place The Speaker Systems - 2

English
PIONEER S-3EX-W - Choosing Where To Place The Speaker Systems - 3

PIONEER S-3EX-W - Choosing Where To Place The Speaker Systems - 4

Important

- In areas of high humidity, use a dehumidifier, and in areas of excessive dryness, use a humidifier to adjust the room's humidity level. Avoid exposure to direct sunlight, and do not install in areas near by heating appliances.

PIONEER S-3EX-W - Important - 1

7 En

Connections

Connecting to an amplifier

This speaker does not include speaker cables used for connecting to an amplifier. Take the following factors into consideration when choosing speaker cables so that you can get the most from your speaker system:

Use heavy-gauge speaker cable if possible, and keep the cables to the minimum necessary length.
If the length of cable required for left and right speakers differs, use cables of the same length, matched to the longer distance.
Cables have differing characteristics. Keep this in mind when using any cable.
Select cables with as little resistance as possible, and make sure the cables to the speaker terminals and amp are firm and secure:

Connecting the cables

1 Switch off the power to your amplifier.
2 Connect the speaker cables to the input terminals (lower) on the back of the speaker. For input terminal polarity, red is positive (+) and black is negative (-).
3 Connect the other ends of the cables to the amp's speaker output terminals (for more details, refer to your amp owner's manual).

Short bar connectors Black terminal (-) Red terminal (+)

Grasp the cap knobs on the lower input terminals and rotate them to the left (counter-clockwise), insert the speaker cable wires into the holes in the terminal posts, then tighten the knobs to secure the short bar as well as the wires.
You can also connect the speaker's terminals with a banana plug. When using a banana plug, be sure to remove the cap at the tip of the input terminal.
• After connecting the plugs, pull lightly on the cables to make sure that the ends of the cables are securely connected to the terminals. Poor connections can create noise and interruptions in the sound.
If the cables' wires happen to be pushed out of the terminals, allowing the wires to come into contact with each other, it places an excessive additional load on the amp. This may cause the amp to stop functioning, and may even damage the amp.
When using a set of speakers connected to an amplifier, you won't be able to obtain the normal stereo effect if the polarity of one of the speakers (left or right) is reversed.

PIONEER S-3EX-W - Connecting the cables - 2

PIONEER S-3EX-W - Connecting the cables - 3

8 En

PIONEER S-3EX-W - Connecting the cables - 5

PIONEER S-3EX-W - Connecting the cables - 6

PIONEER S-3EX-W - Connecting the cables - 7

Single-Wire Connections

For single-wire connections, connect the mid-to-high- and low-frequency sections of the crossover network with the shorting link that was included with this unit, then connect the (+) wire from your amplifier to either red binding post and the (-) wire from your amplifier to either black binding post, as shown in below.

Amplifier (rear) SPEAKERS OUTPUT (Only one channel shown) Shorting link connection Speaker HF - LF - HF+ LF + Speaker (rear): Input panel

Bi-Wire Connections

In a bi-wiring connection, you independently plug in the speaker systems running from the amp to their respective high- and low-frequency plugs. This results in the CST driver and bass drivers being independently connected directly to the amplifier, offering you the freedom to optimize the cable type for each of the drivers. Connect one set of wires to the bottom set of binding posts (bass driver-specific network). Then connect a second set of wires to the top binding posts (CST-specific network). Next, connect both sets of wires to the appropriate terminals on your amplifier. Take care to connect both (+) wires to the (+) amplifier terminals and both (-) wires to the (-) amplifier terminals, as shown below.

Amplifier (rear) SPEAKERS OUTPUT (Only one channel shown) Speaker HF- HF+ LF- LF+ Speaker (rear): Input panel

PIONEER S-3EX-W - Bi-Wire Connections - 2
English
广力云智慧零售收银系统

PIONEER S-3EX-W - Bi-Wire Connections - 3

PIONEER S-3EX-W - Bi-Wire Connections - 4

9 En

Bi-Amplification Connections

Bi-Amplification allows the best performance when using dedicated amplifiers for low- and mid-to-high-frequency sections. There are two possible configurations, commonly referred to as horizontal and vertical bi-amping.

Caution

Remove the shorting links before connecting speaker cables in bi-amplifications connections. Failure to do so may result in damage to your amplifiers.

Vertical Bi-Amping

With this configuration, identical stereo amplifiers are used for each speaker system. One channel of each amplifier drives the low frequency section and the other channel drives the high frequency section, as shown below.

Connect one set of wires and amplifier channel to the bottom set of binding posts (bass driver-specific network).

Then connect a second set of wires and the other amplifier channel to the top binding posts (CST-specific network).

Take care to connect both (+) wires to the (+) amplifier terminals and both (−) wires to the (−) amplifier terminals.

Horizontal Bi-Amping

With this configuration, you may use different stereo amplifiers for the low- and mid-to-high-frequency sections of the speaker system (e.g., tube amplifiers for high frequency and solid state for low frequency). Each channel of one amplifier drives the low-frequency section of each speaker system and each channel of the other amplifier drives the mid-to-high-frequency section, as shown below.

This method requires that both amplifiers have the same gain; otherwise an imbalance will be heard between the low- and mid-to-high-frequency reproduction from the speaker system. If in doubt, please consult your local dealer.

Pre-amp (rear) OUTPUT OUTPUT (Only one channel shown) (Commercially-available Y-adaptor) Power amp (rear) INPUT INPUT Speaker s OUTPU CH. Ch.2 IF - IF + .F - LP + Speaker (rear) Input panel

PIONEER S-3EX-W - Horizontal Bi-Amping - 2

PIONEER S-3EX-W - Horizontal Bi-Amping - 3

PIONEER S-3EX-W - Horizontal Bi-Amping - 4

10 En

PIONEER S-3EX-W - Horizontal Bi-Amping - 6

PIONEER S-3EX-W - Horizontal Bi-Amping - 7

Other Information

Attaching/Removing the Grille Cover

This speaker system comes with grille covers which may be attached and removed by:

1 To attach the grille cover, line up the holes on the speaker with the inserts on the grill, and press firmly.
2 To remove the grille cover, grab it by its bottom with both hands and gently pull toward you to separate the bottom part of the grille from the speaker.
3 Slide your hands up to the middle section of the grille, and once again pull gently toward you. This will remove the middle section of the grille from the speaker.
4 Finally, repeat this same motion for the top part of the grille, removing the grille entirely from the speaker.

PIONEER S-3EX-W - Attaching/Removing the Grille Cover - 1

Cleaning the speaker cabinet

With normal use, wiping with a dry cloth should be sufficient to keep the cabinet clean. If necessary, clean with a cloth dipped in a neutral cleanser diluted five or six times with water, and wrung out well. Do not use furniture wax or cleansers.

Never use thinners, benzine, insecticide sprays or other chemicals on or near this unit since these will corrode the surfaces.

Specifications

Enclosure.	Bass-reflex foorstanding type(magnetically shielded)
Configuration	3-way
Woofer	16 cm cone x2
Mid tweeter	14 cm cone / 3 cm dome
Nominal impedance	6 Ω
Frequency response	39 Hz to 100 kHz
Sensitivity	88.5 dB (2.53 V)
Maximum in out power	160 W
Exterior dimensions	350 (W) mm x 1224 (-) mm x 541 (D) mm
Weight	48 kg

Supplied accessories

Spike bases	3
Mounting pads	3 types, 2 each
Metal catch	1
Screw (for metal catch)	1
Grille	1
Operating instructions

PIONEER S-3EX-W - Supplied accessories - 1

Note

Specifications and design subject to possible modification without notice, due to improvements.

Magnetic shielding

This speaker system is magnetically shielded. However, depending on the installation location, color distortion may occur if the speaker system is installed extremely close to the screen of a television set.

If this happens, turn off the television, then turn it on again after 15 min to 30 min. If the problem persists, place the speaker system away from the television set.

PIONEER S-3EX-W - Magnetic shielding - 1

is a trademark placed on a product with Pioneer's Phase Control technology. This technology enables high-grade sound reproduction through each component by improving overall phase matching.

PIONEER S-3EX-W - Magnetic shielding - 2

Published by Pioneer Corporation.

Ebénisterie

Cales de liège

Bi-amplification verticale

Publication de Pioneer Corporation.

Keramikgraphit-Membran

Fußpolster

27
m = 311
PIONEER S-3EX-W - Keramikgraphit-Membran - 1

Anschlüsse

Limpieza

Blocos de montagem

m = 311

The image is too blurry to recognize any text content.

m = 311

2017年

Ligações

Bashöljets konstruktion

Monteringsdyna

Med ensamrätt.

PIONEER S-3EX-W - Bashöljets konstruktion - 1

Monteringspude

PIONEER S-3EX-W - Bashöljets konstruktion - 2
87
m = 311
m = 311
•
•
F
F
|
|
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
。
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
m = 311
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
广力云
-
-
+
•
-
-
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
-
m = 311
The image is too blurry to recognize any text content.
•
+
-
+
1
|
1
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]

Tilslutninger

Published by Pioneer Corporation.

PIONEER S-3EX-W - Tilslutninger - 1

Monteringsskive

Bassokotelon rakenne

Asennuslevy

m = 311

[Non-Text]

m = 311

[Non-Text]

广力云

(1)

[Non-Text]

。

[Non-Text]

广力云智慧零售收银系统

407

107

[Non-Text]

广力云智慧零售收银系统

。

[Non-Text]

m = 311

[Non-Text]

广力云

(No text)

(1)

[Non-Text]

m = 311

[Non-Text]

7.1.3.4

。

[Non-Text]

Liitännät

m = 311

[Non-Text]

。

m = 311

PIONEER S-3EX-W - Liitännät - 1

PIONEER S-3EX-W - Liitännät - 2

m = 311

[Non-Text]

m = 311

。

[Non-Text]

(二) 2017年

[Non-Text]

m = 311

[Non-Text]

m = 311

The results of the present study are presented in Table 1. The mean values of the three parameters were 2.0% (range, 1.5 - 3.0% ) and 2.4% (range, 1.5 - 3.0% ). The mean values of the other parameters were 1.8% (range, 1.5 - 2.5% ) and 1.9% (range, 1.5 - 2.5% ). The mean values of the other parameters were 1.7% (range, 1.5 - 2.5% ) and 1.6% (range, 1.5 - 2.5% ).

[Non-Text]

•

m = 311

[Non-Text]

m = 311

[Non-Text]

•

m = 311

广力云智慧零售收银系统

[Non-Text]

Издано Pioneer Corporation.

http://www.pioneer.co.uk

http://www.pioneer.fr

http://www.pioneer.de

http://www.pioneer.it

http://www.pioneer.nl - http://www.pioneer.be

http://www.pioneer.es

http://www.pioneer.pt

http://www.pioneer.se

http://www.pioneer.dk

http://www.pioneer.no

http://www.pioneer.fi

http://www.pioneer-rus.ru

http://www.pioneer.eu

Published by Pioneer Corporation.

Publication de Pioneer Corporation.

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90810-1540, U.S.A. TEL: (800) 421-1404

PIONEER ELECTRONICS OF CANADA, INC.

300 Allstate Parkway, Markham, Ontario L3R 0P2, Canada TEL: 1-877-283-5901, 905-479-4411

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: 03/570.05.11

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: 65-6472-7555

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: (03) 9586-6300

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico,D.F. 11000 TEL: 55-9178-4270

Сделано в Китае

Printed in China / Imprimé en Chine

K002_B_En

S-3EX-W - Loudspeaker PIONEER - Free user manual and instructions

Frequently Asked Questions - S-3EX-W PIONEER

User questions about S-3EX-W PIONEER

USER MANUAL S-3EX-W PIONEER

Pioneer sound.vision.soul

S-3EX

Contents

Before you start

What's in the box

About the EX series

Installation and Placement

Connections

Other Information

Caution: installation

Caution: in use

CAUTION

What's in the box

About the EX series

Technology behind the S-3EX

CST

Ceramic Graphite Diaphragm

Magnesium Alloy Diaphragm

Bass Enclosure Construction

Crossover Networks

Collaboration with Air Studios

Installation and Placement

How to install

Mounting the Fall-Prevention Fastener

Important

Choosing Where To Place The Speaker Systems

Important

Connections

Connecting to an amplifier

Connecting the cables

Single-Wire Connections

Bi-Wire Connections

Bi-Amplification Connections

Caution

Vertical Bi-Amping

Horizontal Bi-Amping

Other Information

Attaching/Removing the Grille Cover

Cleaning the speaker cabinet

Specifications

Supplied accessories

Note

Magnetic shielding

Ebénisterie

Bi-amplification verticale

Keramikgraphit-Membran

Anschlüsse

Limpieza

Ligações

Bashöljets konstruktion

Tilslutninger

Bassokotelon rakenne

Liitännät

Other manuals PIONEER

TS-A6991FH

DM-50D-BT

XPRS82

TS-A682F

TS-A692C
