USER MANUAL PDK-FS03 PIONEER

Operating instructions

Mode d'emploi

Bedienungsanleitung

Thank you for buying Pioneer's product.

Please read through the Operating Instructions to learn how to operate your model safely and properly.

Please be advised to keep the Operating Instructions in your place for future reference.

Installation

• Consult your dealer if you encounter any difficulties with this installation.
• Pioneer is not liable for any damage resulting from improper installation, improper use, modification, or natural disasters.

Contents

Cautions 8

List of parts and equipment included 9

Installation and assembly instructions 10

Preventing equipment from falling over 12

External dimensions diagram 12

CAUTION

This symbol refers to a hazard or unsafe practice which can result in personal injury or property damage.

Cautions

This product is a floor stand exclusively designed for plasma displays (PDP-504HD / PDP-5040HD / PDP-504HDE / PDP-504HDG / PDP-434HD / PDP-4340HD / PDP-434HDE / PDP-434HDG / PRO-1110HD / PRO-910HD) from Pioneer. Note that it is not designed for use with any other equipment. For further information, please contact the store where you purchased your display.

Do not install or modify the product other than specified. Do not use this stand for a plasma display other than those designated and do not modify it or use it for other purposes.

Improper installation is extremely dangerous because it may result in it falling over or other accident.

Installation Location

• When selecting the location in which the stand is to be placed, be sure to select a location with a surface sufficiently strong to bear the weight of the stand and plasma display. (Product weight is listed on p. 12.)
• Make sure the installation location is a level, flat, and stable surface and take proper precautions when installing it to make sure its weight is evenly distributed.
• Depending on the type of surface on which the stand is placed, the legs may leave marks on the surface, and this should be taken into consideration when selecting the place in which the stand is to be placed.
• Do not install it outdoors, at a hot spring, or near a beach.
• Do not install the stand where it may be subjected to vibration or shock.

Assembling and Installation

• Assemble the stand in accordance with the assembly instructions and securely attach all screws at the designated locations.

There have been cases where unforeseen accidents such as the equipment breaking or falling over occurred after the installation of the display because the stand was not installed as instructed.

• The display must always be installed by two or more people to assure it is installed safely.
• Before installation, turn off the power for the display and peripheral devices then remove the power cord plug from the power outlet.

After Installation

• Never lean on the plasma display or apply heavy pressure to the stand.
• Prevent accidents caused by the product falling over by taking reliable measures to prevent it from falling over (see Page 12).
• Do not move the stand with the plasma display etc. still attached.

List of parts and equipment included

Be sure to check that all the parts and equipment listed below have been included before beginning to assemble your stand.
- Note that a Philips screwdriver (not included) is required for assembly.

- Stand x1

- Support column stopper x2

- MR stand, front metal fitting x1

- Shelf support L x1

- Shelf support R x1

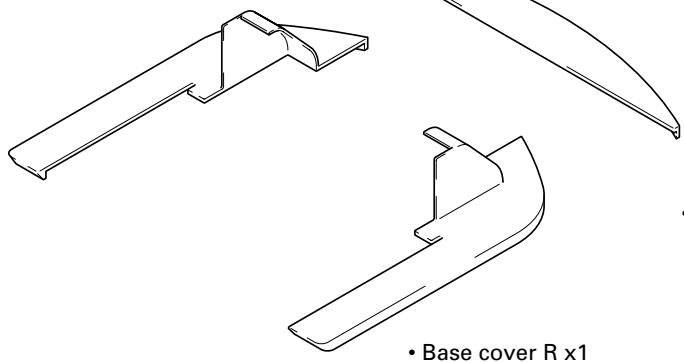

- Base cover rear x1
- Base cover L x1
- Hexagonal bolts (M8 x 35mm [1-3/8 inch]) x4

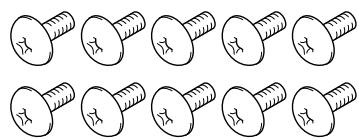

- Screw (M5 x 10 mm [13/32 inch]) x10

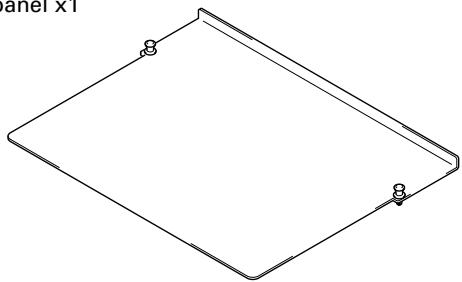

- Shelf panel x1

- Hexagonal wrench x1 (Opposite side 6 mm for M8 use)

- Operating instructions (this document) × 1

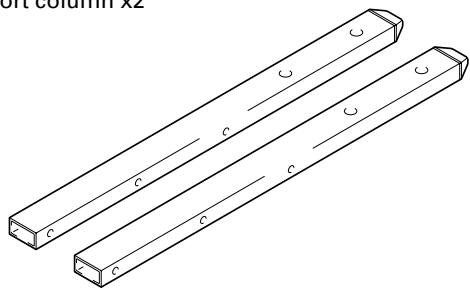

- Support column x2

1 Attaching the support columns to the stand.

The attachment procedure varies according to the type and form of the plasma display to be attached. Perform this attachment using either procedure A or B.

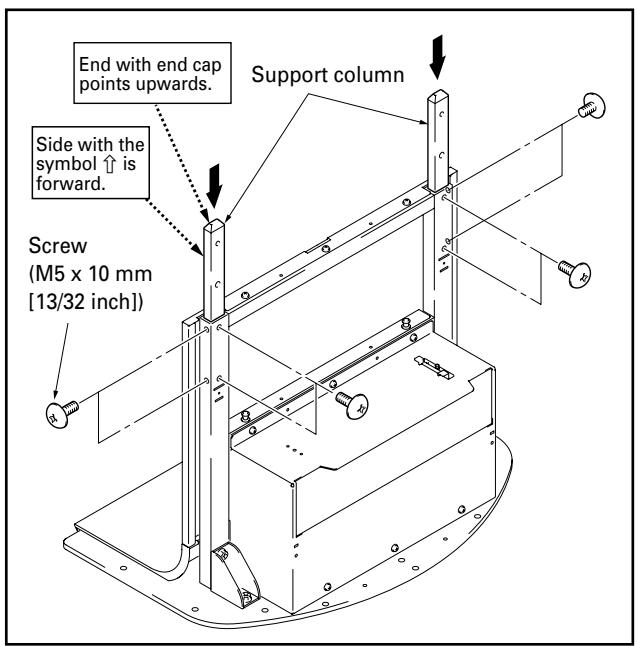

When installing speakers on both sides of the plasma display

• Insert the support columns into the stand and fix them in place with screws (M5 x 10mm [13/32 inch]). (8 locations)
• Install each support column so that the side with the symbol is forward and the end with the plastic end cap (pointed) is upwards.

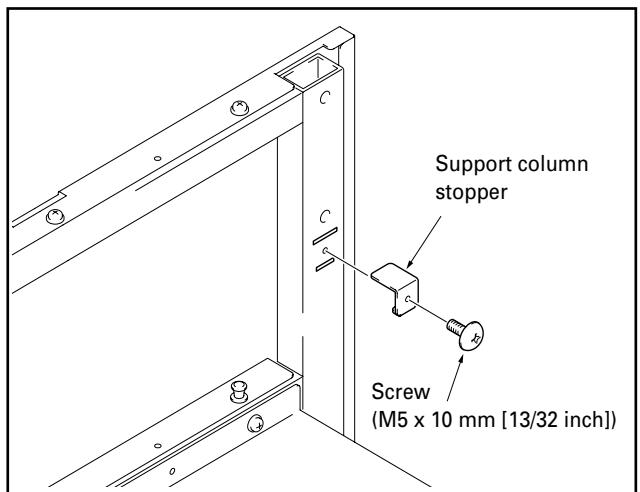

When installing speakers at the bottom of the plasma display

Attach the support column stoppers to the notches on the back of the stand and fix them in place with screws (M5 x 10mm [13/32 inch]). (2 locations on the right and left)

The same applies to support column attachment method

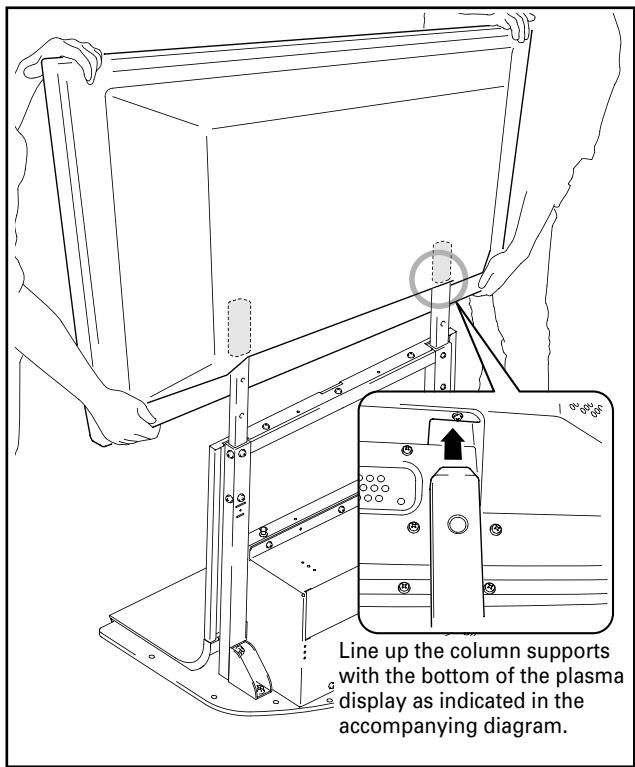

2 Attach plasma display to support column.

Fit the stand's support columns into the slots in the center of the bottom of the plasma display then slowly insert them directly into the slots. Be extremely careful not to insert the support columns of the stand into any part of the plasma display other than the stand insertion slots. Note that doing so might damage the plasma display panel or its ports or result in the warping of the stand.

If the plasma display is fitted with handles, it is usually best to hold the display by its handles when attaching it to the support column.

Caution

• Be sure to work with at least one other person when attaching the display.
• Be careful not to allow your fingers get caught between the display and support column.

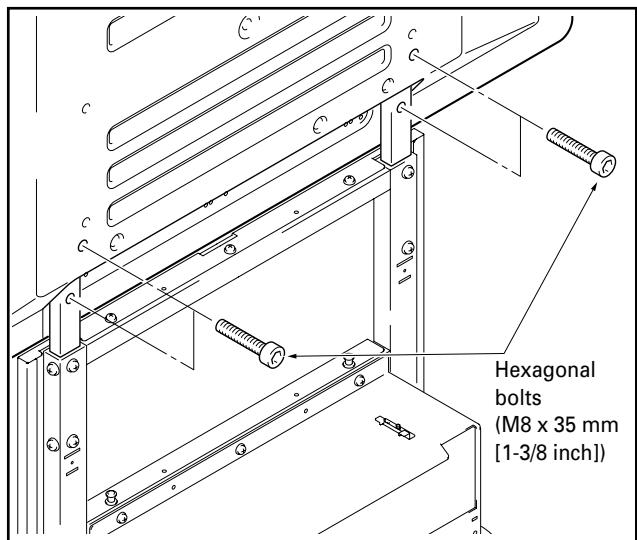

3 Use the hexagonal bolts to fix the plasma display to the support column (4 locations).

It you are attaching speakers, do so at this stage.
See the installation instructions provided with your speakers for instructions on how to install them.

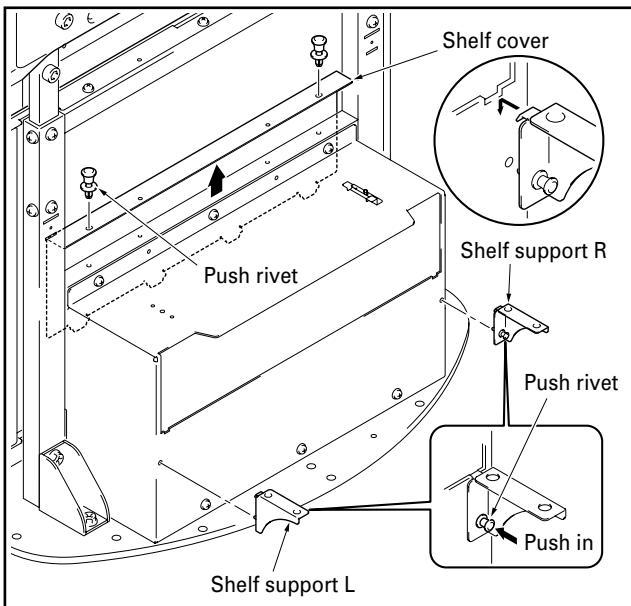

4 When using a shelf.

A shelf can be attached to the stand.

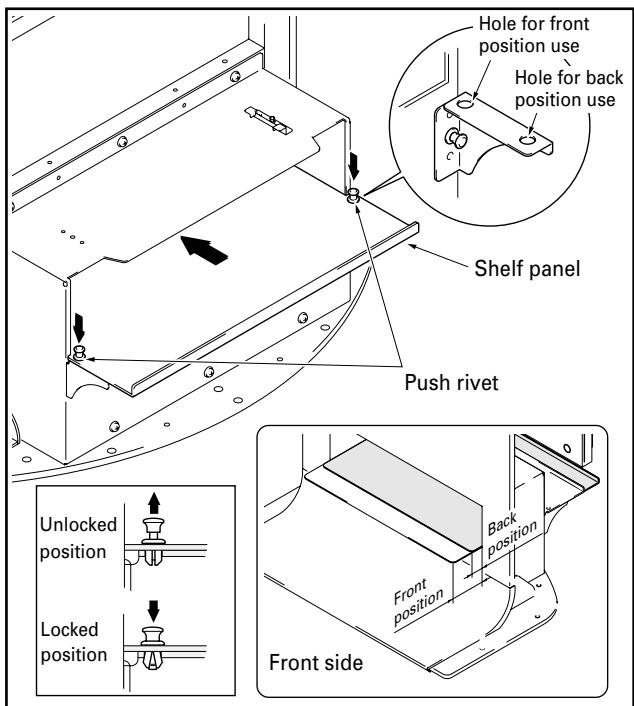

① Remove the shelf cover and then attach the shelf supports L and R to the stand.

② Push the shelf panel in from behind and fix it in place with the push rivet.

• The shelf panel installation position be selected from two levels: either the front or the back. Set it according to the device you have.
• When changing its position, you can easily remove it by pulling up the knob on the top of the push rivet.

Interior dimensions of the shelf opening: 420 mm [16-17/32 inch] (effective width) x 102 mm [4-1/32 inch] (height) Depth of the shelf: 349 mm [13-3/4 inch] Bearing capacity: up to 10 kg [20.1 lbs]

Note

Be careful when installing anything other than a media receiver (particularly an AV amplifier etc.) on this shelf, because it may block heat discharge etc. For details, see the instruction manual for each device.

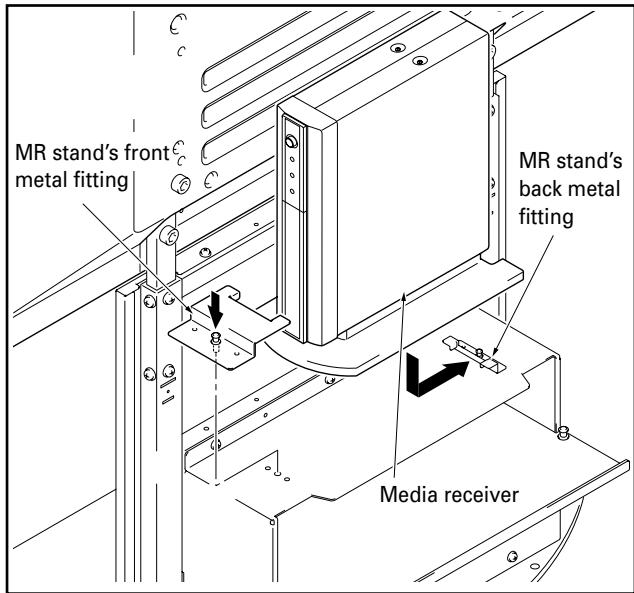

5 When attaching a media receiver upright.

Put the media receiver installed on a upright use stand (see the plasma display operating instructions for the installation method) on the shelf at the rear and fix the upright use stand in place with the MR stand's front and back metal fittings.

Note

Do not install any device other than a media receiver in this position.

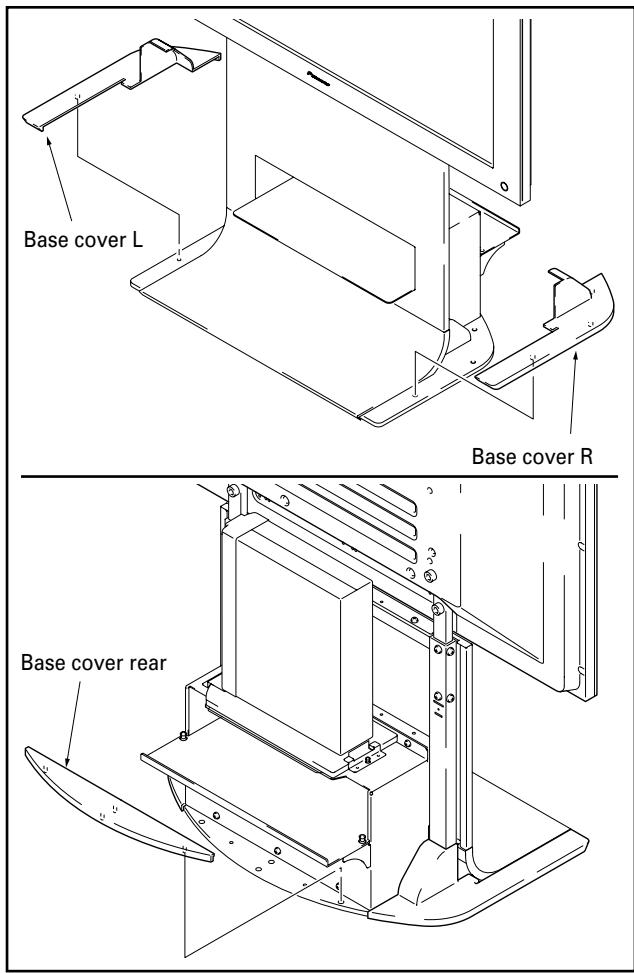

6 Installing base covers L, R, and rear.

Insert them along the base.

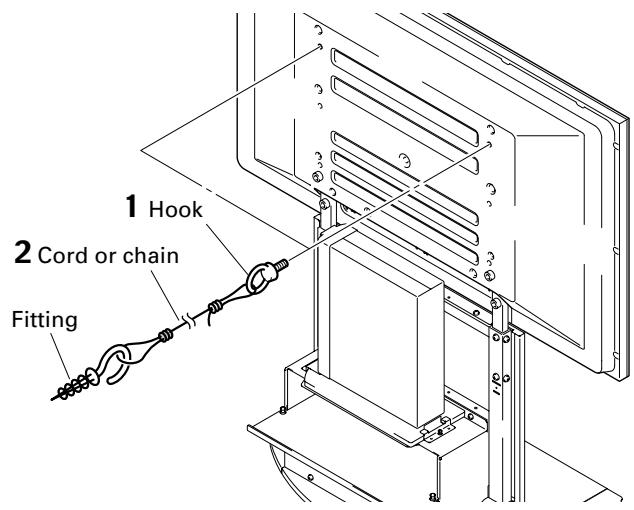

Preventing equipment from falling over

After installing the stand, be sure to take measures so that the equipment will not fall over.

1 Attaching falling prevention bolts (hooks) to the plasma display.
2 Using strong cords or chains to firmly stabilize it to a wall, pillar, or other sturdy element.

Perform the same procedure on the left and right, making sure when doing so that the lengths and positions of both restraints are symmetrical.

Note

Use hooks, ropes, chains, and fittings that are available on the market.

Recommended hook:

Nominal diameter M8

Length 12 to 15mm (15/32 inch)

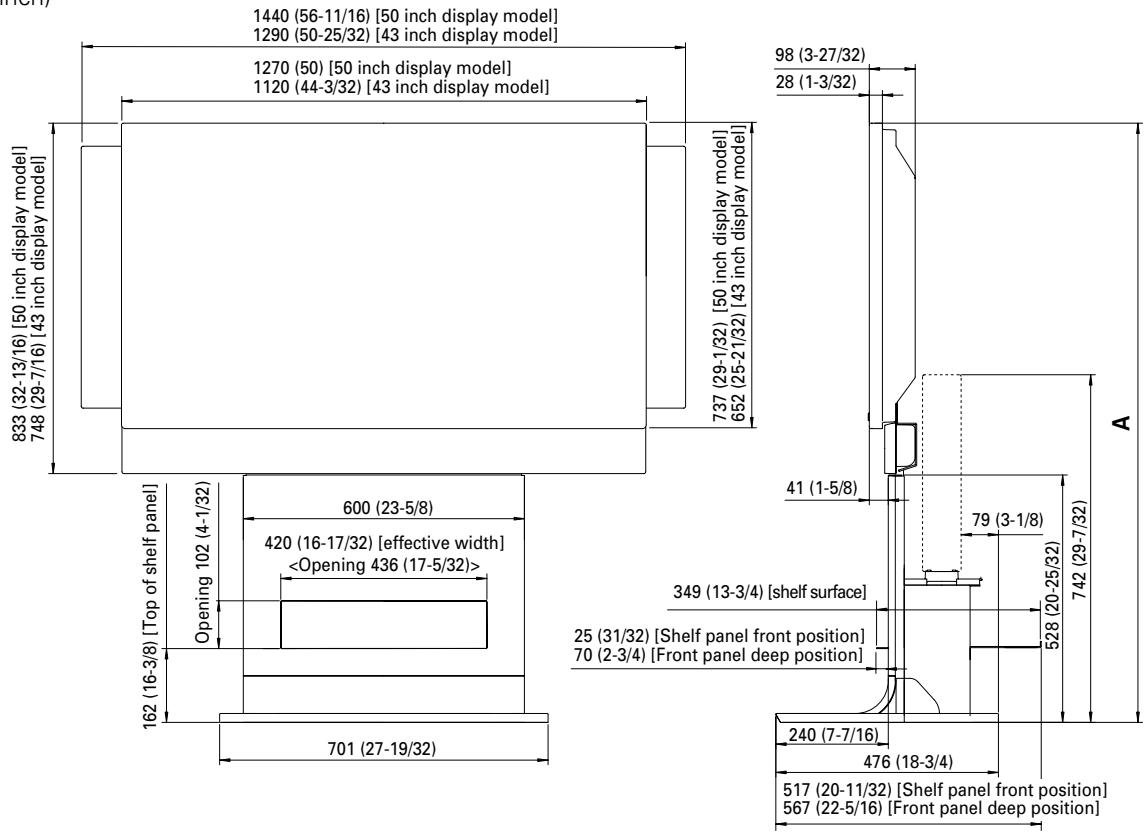

External dimensions diagram

Weight

Stand only: 19.5kg (43.0 lbs)

Stand and plasma display: 52.8 kg (116.4 lbs) [When used with a PDP-434HD / PDP-4340HD / PDP-434HDE / PDP-434HDG /PRO-910HD display with speakers attached.]

61.0 kg (134.5 lbs) [When used with a PDP-504HD / PDP-5040HD / PDP-504HDE / PDP-

504HDG / PRO-1110HD display with speakers attached.]

Unit: mm (inch)

Plasma display	Location of speakers	Full height (Dimensions A)
PDP-434HD / PDP-4340HD / PDP-434HDE / PDP-434HDG / PRO-910HD	At sides of plasma display	1,180 (46-15/32)
	Below plasma display	1,279 (50-11/32)
PDP-504HD / PDP-5040HD / PDP-504HDE / PDP-504HDG / PRO-1110HD	At sides of plasma display	1,265 (49-13/16)
	Below plasma display	1,364 (53-11/16)

• The above specifications and exterior may be modified without prior notice to improve the product.
