Product Type	Table stand for plasma TV
Brand	Pioneer
Model	PDK-TS30A
Compatibility	Pioneer plasma TVs PDP-608ZD / PDP-608ZDA
Dimensions (W x H x D)	922 mm x 222.4 mm x 381 mm
Weight	6.8 kg
Color	Black (estimated from black screws)
Materials	Metal, plastic
Package Contents	Table cover, support columns (L/R), anti-tip straps (x4), mounting screws, screen cover (PDK-TS30A), instruction manual
Main Functions	Stable support for plasma TV, cable management with screen cover, fall prevention
Installation	Requires two people, mounting on flat and stable surface, securing columns and screws
Safety	Fasten securely to prevent falling, use anti-tip straps and wall fixation recommended
Maintenance	Clean with a soft dry cloth, avoid abrasive products
Repairability	Spare parts not specified, contact retailer for assistance
Warranty	Not specified, refer to seller's terms

Frequently Asked Questions - PDK-TS30A PIONEER

Which TVs are compatible with the PDK-TS30A stand?

The PDK-TS30A stand is designed exclusively for Pioneer plasma TVs PDP-608ZD and PDP-608ZDA. Using it with other models may cause instability.

Do I need to fix the stand to the wall for more safety?

Yes, it is strongly recommended to secure the TV to the wall using strong cables and hooks (not supplied) to prevent any risk of falling, especially in case of an earthquake.

How many people are needed to install the stand?

Installation should always be carried out by at least two people due to the weight of the TV (approximately 55.5 kg) and delicate handling.

What are the dimensions and weight of the stand?

The dimensions of the PDK-TS30A are 922 mm (width) x 222.4 mm (height) x 381 mm (depth) and its weight is 6.8 kg.

How do I install the provided screen cover?

The screen cover is used to hide cables at the back of the TV. Remove the double-sided adhesive tape, position it without exceeding the insertion holes, and press firmly to secure it.

What to do if screws are missing?

Check the list of supplied parts in the manual. If screws are missing, contact your retailer. Do not use unspecified screws as this could compromise safety.

Can I use this stand for a TV of another brand?

No, this stand is specifically designed for the mentioned Pioneer plasma TVs. Use with other brands or models is not recommended for stability and safety reasons.

How to clean the stand?

Use a soft dry cloth to dust. Avoid chemical or abrasive products that could damage the finish.

Is the stand delivered with assembly instructions?

Yes, a detailed instruction manual is included in the package. It describes step by step the assembly, installation, and safety precautions.

Can I use the anti-tip straps on any type of furniture?

Yes, but it is recommended to fix them on a solid and flat surface. For optimal stability, combine the straps with a wall fixation using appropriate screws (not supplied).

USER MANUAL PDK-TS30A PIONEER

Operating Instructions

Mode d'emploi

Bedienungsanleitung

Thank you for buying Pioneer's product.

Please read through the Operating Instructions to learn how to operate your model safely and properly.

Please be advised to keep the Operating Instructions in your place for future reference.

Installation

• Consult your dealer if you encounter any difficulties with this installation.
• Pioneer is not liable for any damage resulting from improper installation, improper use, modification, or natural disasters.

IMPORTANT NOTICE

Record the model number and serial number of this equipment below.

Model No.

Serial No.

Keep these numbers for future use.

Contents

Cautions 8

Checking the Standard Accessories 9

Assembling the Stand 9

Attaching the Light-blocking Shield

(PDK-TS30A only) 10

Attaching the Plasma Television 11

Installing the Product on a Rack etc. 11

Preventing Equipment from Falling Over 12

Specifications 12

Dimensions Diagram 13

CAUTION

This symbol refers to a hazard or unsafe practice which can result in personal injury or property damage.

Cautions

This product is a table top stand exclusively designed for plasma televisions (PDP-608ZD / PDP-608ZDA) from Pioneer.

Use with other model is capable of resulting in instability causing possible injury. For further information, please contact the store where you purchased your display.

Do not install or modify the product other than specified.

Do not use this stand for a Plasma television other than those designated and do not modify it or use it for other purposes.

Installation Location

• Select a location that is strong enough to support the weight of the stand and the displays.
• Make sure to place it in a level and stable location.
• Do not install it outdoors, at a hot spring, or near a beach.
• Do not install the stand where it may be subjected to vibration or shock.

Assembling and Installation

• Assemble the stand in accordance with the assembly instructions and securely attach all screws at the designated locations.
  There have been cases where unforeseen accidents such as the equipment breaking or falling over occurred after the installation of the display because the stand was not installed as instructed.
• The display must always be installed by two or more people to assure it is installed safely.
• Before installation, turn off the power for the display and peripheral devices then remove the power cord plug from the power outlet.

Prevent accidents caused by the product falling over by taking reliable measures to prevent it from falling over (see Page 12).

Checking the Standard Accessories

Check to make sure that you have all the standard accessories before assembly and installation.

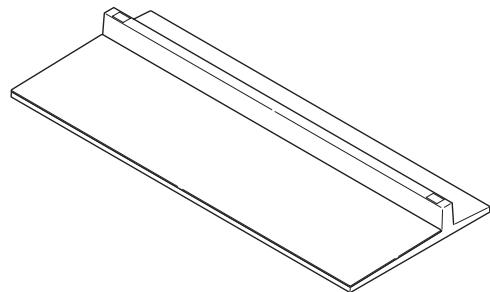

- Base cover × 1

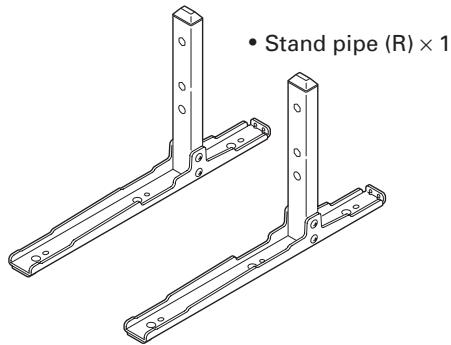

- Stand pipe (L) × 1

Light-blocking shield × 1 (PDK-TS30A only)

- Fall-prevention strap × 4

- Operating instructions (this document) × 1

- Screw ① (M5 × 10 mm: black) × 6

- Installation screw ② (M6 × 20 mm: black) × 4

- Screw ③ (M4 × 10 mm: black) × 4

Assembling the Stand

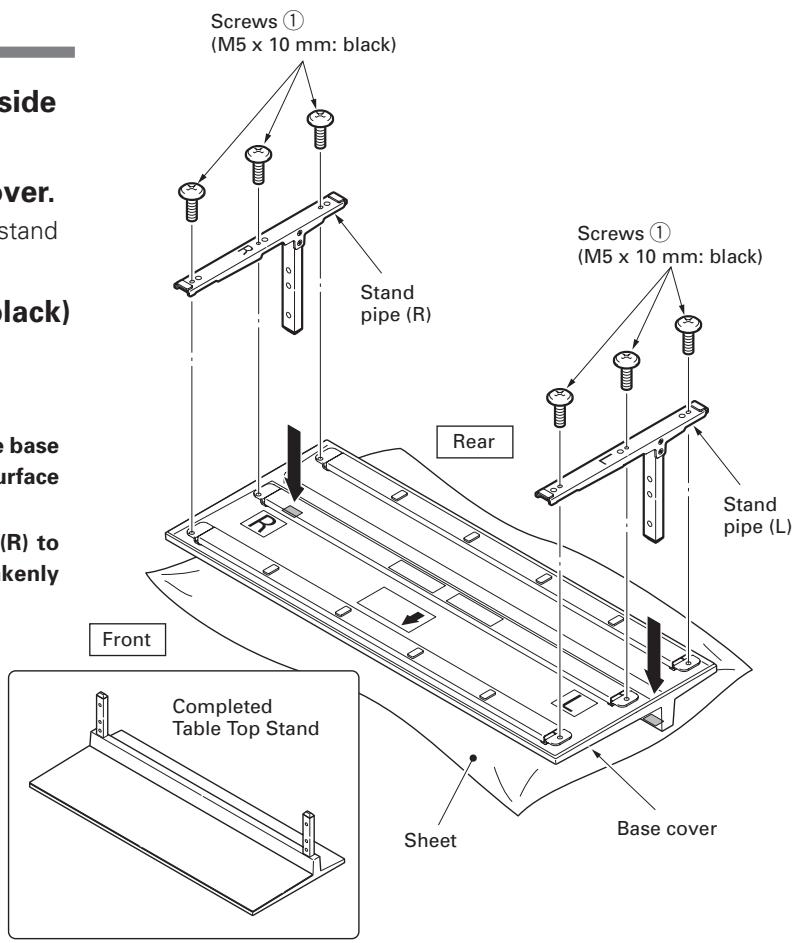

Assembly Procedure

1 Turn the base cover over so the underside is facing up.
2 Insert the stand pipes into the base cover. Insert stand pipe (R) into the side marked "R" and stand pipe (L) into the side marked "L".
3 Tighten the screws ① (M5×10 mm: black) to stabilize the stand pipes.

Note

• Assemble the stand with a soft sheet placed under the base cover. If a sheet is not laid before assembly, the front surface of the base cover may be scratched.
• Please take care when installing stand pipes (L) and (R) to ensure that they are in the correct positions. Mistakenly installing the stand pipes may damage the stand.

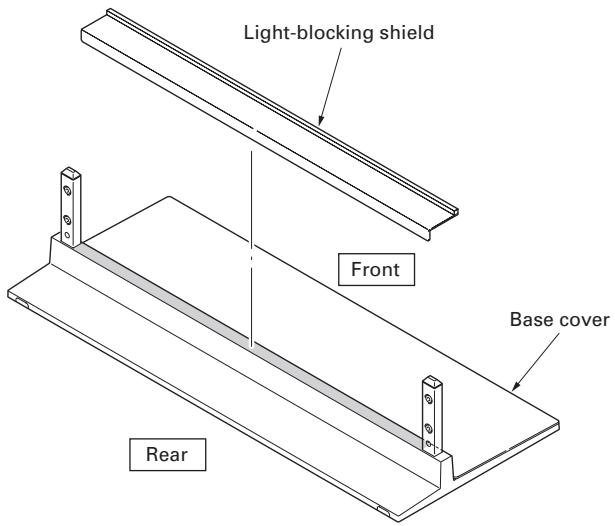

Attaching the Light-blocking Shield (PDK-TS30A only)

This part prevents reflection of the cables connected to the back of the plasma television on the base cover.

Note

Attach it after anchoring the base cover on a flat stable place.

Attachment Procedure

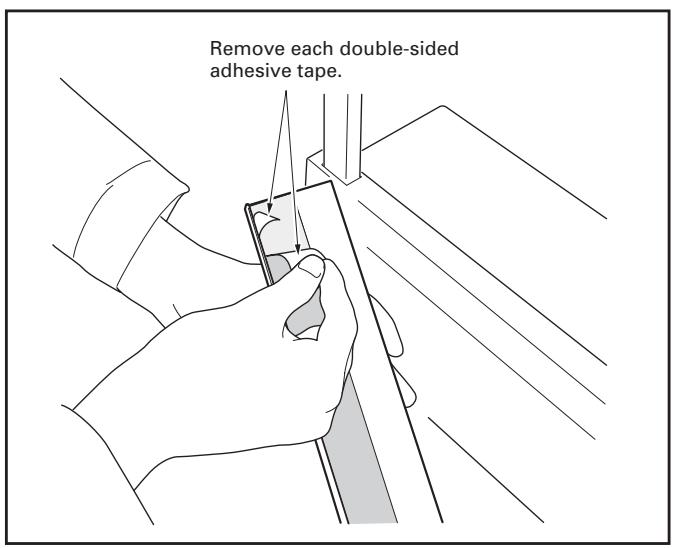

1 Remove the double-sided adhesive tape from the light-blocking shield.

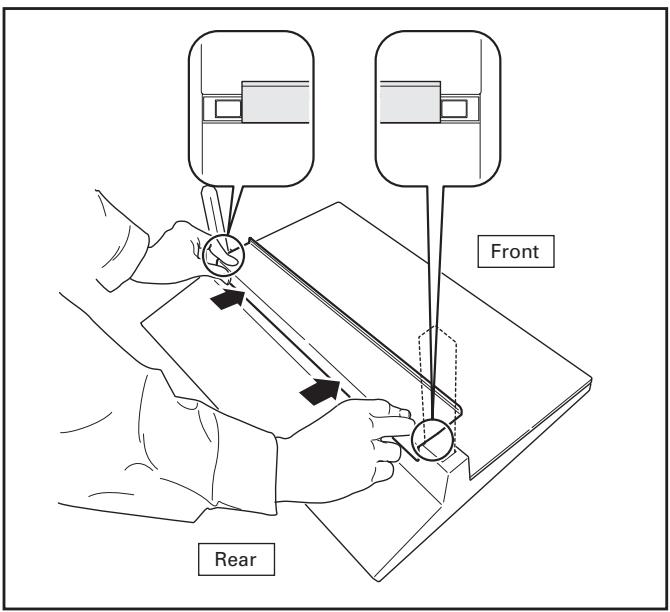

2 While firmly holding the ends of the light-blocking shield, apply it with the double-sided adhesive tape.

Note

• Be careful that the light-blocking shield does not catch on the pipe insertion holes.
• Anchor it in place so that there are no gaps (See diagram at below). If there is a gap, the light-blocking shield may peel off.

3 Anchor it in place while pressing it down from above.

Attaching the Plasma Television

Caution

The weight of a plasma television is about 55.5kg (122.4 lbs), they have no depth, and are unstable. Therefore, at least two people must assemble and install them.

Note

• Be sure to install it on a flat stable location.
• Insert the screws in the holes vertically and do not tighten them with more force than necessary.
• Place a sheet or other material under the display to prevent scratches or damage to it.
• After manually turning the screw lightly two or three times, tighten it with a screw-driver.

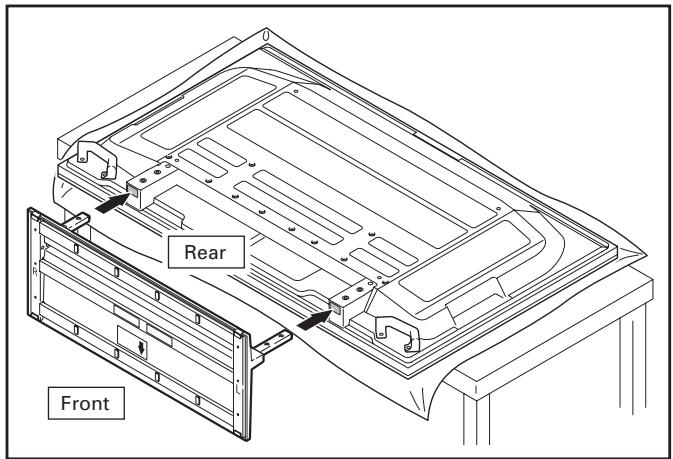

1 Attaching the plasma television to the stand.

Lay the plasma television down flat. Align the stand supports with the plasma television stand slots, and slowly insert the supports horizontally.

Please ensure that the stand supports do not come into contact with anything other than the plasma television stand slots. Contact with any other area may result in scratching or deformation of the display's rear side or terminals.

Note

When laying down the plasma television, be careful so as to not scratch or damage it.

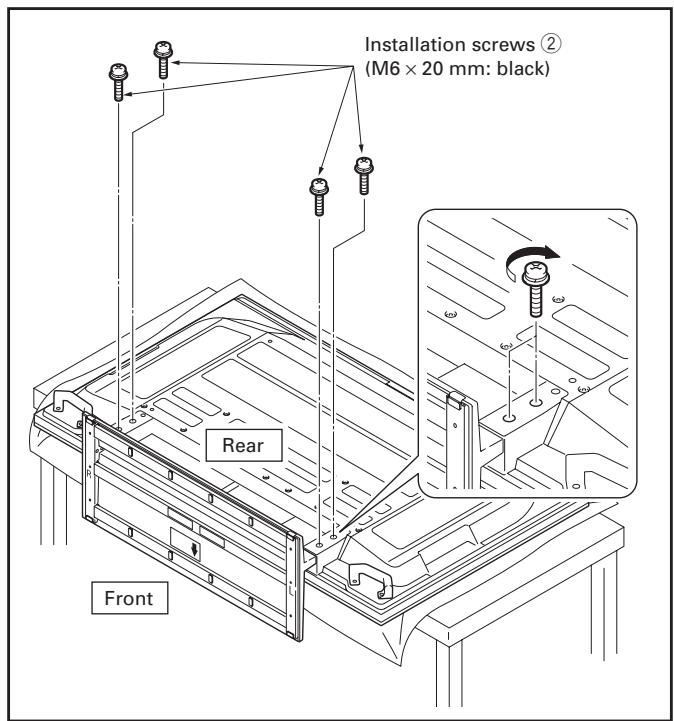

2 Securing the plasma television with Installation screws ② (M6×20 mm: black).

Please tighten the screws with a Phillips screwdriver.

Note

Please stand the plasma television upright after installing the stand.

Installing the Product on a Rack etc.

Caution

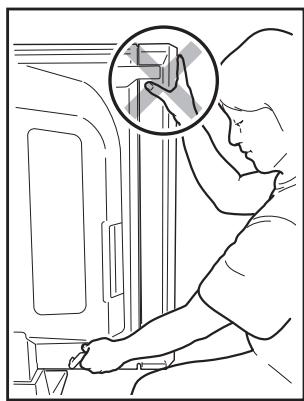

• When installing on a rack etc., please be sure that the plasma television is held by two or more people.
• Please do not hold the plasma television by the speakers or stand. Doing so may damage the product.

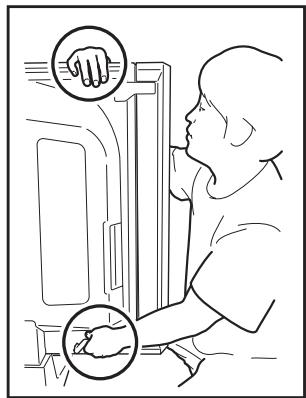

Hold the plasma television by its handles and from the top.

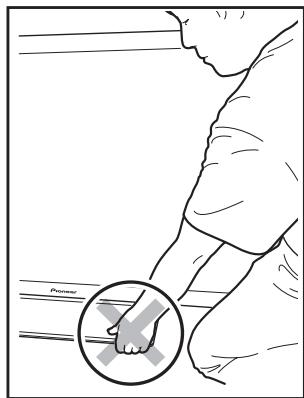

Do not hold the plasma television by the speakers.

Do not hold the plasma television by the stand.

Preventing Equipment from Falling Over

• After installing the stand, be sure to take special care to ensure that the equipment will not fall over.
• Secure the plasma television to both the rack and the wall surface.

Stabilizing on a rack etc.

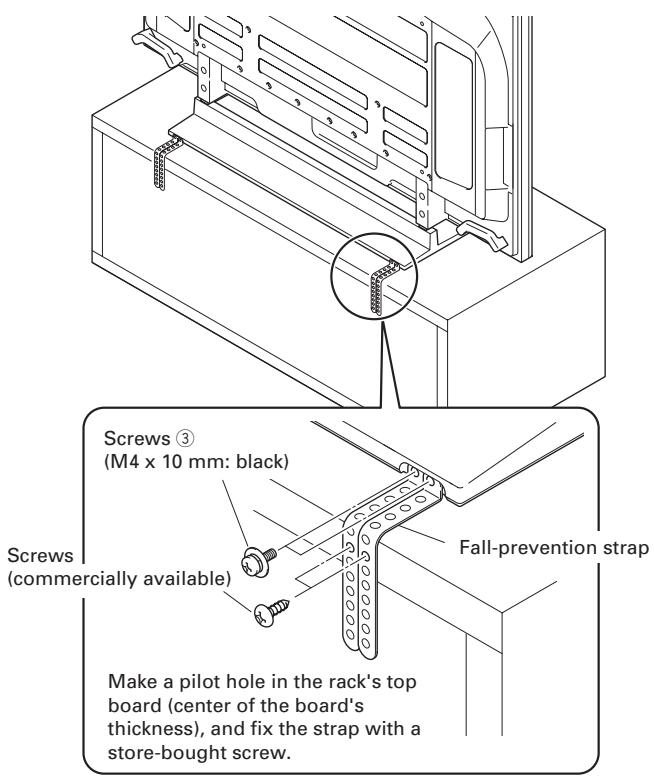

Fix the plasma television using the screws ③ (M4 × 10 mm: black) and fall-prevention straps as shown in the diagram. Fix the racks etc. using screws for sale on the market.

Note

To stabilize the equipment on a table, use screws that have a nominal diameter of 4mm (5/32 inch) and that are at least 20mm (13/16 inch) long.

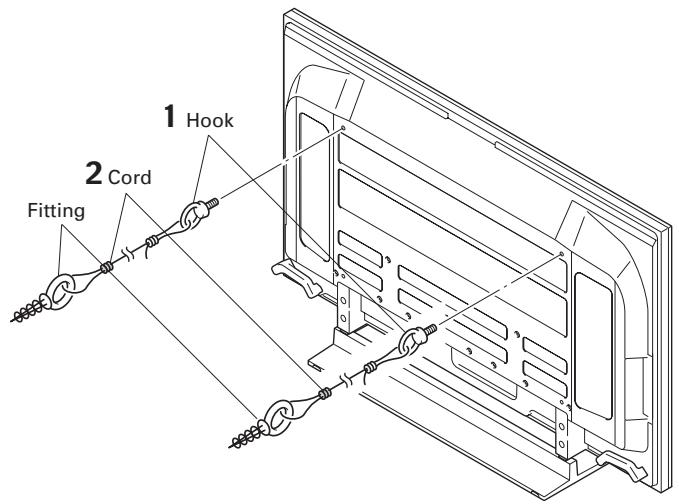

Using a wall for stabilization

1 Attaching falling prevention bolts (hooks) to the plasma television.
2 Using strong cords to firmly stabilize it appropriately and firmly to a wall, pillar, or other sturdy element.

Perform this work in the same way on the left and right sides.

Note

Use hooks, cords, and fittings that are available on the market.

Recommended hook:

Nominal diameter M8

Length 12 mm to 15 mm (1/2 inch to 5/8 inch)

Specifications

External dimensions:

PDK-TS30 920 mm (W) × 222.4 mm (H) × 380 mm (D) (36-7/32 in. (W) × 8-3/4 in. (H) × 14-31/32 in. (D))

PDK-TS30A 922 mm (W) × 222.4 mm (H) × 381 mm (D) (36-5/16 in. (W) × 8-3/4 in. (H) × 15 in. (D))

Weight:

PDK-TS30 5.7 kg (13.0 lbs)

PDK-TS30A 6.8 kg (15 lbs)

• The above specifications and exterior may be modified without prior notice to improve the product.

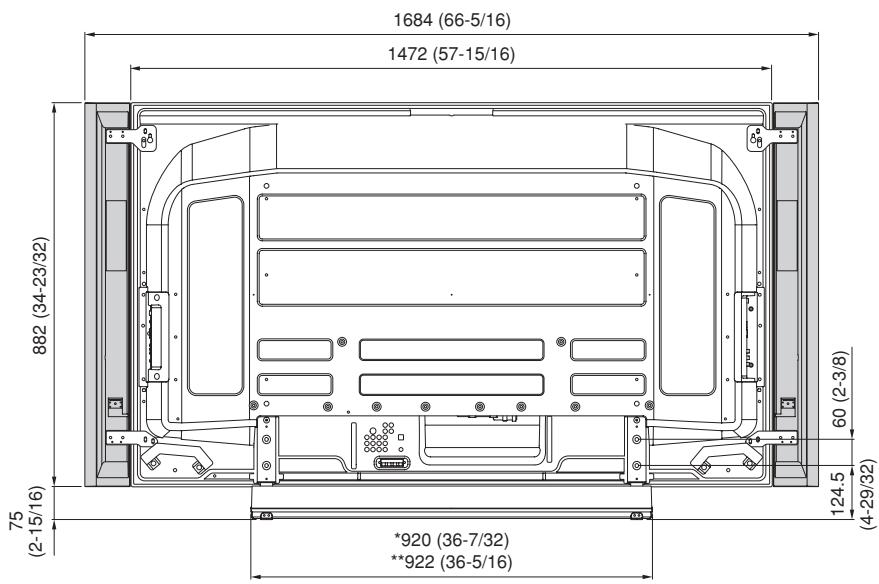

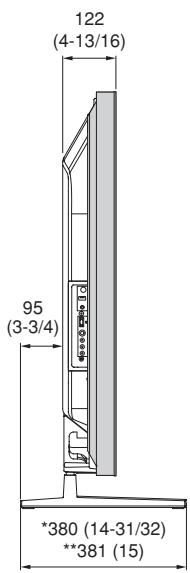

When the side speakers are installed

Unit: mm (inch)

• PDK-TS30 ** PDK-TS30A

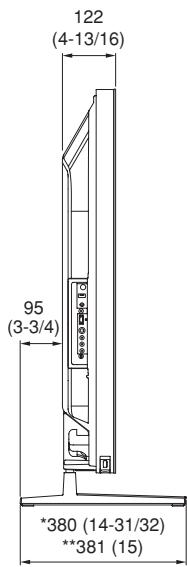

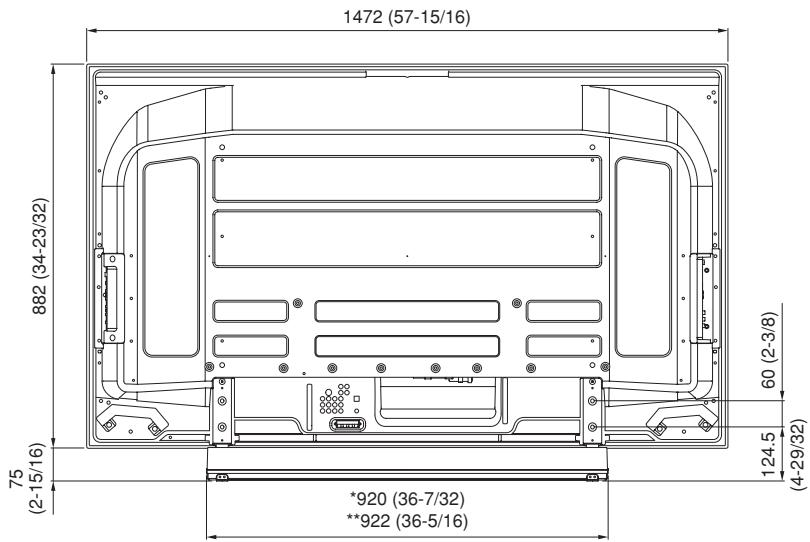

Without speakers

Unit: mm (inch)

• PDK-TS30 ** PDK-TS30A
