Thank you for buying Pioneer’s product. Please read through the Operating Instructions to learn how to operate your model safely and properly. Please be advised to keep the Operating Instructions in your place for future reference. Installation ¶ Consult your dealer if you encounter any difficulties with this installation. ¶ Pioneer is not liable for any damage resulting from improper installation, improper use, modification, or natural disasters. IMPORTANT NOTICE Record the model number and serial number of this equipment below. Model No. Serial No. Keep these numbers for future use. Cautions This product is a table top stand exclusively designed for plasma televisions (PDP-5080XA / PDP-5080XD / PDP-508XD / PDP-508XG / PDP-508XDA / PDP-508ZD / PDP-508ZG / PDP-508ZDA / PDP-SX5080D / PDP-4280XA / PDP-4280XD /PDP-428XD / PDP-428XG / PDP-428XDA / PDP-SX4280D) from Pioneer. Use with other model is capable of resulting in instability causing possible injury. For further information, please contact the store where you purchased your display. Do not install or modify the product other than specified. Do not use this stand for a Plasma television other than those designated and do not modify it or use it for other purposes. Installation Location

• Select a location that is strong enough to support the weight of the stand and the displays.
• Make sure to place it in a level and stable location.
• Do not install it outdoors, at a hot spring, or near a beach.
• Do not install the stand where it may be subjected to vibration or shock. Checking the Standard Accessories ...................... 9 Assembling the Stand ............................................ 9 Attaching the Light-blocking Shield (PDK-TS27A and PDK-TS29A only) ...................... 10 Attaching the Plasma Television ......................... 11 Installing the Product on a Rack etc. ................... 12 Preventing Equipment from Falling Over ........... 13 Specifications ........................................................ 13 Dimensions Diagram ............................................ 14 CAUTION This symbol refers to a hazard or unsafe practice which can result in personal injury or property damage. Assembling and Installation
• Assemble the stand in accordance with the assembly instructions and securely attach all screws at the designated locations. There have been cases where unforeseen accidents such as the equipment breaking or falling over occurred after the installation of the display because the stand was not installed as instructed.
• The display must always be installed by two or more people to assure it is installed safely.
• Before installation, turn off the power for the display and peripheral devices then remove the power cord plug from the power outlet. Prevent accidents caused by the product falling over by taking reliable measures to prevent it from falling over (see Page 13). Plasma Television and Stand Compatibility Table Plasma Television

Table Top Stand 50 inch under speaker model PDK-TS28 50 inch side speaker model

PDK-TS29/PDK-TS29A

PDK-TS27/PDK-TS27A

Checking the Standard Accessories Check to make sure that you have all the standard accessories before assembly and installation. Light-blocking shield × 1 Installation screws 3 Screws 1 Stand pipe (L) × 1 Fall-prevention straps × 2 (PDK-TS27A and PDK-TS29A only) Installation screws 4 Operating instructions (this document) × 1 Stand pipe (R) × 1 Installation screws 2 Screws 5 Assembling the Stand Assembly Procedure

Turn the base cover over so the underside is facing up.

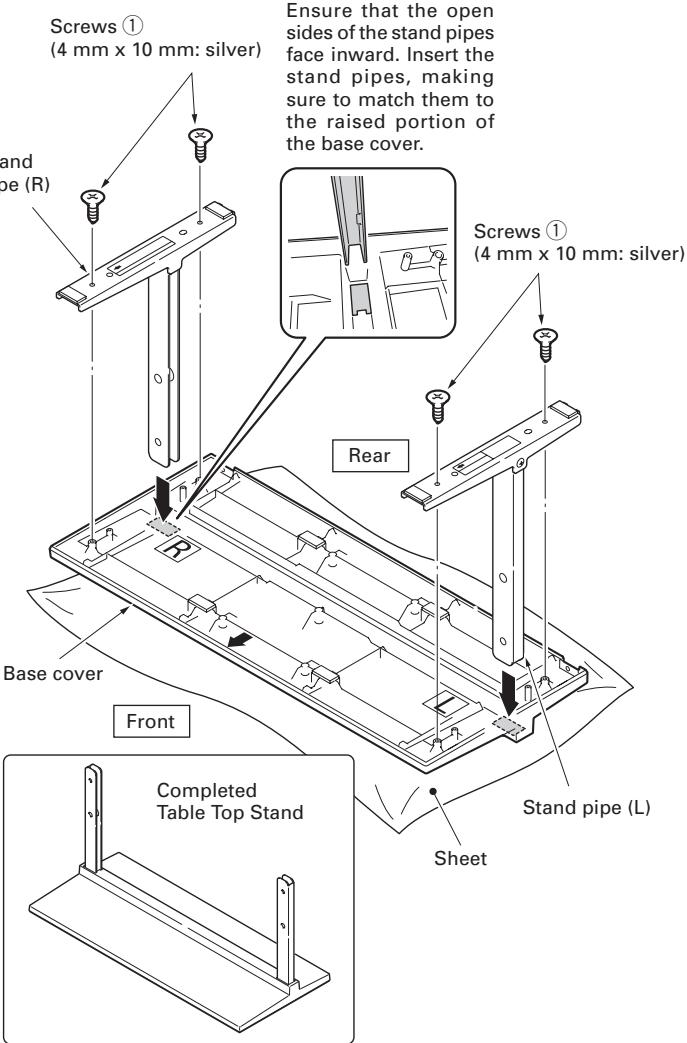

Insert the stand pipes into the base cover. Insert stand pipe (R) into the side marked "R" and stand pipe (L) into the side marked "L". Ensure that the open sides of the stand pipes face inward. Insert the stand pipes, making sure to match them to the raised portion of the base cover.

Ensure that the open sides of the stand pipes face inward. Insert the stand pipes, making sure to match them to the raised portion of the base cover. Tighten the screws 1 (4 mm × 10 mm: silver) to stabilize the stand pipes. Note Assemble the stand with a soft sheet placed under the base cover. If a sheet is not laid before assembly, the front surface of the base cover may be scratched. Please take care when installing stand pipes (L) and (R) to ensure that they are in the correct positions. Mistakenly installing the stand pipes may damage the stand. Rear Base cover Front Completed Table Top Stand Stand pipe (L) Sheet

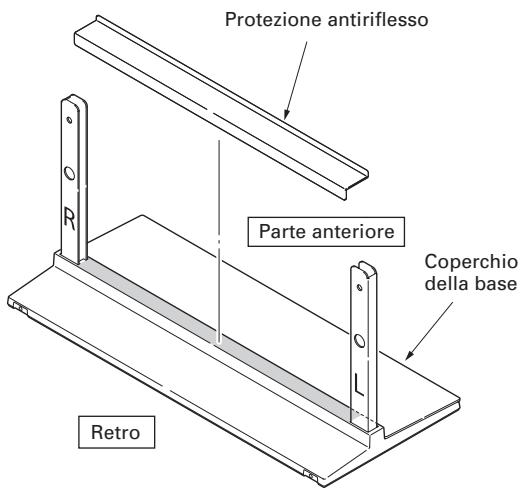

Attaching the Light-blocking Shield (PDK-TS27A and PDK-TS29A only) This part prevents reflection of the cables connected to the back of the plasma television on the base cover.

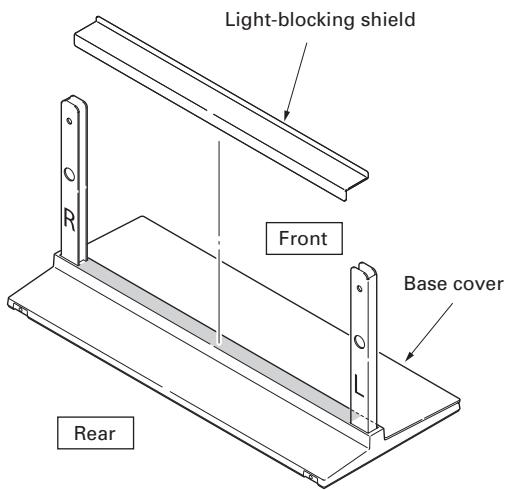

Note While firmly holding the ends of the lightblocking shield, apply it with the doublesided adhesive tape. Attach it after anchoring the base cover on a flat stable place. Light-blocking shield Front Front Base cover Rear Rear Attachment Procedure

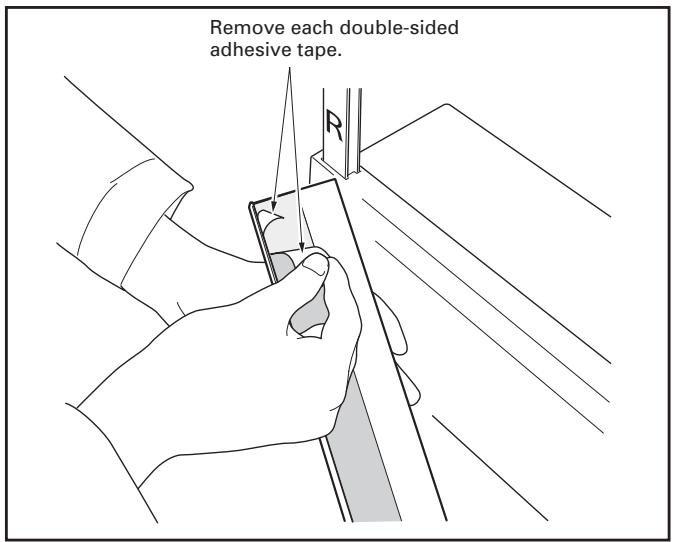

Remove the double-sided adhesive tape from the light-blocking shield. Remove each double-sided adhesive tape. Note Be careful that the light-blocking shield does not catch on the pipe insertion holes. Anchor it in place so that there are no gaps (See diagram at below). If there is a gap, the light-blocking shield may peel off.

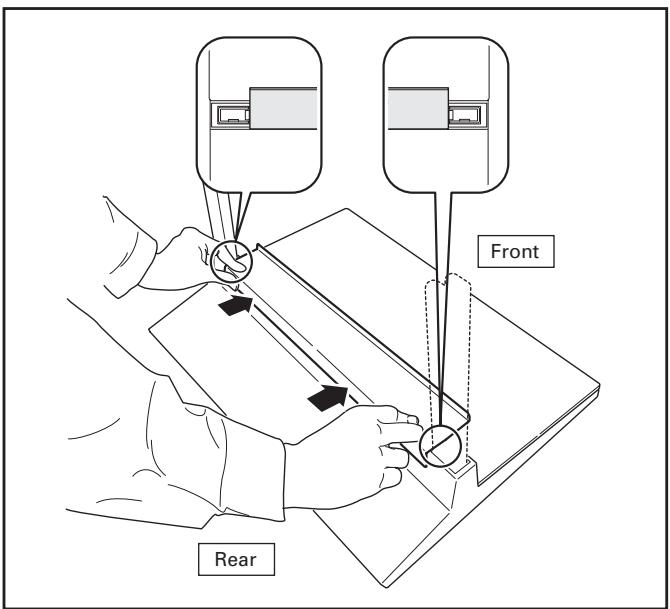

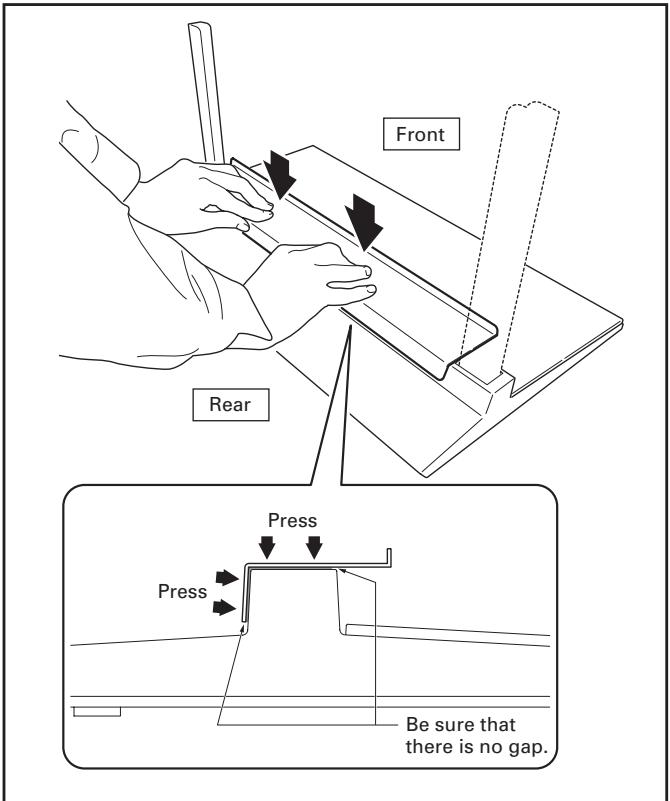

Anchor it in place while pressing it down from above. Front Rear Press Press Be sure that there is no gap.

Attaching the Plasma Television

Secure the parts marked with the arrows (holes marked "T") using a Phillips screwdriver. Note [42 inch display model]

PDK-TS27/PDK-TS27A

................ Installation screw 2 (M8 × 60 mm: black) Be sure to install it on a flat stable location. Insert the screws in the holes vertically and do not tighten them with more force than necessary. Place a sheet or other material under the display to prevent scratches or damage to it. After manually turning the screw lightly two or three times, tighten it with a screw-driver.

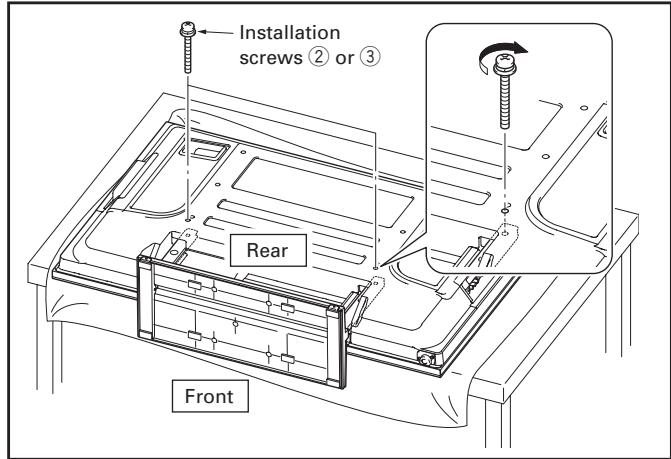

Securing the plasma television with Installation screws 2 (M8 × 60 mm: black) or 3 (M8 × 40 mm: black). English The weight of a 50 inch model (without speakers) is about 34 kg (74 lbs), that of 42 inch model is about Caution 30 kg (66 lbs), they have no depth, and are unstable. Therefore, at least two people must assemble and install them. [50 inch display model]

PDK-TS28/PDK-TS29/PDK-TS29A

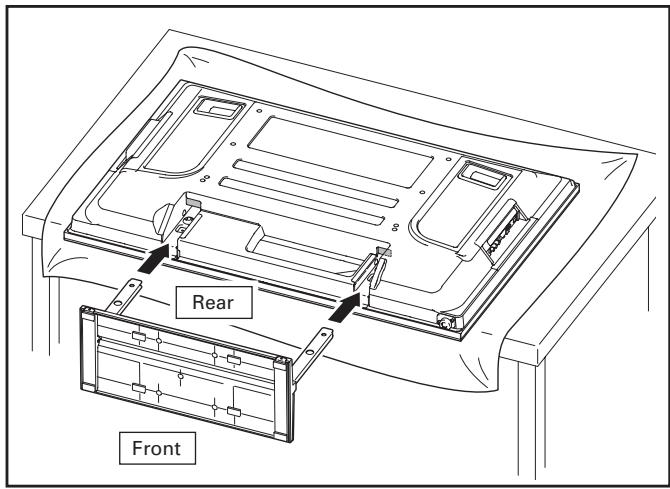

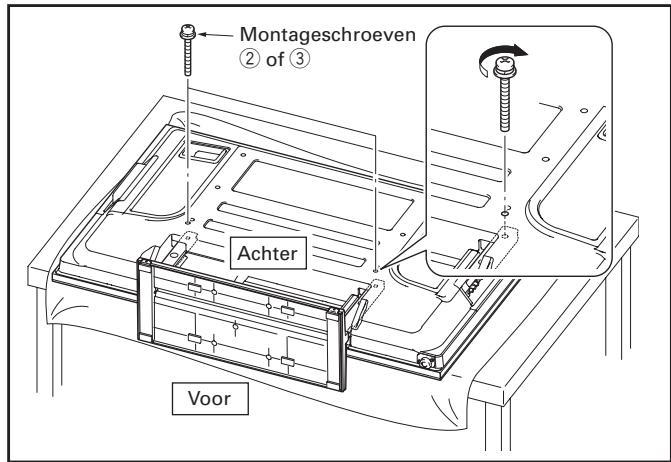

................. Installation screw 3 (M8 × 40 mm: black) Installation screws 2 or 3 Attaching the plasma television to the stand. Lay the plasma television down flat. Align the stand supports with the plasma television stand slots, and slowly insert the supports horizontally. Please ensure that the stand supports do not come into contact with anything other than the plasma television stand slots. Contact with any other area may result in scratching or deformation of the display's rear side or terminals. Rear Front

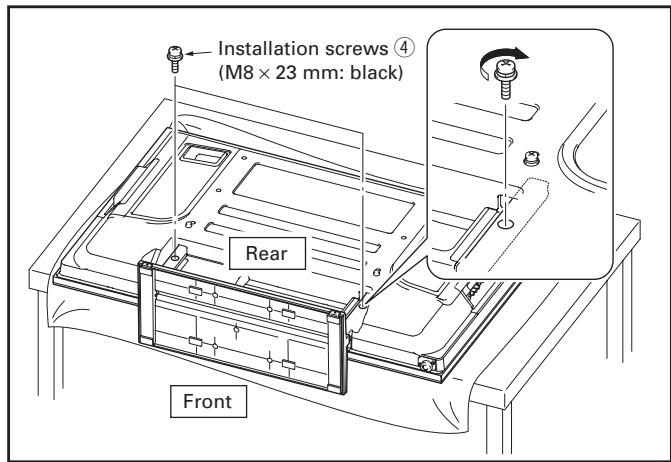

Securing the plasma television with Installation screws 4 (M8 × 23 mm: black). Please tighten the screws with a Phillips screwdriver. Installation screws 4 (M8 × 23 mm: black) Rear Front Rear Note When laying down the plasma television, be careful so as to not scratch or damage it. Front Note Please stand the plasma television upright after installing the stand.

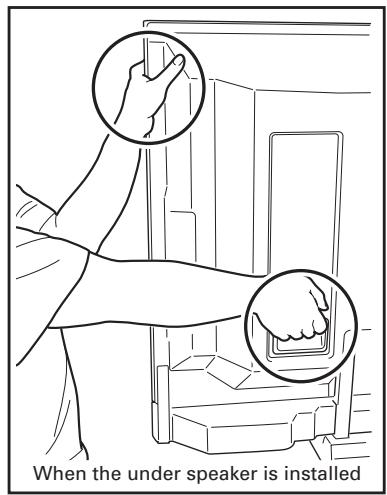

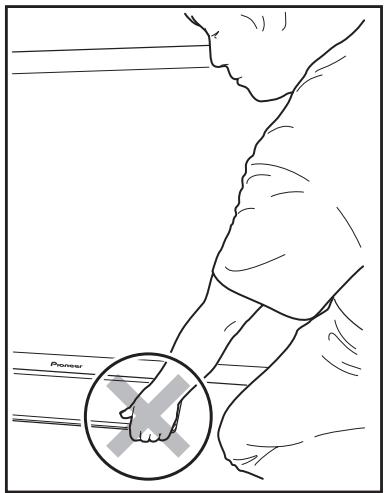

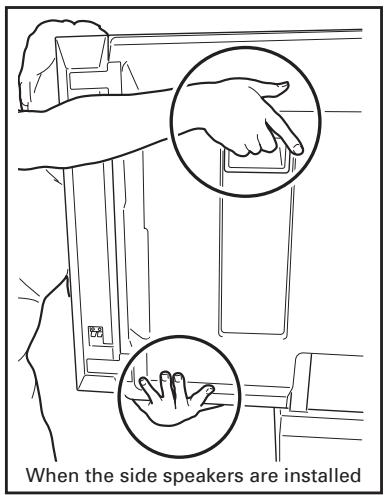

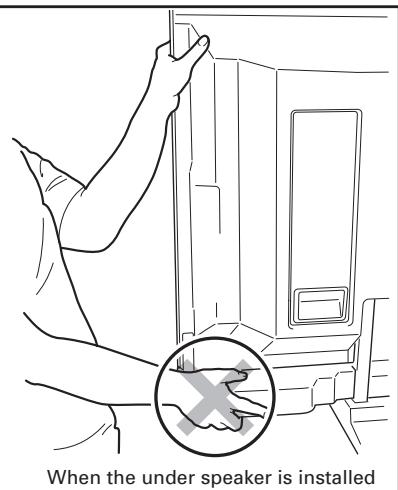

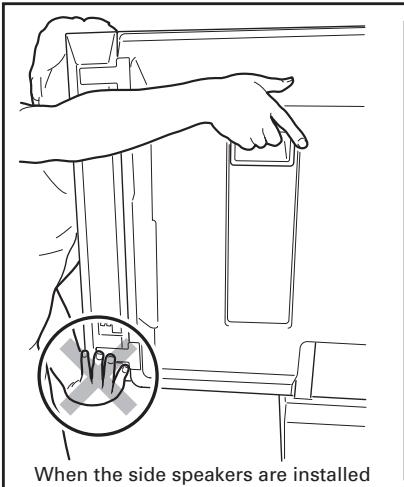

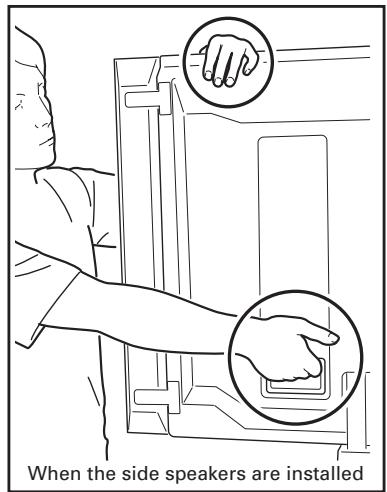

Installing the Product on a Rack etc. Caution When installing on a rack etc., please be sure that the plasma television is held by two or more people. Please do not hold the plasma television by the speakers or stand. Doing so may damage the product. Hold the plasma television by its handles and from the bottom. When the side speakers are installed Hold the plasma television by its handles and from the top. When the side speakers are installed Hold the plasma television by its handles and from the sides. When the under speaker is installed Do not hold the plasma television by the speakers. When the side speakers are installed Do not hold the plasma television by the stand.

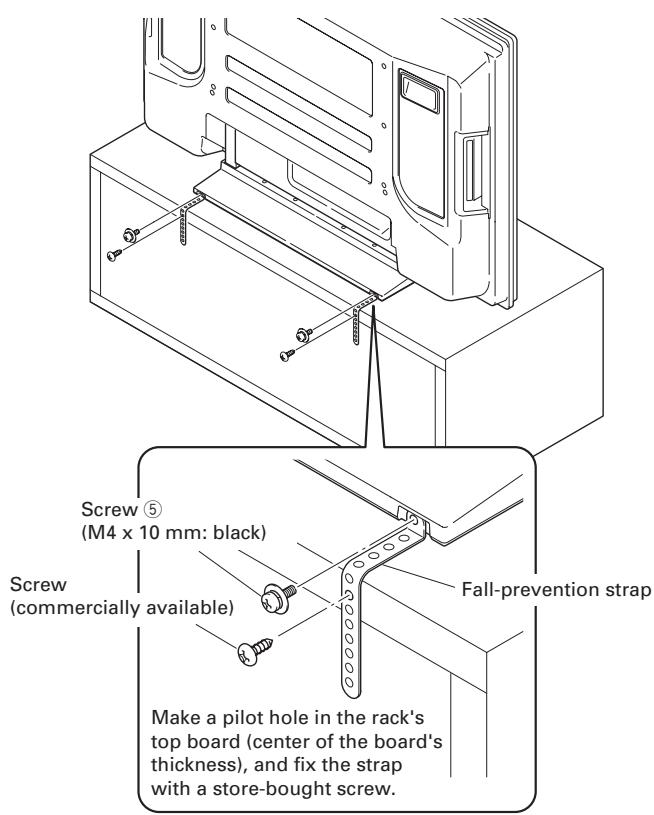

When the side speakers are installed When the under speaker is installed Preventing Equipment from Falling Over Fix the plasma television using the screws 5 (M4 × 10 mm: black) and fall-prevention straps as shown in the diagram. Fix the racks etc. using screws for sale on the market.

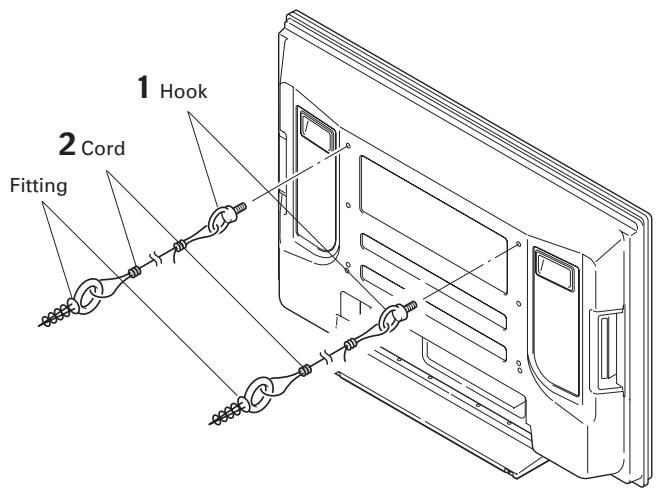

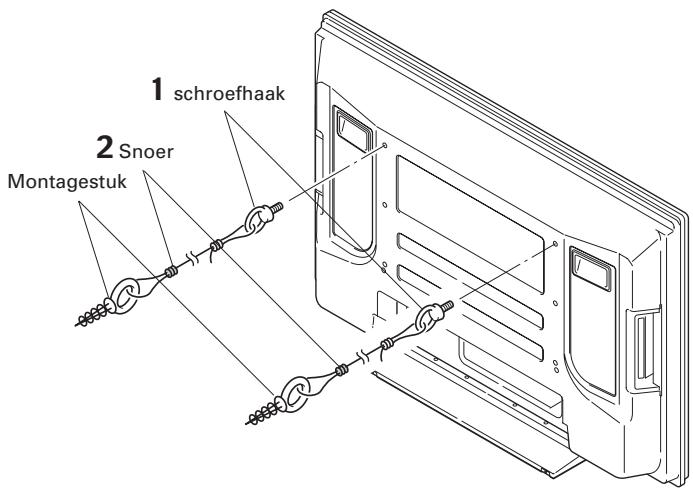

Attaching falling prevention bolts (hooks) to the plasma television. Using strong cords to firmly stabilize it appropriately and firmly to a wall, pillar, or other sturdy element. Perform this work in the same way on the left and right sides.

• Note To stabilize the equipment on a table, use screws that have a nominal diameter of 4 mm (5/32 inch) and that are at least 20 mm (13/16 inch) long. 4 mm (5/32 inch) Using a wall for stabilization 8 mm to 15 mm (3/8 inch to 5/8 inch) Stabilizing on a rack etc. English After installing the stand, be sure to take special care to ensure that the equipment will not fall over. Secure the plasma television to both the rack and the wall surface. Note Use hooks, cords, and fittings that are available on the market. 12 mm to 15 mm Recommended hook: (1/2 inch to 5/8 inch) Nominal diameter M8 Length 12 mm to 15 mm (1/2 inch to 5/8 inch) 1 Hook 2 Cord Fitting Screw 5 (M4 x 10 mm: black) Screw (commercially available) Fall-prevention strap Make a pilot hole in the rack's top board (center of the board's thickness), and fix the strap with a store-bought screw. Specifications External dimensions: PDK-TS27 p. 550
• mm (W) × 276 mm (H) × 237 mm (D) (21-21/32 in. (W) × 10-7/8 in. (H) × 9-11/32 in. (D)) PDK-TS27A p. 552
• mm (W) × 276 mm (H) × 238 mm (D) (21-23/32 in. (W) × 10-7/8 in. (H) × 9-3/8 in. (D)) PDK-TS28 p. 550
• mm (W) × 385.5 mm (H) × 300 mm (D) (21-21/32 in. (W) × 15-3/16 in. (H) × 11-13/16 in. (D)) PDK-TS29 p. 550
• mm (W) × 323 mm (H) × 300 mm (D) (21-21/32 in. (W) × 12-23/32 in. (H) × 11-13/16 in. (D)) PDK-TS29A p. 552
• mm (W) × 323 mm (H) × 301 mm (D) (21-23/32 in. (W) × 12-23/32 in. (H) × 11-27/32 in. (D)) Weight: PDK-TS27 p. 1
• .6 kg (3.6 lbs) PDK-TS27A p. 1
• .9 kg (4.2 lbs) PDK-TS28 p. 2
• .2 kg (4.9 lbs) PDK-TS29 p. 2
• .1 kg (4.7 lbs) PDK-TS29A .5 kg (5.6 lbs) p. 2

• The above specifications and exterior may be modified without prior notice to improve the product.

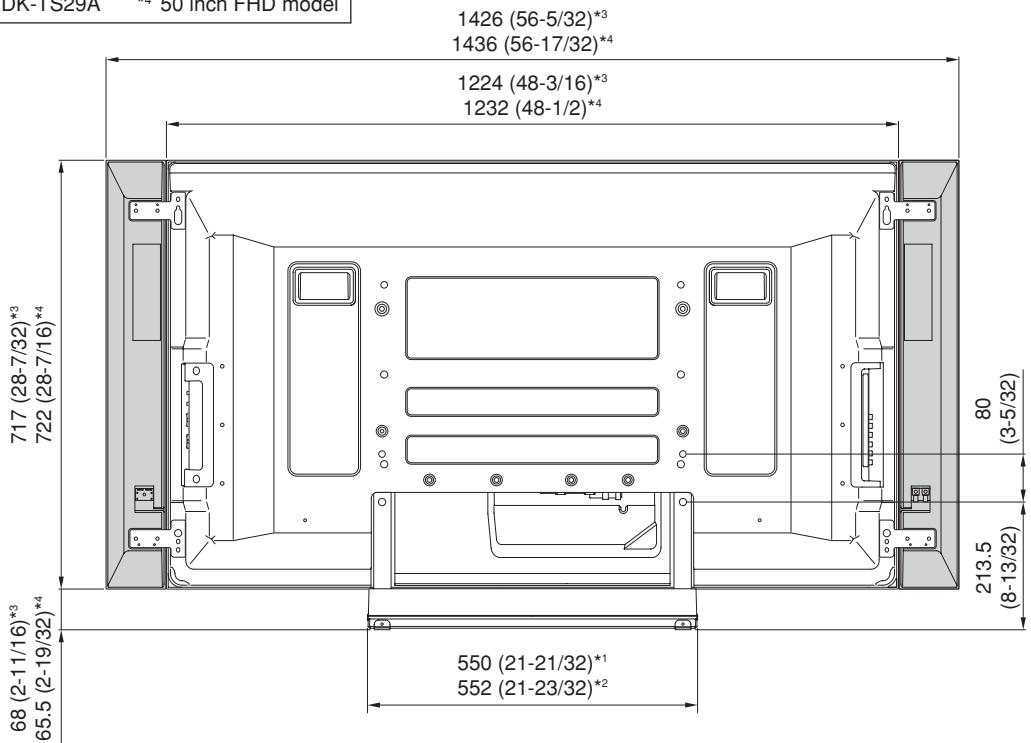

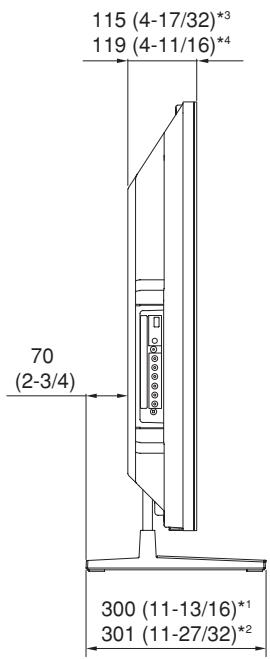

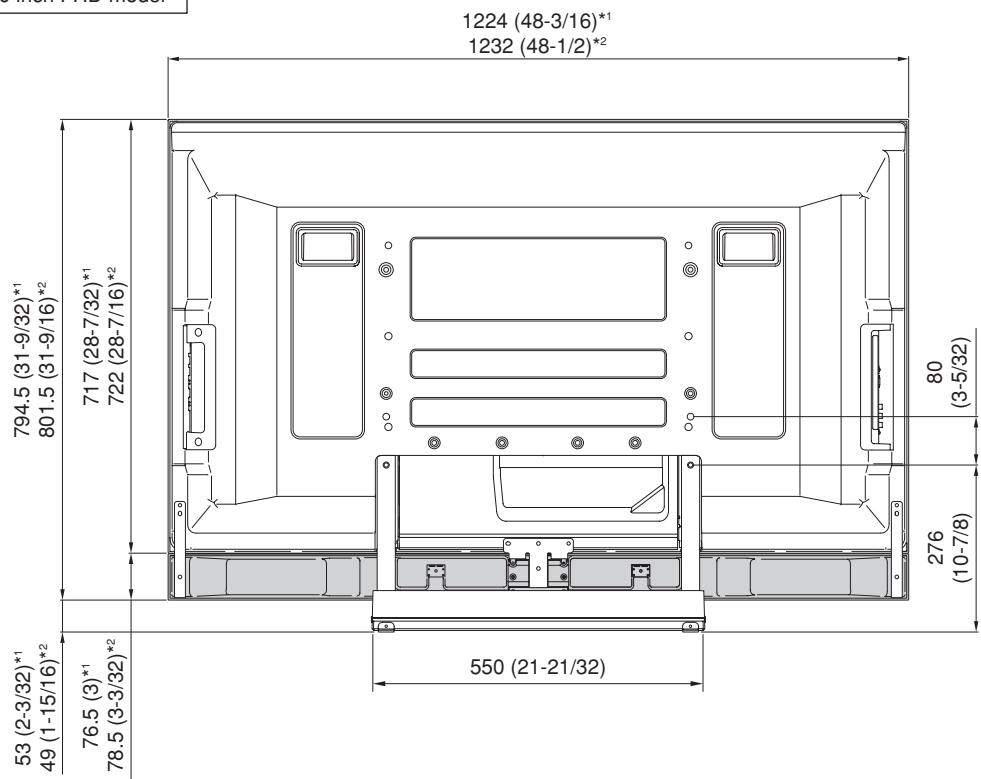

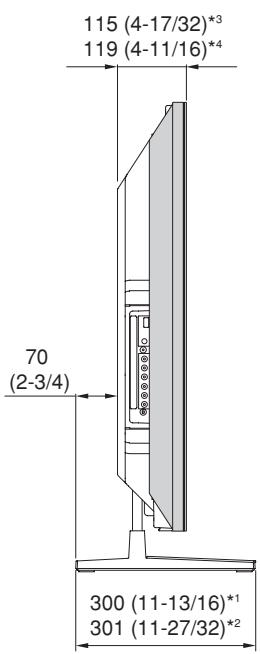

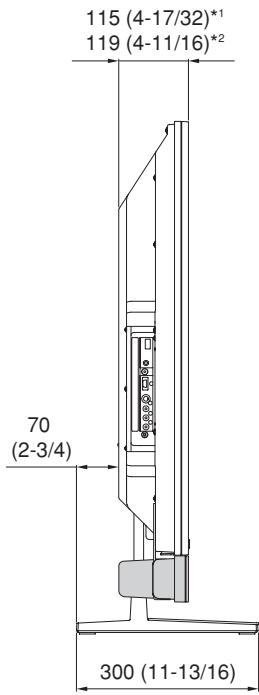

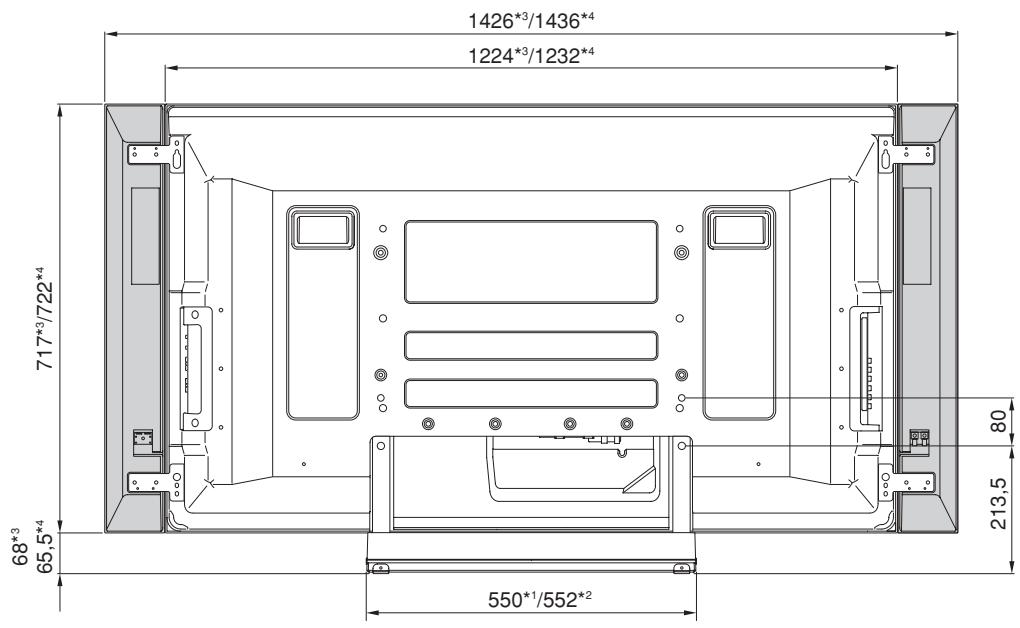

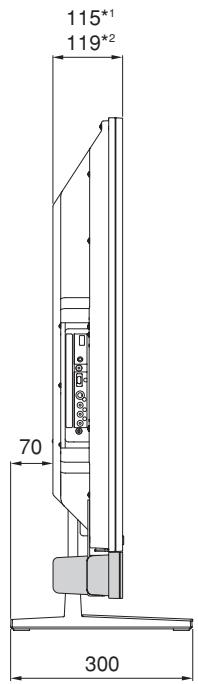

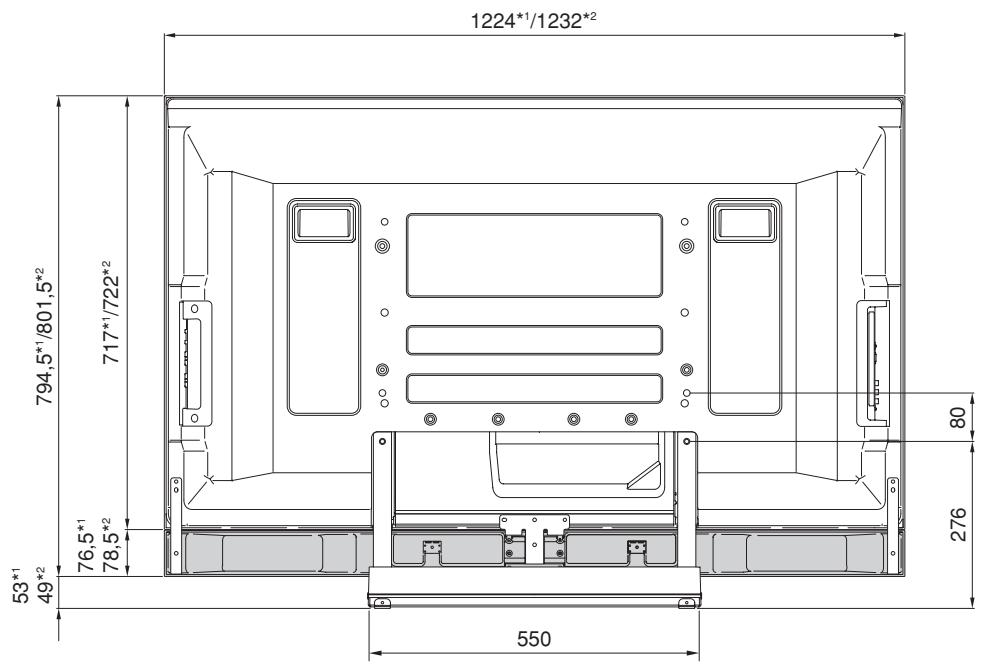

Dimensions Diagram When the side speakers are installed (50 inch display model) Unit: mm (inch) *1 PDK-TS29 *2 PDK-TS29A *3 50 inch XGA model *4 50 inch FHD model When the under speaker is installed (50 inch display model) Unit: mm (inch) *1 50 inch XGA model *2 50 inch FHD model 115 (4-17/32)*1 119 (4-11/16)*2

(3-5/32) 717 (28-7/32)*1 722 (28-7/16)*2

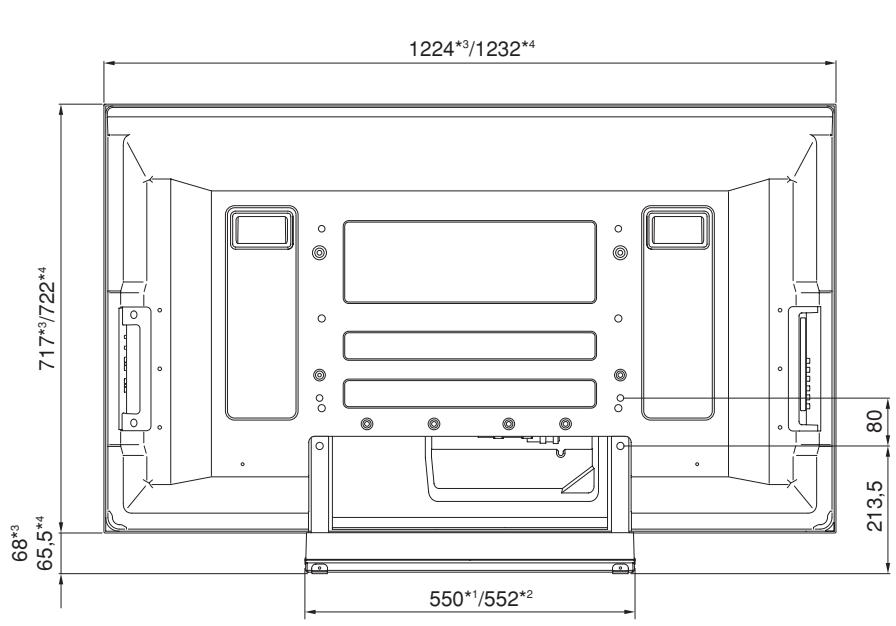

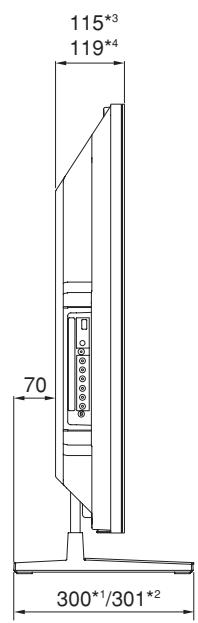

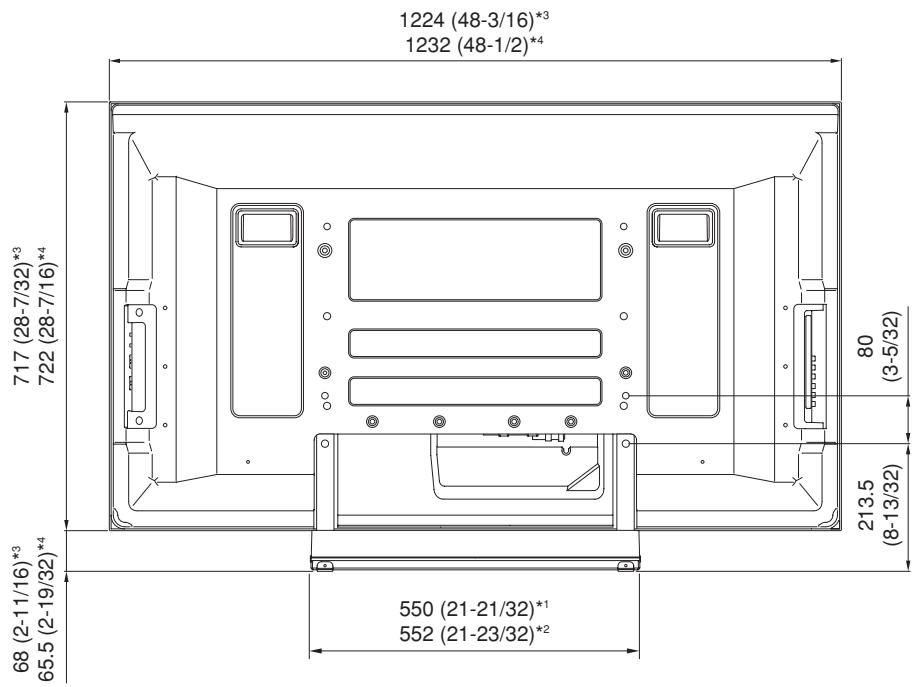

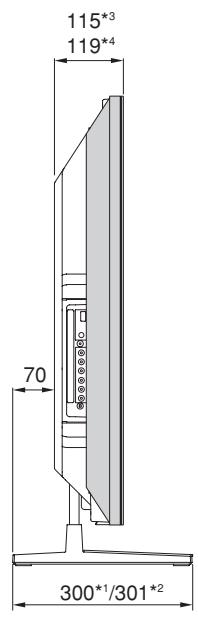

Without speakers (50 inch display model) Unit: mm (inch) *3 50 inch XGA model *4 50 inch FHD model 115 (4-17/32)*3 119 (4-11/16)*4

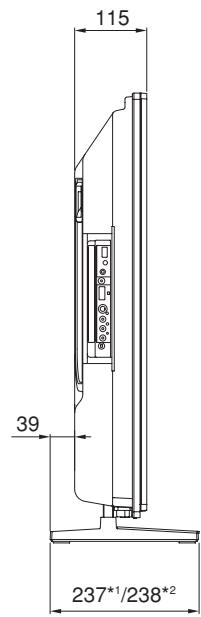

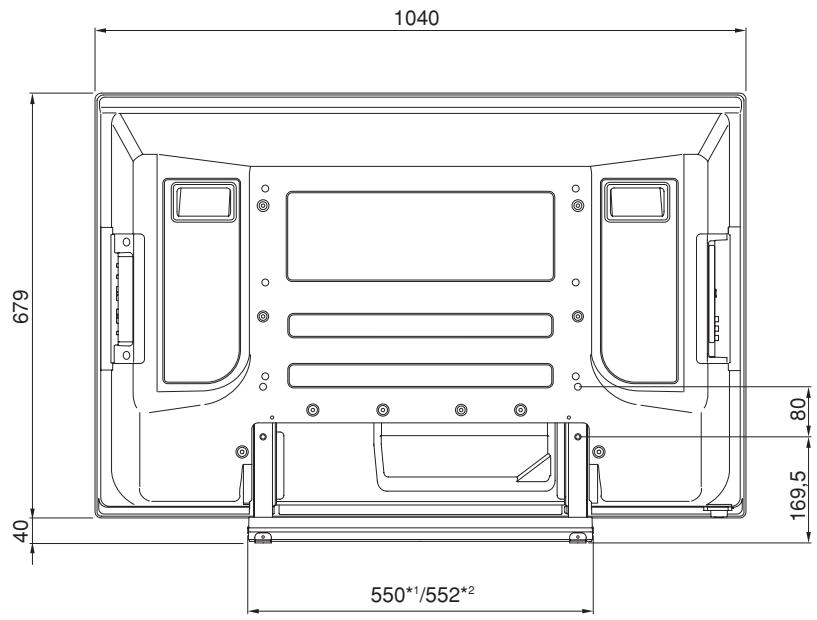

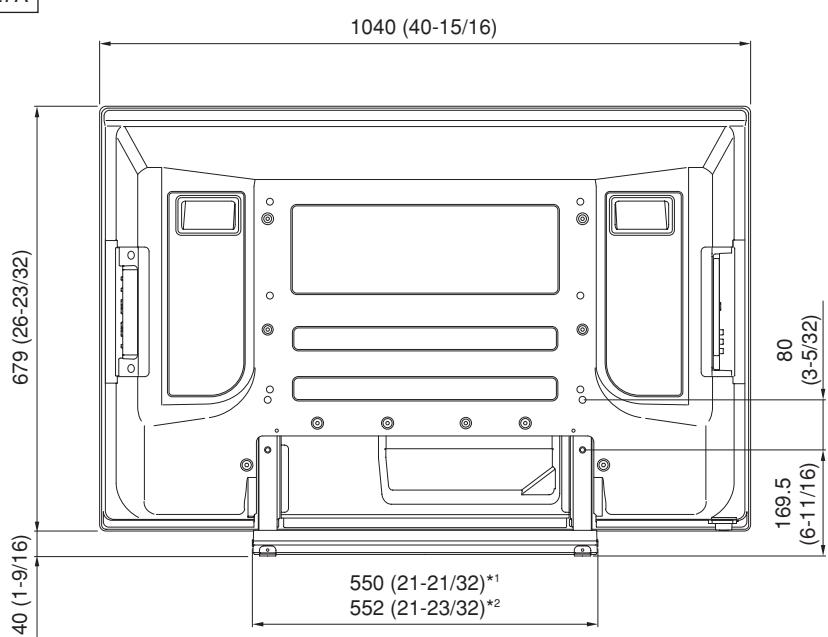

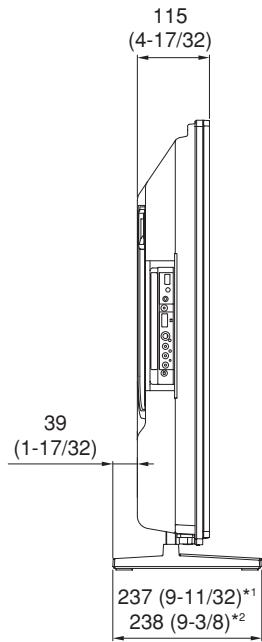

(2-3/4) *1 PDK-TS29 *2 PDK-TS29A 300 (11-13/16)*1 301 (11-27/32)*2 550 (21-21/32)*1 552 (21-23/32)*2 42 inch display model Unit: mm (inch) *1 PDK-TS27 *2 PDK-TS27A

(3-5/32) 679 (26-23/32) 1040 (40-15/16)

(6-11/16) 40 (1-9/16)

(1-17/32) 550 (21-21/32)*1 552 (21-23/32)*2 237 (9-11/32)*1 238 (9-3/8)*2 Published by Pioneer Corporation. Copyright © 2007 Pioneer Corporation. All rights reserved.
