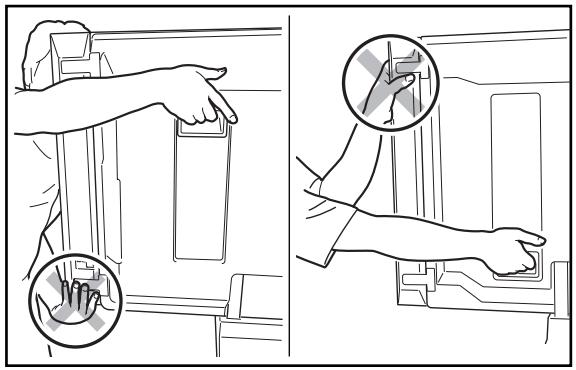

ラックなどに設置する場合 (つづき)

スピーカーは持たないでください。

Diagram illustrating hand positioning and tool application steps in a vehicle or industrial setting, with magnified views highlighting key components.

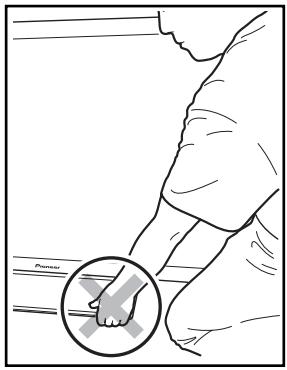

スタンドは持たないでください。

Pension

Thank you for buying Pioneer's product.

Please read through the Operating Instructions to learn how to operate your model safely and properly.

Please be advised to keep the Operating Instructions in your place for future reference.

Installation

• Consult your dealer if you encounter any difficulties with this installation.
• Pioneer is not liable for any damage resulting from improper installation, improper use, modification, or natural disasters.

IMPORTANT NOTICE

Record the model number and serial number of this equipment below.

Model No.

Serial No.

Keep these numbers for future use.

Contents

Cautions 8

Checking the Standard Accessories 9

Assembling the Stand 9

Attaching the Light-blocking Shield

(PDK-TS27A and PDK-TS29A only) 10

Attaching the Plasma Television .... 11

Installing the Product on a Rack etc. 12

Preventing Equipment from Falling Over 13

Specifications 13

Dimensions Diagram 14

CAUTION

This symbol refers to a hazard or unsafe practice which can result in personal injury or property damage.

Cautions

This product is a table top stand exclusively designed for plasma televisions (PDP-5080XA / PDP-5080XD /

PDP-508XD / PDP-508XG / PDP-508XDA / PDP-508ZD / PDP-508ZG / PDP-508ZDA / PDP-SX5080D / PDP-4280XA / PDP-4280XD / PDP-428XD / PDP-428XG / PDP-428XDA / PDP-SX4280D) from Pioneer.

Use with other model is capable of resulting in instability causing possible injury. For further information, please contact the store where you purchased your display.

Do not install or modify the product other than specified. Do not use this stand for a Plasma television other than those designated and do not modify it or use it for other purposes.

Installation Location

• Select a location that is strong enough to support the weight of the stand and the displays.
• Make sure to place it in a level and stable location.
• Do not install it outdoors, at a hot spring, or near a beach.
• Do not install the stand where it may be subjected to vibration or shock.

Assembling and Installation

• Assemble the stand in accordance with the assembly instructions and securely attach all screws at the designated locations.
  There have been cases where unforeseen accidents such as the equipment breaking or falling over occurred after the installation of the display because the stand was not installed as instructed.
• The display must always be installed by two or more people to assure it is installed safely.
• Before installation, turn off the power for the display and peripheral devices then remove the power cord plug from the power outlet.

Prevent accidents caused by the product falling over by taking reliable measures to prevent it from falling over (see Page 13).

■ Plasma Television and Stand Compatibility Table

Plasma Television	Table Top Stand
50 inch under speaker model	PDK-TS28
50 inch side speaker model	PDK-TS29/PDK-TS29A
42 inch model	PDK-TS27/PDK-TS27A

Checking the Standard Accessories

Check to make sure that you have all the standard accessories before assembly and installation.

• Base cover × 1


Isometric line drawing of a rectangular plate with two side slots and a central slot (no text or symbols)

• Stand pipe (L) × 1

• Light-blocking shield × 1 (PDK-TS27A and PDK-TS29A only)

- Screws ① (4 mm × 10 mm: silver) × 4

• Installation screws ③ (M8 × 40 mm: black) × 2 [for 50 inch display model]

  • Installation screws ④ (M8 × 23 mm: black) × 2

• Fall-prevention straps × 2

- Operating instructions (this document) × 1

• Stand pipe

- Installation screws ② (M8 × 60 mm: black) × 2 [for 42 inch display model]

- Screws ⑤ (M4 × 10 mm: black) × 2

PDK-TSE PDK-TRB3A PDK-TRB3A PDK-TRB3A

Assembling the Stand

Assembly Procedure

1 Turn the base cover over so the underside is facing up.
2 Insert the stand pipes into the base cover.

• Insert stand pipe (R) into the side marked "R" and stand pipe (L) into the side marked "L".
• Ensure that the open sides of the stand pipes face inward. Insert the stand pipes, making sure to match them to the raised portion of the base cover.

3 Tighten the screws ① (4 mm × 10 mm: silver) to stabilize the stand pipes.

Note

• Assemble the stand with a soft sheet placed under the base cover. If a sheet is not laid before assembly, the front surface of the base cover may be scratched.
• Please take care when installing stand pipes (L) and (R) to ensure that they are in the correct positions. Mistakenly installing the stand pipes may damage the stand.

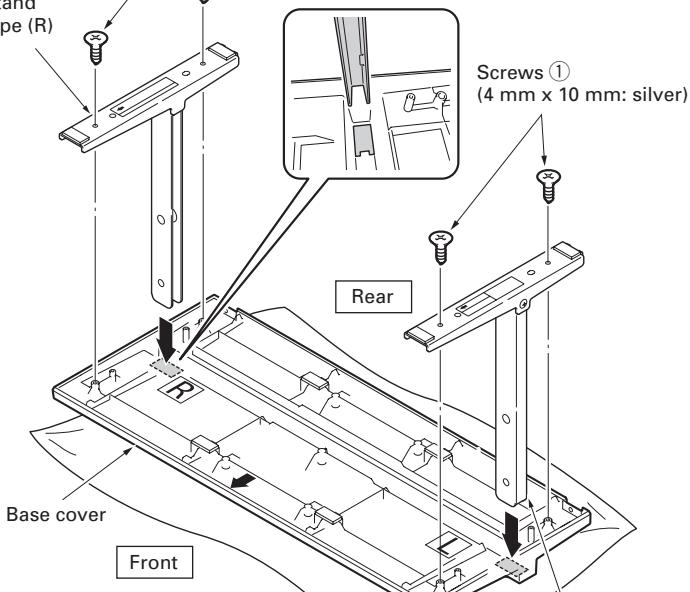

Screws ① (4 mm x 10 mm: silver)
Ensure that the open sides of the stand pipes face inward. Insert the stand pipes, making sure to match them to the raised portion of the base cover.
Stand pipe (R)

and pe (R) Screws ① (4 mm x 10 mm: silver) Rear Base cover Front

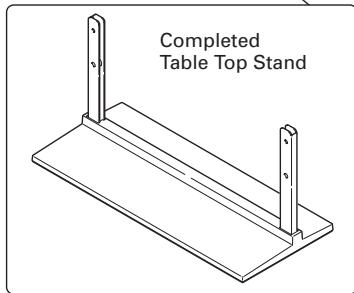

Completed Table Top Stand

Attaching the Light-blocking Shield (PDK-TS27A and PDK-TS29A only)

This part prevents reflection of the cables connected to the back of the plasma television on the base cover.

Note

Attach it after anchoring the base cover on a flat stable place.

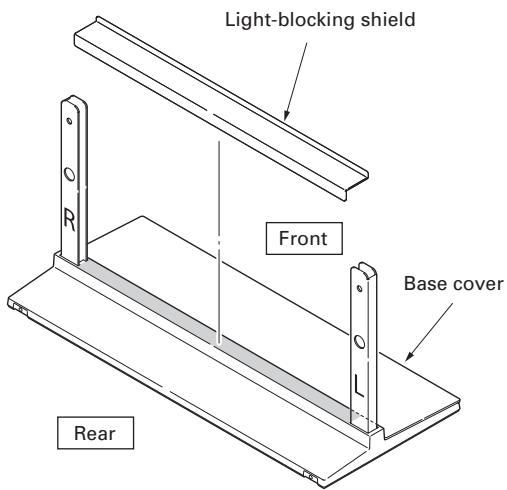

Light-blocking shield Front Base cover Rear

Attachment Procedure

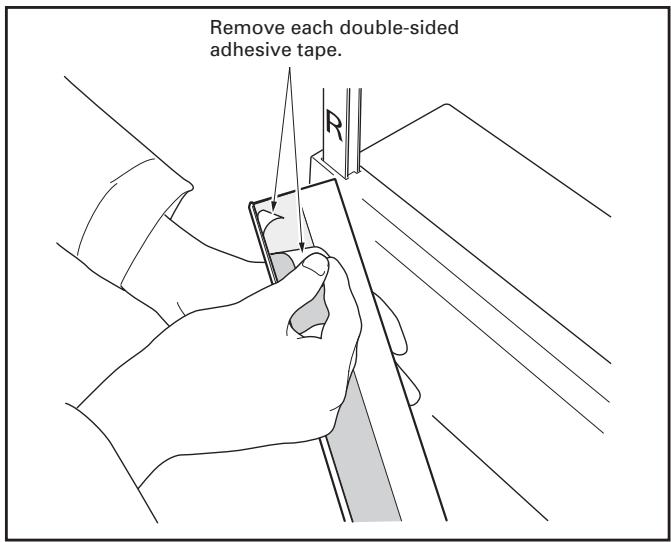

1 Remove the double-sided adhesive tape from the light-blocking shield.

Remove each double-sided adhesive tape.

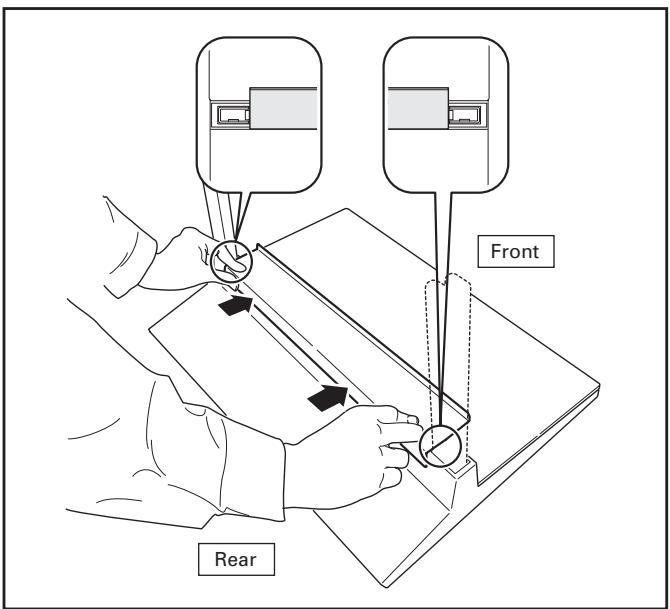

2 While firmly holding the ends of the light-blocking shield, apply it with the double-sided adhesive tape.

Front Rear

Note

• Be careful that the light-blocking shield does not catch on the pipe insertion holes.
• Anchor it in place so that there are no gaps (See diagram at below). If there is a gap, the light-blocking shield may peel off.

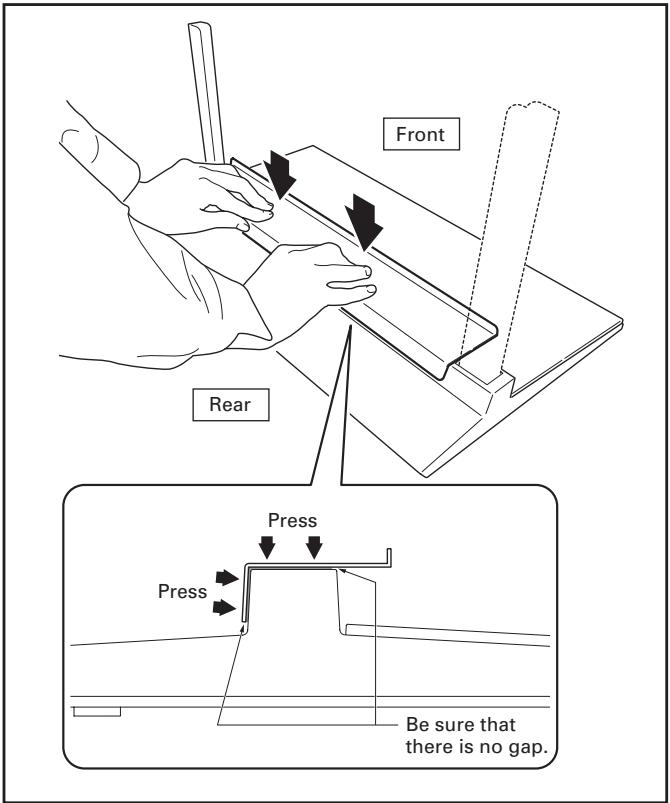

3 Anchor it in place while pressing it down from above.

Front Rear Press Press Be sure that there is no gap.

Attaching the Plasma Television

The weight of a 50 inch model (without speakers) is about 34 kg (74 lbs), that of 42 inch model is about 30 kg (66 lbs), they have no depth, and are unstable. Therefore, at least two people must assemble and install them.

Note

• Be sure to install it on a flat stable location.
• Insert the screws in the holes vertically and do not tighten them with more force than necessary.
• Place a sheet or other material under the display to prevent scratches or damage to it.
• After manually turning the screw lightly two or three times, tighten it with a screw-driver.

1 Attaching the plasma television to the stand.

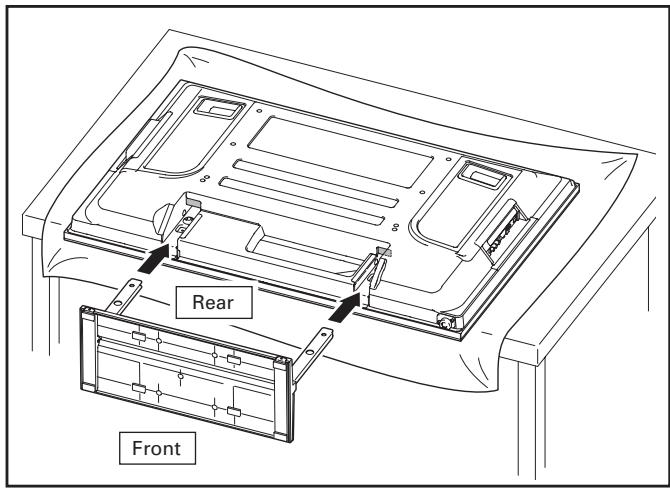

Lay the plasma television down flat. Align the stand supports with the plasma television stand slots, and slowly insert the supports horizontally.

Please ensure that the stand supports do not come into contact with anything other than the plasma television stand slots. Contact with any other area may result in scratching or deformation of the display's rear side or terminals.

Rear Front

Note

When laying down the plasma television, be careful so as to not scratch or damage it.

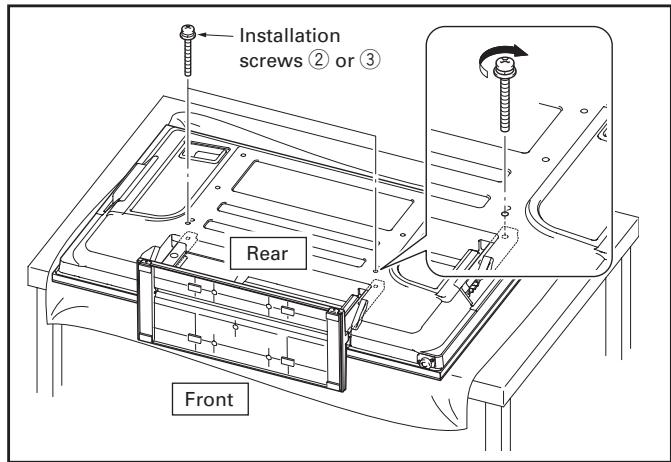

2 Securing the plasma television with Installation screws ② (M8 × 60 mm: black) or ③ (M8 × 40 mm: black).

Secure the parts marked with the arrows (holes marked "T") using a Phillips screwdriver.

[42 inch display model]

PDK-TS27/PDK-TS27A

...... Installation screw ② (M8 × 60 mm: black)

[50 inch display model]

PDK-TS28/PDK-TS29/PDK-TS29A

...... Installation screw ③ (M8 × 40 mm: black)

Installation screws ② or ③ Rear Front

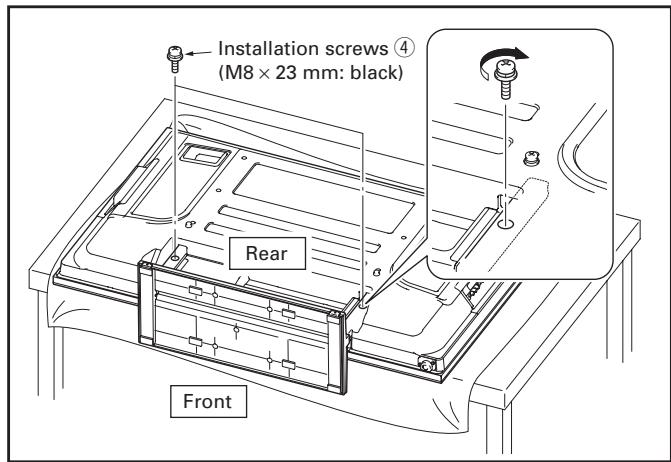

3 Securing the plasma television with Installation screws ④ (M8 × 23 mm: black).

Please tighten the screws with a Phillips screwdriver.

Installation screws ④ (M8 × 23 mm: black) Rear Front

Note

Please stand the plasma television upright after installing the stand.

Installing the Product on a Rack etc.

Caution

• When installing on a rack etc., please be sure that the plasma television is held by two or more people.
• Please do not hold the plasma television by the speakers or stand. Doing so may damage the product.

Hold the plasma television by its handles and from the bottom.

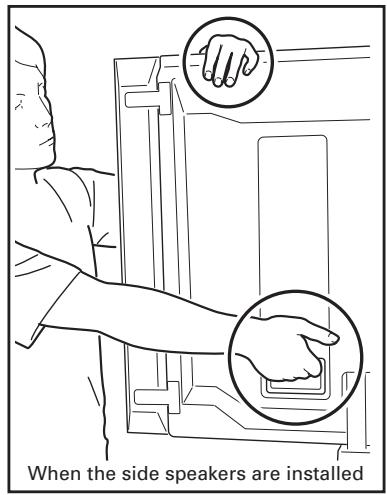

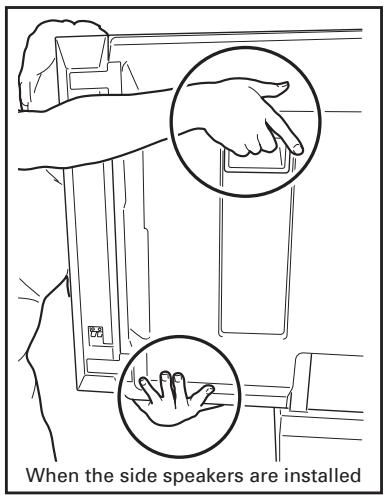

When the side speakers are installed

Hold the plasma television by its handles and from the top.

When the side speakers are installed

Hold the plasma television by its handles and from the sides.

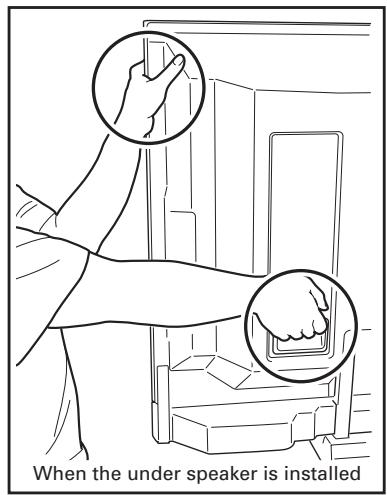

When the under speaker is installed

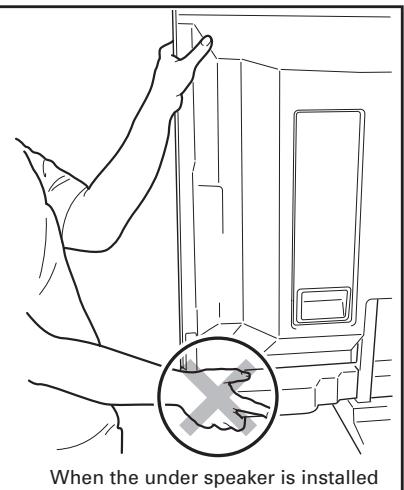

Do not hold the plasma television by the speakers.

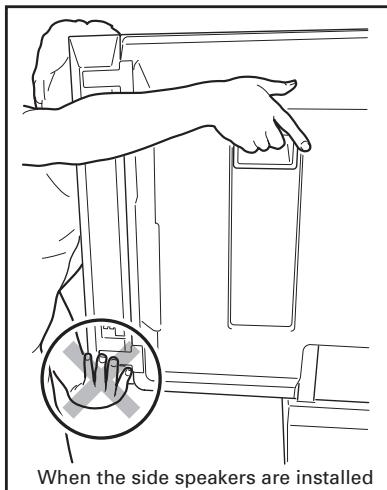

When the side speakers are installed

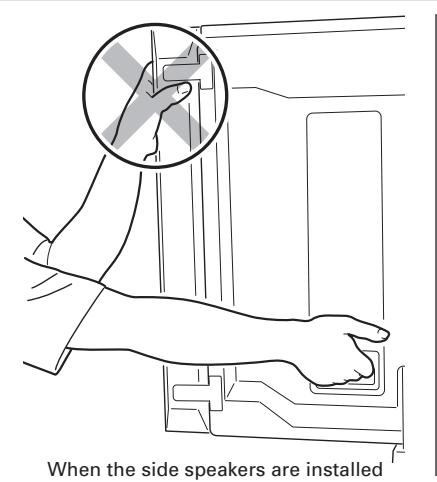

When the side speakers are installed

When the under speaker is installed

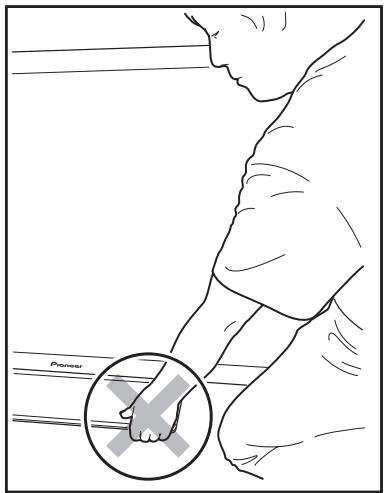

Do not hold the plasma television by the stand.

Pioneer

Preventing Equipment from Falling Over

● After installing the stand, be sure to take special care to ensure that the equipment will not fall over.

- Secure the plasma television to both the rack and the wall surface.

Stabilizing on a rack etc.

Fix the plasma television using the screws ⑤ (M4 × 10 mm: black) and fall-prevention straps as shown in the diagram. Fix the racks etc. using screws for sale on the market.

Note

To stabilize the equipment on a table, use screws that have a nominal diameter of 4 mm (5/32 inch) and that are at least 20 mm (13/16 inch) long.

8 mm to 15 mm (3/8 inch to 5/8 inch) 4 mm (5/32 inch) Min. 20 mm (13/16 inch)

Screw ⑤ (M4 x 10 mm: black) Screw (commercially available) Fall-prevention strap Make a pilot hole in the rack's top board (center of the board's thickness), and fix the strap with a store-bought screw.

Using a wall for stabilization

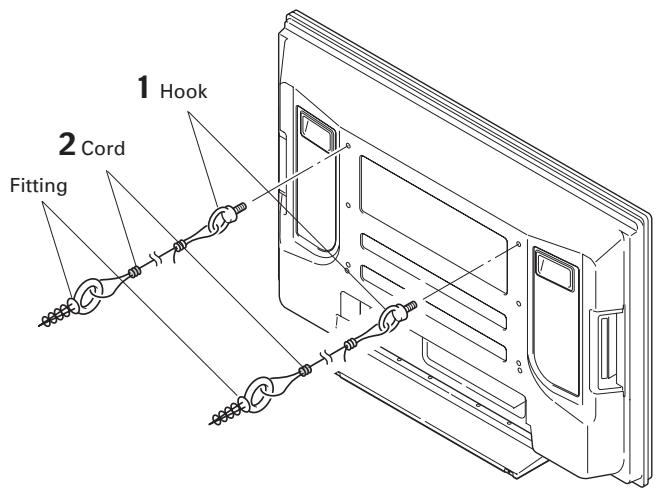

1 Attaching falling prevention bolts (hooks) to the plasma television.
2 Using strong cords to firmly stabilize it appropriately and firmly to a wall, pillar, or other sturdy element.

Perform this work in the same way on the left and right sides.

Note

Use hooks, cords, and fittings that are available on the market.

Recommended hook:

Nominal diameter M8

Length 12 mm to 15 mm (1/2 inch to 5/8 inch)

1 Hook 2 Cord Fitting

Specifications

External dimensions:

PDK-TS27 .... 550 mm (W) × 276 mm (H) × 237 mm (D) (21-21/32 in. (W) × 10-7/8 in. (H) × 9-11/32 in. (D))
PDK-TS27A .... 552 mm (W) × 276 mm (H) × 238 mm (D) (21-23/32 in. (W) × 10-7/8 in. (H) × 9-3/8 in. (D))
PDK-TS28.... 550 mm (W) × 385.5 mm (H) × 300 mm (D) (21-21/32 in. (W) × 15-3/16 in. (H) × 11-13/16 in. (D))
PDK-TS29 .... 550 mm (W) × 323 mm (H) × 300 mm (D) (21-21/32 in. (W) × 12-23/32 in. (H) × 11-13/16 in. (D))
PDK-TS29A .... 552 mm (W) × 323 mm (H) × 301 mm (D) (21-23/32 in. (W) × 12-23/32 in. (H) × 11-27/32 in. (D))

Weight:

PDK-TS27 1.6 kg (3.6 lbs)
PDK-TS27A .... 1.9 kg (4.2 lbs)
PDK-TS28 2.2 kg (4.9 lbs)
PDK-TS29 2.1 kg (4.7 lbs)
PDK-TS29A 2.5 kg (5.6 lbs)

- The above specifications and exterior may be modified without prior notice to improve the product.

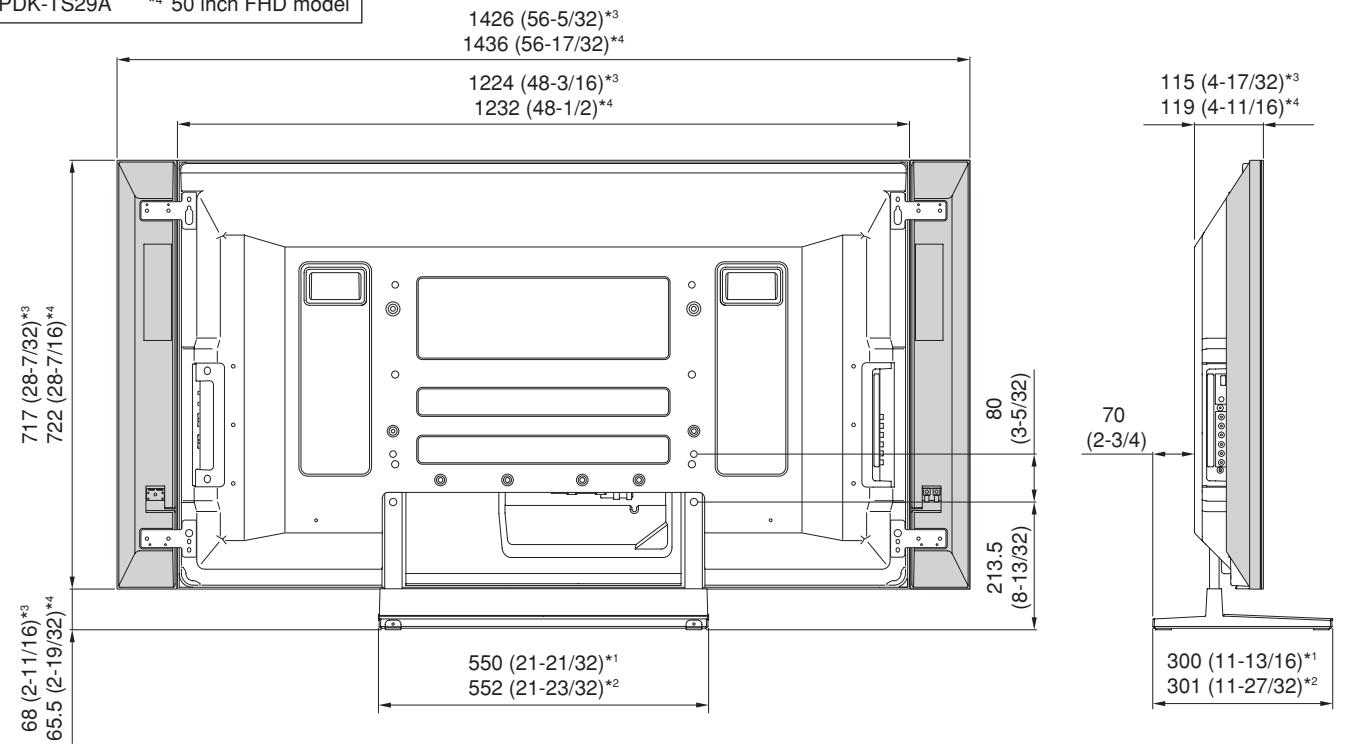

When the side speakers are installed (50 inch display model)

Unit: mm (inch)

DK-1S29A * 50 inch FHD model 1426 (56-5/32)*3 1436 (56-17/32)*4 1224 (48-3/16)*3 1232 (48-1/2)*4 717 (28-7/32)*3 722 (28-7/16)*4 80 (3-5/32) 213.5 (8-13/32) 68 (2-11/16)*3 65.5 (2-19/32)*4 550 (21-21/32)*1 552 (21-23/32)*2 115 (4-17/32)*3 119 (4-11/16)*4 70 (2-3/4) 300 (11-13/16)*1 301 (11-27/32)*2

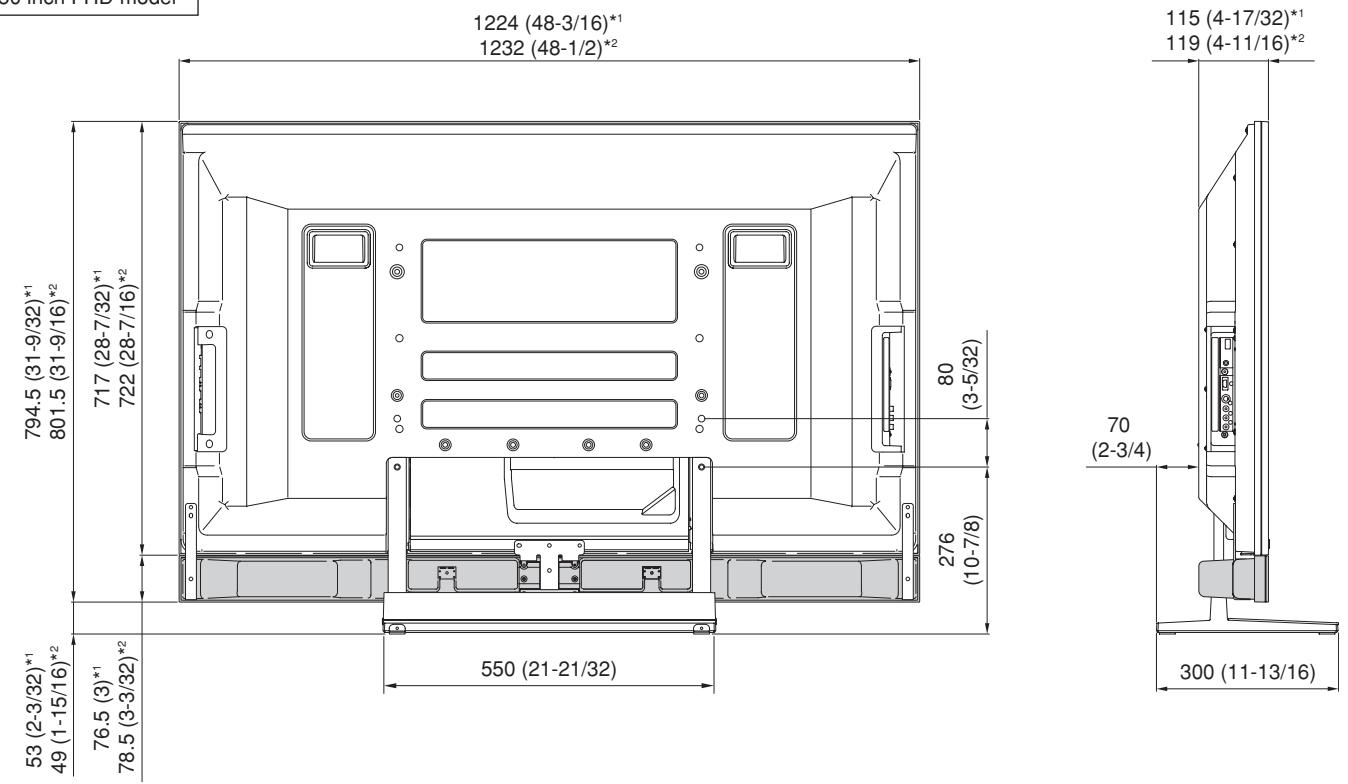

When the under speaker is installed (50 inch display model)

Unit: mm (inch)

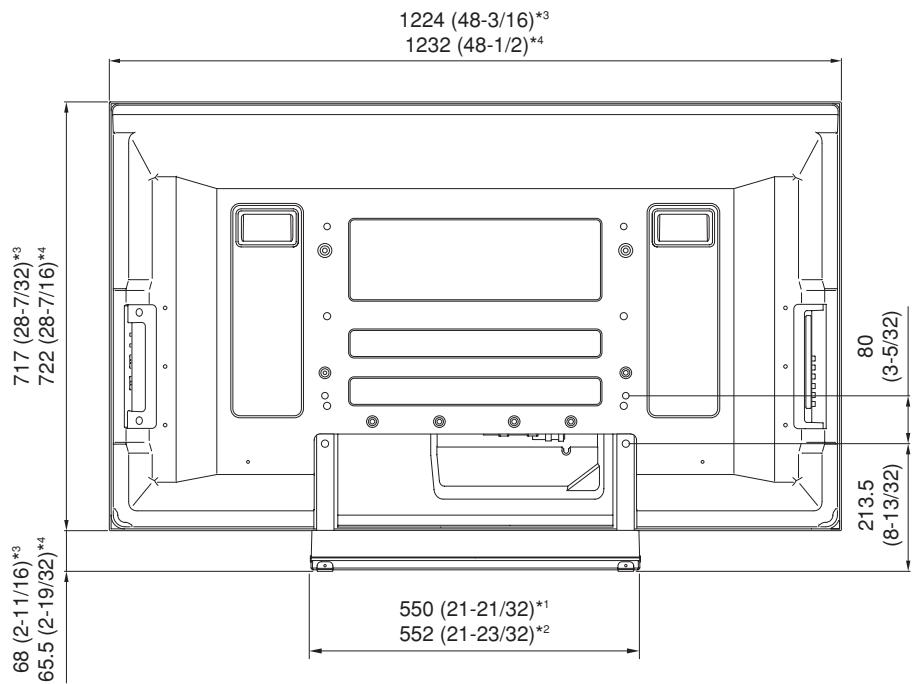

Without speakers (50 inch display model)

Unit: mm (inch)

*1 PDK-TS29 *3 50 inch XGA model
*2 PDK-TS29A *4 50 inch FHD model

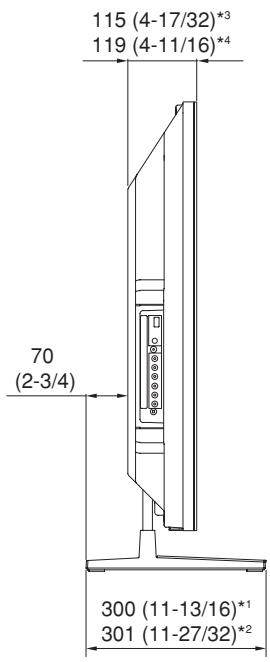

1224 (48-3/16)*3 1232 (48-1/2)*4 717 (28-7/32)*3 722 (28-7/16)*4 80 (3-5/32) 213.5 (8-13/32) 68 (2-11/16)*3 65.5 (2-19/32)*4 550 (21-21/32)*1 552 (21-23/32)*2

115 (4-17/32)*3 119 (4-11/16)*4 70 (2-3/4) 300 (11-13/16)*1 301 (11-27/32)*2

42 inch display model

Unit: mm (inch)

*1 PDK-TS27
*2 PDK-TS27A

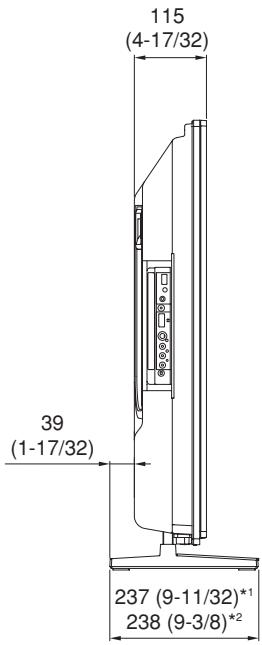

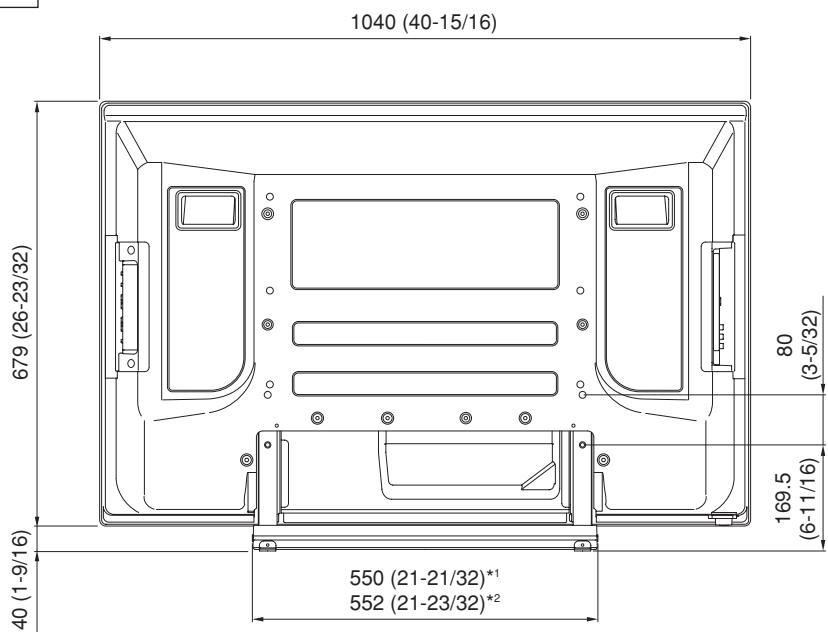

1040 (40-15/16) 679 (26-23/32) 80 (3-5/32) 169.5 (6-11/16) 40 (1-9/16) 550 (21-21/32)*¹ 552 (21-23/32)*²

115 (4-17/32) 39 (1-17/32) 237 (9-11/32)*¹ 238 (9-3/8)*²

Published by Pioneer Corporation. Copyright © 2007 Pioneer Corporation. All rights reserved.

Isometric line drawing of a rectangular metal plate with two side slots (no text or symbols)

PDK-TSEY PDK-TSEB PDK-TSEA PDK-TSEB PDK-TSEA

Retirez le ruban adhésif double face.

PDK-TS28/PDK-TS29/PDK-TS29A

Publication de Pioneer Corporation.

© 2007 Pioneer Corporation.

Isometric line drawing of a rectangular metal plate with two side notches (no text or symbols)

Isometric line drawing of a rectangular plate with two side slots and a central slot (no text or symbols)

Technical line drawing of two metal frame structures with mounting holes (no text or symbols)

PDK-TS28/PDK-TS29/PDK-TS29A

Isometric line drawing of a rectangular plate with two side slots and a central slot (no text or symbols)

• Opzetstuk (L: links) × 1
• Lichtafschermkap × 1 (alleen PDK-TS27A en PDK-TS29A)

- Schroeven ① (4 mm × 10 mm: zilver) × 4

Technical line drawing of two metal bracket components (no text or symbols)

• Opzetstuk (R: rechts) × 1

- Montageschroeven ② (M8 × 60 mm: zwart) × 2 [voor 42-inch displaymodel]

• Schroeven ⑤ (M4 × 10 mm : zwart) × 2


PDK-TSEY PDK-TSEY A PDK-TSEY A PDK-TSEY A

Montage van de tafelbladstaander

Wijze van montage

PDK-TS28/PDK-TS29/PDK-TS29A

Montageschroeven ③ (M8 × 40 mm: zwart)

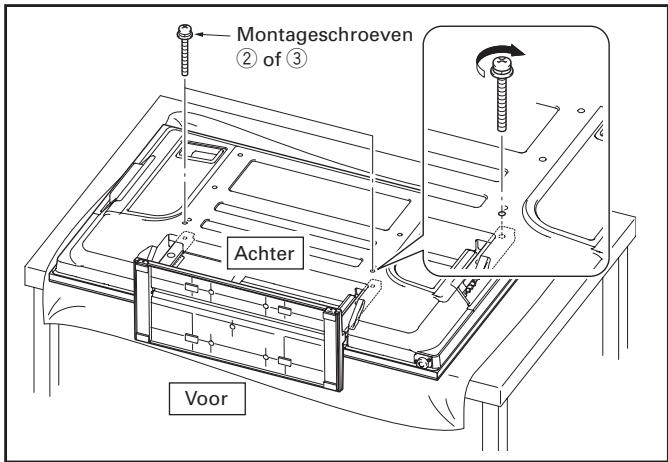

Montageschroeven ② of ③ Achter Voor

Isometric line drawing of a rectangular metal plate with two side notches (no text or symbols)

Technical line drawing of two metal bracket components with mounting holes (no text or symbols)

PDK-TSEY PDK-TSEY A PDK-TSEY B PDK-TSEY A PDK-TSEY B

PDK-TS28/PDK-TS29/PDK-TS29A

Isometric line drawing of a rectangular metal plate with two side slots (no text or symbols)

PDK-TS28/PDK-TS29/PDK-TS29A

AFTER-SALES SERVICE FOR PIONEER PRODUCTS

Please contact the dealer or distributor from where you purchased the product for its after-sales service (including warranty conditions) or any other information. In case the necessary information is not available, please contact the Pioneer's subsidiaries (regional service headquarters) listed below:

PLEASE DO NOT SHIP YOUR PRODUCT TO THE COMPANIES at the addresses listed below for repair without advance contact, for these companies are not repair locations.

AMERICA

PIONEER ELECTRONICS (USA) INC.

CUSTOMER SUPPORT DIVISION

P.O. BOX 1760, LONG BEACH, CA 90801-1760, U.S.A.

CUSTOMER SERVICE HOTLINE : [phone]

EUROPE

PIONEER EUROPE NV

EUROPEAN SERVICE DIVISION

HAVEN 1087, KEETBERGLAAN 1, B-9120 MELSELE, BELGIUM

ASEAN

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

SERVICE DEPARTMENT

253, ALEXANDRA ROAD #04-01 SINGAPORE 159936

JAPAN AND OTHERS

PIONEER CORPORATION (HEAD OFFICE)

CUSTOMER SUPPORT CENTER

Printed on recycled paper.

Published by Pioneer Corporation.

Copyright © 2007 Pioneer Corporation.

All rights reserved.

Publication de Pioneer Corporation.

© 2007 Pioneer Corporation.

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

300 Allstate Parkway, Markham, Ontario L3R 0P2, Canada TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico,D.F. 11000 TEL: [phone]
