USER MANUAL BT 130 JABRA

© 2004 GN Netcom A/S. All rights reserved. Jabra is a registered trademark, wholly owned by GN Netcom Inc., and MiniGels is a trademark of GN Netcom Inc. in the USA, and these trademarks may be registered in other countries. US and foreign patents pending. Design and specifications subject to change without notice. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by the companies in the GN Netcom Group is under license.

EMEA Customer Contact Details:

Phone Numbers: Belgique/Belgie

UK and Northern Ireland 08000327026

PART NUMBER 81-00134

support.de@jabra.com

support.uk@jabra.com

support.fr@jabra.com

support.it@jabra.com

support.nl@jabra.com

support.no@jabra.com

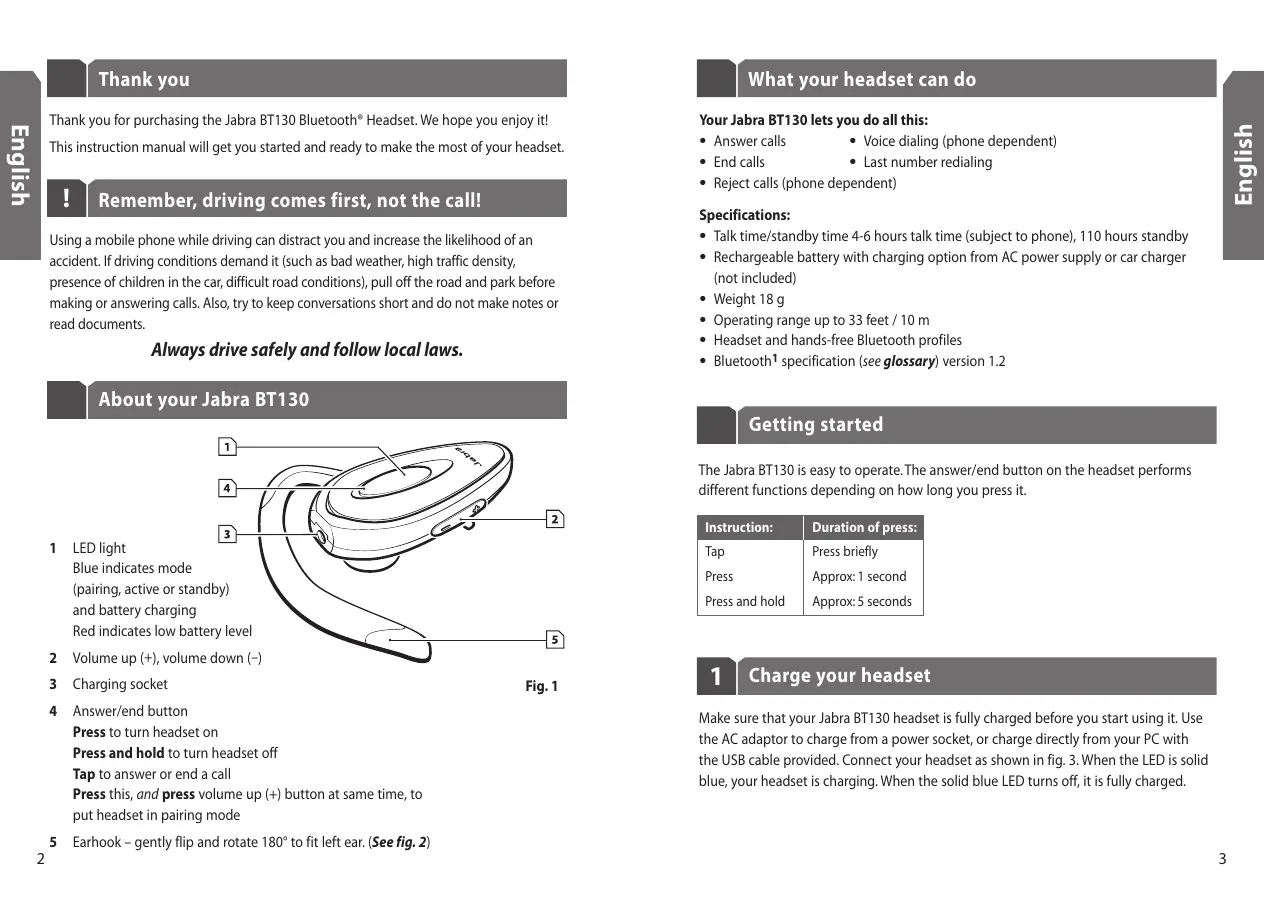

What your headset can do

This instruction manual will get you started and ready to make the most of your headset.

Remember, driving comes first, not the call!

Using a mobile phone while driving can distract you and increase the likelihood of an accident. If driving conditions demand it (such as bad weather, high traffic density, presence of children in the car, difficult road conditions), pull off the road and park before making or answering calls. Also, try to keep conversations short and do not make notes or read documents.

Always drive safely and follow local laws.

Your Jabra BT130 lets you do all this:

Answer calls Voice dialing (phone dependent) End calls Last number redialing Reject calls (phone dependent)

Thank you for purchasing the Jabra BT130 Bluetooth® Headset. We hope you enjoy it!

Talk time/standby time 4-6 hours talk time (subject to phone), 110 hours standby Rechargeable battery with charging option from AC power supply or car charger (not included) Weight 18 g Operating range up to 33 feet / 10 m Headset and hands-free Bluetooth profiles Bluetooth1 specification (see glossary) version 1.2

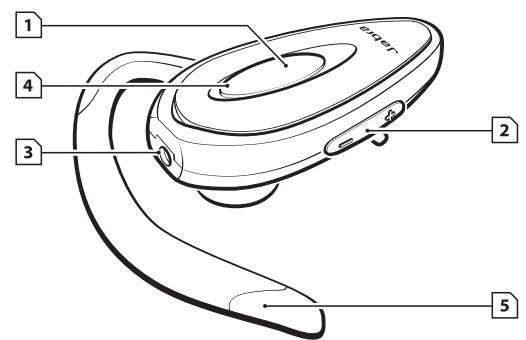

About your Jabra BT130

Getting started The Jabra BT130 is easy to operate. The answer/end button on the headset performs different functions depending on how long you press it.

Blue indicates mode (pairing, active or standby) and battery charging Red indicates low battery level

Volume up (+), volume down (–)

Press to turn headset on Press and hold to turn headset off Tap to answer or end a call Press this, and press volume up (+) button at same time, to put headset in pairing mode

Earhook – gently flip and rotate 180° to fit left ear. (See fig. 2)

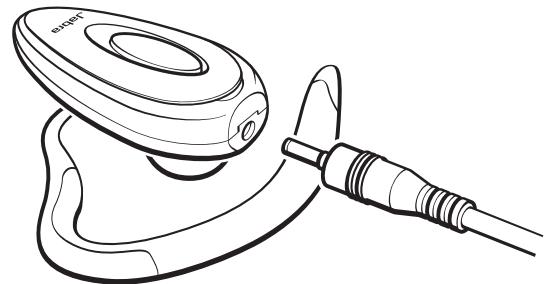

Make sure that your Jabra BT130 headset is fully charged before you start using it. Use the AC adaptor to charge from a power socket, or charge directly from your PC with the USB cable provided. Connect your headset as shown in fig. 3. When the LED is solid blue, your headset is charging. When the solid blue LED turns off, it is fully charged.

Press the answer/end button to turn on your headset

Press and hold the answer/end button to turn off your headset

Pair it with your phone

Before you use your Jabra BT130, you need to pair it with your mobile phone.

1. Put the headset in pairing2 mode Make sure that the headset is on. Press the answer/end button and press the volume up (+) button at the same time, until a solid blue light comes on. 2. Set your Bluetooth phone to ‘discover’ the Jabra BT130 Follow your phone’s instruction guide. This usually involves going to a ‘setup,’ ‘connect’ or ‘Bluetooth’ menu on your phone and selecting the option to ‘discover’ or ‘add’ a Bluetooth device.* (See example from a typical mobile phone in fig. 4)

Tap the answer/end button to end an active call

Reject a call (Dependent on your phone supporting this feature)

Press the answer/end button when the phone rings to reject an incoming call. Depending on your phone settings, the person who called you will either be forwarded to your voice mail or hear a busy signal

When you make a call from your mobile phone, the call will (subject to phone settings) automatically transfer to your headset

Activate voice dialing (Dependent on your phone supporting this feature)

Tap the answer/end button. For best results, record the voice-dialing tag through your headset. Please consult your phone’s user manual for more information about using this feature

Your phone will confirm when pairing is complete. In case of unsuccessful pairing, repeat steps 1 to 3.

Wear it how you like it

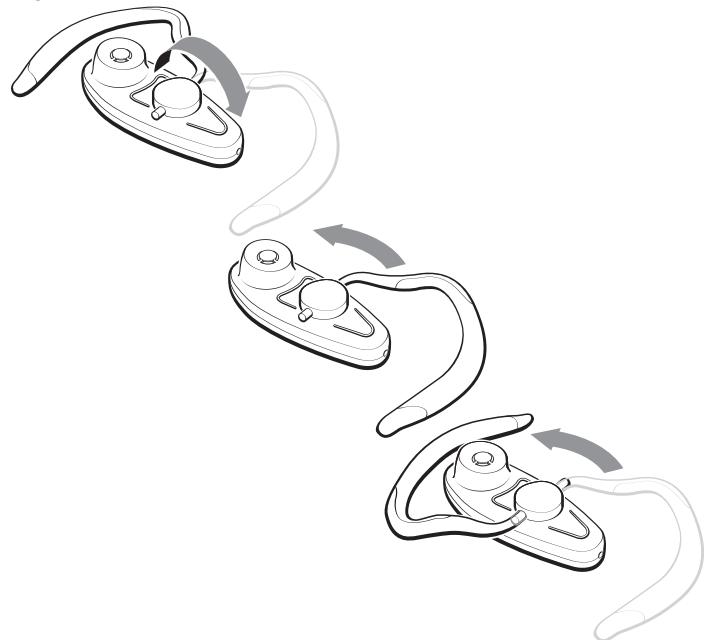

The Jabra BT130 is ready to wear on your right ear. If you prefer the left, gently flip and rotate the earhook 180°. (See fig. 2)

For optimal performance, wear the Jabra BT130 and your mobile phone on the same side of your body or within line of sight. In general, you will get better performance when there are no obstructions between your headset and your mobile phone. Fun with colour – changing your cover plate Remove current plate by pulling from thumbnail slot at top Push new cover plate into place (See fig. 5)

Tap the answer/end button on your headset to answer a call

3. Your phone will find the Jabra BT130

Your phone then asks if you want to pair with it. Accept by pressing ‘Yes’ or ‘OK’ on the phone and confirm with the passkey or PIN3 = 0000 (4 zeros).

Turn on your headset

Redial last number (Dependent on your phone supporting this feature)

Press the answer/end button Adjust sound and volume Press the volume up or down (+ or –) to adjust the volume (See fig. 1)

What the lights mean

What this means about your headset

Flashing blue light Flashing red light Solid blue light Solid blue light off Solid blue light

Flashing every second: active on a call

Flashing every three seconds: in standby mode4 Running low on battery Charging Fully charged In pairing mode – (See section 3)

Using a Jabra Bluetooth adaptor

If you want to use the Jabra BT130 with a non Bluetooth mobile phone, the Jabra A210 adaptor is the answer.

It gives you a cordless connection with the following headset features: answer/end call and voice dial function (if supported by the phone). Rejecting a call and last number redial might not be supported through the headset jack in the mobile phone.

I cannot use Reject call, Call on hold, Redial or Voice dialling

These functions are dependent on your phone supporting them. Please check your phone’s manual for further details. Will the Jabra BT130 work with other Bluetooth equipment? The Jabra BT130 is designed to work with Bluetooth mobile phones. It can also work with other Bluetooth devices that are compliant with Bluetooth version 1.1 or 1.2 and support a headset and/or hands-free profile.

To pair the Jabra BT130 with the Jabra A210

The pairing process is a little different:

Put your Jabra BT130 in pairing mode

Put the Jabra A210 adaptor in pairing mode Place them close together. You do not need a dedicated pin code to pair the two Jabra products. Consult the Jabra A210 user manual for more information

Making/answering a call when using the Jabra A210

When you make a call from your mobile phone, the call will automatically transfer to the headset (if it is turned on)

To answer a call: either tap the answer/end button on your headset or press the answer button on your mobile phone

I hear crackling noises

For the best audio quality, always wear your headset on the same side of the body as your mobile phone. I cannot hear anything in my headset Increase the volume on the headset

Ensure that the headset is paired with the phone

Make sure that the phone is connected to the headset – if it does not connect either from the phone’s Bluetooth menu or by tapping the answer/end button, follow the pairing procedure (See section 3)

I have pairing problems even though my phone indicates otherwise

You may have deleted your headset pairing connection in your mobile phone. Follow the pairing instructions in section 3.

Web: www.jabra.com (for the latest support info and online User Manuals)

See the inside cover for details of customer support

Taking care of your headset

1. Always store the Jabra BT130 with power off and safely protected.

2. Avoid storage at high temperatures (above 60°C / 134°F) – such as in a hot vehicle or in direct sunlight. (Storage at high temperatures can degrade performance and reduce battery life). 3. Do not expose the headset or any of its supplied parts to rain or other liquids.

Jabra (GN Netcom) warrants this product against all defects in material and workmanship for a period of two years from the date of original purchase. The conditions of this warranty and our responsibilities under this warranty are as follows:

The warranty is limited to the original purchaser

The warranty is void if the serial number, date code label or product label is removed, or if the product has been subject to physical abuse, improper installation, modification, or repair by unauthorized third parties

A copy of your receipt or other proof of purchase is required. Without proof of purchase, your warranty is defined as beginning on the date of manufacture as labelled on the product

The responsibility of Jabra (GN Netcom) products shall be limited to the repair or replacement of the product at its sole discretion

Any implied warranty on Jabra (GN Netcom) products is limited to two years from the date of purchase on all parts, including any cords and connectors

Specifically exempt from any warranty are limited-life consumable components subject to normal wear and tear, such as microphone windscreens, ear cushions, decorative finishes, batteries, and other accessories

Jabra (GN Netcom) is not liable for any incidental or consequential damages arising from the use or misuse of any Jabra (GN Netcom) product

This warranty gives you specific rights and you may have other rights which vary from area to area

Unless otherwise instructed in the User Manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on this unit, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work

Jabra (GN Netcom) will not assume any responsibility for any loss or damage incurred in shipping. Any repair work on Jabra (GN Netcom) products by unauthorized third parties voids any warranty

Certification and safety approvals

This product is CE marked according to the provisions of the R & TTE Directive

The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by GN Netcom is under license. Other trademarks and trade names are those of their respective owners.

1 Bluetooth: is a radio technology that connects devices, such as mobile phones and

headsets, without wires or cords over a short distance (approx. 30 feet). Get more information at www.bluetooth.com

Bluetooth profiles are the different ways that Bluetooth devices communicate with other devices. Bluetooth phones support either the headset profile, the hands-free profile or both. In order to support a certain profile, a phone manufacturer must implement certain mandatory features within the phone’s software. 2 Pairing: creates a unique and encrypted link between two Bluetooth devices and

lets them communicate with each other. Bluetooth devices will not work if the devices have not been paired.

3 Passkey or PIN: is a code that you enter on your mobile phone to pair it with your

Jabra BT130. This makes your phone and the Jabra BT130 recognize each other and automatically work together.

4 Standby mode: is when the Jabra BT130 is passively waiting for a call. When you

‘end’ a call on your mobile phone, the headset goes into standby mode.

Hereby, GN Netcom, declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

For further information please consult http://www.gnnetcom.com Please note that this product uses radio frequency bands not harmonised within EU. Within the EU this product is intended to be used in Austria, Belgium, Denmark, Finland, France, Germany, Greece, Ireland. Italy, Luxembourg, The Netherlands, Portugal, Spain, Sweden, United Kingdom and within EFTA in Iceland, Norway and Switzerland. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by Jabra (GN Netcom) will void the user’s authority to operate the equipment.
