USER MANUAL AF-S NIKKOR 28-300MM F-3.5-5.6G ED VR NIKON
User's Manual Pg. 12
Touching the internal parts of the camera or lens could result in injury. Repairs should be performed only by qualified technicians. Should the camera or lens break open as the result of a fall or other accident, take the product to a Nikon-authorized service representative for inspection after unplugging the product and/or removing the battery.
Turn off immediately in the event of malfunction
Should you notice smoke or an unusual smell coming from the camera or lens, remove the battery immediately, taking care to avoid burns. Continued operation could result in injury. After removing or disconnecting the power source, take the product to a Nikon-authorized service representative for inspection.
Do not use the camera or lens in the presence of flammable gas
Operating electronic equipment in the presence of flammable gas could result in an explosion or fire.
Do not look at the sun through the lens or viewfinder
Viewing the sun or other strong light sources through the lens or viewfinder could cause permanent visual impairment.
Keep out of reach of children
Particular care should be taken to prevent infants from putting the batteries or other small parts into their mouths.
Observe the following precautions when handling the camera and lens
- Keep the camera and lens unit dry. Failure to do so could result in fire or electric shock.
- Do not handle or touch the camera or lens unit with wet hands. Failure to do so could result in electric shock.
- When shooting with back-lighting, do not point the lens at the sun or allow sunlight to pass directly down the lens as this may cause the camera to overheat and possibly cause a fire.
- When the lens will not be used for an extended period of time, attach both front and rear lens caps and store the lens away from direct sunlight. Failure to do so could result in a fire, as the lens may focus sunlight onto a flammable object.

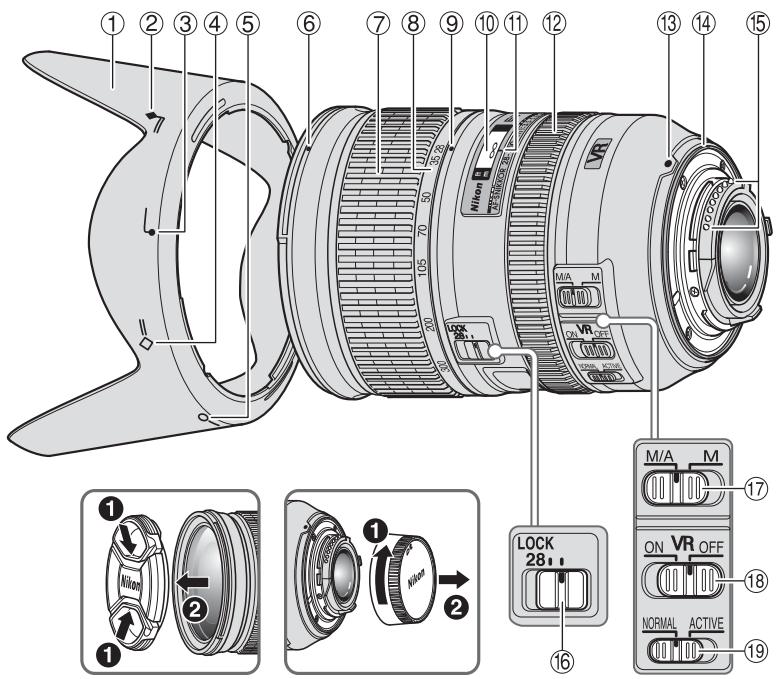

■ Nomenclature
En
① Lens hood (pg. 18)
② Lens hood attachment index (when storing) (pg. 18)
③ Lens hood attachment index (pg. 18)
(4) Lens hood setting index (when storing) (pg. 18)
⑤ Lens hood setting index (pg. 18)
(6) Lens hood mounting index (pg. 18)
⑦ Zoom ring (pg. 15)
(8) Focal length scale
⑨ Focal length scale index
10 Distance scale (pg. 15)
① Distance index line
12 Focus ring (pg. 16)
13 Mounting index
Lens mount rubber gasket (pg. 20)
⑤ CPU contacts (pg. 20)
⑮ Zoom lock (pg. 15)
1 Focus mode switch (pg. 16)
⑧ Vibration reduction ON/OFF switch (pg. 16)
19 Vibration reduction mode switch (pg. 17)
): reference page

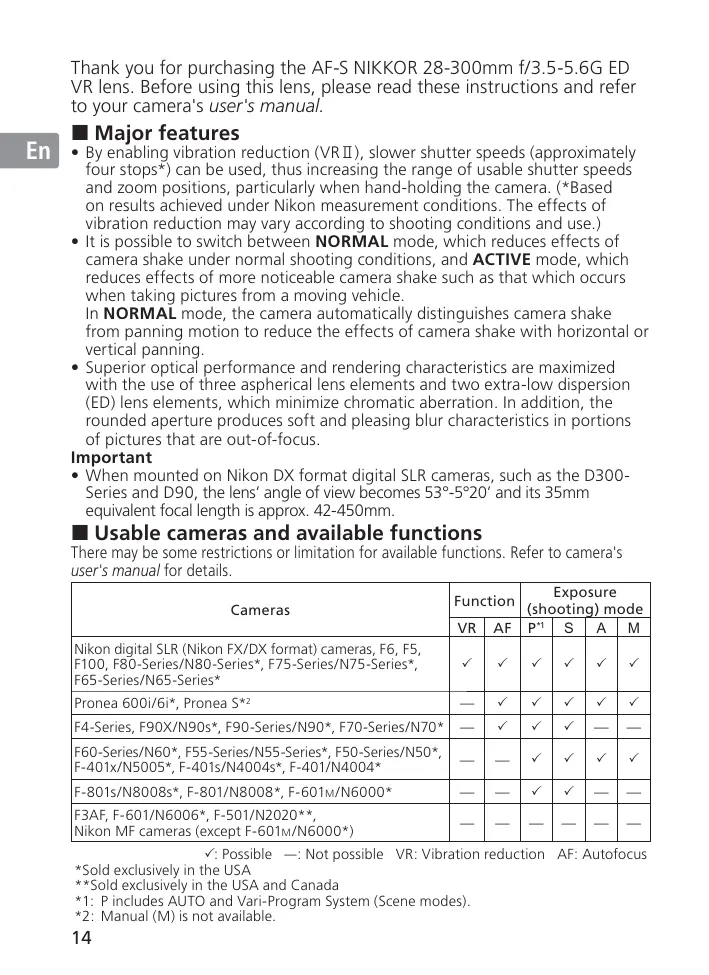

Thank you for purchasing the AF-S NIKKOR 28-300mm f/3.5-5.6G ED VR lens. Before using this lens, please read these instructions and refer to your camera's user's manual.
Major features
- By enabling vibration reduction (VR II), slower shutter speeds (approximately four stops) can be used, thus increasing the range of usable shutter speeds and zoom positions, particularly when hand-holding the camera. (Based on results achieved under Nikon measurement conditions. The effects of vibration reduction may vary according to shooting conditions and use.)
- It is possible to switch between NORMAL mode, which reduces effects of camera shake under normal shooting conditions, and ACTIVE mode, which reduces effects of more noticeable camera shake such as that which occurs when taking pictures from a moving vehicle.
In NORMAL mode, the camera automatically distinguishes camera shake from panning motion to reduce the effects of camera shake with horizontal or vertical panning.
- Superior optical performance and rendering characteristics are maximized with the use of three aspherical lens elements and two extra-low dispersion (ED) lens elements, which minimize chromatic aberration. In addition, the rounded aperture produces soft and pleasing blur characteristics in portions of pictures that are out-of-focus.
Important
- When mounted on Nikon DX format digital SLR cameras, such as the D300-Series and D90, the lens' angle of view becomes 53^ - 5^20' and its 35mm equivalent focal length is approx. 42 - 450mm .
■ Usable cameras and available functions
There may be some restrictions or limitation for available functions. Refer to camera's user's manual for details.
| Cameras | Function | Exposure (shooting) mode | ||||
| VR | AF | P*1 | S | A | M | |
| Nikon digital SLR (Nikon FX/DX format) cameras, F6, F5, F100, F80-Series/N80-Series*, F75-Series/N75-Series*, F65-Series/N65-Series* | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Pronea 600i/6i*, Pronea S*2 | — | ✓ | ✓ | ✓ | ✓ | ✓ |
| F4-Series, F90X/N90s*, F90-Series/N90*, F70-Series/N70* | — | ✓ | ✓ | ✓ | — | — |
| F60-Series/N60*, F55-Series/N55-Series*, F50-Series/N50*, F-401x/N5005*, F-401s/N4004s*, F-401/N4004* | — | — | ✓ | ✓ | ✓ | ✓ |
| F-801s/N8008s*, F-801/N8008*, F-601M/N6000* | — | — | ✓ | ✓ | — | — |
| F3AF, F-601/N6006*, F-501/N2020**, Nikon MF cameras (except F-601M/N6000*) | — | — | — | — | — | — |
Possible —: Not possible VR: Vibration reduction AF: Autofocus
Sold exclusively in the USA
Sold exclusively in the USA and Canada
1: P includes AUTO and Vari-Program System (Scene modes).
*2: Manual (M) is not available.
Focusing, zooming, and depth of field
Before focusing, rotate the zoom ring to adjust the focal length until the desired composition is framed. If your camera has a depth-of-field preview (stop-down) button or lever, depth of field can be previewed through the camera viewfinder.
- This lens is equipped with the Internal Focusing (IF) system. As the shooting distance decreases, the focal length also decreases.
- The distance scale does not indicate the precise distance between the subject and the camera. Values are approximate and should be used only as a general guide. When shooting distant landscapes, depth of field may influence operation and the subject may appear in focus at a position that is closer than infinity.
- For more information, see page 144.
- When the zoom lock is set to LOCK position at the focal length of 28mm , the zoom ring is locked. When carrying the camera, lock the zoom ring to prevent the lens from extending due to its own weight.
Setting the aperture
Use the camera to adjust the aperture setting.
Variable maximum apertures
Zooming the lens from 28mm to 300mm decreases the maximum aperture by 113 stop. However, there is no need to adjust the aperture setting to achieve correct exposures because the camera automatically compensates for this variable.
Focusing
Set your camera focus mode according to the chart below:
| Cameras | Camera focus mode | Lens focus mode switch | |
| M/A | M | ||
| Nikon digital SLR (Nikon FX/DX format) cameras, F6, F5, F4-Series, F100, F90X/N90s*, F90-Series/N90*, F80-Series/N80-Series*, F75-Series/N75-Series*, F70-Series/N70*, F65-Series/N65-Series*, Pronea 600i/6i*, Pronea S | AF (C/S) | Autofocus with manual override | Manual focus (Electronic rangefinder can be used.) |
| MF | Manual focus (Electronic rangefinder can be used.) | ||
| F60-Series/N60*, F55-Series/N55-Series*, F50-Series/N50*, F-801s/N8008s*, F-801/N8008*, F-601M/N6000*, F-401x/N5005*, F-401s/N4004s*, F-401/N4004* | AF (C/S) MF | Manual focus (Electronic rangefinder can be used, except with the F-601M/N6000*.) | |
*Sold exclusively in the USA AF: Autofocus MF: Manual focus
Autofocus with manual override (M/A mode)
1 Set the lens focus mode switch to M/A.
2 Autofocus is enabled, but autofocus operation can be overridden by rotating the separate focus ring while pressing the shutter-release button halfway, or by pressing the AF-ON button on the camera body of cameras so equipped.
Press the shutter-release button halfway or the AF-ON button once again to cancel manual focus and resume autofocus.
Vibration reduction mode (VRII)

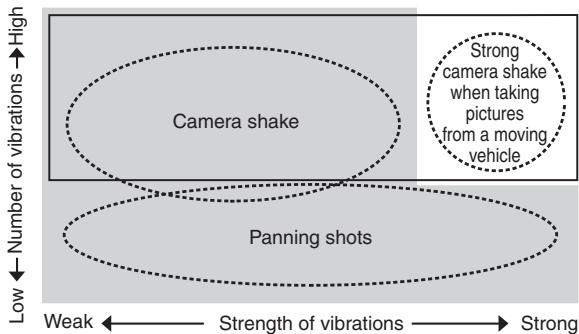

Basic concept of vibration reduction
| Set the vibration reduction mode switch to NORMAL. | Set the vibration reduction mode switch to ACTIVE. |
| When taking pictures | Set the vibration reduction mode switch to either NORMAL or ACTIVE. |
| When taking panning shots | Set the vibration reduction mode switch to NORMAL. |
| When taking pictures from a moving vehicle | Set the vibration reduction mode switch to ACTIVE. |
Setting the vibration reduction ON/OFF switch
ON: The effects of camera shake are reduced while the shutter-release button is pressed halfway and also at the instant the shutter is released. Because vibration is reduced in the viewfinder, auto/manual focusing and exact framing of the subject are easier.
OFF: The effects of camera shake are not reduced.
Setting the vibration reduction mode switch
Set the vibration reduction ON/OFF switch to ON and choose a vibration reduction mode with the vibration reduction mode switch.
NORMAL: The vibration reduction mechanism primarily reduces the effects of camera shake. The effects of camera shake are also reduced with horizontal and vertical panning.
ACTIVE: The vibration reduction mechanism reduces the effects of camera shake, such as that which occurs when taking pictures from a moving vehicle, whether it be normal or more intense camera shake. In this mode, camera shake is not automatically distinguished from panning motion.
Notes on using vibration reduction
- If this lens is used with cameras that do not have the vibration reduction function (pg. 14), set the vibration reduction ON/OFF switch to OFF. With the Pronea 600i/6i camera, in particular, battery power may become quickly depleted if this switch is left ON.
- After pressing the shutter-release button halfway, wait until the image in the viewfinder stabilizes before pressing the shutter-release button the rest of the way down.
- Due to the characteristics of the vibration reduction mechanism, the image in the viewfinder may be blurred after the shutter is released. This is not a malfunction.
- When taking panning shots, be sure to set the vibration reduction mode switch to NORMAL. If the camera is panned in a wide arc, compensation for camera shake in the panning direction is not performed. For example, only the effects of vertical camera shake is reduced with horizontal panning.
- Do not turn the camera off or remove the lens from the camera while vibration reduction is operating. Failure to observe this note could result in the lens sounding and feeling as if an internal component is loose or broken when it is shaken. This is not a malfunction. Turn the camera on again to correct this.
- With cameras featuring a built-in flash, vibration reduction does not function while the built-in flash is charging.
- When the camera is mounted on a tripod, set the vibration reduction ON/OFF switch to OFF. However, set the switch to ON when using a tripod without securing the tripod head, or when using a monopod.
- With autofocus cameras featuring an AF-ON button, vibration reduction does not function when the AF-ON button is pressed.
Using the lens hood
Lens hoods minimize stray light and protect the lens.
Attaching the hood (when in use)
- Be sure that the lens hood mounting index () is aligned with the lens hood setting index (-o) (3).
- To facilitate attachment or removal of the hood, hold it by the base (near the lens hood attachment index (-) ) rather than its outer edge.
- If the lens hood is not correctly attached, vignetting may occur.
Attaching the hood (when storing)
- To store the lens hood, attach it in the reverse position.
The built-in flash and vignetting
- The built-in flash cannot be used over distances of less than 0.6 m (2.0 ft.).
- To prevent vignetting, do not use the lens hood.
*Vignetting is the darkening of the corners around the image that occurs when the light emitted by the flash is obstructed by the lens barrel.
| Cameras | Supported focal length/Shooting distance |
| D700 (FX format) | • 28mm/1.5 m (4.9 ft.) or greater • 35mm or longer/No restriction |
| D90, D80, D70-Series, D50 | • 28mm/1 m (3.3 ft.) or greater • 35mm or longer/No restriction |
| D5000, D3000, D60, D40-Series | • 28mm/1.5 m (4.9 ft.) or greater • 35mm/1 m (3.3 ft.) or greater • 50mm or longer/No restriction |
| F80-Series/N80-Series* | • 35mm/2.5 m (8.2 ft.) or greater • 50mm/1 m (3.3 ft.) or greater • 70mm or longer/No restriction |
| F75-Series/N75-Series* | • 50mm/2 m (6.6 ft.) or greater • 70mm/1 m (3.3 ft.) or greater • 105mm or longer/No restriction |
| F70-Series/N70* | • 50mm/1.5 m (4.9 ft.) or greater • 70mm/1 m (3.3 ft.) or greater • 105mm or longer/No restriction |
| F65-Series/N65-Series*, F60-Series/N60* | • 70mm/1.5 m (4.9 ft.) or greater • 105mm or longer/1 m (3.3 ft.) or greater |
*Sold exclusively in the U.S.A.
| Cameras | Supported focal length/Shooting distance |
| F55-Series/N55-Series* | ·70mm/2 m (6.6 ft.) or greater ·105mm or longer/1 m (3.3 ft.) or greater |
| F50-Series/N50* | ·70mm/2.5 m (8.2 ft.) or greater ·105mm/1.5 m (4.9 ft.) or greater ·200mm or longer/1 m (3.3 ft.) or greater |
| F-401x/N5005*, F-401s/N4004*, F-401/N4004* | ·70mm/3 m (9.8 ft.) or greater ·105mm/1.5 m (4.9 ft.) or greater ·200mm or longer/1 m (3.3 ft.) or greater |
*Sold exclusively in the U.S.A.
Recommended focusing screens
Various interchangeable focusing screens are available for certain Nikon SLR cameras to suit any picture-taking situation. The ones recommended for use with this lens are:
| Screen Camera | A | B | C | E | EC-B EC-E | G1 | G2 | G3 | G4 | J | L | M | U |
| F6 | ◎ | ◎ | - | ◎ | - | - | - | - | - | ◎ | ◎ | ◎ | |
| F5+DP-30 | ◎ | ◎ | ○ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
| F5+DA-30 | ◎ (+1.0) | ◎ | ◎ | ◎ | ◎ | ◎ (+1.0) | ◎ |
:Excellent focusing
O: Acceptable focusing
Slight vignetting or moiré patterns appear in the viewfinder, but not on the film.
Not available
(: Indicates degree of exposure compensation needed (center-weighted metering only). For F6 cameras, compensate by selecting "Other screen" in Custom Setting "b6: Screen comp." and setting the EV level to -2.0 to +2.0 in 0.5 EV steps. When using screens other than type B or E, "Other screen" must be selected even when the required compensation value is "0" (no compensation required). For F5 cameras, compensate using Custom Setting #18 on the camera body. See user's manual of the camera body for more details.
Blank box means not applicable. Since type M screen can be used for both macrophotography at a magnification ratio of 1:1 or above and for photomicrography, it has different applications than other screens.
Important
- For F5 cameras, only EC-B, EC-E, B, E, J, A, L focusing screens are usable in Matrix Metering.
Lens care
- When the lens is mounted on a camera, do not pick up or hold the camera and lens by the lens hood.
- Be careful not to allow the CPU contacts to become dirty or damaged.
- If the lens mount rubber gasket is damaged, be sure to visit the nearest Nikonauthorized service representative for repair.
- Clean lens surfaces with a blower brush. To remove dirt and smudges, use a soft, clean cotton cloth or lens tissue moistened with ethanol (alcohol) or lens cleaner. Wipe in a circular motion from the center to outer edge, taking care not to leave traces or touch other parts of the lens.
- Never use organic solvent such as thinner or benzene to clean the lens.
- NC filters are available to protect the front lens element. The lens hood also helps to protect the front of the lens.
- When storing the lens in its flexible lens pouch, attach both the front and rear lens caps.
- When the lens will not be used for an extended period of time, store it in a cool, dry place to prevent mold and rust. Be sure to store the lens away from direct sunlight or chemicals such as camphor or naphthalene.
- Do not get water on the lens or drop it in water as this will cause it to rust and malfunction.
- Reinforced plastic is used for certain parts of the lens. To avoid damage, never leave the lens in an excessively hot place.
Standard accessories
- 77mm snap-on Front Lens Cap LC-77
Rear Lens Cap
Bayonet Hood HB-50 - Flexible Lens Pouch CL-1120
Optional accessories
- 77mm screw-on filters
Specifications
Type of lens: G-type AF-S Zoom-NIKKOR lens with built-in CPU and Nikon bayonet mount
Focal length: 28-300mm
Maximum aperture: f/3.5-5.6
Lens construction: 19 elements in 14 groups (2 ED and 3 aspherical lens elements)
Angle of view: 75^ - 8^10' with 35mm (135) format Nikon film SLR cameras and Nikon FX format digital SLR cameras 53^ - 5^20' with Nikon DX format digital SLR cameras 63^ - 6^30' with IX240 system cameras
Focal length scale: 28, 35, 50, 70, 105, 200, 300mm
Distance Output to camera information:
Zoom control: Manually via separate zoom ring
Focusing: Nikon Internal Focusing (IF) system, autofocus using a Silent Wave Motor; manually via separate focus ring
Vibration reduction: Lens-shift method using voice coil motors (VCMs)
Shooting distance Graduated in meters and feet from 0.5m (3 ft) to scale: infinity ()
Closest focusing distance: 0.5 m (1.6 ft.) at all zoom settings
No. of diaphragm 9 pcs. (rounded) blades:
Diaphragm: Fully automatic
Aperture range: f/3.5 to f/22 (at 28mm), f/5.6 to f/38 (at 300mm)
Exposure Via full-aperture method with cameras with CPU measurement: interface system
Attachment size: 77mm (P = 0.75mm)
Dimensions: Approx. 83 mm dia. x 114.5 mm extension from the camera's lens-mount flange
Weight: Approx. 800 g (28.2 oz.)
Specifications and designs are subject to change without any notice or obligation on the part of the manufacturer.
ACHTUNG
Keinesfalls zerlegen.
| Einstellscheibe Kamera | A | B | C | E | EC-B EC-E | G1 | G2 | G3 | G4 | J | L | M | U |
| F6 | ◎ | ◎ | — | ◎ | — | — | — | — | — | ◎ | ◎ | ◎ | |
| F5+DP-30 | ◎ | ◎ | ○ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
| F5+DA-30 | ◎ (+1,0) | ◎ | ◎ | ◎ | ◎ | ◎ (+1,0) | ◎ |
@: Hervorragende Scharfeinstellung
| Verre Appareil | A | B | C | E | EC-B EC-E | G1 | G2 | G3 | G4 | J | L | M | U |
| F6 | ◎ | ◎ | — | ◎ | — | — | — | — | — | ◎ | ◎ | ◎ | |
| F5+DP-30 | ◎ | ◎ | ○ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
| F5+DA-30 | ◎ (+1,0) | ◎ | ◎ | ◎ | ◎ | ◎ (+1,0) | ◎ |
| Pantalla Cármara | A | B | C | E | EC-B EC-E | G1 | G2 | G3 | G4 | J | L | M | U |
| F6 | ◎ | ◎ | — | ◎ | — | — | — | — | — | ◎ | ◎ | ◎ | |
| F5+DP-30 | ◎ | ◎ | ○ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
| F5+DA-30 | ◎ (+1,0) | ◎ | ◎ | ◎ | ◎ | ◎ (+1,0) | ◎ |
: Enfoque excellente
O: Enfoque acceptable
| Skärnm Kamera | A | B | C | E | EC-B EC-E | G1 | G2 | G3 | G4 | J | L | M | U |
| F6 | ◎ | ◎ | — | ◎ | — | — | — | — | — | ◎ | ◎ | ◎ | |
| F5+DP-30 | ◎ | ◎ | ○ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
| F5+DA-30 | ◎ (+1,0) | ◎ | ◎ | ◎ | ◎ | ◎ (+1,0) | ◎ |
@: Utmärkt fokusering
O: Acceptabel fokusering
En latt vinjettering ell er moiremonster syns i sokaren, men inte pa filmen.
:Intetillgangliigt
OCHOBHbIE BO3MOXHOCTM
- Пив BKIOUOHeHIMФУнКцIN NOДАБLEHЯВИБраСИ (VR II) монHo nCNoIb3OBaTb 6OJIeEДЛNTIELBHe BByDEpKHN (PnIbIINITIELBO HA TPN CTyNEHN), TEM cAmbl yBeyIuHBAI dAna3OH 3NaeHIn BByDEpKHN 3Uma (OCo6EHNO pRpy uHyOn CBEmKe). (OChobAo H pe3yIbTaTAX, NOlyuHHeBbY BCyONBEx N3MepEnH KOMpaHIN Nikon. Pe3yIbTaBtI NODALEHЯВИБраСИ MOrY 3AABCETb OT CHTyaCIN N yCLOBb NcEMKn.)
- MoKHO cNoIb3OaTb peKIM NORMAL, KOTOpB yMeHbJaet 3ΦeKT dPoJxHaNMy FOToHApEpy npi ObiHybX yCLOBHX CbEMKn, a TAKHe peHUM ACTIVE, KOTOpB yMeHbJaet 3ΦeKT 60Bee 3aMeTHoro dPoJxHaNMy FOToKApEpy, HapnIpMep, pni CbEmKe N3 DInbKyUeOcR ABTOMOnNII.
BpeKmne NORMAL foToKaMepe aABTOMaTHueckn OTNIuAeETdoJXaHHe foToKaMepebOIT npEpeMeIeHn KaMepebI npi NaHOpamIpOBaHN, 6laOpaIy cEmy UMeHbAeTcA 0fKeT dpOkaHn foToKaMepebI npI ropIN3oHTaJIbHom INI BepTtKaJIbHom NaHOpamPobAHN.
- П repocxodnbie ontnueckne xapaTepeNCTnHn I BO3MOJHOCTn nepeDaun yIyUaHOCTc 6laIqoIapra nCNOJIb3OBAHnIO TpEx acFepuYeCKNX LIHN3 n DByX LIn3 CO CBePxAH3KoI dncpepcnae (ED), MmHmMn3pyUOxN XxPOMaTneuchekyo aBeppauNo. Kpome toro, cKpyTHeHHa dmaOpEaMa oBeceNuBaet 6Ooe JpaCbMbte MaRKn E HeAChBle oueptAHnTex YacTe CHMkA, KOtOpBle HaxOJaTcB BHe FOkyCa.
BHHMaHHe
PexnM nOaBLeHnBn6paun (VR II)

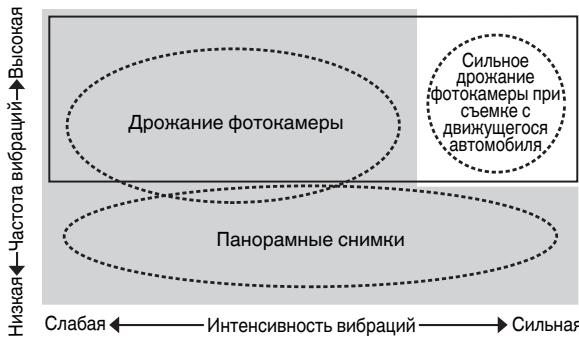

OchOBHoe noHrtne noaBLeHHn Bn6paun
YCTAHOBHTe nepeKIOHATelb peKIMMA NOaBHeNMa Bn6paunB NpOLOXHENE NORMAL
YCTAHOBHTe peHeknOHTaTeIb peKHMa NpOaBNeHn BnBpaunB NOJOKHeNcE ACTIVE.
UcTaHObKa nepeKluOaTeI NaDaBLeHn Bn6paun ON/OFF
OFF: ΘΦΦeKTДрЖаня ФОТOKamepbI He yMeHbwaetc.
UcTaHObKa nepeKJIouaTeIa peKIma nOpaBJIeHn Bn6paIu
UctaHOBtTe nepeKJIouaTeIb IoabJeHnB Vb6paIcN ON/OFF B noJooHeHne ON N Bb6epIte peJIM IOabJeHnB Vb6paIcN c nOmoIbIO nepeKJIouaTeIa peJIMa IOabJeHnB Vb6paIcN.
NORMAL:MexaHn3M nOdaBLeHnBbpaun yMeHbwaet B OCHOBHOM 3ΦΦeKT dOxHAnH yOTOKaMebpI. 3ΦΦeKT dPoxHaNry FOtOKaMebpI yMeHbWaetc TaKHe npri ROpN30HTaJIbHOM IN BPTEKJIbHOM NaHOPaMPOBaHN.
ACTIVE: MexaHn3M nOdaBLeHnRA B6paun yMeHb7aeT 3ΦeKT DPOJHaHnI FOToKAmepbl, HApPIMep, PnI CbEmKe I3 DBNHYUeOc ABTOMO6JIy, INoDAuJIeT DpOJHaHne FOToKAmepbl O6bHOrO nn60JIe BBICOKOro YpOBHn. B 3OTm peKIme FOToKamepa He MOJET aBTOMaTHHeCKn OTNIUYtB DpOJHaHne FOToKAmepbl OT nepemeueHn KaMepbl PnI naHopamipOBAHn.
PpimueaHnnoHCNoIb3ObaHHIOpaBHeHHB6paun
Ecn3OTo6bENTBHCNOJIb3yETcCΦOTOKaMepaMn,HECOBMcTbMbIMNCCTEMOIOABLeHINb6paun(Ctp.64),pepeMeCTNEKOBeBOIpeHKIOUaTeB NOABLeHINB6paunON/OFF B NIOJKeHEnOFF.Ecn3OTPeHKIOUaTeB HAOdITcB B NIOJKeHEnON,BaTapeAΦOTOKaMebpMoJeT OChEB6bICTPOpA3PraXaTbCSO6EHHO3TOOTHCNTcKΦOTOKaMepePronea600i).
- После нажатя спунковой Кноги Затвора наноюну Heo6xOДМо Дождыстсабиизашии ИЗображени в Виюнскателе пered Tem, Кк нажать спунковую кноги Затвора до Конц.
- BCJcIeCTBnE OOC6eHHocTe XapaKTePrcTm KexaHn3Ma NpOaBLeHn Bv6paCn IocNe TOrO, KaK 6yJeT OTnyUeHa KHOJa CnYcKa 3aTBopa, I3o6paKeHne B BVIOONCKaTeMe MOKeT OKa3aTbCra Cma3aHHbIM.
- Пис bемпаногамьх симмов He 3abdte yctaHOBt bpekeKIOUaTeIb peKIMma nOadBLeHn Bn6paunB nOLOKeHne NORMAL. Пис bемпа naHopaMb no WpOKoH TpaEKTopmno nOadBLeHne dpoXaHnФ FOToKAMepbB HappaJIeHn cБemKn NaHopaMb He 6ydt BeINOLNrTbcr. HanpImep, npri rOpinOHTaIbHOM naHopamroBaHn yEmhbaaTcR TOlbKO 3ΦΦeKT BepTKaIbHOrO dpoXaHn FOToKAmepbI.
He BbIKIouaHte FOToKamepy n He ChImaIte C FOToKamepbI oBbEeTINB npn paBoTe B PekIMpe NOdABHeNHa Bn6paun. EcJI npEne6peu 3TNM pnpMeUHNEM, To pIn cOTpAcEHn OBeKTHBa MoJET NocBILaWtbc 3ByK, KaN pN OTCoEHNHeHHnn IINI POLOMKe BHTyPeHNH KOMHOENTOB. 3TO He ABJIaeTc HEnCpabHObCTbIO. JIaN yCTpaHENH 3TO CNITyaCCHOBA BKJIOnHTe FOToKamepy.
- PnI nCnoJIb3OBAHmMoJeIeIe foToKamep, OcHaIeHHbIX BCTpoEHHO BCnblIKoI, PnI 3aPJe BCnblIKn FyHKnI NaDaBLeHnR B6paun He pa60TaT.
- Ecn foToKamepa yCTAHOBLeHa Ha 7tATnB, yCTAHOBIne peKeJIouaTeIb noabAHeN Bn6paun ON/OFF B noLoJHeHne OFF. OndaNopeMeCTNe 3OT nepeKIOuOaTeIb B noLoJHeHne ON, eCn npn nCnoIb3OBAHN WtATnBa erO roLOBka He 3akpenIJaTcR, a TAKHe npn nCnoIb3OBAHN MOHOOnDa.
- Пи мьзовимп ФотOKамер с АвтофокусрOBй, OСЧашеньх KНОнК
AF-ON, Функця поавлию Вибраши He Bydт pa60taTддже рпн Нжати
Kногки AF-ON.
HcnoJb3ObaHne 6JIeHdbI
BleHda MHHMm3npyeT pacceaHbI CBET n 3aunuaet O6beKTHB.
PpncoeHHeHne 6JeHdbI (BO BpeMa pa60tbI)
- 6eBnTeBc, YTO UCTaHOBOOCHNA METKa 6JIeHbI (●) COBNaDAeT C METKoI ΦHKCaUN 6JIeHbI (-o) (3).
Дяоблгчену yctaHOBKn nIIN CHTЯ 6JIeHdbl yIepnHbAte ee 3a OCHOBaHne (paDM C MeTKoK pKeIeHry 6JIeHdbl ()), a He 3a BHEUHO KpOMKY.
EcnJb6IeHa yctaHObHeHa Ha 06BeKTHB HeHaJaEkaUM 6pa3OM,MOKeT BO3HnKHyTb 3ΦΦeKT BInbETnPOBaHHa.
PpncoeHHene 6JeHdbI (BO BpeMa xpaehn)
-ДяхраениьпсоeнгЯTe ee B o6paTHOM nolokheni.
BcTpoEHNa BCnblIka N BnHbETnpOBaHne
BCTPOeHNHy BCnblkny HeIb3a NcNoJIb3ObaTb IJIa CbeMKn c paCCToHm MeHee 0,6 M.
-Bo n36eKaHHe BnHbEtNpOBAHn He nCNoIb3yIte 6JeHdy o6beKtNaBa.
*BnHbEtupoBaHne - 3To 3aTeMHeHne yrIob N3O6paJHeHNa, Bo3NHaIOUeepnpepeKpblTN CBETAOT BCblIKN 6JIeHDoI O6BeKTNbA.
CtahdaptThbIe npHaJdJIeHHOCTn
- Perednaya KpbiSHA o6bektBa LC-77 dHaMeTpom 77MM
3aHnra 3aunTHna KpbIka oBeKTnBa - BileHda c 6aioHeTHbIM KpeIJIeHHeM HB-50
MЯrkni yexonДя оьектва CL-1120
DOnonHnTeNbHa npHaJaXHoCTb
BbHnBaIOuIeCsΦJIbTpblDnaMeTpom77MM
TexHHueHne xapaHTepnCTnH
XapakTepeNCTnHnIu3aHMOrTb6bITbI3MeHeHb6e3IpeynpEHHenHn KaHx-ⅡHbO6ra3aTeJIbCTB CO CTOpOHbI H3ROTOBHTeJIa.
WAARSCHUWING
| scherpestelschemen Camera | A | B | C | E | EC-B EC-E | G1 | G2 | G3 | G4 | J | L | M | U |
| F6 | ◎ | ◎ | — | ◎ | — | — | — | — | — | ◎ | ◎ | ◎ | |
| F5+DP-30 | ◎ | ◎ | ○ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
| F5+DA-30 | ◎ (+1,0) | ◎ | ◎ | ◎ | ◎ | ◎ (+1,0) | ◎ |
| Schermo Fotocamera | A | B | C | E | EC-B EC-E | G1 | G2 | G3 | G4 | J | L | M | U |
| F6 | ◎ | ◎ | — | ◎ | — | — | — | — | — | ◎ | ◎ | ◎ | |
| F5+DP-30 | ◎ | ◎ | ○ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
| F5+DA-30 | ◎ (+1,0) | ◎ | ◎ | ◎ | ◎ | ◎ (+1,0) | ◎ |
| Matnice Fotoaparát | A | B | C | E | EC-B EC-E | G1 | G2 | G3 | G4 | J | L | M | U |
| F6 | ◎ | ◎ | — | ◎ | — | — | — | — | — | ◎ | ◎ | ◎ | |
| F5+DP-30 | ◎ | ◎ | ○ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
| F5+DA-30 | ◎ (+1,0) | ◎ | ◎ | ◎ | ◎ | ◎ (+1,0) | ◎ |
| Matnica Fotoaparát | A | B | C | E | EC-B EC-E | G1 | G2 | G3 | G4 | J | L | M | U |
| F6 | ◎ | ◎ | — | ◎ | — | — | — | — | — | ◎ | ◎ | ◎ | |
| F5+DP-30 | ◎ | ◎ | ○ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
| F5+DA-30 | ◎ (+1,0) | ◎ | ◎ | ◎ | ◎ | ◎ (+1,0) | ◎ |
@: Vyborné zaostrovanie
O: Prijaténé zaostrovanie
D300-尼拉斯却不是D90的的N20DXF那尼SLRK4M4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4E4
■ 拟用已能的Kapelle和功能
| 스크리 가메라 | A | B | C | E | EC-B EC-E | G1 | G2 | G3 | G4 | J | L | M | U |
| F6 | ◎ | ◎ | — | ◎ | — | — | — | — | — | ◎ | ◎ | ◎ | |
| F5+DP-30 | ◎ | ◎ | ○ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
| F5+DA-30 | ◎ (+1.0) | ◎ | ◎ | ◎ | ◎ | ◎ (+1.0) | ◎ |
@：咱用
O: 佳
28,35,50,70,105,200,300mm
丛 莫
首主： 莾云的中梁同在通汉动王
(ft.)
Depth of field
| Shooting distance | Depth of field | Reproduction ratio | |||||
| [f=28mm] | |||||||
| f/3.5 | f/4 | f/5.6 | f/8 | f/11 | f/16 | f/22 | |
| 3 | 2 ft. 8-8/16 in. | 2 ft. 8-4/16 in. | 2 ft. 6-15/16 in. | 2 ft. 5-4/16 in. | 2 ft. 3-6/16 in. | 2 ft. 15/16 in. | 1 ft. 10-7/16 in. |
| 3 ft. 4-7/16 in. | 3 ft. 4-15/16 in. | 3 ft. 7-9/16 in. | 3 ft. 11-14/16 in. | 4 ft. 7-15/16 in. | 6 ft. 2-6/16 in. | 12 ft. 4-9/16 in. | |
| 5 | 4 ft. 2-4/16 in. | 4 ft. 1-9/16 in. | 3 ft. 10-3/16 in. | 3 ft. 6-6/16 in. | 3 ft. 2-1/16 in. | 2 ft. 9-6/16 in. | 2 ft. 4-11/16 in. |
| 6 ft. 3-2/16 in. | 6 ft. 5-1/16 in. | 7 ft. 3-10/16 in. | 9 ft. 1-5/16 in. | 14 ft. 3-2/16 in. | 87 ft. 13/16 in. | 1/49.2 | |
| 15 | 9 ft. 2-3/16 in. | 8 ft. 10-7/16 in. | 7 ft. 7-7/16 in. | 6 ft. 4-7/16 in. | 5 ft. 2-6/16 in. | 4 ft. 1-15/16 in. | 3 ft. 3-6/16 in. |
| 43 ft. 11-8/16 in. | 53 ft. 8-14/16 in. | ∞ | ∞ | ∞ | ∞ | 1/155.1 | |
| 50 | 15 ft. 9 in. | 14 ft. 10-1/16 in. | 11 ft. 6-13/16 in. | 8 ft. 10-5/16 in. | 6 ft. 8-6/16 in. | 5 ft. 8/16 in. | 3 ft. 9-6/16 in. |
| ∞ | ∞ | ∞ | ∞ | ∞ | ∞ | 1/525.5 | |
| ∞ | 22 ft. 8-12/16 in. | 20 ft. 10-3/16 in. | 14 ft. 10-7/16 in. | 10 ft. 7-11/16 in. | 7 ft. 7-13/16 in. | 5 ft. 6-8/16 in. | 4 ft. 8/16 in. |
| ∞ | ∞ | ∞ | ∞ | ∞ | ∞ | 1/∞ | |
[f=35mm]
| f/3.8 | f/4 | f/5.6 | f/8 | f/11 | f/16 | f/22 | f/25 | ||
| 3 | 2 ft. 9-8/16 in. | 2 ft. 9-4/16 in. | 2 ft. 8-4/16 in. | 2 ft. 7-1/16 in. | 2 ft. 5-6/16 in. | 2 ft. 3-8/16 in. | 2 ft. 1-3/16 in. | 2 ft. 8/16 in. | 1/23.3 |
| 3 ft. 3-2/16 in. | 3 ft. 3-4/16 in. | 3 ft. 4-13/16 in. | 3 ft. 7-5/16 in. | 3 ft. 11-8/16 in. | 4 ft. 7-5/16 in. | 6 ft. 13/16 in. | 6 ft. 10-9/16 in. | ||
| 5 | 4 ft. 4-11/16 in. | 4 ft. 4-5/16 in. | 4 ft. 1-13/16 in. | 3 ft. 10-9/16 in. | 3 ft. 6-12/16 in. | 3 ft. 2-6/16 in. | 2 ft. 9-12/16 in. | 2 ft. 8-6/16 in. | 1/40.7 |
| 5 ft. 9-15/16 in. | 5 ft. 10-11/16 in. | 6 ft. 4-5/16 in. | 7 ft. 2-6/16 in. | 8 ft. 10-11/16 in. | 13 ft. 6-2/16 in. | 57 ft. 9-10/16 in. | ∞ | ||
| 15 | 10 ft. 4-3/16 in. | 10 ft. 2-3/16 in. | 9 ft. 2/16 in. | 7 ft. 9-2/16 in. | 6 ft. 6-2/16 in. | 5 ft. 3-15/16 in. | 4 ft. 3-4/16 in. | 4 ft. | |
| 27 ft. 10-11/16 in. | 29 ft. 3 in. | 48 ft. 10-7/16 in. | ∞ | ∞ | ∞ | ∞ | ∞ | 1/127.8 | |
| 50 | 19 ft. 8-8/16 in. | 19 ft. 1-3/16 in. | 15 ft. 3-4/16 in. | 11 ft. 11-3/16 in. | 9 ft. 1-15/16 in. | 6 ft. 11-4/16 in. | 5 ft. 2-10/16 in. | 4 ft. 9-10/16 in. | 1/432.6 |
| ∞ | ∞ | ∞ | ∞ | ∞ | ∞ | ∞ | ∞ | ||
| ∞ | 32 ft. 2-3/16 in. | 30 ft. 6-15/16 in. | 21 ft. 9 in. | 15 ft. 6-2/16 in. | 11 ft. 1-1/16 in. | 7 ft. 11-10/16 in. | 5 ft. 9-2/16 in. | 5 ft. 3-2/16 in. | 1/∞ |
| ∞ | ∞ | ∞ | ∞ | ∞ | ∞ | ∞ | ∞ |
[f=50mm]
| f/4.2 | f/5.6 | f/8 | f/11 | f/16 | f/22 | f/29 | ||
| 3 | 2 ft. 10-7/16 in. | 2 ft. 9-15/16 in. | 2 ft. 9-4/16 in. | 2 ft. 8-3/16 in. | 2 ft. 6-13/16 in. | 2 ft. 5-4/16 in. | 2 ft. 3-13/16 in. | 1/16.6 |
| 3 ft. 1-11/16 in. | 3 ft. 2-4/16 in. | 3 ft. 3-6/16 in. | 3 ft. 5-1/16 in. | 3 ft. 7-11/16 in. | 4 ft. 2/16 in. | 4 ft. 5-6/16 in. | ||
| 5 | 4 ft. 7-11/16 in. | 4 ft. 6-4/16 in. | 4 ft. 4-5/16 in. | 4 ft. 1-11/16 in. | 3 ft. 10-7/16 in. | 3 ft. 6-10/16 in. | 3 ft. 3-10/16 in. | 1/28.8 |
| 5 ft. 5-3/16 in. | 5 ft. 7-3/16 in. | 5 ft. 10-13/16 in. | 6 ft. 4-11/16 in. | 7 ft. 2-14/16 in. | 8 ft. 11-14/16 in. | 11 ft. 9-10/16 in. | ||
| 15 | 12 ft. 2/16 in. | 11 ft. 3 in. | 10 ft. 2-8/16 in. | 9 ft. 8/16 in. | 7 ft. 9-10/16 in. | 6 ft. 6-10/16 in. | 5 ft. 8-4/16 in. | 1/89.8 |
| 20 ft. 13/16 in. | 22 ft. 8-10/16 in. | 29 ft. | 47 ft. 11-3/16 in. | ∞ | ∞ | ∞ | ||
| 50 | 27 ft. 1-5/16 in. | 23 ft. 5-12/16 in. | 19 ft. 3-12/16 in. | 15 ft. 5-8/16 in. | 12 ft. 1-3/16 in. | 9 ft. 3-8/16 in. | 7 ft. 7-9/16 in. | 1/303.2 |
| ∞ | ∞ | ∞ | ∞ | ∞ | ∞ | ∞ | ||
| ∞ | 58 ft. 9-6/16 in. | 43 ft. 11-6/16 in. | 31 ft. 2-8/16 in. | 22 ft. 2-8/16 in. | 15 ft. 10-1/16 in. | 11 ft. 3-15/16 in. | 8 ft. 11-4/16 in. | 1/∞ |
| ∞ | ∞ | ∞ | ∞ | ∞ | ∞ | ∞ |
[f=70mm]
| f/4.8 | f/5.6 | f/8 | f/11 | f/16 | f/22 | f/32 | ||
| 3 | 2 ft. 11-1/16 in. | 2 ft. 10-13/16 in. | 2 ft. 10-7/16 in. | 2 ft. 9-13/16 in. | 2 ft. 9 in. | 2 ft. 7-15/16 in. | 2 ft. 6-8/16 in. | 1/12.2 |
| 3 ft. 1-1/16 in. | 3 ft. 1-3/16 in. | 3 ft. 1-13/16 in. | 3 ft. 2-10/16 in. | 3 ft. 3-13/16 in. | 3 ft. 5-10/16 in. | 3 ft. 8-12/16 in. | ||
| 5 | 4 ft. 9-4/16 in. | 4 ft. 8-12/16 in. | 4 ft. 7-9/16 in. | 4 ft. 6 in. | 4 ft. 3-13/16 in. | 4 ft. 1-1/16 in. | 3 ft. 9-12/16 in. | 1/20.9 |
| 5 ft. 3-2/16 in. | 5 ft. 3-10/16 in. | 5 ft. 5-4/16 in. | 5 ft. 7-13/16 in. | 5 ft. 11-12/16 in. | 6 ft. 6-4/16 in. | 7 ft. 6 in. | ||
| 15 | 13 ft. 12/16 in. | 12 ft. 9-6/16 in. | 12 ft. 10/16 in. | 11 ft. 1-15/16 in. | 10 ft. 1-3/16 in. | 8 ft. 11-1/16 in. | 7 ft. 8-3/16 in. | 1/64.5 |
| 17 ft. 7-15/16 in. | 18 ft. 2-4/16 in. | 19 ft. 11-8/16 in. | 23 ft. 2-3/16 in. | 30 ft. 1-3/16 in. | 52 ft. 6-4/16 in. | ∞ | ||
| 50 | 33 ft. 4-1/16 in. | 31 ft. 7-5/16 in. | 27 ft. 5-10/16 in. | 23 ft. 2-4/16 in. | 19 ft. 6/16 in. | 15 ft. 2-8/16 in. | 11 ft. 10-13/16 in. | 1/216.9 |
| 100 ft. 11-8/16 in. | 121 ft. 5-12/16 in. | ∞ | ∞ | ∞ | ∞ | ∞ | ||
| ∞ | 99 ft. 9-10/16 in. | 85 ft. 9 in. | 60 ft. 9-6/16 in. | 43 ft. 1-7/16 in. | 30 ft. 7-11/16 in. | 21 ft. 9-12/16 in. | 15 ft. 6-13/16 in. | 1/∞ |
| ∞ | ∞ | ∞ | ∞ | ∞ | ∞ | ∞ |
[f=105mm]
| f/5.3 | f/8 | f/11 | f/16 | f/22 | f/32 | f/36 | ||
| 3 | 2 ft. 11-6/16 in. 3 ft. 10/16 in. | 2 ft. 11-3/16 in. 3 ft. 15/16 in. | 2 ft. 10-13/16 in. 3 ft. 1-5/16 in. | 2 ft. 10-5/16 in. 3 ft. 1-15/16 in. | 2 ft. 9-12/16 in. 3 ft. 2-12/16 in. | 2 ft. 8-14/16 in. 3 ft. 4-1/16 in. | 2 ft. 8-8/16 in. 3 ft. 4-9/16 in. | 1/8.7 |
| 5 | 4 ft. 10-7/16 in. 5 ft. 1-11/16 in. | 4 ft. 9-12/16 in. 5 ft. 2-8/16 in. | 4 ft. 8-14/16 in. 5 ft. 3-10/16 in. | 4 ft. 7-11/16 in. 5 ft. 5-4/16 in. | 4 ft. 6 in. 5 ft. 7-11/16 in. | 4 ft. 3-15/16 in. 5 ft. 11-10/16 in. | 4 ft. 3-2/16 in. 6 ft. 1-7/16 in. | 1/14.6 |
| 15 | 13 ft. 11-3/16 in. 16 ft. 3-2/16 in. | 13 ft. 5-10/16 in. 16 ft. 11-4/16 in. | 12 ft. 11-3/16 in. 17 ft. 10-13/16 in. | 12 ft. 2-14/16 in. 19 ft. 5-12/16 in. | 11 ft. 4-9/16 in. 22 ft. 3-2/16 in. | 10 ft. 4-5/16 in. 27 ft. 11-12/16 in. | 9 ft. 11-14/16 in. 31 ft. 5-6/16 in. | 1/43.7 |
| 50 | 39 ft. 11-10/16 in. 66 ft. 10-9/16 in. | 36 ft. 5-14/16 in. 79 ft. 9-15/16 in. | 32 ft. 9-15/16 in. 106 ft. 3 in. | 28 ft. 9-6/16 in. ∞ | 24 ft. 6-4/16 in. ∞ | 20 ft. 3-12/16 in. ∞ | 18 ft. 11-3/16 in. ∞ | 1/145.3 |
| ∞ | 201 ft. 1-11/16 in. ∞ | 136 ft. 2-12/16 in. ∞ | 96 ft. 6 in. ∞ | 68 ft. 4-15/16 in. ∞ | 48 ft. 6-10/16 in. ∞ | 34 ft. 6 in. ∞ | 30 ft. 8-12/16 in. ∞ | 1/∞ |
[f=200mm]
| f/5.6 | f/8 | f/11 | f/16 | f/22 | f/32 | f/36 | ||
| 3 | 2 ft. 11-12/16 in. | 2 ft. 11-10/16 in. | 2 ft. 11-6/16 in. | 2 ft. 11-3/16 in. | 2 ft. 10-15/16 in. | 2 ft. 10-7/16 in. | 2 ft. 10-3/16 in. | 1/5.8 |
| 3 ft. 6/16 in. | 3 ft. 8/16 in. | 3 ft. 10/16 in. | 3 ft. 13/16 in. | 3 ft. 1-3/16 in. | 3 ft. 1-13/16 in. | 3 ft. 2-1/16 in. | ||
| 5 | 4 ft. 11-4/16 in. | 4 ft. 11-1/16 in. | 4 ft. 10-11/16 in. | 4 ft. 10-1/16 in. | 4 ft. 9-6/16 in. | 4 ft. 8-6/16 in. | 4 ft. 8-1/16 in. | 1/9.1 |
| 5 ft. 12/16 in. | 5 ft. 15/16 in. | 5 ft. 1-7/16 in. | 5 ft. 2-1/16 in. | 5 ft. 2-14/16 in. | 5 ft. 4-3/16 in. | 5 ft. 4-13/16 in. | ||
| 15 | 14 ft. 7-5/16 in. | 14 ft. 5-8/16 in. | 14 ft. 3 in. | 13 ft. 11-8/16 in. | 13 ft. 6-15/16 in. | 13 ft. 13/16 in. | 12 ft. 10-7/16 in. | 1/24.8 |
| 15 ft. 5-1/16 in. | 15 ft. 6-15/16 in. | 15 ft. 10-1/16 in. | 16 ft. 2-8/16 in | 16 ft. 9-6/16 in. | 17 ft. 7-15/16 in. | 18 ft. 12/16 in. | ||
| 50 | 46 ft. 4-1/16 in. | 45 ft. 1-3/16 in. | 43 ft. 4-3/16 in. | 41 ft. 1-3/16 in. | 38 ft. 3-8/16 in. | 34 ft. 11-3/16 in. | 33 ft. 8-6/16 in. | 1/78.4 |
| 54 ft. 3-10/16 in. | 56 ft. 1-7/16 in. | 59 ft. 1-9/16 in. | 64 ft. | 72 ft. 5-8/16 in. | 89 ft. 2-8/16 in. | 98 ft. 9-10/16 in. | ||
| ∞ | 678 ft. 5-8/16 in. | 493 ft. 3-4/16 in. | 349 ft. 1-7/16 in. | 247 ft. 2-6/16 in. | 175 ft. 1-9/16 in. | 124 ft. 2-1/16 in. | 110 ft. 8-14/16 in. | 1/∞ |
| ∞ | ∞ | ∞ | ∞ | ∞ | ∞ | ∞ |
[f=300mm]
| f/5.6 | f/8 | f/11 | f/16 | f/22 | f/32 | f/36 | ||
| 3 | 2 ft. 11-12/16 in. 3 ft. 4/16 in. | 2 ft. 11-10/16 in. 3 ft. 6/16 in. | 2 ft. 11-8/16 in. 3 ft. 8/16 in. | 2 ft. 11-4/16 in. 3 ft. 12/16 in. | 2 ft. 11-1/16 in. 3 ft. 15/16 in. | 2 ft. 10-11/16 in. 3 ft. 1-7/16 in. | 2 ft. 10-9/16 in. 3 ft. 1-9/16 in. | 1/5.2 |
| 5 | 4 ft. 11-6/16 in. 5 ft. 10/16 in. | 4 ft. 11-4/16 in. 5 ft. 12/16 in. | 4 ft. 10-15/16 in. 5 ft. 1-1/16 in. | 4 ft. 10-9/16 in. 5 ft. 1-9/16 in. | 4 ft. 9-15/16 in. 5 ft. 2-3/16 in. | 4 ft. 9-4/16 in. 5 ft. 3-2/16 in. | 4 ft. 8-14/16 in. 5 ft. 3-10/16 in. | 1/7.9 |
| 15 | 14 ft. 8-12/16 in. 15 ft. 3-6/16 in. | 14 ft. 7-11/16 in. 15 ft. 4-9/16 in. | 14 ft. 5-14/16 in. 15 ft. 6-10/16 in. | 14 ft. 3-8/16 in. 15 ft. 9-8/16 in. | 14 ft. 4/16 in. 16 ft. 1-11/16 in. | 13 ft. 7-13/16 in. 16 ft. 8-1/16 in. | 13 ft. 6-2/16 in. 16 ft. 10-15/16 in. | 1/20.2 |
| 50 | 47 ft. 9-12/16 in. 52 ft. 4-15/16 in. | 47 ft. 13/16 in. 53 ft. 4-1/16 in. | 45 ft. 11-6/16 in. 54 ft. 10-5/16 in. | 44 ft. 5-10/16 in. 57 ft. 2-3/16 in. | 42 ft. 6-6/16 in. 60 ft. 9-12/16 in. | 40 ft. 13/16 in. 66 ft. 10-3/16 in. | 39 ft. 1-9/16 in. 69 ft. 9-2/16 in. | 1/59.3 |
| ∞ | 1429 ft. 1-11/16 in. ∞ | 1051 ft. 2-10/16 in. ∞ | 743 ft. 11-6/16 in. ∞ | 526 ft. 8-6/16 in. ∞ | 373 ft. 15/16 in. ∞ | 264 ft. 5-6/16 in. ∞ | 235 ft. 9-15/16 in. ∞ | 1/∞ |
- With the Nikon Internal Focusing (IF) system, as the shooting distance decreases, the focal length also decreases.
No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION.
C E
NIKON CORPORATION
Printed in Thailand
