USER MANUAL AF-S VR II 200-400MM F-4G ED VR II NIKON

No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION. Printed in Japan TT0A01(E3) © 2010 Nikon Corporation

R145_H1-2-3-4_2 2009/11/17 16:08 f/22 f/32 6 ft. 11-3/16 in. 7 ft. 13/16 in. 7 ft. 10-13/16 in. 8 ft. 1-3/16 in. 8 ft. 10-7/16 in. 9 ft. 1-9/16 in. 9 ft. 10-1/16 in. 10 ft. 2-1/16 in. 11 ft. 9-2/16 in. 12 ft. 3-2/16 in. 14 ft. 7-5/16 in. 15 ft. 5-1/16 in. 19 ft. 3-6/16 in. 20 ft. 9-6/16 in. 23 ft. 10-5/16 in. 26 ft. 3-4/16 in. 28 ft. 3-10/16 in. 31 ft. 10-9/16 in. 37 ft. 12/16 in. 43 ft. 5-12/16 in. 61 ft. 3-6/16 in. 81 ft. 9 in. 114 ft. 5-12/16 in.

With the Nikon Internal Focusing (IF) system, as the shooting distance decreases, the focal length also decreases.

7 ft. 8/16 in. 7 ft. 10/16 in. 7 ft. 11-6/16 in. 7 ft. 11-3/16 in.

8 ft. 10/16 in. 8 ft. 13/16 in. 8 ft. 11-4/16 in. 8 ft. 10-15/16 in.

9 ft. 13/16 in. 9 ft. 1-1/16 in. 9 ft. 11-1/16 in. 9 ft. 10-11/16 in.

10 ft. 15/16 in. 10 ft. 1-7/16 in. 11 ft. 10-9/16 in. 11 ft. 9-15/16 in.

12 ft. 1-9/16 in. 12 ft. 2-1/16 in. 14 ft. 9-10/16 in. 14 ft. 8-12/16 in.

15 ft. 2-8/16 in. 15 ft. 3-8/16 in. 19 ft. 7-9/16 in. 19 ft. 6 in.

20 ft. 4-9/16 in. 20 ft. 6-6/16 in. 24 ft. 4-15/16 in. 24 ft. 2-6/16 in.

25 ft. 7-7/16 in. 25 ft. 10-5/16 in. 29 ft. 1-13/16 in. 28 ft. 10-1/16 in.

30 ft. 10-15/16 in. 31 ft. 3-2/16 in. 38 ft. 5-10/16 in. 37 ft. 11-3/16 in.

41 ft. 7-15/16 in. 42 ft. 3-15/16 in. 65 ft. 4-1/16 in. 63 ft. 9 in.

75 ft. 4-15/16 in. 77 ft. 7-15/16 in. 129 ft. 9-12/16 in. 123 ft. 7-1/16 in.

177 ft. 9-10/16 in. 191 ft. 1-9/16 in. 949 ft. 10-7/16 in. 691 ft. 5-10/16 in.

7 ft. 2/16 in. 7 ft. 2/16 in. 7 ft. 4/16 in. 7 ft. 4/16 in. 7 ft. 11-14/16 in. 7 ft. 11-12/16 in. 7 ft. 11-12/16 in. 7 ft. 11-10/16 in.

8 ft. 2/16 in. 8 ft. 4/16 in. 8 ft. 4/16 in. 8 ft. 6/16 in. 8 ft. 11-12/16 in. 8 ft. 11-12/16 in. 8 ft. 11-10/16 in. 8 ft. 11-8/16 in.

9 ft. 4/16 in. 9 ft. 4/16 in. 9 ft. 6/16 in. 9 ft. 8/16 in. 9 ft. 11-12/16 in. 9 ft. 11-10/16 in. 9 ft. 11-8/16 in. 9 ft. 11-4/16 in.

10 ft. 4/16 in. 10 ft. 6/16 in. 10 ft. 8/16 in. 10 ft. 12/16 in. 11 ft. 11-10/16 in. 11 ft. 11-8/16 in. 11 ft. 11-4/16 in. 11 ft. 11-1/16 in.

12 ft. 6/16 in. 12 ft. 8/16 in. 12 ft. 12/16 in. 12 ft. 1-1/16 in. 14 ft. 11-6/16 in. 14 ft. 11-3/16 in. 14 ft. 10-13/16 in. 14 ft. 10-5/16 in.

15 ft. 10/16 in. 15 ft. 13/16 in. 15 ft. 1-3/16 in. 15 ft. 1-11/16 in. 19 ft. 10-15/16 in. 19 ft. 10-7/16 in. 19 ft. 9-12/16 in. 19 ft. 9 in.

20 ft. 1-1/16 in. 20 ft. 1-9/16 in. 20 ft. 2-4/16 in. 20 ft. 3-2/16 in. 24 ft. 10-3/16 in. 24 ft. 9-8/16 in. 24 ft. 8-6/16 in. 24 ft. 7-1/16 in.

25 ft. 1-13/16 in. 25 ft. 2-8/16 in. 25 ft. 3-10/16 in. 25 ft. 5-1/16 in. 29 ft. 9-6/16 in. 29 ft. 8-6/16 in. 29 ft. 6-13/16 in. 29 ft. 4-15/16 in.

30 ft. 2-10/16 in. 30 ft. 3-12/16 in. 30 ft. 5-6/16 in. 30 ft. 7-7/16 in. 39 ft. 7-5/16 in. 39 ft. 5-6/16 in. 39 ft. 2-10/16 in. 38 ft. 11-3/16 in.

40 ft. 4-13/16 in. 40 ft. 6-13/16 in. 40 ft. 9-12/16 in. 41 ft. 1-9/16 in. 68 ft. 9-4/16 in. 68 ft. 3-8/16 in. 67 ft. 7-1/16 in. 66 ft. 8-10/16 in.

71 ft. 3-4/16 in. 71 ft. 9-10/16 in. 72 ft. 7-3/16 in. 73 ft. 7-9/16 in. 144 ft. 4-7/16 in. 142 ft. 2-14/16 in. 139 ft. 1-15/16 in. 135 ft. 6 in.

156 ft. 1-1/16 in. 158 ft. 8-1/16 in. 162 ft. 8-6/16 in. 168 ft. 10/16 in. 3792 ft. 3-2/16 in. 2709 ft. 5-4/16 in. 1897 ft. 3-15/16 in. 1380 ft. 6-6/16 in.

Jp-01 R145_Jp_00_3 2010/01/26 13:47

Jp-01 R145_Jp_00_5 2010/01/26 13:47

Jp-01 R145_Jp_00_7 2010/01/26 13:47

Jp-01 R145_Jp_00_14 2010/01/26 13:47

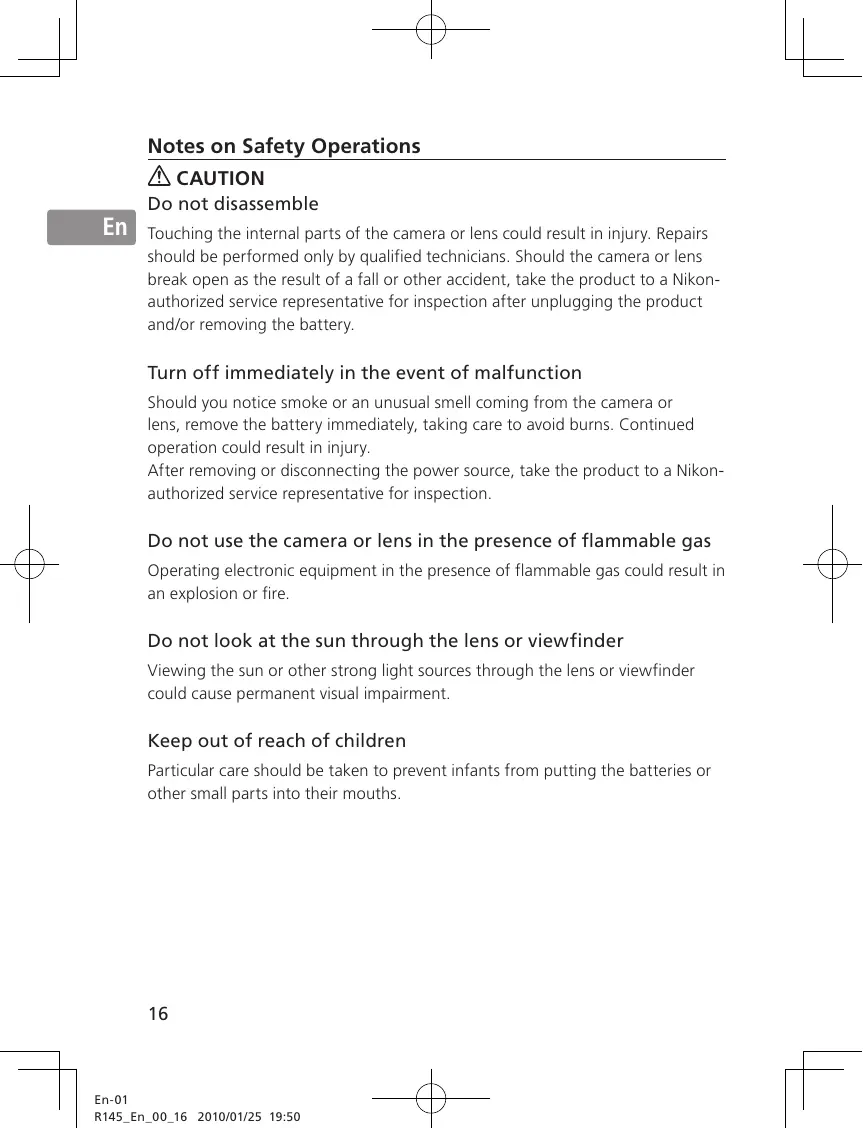

Jp-01 R145_Jp_00_15 2010/01/26 13:47 Notes on Safety Operations

CAUTION Do not disassemble

Touching the internal parts of the camera or lens could result in injury. Repairs should be performed only by qualified technicians. Should the camera or lens break open as the result of a fall or other accident, take the product to a Nikonauthorized service representative for inspection after unplugging the product and/or removing the battery.

Turn off immediately in the event of malfunction

Should you notice smoke or an unusual smell coming from the camera or lens, remove the battery immediately, taking care to avoid burns. Continued operation could result in injury. After removing or disconnecting the power source, take the product to a Nikonauthorized service representative for inspection.

Do not use the camera or lens in the presence of flammable gas

Operating electronic equipment in the presence of flammable gas could result in an explosion or fire.

Do not look at the sun through the lens or viewfinder

Viewing the sun or other strong light sources through the lens or viewfinder could cause permanent visual impairment. Keep out of reach of children Particular care should be taken to prevent infants from putting the batteries or other small parts into their mouths.

Observe the following precautions when handling the camera and lens

Keep the camera and lens unit dry. Failure to do so could result in a fire or electric shock.
Do not handle or touch the camera or lens unit with wet hands. Failure to do so could result in electric shock.
When shooting with back-lighting, do not point the lens at the sun or allow sunlight to pass directly down the lens as this may cause the camera to overheat and possibly cause a fire.
When the lens will not be used for an extended period of time, attach both front and rear lens caps and store the lens away from direct sunlight. Failure to do so could result in a fire, as the lens may focus sunlight onto a flammable object.

Thank you for purchasing the AF-S NIKKOR 200-400mm f/4G ED VRⅡ lens. Before using this lens, please read these instructions and refer to your camera's user's manual. ■ Nomenclature

1 Lens hood (P. 25) 2 Lens hood screw (P. 25) 3 Lens protective glass (attached to the lens) (P. 26) 4 Rubber grip 5 Focus operation button (Focus Lock/ Memory recall/AF Start) (P. 22) 6 Focus ring (P. 21) 7 Distance scale (P. 25) 8 Distance index line 9 Zoom ring (P. 25) ! Focal length scale " Focal length scale index line # Lens rotating position index (P. 25) $ Tripod collar ring fastening screw (P. 25) % Slip-in filter holder (P. 26)

En-01 R145_En_00_18 2010/01/25 19:50 & Slip-in filter holder knob (P. 26) ( Memory set button (P. 22) ) Mounting index ~ Lens mount rubber gasket (P. 28) + CPU contacts (P. 28) , Built-in rotating tripod collar (P. 25) - Strap eyelet . Sound monitor switch (P. 22) / Focus operation selection switch (AF-L/MEMORY RECALL/AF-ON) (P. 22) : Focus mode switch (P. 21) ; Focusing limit switch (P. 21) < Vibration reduction ON/OFF switch (P. 24) = Vibration reduction mode switch (P. 24) ( ): reference page

En-01 R145_En_00_19 2010/01/25 19:50 ■ Major features

The Nano Crystal Coat deposited on some of the lens elements ensures that fine, clear images can be reproduced under various shooting conditions, from the sunny outdoors to spotlighted interior scenes.
This lens features AF-L, which locks focus during autofocus, AF-ON, which activates autofocus, and MEMORY RECALL, which saves and recalls selected focus distances.
By enabling vibration reduction (VRⅡ), slower shutter speeds (approximately four stops*) can be used, thus increasing the range of usable shutter speeds and zoom positions, particularly when hand-holding the camera. (*Based on results achieved under Nikon measurement conditions. The effects of vibration reduction may vary according to shooting conditions and use.)
AF-I/AF-S Teleconverters TC-14E/TC-14EⅡ/TC-17EⅡ**/TC-20E**/TC-20EⅡ**/ TC-20EⅢ** are usable. (**Autofocus is not possible.) Important
When mounted on Nikon DX format digital SLR cameras, such as the D300Series and D90, the lens’ picture angle becomes 8°-4° and its 35mm equivalent focal length is approx. 300-600mm. ■ Usable cameras and available functions There may be some restrictions or limitation for available functions. Refer to camera's user's manual for details. Cameras

start Focus Memory AF on the P*1 lock recall lens

✓: Possible —: Not possible VR: Vibration reduction AF: Autofocus *Sold exclusively in the USA **Sold exclusively in the USA and Canada *1: P includes AUTO and Vari-Program System (Scene modes). *2: Manual (M) is not available. *3: When the focus operation selection switch is set to AF-ON, autofocus begins as soon as the focus operation button is pressed while the shutter-release button pressed halfway.

En-01 R145_En_00_20 2010/01/25 19:50 *4: P ress the memory set button or a focus operation button while pressing the shutter release button halfway. *5: Possible, with limited restrictions

Manual Autofocus Autofocus focus AF with manual with manual (Electronic override override (C/S) rangefinder (AF priority) (MF priority) can be used.)

Manual focus (Electronic rangefinder can be used, except with the F-601M /N6000*.) *Sold exclusively in the USA AF: Autofocus MF: Manual focus A/M (Autofocus with manual override. AF priority) mode and M/A (Autofocus with manual override. MF priority) mode M/A: Autofocus can be overridden by manually focusing with the focus ring. A/M: Autofocus can be overridden by manually focusing with the focus ring, but focus ring detection sensitivity is lower than in M/A mode. Use this mode to avoid canceling the AF setting by unintentionally moving the focus ring.

1 Set the focus mode switch to A/M or M/A. 2 Autofocus can be manually overridden by rotating the focus ring while pressing the shutter release button halfway, pressing the AF-ON button on the camera or pressing a focus operation button (with focus operation set to AF-ON) on the lens. 3 Pressing the shutter release button halfway, pressing the AF-ON button on the camera again or pressing a focus operation button on the lens again will cancel manual override and return the lens to autofocus mode. To limit the range of autofocus This function is only available with autofocus. FULL: If the subject is sometimes closer than 6 m (19.7 ft.), set the switch to FULL. ∞ –6m: If the subject is always 6 m (19.7 ft.) or more away, set the switch to ∞ – 6m to reduce focusing time.

■ Focus operation selection switch and focus operation button (See p. 20 for compatible cameras.) Use the focus operation selection switch to choose a function of the focus operation buttons.

Press one of four focus operation buttons to activate each function.
The focus operation button positions can be changed to suit individual user preferences. For more details on this, contact your nearest Nikon service center or representative office.

Position of focus operation selection switch Focus lock (AF-L) This function is only compatible with autofocus. 1 Set the focus mode switch to A/M or M/A. 2 Set the focus operation selection switch to AF-L. 3 During autofocus mode, focus can be locked by pressing one of the focus operation buttons.

Focus remains locked while a focus operation button is pressed and held down.
The AF-L function can be engaged either from the camera or from the lens. Memory recall (MEMORY RECALL) : The lens beeps when memory recall is operated. ♪ : Memory recall operates without the beep sound. The following operation is with the sound monitor switch set to . 1 Focus on a subject and press the memory set button to save the focus distance.
The lens will beep when the focused distance is correctly saved.
When the focus distance is not correctly saved, the distance scale ring will revolve back and forth some 10 times, while the lens will emit one short and three long beeps. In this case, repeat procedure to save focus distance.
Memory set is possible regardless of the setting of the focus mode or focus operation selection switch.
The focus distance is saved even when the camera is turned off or the lens is detached from the camera.
When performing memory recall at a focal length setting different from the original setting, the focused distance may be slightly off. Special care should

En-01 R145_En_00_22 2010/01/25 19:50 be taken when performing memory recall at longer focal length settings. When the sound monitor switch is set to , it will beep a warning. It is recommended to perform memory recall as often as possible at the same focal length to which the memory has been set. 2 Set the focus operation selection switch to MEMORY RECALL. 3 Press a focus operation button. After the lens beeps twice, fully press the shutter release button to take the picture.

The saved focus distance is recalled when a focus operation button is pressed even when the shutter release button is pressed halfway.
To take pictures at the saved focus distance, hold the focus operation button down and fully press the shutter release button.
The lens reverts from memory recall to autofocus or manual focus when the focus operation button is released. Autofocus (AF) start on the lens (AF-ON) 1 Set the focus mode switch to A/M or M/A. 2 Set the focus operation selection switch to AF-ON. 3 Press a focus operation button to take pictures.
Autofocus is activated while a focus operation button is pressed and held down.
The AF-ON function can be engaged either from the camera or from the lens. ■ Vibration reduction mode (VRⅡ) High

Vibration reduction using a tripod Number of vibrations Low

Basic concept of vibration reduction Camera shake

Strong camera shake when taking pictures from a moving vehicle

Panning shots Weak Strength of vibrations Set the vibration reduction mode switch to NORMAL. When taking pictures When taking panning shots When taking pictures from a moving vehicle When taking pictures using a tripod Strong Set the vibration reduction mode switch to ACTIVE. Set the vibration reduction mode switch to either NORMAL or ACTIVE. Set the vibration reduction mode switch to NORMAL. Set the vibration reduction mode switch to ACTIVE. Set the vibration reduction mode switch to either NORMAL or ACTIVE.

ON: The effects of camera shake are reduced while the shutter-release button is pressed halfway and also at the instant the shutter is released. Because vibration is reduced in the viewfinder, auto/manual focusing and exact framing of the subject are easier. OFF: The effects of camera shake are not reduced. Setting the vibration reduction mode switch Set the vibration reduction ON/OFF switch to ON and choose a vibration reduction mode with the vibration reduction mode switch. NORMAL: The vibration reduction mechanism primarily reduces the effects of camera shake. The effects of camera shake are also reduced with horizontal and vertical panning. ACTIVE: The vibration reduction mechanism reduces the effects of camera shake, such as that which occurs when taking pictures from a moving vehicle, whether it be normal or more intense camera shake. In this mode, camera shake is not automatically distinguished from panning motion. Notes on using vibration reduction

If this lens is used with cameras that do not have the vibration reduction function (p. 20), set the vibration reduction ON/OFF switch to OFF. With the Pronea 600i/6i camera, in particular, battery power may become quickly depleted if this switch is left ON.
After pressing the shutter-release button halfway, wait until the image in the viewfinder stabilizes before pressing the shutter-release button the rest of the way down.
Due to the characteristics of the vibration reduction mechanism, the image in the viewfinder may be blurred after the shutter is released. This is not a malfunction.
When taking panning shots, be sure to set the vibration reduction mode switch to NORMAL. If the camera is panned in a wide arc, compensation for camera shake in the panning direction is not performed. For example, only the effects of vertical camera shake is reduced with horizontal panning.
Do not turn the camera off or remove the lens from the camera while vibration reduction is operating. Failure to observe this note could result in the lens sounding and feeling as if an internal component is loose or broken when it is shaken. This is not a malfunction. Turn the camera on again to correct this.
With cameras featuring a built-in flash, vibration reduction does not function while the built-in flash is charging.
When using a tripod, set the vibration reduction ON/OFF switch to ON to reduce the effect of camera shake. Nikon recommends the switch be set to ON when using the camera on an unsecured tripod head or with a monopod. But when camera shake is very slight, the vibration reduction function may conversely increase the effect of camera shake by the movement of the system. In such a case, set the vibration reduction ON/OFF switch to OFF.
Vibration reduction does not function when the AF-ON button on the camera or a focus operation button on the lens is pressed.

En-01 R145_En_00_24 2010/01/25 19:50 ■ Setting the aperture Use the camera to adjust the aperture setting.

■ Focusing, zooming, and depth of field Before focusing, rotate the zoom ring to adjust the focal length until the desired composition is framed. If your camera has a depth-of-field preview (stop-down) button or lever, depth of field can be previewed through the camera viewfinder.

This lens is equipped with the Internal Focusing (IF) system. As the shooting distance decreases, the focal length also decreases.
The distance scale does not indicate the precise distance between the subject and the camera. Values are approximate and should be used only as a general guide. When shooting distant landscapes, depth of field may influence operation and the subject may appear in focus at a position that is closer than infinity.
For more information, see p. 200. ■ Using a built-in rotating tripod collar When using a tripod, attach it to the lens’ tripod collar instead of the camera.
When holding the camera by its handgrip and rotating the camera with the lens in its tripod collar, your hand may bump into the tripod, depending on the tripod in use.
It’s possible to detach the tripod collar by removing the tripod collar lock screw. For details on this procedure, contact your nearest Nikon service center or representative office. Changing the camera position Loosen the tripod collar ring fastening screw (1). Depending on camera position (vertical or horizontal), turn the lens to an appropriate lens rotating position index (2) and tighten the screw (3).

■ Using the lens hood Lens hoods minimise stray light and protect the lens. Attaching the hood

Fully tighten the lens hood screw (2).
If the lens hood is not correctly attached, vignetting may occur.
To store the lens hood, attach it in the reverse position.

En-01 R145_En_00_25 2010/01/25 19:50 ■ Lens protective glass This lens is available with a lens protective glass attached. Keeping this glass on the lens is recommended at all times.

If the picture you want to take includes a bright light source, removing this glass may reduce ghost images. To detach the glass, unscrew by rotating the rubber ring around the glass (1, 2).
Store the glass in the dedicated lens protective glass case provided.

F65-Series/N65-Series*, F60-Series/N60*, F55-Series/N55-Series*, F50-Series/N50*, F-401/N4004*, F-401x/N5005*, F-401s/ N4004s*, Pronea 600i/6i*, Pronea S Supported focal length/Shooting distance

200mm/3 m (9.8 ft.) or greater
250mm or longer/No restriction
200mm/4 m (13.1 ft.) or greater
250mm/2.5 m (8.2 ft.) or greater
300mm or longer/No restriction
200mm/5 m (16.4 ft.) or greater
250mm/3 m (9.8 ft.) or greater
300mm/2.5 m (8.2 ft.) or greater
350mm or longer/No restriction
200mm/3 m (9.8 ft.) or greater
250mm or 300mm/2.5 m (8.2 ft.) or greater
350mm or longer/No restriction
250mm/5 m (16.4 ft.) or greater
300mm/4 m (13.1 ft.) or greater
350mm/3 m (9.8 ft.) or greater
400mm/No restriction Vignetting occurs at any shooting distance. *Sold exclusively in the USA ■ Slip-in filter holder Always use a (52mm screw-on) filter. A 52mm Screw-on NC Filter is attached to the filter holder when shipped from the factory. 1 Press down on the slip-in filter holder knob, and turn counterclockwise until the white line on the knob is at a right angle to the axis of the lens. 2 Pull the slip-in filter holder from the lens body 3 Detach the attached filter from the filter holder. 4 Screw a filter onto the side of the filter holder marked with the words “Nikon” and “JAPAN”.
The slip-in filter holder can be attached with the “Nikon” and “JAPAN” facing either the lens or camera side without any effect on your pictures.

En-01 R145_En_00_26 2010/01/25 19:50 Slip-in Circular Polarizing Filter C-PL1L (optional)

Blocks reflections from nonmetallic surfaces such as glass and water.
When a Slip-in Circular Polarizing Filter C-PL1L is attached, the focus distance is different from when a 52mm screw-on filter is attached. The distance scale is shifted from the correct position. The closest focused distance is extended slightly.
The memory set position may change slightly when using focus preset.
Attach the C-PL1L filter before using the memory set function. ■ Recommended focusing screens Camera

Various interchangeable focusing screens are available for certain Nikon SLR cameras to suit any picture-taking situation. The ones recommended for use with this lens are: Screen

: Excellent focusing : Acceptable focusing Slight vignetting or moiré patterns appear in the viewfinder, but not on the film. — : Not available ( ) : Indicates degree of exposure compensation needed (center-weighted metering only). For F6 cameras, compensate by selecting “Other screen“ in Custom Setting “b6: Screen comp.“ and setting the EV level to -2.0 to +2.0 in 0.5 EV steps. When using screens other than type B or E, “Other screen“ must be selected even when the required compensation value is “0“ (no compensation required). For F5 cameras, compensate using Custom Setting #18 on the camera body. See user’s manual of the camera body for more details. Blank box means not applicable. Since type M screen can be used for both macrophotography at a magnification ratio of 1:1 or above and for photomicrography, it has different applications than other screens. Important

For F5 cameras, only EC-B, EC-E, B, E, J, A, L focusing screens are usable in Matrix Metering.

Be careful not to hold the camera body when the lens is attached, as this may cause damage to the camera (lens mount). Be sure to hold both the lens and camera when carrying.
When the lens is mounted on a camera, do not pick up or hold the camera and lens by the lens hood.
Be careful not to allow the CPU contacts to become dirty or damaged.
If the lens mount rubber gasket is damaged, be sure to visit the nearest Nikonauthorized service representative for repair.
Clean lens surfaces with a blower brush. To remove dirt and smudges, use a soft, clean cotton cloth or lens tissue moistened with ethanol (alcohol) or lens cleaner. Wipe in a circular motion from the center to outer edge, taking care not to leave traces or touch other parts of the lens.
Never use organic solvent such as thinner or benzene to clean the lens.
When storing the lens in its case, attach both the front and rear lens caps.
When the lens will not be used for an extended period of time, store it in a cool, dry place to prevent mold and rust. Be sure to store the lens away from direct sunlight or chemicals such as camphor or naphthalene.
Do not get water on the lens or drop it in water as this will cause it to rust and malfunction.
Reinforced plastic is used for certain parts of the lens. To avoid damage, never leave the lens in an excessively hot place. ■ Standard accessories

Semi-soft Case CL-L2 (with dedicated interior cushioning material)
Dedicated slip-in filter holder
52mm Screw-on NC Filter
Dedicated lens protective glass (attached to the lens)
Dedicated lens protective glass case
Strap LN-1 Important
The slip-in filter holder, with a 52mm screw-on filter attached, should be inserted in the lens at all times. ■ Optional accessories

2mm screw-on filters (except circular polarizing filterⅡ)

En-01 R145_En_00_28 2010/01/25 19:50 ■ Specifications Type of lens: Focal length: G-type AF-S Zoom-NIKKOR lens with built-in CPU and Nikon bayonet mount 200-400mm Maximum aperture: f/4 Lens construction: Focal length scale: Distance information: 24 elements in 17 groups (4 ED and some Nano Crystal Coat-deposited lens elements), as well as 1 detachable protective glass 12°20´-6°10´ with 35mm (135) format Nikon film SLR cameras and Nikon FX format digital SLR cameras 8°-4° with Nikon DX format digital SLR cameras 9°50´-5° with IX240 system cameras 200, 250, 300, 350, 400mm Output to camera Zoom control: Manually via separate zoom ring Focusing: Nikon Internal Focusing (IF) system, autofocus using a Silent Wave Motor; manually via separate focus ring Lens-shift method using voice coil motors (VCMs) Picture angle: Vibration reduction:

Shooting distance scale: Closest focusing distance: No. of diaphragm blades: Diaphragm: Graduated in meters and feet from 2 m (7 ft) to infinity (∞) 2 m (6.6 ft.) with autofocus, at all zoom settings

1.95 m (6.4 ft.) with manual focus, at all zoom settings

9 pcs. (rounded) Aperture range: f/4 to f/32 Exposure measurement: Focusing limit switch: Via full-aperture method with cameras with CPU interface system Provided; two ranges available: FULL (∞–2 m), or ∞–6 m Tripod collar: Rotatable through 360°, lens rotating position index at 90°, only tripod collar detachable Approx. 124 mm dia. x 365.5 mm extension from the camera’s lens-mount flange with lens protective glass attached Approx. 124 mm dia. x 358.5 mm extension from the camera’s lens-mount flange without lens protective glass Approx. 3,360 g (7.4 lbs) with lens protective glass Approx. 3,240 g (7.1 lbs) without lens protective glass Dimensions: Weight:

Specifications and designs are subject to change without any notice or obligation on the part of the manufacturer.

200mm/4 m (13,1 pies) o superior

F-401x, F-401s, F-401 3 3 — — F-801s, F-801, F-601M

F-801s, F-801, F-601M

With the Nikon Internal Focusing (IF) system, as the shooting distance decreases, the focal length also decreases.

R145_table_C_207 2010/01/22 18:33

[f=200mm] f/5.6 f/8 6 ft. 11-4/16 in. 6 ft. 11-8/16 in. 6 ft. 11-10/16 in.

7 ft. 12/16 in. 7 ft. 8/16 in. 7 ft. 6/16 in. 7 ft. 11-1/16 in. 7 ft. 11-4/16 in. 7 ft. 11-8/16 in.

8 ft. 15/16 in. 8 ft. 12/16 in. 8 ft. 8/16 in. 8 ft. 10-11/16 in. 8 ft. 11-1/16 in. 8 ft. 11-4/16 in.

9 ft. 1-5/16 in. 9 ft. 15/16 in. 9 ft. 12/16 in. 9 ft. 10-5/16 in. 9 ft. 10-13/16 in. 9 ft. 11-3/16 in.

10 ft. 1-13/16 in. 10 ft. 1-3/16 in. 10 ft. 13/16 in. 11 ft. 9-8/16 in. 11 ft. 10-11/16 in. 11 ft. 10-3/16 in.

12 ft. 2-10/16 in. 12 ft. 1-13/16 in. 12 ft. 1-5/16 in. 14 ft. 7-13/16 in. 14 ft. 9 in. 14 ft. 9-13/16 in.

15 ft. 4-7/16 in. 15 ft. 3-2/16 in. 15 ft. 2-3/16 in. 19 ft. 4-3/16 in. 19 ft. 6-8/16 in. 19 ft. 8-1/16 in.

20 ft. 8-6/16 in. 20 ft. 5-12/16 in. 20 ft. 4-1/16 in. 23 ft. 11-8/16 in. 24 ft. 3-2/16 in. 24 ft. 5-10/16 in.

26 ft. 1-11/16 in. 25 ft. 9-6/16 in. 25 ft. 6-10/16 in. 28 ft. 5-14/16 in. 28 ft. 11-1/16 in. 29 ft. 2-10/16 in.

31 ft. 8-4/16 in. 31 ft. 1-15/16 in. 30 ft. 9-13/16 in. 37 ft. 3-8/16 in. 38 ft. 13/16 in. 38 ft. 7-3/16 in.

43 ft. 1-11/16 in. 42 ft. 1-13/16 in. 41 ft. 6-2/16 in. 61 ft. 10-11/16 in. 64 ft. 1-7/16 in. 65 ft. 8-4/16 in.

80 ft. 7-1/16 in. 77 ft. 1-1/16 in. 74 ft. 11-1/16 in. 131 ft. 1-15/16 in. 124 ft. 10-11/16 in. 116 ft. 6-8/16 in.

175 ft. 2-6/16 in. 187 ft. 10-1/16 in. 1024 ft. 3-10/16 in. 731 ft. 10-5/16 in. 512 ft. 6-4/16 in.

f/4 Focused distance ■ Depth of field (ft.) f/32 6 ft. 9-4/16 in. 7 ft. 3 in. 7 ft. 8-3/16 in. 8 ft. 4-3/16 in. 8 ft. 6-15/16 in. 9 ft. 5-10/16 in. 9 ft. 5-8/16 in. 10 ft. 7-5/16 in. 11 ft. 2-4/16 in. 12 ft. 11-4/16 in. 13 ft. 8-4/16 in. 16 ft. 7-3/16 in. 17 ft. 7-11/16 in. 23 ft. 1-9/16 in. 21 ft. 3-13/16 in. 30 ft. 3-6/16 in. 24 ft. 9-2/16 in. 38 ft. 1-13/16 in. 31 ft. 6/16 in. 56 ft. 6-2/16 in. 45 ft. 11-14/16 in. 148 ft. 3-2/16 in. 69 ft. 11-12/16 in.

f/22 6 ft. 10-1/16 in. 7 ft. 2-1/16 in. 7 ft. 9-6/16 in. 8 ft. 2-14/16 in. 8 ft. 8-6/16 in. 9 ft. 3-13/16 in. 9 ft. 7-7/16 in. 10 ft. 4-15/16 in. 11 ft. 5-3/16 in. 12 ft. 7-9/16 in. 14 ft. 15/16 in. 16 ft. 12/16 in. 18 ft. 3-12/16 in. 22 ft. 10/16 in. 22 ft. 4-1/16 in. 28 ft. 4-13/16 in. 26 ft. 2-4/16 in. 35 ft. 1-15/16 in. 33 ft. 4-5/16 in. 50 ft. 6/16 in. 51 ft. 5-14/16 in. 109 ft. 9-2/16 in. 83 ft. 10-15/16 in.

f/16 6 ft. 10-9/16 in. 7 ft. 1-7/16 in. 7 ft. 10-1/16 in. 8 ft. 2-1/16 in. 8 ft. 9-6/16 in. 9 ft. 2-12/16 in. 9 ft. 8-10/16 in. 10 ft. 3-10/16 in. 11 ft. 6-15/16 in. 12 ft. 5-6/16 in. 14 ft. 3-13/16 in. 15 ft. 9-2/16 in. 18 ft. 8-14/16 in. 21 ft. 5-6/16 in. 23 ft. 2/16 in. 27 ft. 4-9/16 in. 27 ft. 1-7/16 in. 33 ft. 6-15/16 in. 34 ft. 11-4/16 in. 46 ft. 9-13/16 in. 55 ft. 5-12/16 in. 95 ft. 95 ft. 4-1/16 in.

f/11 1/∞ 1/221.5 1/102.0 1/57.1 1/42.2 1/34.7 1/27.3 1/19.8 1/15.3 1/12.3 1/10.8 1/9.3 1/7.8 Reproduction ratio 6 ft. 11-1/16 in. 7 ft. 15/16 in. 7 ft. 10-11/16 in. 8 ft. 1-7/16 in. 8 ft. 10-3/16 in. 9 ft. 1-15/16 in. 9 ft. 9-12/16 in. 10 ft. 2-6/16 in. 11 ft. 8-8/16 in. 12 ft. 3-12/16 in. 14 ft. 6-4/16 in. 15 ft. 6-2/16 in. 19 ft. 1-7/16 in. 20 ft. 11-10/16 in. 23 ft. 7-1/16 in. 26 ft. 7-1/16 in. 27 ft. 11-8/16 in. 32 ft. 4-7/16 in. 36 ft. 4-7/16 in. 44 ft. 5-6/16 in. 59 ft. 3-13/16 in. 85 ft. 5-6/16 in. 107 ft. 6-12/16 in.

R145_table_C_208 2010/01/22 18:33 6 ft. 11-12/16 in.

7 ft. 4/16 in. 7 ft. 11-10/16 in.

8 ft. 6/16 in. 8 ft. 11-8/16 in.

9 ft. 8/16 in. 9 ft. 11-6/16 in. —10 10 ft. 10/16 in. 11 ft. 11-3/16 in.

12 ft. 13/16 in. 14 ft. 10-9/16 in.

15 ft. 1-7/16 in. 19 ft. 9-6/16 in.

20 ft. 2-12/16 in. 24 ft. 7-11/16 in.

25 ft. 4-7/16 in. 29 ft. 5-12/16 in.

30 ft. 6-8/16 in. 39 ft. 10/16 in.

41 ft. 67 ft. 13/16 in.

73 ft. 2-8/16 in. 136 ft. 10-13/16 in.

165 ft. 10-13/16 in. 1538 ft. 11-14/16 in.

f/4 [f=250mm] f/5.6 f/8 6 ft. 11-10/16 in. 6 ft. 11-8/16 in.

7 ft. 6/16 in. 7 ft. 8/16 in. 7 ft. 11-8/16 in. 7 ft. 11-4/16 in.

8 ft. 8/16 in. 8 ft. 12/16 in. 8 ft. 11-6/16 in. 8 ft. 11-1/16 in.

9 ft. 10/16 in. 9 ft. 15/16 in. 9 ft. 11-3/16 in. 9 ft. 10-13/16 in.

10 ft. 13/16 in. 10 ft. 1-3/16 in. 11 ft. 10-13/16 in. 11 ft. 10-3/16 in.

12 ft. 1-3/16 in. 12 ft. 1-13/16 in. 14 ft. 9-15/16 in. 14 ft. 9-2/16 in.

15 ft. 2-1/16 in. 15 ft. 3 in. 19 ft. 8-4/16 in. 19 ft. 6-12/16 in.

20 ft. 3-13/16 in. 20 ft. 5-8/16 in. 24 ft. 6 in. 24 ft. 3-8/16 in.

25 ft. 6-4/16 in. 25 ft. 9 in. 29 ft. 3-4/16 in. 28 ft. 11-10/16 in.

30 ft. 9-4/16 in. 31 ft. 1-5/16 in. 38 ft. 8-4/16 in. 38 ft. 1-13/16 in.

41 ft. 4-15/16 in. 42 ft. 8/16 in. 65 ft. 11-8/16 in. 64 ft. 4-7/16 in.

74 ft. 6-13/16 in. 76 ft. 8-10/16 in. 132 ft. 3-6/16 in. 125 ft. 10-15/16 in.

173 ft. 3 in. 185 ft. 7-1/16 in. 1099 ft. 6-8/16 in. 769 ft. 11-6/16 in.

f/11 6 ft. 11-4/16 in. 7 ft. 12/16 in. 7 ft. 11-1/16 in. 8 ft. 15/16 in. 8 ft. 10-13/16 in. 9 ft. 1-5/16 in. 9 ft. 10-7/16 in. 10 ft. 1-11/16 in. 11 ft. 9-10/16 in. 12 ft. 2-8/16 in. 14 ft. 8-3/16 in. 15 ft. 4-1/16 in. 19 ft. 4-13/16 in. 20 ft. 7-11/16 in. 24 ft. 8/16 in. 26 ft. 8/16 in. 28 ft. 7-3/16 in. 31 ft. 6-8/16 in. 37 ft. 6 in. 42 ft. 10-5/16 in. 62 ft. 5-14/16 in. 79 ft. 7-1/16 in. 118 ft. 9-4/16 in.

f/16 6 ft. 11-1/16 in. 7 ft. 15/16 in. 7 ft. 10-11/16 in. 8 ft. 1-7/16 in. 8 ft. 10-3/16 in. 9 ft. 1-13/16 in. 9 ft. 9-12/16 in. 10 ft. 2-6/16 in. 11 ft. 8-8/16 in. 12 ft. 3-10/16 in. 14 ft. 6-6/16 in. 15 ft. 6 in. 19 ft. 1-11/16 in. 20 ft. 11-6/16 in. 23 ft. 7-9/16 in. 26 ft. 6-10/16 in. 28 ft. 2/16 in. 32 ft. 3-10/16 in. 36 ft. 5-10/16 in. 44 ft. 3-12/16 in. 59 ft. 7-1/16 in. 84 ft. 10-11/16 in. 108 ft. 6-6/16 in.

1/6.4 7 ft. 1-7/16 in. 7 ft. 2-1/16 in. 7 ft. 10-3/16 in. 7 ft. 9-6/16 in.

1/7.6 8 ft. 1-15/16 in. 8 ft. 2-14/16 in. 8 ft. 9-10/16 in. 8 ft. 8-8/16 in.

1/8.8 9 ft. 2-8/16 in. 9 ft. 3-12/16 in. 9 ft. 8-14/16 in. 9 ft. 7-9/16 in.

1/10.0 10 ft. 3-4/16 in. 10 ft. 4-13/16 in. 11 ft. 7-5/16 in. 11 ft. 5-4/16 in.

1/12.5 12 ft. 5-1/16 in. 12 ft. 7-7/16 in. 14 ft. 4-7/16 in. 14 ft. 1-3/16 in.

1/16.1 15 ft. 8-6/16 in. 16 ft. 8/16 in. 18 ft. 9-15/16 in. 18 ft. 4-3/16 in.

1/22.2 21 ft. 3-15/16 in. 22 ft. 23 ft. 1-13/16 in. 22 ft. 4-15/16 in.

1/28.3 27 ft. 2-3/16 in. 28 ft. 3-10/16 in. 27 ft. 4-1/16 in. 26 ft. 3-6/16 in.

1/34.4 33 ft. 3-2/16 in. 35 ft. 35 ft. 3-10/16 in. 33 ft. 6-4/16 in.

1/46.6 46 ft. 2-3/16 in. 49 ft. 8-4/16 in. 56 ft. 5-8/16 in. 51 ft. 10-15/16 in.

1/83.2 92 ft. 3-6/16 in. 107 ft. 11-12/16 in. 98 ft. 4-5/16 in. 85 ft. 1-3/16 in.

280 ft. 6-12/16 in. 193 ft. 2-1/16 in.

f/5.6 f/8 6 ft. 11-14/16 in. 6 ft. 11-12/16 in. 6 ft. 11-10/16 in.

7 ft. 2/16 in. 7 ft. 4/16 in. 7 ft. 6/16 in. 7 ft. 11-12/16 in. 7 ft. 11-10/16 in. 7 ft. 11-8/16 in.

8 ft. 4/16 in. 8 ft. 6/16 in. 8 ft. 8/16 in. 8 ft. 11-10/16 in. 8 ft. 11-8/16 in. 8 ft. 11-6/16 in.

9 ft. 6/16 in. 9 ft. 8/16 in. 9 ft. 10/16 in. 9 ft. 11-10/16 in. 9 ft. 11-6/16 in. 9 ft. 11-3/16 in.

10 ft. 6/16 in. 10 ft. 10/16 in. 10 ft. 13/16 in. 11 ft. 11-6/16 in. 11 ft. 11-3/16 in. 11 ft. 10-13/16 in.

12 ft. 10/16 in. 12 ft. 13/16 in. 12 ft. 1-3/16 in. 14 ft. 11-1/16 in. 14 ft. 10-9/16 in. 14 ft. 9-15/16 in.

15 ft. 1-1/16 in. 15 ft. 1-7/16 in. 15 ft. 2-1/16 in. 19 ft. 10-1/16 in. 19 ft. 9-6/16 in. 19 ft. 8-4/16 in.

20 ft. 1-15/16 in. 20 ft. 2-10/16 in. 20 ft. 3-13/16 in. 24 ft. 9 in. 24 ft. 7-13/16 in. 24 ft. 6 in.

25 ft. 3-2/16 in. 25 ft. 4-5/16 in. 25 ft. 6-4/16 in. 29 ft. 7-9/16 in. 29 ft. 5-14/16 in. 29 ft. 3-4/16 in.

30 ft. 4-9/16 in. 30 ft. 6-6/16 in. 30 ft. 9-2/16 in. 39 ft. 3-15/16 in. 39 ft. 15/16 in. 38 ft. 8-4/16 in.

40 ft. 8-4/16 in. 40 ft. 11-10/16 in. 41 ft. 4-13/16 in. 67 ft. 11-3/16 in. 67 ft. 1-11/16 in. 65 ft. 11-14/16 in.

72 ft. 2-6/16 in. 73 ft. 1-7/16 in. 74 ft. 6-8/16 in. 140 ft. 7-11/16 in. 137 ft. 2-10/16 in. 132 ft. 4-13/16 in.

160 ft. 8-6/16 in. 165 ft. 5-3/16 in. 173 ft. 12/16 in. 2216 ft. 10-1/16 in. 1583 ft. 9-13/16 in. 1109 ft. 12/16 in.

f/4 [f=300mm] f/11 6 ft. 11-8/16 in. 7 ft. 8/16 in. 7 ft. 11-4/16 in. 8 ft. 12/16 in. 8 ft. 11-3/16 in. 9 ft. 13/16 in. 9 ft. 10-15/16 in. 10 ft. 1-3/16 in. 11 ft. 10-5/16 in. 12 ft. 1-11/16 in. 14 ft. 9-4/16 in. 15 ft. 2-14/16 in. 19 ft. 6-13/16 in. 20 ft. 5-6/16 in. 24 ft. 3-13/16 in. 25 ft. 8-10/16 in. 29 ft. 2/16 in. 31 ft. 12/16 in. 38 ft. 2-10/16 in. —41 ft. 11-6/16 in. 64 ft. 7-3/16 in. 76 ft. 4-15/16 in. 126 ft. 9-13/16 in. 183 ft. 8-1/16 in. 806 ft. 11-4/16 in.

7 ft. 12/16 in. 7 ft. 15/16 in. 7 ft. 1-7/16 in. 7 ft. 11-1/16 in. 7 ft. 10-11/16 in. 7 ft. 10-1/16 in.

8 ft. 15/16 in. 8 ft. 1-5/16 in. 8 ft. 2-1/16 in. 8 ft. 10-11/16 in. 8 ft. 10-5/16 in. 8 ft. 9-8/16 in.

9 ft. 1-5/16 in. 9 ft. 1-13/16 in. 9 ft. 2-10/16 in. 9 ft. 10-7/16 in. 9 ft. 9-13/16 in. 9 ft. 8-12/16 in.

10 ft. 1-11/16 in. 10 ft. 2-4/16 in. 10 ft. 3-6/16 in. 11 ft. 9-10/16 in. 11 ft. 8-10/16 in. 11 ft. 7-3/16 in.

12 ft. 2-8/16 in. 12 ft. 3-8/16 in. 12 ft. 5-3/16 in. 14 ft. 8-1/16 in. 14 ft. 6-10/16 in. 14 ft. 4-3/16 in.

15 ft. 4-3/16 in. 15 ft. 5-12/16 in. 15 ft. 8-8/16 in. 19 ft. 4-11/16 in. 19 ft. 2-1/16 in. 18 ft. 9-13/16 in.

20 ft. 7-13/16 in. 20 ft. 10-15/16 in. 21 ft. 4-5/16 in. 24 ft. 6/16 in. 23 ft. 8-3/16 in. 23 ft. 1-9/16 in.

26 ft. 12/16 in. 26 ft. 5-12/16 in. 27 ft. 2-10/16 in. 28 ft. 6-15/16 in. 28 ft. 1-1/16 in. 27 ft. 3-10/16 in.

31 ft. 6-13/16 in. 32 ft. 2-6/16 in. 33 ft. 3-13/16 in. 37 ft. 5-10/16 in. 36 ft. 7-3/16 in. 35 ft. 3 in.

42 ft. 10-15/16 in. 44 ft. 1-7/16 in. 46 ft. 3-8/16 in. 62 ft. 4-15/16 in. 59 ft. 11-12/16 in. 56 ft. 4-1/16 in.

79 ft. 8-12/16 in. 84 ft. 1-11/16 in. 92 ft. 8-3/16 in. 118 ft. 6-4/16 in. 109 ft. 10-13/16 in. 98 ft. 8/16 in.

555 ft. 2-1/16 in. 404 ft. 1-5/16 in. 278 ft. 2-12/16 in.

R145_table_C_210 2010/01/22 18:33

f/5.6 6 ft. 11-12/16 in. 7 ft. 4/16 in. 7 ft. 11-12/16 in. 8 ft. 4/16 in. 8 ft. 11-10/16 in. 9 ft. 6/16 in. 9 ft. 11-8/16 in. 10 ft. 8/16 in. 11 ft. 11-6/16 in. 12 ft. 10/16 in. 14 ft. 10-15/16 in. 15 ft. 1-1/16 in. 19 ft. 10-1/16 in. 20 ft. 2-1/16 in. 24 ft. 8-14/16 in. 25 ft. 3-4/16 in. 29 ft. 7-7/16 in. 30 ft. 4-11/16 in. 39 ft. 3-12/16 in. 40 ft. 8-8/16 in. 67 ft. 10-7/16 in. 72 ft. 3-4/16 in. 140 ft. 4-9/16 in. 161 ft. 10/16 in. 2155 ft. 1-7/16 in.

f/4 6 ft. 11-14/16 in. 7 ft. 2/16 in. 7 ft. 11-12/16 in. 8 ft. 4/16 in. 8 ft. 11-12/16 in. 9 ft. 4/16 in. 9 ft. 11-10/16 in. 10 ft. 6/16 in. 11 ft. 11-8/16 in. 12 ft. 8/16 in. 14 ft. 11-4/16 in. 15 ft. 12/16 in. 19 ft. 10-9/16 in. 20 ft. 1-7/16 in. 24 ft. 9-12/16 in. 25 ft. 2-4/16 in. 29 ft. 8-12/16 in. 30 ft. 3-6/16 in. 39 ft. 6-2/16 in. 40 ft. 6-2/16 in. 68 ft. 5-8/16 in. 71 ft. 7-5/16 in. 143 ft. 157 ft. 8-12/16 in. 3016 ft. 5-4/16 in.

[f=350mm] f/8 6 ft. 11-12/16 in. 7 ft. 4/16 in. 7 ft. 11-10/16 in. 8 ft. 6/16 in. 8 ft. 11-8/16 in. 9 ft. 8/16 in. 9 ft. 11-6/16 in. 10 ft. 10/16 in. 11 ft. 11-1/16 in. 12 ft. 15/16 in. 14 ft. 10-7/16 in. 15 ft. 1-9/16 in. 19 ft. 9-4/16 in. 20 ft. 2-14/16 in. 24 ft. 7-9/16 in. 25 ft. 4-9/16 in. 29 ft. 5-8/16 in. 30 ft. 6-12/16 in. 39 ft. 6/16 in. 41 ft. 6/16 in. 67 ft. 73 ft. 3-8/16 in. 136 ft. 7-9/16 in. 166 ft. 3-12/16 in. 1509 ft. 1-9/16 in.

f/11 6 ft. 11-10/16 in. 7 ft. 6/16 in. 7 ft. 11-8/16 in. 8 ft. 8/16 in. 8 ft. 11-6/16 in. 9 ft. 12/16 in. 9 ft. 11-3/16 in. 10 ft. 13/16 in. 11 ft. 10-11/16 in. 12 ft. 1-5/16 in. 14 ft. 9-15/16 in. 15 ft. 2-3/16 in. 19 ft. 8-3/16 in. 20 ft. 3-15/16 in. 24 ft. 5-14/16 in. 25 ft. 6-6/16 in. 29 ft. 3-2/16 in. 30 ft. 9-6/16 in. 38 ft. 8-1/16 in. 41 ft. 5-1/16 in. 65 ft. 11-4/16 in. 74 ft. 7-5/16 in. 132 ft. 2-10/16 in. 173 ft. 4-11/16 in. 1098 ft. 10/16 in.

f/16 6 ft. 11-8/16 in. 7 ft. 8/16 in. 7 ft. 11-4/16 in. 8 ft. 12/16 in. 8 ft. 11-1/16 in. 9 ft. 15/16 in. 9 ft. 10-13/16 in. 10 ft. 1-3/16 in. 11 ft. 10-3/16 in. 12 ft. 1-15/16 in. 14 ft. 9 in. 15 ft. 3-2/16 in. 19 ft. 6-8/16 in. 20 ft. 5-12/16 in. 24 ft. 3-4/16 in. 25 ft. 9-6/16 in. 28 ft. 11-4/16 in. 31 ft. 1-13/16 in. 38 ft. 1-3/16 in. 42 ft. 1-5/16 in. 64 ft. 3 in. 76 ft. 11-1/16 in. 125 ft. 5-12/16 in. 186 ft. 7-13/16 in. 755 ft. 5-12/16 in.

f/22 6 ft. 11-4/16 in. 7 ft. 12/16 in. 7 ft. 11-1/16 in. 8 ft. 1-1/16 in. 8 ft. 10-11/16 in. 9 ft. 1-5/16 in. 9 ft. 10-5/16 in. 10 ft. 1-11/16 in. 11 ft. 9-8/16 in. 12 ft. 2-10/16 in. 14 ft. 7-15/16 in. 15 ft. 4-5/16 in. 19 ft. 4-9/16 in. 20 ft. 8-1/16 in. 24 ft. 2/16 in. 26 ft. 15/16 in. 28 ft. 6-12/16 in. 31 ft. 7-3/16 in. 37 ft. 5-4/16 in. 42 ft. 11-8/16 in. 62 ft. 3-15/16 in. 79 ft. 10-11/16 in. 118 ft. 3-2/16 in.

f/32 6 ft. 10-15/16 in. 7 ft. 1-1/16 in. 7 ft. 10-9/16 in. 8 ft. 1-7/16 in. 8 ft. 10-1/16 in. 9 ft. 1-15/16 in. 9 ft. 9-10/16 in. 10 ft. 2-8/16 in. 11 ft. 8-6/16 in. 12 ft. 3-13/16 in. 14 ft. 6-2/16 in. 15 ft. 6-6/16 in. 19 ft. 1-5/16 in. 20 ft. 11-14/16 in. 23 ft. 7-1/16 in. 26 ft. 7-5/16 in. 27 ft. 11-8/16 in. 32 ft. 4-11/16 in. 36 ft. 4-9/16 in. 44 ft. 5-8/16 in. 59 ft. 4-11/16 in. 85 ft. 4-13/16 in. 107 ft. 11-1/16 in.

With the Nikon Internal Focusing (IF) system, as the shooting distance decreases, the focal length also decreases.
