USER MANUAL AF-S VR ZOOM-NIKKOR 70-300MM F-4.5-5.6G IF-ED NIKON
User's Manual (PP.14-23)

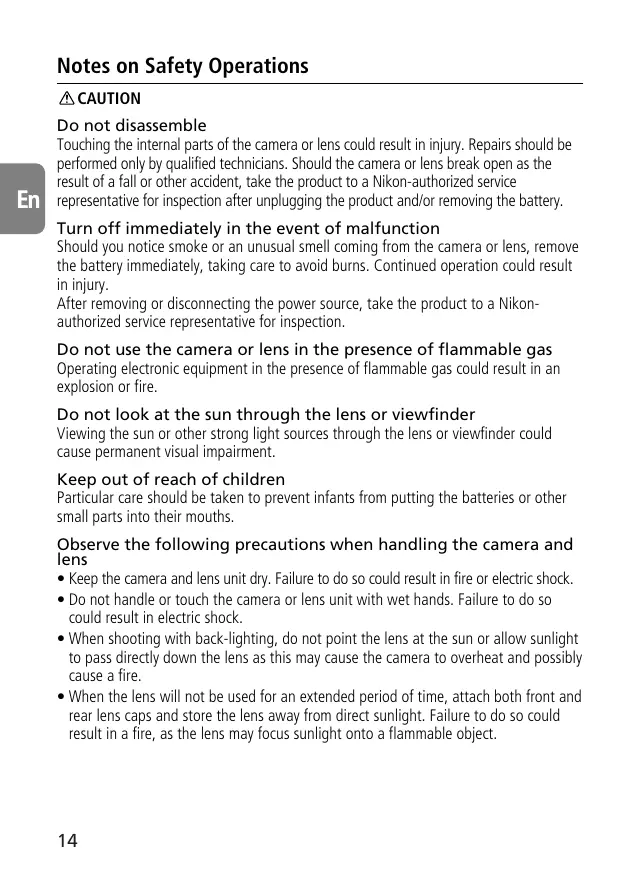

Touching the internal parts of the camera or lens could result in injury. Repairs should be performed only by qualified technicians. Should the camera or lens break open as the result of a fall or other accident, take the product to a Nikon-authorized service representative for inspection after unplugging the product and/or removing the battery.
Turn off immediately in the event of malfunction
Should you notice smoke or an unusual smell coming from the camera or lens, remove the battery immediately, taking care to avoid burns. Continued operation could result in injury.
After removing or disconnecting the power source, take the product to a Nikonauthorized service representative for inspection.
Do not use the camera or lens in the presence of flammable gas
Operating electronic equipment in the presence of flammable gas could result in an explosion or fire.
Do not look at the sun through the lens or viewfinder
Viewing the sun or other strong light sources through the lens or viewfinder could cause permanent visual impairment.
Keep out of reach of children
Particular care should be taken to prevent infants from putting the batteries or other small parts into their mouths.
Observe the following precautions when handling the camera and lens
- Keep the camera and lens unit dry. Failure to do so could result in fire or electric shock.
- Do not handle or touch the camera or lens unit with wet hands. Failure to do so could result in electric shock.
- When shooting with back-lighting, do not point the lens at the sun or allow sunlight to pass directly down the lens as this may cause the camera to overheat and possibly cause a fire.
- When the lens will not be used for an extended period of time, attach both front and rear lens caps and store the lens away from direct sunlight. Failure to do so could result in a fire, as the lens may focus sunlight onto a flammable object.
Nomenclature ( : Reference page
① Lens hood (p.20)
② Lens hood attachment index (p.20)
③ Lens hood setting index (p.20)
Lens hood mounting index (p.20)
⑤ Zoom ring (p.19)
⑥ Focal length scale
⑦ Focal length index line
Focus ring (p.17)
⑨ Distance scale
10 Mounting index
Lens mount rubber gasket (p.16)
① CPU contacts (p.16)
① Infrared compensation index (at 70mm) (p.17)
14 Distance index line
Vibration reduction mode switch (p.18)
16 Vibration reduction ON/OFF switch (p.18)
1 Focus mode switch (p.17)
Usable cameras and available functions
There may be some restrictions or limitation for available functions. Refer to your camera user's manual for details.
| Cameras | Function | Exposure mode | ||||
| Vibration reduction | Autofocus | P*1 | S | A | M | |
| Nikon digital SLR (Nikon FX/DX format) cameras | ○ | ○ | ○ | ○ | ○ | ○ |
| F6, F5, F100, F80-Series/N80-Series*, F75-Series/N75-Series*, F65-Series/N65-Series* | ○ | ○ | ○ | ○ | ○ | ○ |
| Pronea 600i/6i*, Pronea S*2 | × | ○ | ○ | ○ | ○ | ○ |
| F4-Series, F90X/ N90s*, F90-Series/N90*, F70-Series/N70* | × | ○ | ○ | ○ | × | × |
| F60-Series/ N60*, F55-Series/N55-Series*, F50-Series/N50*, F-401x/N5005*, F-401s/ N4004s*, F-401/N4004* | × | × | ○ | ○ | ○ | ○ |
| F-801s/N8008s*, F-801/N8008*, F-601m/N6000* | × | × | ○ | ○ | × | × |
| F3AF, F-601/N6006*, F-501/N2020**, Nikon MF cameras (except F-601M/N6000*) | × | × | × | × | × | × |
:Possible × : Impossible
Sold exclusively in the USA. Sold exclusively in the USA and Canada.
1 P includes AUTO (General-Purpose Program) and Vari-Program System.
*2 Manual (M) is not available.
- If this lens is used with cameras not compatible with vibration reduction, set the vibration reduction ON/OFF switch (16) to [OFF]. With a Pronea 600i/6i camera, in particular, battery power may become quickly depleted if this switch is left [ON].
1. Introduction
Thank you for purchasing the AF-S VR Zoom-Nikkor 70-300mm f/4.5-5.6G IF-ED lens. This is a high-performance zoom lens featuring special Vibration Reduction (VR II) and high-speed Internal Focusing (IF) mechanisms. It also employs a Silent (S) Wave Motor to drive the focusing mechanism.
Major features
- Pictures can be taken at shutter speeds approx. 4 stops slower than is possible without using a VR II lens, thus expanding the range of usable shutter speed options and making shooting without a tripod at various zoom settings much easier. (Under Nikon measurement conditions. The effects of vibration reduction vary depending on individual and shooting conditions.)
- Two vibration reduction modes are available: (1) the [NORMAL] mode for reducing camera shake, and (2) the [ACTIVE] mode for reducing camera shake when taking pictures from a moving vehicle.
- Panning is also possible, as the lens automatically distinguishes panning from camera shake (in [NORMAL] mode) and vibration reduction works effectively.
- Autofocus (A) or manual (M) mode can easily be selected with the Focus mode switch.
- Autofocusing with manual override is provided, allowing instant change from autofocusing to manual focusing.
- More accurate exposure control is possible when this is mounted on a Nikon camera having 3D Matrix Metering capability, because subject distance information is transferred from the lens to the camera body.
- The use of two ED (extra-low dispersion) lens elements ensures sharp pictures virtually free of color fringing. Also, by utilizing a 9-blade diaphragm that produces a nearly circular aperture, out-of-focus images in front of or behind the subject are rendered as pleasing blurs.
- The closest focusing distance possible is 1.5m or 4.9 ft. (at all zoom settings).
Important
- Be careful not to soil or damage the CPU contacts (12).
- When mounted on Nikon DX format digital SLR cameras, such as the D300-Series and D90, the lens' picture angle becomes 22^50' - 5^20' and its 35mm equivalent focal length range is approx. 105mm -450mm.
- If the lens mount rubber gasket (1) is damaged, be sure to visit the nearest Nikon authorized dealer or service center for repair.
2. Focusing
Set your camera's focus mode selector according to this chart.
| Cameras | Camera's focus mode | Lens' focus mode | |
| M/A | M | ||
| Nikon digital SLR (Nikon FX/DX format) cameras, F6, F5, F4-Series, F100, F90X/N90s*, F90-Series/N90*, F80-Series/N80-Series*, F75-Series/ N75-Series*, F70-Series/N70*, F65-Series/N65-Series*, Pronea 600I/6I*, Pronea S | AF (C/S) | Autofocus with manual priority | Manual focus (Focus assist is available.) |
| MF | Manual focus (Focus assist is available.) | ||
| F55-Series/N55-Series*, F60-Series/N60*, F50-Series/N50*, F-801s/N8008s*, F-801/N8008*, F-601M/N6000*, F-401x/N5005*, F-401s/ N4004s*, F-401/N4004* | AF (C/S) MF | Manual focus (Focus assist is available, except with the F-601M/N6000*.) | |
- Sold exclusively in the USA.
■Autofocus with manual override (M/A mode)
1 Set the Focus mode switch (17) to [M/A].
Note: Be sure to set the switch so that the indicator aligns with [M/A] precisely.
2 Autofocus is provided, but you can manually override the focus by operating the separate Focus ring (8) while lightly depressing the shutter release button or the AF start (AF-ON) button on the camera.
3 To cancel manual override, again lightly depress the shutter release button or the AF start button on the camera. This will return the camera to autofocus mode.
Infrared compensation
With infrared film, manual compensation must be made to the focused distance. First, focus manually on the subject. Rotate the focus ring (8) to realign the distance scale referring to the table below. Attach a red (R60) filter for infrared photography, and then shoot.
| Focal length | Compensation from distance index line (14) |
| 70 mm | Shift the distance scale to the infrared compensation index (13). (3.9 mm) |
| 100 mm | 1.6 mm |
| 135 mm | 0.7 mm |
| 200 mm | 0.2 mm |
| 300 mm | 0 mm (No compensation is necessary) |
3. Vibration reduction mode (VR II)

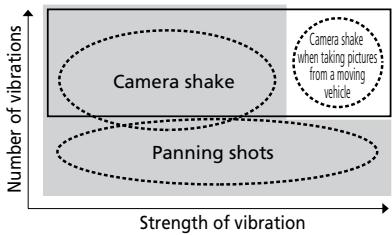

Basic concept of vibration reduction
The effects of vibration reduction
Pictures can be taken at shutter speeds approx. 4 stops slower than is possible without using a VR II lens.(Under Nikon measurement conditions. The effects of vibration reduction vary depending on individual and shooting conditions.)
Setting the vibration reduction ON/OFF switch
1 Set the Vibration reduction ON/OFF switch 16 to [ON]. Note: Be sure to set the switch so that the indicator aligns with [ON] precisely.
2 Vibration is reduced when the shutter release button is lightly pressed. Because vibration is reduced in the viewfinder, auto/manual focusing and exact framing of the subject are made easier.
3 To cancel the vibration reduction mode, set the Vibration reduction ON/OFF switch 16 to [OFF].
Setting the vibration reduction mode switch 15
NORMAL: The vibration reduction mechanism primarily reduces camera shake, making smooth panning shots possible.
ACTIVE: The vibration reduction mechanism reduces camera shake when taking pictures and those from a moving vehicle. In this mode, the lens does not automatically distinguish panning from camera shake.
Note: Be sure to set the switch so that the indicator aligns with [NORMAL] or [ACTIVE] precisely.
Notes on using vibration reduction
- Wait until the image in the viewfinder stops vibrating before fully depressing the shutter release button after you have lightly pressed the shutter release button.
- When taking panning shots, be sure to set the vibration reduction mode switch to [NORMAL]. If you move the camera in a wide arc when panning, vibration in the direction of that movement is not affected. For example, if you pan the camera horizontally, only vibration in the vertical direction is reduced, making smooth pans much easier.
- Due to the characteristics of the vibration reduction mechanism, the image in the viewfinder may become blurred after releasing the shutter. This is not a malfunction.
- Do not turn the camera power OFF or remove the lens from the camera while the vibration reduction mode is in operation. (Otherwise, the lens may emit a chattering noise if the camera is shaken. This is not a malfunction. Turn the camera power ON again to correct this.)
- With F80-Series/N80-Series, F75-Series/N75-Series, F65-Series/N65-Series, D700, D300-Series, D200, D100, D90, D80, D70-Series, D5000, D3000, D60, D50 and D40-Series cameras featuring a built-in flash, vibration reduction does not work while the built-in flash is recycling.
- When the lens is mounted on a tripod, set the vibration reduction ON/OFF switch (16) to [OFF]. However, set the switch to [ON] when using a tripod without securing the tripod head, or when using a monopod.
- With AF cameras featuring an AF start (AF-ON) button, such as D3-Series, D300-Series and F6 models, vibration reduction will not operate even if the AF-ON button is depressed.
4. Focusing, zooming, and depth of field (p.88)
First turn the zoom ring (5) until the desired composition is framed in the viewfinder before focusing. If your camera has a depth of field preview (stop-down) button or lever, depth of field can be observed while looking through the camera viewfinder.
- The distance scale does not indicate the precise distance between the subject and the camera. Values are approximate and should be used only as a general guide.
5. Variable maximum apertures
Zooming the lens from 70mm to 300mm decreases the maximum aperture approx. 2/3 of an f/stop. For cameras with TTL metering, there is no need to adjust the aperture. Likewise, for TTL auto flash photography with Nikon Speedlights, no adjustment is required. When using a separate exposure meter or taking photographs in the non-TTL flash mode, select the appropriate aperture value according to the focal length setting as displayed on the camera.
6. Setting the aperture
Set the aperture on the camera body.
7. Using bayonet hood HB-36 ①
■Attaching the hood
Align the lens hood attachment index (一) ② on the hood (either one of the two indexes) with the lens hood mounting index ④ on the lens, and turn the hood ① clockwise until it click stops to secure.
- Make sure that the lens hood mounting index (4) aligns with the lens hood setting index (- ) (3).
- If the lens hood is not correctly attached, vignetting can occur.
- To facilitate attachment or removal of the hood, hold it by its base (around the lens hood attachment index) rather than its outer edge.
- To store the lens hood, attach it in the reverse position.
Detaching the hood
While holding the base of the hood (near the lens hood attachment index) rather than its outer edge, turn it counterclockwise to detach.
8. Flash pictures using cameras with a built-in flash
To prevent vignetting, do not use a lens hood ①.
9. Recommended focusing screens
Various interchangeable focusing screens are available for certain Nikon SLR cameras to suit any picture-taking situation. The ones recommended for use with this lens are:
| Screen Camera | A | B | C | E | EC-B EC-E | F | G1/G2 G3/G4 | J | K | L | M | P | U |
| F6 | ◎ | ◎ | — | ◎ | — | — | — | ◎ | — | ◎ | — | ||
| F5+DP-30 | ◎ | ◎ | ◎ | ◎ | — | ◎ | — | ◎ | — | ||||
| F5+DA-30 | ◎ | ◎ | ◎ | ◎ | — | ◎ | — | ◎ | — | ||||
| F4+DP-20 | — | ◎ | ◎ | — | ◎ | ◎ | — | ◎ | |||||
| F4+DA-20 | — | ◎ | ◎ | — | ◎ | ◎ | — | ◎ |
:Excellent focusing
Not available.
( :: Indicates degree of exposure compensation needed (Center-Weighted metering only). For F6 cameras, compensate by selecting "Other screen" in Custom Setting "b6: Screen comp." and setting the EV level to -2.0 to +2.0 in 0.5 EV steps. When using screens other than type B or E, "Other screen" must be selected even when the required compensation value is "0" (no compensation required). For F5 cameras, compensate using Custom Setting #18 on the camera body. For F4-Series cameras, compensate using the Exposure Compensation Dial for the focusing screen.
See user's manual of the camera body for more details.
Blank box means not applicable. Since type M screen can be used for both macrophotography at a 1:1 magnification ratio and for photomicrography, it has different applications than other screens.
- When using the B and E focusing screens in cameras other than those listed above, refer to the columns for the B and E screens.
10. Lens care
- Clean the lens surfaces with a blower brush. To remove dirt and smudges, use a soft, clean cotton cloth or lens tissue moistened with ethanol (alcohol) or lens cleaner. Wipe in a circular motion from center to outer edge, taking care not to leave traces or touch other parts of the lens.
- Never use thinner or benzene to clean the lens as this might damage it, result in a fire, or cause health problems.
- To protect the front lens element, an NC filter is available. A lens hood ① also helps protect the front of the lens.
- When storing the lens in its lens case, attach both front and rear caps.
- When the lens will not be used for a long time, store it in a cool, dry place to prevent mold. Also store the lens away from direct sunlight or chemicals such as camphor or naphthalene.
- Do not get water on the lens or drop it in water as this will cause it to rust and malfunction.
- Reinforced plastic is used for certain parts of the lens. To avoid damage, never leave the lens in an excessively hot place.
11. Standard accessories
- 67mm snap-on front lens cap LC-67 - Rear lens cap LF-1
- Bayonet hood HB-36 - Flexible lens pouch CL-1022
12. Optional accessories
- 67mm screw-in filters
13. Incompatible accessories
- Teleconverters (all models) - Auto Ring BR-4 and all models of Auto Extension Ring PK, K Ring and Bellows focusing attachment.
Other accessories may not be suitable for use with this lens. For details, carefully read your accessories user's manual.
14. Specifications
| Type of lens: | G-type AF-S Zoom-Nikkor lens with built-in CPU and Nikon bayonet mount |
| Focal length: | 70mm-300mm |
| Maximum aperture: | f/4.5-5.6 |
| Lens construction: | 17 elements in 12 groups (2 ED lens elements) |
| Picture angle: | 34°20' - 8°10' with 35 mm (135) format Nikon film-SLR cameras and Nikon FX format digital SLR cameras 22°50' - 5°20' with Nikon DX format digital SLR cameras 27°40' - 6°40' with IX240 system cameras |
| Focal length scale: | 70, 100, 135, 200, 300mm |
| Distance information: | Output to camera body |
| Zoom control: | Manually via separate zoom ring |
| Focusing: | Nikon Internal Focusing (IF) system (utilizing an internal Silent Wave Motor); manually via separate focus ring |
| Vibration reduction: | Lens-shift method using voice coil motors (VCMs) |
| Shooting distance scale: | Graduated in meters and feet from 1.5m (5 ft.) to infinity (∞) |
| Closest focus distance: | 1.5m (4.9 ft.) at all zoom settings |
| No. of diaphragm blades: | 9 pcs. (rounded) |
| Diaphragm: | Fully automatic |
| Aperture range: | f/4.5 to f/32 (at 70mm), f/5.6 to f/40 (at 300mm) |
| Exposure measurement: | Via full-aperture method |
| Attachment size: | 67mm (P = 0.75mm) |
| Dimensions: | Approx. 80mm dia. x 143.5mm extension from the camera's lens mount flange |
| Weight: | Approx. 745g (26.3 oz) |
Specifications and designs are subject to change without any notice or obligation on the part of the manufacturer.
ACHTUNG
Keinesfalls zerlegen.
| Einstellscheibe Kamera | A | B | C | E | EC-B EC-E | F | G1/G2 G3/G4 | J | K | L | M | P | U |
| F6 | ◎ | ◎ | — | ◎ | — | — | — | ◎ | — | ◎ | — | ||
| F5+DP-30 | ◎ | ◎ | ◎ | ◎ | — | ◎ | — | ◎ | — | ||||
| F5+DA-30 | ◎ | ◎ | ◎ | ◎ | — | ◎ | — | ◎ | — | ||||
| F4+DP-20 | — | ◎ | ◎ | — | ◎ | ◎ | — | ◎ | |||||
| F4+DA-20 | — | ◎ | ◎ | — | ◎ | ◎ | — | ◎ |
: Hervorragende Scharfeinstellung
Nicht möglich
| Verre Appareil | A | B | C | E | EC-B EC-E | F | G1/G2 G3/G4 | J | K | L | M | P | U |
| F6 | ◎ | ◎ | — | ◎ | — | — | — | ◎ | — | ◎ | — | ||
| F5+DP-30 | ◎ | ◎ | ◎ | ◎ | — | ◎ | — | ◎ | — | ||||
| F5+DA-30 | ◎ | ◎ | ◎ | ◎ | — | ◎ | — | ◎ | — | ||||
| F4+DP-20 | — | ◎ | ◎ | — | ◎ | ◎ | — | ◎ | |||||
| F4+DA-20 | — | ◎ | ◎ | — | ◎ | ◎ | — | ◎ |
| Pantalla Cámara | A | B | C | E | EC-B EC-E | F | G1/G2 G3/G4 | J | K | L | M | P | U |
| F6 | ◎ | ◎ | — | ◎ | — | — | — | ◎ | — | ◎ | — | ||
| F5+DP-30 | ◎ | ◎ | ◎ | ◎ | — | ◎ | — | ◎ | — | ||||
| F5+DA-30 | ◎ | ◎ | ◎ | ◎ | — | ◎ | — | ◎ | — | ||||
| F4+DP-20 | — | ◎ | ◎ | — | ◎ | ◎ | — | ◎ | |||||
| F4+DA-20 | — | ◎ | ◎ | — | ◎ | ◎ | — | ◎ |
: Enfoque excellente
No existence
| Schemo Fotocamera | A | B | C | E | EC-B EC-E | F | G1/G2 G3/G4 | J | K | L | M | P | U |
| F6 | ◎ | ◎ | — | ◎ | — | — | — | ◎ | — | ◎ | — | ||
| F5+DP-30 | ◎ | ◎ | ◎ | ◎ | — | ◎ | — | ◎ | — | ||||
| F5+DA-30 | ◎ | ◎ | ◎ | ◎ | — | ◎ | — | ◎ | — | ||||
| F4+DP-20 | — | ◎ | ◎ | — | ◎ | ◎ | — | ◎ | |||||
| F4+DA-20 | — | ◎ | ◎ | — | ◎ | ◎ | — | ◎ |
| 聚焦屏 相机 | A | B | C | E | EC-B EC-E | F | G1/G2 G3/G4 | J | K | L | M | P | U |
| F6 | ◎ | ◎ | — | ◎ | — | — | — | ◎ | — | ◎ | — | ||
| F5+DP-30 | ◎ | ◎ | ◎ | ◎ | — | ◎ | — | ◎ | — | ||||
| F5+DA-30 | ◎ | ◎ | ◎ | ◎ | — | ◎ | — | ◎ | — | ||||
| F4+DP-20 | — | ◎ | ◎ | — | ◎ | ◎ | — | ◎ | |||||
| F4+DA-20 | — | ◎ | ◎ | — | ◎ | ◎ | — | ◎ |
：最佳聚焦
一：是指相机上不带取景器屏。
| 聚焦屏 相機 | A | B | C | E | EC-B EC-E | F | G1/G2 G3/G4 | J | K | L | M | P | U |
| F6 | ◎ | ◎ | — | ◎ | — | — | — | ◎ | — | ◎ | — | ||
| F5+DP-30 | ◎ | ◎ | ◎ | ◎ | — | ◎ | — | ◎ | — | ||||
| F5+DA-30 | ◎ | ◎ | ◎ | ◎ | — | ◎ | — | ◎ | — | ||||
| F4+DP-20 | — | ◎ | ◎ | — | ◎ | ◎ | — | ◎ | |||||
| F4+DA-20 | — | ◎ | ◎ | — | ◎ | ◎ | — | ◎ |
：最佳聚焦
——是指相機上不帶取景器屏。
(ft.)
Depth of field
| Focused distance | Depth of field | Reproduction ratio | |||||||
| f/4.5 | f/5.6 | f/8 | f/11 | f/16 | f/22 | f/32 | |||
| [f = 70mm] | |||||||||
| 5 | 4 ft. 10-1/16 in. | 4 ft. 9-12/16 in. | 4 ft. 8-12/16 in. | 4 ft. 7-11/16 in. | 4 ft. 5-14/16 in. | 4 ft. 3-15/16 in. | 4 ft. 1-1/16 in. | 1/17.7 | |
| 5 ft. 2-1/16 in. | 5 ft. 2-8/16 in. | 5 ft. 3-12/16 in. | 5 ft. 5-4/16 in. | 5 ft. 7-15/16 in. | 5 ft. 11-10/16 in. | 6 ft. 6-12/16 in. | |||
| 6 | 5 ft. 9-2/16 in. | 5 ft. 8-8/16 in. | 5 ft. 7-1/16 in. | 5 ft. 5-8/16 in. | 5 ft. 2-14/16 in. | 5 ft. 2/16 in. | 4 ft. 8-1/16 in. | 1/22.0 | |
| 6 ft. 3-4/16 in. | 6 ft. 3-15/16 in. | 6 ft. 5-12/16 in. | 6 ft. 8-3/16 in. | 7 ft. 10/16 in. | 7 ft. 6-12/16 in. | 8 ft. 7-5/16 in. | |||
| 7 | 6 ft. 7-15/16 in. | 6 ft. 7-1/16 in. | 6 ft. 5-3/16 in. | 6 ft. 2-14/16 in. | 5 ft. 11-8/16 in. | 5 ft. 7-13/16 in. | 5 ft. 2-6/16 in. | 1/26.2 | |
| 7 ft. 4-9/16 in. | 7 ft. 5-10/16 in. | 7 ft. 8-4/16 in. | 7 ft. 11-14/16 in. | 8 ft. 6-10/16 in. | 9 ft. 4-3/16 in. | 11 ft. 1-1/16 in. | |||
| 8 | 7 ft. 6-8/16 in. | 7 ft. 5-8/16 in. | 7 ft. 3 in. | 7 ft. | 6 ft. 7-9/16 in. | 6 ft. 2-14/16 in. | 5 ft. 8-4/16 in. | 1/30.5 | |
| 8 ft. 6-4/16 in. | 8 ft. 7-11/16 in. | 8 ft. 11-6/16 in. | 9 ft. 4-7/16 in. | 10 ft. 2-1/16 in. | 11 ft. 4-5/16 in. | 14 ft. 1-13/16 in. | |||
| 10 | 9 ft. 3-4/16 in. | 9 ft. 1-9/16 in. | 8 ft. 9-12/16 in. | 8 ft. 5-3/16 in. | 7 ft. 10-9/16 in. | 7 ft. 3-12/16 in. | 6 ft. 6-8/16 in. | 1/39.0 | |
| 10 ft. 10-7/16 in. | 11 ft. 13/16 in. | 11 ft. 7-3/16 in. | 12 ft. 4-3/16 in. | 13 ft. 10-5/16 in. | 16 ft. 3-4/16 in. | 23 ft. 15/16 in. | |||
| 12 | 10 ft. 11-4/16 in. | 10 ft. 8-14/16 in. | 10 ft. 3-6/16 in. | 9 ft. 9-2/16 in. | 9 ft. 2/16 in. | 8 ft. 3-2/16 in. | 7 ft. 3-4/16 in. | 1/47.6 | |
| 13 ft. 3-12/16 in. | 13 ft. 7-7/16 in. | 14 ft. 5-8/16 in. | 15 ft. 8-3/16 in. | 18 ft. 3-4/16 in. | 22 ft. 10-5/16 in. | 39 ft. 10-1/16 in. | |||
| 15 | 13 ft. 4-1/16 in. | 13 ft. 8/16 in. | 12 ft. 4-3/16 in. | 11 ft. 7-1/16 in. | 10 ft. 6-6/16 in. | 9 ft. 5-14/16 in. | 8 ft. 2-1/16 in. | 1/60.4 | |
| 17 ft. 1-15/16 in. | 17 ft. 8-6/16 in. | 19 ft. 2-4/16 in. | 21 ft. 5-8/16 in. | 26 ft. 9-12/16 in. | 38 ft. 5-4/16 in. | 145 ft. 11-1/16 in. | |||
| 20 | 17 ft. 15/16 in. | 16 ft. 7-1/16 in. | 15 ft. 5-10/16 in. | 14 ft. 3-4/16 in. | 12 ft. 7-13/16 in. | 11 ft. 1-13/16 in. | 9 ft. 4-1/16 in. | 1/81.8 | |
| 24 ft. 2-1/16 in. | 25 ft. 3-4/16 in. | 28 ft. 6-2/16 in. | 34 ft. 2/16 in. | 50 ft. 4-1/16 in. | 120 ft. 10-1/16 in. | ∞ | |||
| 40 | 29 ft. 6-6/16 in. | 28 ft. 4/16 in. | 24 ft. 10-5/16 in. | 21 ft. 9-12/16 in. | 18 ft. 1-9/16 in. | 15 ft. 1-5/16 in. | 11 ft. 10-7/16 in. | 1/167.1 | |
| 62 ft. 3-13/16 in. | 70 ft. 6-8/16 in. | 105 ft. 3-15/16 in. | ∞ | ∞ | ∞ | ∞ | |||
| ∞ | 108 ft. 9-13/16 in. | 90 ft. 2-12/16 in. | 63 ft. 4-1/16 in. | 46 ft. 2-12/16 in. | 31 ft. 11-10/16 in. | 23 ft. 4-15/16 in. | 16 ft. 3-6/16 in. | 1/∞ | |
f/4.5 f/5.6 f/8 f/11 f/16 f/22 f/32
| [ f = 100mm] | |||||||||
| 5 | - | 4 ft. 10-13/16 in. | 4 ft. 10-5/16 in. | 4 ft. 9-12/16 in. | 4 ft. 8-12/16 in. | 4 ft. 7-9/16 in. | 4 ft. 5-12/16 in. | 4 ft. 5-12/16 in. | 1/12.5 |
| 5 ft. 1-5/16 in. | 5 ft. 1-13/16 in. | 5 ft. 2-8/16 in. | 5 ft. 3-12/16 in. | 5 ft. 5-4/16 in. | 5 ft. 8-3/16 in. | 5 ft. 8-3/16 in. | |||
| 6 | - | 5 ft. 10-3/16 in. | 5 ft. 9-6/16 in. | 5 ft. 8-8/16 in. | 5 ft. 7-1/16 in. | 5 ft. 5-6/16 in. | 5 ft. 2-12/16 in. | 5 ft. 2-12/16 in. | 1/15.5 |
| 6 ft. 1-15/16 in. | 6 ft. 2-12/16 in. | 6 ft. 3-15/16 in. | 6 ft. 5-14/16 in. | 6 ft. 8-6/16 in. | 7 ft. 15/16 in. | ||||
| 7 | - | 6 ft. 9-6/16 in. | 6 ft. 8-6/16 in. | 6 ft. 7-1/16 in. | 6 ft. 5-1/16 in. | 6 ft. 2-12/16 in. | 5 ft. 11-4/16 in. | 5 ft. 11-4/16 in. | 1/18.6 |
| 7 ft. 2-12/16 in. | 7 ft. 3-15/16 in. | 7 ft. 5-10/16 in. | 7 ft. 8-8/16 in. | 8 ft. 2/16 in. | 8 ft. 7-1/16 in. | ||||
| 8 | - | 7 ft. 8-8/16 in. | 7 ft. 7-3/16 in. | 7 ft. 5-6/16 in. | 7 ft. 2-12/16 in. | 6 ft. 11-14/16 in. | 6 ft. 7-5/16 in. | 6 ft. 7-5/16 in. | 1/21.6 |
| 8 ft. 3-12/16 in. | 8 ft. 5-6/16 in. | 8 ft. 7-11/16 in. | 8 ft. 11-10/16 in. | 9 ft. 4-13/16 in. | 10 ft. 2-12/16 in. | ||||
| 10 | - | 9 ft. 6-8/16 in. | 9 ft. 4-3/16 in. | 9 ft. 1-9/16 in. | 8 ft. 9-8/16 in. | 8 ft. 4-15/16 in. | 7 ft. 10-3/16 in. | 7 ft. 10-3/16 in. | 1/27.7 |
| 10 ft. 6-2/16 in. | 10 ft. 9 in. | 11 ft. 13/16 in. | 11 ft. 7-11/16 in. | 12 ft. 4-15/16 in. | 13 ft. 11-12/16 in. | ||||
| 12 | - | 11 ft. 3-13/16 in. | 11 ft. 10/16 in. | 10 ft. 8-14/16 in. | 10 ft. 3-2/16 in. | 9 ft. 8-12/16 in. | 8 ft. 11-12/16 in. | 8 ft. 11-12/16 in. | 1/33.8 |
| 12 ft. 9-4/16 in. | 13 ft. 1-9/16 in. | 13 ft. 7-7/16 in. | 14 ft. 6-4/16 in. | 15 ft. 9-6/16 in. | 18 ft. 5-12/16 in. | ||||
| 15 | - | 13 ft. 11-3/16 in. | 13 ft. 6-4/16 in. | 13 ft. 8/16 in. | 12 ft. 3-12/16 in. | 11 ft. 6-10/16 in. | 10 ft. 5-10/16 in. | 10 ft. 5-10/16 in. | 1/43.0 |
| 16 ft. 3-2/16 in. | 16 ft. 10-7/16 in. | 17 ft. 8-6/16 in. | 19 ft. 3-10/16 in. | 21 ft. 7-15/16 in. | 27 ft. 3-8/16 in. | ||||
| 20 | - | 18 ft. 1-3/16 in. | 17 ft. 4-11/16 in. | 16 ft. 6-15/16 in. | 15 ft. 4-13/16 in. | 14 ft. 2-4/16 in. | 12 ft. 6-13/16 in. | 12 ft. 6-13/16 in. | 1/58.2 |
| 22 ft. 4-7/16 in. | 23 ft. 6-13/16 in. | 25 ft. 3-6/16 in. | 28 ft. 9-4/16 in. | 34 ft. 6-6/16 in. | 52 ft. 1-5/16 in. | ||||
| 40 | - | 32 ft. 9-15/16 in. | 30 ft. 5-14/16 in. | 28 ft. 4/16 in. | 24 ft. 8-4/16 in. | 21 ft. 7-9/16 in. | 17 ft. 11-8/16 in. | 17 ft. 11-8/16 in. | 1/119.2 |
| 51 ft. 3-8/16 in. | 58 ft. 4-11/16 in. | 70 ft. 8-1/16 in. | 109 ft. 1-3/16 in. | ∞ | ∞ | ||||
| ∞ | - | 176 ft. 5-4/16 in. | 123 ft. 8-8/16 in. | 90 ft. 1-13/16 in. | 62 ft. 2-4/16 in. | 45 ft. 4-15/16 in. | 31 ft. 5-1/16 in. | 31 ft. 5-1/16 in. | 1/∞ |
| ∞ | ∞ | ∞ | ∞ | ∞ | ∞ | ||||
f/4.5 f/5.6 f/8 f/11 f/16 f/22 f/32
| [f = 135mm] | ||||||||
| 5 | — | 4 ft. 11-4/16 in. | 4 ft. 11-1/16 in. | 4 ft. 10-11/16 in. | 4 ft. 10-1/16 in. | 4 ft. 9-8/16 in. | 4 ft. 8-6/16 in. | 1/9.2 |
| 5 ft. 12/16 in. | 5 ft. 15/16 in. | 5 ft. 1-7/16 in. | 5 ft. 2-1/16 in. | 5 ft. 2-14/16 in. | 5 ft. 4-3/16 in. | |||
| 6 | — | 5 ft. 10-15/16 in. | 5 ft. 10-9/16 in. | 5 ft. 9-15/16 in. | 5 ft. 9-2/16 in. | 5 ft. 8-3/16 in. | 5 ft. 6-10/16 in. | 1/11.4 |
| 6 ft. 1-1/16 in. | 6 ft. 1-9/16 in. | 6 ft. 2-3/16 in. | 6 ft. 3-2/16 in. | 6 ft. 4-7/16 in. | 6 ft. 6-10/16 in. | |||
| 7 | — | 6 ft. 10-9/16 in. | 6 ft. 9-15/16 in. | 6 ft. 9-4/16 in. | 6 ft. 8-1/16 in. | 6 ft. 6-10/16 in. | 6 ft. 4-7/16 in. | 1/13.7 |
| 7 ft. 1-9/16 in. | 7 ft. 2-3/16 in. | 7 ft. 3 in. | 7 ft. 4-7/16 in. | 7 ft. 6-6/16 in. | 7 ft. 9-10/16 in. | |||
| 8 | — | 7 ft. 10-1/16 in. | 7 ft. 9-4/16 in. | 7 ft. 8-4/16 in. | 7 ft. 6-12/16 in. | 7 ft. 4-13/16 in. | 7 ft. 1-15/16 in. | 1/16.0 |
| 8 ft. 2-1/16 in. | 8 ft. 2-14/16 in. | 8 ft. 4-1/16 in. | 8 ft. 6-2/16 in. | 8 ft. 8-10/16 in. | 9 ft. 1-1/16 in. | |||
| 10 | — | 9 ft. 8-14/16 in. | 9 ft. 7-9/16 in. | 9 ft. 6 in. | 9 ft. 3-8/16 in. | 9 ft. 10/16 in. | 8 ft. 8-3/16 in. | 1/20.5 |
| 10 ft. 3-6/16 in. | 10 ft. 4-13/16 in. | 10 ft. 6-12/16 in. | 10 ft. 10-1/16 in. | 11 ft. 2-6/16 in. | 11 ft. 10-3/16 in. | |||
| 12 | — | 11 ft. 7-7/16 in. | 11 ft. 5-8/16 in. | 11 ft. 3-4/16 in. | 10 ft. 11-10/16 in. | 10 ft. 7-9/16 in. | 10 ft. 1-5/16 in. | 1/25.0 |
| 12 ft. 4-15/16 in. | 12 ft. 7-3/16 in. | 12 ft. 10-1/16 in. | 13 ft. 3-4/16 in. | 13 ft. 9-13/16 in. | 14 ft. 10-5/16 in. | |||
| 15 | — | 14 ft. 4-11/16 in. | 14 ft. 1-11/16 in. | 13 ft. 10-3/16 in. | 13 ft. 4-11/16 in. | 12 ft. 10-7/16 in. | 12 ft. 1-3/16 in. | 1/31.8 |
| 15 ft. 8-1/16 in. | 15 ft. 11-10/16 in. | 16 ft. 4-7/16 in. | 17 ft. 1-1/16 in. | 18 ft. 10/16 in. | 19 ft. 10-15/16 in | |||
| 20 | — | 18 ft. 10-13/16 in. | 18 ft. 5-10/16 in. | 17 ft. 11-8/16 in. | 17 ft. 2-1/16 in. | 16 ft. 3-12/16 in. | 15 ft. 13/16 in. | 1/43.1 |
| 21 ft. 2-14/16 in. | 21 ft. 9-13/16 in. | 22 ft. 7-1/16 in. | 24 ft. 4/16 in. | 26 ft. | 30 ft. 2-1/16 in | |||
| 40 | — | 35 ft. 8-8/16 in. | 34 ft. 1-11/16 in. | 32 ft. 4-7/16 in. | 29 ft. 9-12/16 in. | 27 ft. 2-12/16 in. | 23 ft. 9-15/16 in. | 1/88.2 |
| 45 ft. 6 in. | 48 ft. 4-5/16 in. | 52 ft. 5-14/16 in. | 61 ft. 3 in. | 76 ft. 8-4/16 in. | 132 ft. 11-8/16 in | |||
| ∞ | — | 321 ft. 2-8/16 in. | 225 ft. 1-3/16 in. | 163 ft. 11-4/16 in. | 112 ft. 11-10/16 in. | 82 ft. 4-11/16 in. | 56 ft. 10-15/16 in. | 1/∞ |
| ∞ | ∞ | ∞ | ∞ | ∞ | ∞ | |||
f/4.5 f/5.6 f/8 f/11 f/16 f/22 f/32
| [ f = 200mm] | ||||||||
| 5 | - | 4 ft. 11-10/16 in. | 4 ft. 11-8/16 in. | 4 ft. 11-6/16 in. | 4 ft. 11-3/16 in. | 4 ft. 10-13/16 in. | 4 ft. 10-3/16 in. | 1/6.1 |
| 5 ft. 6/16 in. | 5 ft. 8/16 in. | 5 ft. 10/16 in. | 5 ft. 15/16 in. | 5 ft. 1-5/16 in. | 5 ft. 1-15/16 in. | |||
| 6 | - | 5 ft. 11-8/16 in. | 5 ft. 11-4/16 in. | 5 ft. 11-1/16 in. | 5 ft. 10-11/16 in. | 5 ft. 10-3/16 in. | 5 ft. 9-6/16 in. | 1/7.7 |
| 6 ft. 8/16 in. | 6 ft. 12/16 in. | 6 ft. 15/16 in. | 6 ft. 1-7/16 in. | 6 ft. 2-1/16 in. | 6 ft. 2-14/16 in. | |||
| 7 | - | 6 ft 11-4/16 in. | 6 ft. 11-1/16 in. | 6 ft. 10-11/16 in. | 6 ft. 10-1/16 in. | 6 ft. 9-6/16 in. | 6 ft. 8-4/16 in. | 1/9.2 |
| 7 ft. 12/16 in. | 7 ft. 15/16 in. | 7 ft. 1-5/16 in. | 7 ft. 2-1/16 in. | 7 ft. 2-12/16 in. | 7 ft. 4-3/16 in. | |||
| 8 | - | 7 ft. 11-1/16 in. | 7 ft. 10-11/16 in. | 7 ft. 10-3/16 in. | 7 ft. 9-8/16 in. | 7 ft. 8-8/16 in. | 7 ft. 7-1/16 in. | 1/10.7 |
| 8 ft. 15/16 in. | 8 ft. 1-5/16 in. | 8 ft. 1-13/16 in. | 8 ft. 2-12/16 in. | 8 ft. 3-13/16 in. | 8 ft. 5-10/16 in. | |||
| 10 | - | 9 ft. 10-9/16 in. | 9 ft. 9-15/16 in. | 9 ft. 9-2/16 in. | 9 ft. 7-15/16 in. | 9 ft. 6-8/16 in. | 9 ft. 4-1/16 in. | 1/13.8 |
| 10 ft. 1-9/16 in. | 10 ft. 2-3/16 in. | 10 ft. 3 in. | 10 ft. 4-7/16 in. | 10 ft. 6-4/16 in. | 10 ft. 9-6/16 in. | |||
| 12 | - | 11 ft. 9-13/16 in. | 11 ft. 8-14/16 in. | 11 ft. 7-13/16 in. | 11 ft. 6 in. | 11 ft. 3-13/16 in. | 11 ft. 10/16 in. | 1/16.8 |
| 12 ft. 2-4/16 in. | 12 ft. 3-4/16 in. | 12 ft. 4-7/16 in. | 12 ft. 6-10/16 in. | 12 ft. 9-4/16 in. | 13 ft. 1-15/16 in. | |||
| 15 | - | 14 ft. 8-8/16 in. | 14 ft. 7-1/16 in. | 14 ft. 5-6/16 in. | 14 ft. 2-8/16 in. | 13 ft. 11-4/16 in. | 13 ft. 6-2/16 in. | 1/21.4 |
| 15 ft. 3-10/16 in. | 15 ft. 5-3/16 in. | 15 ft. 7-3/16 in. | 15 ft. 10-11/16 in. | 16 ft. 3-2/16 in. | 16 ft. 10-15/16 in. | |||
| 20 | - | 19 ft. 5-12/16 in. | 19 ft. 3-4/16 in. | 19 ft. 2/16 in. | 18 ft. 7-1/16 in. | 18 ft. 1-7/16 in. | 17 ft. 4-9/16 in. | 1/29.0 |
| 20 ft. 6-10/16 in. | 20 ft. 9-8/16 in. | 21 ft. 1-5/16 in. | 21 ft. 7-15/16 in. | 22 ft. 4-5/16 in. | 23 ft. 7-13/16 in. | |||
| 40 | - | 37 ft. 10-15/16 in. | 37 ft. 1-1/16 in. | 36 ft. 1-5/16 in. | 34 ft. 6-15/16 in. | 32 ft. 11-3/16 in. | 30 ft. 6 in. | 1/59.5 |
| 42 ft. 4-1/16 in. | 43 ft. 5-3/16 in. | 44 ft. 10-9/16 in. | 47 ft. 6-6/16 in. | 51 ft. 2-1/16 in. | 58 ft. 8-6/16 in. | |||
| ∞ | - | 704 ft. 6-6/16 in. | 493 ft. 7-1/16 in. | 359 ft. 4-5/16 in. | 247 ft. 6 in. | 180 ft. 4-9/16 in. | 124 ft. 5-6/16 in. | 1/∞ |
| ∞ | ∞ | ∞ | ∞ | ∞ | ∞ | |||
f/4.5 f/5.6 f/8 f/11 f/16 f/22 f/32
| [f = 300mm] | ||||||||
| 5 | — | 4 ft. 11-14/16 in. | 4 ft. 11-12/16 in. | 4 ft. 11-10/16 in. | 4 ft. 11-8/16 in. | 4 ft. 11-6/16 in. | 4 ft. 11-3/16 in. | 1/4.1 |
| 5 ft. 2/16 in. | 5 ft. 4/16 in. | 5 ft. 6/16 in. | 5 ft. 8/16 in. | 5 ft. 10/16 in. | 5 ft. 15/16 in. | |||
| 6 | — | 5 ft. 11-12/16 in. | 5 ft. 11-10/16 in. | 5 ft. 11-8/16 in. | 5 ft. 11-6/16 in. | 5 ft. 11-1/16 in. | 5 ft. 10-11/16 in. | 1/5.2 |
| 6 ft. 4/16 in. | 6 ft. 6/16 in. | 6 ft. 8/16 in. | 6 ft. 12/16 in. | 6 ft. 15/16 in. | 6 ft. 1-5/16 in. | |||
| 7 | — | 6 ft. 11-10/16 in. | 6 ft. 11-8/16 in. | 6 ft. 11-6/16 in. | 6 ft. 11-1/16 in. | 6 ft. 10-11/16 in. | 6 ft. 10-3/16 in. | 1/6.2 |
| 7 ft. 6/16 in. | 7 ft. 8/16 in. | 7 ft. 10/16 in. | 7 ft. 15/16 in. | 7 ft. 1-5/16 in. | 7 ft. 1-15/16 in. | |||
| 8 | — | 7 ft. 11-8/16 in. | 7 ft. 11-6/16 in. | 7 ft. 11-3/16 in. | 7 ft. 10-13/16 in. | 7 ft. 10-5/16 in. | 7 ft. 9-10/16 in. | 1/7.2 |
| 8 ft. 8/16 in. | 8 ft. 10/16 in. | 8 ft. 13/16 in. | 8 ft. 1-5/16 in. | 8 ft. 1-13/16 in. | 8 ft. 2-10/16 in. | |||
| 10 | — | 9 ft. 11-4/16 in. | 9 ft. 11-1/16 in. | 9 ft. 10-11/16 in. | 9 ft. 10-1/16 in. | 9 ft. 9-6/16 in. | 9 ft. 8-3/16 in. | 1/9.3 |
| 10 ft. 12/16 in. | 10 ft. 1-1/16 in. | 10 ft. 1-7/16 in. | 10 ft. 2-1/16 in. | 10 ft. 2-14/16 in. | 10 ft. 4-3/16 in. | |||
| 12 | — | 11 ft. 10-15/16 in. | 11 ft. 10-9/16 in. | 11 ft. 9-15/16 in. | 11 ft. 9-2/16 in. | 11 ft. 8-1/16 in. | 11 ft. 6-6/16 in. | 1/11.4 |
| 12 ft. 1-1/16 in. | 12 ft. 1-9/16 in. | 12 ft. 2-1/16 in. | 12 ft. 3 in. | 12 ft. 4-3/16 in. | 12 ft. 6-4/16 in. | |||
| 15 | — | 14 ft. 10-5/16 in. | 14 ft. 9-12/16 in. | 14 ft. 8-12/16 in. | 14 ft. 7-7/16 in. | 14 ft. 5-12/16 in. | 14 ft. 3-2/16 in. | 1/14.5 |
| 15 ft. 1-13/16 in. | 15 ft. 2-6/16 in. | 15 ft. 3-6/16 in. | 15 ft. 4-15/16 in. | 15 ft. 6-13/16 in. | 15 ft. 10-1/16 in. | |||
| 20 | — | 19 ft. 8-14/16 in. | 19 ft. 7-13/16 in. | 19 ft. 6-4/16 in. | 19 ft. 3-12/16 in. | 19 ft. 13/16 in. | 18 ft. 8-3/16 in. | 1/19.7 |
| 20 ft. 3-4/16 in. | 20 ft. 4-5/16 in. | 20 ft. 6 in. | 20 ft. 8-14/16 in. | 21 ft. 8/16 in. | 21 ft. 6-10/16 in. | |||
| 40 | — | 38 ft. 11-6/16 in. | 38 ft. 7-1/16 in. | 38 ft. 1-1/16 in. | 37 ft. 3-6/16 in. | 36 ft. 4-5/16 in. | 34 ft. 11-3/16 in. | 1/40.4 |
| 41 ft. 1-5/16 in. | 41 ft. 6-6/16 in. | 42 ft. 1-9/16 in. | 43 ft. 2-3/16 in. | 44 ft. 6-2/16 in. | 46 ft. 11-6/16 in. | |||
| ∞ | — | 1448 ft. 6-8/16 in. | 1065 ft. 7-9/16 in. | 775 ft. 8-3/16 in. | 534 ft. 12/16 in. | 389 ft. 1-1/16 in. | 268 ft. 3-4/16 in. | 1/∞ |
| ∞ | ∞ | ∞ | ∞ | ∞ | ∞ | |||
- Due to the optical characteristics of this lens, as the lens is focused closer, the focal length slightly decreases.
| 1 | ||||||||||||||||
| 1 | ||||||||||||||||
| 1 |
Nikon
No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION.
NIKON CORPORATION
FUJI BLDG., 2-3, MARUNOUCHI 3-CHOME, CHIYODA-KU,
