Product Type	Steam Iron
Brand	Vitek
Model	VT-1241 GY
Color	Gray
Soleplate Material	Ceramic
Power Rating	2200 W
Voltage	220-240 V ~ 50/60 Hz
Water Tank Capacity	300 ml
Continuous Steam Output	Up to 30 g/min
Steam Burst	Up to 150 g/min
Self-Cleaning Function	Yes
Anti-Drip System	Yes
Auto Shut-Off	Yes (8 min vertical, 30 s horizontal)
Vertical Steaming	Yes
Spray Function	Yes
Cord Length	2 m
Weight	1.2 kg
Dimensions (L x W x H)	29 x 12 x 15 cm
Material	Plastic and Metal
Safety Features	Thermal Fuse, Overheat Protection
Maintenance	Descaling Recommended
Spare Parts Available	Water Tank Cap, Steam Nozzle

Frequently Asked Questions - VT-1241 GY Vitek

How to descale the iron?

Fill the water tank with a mixture of white vinegar and water (1:3 ratio), set to max steam, and let the iron steam until the tank is empty. Rinse thoroughly.

How to use the steam function?

Fill the water tank with distilled or tap water, select the desired steam level using the steam control knob, and press the steam button for burst steam.

What type of water should I use?

Use distilled or demineralized water to prevent scale buildup. Tap water can be used but may require more frequent descaling.

Why is my iron leaking?

Leakage may occur if the water tank is overfilled, the iron is not hot enough, or the anti-drip system is malfunctioning. Ensure the temperature is set correctly.

How to clean the soleplate?

Allow the iron to cool, then wipe with a damp cloth. For stubborn residue, use a non-abrasive cleaner or a soleplate cleaning stick.

Does the iron have auto shut-off?

Yes, the iron automatically turns off if left vertical for 8 minutes or horizontal for 30 seconds.

Can I use tap water?

Yes, you can use tap water, but it may cause scale buildup. Regular descaling is recommended.

How to refill the water tank?

Unplug the iron, open the water tank cap, fill with water to the max level, then close the cap securely.

What is the warranty period?

The warranty for the Vitek VT-1241 GY is typically 1 year from the date of purchase. Check your local dealer for details.

Where can I find spare parts?

Spare parts are available through authorized Vitek service centers or online retailers. Common parts include water tank caps and steam nozzles.

USER MANUAL VT-1241 GY Vitek

Illustration of a steam iron with rotating motion arrows (no text or symbols)

Illustration of a VITEK iron with a dial indicator and handle, showing iron spooling process (no text or symbols)

Illustration of a steam iron with control knob and rotary dial (no text or symbols)

Illustration of a steam iron with smoke plumes, showing the iron being heated and emitting vapor (no text or symbols)

Illustration of a steam iron with smoke clouds and a pressure gauge, no text or symbols present

Illustration of a steam iron emitting smoke from its side, with no text or symbols present.

Illustration of a hair iron with a water droplet being inserted, showing mechanical components and no text or symbols.

ENGLISH

• Do not use the iron after dropping, in case of visible damage or leakage.
• Place the iron on a flat stable surface or use a stable ironing board.
• Always take the power plug out of the mains socket before filling the iron water tank with water.
  • Water inlet lid should be closed during ironing.
• Attention! The unit surfaces get hot during its operation. Do not let open skin areas contact with iron hot surfaces or outgoing steam to avoid burns.
• Pour out water from the tank only after unplugging the iron.
• Never leave the operating iron unattended.
• This unit is not intended for usage by children under 8 years old.
• During the operation and cooling down of the iron keep it in a place, out of the reach of children under 8 years old.
• Children from 8 years old and disabled persons can use the unit only when they are under supervision of a person who is responsible for their safety and who has given them all the necessary and understandable instructions on use of the unit in a safe way and information about danger that can be caused by improper usage of the unit.

ENGLISH

STEAM IRON

DESCRIPTION

1. Water spray nozzle
2. Water inlet lid
3. Continuous steam supply knob
4. Temperature control knob
5. Water spray button
6. Burst of steam button
7. Iron handle
8. Power cord protection
9. Base
10. Operation light indicator
11. Self-cleaning button
12. Soleplate
13. Beaker

SAFETY MEASURES

Before using the unit, read these instructions carefully and pay attention to illustrations.

• This appliance can be used by children aged from 8 years and above as well as persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved
• Use the iron only for intended purposes, specified in the instructions
• Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down
• Place the iron on a flat stable surface or use the ironing board.
• Before switching the iron on, make sure that your home mains voltage corresponds to the iron operating voltage.
• Do not use the iron after dropping, in case of visible damage or leakage.

• Do not use the iron if the plug or the power cord is damaged or if there are other damages in the unit.

• Cleaning and user maintenance shall not be made by children without supervision

• To avoid burns during ironing and after it do not touch the unit surface marked with the symbol ⚠️.
  • Use the iron only on the ironing board.
• Always take the power plug out of the mains socket before filling the water tank with water.
• Be especially careful if using the unit near children and disabled persons.
• Never leave the operating iron unattended.
  • Always unplug the unit if you do not use it.
• In order to avoid electric shock do not immerse the unit into water or other liquids.
• Keep open skin areas away from iron hot surfaces or outgoing steam to avoid burns.
• Do not let the power cord run on the ironing board and touch hot surfaces.
• To unplug the unit always pull its plug, but not the power cord.
• Before taking the iron away, pour out the remaining water and let the unit cool down.
• To avoid mains overloading do not switch on many electrical appliances with high power consumption at the same time.
• In order to avoid electric shock never dismantle the iron by yourself. If unit has damages apply to the authorized service center.

BEFORE THE FIRST USE

Unpack the iron and remove the cardboard protection from the iron soleplate.

Make sure that the voltage of the mains corresponds to the operating voltage of the iron.

ENGLISH

Note:

While the first switching on the heating element burns, therefore occurrence of a small amount of smoke is possible, it is normal.

WATER SELECTION

- Use tap water to fill the tank. If tap water is hard, it is recommended to mix tap water with distilled water in proportion 1:1, if water is too hard, mix tap water with distilled water in proportion 1:2 or use distilled water only.

Note:

Do not fill the water tank with scented liquids, vinegar, starch solution, descaling reagents, chemical agents etc.

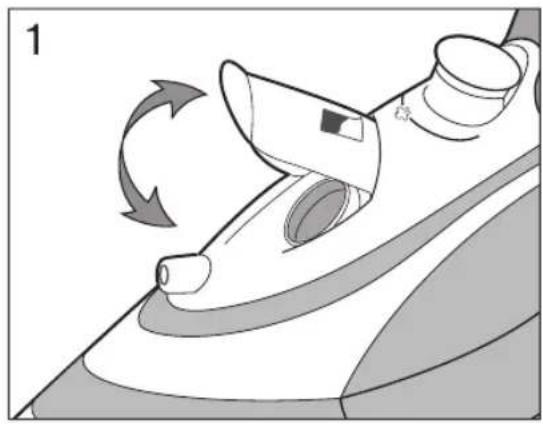

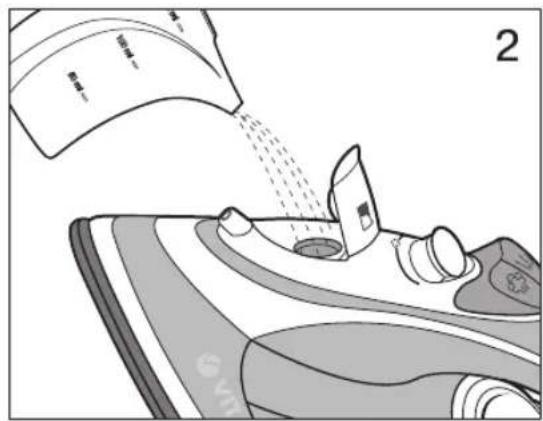

FILLING THE WATER TANK (pic. 1, 2)

• Before filling the tank with water make sure that the unit is unplugged.
• Set the continuous steam supply knob (3) to the leftmost position - continuous steam supply is off.
• Open the water inlet lid (2).
  • Fill the tank with water.

Notes

• Do not exceed the MAX mark.
• If you need to refill water during ironing, switch the iron off and unplug it.
• After you finish ironing, unplug the iron, turn it over and drain the remaining water (pic. 8).

IRONING TEMPERATURE

Before operating test the heated iron on the piece of cloth to be sure that iron soleplate and the water tank are clean.

• Always check the recommended iron temperature indicated on the tag before ironing.
• If the tag does not list the recommended ironing temperature, but you know the type of fabric, refer to the following table to determine the proper temperature.

Icons of the ironing temperature	Fabric type/temperature
•	Synthetics, nylon, acryl, polyester (low temperature)
••	Silk/wool (medium temperature)
•••	Cotton/linen (high temperature)

• This table is only valid for fibrous materials. Fabrics of other types (crimped, raised etc.) are best ironed at low temperature.
• Sort items by ironing temperature first: wool with wool, cotton with cotton etc.
• The iron heats up faster than it cools down. For this reason it is recommended to begin ironing at low temperature (for instance, synthetic fabrics). After that, start ironing at higher temperatures. Cotton and linen items should be ironed last.
• If an item is made of mixed fabrics, the iron should be set to the lowest temperature (for instance, if an item is 60% polyester and 40% cotton, it should be ironed at temperature used for polyester ironing «•»).
• If you cannot define the fabric structure, find a place that is hidden while wearing and select the ironing temperature experimentally (always start with the lowest temperature and raise it gradually until you get the desired result).
• Corduroy and other fabrics that become glossy quickly should be ironed strictly in one direction (in direction of the pile) slightly pressing.
• To avoid appearance of glossy spots on synthetic and silk fabrics, iron them backside.

Setting the ironing temperature

• Place the iron on its base (9).
• Insert the plug into the socket.
• Using the temperature control knob (4) set the required ironing temperature: «•», «••» or «••••» (depending on the type of fabric). Once the required tem-

ENGLISH

perature is set, the light indicator (10) will go out. If the temperature goes below the set level the indicator (10) will light up again.

Water spray

• You can dampen the fabric by pressing the spray button (5) several times (pic. 3).
  • Make sure that there is enough water in the water tank.

STEAM IRONING

The iron is provided with anti-drip valve that stops water supply, if the soleplate temperature is too low, it prevents dripping from the soleplate openings.

• Steam ironing is possible only at high temperature of the iron soleplate (temperature control knob (4) positions: «••» or «•••»).
• Insert the plug into the socket.
• Place the iron on its base (9).
• Set the required ironing temperature using the temperature control knob (4): «••» or «•••».
  • Make sure that there is enough water in the water tank.
• Wait till the light indicator (10) goes out and then lights up again. Set the continuous steam supply knob (3) to the right-most position - continuous steam supply is on (pic. 4), the steam will go out of the soleplate (12) openings.

ATTENTION!

If steam is not supplied constantly during the operation, check whether the temperature control (4) is set properly.

BURST OF STEAM

Burst of steam function is useful when ironing of folds and can only be used at high ironing temperatures (when the iron temperature control knob (4) is set to «···» position).

• Set the temperature control knob (4) to the position «···».
• When pressing the burst of steam button (6) steam will go out of the iron soleplate more intensively (pic. 5).

Note:

In order to avoid water leakage from steam openings, press the burst of steam button (6) with a 4-5 sec. interval.

Vertical steam

Insert the plug into the socket.

• Place the iron on its base (9).
• Set the temperature control knob (4) to the position «···».
  • Make sure that there is enough water in the water tank.
• Wait till the light indicator (10) goes out and then lights up again.

- Hold the iron vertically and press the burst of steam button (6), steam will be supplied from the soleplate (12) intensively (pic. 6).

Important information

• Vertical steam is not recommended for synthetic fabrics.
• To avoid fabric burning, do not touch it with iron soleplate while steaming.
- Never steam clothes on a person as the steam temperature is very high and may cause burns, use clothes hanger or a stand.

DRY IRONING

• Insert the plug into the socket.
• Place the iron on its base (9).
• Set the continuous steam supply knob (3) to the leftmost position - continuous steam supply is off.
• Set the required ironing temperature with the temperature control knob (4): «•», «••» or «•••».
• Wait till the light indicator (10) goes out and then lights up again - the iron sole-plate reached the required temperature and you can start ironing.

ENGLISH

SELF-CLEANING SYSTEM

To prolong lifetime of the iron we recommend to clean it regularly (once or twice a month - depending on the water hardness).

• Set the continuous steam supply knob (3) to the leftmost position - continuous steam supply is off.
• Fill the water tank with water till the «MAX» mark.
• Place the iron on its base (9).
• Insert the plug into the socket.
• Set the temperature control knob (4) to the position «···».
• Let the iron heat up and wait till the light indicator (10) goes out.
• Unplug the iron and place it above the sink horizontally.

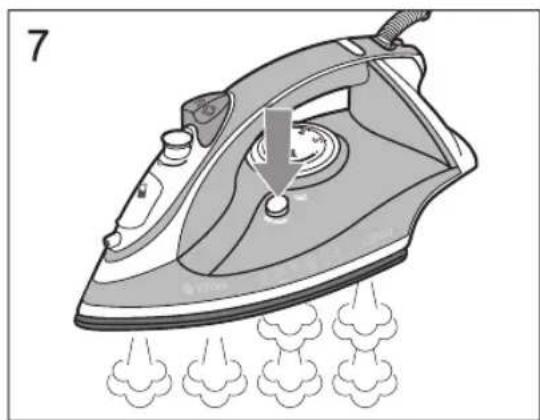

• Press the self-cleaning button (11) (pic. 7).
• Boiling water and steam with scale will be released from the iron soleplate openings. It is recommended to swing the iron slightly back and forth during cleaning.
• Release the cleaning button (11) in a minute or when the water tank is empty. Place the iron on its base.
• Insert the power plug into the socket and let the iron heat up again.
• Iron a piece of cloth to evaporate the remaining water.
• Unplug the unit and wait till the iron sole-plate cools down completely.
• Before you take the iron away for storage, make sure that iron soleplate is completely dry.

CLEANING AND CARE

• Before cleaning the iron, make sure that it is unplugged and has cooled down completely.
• Clean the iron body with a soft, slightly damp cloth, and then wipe it dry.
• Scale on the iron soleplate can be removed with a cloth soaked in vinegar-water solution.

• After removing scale, polish the sole-plate surface with a dry cloth.
- Do not use abrasive substances to clean the iron soleplate and body.
- Avoid contact of iron soleplate with sharp metal objects.

STORAGE

• Turn the temperature control knob (4) counterclockwise to the MIN position, and set the continuous steam supply knob to the leftmost position - steam supply is off.
  • Pull the plug out of the socket.

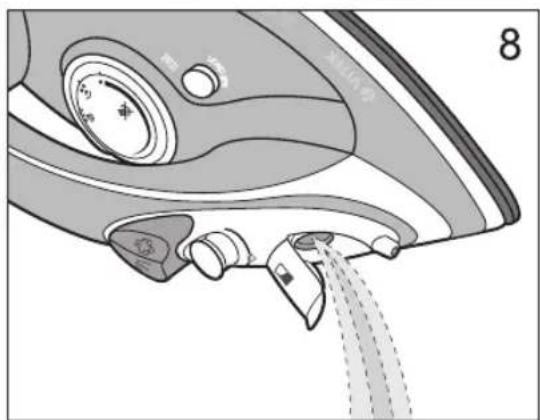

• Drain any remaining water from the water tank (pic. 8).
• Put the iron vertically and let it cool down completely.
  • Store the iron vertically.

TECHNICAL SPECIFICATIONS

Power supply: 220-240 V, \~ 50 Hz Power consumption: 1850-2200 W

The manufacturer preserves the right to change the specifications of the unit without a preliminary notification.

Unit operating life is 3 years

Guarantee

Details regarding guarantee conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

This product conforms to the EMC-Requirements as laid down by the Council Directive 2004/108/EC and to the Low Voltage Regulation (2006/95/EC)
