VT-1214 BK - Iron Vitek - Free user manual and instructions

Product Type	Steam Iron
Brand	Vitek
Model	VT-1214 BK
Power Supply	220-240 V ~ 50 Hz
Maximum Power Consumption	2200 W
Service Life	3 years
Auto-Off Timing	30 seconds (horizontal), 8 minutes (vertical)
Temperature Settings	3 levels (Low, Medium, High) plus MAX
Steam Modes	Dry, Steam, Additional Steam Burst, Vertical Steaming
Spray Function	Yes
Anti-Drip Valve	Yes
Self-Cleaning Function	Yes (steam chamber cleaning)
Water Tank Capacity	Up to MAX mark (exact capacity not specified)
Color	Black
Accessories Included	Measuring cup
Safety Features	Auto shut-off, anti-drip valve
Usage	Household
Warranty	Covered by dealer (details in manual)

Frequently Asked Questions - VT-1214 BK Vitek

How do I fill the water tank?

Ensure the iron is unplugged. Set the steam control to off (✗). Open the water filling lid. Use the measuring cup to fill the tank up to the MAX mark. Close the lid. Do not overfill.

What type of water should I use?

Use regular tap water. If water is hard, mix with distilled water at a 1:1 ratio. For very hard water, use a 1:2 ratio or pure distilled water. Do not use scented liquids, vinegar, starch, or descaling agents.

How does the auto-off function work?

The iron switches off automatically if left motionless for 30 seconds horizontally or 8 minutes vertically. The temperature indicator flashes. Simply move the iron to restart; it will reheat to the preset temperature.

How do I set the ironing temperature for different fabrics?

Use the temperature control knob: • for synthetics (nylon, polyester), •• for silk/wool, ••• for cotton/flax, and MAX for high steam. Always check the garment tag first. Iron at the lowest temperature for mixed fabrics.

How do I use the steam burst function?

Set the temperature to ••• or MAX. Press the additional steam supply button (1) with 4-5 second intervals. This is useful for removing wrinkles from folds. Do not press too frequently to avoid water leakage.

How do I perform vertical steaming?

Set the temperature to ••• or MAX. Hold the iron 15-30 cm from the garment vertically. Press the additional steam supply button (1) with 4-5 second intervals. Do not use on synthetic fabrics or touch the soleplate to the fabric. Never steam clothes on a person.

How do I clean the steam chamber?

Fill the water tank. Set the steam control to off. Heat the iron to MAX. Unplug the iron. Hold it horizontally over a sink and set the steam control to the ⚙ (self-clean) position. Boiling water and scale will be expelled. Sway the iron until empty. Let it cool, then wipe the soleplate.

How do I remove deposits from the soleplate?

After the iron has cooled, wipe the soleplate with a cloth soaked in a vinegar-water solution. Then polish with a dry cloth. Do not use abrasive cleaners or sharp metal objects.

What does the anti-drip valve do?

The anti-drip valve prevents water from leaking out of the soleplate openings when the temperature is too low. You may hear clicks as it opens and closes during heating or cooling, which is normal.

How do I store the iron properly?

Turn the temperature control to MIN and unplug. Let the iron cool completely. Set steam control to off. Open the water lid, turn the iron over to drain remaining water, and close the lid. Store upright in a dry, cool place out of reach of children.

USER MANUAL VT-1214 BK Vitek

Line drawing of a hand holding a shoe with a screw and a button, no text or symbols present

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of an iron iron with a handle and spool, showing steam generation (no text or symbols)

Line drawing of an iron iron with three spools and a handle, no text or symbols present

Line drawing of an iron (£) with six steamers emitting smoke, no text or symbols present

Line drawing of an iron (£) with decorative swirls and a numbered label (7), no text or symbols present.

Line drawing of a steam iron on a stand, no text or symbols present

ENGLISH

STEAM IRON

DESCRIPTION

1. Additional steam supply button
2. Spray button
3. Steam supply control / self clean mode button
4. Water spray nozzle
5. Iron soleplate
6. Temperature indicator
7. Temperature Control Knob with power on indicator
8. Iron base
9. Water filling opening lid
10. Water tank
11. Maximal water level indicator
12. Measuring cup

SAFETY MEASURES

Before using the unit, please read the instructions carefully and pay attention to the illustrations.

• Before switching on the unit, make sure that your home electricity supply corresponds to the voltage of current specified on the unit.
• The power cord is equipped with a euro plug; insert it into the socket, with a secure grounding.
• In order to avoid risk of fire do not use adapters while connecting the appliance to the outlet.
• In order to avoid overloading of the power network do not switch on several appliances with high power consumption simultaneously.
• Use the unit only for the intended purposes.
• Do not use the unit outdoors.
• Place and use the iron on a flat stable surface or the ironing board.
• Never leave the operating unit unattended.
  • Always unplug the unit if you do not use it.
• When filling the water tank with water, always unplug the unit.
• The water tank opening should be closed during the ironing.
• Do not fill the water tank with scented liquids, vinegar, starch solution, descaling reagents, chemical agents etc.
• Avoid contact with hot surfaces or outgoing steam of the iron in order to avoid getting burns.

• Provide that the power cord is not hanging over the edge of the ironing board and make sure that it does not touch hot surfaces.

• Before unplugging/plugging the unit, set the temperature control to the "MIN" position.

• To unplug the unit always take its plug, do not pull the power cord.
• In order to avoid electric shock do not immerse the unit into water or other liquids.
• Before taking the unit away for keeping, pour out the remaining water and let the unit cool down.
• Pour out water only after unplugging the unit.
• Do not use the unit if the plug or the power cord is damaged or if there are other damages in the unit.
• Do not use the unit after it fell, if there are visible damages in the unit or in case of leakage.
• In order to avoid electric shock do not repair the unit yourself. If there are some damages in the unit apply to the authorized service center.
• Do not allow children to use the unit as a toy.
• Keep the unit out of reach of children and disabled persons. Do not allow them to use the unit without supervision.
• The iron is not intended for usage by children or disabled persons unless they are given all the necessary instructions on safety measures and information about danger, which can be caused by improper usage of the unit.
• Keep the unit vertically in a dry cool place, out of reach of children.

FOR HOUSEHOLD USAGE

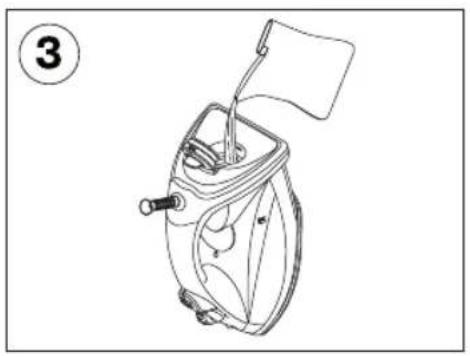

FILLING THE WATER TANK (pic. 2, 3)

CHOICE OF WATER

To fill the water tank use regular tap water. If water is hard then it is recommended to mix it with distilled water at a ratio of 1:1, if water is very hard, mix it with distilled water at a ratio of 1:2 or use only distilled water.

• Make sure that the iron is disconnected from electrical power before filling it with water.
• Set the constant steam supply regulator (3) to the “✗” position (steam supply is off).
• Open the water filling opening lid (9).
• Use the measuring cup (12); fill the water tank (10) with water, holding the unit vertically (pic.3) till the maximal level (11).
• Close the filling opening lid (9).

ENGLISH

Note:

• Do not fill it with water above the MAX. mark.
• If you need to refill the water tank during ironing, turn off the iron and unplug the power cord from the outlet.
• After you finish ironing, switch off the iron, wait until it cools down completely, open the filling opening lid (9) hold the unit in its upright position and drain the remaining water.

BEFORE FIRST USAGE

• Unpack the iron; remove the protection (if any) from the iron soleplate (5).
• Make sure that the electrical supply voltage corresponds to the iron's operating voltage.
• Fill the water tank with water (10).
• Insert the plug into the socket.
• Set the temperature control (7) to the "MAX" position, the indicator in the temperature control (7) will light up.
• When the soleplate temperature (5) reaches the desired temperature value, the indicator will go out.
• Set the steam supply control (3) to the “ ” position (steam supply is on), steam will start going out of the openings on the iron soleplate (5).
• Before operating test the heated iron on the old cloth to be sure that the iron soleplate (5) and the water tank (10) are clean.
• The unit is ready to operate.

Note:

When using the unit for the first time, the heating element of the unit burns that is why some smoke or foreign odor can appear. It is normal.

"AUTOMATIC OFF" FUNCTION

If the iron is motionless during 30 seconds in horizontal position or about 8 minutes in vertical position, it will switch off automatically. The indicator in the temperature control (7) will be flashing.

To switch on the unit, just start ironing, the iron will switch on and the indicator will stop flashing.

Note:

After the iron is switched on, the previously set soleplate temperature will be set in some time, depending on the position of the temperature control (7).

IRONING TEMPERATURE

• Always check the recommended iron temperature indicated on the tag before ironing.
• If the tag does not list the recommended ironing temperature, but you know the type of fabric, then use the following table to determine the proper temperature.

Signs Fabric type (temperature)

•	Synthetics, nylon, acryl, polyester(low temperature)
• • Silk/wool (medium temperature)
• • • Cotton/flax (high temperature)

• This table is only for smooth materials. Fabrics of other types (crimped, raised etc.) are best ironed at low temperature.
• Firstly sort items by ironing temperature: wool with wool, cotton with cotton etc.
• The iron heats up faster than is cools down. For this reason it is recommended to begin ironing at low temperature (for instance synthetic fabrics).
• After that, move to higher temperature ironing (silk/wool). Cotton and linens should be ironed last.
• If an item is made from a mix of fabrics, then the iron should be set for the fabric with the lowest ironing (for instance if an item is made from 60% polyester and 40% cotton, it should be ironed at the temperature used for ironing polyester “•”).
• If you cannot define the fabric the item is made from, find a place on it that is hidden while wearing and, on practice select the ironing temperature (always start at the lowest and gradually raise it until you get the desired result.)
• Corduroy and other fabrics that start glossy quickly should be ironed strictly in one direction (along the lines) with slight pressure.
• To avoid appearance of glossy spots on the synthetic and silk fabrics, iron them back-side.

SETTING THE IRONING TEMPERATURE

• Place the iron on the base (8).
• Insert the power plug into the socket.

ENGLISH

• Set the temperature control (7) to the required ironing temperature: “•”, “••”, “•••” or “MAX”, depending on the type of fabric, the indicator in the temperature control (7) will light up.
• When the soleplate temperature (5) reaches the desired temperature value, the indicator will go out.

Note: While steam ironing set the temperature to steam using zone, “…” or “MAX”,

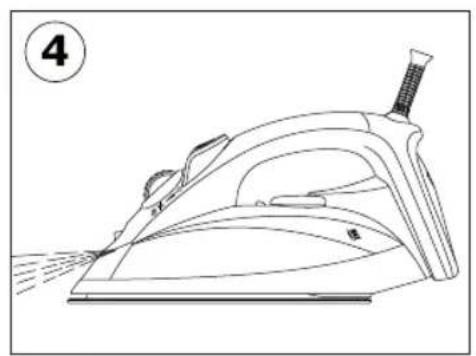

WATER SPRAYER

• You can dampen the fabric by pressing the spray button (2) several times (pic. 4).
• Make sure that there is enough water in the water tank.

DRY IRONING

• Place the iron on the base (8).
• Set the constant steam supply control (3) to the “✗” position (steam supply is off). (pic.5.1)
• Set the temperature control (7) to the required ironing temperature: “•”, “••”, “•••” or “MAX”, depending on the type of fabric, the indicator in the temperature control (7) will light up.
• When the soleplate temperature (5) reaches the desired temperature value, the indicator will go out, you can start ironing.
• After you finish ironing set the temperature control (7) to the "MIN" position.
• Pull the plug out of the socket and let the iron cool down completely.

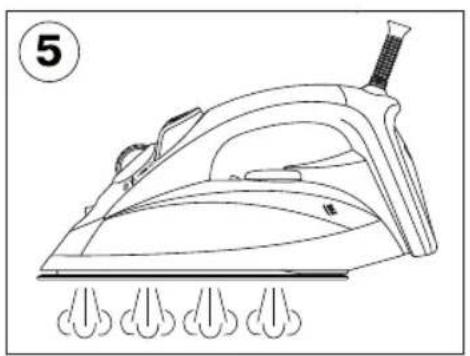

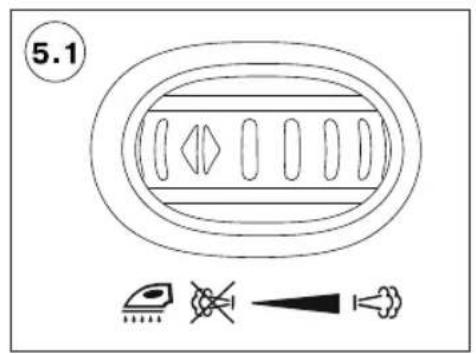

STEAM IRONING (pic.5)

For steam ironing set the temperature control to steam using zone “···” or “MAX”.

The iron has an anti-drip valve, which stops water supply, when the sole temperature is too low it prevents the appearance of drops out of the soleplate openings (5). While heating or cooling down of the sole (5), you will hear clicks of opening/closing of the anti-drip valve; it means that the valve works normally.

• Make sure that there is enough water in the water tank.
• Place the iron on the base (8).

• Set the constant steam supply control (3) to the “☒” position (steam supply is off). (pic.5.1)

• Insert the power plug into the socket.

• Set the temperature control (7) to the required ironing temperature: to steam using zone “···” or “MAX”, the indicator in the temperature control (7) will light up.
• When the soleplate temperature (5) reaches the desired temperature value, the indicator will go out, you can start ironing.
• Turn the constant steam supply regulator (3) to set the intensity of steaming, steam will start outgoing from the openings of the sole-plate (5). (pic.5.2.)
• After you finish ironing set the (7) temperature control to the "MIN" position and the constant steam supply control (3) to the "×" position (steam supply is off).
• Pull the plug out of the socket and let the iron cool down completely.
• Open the filling opening lid (9), turn over the unit and drain the remaining water (10). Close the lid (9) (pic.9).

ATTENTION!

If during the operation steam is not constantly supplied, check whether the temperature control (7) is set properly and whether there is water in the water tank.

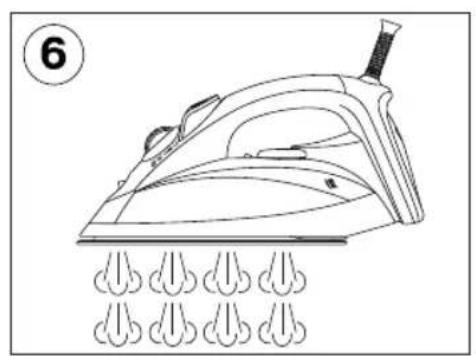

ADDITIONAL steam supply

Additional steam supply function is useful when ironing folds and can only be used at high ironing temperatures (when the iron temperature control (7) is set to “•••” or “MAX”).

When the additional steam supply button (1) is pressed, steam will be vigorously released from the openings in the iron soleplate (pic.6).

Note:

In order to avoid leakage of water from steam openings, press the additional steam supply button (1) with a 4-5 sec. interval.

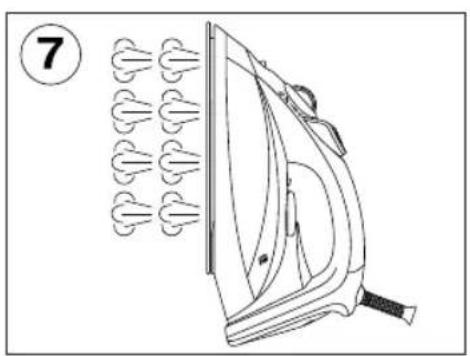

VERTICAL STEAMING

For vertical steaming can be used only when the high temperature mode is used (set the temperature control (7) to the “···” or “MAX” position.

Hold the iron vertically at the distance 15-30 cm from the clothes press the additional steam supply button (1) with a 4-5 seconds interval, steam will be released from the openings in the iron soleplate (5) (pic. 7).

ENGLISH

Important information

• Vertical steaming is not recommended for synthetic fabrics.
• To avoid melting the fabric, do not touch the iron soleplate to the item while steaming.
• Never steam iron clothes on a person as the steam temperature is very high and it can cause burns. Use a coat-hanger or a stand.

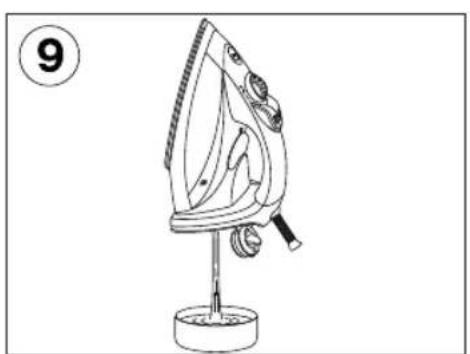

STEAM CHAMBER CLEANING

To prolong lifetime of the iron we recommend cleaning the steam chamber, especially in the regions with “hard” water.

• Fill the water tank (10) with water.
• Put the iron on the base (8).
• Insert the power plug into the socket.
• Set the constant steam supply control (3) to the “☒” position (steam supply is off).

- Set the temperature control (7) to the "MAX" temperature of the iron soleplate, the indicator in the temperature control (7) will light up.

- When the soleplate temperature (5) reaches the desired temperature value, the indicator will go out, you can start cleaning.

- Switch off the unit, by setting the temperature control (7) to the "MIN" position.

- Unplug the unit.

- Hold the iron above the sink horizontally; set and hold the control to the ⚙ position (pic 8).

- Boiling water together with scale will be throwing out from the openings in the iron soleplate (5).

- Slightly sway the iron back and forth, until water goes out of the water tank.

- Place the iron on the base (8) and let it cool down completely.

- Set the constant steam supply control (3) to the “×” position (steam supply is off).

- When the soleplate (5) cools down completely, wipe it with a dry cloth.

- Before you take the iron for storing, make sure that there is no water in the water tank and that the iron soleplate (5) is completely dry.

CLEAN AND CARE

• Before cleaning the iron, make sure that it is turned off and has cooled completely.
• Wipe the iron's outer surface with a damp cloth to dry.
• Sediment on the iron soleplate can be removed with a cloth soaked in vinegar-water solution.

• After removing sediment, polish the soleplate with a dry cloth.
- Do not use abrasive substances to clean the soleplate and body of the iron.
- Avoid touching the iron soleplate with sharp metal objects.

STORAGE

• Turn the temperature control (7) anticlockwise till the "MIN" position.
• Unplug the unit.
• Set the iron vertically and allow it to cool completely.
• Set the constant steam supply control (3) to the “×” position (steam supply is off).
• Open the filling opening lid (9), turn over the unit and drain the remaining water (10). Close the lid (9) (pic.9).
• Store the iron vertically in a dry cool place out of reach of children.

Delivery set

Iron - 1 pc.

TECHNICAL CHARACTERISTICS

Power supply: 220-240 V \~ 50 Hz

Maximal power consumption: 2200 W

Specifications subject to change without prior notice.

Service life of appliance - 3 years

GUARANTEE

Details regarding guarantee conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

This product conforms to the EMC-Requirements as laid down by the Council Directive 89/336/EEC and to the Low Voltage Regulation (73/23 EEC)

DEUTSCH

DAMPFBÜGELEISEN

BESCHREIBUNG

BUG'LI DAZMOLLASH (5-rasm)

Bug'li dazmollashda «•••» yoki «max» dazmollash haroratini belgilash lozim, chunki dazmolda tomchilarga qarshi bo'Igan, dazmol tagligining o'ta past haroratida suv berishini yopib qo'yadigan klapan bor, bu dazmol tagligi teshiklaridan tomchilar tushishining oldini oladi (5). Dazmol tagligi (5) isiganda va soviganda Siz tomchilarga qarshi klapan ochilishi/

ЎЗБЕК

yopilishining o'ziga xos ovozini eshitasiz, bu uning normal ishidan dalolat beradi.

• Suv uchun idishda suv yetarli ekanligiga ishonch hosil qiling.
  • Dazmolni o'zining asosiga qo'ying (8).
• Bug'ning doimiy berilishini sozlash moslamasini (3) «» (bug'ni berish o'chirilgan) holatiga o'rnating. (5.1.-rasm)
• Tarmoq simining vilkasini rozetkaga kiriting.
• Dazmol haroratining sozlagichini (10) burab, talab etiladigan dazmollash haroratini belgilang: bug' bilan ishlash zonasida, «•••» yoki «MAX», bunda haroratni sozlash moslamasidagi indikator (7) yonadi.
• Dazmol tagining harorati (5) belgilangan haroratga yetganda, indikator o'chib qoladi, buyumlarni dazmollay boshlash mumkin.

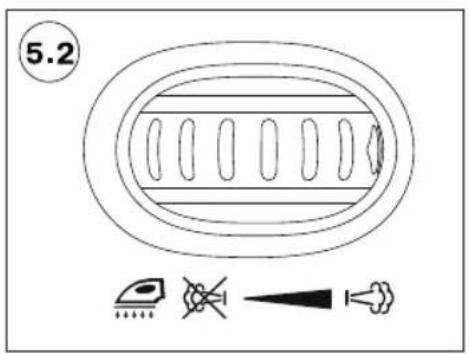

• Bug'ning doimiy berilishini sozlash moslamasi (3) bilan bug'ning hosil bo'lishining kerakli intensivligini belgilang, bug' dazmol tagligidagi (5) tuynuklardan chiaqa boshlaydi. (5.2.-rasm)
• Dazmoldan foydalanganingizdan keyin haroratni sozlash moslamasini (7) «MIN» holatiga o'rnating, bug'ning doimiy berilishini sozlash moslamasini (3) «X» (bug'ning berilishi o'chirilgan) holatiga o'rnating.
• Tarmoq simining vilkasini rozetkadan chiqarib oling va dazmolning to'liq sovishini kuting.
• Otkroyte krýshku zalivochnogo otverstiya (9), perevernite utyug i sleyte ostavshuyusya vodu iz rezervuara (10). Zakroyte krýshku (9) (ris.9).

DIQQAT! Agar ish paytida bug' doimiy berilib turmasa, dazmolning harorati sozlagichining (7) to'g'ri holatini va suv uchun idishda suvning borligini tekshiring.

QO'SHIMCHA BUG' BERILISHI

Qo'shimcha bug' berilishi funktsiyasi burmalarni dazmollashda foydali bo'ladi va faqat yuqori haroratli dazmollash rejimida ishlatilishi mumkin (harorat sozlagichi (7) «•••» yoki «max» holatida).

Qo'shimcha bug' berilishi tugmasi (1) bosilganda dazmol tagligidan bug' kuchliroq chiqadi (6-rasm).

Eslatma:

Bug' teshiklaridan suv oqib chiqmasligi uchun qo'shimcha bug' berilishi tugmasini (1) 4-5 soniya oralatib bosing.

VERTIKAL BUG'LAB TEKISLASH

Vertikal bug'lab tekislash funktsiyasi faqat yuqori haroratli dazmollash rejimida ishlatilishi mumkin (dazmolning harorat sozlagichi (7) «•••» yoki «max» holatida).

Dazmolni vertikal holda kiyimdan 15-30 sm masofada ushlab turing va qo'shimcha bug' berilishi tugmasini (1) 4-5 soniya oralatib bosing, dazmol tagligidan bug' chiqadi (5) (7-rasm).

Muhim ma'lumot

• Sun'iy matolarni vertikal bug'lab tekislash tavsiya etilmaydi.
• Bug'lab tekislashda mato erib ketmasligi uchun dazmol tagligi bilan matoga tegmang.
• Hech qachon kishi ustidagi kiyimni bug'lab tekislamang, chunki chiqayotgan bug'ning harorati juda yuqori, kiyim ilgich yoki yelkali ilgichdan foydalaning.

BUG' KAMERASINI TOZALASH

A production date of the item is indicated in the serial number on the technical data plate. A serial number is an eleven-unit number, with the first four figures indicating the production date. For example, serial number 0606xxxxxxx means that the item was manufactured in June (the sixth month) 2006.

DE
