VT-1229 CL - Iron Vitek - Free user manual and instructions

Product Type	Steam Iron
Brand	Vitek
Model	VT-1229 CL
Power Supply	220-240 V, 50/60 Hz
Power Consumption	2270-2700 W
Water Tank Capacity	400 ml
Soleplate Material	Not specified (likely non-stick coated)
Anti-Scale System	Double system: self-clean and water softening cartridge
Automatic Shut-Off	Yes: horizontal after 30 s, vertical after 8 min
Steam Functions	Dry ironing, steam ironing, additional steam burst, vertical steaming
Spray Function	Yes
Temperature Control	Adjustable thermostat with fabric guide
Steam Regulator	Adjustable constant steam supply
Safety Features	Auto shut-off, drip valve prevents leakage at low temperature
Self-Clean Function	Yes, via self-clean button
Water Filling	Through top lid, use tap or distilled water
Accessories Included	Iron, water softening cartridge, measuring cup, manual
Storage	Upright position, cool dry place

Frequently Asked Questions - VT-1229 CL Vitek

What type of water should I use in the Vitek VT-1229 CL iron?

Use regular tap water. If the water is hard, mix with distilled water at a ratio of 1:1; for very hard water, mix 1:2 or use only distilled water. Do not use scented liquids, vinegar, starch, or descaling agents.

How do I fill the water tank?

Ensure the iron is unplugged and cool. Set temperature to MIN and steam regulator to off. Open the lid, verify the cartridge is in place, use the measuring cup to fill to MAX level, then close the lid firmly.

How does the automatic shut-off work?

The iron switches off automatically if left horizontal for 30 seconds or vertical for 8 minutes. The indicator light blinks. Moving the iron resumes operation.

How do I use the self-clean function?

Set steam off, fill tank to MAX, set temperature to MAX, heat until indicator goes off, then unplug. Hold iron horizontally over sink, press and hold SELF-CLEAN button until all water and scale exit. Wipe soleplate when cool.

Can I use steam at low temperatures?

No. The iron has a drip valve that prevents steam at low soleplate temperatures. For steam ironing, set temperature to MAX or at least in the high range. Dry ironing is recommended for synthetic fabrics.

How do I replace the water softening cartridge?

Open the water tank lid, turn the cartridge counterclockwise and pull it upward. Insert a new cartridge, turn clockwise to lock, then close the lid.

What should I do if the iron does not produce steam?

Check that the steam regulator is set to a steam position (not off) and that the water tank has enough water. Ensure the temperature is set high enough (MAX for strong steam). If problem persists, clean the steam chamber.

How do I clean the soleplate?

Unplug and cool the iron. Wipe the soleplate with a damp cloth and mild vinegar solution, then polish with a dry cloth. Do not use abrasives or place on sharp metal objects.

How should I store the iron after use?

Set temperature to MIN, steam to off, unplug, drain remaining water from tank, close lid, and let cool completely. Store upright in a cool, dry place out of children's reach.

Can I use the iron for vertical steaming?

Yes, with temperature set to MAX. Hold iron vertically 10-30 cm from fabric and press the steam burst button at 4-5 second intervals. Do not use on synthetic fabrics or steam clothes while being worn.

USER MANUAL VT-1229 CL Vitek

Line drawing of a steam iron with six flueless flames below (no text or symbols)

Line drawing of an iron (£) with decorative leaf-like cutouts on the side (no text or symbols)

Line drawing of a steam iron on a stand (no text or symbols)

Line drawing of an iron (£) with internal components and a lock mechanism (no text or symbols)

Technical line drawing of two iron iron boats with internal components and mounting holes (no text or symbols)

рис. 7 рис. 8

ENGLISH

STEAM IRON

Description

1. Water spray nozzle
2. Water tank lid
3. Additional steam release button
4. Steam supply regulator
5. Spray button
6. Heating element on/off indication
7. Power cord protection
8. Base
9. Temperature regulator
10. Water tank
11. Self clean button
12. Maximal water level indicator
13. Iron soleplate
14. Cartridge for water softening
15. Measuring cup

SAFETY MEASURES

Before using the iron, please read the instructions carefully and pay attention to the illustrations.

• Before switching on the iron, make sure that your home electricity supply corresponds to the voltage of current specified on the iron.
• Power cord is equipped with a euro plug; insert it into the socket, with secure grounding.
• In order to avoid risk of fire do not use adapters while connecting the appliance to the outlet.
• In order to avoid overloading of the power network do not switch on several appliances with high power consumption simultaneously.
• Do not use the iron if the plug or the power cord is damaged or if there are other damages in the iron.
• Use the iron only for the intended purposes as it is described in the manual.
• Place the iron on a flat stable surface or use the iron only on the ironing board.
  • Never leave the working iron unattended.
• Always unplug the iron while filling the water tank with water.
• While using the iron, make sure that the water tank lid is firmly closed.

• Do not fill the water tank with scented liquids, vinegar, starch solution, descaling reagents, chemical agents etc.

• Avoid contact with hot surfaces or outgoing steam of the iron in order to avoid getting burns.

• Make sure that the power cord is not hanging over the edge of the ironing board and make sure that it does not touch heated surfaces.
• Before switching on/off the iron set the temperature regulator in position «MIN», and the steam supply regulator in position «¶» (constant steam supply is off).
  • Always unplug the iron if you do not use it.
• To unplug the iron always take it by the plug, do not pull by the power cord.
• In order to avoid electric shock do not immerse the iron into water or other liquids.
• Before taking the iron away for storage, pour out the remaining water and let the iron cool down.
• Pour out water only after you have unplugged the iron.
• Do not use the iron that was fallen in case of visible damages or leakage.
• In order to avoid electric shock do not repair the iron yourself. If there are some damages in the iron apply to the authorized service center.
• Do not allow children to use the iron as a toy.
• Storage the iron in place unavailable for children and disabled people. Do not allow them using the iron without supervision.
• The described iron is not designed for children or disabled people. In exceptional cases the person who is responsible for safety of children and disabled people shall carefully and properly give instruction about safety use of the iron and those risks that may appear in case of misuse.
• Storage the iron in vertical position in dry cool place unavailable for children.
  • The iron shall be used only at home.

Automatic switching off

There are 2 regimes of iron automatic switching off.

1. If the iron is fixed in horizontal position within 30 seconds, heating element is off and indicator (6) is blinking. When you start ironing the iron is switched on automatically.

2. If the iron is fixed in vertical position within 8 minutes, heating element is off and indicator

ENGLISH

(6) is blinking. When you start ironing the iron is switched on automatically.

Choice of water

To fill the water tank use regular tap water. If the water is hard then it is recommended to mix it with distilled water at a ratio of 1:1, if the water is very hard, mix it with distilled water at a ratio of 1:2 or use only distilled water.

Double anti-scale system

The iron is equipped with double anti-scale system that consists of installed self-clean system and Cartridge for water softening (14). If the water is hard in your region, follow the instruction of section “Choice of water”.

Before usage

• Take out the iron from the package and remove the protective cartoon covering from the iron soleplate (13).
• Make sure that the electrical supply voltage corresponds to the iron's operating voltage.

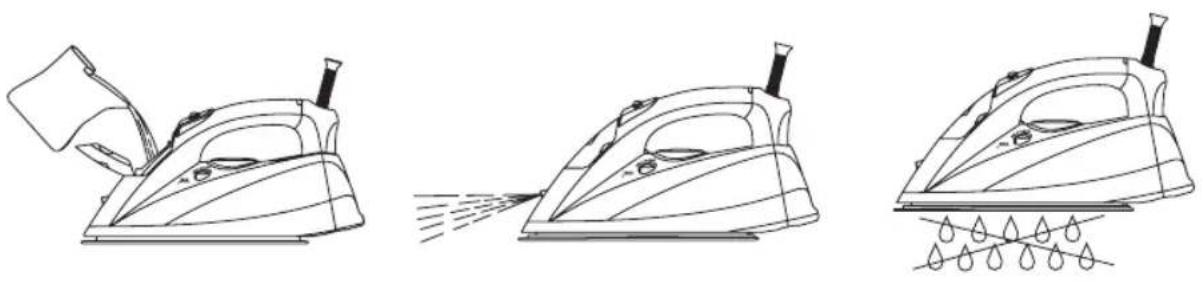

Filling the water tank

Make sure that the iron is disconnected from electrical power before filling it with water.

• Set the temperature regulator (9) in position «MIN», set the steam release regulator (4) to the position «(to the position of steam vapor OFF).
• Open the water tank lid (2) and make sure that the cartridge is in (14) (pict. 1)
• Using the measuring cup (15), fill the water tank with water (10), close the lid (2).

Note:

• Do not fill the water tank (10) with scented liquids, vinegar, starch solutions, descaling reagents, chemical substances etc.
• Do not fill it with water above MAX. indicator (12).
• If you need to refill the water tank during ironing, turn off the iron and unplug the power cord from the outlet.

Ironing temperature

• Always check the recommended iron temperature indicated on the tag before ironing.
• If the tag does not list the recommended iron-

ing temperature, but you know the type of fabric, then use the following table to determine the proper temperature.

Determination Fabric type (temperature)

.	Synthetics, nylon, acryl, polyester (low temperature)
··	Silk/wool (medium temperature)
···	Cotton/linen (high temperature)
MAX	Maximum temperature

The table is applicable only to smooth materials.- If another type of material (goffered, embossed, etc.), then it is best to iron it at low temperature.

• First things are to be sorted according to ironing temperature: synthetics to synthetics, wool to wool, cotton to cotton, etc.
• Iron heats up faster than gets cold. So first it is recommended to iron things at low temperature (for example, synthetic fabrics).
• After that start ironing at higher temperatures (silk, wool). - Items made of cotton and linen should be ironed at the last turn.
• If the material contains mixed fibers, it is necessary to establish the lowest temperature of ironing (for example, if the product consists of elastane and cotton, it should be ironed at a temperature suitable for elastin « • »).
• If you can't determine the composition of tissue, then look for a product space that is not noticeable when wearing, and empirically select the temperature of ironing (always start with the lowest temperature and gradually increase it until you get the desired result).
• Corduroy and other tissues, which rapidly begin to be glossy, should be strictly be ironed in one direction (in the direction with the nap) with a slight pressure.
• In order to avoid shiny patches on synthetic and silk fabrics, irone them from the inside.

Setting the ironing temperature

• Put the iron on the base (8).
  – Plug the power cord into an outlet.
  Turn the regulator(9), set the desired temperature of ironing: «•», «• •», «• • •» or «MAX», depending on tissue type, when that

ENGLISH

will be done, indicator will light (6).

- When the soleplate (13) warms up to the chosen temperature and the indicator (6) goes off, you can start ironing.

Note:

- When you turn on the iron for the first time, the heating element of the iron burns, so you may receive a small amount of smoke or a extraneous smell, that is normal.

Water spray

• You can moisten the cloth, pressing several times to spray button (5) (Fig. 2).
• Make sure that the tank (10) has enough water.

Dry ironing

• Put the iron on the base (8).
  – Plug the power cord into an outlet.
• Turn the regulator(9), set the desired temperature of ironing: «•», «••», «•••» or «MAX», depending on tissue type, with indicator lights (6).
• Set the constant supply of steam (4) to « 4» position (steam off).
• When the soleplate is heated to the desired temperature, the indicator (6) goes off, you can start ironing.
• After use, set the iron temperature controller (9) to position «MIN».
• Remove the plug from the wall outlet and wait until iron get cool iron.

Steam ironing

Iron is equipped with a drip valve that shuts off the water supply at very low temperature of the soleplate, it prevents the droplets from the openings of the soleplate (13). When the soleplate be heating and cooling, you will hear a distinctive clicking of opening / closing of stop valve, which indicates its normal operation.

• Put the iron on the base (8).
  – Plug the power cord into an outlet.
• Make sure that the tank (10) enough water.
• Turn the regulator(9) set the desired temperature of ironing: in the work of area with «MAX» steam the indicator lights (6).

• When the soleplate (13) is heated to the desired temperature, the indicator (6) goes off, you can start ironing.

• With the steam regulators (4) set the required intensity of evaporation, steam will come out of the hole soleplate (13) (Fig. 4).

• After the use, set the iron temperature controller (9) to position «MIN», and the constant control of steam (4) to «(steam off).
• Remove the plug from the wall outlet and wait until iron became cool.

WARNING!

If during operation there is no constant supply of steam, make sure that the position of the regulator of the steam is correct(4) and make sure you have water in the tank.

Additional steam supply

Additional function of steam is useful for ironing of wrinkles and can only be used with high temperature ironing (temperature controller (9) in «MAX» position).

When you press the steam button (3) intense steam will come out of the soleplate.

Note:

- To avoid leakage of water from the steam holes, press the button of additional steam (3) with an interval of 4-5 seconds.

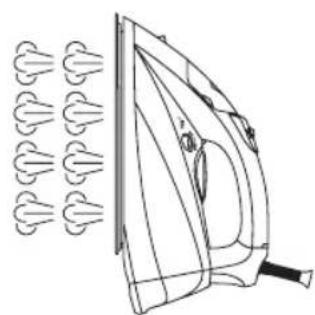

Vertical steaming

Vertical steam function can only be used in high temperature ironing (temperature controller (9) in «MAX» position).

Hold the iron vertically at a distance of 10-30 cm from the garment and press the steam button (3) with an interval of 4-5 seconds, the steam will rapidly get out of the soleplate holes (13) (Fig. 5).

Important information

• Do not perform a vertical steaming for synthetic fabrics.
• When steaming, do not touch the material with the soleplate to avoid melting.
• Never steam clothes, when it is on a person because temperature of the steam is very high, use a coat or clothes hanger.
• Once you've finished ironing, turn off the iron, wait until it cools, then open the filler cap (2), turn the iron and pour off excess water (Fig. 6).

Cleaning of the steam chamber

To extend the life of the iron it is recommended to perform regular cleaning of the steam cham-

ENGLISH

ber, especially in areas with hard tap water.

• Set the constant supply of steam (4) to « (steam off).
• Fill the container (10) water to the «MAX» mark (12).
• Put the iron on the base (8).
  – Plug the power cord into an outlet.
• Turn the regulator(9) set the maximum heating temperature of the soleplate «MAX», the indicator lights (6).
• When the soleplate (13) warms up to temperature, the indicator (6) disappears. Wait for reheating of the soleplate, after that you can clean the steam chamber.
• Remove the plug from the socket.

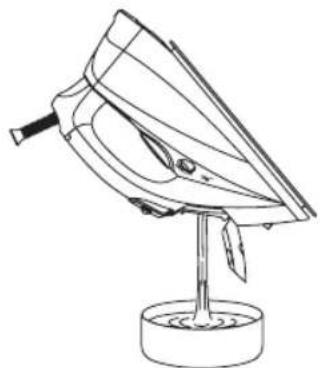

• Place the iron horizontally above the sink, press and hold the «SELF-CLEAN» button (11).
• Boiling water and steam along with the scum will be coming out of the holes of soleplate (13).
• Slightly shake the iron forward and back until all the water will come from a reservoir (10).
• Put the iron on the base (8) and let it become completely cool.
• When the soleplate (13) is completely cool, wipe it with a piece of dry cloth.
• Before removing iron, make sure that there is no water in the tank (10) and the soleplate (13) is dry.

Care and Cleaning

• Before cleaning the iron, make sure it is unplugged and has cooled down.
• Clean the iron trunk with a slightly damp cloth, then it should be wiped with a dry one.
• The deposits on the soleplate can be removed with a cloth dampened in water and vinegar solution.
• After removing of sediment, polish the surface with a dry cloth.
• Do not clean the soleplate and body of the iron with abrasives.
• Avoid contact of the iron soleplate with sharp metal objects.
• Depending on water hardness in your area, change the water softener cartridge periodically (14). To remove the cartridge, open the

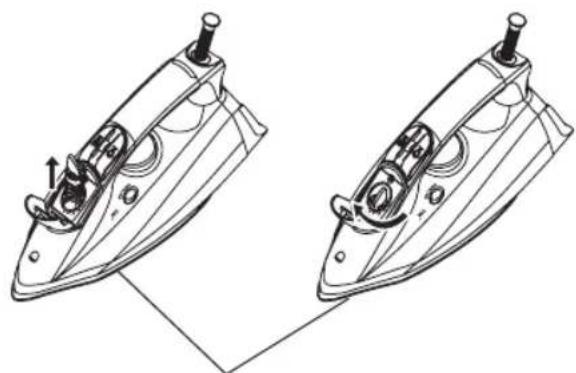

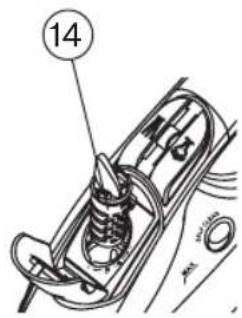

filler (2), turn the cartridge (14) counterclockwise and pull it upward (Fig. 7).

- Install a new cartridge, then turn it clockwise to lock and close the filler (Fig. 8.

Storage

• Set the temperature (9) to «MIN» position, and the constant control of steam (4) to « Steam off.
  – Remove the plug from the socket.
• Open the lid of filler (2), turn the iron and drain the remaining water from the water tank (10) (Fig. 6).
• Close the lid of(2).
• Set iron on its heel and let it become completely cool.
  – Roll up the power cord of the iron.
• Keep the iron upright in a cool, dry place inaccessible to children.

Delivery set

Iron - 1 item

Cartridge - 1 item

Measuring cup - 1 item

Manual - 1 item

Technical characteristics

Power supply: 220-240 \~ V 50/60 Hz

Power: 2270–2700 W

Water tank: 400 ml

Life span of the iron - 3 years

The manufacturer preserves the right to change the design and specifications of the unit without a preliminary notification.

Guarantee

Details regarding guarantee conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

This product conforms to the EMC-Requirements as laid down by the Council Directive 89/336/EEC and to the Low Voltage Regulation (73/23 EEC)

DEUTSCH

BÜGELEISEN

Beschreibung

A production date of the item is indicated in the serial number on the technical data plate. A serial number is an eleven-unit number, with the first four figures indicating the production date. For example, serial number 0606xxxxxxx means that the item was manufactured in June (the sixth month) 2006.

DE
