882.3 - Food processor Zelmer - Free user manual and instructions

Product Type	Food Processor
Brand	Zelmer
Model	882.3
Dimensions (approx.)	30 x 20 x 30 cm
Weight (approx.)	4 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	700 W
Main Functions	Chopping, blending, mixing, slicing, shredding, kneading
Bowl Capacity	1.5 L
Speed Settings	Variable speed with pulse function
Accessories Included	Stainless steel chopping blade, slicing disc, shredding disc, kneading hook, spatula
Safety Features	Safety lock on bowl and lid, non-slip feet
Maintenance & Cleaning	Removable parts dishwasher safe (top rack); wipe motor unit with damp cloth
Spare Parts Availability	Available through authorized service centers
Reparability	Repairable by qualified technician
Energy Efficiency Class	Not classified
Noise Level	< 85 dB
Warranty	2 years (subject to terms)

Frequently Asked Questions - 882.3 Zelmer

How do I assemble the Zelmer 882.3 food processor?

Place the bowl onto the motor unit, aligning the markings. Insert the desired accessory onto the drive shaft, then attach the lid and lock it by turning clockwise until it clicks. Refer to the manual for detailed diagrams.

Can I wash the parts in the dishwasher?

Yes, all removable parts (bowl, lid, blades, discs) are dishwasher safe. Place them on the top rack. Do not immerse the motor unit in water; wipe it with a damp cloth.

What is the maximum capacity of the bowl?

The bowl has a maximum capacity of 1.5 liters. Do not exceed the maximum fill line indicated inside the bowl to avoid spills.

How do I use the pulse function?

The pulse function provides short bursts of power for precise control. Press and release the pulse button (usually marked 'P' or with a pulse symbol) repeatedly for quick chopping or mixing.

What speed setting should I use for kneading dough?

Use the lowest speed setting for kneading dough. Overloading or using high speed may strain the motor. Start with small quantities and gradually increase if needed.

Is the motor strong enough to crush ice?

The 700W motor can handle small amounts of ice for crushing, but it is not designed for continuous heavy-duty ice crushing. Use the pulse function and add ice gradually.

Why is the lid not locking?

Ensure the bowl is correctly positioned on the base and the lid tabs align with the bowl slots. Also check that the drive shaft and accessories are properly seated. A misaligned component can prevent locking.

What spare parts are available for this model?

Spare parts include replacement bowls, lids, blades (chopping, slicing, shredding), kneading hooks, spatulas, and drive shafts. Contact Zelmer authorized service centers for genuine parts.

How do I clean the drive shaft?

Wipe the drive shaft with a dry or slightly damp cloth. Do not use abrasive cleaners. Ensure it is dry before reassembly to avoid rust.

What is the warranty period?

The Zelmer 882.3 comes with a standard 2-year warranty covering manufacturing defects. Please keep your purchase receipt for warranty claims.

USER MANUAL 882.3 Zelmer

Robot kuchenny Food processor

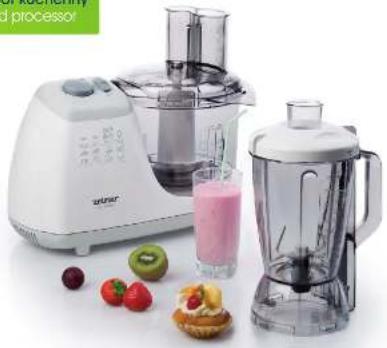

Product photo of a white blender with a digital kitchen brush and a side dish, surrounded by fresh fruits and a blender (no visible text or symbols)

NETTUNGJA JIYTGOANBA ROBOT KUCHENKY Typ 882.3	4.5
NAVOK KRODTI KUCHYNSKY ROBOT Typ 882.3	9-13
NAVOK KA OBSLUHU KUCHYNSKY RDBOT Typ 882.3	14-18

CIO HASYHA AT UTKESITASKONYHAI ROBOT332.3 Tplus

RSTUCCIONE DE UTIZARE ROBOT DE BUCATÁRIE Tó 002.1

24.29

w_A = 80 dB/A

Important safety and proper use instructions

The safety rules specified in this instruction manual must be absolutely observed.
Plug the food processor only to a 230 V AC electrical outlet.
Do not unplug by pulling on cord.
Do not operate the appliance if the cord, the housing or the handle is visibly damaged. In such a case, return the appliance to a service center.

If the non-detachable part of the cord is damaged, it should be replaced by the producer or at a proper service point or by a qualified person in order to avoid any hazards.

The appliance can only be repaired by qualified service personnel. Improper servicing may cause a serious hazard to the user. In case of defects please contact a qualified service center.

Before operating check if no hard object (e.g. a spoon) is accidentally placed in the container.
☐urn off the device and unplug it from an outlet before replacing the equipment or approaching moving parts during use.

Always unplug the appliance before cleaning.

Use only the pusher to push the product.
use the spatula that comes with the food processor to empty the container.
Do not overload the appliance with too much product or by pushing it too hard.
Do not stop the food processor by opening the container's lid or by turning the container (emergency stop). This causes the motor to wear out faster.
Do not expose the appliance to temperatures over 60°C.

Do not operate the liquidizer without food inside.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

After operation switch off the appliance with the power switch and unplug the appliance.

The food processor blade is very sharp – always store it in the casing.

Do not immerse the motor into water. Do not wash it under running water.

Do not wash the liquidizer in the dishwasher.

Do not use abrasive detergents such as emulsions, cream cleaners, polishes, etc. to clean the housing. They may remove the graphic information symbols such as: scales, marks, warning signs etc.

Do not wash the blade and the slicing discs directly by hand.

use a soft brush to wash the metal parts especially the sharp blade and the slicing discs.

Do not wash metal parts in the dishwasher. Aggressive detergents used in the dishwasher cause these parts to darken. Wash them manually using traditional dishwashing liquids.

Technical parameters

The technical parameters are indicated on the rating label. Noise level:

with food processor L - _WA = 80 dB/A

with the liquidizer L - _WA = 85 dB/A

The appliance does not require grounding ☐.

ZELMER food processor meets the requirements of the existing norms.

The appliance is in conformity with the requirements of the directives:

–Low voltage device (LVD) – 2006/95/EC.

– Electromagnetic compatibility (EMC) – 2004/108/EC.

The appliance was marked by the CE sign on the rating label.

Product description

The food processor 882.3 is a multi task appliance designed for household use. The parts having contact with the processed products were made of materials approved for food contact.

The appliance is equipped with:

• a safety interlock device which prevents the operation of the motor when the appliance is not ready for operation.
• a safeguard in case of an attempt to open the lid or to remove the container during operation,
  – gear change function up and down,
  – rotational speed stabilization for each gear,
  – control function: – pulse.

Motor control elements (Fig. 3)

1. Knob is used to change gears.
2. 1/0/pulse switch – is used to switch the motor on and off.

The pulse function allows operating the motor while keeping the switch in the pulse setting which allows the appliance to work in the pulse mode for a desired time and allows breaks.

The food processor accessories (Fig. 1)

I. Food processor

a) pusher/dispenser,
b) food processor lid,
c) food processor container,
d) pureeing disc,
e) coarse and fine shredding disc,
f) coarse and fine slicing disc,
g) French fry disc,
h) blade casing,
i) food processor blade,
j) disc driver,
k) spatula.

II. Liquidizer

a) cup/dispenser,
b) lid,
c) gasket,
d) liquidizer container.

How to use the accessories

Food processor blade - is used to process meat, mix dough and other functions.

Slicing disc – is used to cut fruits and vegeta-bles into thin and thick slices.

Shredding disc – is used to shred fruits and vegetables into fine or coarse shreds.

French fry slicing disc – is used to cut pota-toes for French fries.

Pureeing disc – is used to pulp fruits and vegeta-bles.

Disc driver – is used to install changeable discs.

Food pusher, dispenser – is used to push ingredients that are grinded by the slicing discs, to dispense loose or liquid ingredients and to close the feed tube of the lid. A small opening at the bottom of the food pusher allows to evenly dispense liquids (e.g. oil while preparing may-onnaise).

Liquidizer – is used to prepare food of liquid or semi-liquid consistency such as: soups, creams, sauces, cocktails and others.

Slicing and shredding discs are round, with two-sided blades (one side for thin slices, the other for thick slices).

Preparation for operation, start-up and operation

Wash the parts that have contact with the processed food before initial use.
Place the motor on a hard, clean and dry surface near the electrical outlet.
Wind a sufficient length of the cord. The remaining cord can be stored in the housing. Put the remaining cord in the housing through the opening at the back of the housing.
- Choose the appropriate attachments depending on the selected type of operation.

Operating the food processor

Place the food processor container on the fastening hooks of the motor so that the sign open on the container is opposite the sign on the housing and turn the container counterclockwise until the fastening hooks snap shut (position close).

Operating the food processor blade (fig. 2a)

• Put the blade in the casing on a hard surface (put in on the casing).
• Dress the blade and remove the casing by pulling it upwards.

Place the blade in the container so that it is connected to the motor shaft.
But the ingredients to be processed inside the container according to the selected recipe.
But the lid on the fastening hooks of the con-tainer so that the sign on the lid is opposite the sign on the container and turn the lid anticlockwise until the hooks snap shut (position close)
But the food pusher into the feed tube of the lid.
Plug in the appliance.
- Set the desired speed using the knob and switch on the appliance - set the switch in the position "1".

The food processor may also be switched on by setting the switch in the "pulse" position.

Operating the slicing disc (Fig. 2b)

But the selected slicing disc on the hooks of the disc driver so that the blades that are to be used during operation are on top and turn the disc driver anticlockwise until stop.
Place the tool in the container so that it is connected to the motor shaft.
But the lid on the fastening hooks of the container so that the sign open on the lid is opposite the sign on the container and turn the lid anticlockwise until the hooks snap shut (position close)
Plug in the appliance. Set the desired speed using the knob and switch on the appliance - set the switch in the position "1". The food processor may also be switched on by sliding the switch to the "pulse" position.

The feed tube of the lid is used to add solid and liquid ingredients to the container. It is divided into two parts of different sizes. The wide part is for larger products and the narrow part is for smaller products. Add the processed products gradually, pushing them slowly and with a steady thrust down the feed tube with the pusher.

Operating the liquidizer (Fig. 2c)

• Put the liquidizer container on the fastening hooks of the motor so that the sign open on the container is opposite the sign ▲ on the housing and turn the container anticlockwise until the hooks snap shut (position close).
• Put the ingredients to be processed inside the container according to the selected recipe.
• Make sure the gasket is properly installed in the groove by the edge of the lid.
• The rectangular protrusion of the gasket is used to remove the gasket from the lid.
• Put the lid of the liquidizer on the fastening hooks of the container so that the sign on the lid is opposite the sign on the container and turn the lid anticlockwise until the hooks snap shut (position).
• Press the cup-dispenser into the opening of the lid.
  – Plug in the appliance.
• Set the desired speed using the knob and switch on the

appliance by setting the switch in the position "1". The food processor may also be switched on by sliding the switch to the "pulse" position.

Caution: The appliance cannot be switched on if there is no lid on the cup.

After operation

- switch off the appliance by setting the switch in the “0” position and unplug it.

Open the lid when the appliance stops completely.

Turn the liquidizer (the food processor container) clockwise so that the sign on the housing of the liquidizer (food processor container) is opposite the sign

on the motor and remove the attachments from the motor. In case of the food processor, open the lid when the appliance stops completely.

Remove the used attachment and empty the container.

Cleaning and maintenance

√/ash the parts of the food processor that contact the processed food thoroughly after each use.

fixing warm water with dishwashing liquid makes the cleaning of the liquidizer easier.

Wipe the housing with a damp cloth with dishwashing liquid. Do not immerse the hous-ing into water. Do not wash it in the dish-washer.

Remove the dirt from the slots and the corners using a bottle brush or a toothbrush.

always store the food processor blade in the casing.

■lastic elements may discolor as a result of excessive use. Do not teat this as a defect. Orange stains caused by carrot juice can be easily removed with the use of a cloth soaked with edible oil.

Dry all parts thoroughly after washing.

Pay special attention to transparent plastic parts. They are very sensitive to strokes and dropping. They can be damaged easily.

Operation tips

The food processor grinds the products very quickly. Switch on the appliance for a short period of time. This way the products will not be grinded too excessively. Do not use the food processor blade to grind too big product pieces. Before placing the product in the con-tainer divide the product into cubes of about 3 cm.

While grinding: cheese, butter, margarine do not allow the food processor to operate for too long. The grinded products may heat and melt.

the products stick to the blade or the inner sides of the container turn off the appliance, take off the lid and remove the ingredients from the blade and the sides of the container (using the spatula).

●rinding hard products such as: coffee beans, nutmeg and ice cubes etc. may adversely affect the condition of the blade (e.g. the blade may become blunt).

Slicing discs

1. In order to receive uniform round slices put wide vegetables into the larger feed tube and the thin ones into the smaller feed tube – separately into the smaller feed tube and a couple of pieces at a time into the larger one.
2. You will receive regular slices without torn edges when the appliance is switched off while filling the feed tube. To do so you can use the "pulse" function.
3. Soft and juicy vegetables should be cut at lower speed, hard vegetables at a faster one.

You can cut 0.8 - 1kg of fruit or vegetables at a time to completely fill the container.

Shredding discs

1. You can fill the feed tube during operation.
2. While shredding you can use all available gears. Use lower gears for soft fruits and vegetables and higher gears for harder ones.

You can cut 0.8 - 1kg of fruit or vegetables at a time to completely fill the container.

Pureeing disc

1. You can fill the feed tube during operation.
2. After processing approximately 0.5 kg of the products, stop the appliance and remove the pulp gathered on the lid.

French fry slicing disc

1. Fill the feed tube when the appliance is switched off.
2. Switch on the appliance using the "pulse" function.

You can cut 1kg of potatoes at a time to completely fill the container.

Examples of using the appliance (Table 1, Table 2)

The examples of using the appliance, the maximum quantities of basic ingredients, the approximate operation time and the gears to be used are presented in the tables. Please do not treat it as a cook book. Pro-ceed according to your individual taste and the culinary rules in the literature and guides. The actual operation time depends on the quality and quantity of the products and the desired level of mixing or grinding.

Ecology – environmental protection

Each user can contribute to protect the environment. It is neither difficult nor expensive.

In order to do so: return the cardboard packaging to a waste paper collection point, throw polyethylene (PE) bags into appropriate containers.

Return a worn out appliance to an appropriate collecting point as the components of the appliance may pose a threat to the environment.

Do not dispose of with household waste!!!

Table 1. FOOD PROCESSOR – FOOD PROCESSOR BLADE

Product Max	quantity Preparation Gear	Operation** Operation time
Boiled eggs 10	Put whole eggs in the container	6-9 P 25-30 times
Carrots 1000	g Cut into 3 cm pieces. 12 C	up to 30 s.
Parsley	4 bunches	Wash, dry, remove stems.	12	C	30 s
Chocolate	400 g (4 bars per 100 g)	Break chocolate bars into pieces.	12	C	up to 45 s.
Almonds	1000 g	Skin may be peeled off before processing	12	C	up to 60 s.
Mixed bev-erages	1 liter (3/4 liter of liquid+ fruits)	-Mix fruits-Add liquid (milk, kefir etc.)	10-1212	PC	up to 30 times.60 s
Tatar sauce	-600 ml of mayon-naise-170 g of mushrooms-170 g of gherkins-2 boiled eggs	Put all the ingredients in the con-tainer. 12	P		7 times Pabout 20 s
Mayonnaise	-1.5 liter = (1 liter oil + 4 eggs + lemon juice)	-Whip eggs and oil at room temperature with lemon juice.-Add oil (pour into the smaller chamber of the food pusher which has an opening at the bottom)-Final blending.	10-12	C	30 suntil oilis used up+ 30 s
Pancake batter	-1.5 cup of milk-1.5 cup of water,-3 cups of flour,-3 eggs	Put all the ingredients in the container. Blend During blending (if necessary) remove flour from the sides of the container using the spatula.	8-12	C	30-45 s
Cheesecake 1	kg of cheese	-Cream butter (margarine) with sugar and yolks.-Gradually add cheese cut into small pieces through the feed tube.-Cream the cheese paste.-Whip the egg whites using the dough kneader.-Combine the cheese paste with the whipped egg whites and the rest of the ingredients in a separate bowl. Carefully stir with a spoon.	101064-6	CCC	about 1 min.about 2 min.about 1 min.2 min.
Dumpling dough	-500 g of flour-1-2 eggs-200 ml of water-2 tablespoons of oil	Put all the ingredients in the container and bled.	6	C	60 s
Creamed cake	-3 cups of flour (about 450 g),-3 partially filled cups of powdered sugar (about 400 g),-400 g of butter,-9 eggs,-1 teaspoon of bak-ing powder	-Cream butter (at room tempera-ture) with sugar and yolks.-Whip the egg whites using the dough kneader.-Add flour, baking powder and stir.-Pour the mixture into two narrow rectangular tins.-Bake for 45 min at approximately 180°C.	662	CCC	7 min.1 min.about 2 min.
Yeast dough*	-500 g of flour,-150 g of sugar,-125 g of butter,-250 ml of milk,-30 g of yeast,-3 eggs	Blend yeast with warm milk, 1 tablespoon of sugar and 1 tablespoon of flour. Wait until dough rises, add flour, eggs, fat and knead dough. Wait about 30 min until dough rises. Bake for 40 min at approximately 160°C.	12 C	2 min.
Meat stuffing	-500 g of beef cooked in vegeta-ble stock,-2 boiled eggs,-1 onion cut into cubes and fried,-Salt, pepper	-Cook meat, cut in cubes (about 3 cm).-Divide eggs into fours.-Put all the ingredients in the container and mix (if the stuffing is too dry add stock and mix).	12 C	30-45 s

\* Yeast dough

Note: Dough prepared according to the above recipe is very watery and cannot be formed in a ball; it sticks to the hand and the sides of the container. Its consistency does not resemble one of a typical yeast dough; it cannot be formed or rolled. While preparing a yeast pie according to the above recipe the dough should be transferred to the tin right after blending the ingredients (kneading the dough). After baking you will receive a tasty, spongy, well risen sweet yeast bun.

** Operation: P – pulse C – continuous

Table 2. LIQUIDIZER

Product Max quantity Preparation Gear Operation time
Fruit cocktail	1 liter = 0.50–0.75 l of milk+ fruits	Grind fruits. –Add milk, blend. –	10–1212	P C	5–10 times30 s
Pancake batter	1 liter = 1 cup of milk + 1 cup of water + 2 eggs + flour	Put all the ingredients in the container and blend.	Increase from8–12	C	up to30 s
Vegetablesoup	1 liter = 30 deca-grams of –cooked vegetables,10 decagrams of lean meat, –2 cups of stock, –	Cook meat and vegetables, cool down –and blend.Add stock. –	10–1212	P C	5–10 times30–40 s

* Operation: P – pulse C – continuous

The manufacturer does not accept any liability for any damages resulting from unintended use or inappropriate handling. The manufacturer reserves his rights for modifying the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade aesthetic or other reasons, without notifying it in advance.

Notes

Notes
