USER MANUAL 414 NAD

THE FOLLOWING PRECAUTIONS AND SAFETY INSTRUCTIONS

ARE REQUIREMENTS OF UL AND CSA SAFETY REGULATIONS

CAUTION

RISK OF ELECTRIC

CHICKUP NOT OPEN

SHOCK DO NOT OPEN

ATTENTION:

BISQUE DE CHOC ELECTRIQUE

NEBASOLVIR

Warning: To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture.

graphic symbol of a lightning flash with an arrow point within a triangle signifies that there is dangerous voltage within the unit and it poses a hazard to anyone removing the cover to gain access to the interior of the unit. Only qualified service personnel should make any such attempt.

graphic symbol of an exclamation point within an equilateral triangle warns a user of the device that it is necessary to refer to the instruction manual and its warnings for proper operation of the unit.

Do not place this unit on an unstable cart, stand or tripod, bracket or table. The unit may fall, causing serious injury to a child or adult and serious damage to the unit. Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the unit. Any mounting of the device on a wall or ceiling should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.

An appliance and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the appliance and cart combination to overturn.

Read and follow all the safety and operating instructions before connecting or using this unit. Retain this notice and the owner's manual for future reference.

All warnings on the unit and in it's operating instructions should be adhered to.

Do not use this unit near water; for example, near a bath tub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool.

The unit should be installed so that its location or position does not interfere with its proper ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that may block the ventilation openings; or placed in a built-in installation, such as a bookcase or cabinet, that may impede the flow of air through its ventilation openings.

The unit should be situated from heat sources such as radiators, heat registers, stoves or other devices (including amplifiers) that produce heat.

The unit should be connected to a power supply outlet only of the voltage and frequency marked on its rear panel.

The power supply cord should be routed so that it is not likely to be walked on or pinched, especially near the plug, convenience receptacles, or where the cord exits from the unit.

Unplug the unit from the wall outlet before cleaning. Never use benzine, thinner or other solvents for cleaning. Use only a soft damp cloth.

The power supply cord of the unit should be unplugged from the wall outlet when it is to be unused for a long period of time.

Care should be taken so that objects do not fall, and liquids are not spilled into the enclosure through any openings.

This unit should be serviced by qualified service personnel when:

A. The power cord or the plug has been damaged; or
B. Objects have fallen, or liquid has been spilled into the unit; or
C. The unit has been exposed to rain or liquids of any kind; or
D. The unit does not appear to operate normally or exhibits a marked change in performance; or
E. The device has been dropped or the enclosure damaged.

DO NOT ATTEMPT SERVICING OF THIS UNIT YOURSELF. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Upon completion of any servicing or repairs, request the service shop's assurance that only Factory Authorized Replacement Parts with the same characteristics as the original parts have been used, and that the routine safety checks have been performed to guarantee that the equipment is in safe operating condition.

REplacement With UNAUTHORIZED PARTS MAY RESULT IN FIRE, ELECTRIC SHOCK OR OTHER HAZARDS.

ATTENTION

POUR PREVENIR LES CHOCS ELECTRIQUES NE PAS UTILIER

CETTE FICHE POLARISEE AVEC UN PROLONGATEUR, UNE

PRISE DE COURANT OU UNE AUTRE SORTIE DE COURANT.

SAUF SI LES LAMES PEUVENT ETRE INSEREEES A FOND SANS

EN LAISSER AUCUNE PARTIE A DECOUVERT.

CAUTION

TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED

PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER

OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO

PREVENT BLADE EXPOSURE.

If an indoor antenna is used (either built into the set or installed separately),

never allow any part of the antenna to touch the metal parts of other electrical appliances such as a lamp, TV set etc.

CAUTION

POWER LINES

Any outdoor antenna must be located away from all power lines.

OUTDOOR ANTENNA GROUNDING

If an outside antenna is connected to your tuner or tuner-preamplifier, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

a. Use No. 10 AWG (5.3mm2) copper, No. 8 AWG (8.4mm2) aluminium, No. 17 AWG (1.0mm2) copper-clad steel or bronze wire, or larger, as a ground wire.
b. Secure antenna lead-in and ground wires to house with stand-off insulators spaced from 4-6 feet (1.22 - 1.83 m) apart.
c. Mount antenna discharge unit as close as possible to where lead-in enters house.
d. Use jumper wire not smaller than No.6 AWG (13.3mm2) copper, or the equivalent, when a separate antenna-grounding electrode is used. See NEC Section 810-21 (j).

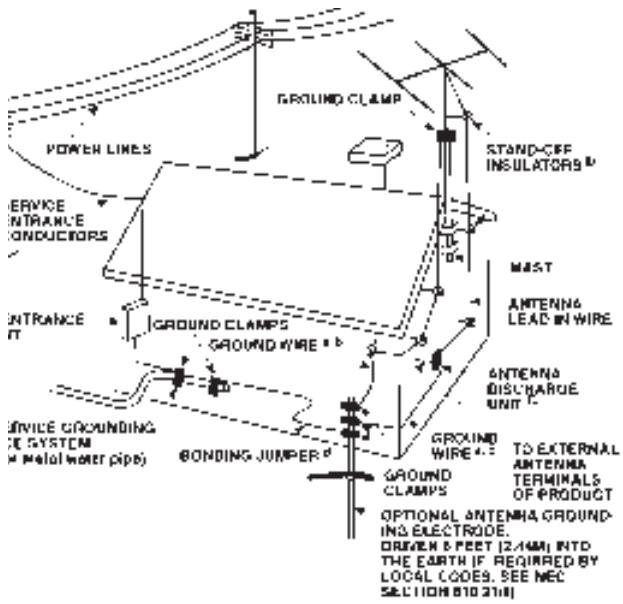

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL

CODE INSTRUCTIONS CONTAINED IN ARTICLE 810 - RADIO AND TELEVI

SION EQUIPMENT.

NOTE TO CATV SYSTEM INSTALLER: This reminder is provided to

call the CATV system installer's attention to Article 820-22 of the National Electrical Code that provides guidelines for proper ground and, in particular, specifies that the ground cable ground shall be connected to the grounding system of the building, as close to the port cable entry as practical.

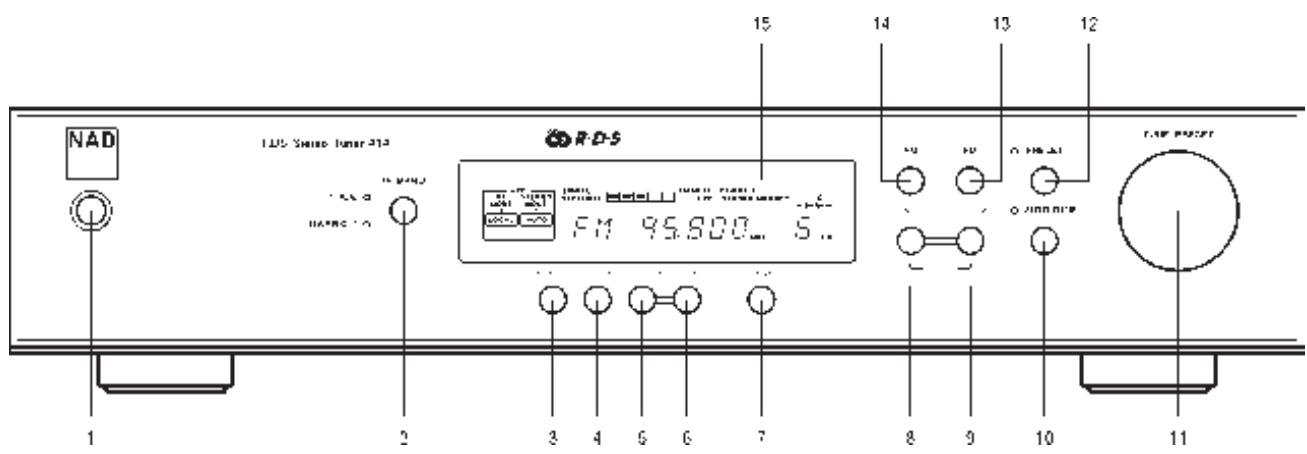

FRONT PANEL CONTROLS
FIGURE 1.

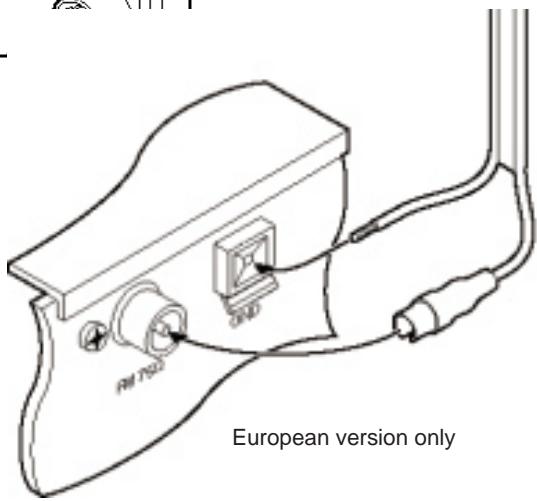

Australian version only

FIGURE 2.

NAD 414 RDS STEREO AM/FM TUNER

NOTES ON INSTALLATION.

Your NAD 414RDS should be placed on a firm, level surface. Avoid placing the unit in direct sunlight, near sources of heat and damp or in poorly ventilated positions.

It comes with phono leads for connection to your amplifier. Ensure that leads and connectors are not damaged in any way and all connectors are firmly pushed home.

If the unit is not going to be used for some time, disconnect the plug from the AC socket.

Should water get into your NAD 414RDS, shut off the power to the unit and remove the plug from the AC socket. Have the unit inspected by a qualified service technician before attempting to use it again.

Do not remove the cover, there are no user-serviceable parts inside.

Use a dry soft cloth to clean the unit. If necessary, lightly dampen the cloth with soapy water. Do not use solutions containing benzol or other volatile agents.

QUICK START

1. Use the phono-to-phonoload to connect the NAD 414RDS left & right outputs to the Tuner Input of your amplifier.
2. Plug in the AC power cord.
3. Connect AM and FM antenna.
4. Press the POWER button to turn on the NAD 414RDS.
5. Press the AM or FM button to select AM or FM reception.
6. Use TUNE/PRESET to select a station

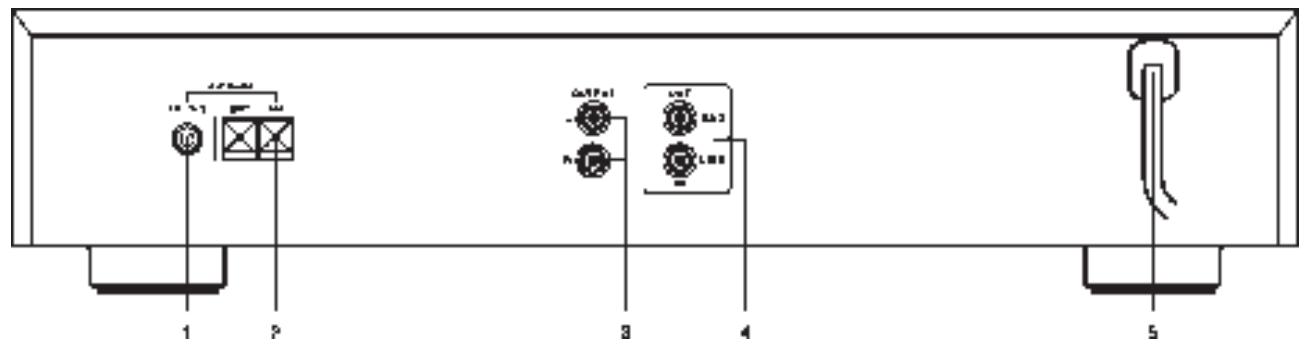

REAR PANEL CONNECTIONS.

1. FM ANTENNA

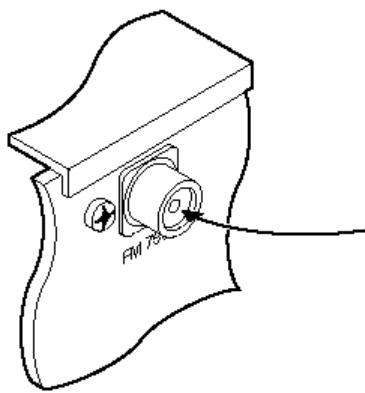

A ribbon wire FM antenna is included and should be connected to the FM connector at the rear of the unit (see fig 1 - Australian versions should use the 'balun' adapter supplied). The ribbon aerial should be mounted on a vertical surface and placed so that it forms a 'T'.

Experiment with placement of the antenna to find the position that gives the best signal strength and lowest background noise. The signal strength meter in the Display Panel will help to indicate the better antenna positions.

An inadequate FM signal normally results in high levels of hiss, especially in stereo, and interference from external electrical sources. In areas of poor FM reception, the tuner section's performance can be improved by using an externally mounted FM antenna. A qualified aerial installer will be able to advise and fit a recommended aerial for your reception conditions.

2. AM ANTENNA

An AM loop antenna is supplied with the NAD 414RDS and is required for AM reception. To connect the AM antenna, first press the keys on the Antenna terminals downwards. Insert the bare antenna wires into the two terminal holes and push the connector keys upwards again to secure the connection.

Test various positions for the antenna but always ensure the loop is placed vertically for best reception. Placing the antenna close to large metal items such as metal shelves or radiators may interfere with reception. (see fig 2)

3. OUTPUT

The 414's analogue audio output. Using twin phono-to-phon leads, connect to the left (white) and right (red) outputs to the Tuner' input or other linelevel input such as Aux' input of your amplifier. Do not connect this cable to the amplifier's PHONO input jacks.

4. NAD-LINK IN OUT

The NAD-Link connector is used to pass commands from other units fitted with NAD-Link connectors. This allows centralised control of a complete system, and also allows some of the basic functions of the NAD 414RDS to be controlled using a NAD-linked amplifier's remote control or gives system control from more than one room. To function with other units, connect the Tuners NAD-Link OUT to the NAD-Link IN on the other unit. NAD-Link connectors can be daisy-chained, IN to OUT, so that a whole system can be controlled from the remote control facilities of one unit.

5. AC LINE CORD.

Connect this power cord to an AC mains wall outlet

Plug the AC power cord into a live AC wall socket or to an AC convenience outlet at the rear of your amplifier.

FRONT PANEL CONTROLS.

1. POWER ON/OFF.

POWER switches the player on or off. Pressing the power switch turns the Tuner on, indicated by the Display Panel becoming active. Pressing the POWER button again will switch the player off.

When switched Off, no power is supplied to the NAD 414RDS's electronics, but all Memory Preset settings still remain stored.

CAUTION: The power does not switch off completely when the POWER button is switched to off. Please disconnect your NAD 414RDS from the AC outlet when it is not being used for long periods of time.

2. IF BAND

Pressing the IF BAND button selects Wide or Narrow IF band operation as indicated by the LED's next to the button. The normal setting is WIDE which is suitable for most reception conditions. However should two received radio stations be operating on frequencies very close to each other, then selecting NARROW will help reject interference from the unwanted station.

3. CHARACTER

CHARACTER Button is used to enter the names of Preset radio stations for display when the station is selected. Used together with the TUNE/PRESET (11) knob and MEMORY (8) Buttons.

4. DISPLAY

Pressing the DISPLAY button switches between the station display options seen in the Display Panel.

Options	RDS Station	Non-RDS Station
Normal	PS*	User entered station name
Pressing:
DISPLAY x1	RT*	Station frequency
DISPLAY x2	CT*	-
DISPLAY x3	Frequency	-

• For information on the Radio Data Service, refer to the list in the section "USING RDS".

5.PTYTPAF

Pressing PTY TP AF allows you to search for other stations using the RDS Programme Type, Traffic Information and Alternative Frequencies features and is used with the SCAN (6) button. The information is displayed for three seconds after which the display returns to showing the station initials and frequency.

Display Panel information

Normal operation

RDS Station	Non-RDS Station
Station initials & frequency	Station frequency

Pressing: PTY TP AF
RDS Station	Non-RDS Station
PTY Programme Type	'NOT RDS'

Pressing: PTY TP AF
RDS Station	Non-RDS Station
TP Traffic Information	‘TP’

Pressing: PTY TP AF
RDS Station	Non-RDS Station
AF Alternative Frequencies	'NOT RDS'

6. SCAN

Pressing SCAN sets the NAD 414RDS scanning through each of the Preset stations to automatically sample each of the Preset stations in a particular

Memory Bank. Each station is heard for six seconds and then Scan switches to the next Preset station. When a suitable station is heard, press SCAN again to cancel the Scanning process. SCAN is also used in conjunction with the NAD-414's PTY TP AF Button (5) to find the strongest signal version of the current station, stations which have similar programming, or stations that carry traffic information in their broadcasts.

7.BANK

Pressing BANK switches between the three Preset Memory Banks (A, B or C). These Banks can contain a mix of up to ten AM and FM stations. The Bank selected is shown in the Display Panel.

8. MEMORY

Used to store stations into the three Preset Memory banks or to store user defined names for non-RDS Preset stations. Used in conjunction with the PRESET (12) button and the TUNE/PRESET (11) knob. When Memory is active, the Preset number flashes and the red 'Memory' indicator is shown in the Display Panel.

9. FM MUTE/MODE

If a strong stereo FM signal is being received, your NAD 414RDS will automatically switch to Stereo FM operation, which is shown by the STEREO indicator in the Display Panel, and the tuner will mute when searching between stations.

Weak stereo signals however, may have a high level of background hiss. Switching to Mono Mode by depressing the FM MUTE/MODE button will cancel most or all of this background noise. Press the FM MUTE/MODE switch again to return to Auto Stereo FM operation. The FM Mute On/Off status is shown in the Display Panel and Auto/Mono Mode is shown in the APR section of the Display Panel.

10.AUTOTUNE

Pressing the AUTOTUNE Button puts the NAD 414RDS into Autotune mode. Turning the TUNE/PRESET (11) knob clockwise or anti-clockwise will set the tuner searching up or down the radio frequencies to find the first station that is being received with a reasonably strong signal (three or more bars on the Tuning Strength Meter).

11. TUNE/PRESET

The TUNE/PRESET knob is used to manually or automatically tune to a radio station, select a Preset station or to program station names into your NAD 414RDS.

12.PRESET

Pressing PRESET, allows you to select any of the stations that have been stored in the Preset Memory Banks. Select the Bank into which you have stored the station using the BANK (7) button, and then turn the TUNE/PRESET knob to select the required Preset station. The Preset number and station name

or frequency will be shown in the Display Panel.

13. FM

The FM button switches the tuner to FM reception. The Display Panel shows the frequency of the tuned station and which band is selected. The FM tuning is in 0.025MHz increments

14.AM

The AM button switches the tuner to AM reception. The Display Panel shows the frequency of the tuned station and which band is selected. The AM tuning is in 9kHz increments.

The IF BAND, FM MUTE/MODE, DISPLAY, PTY TP AF buttons do not operate for AM stations.

15. DISPLAY PANEL

The Display Panel shows information about the NAD 414RDS operating modes and information about the station currently selected.

STATION DATA Displays the station name, frequency and other information supplied on the RDS service or entered manually by the user.

APR section

RF MODE Your NAD 414RDS will automatically select the RF Mode that works best with the signal being received. DX is selected for normal strength signals and LOCAL is selected when it is tuned into stations with very strong radio signals that could cause distortion.

STEREO MODE Tuner automatically switches to stereo when a stereo station is received (AUTO) or is always in Mono (MONO). Indicates whether the Tuner is in FM Mute/Auto Mode (ON) or FM Mute Off/Mono Mode (OFF)

SIGNAL STRENGTH Displays the strength of the received radio signal. Maximum signal strength is indicated by five bars. One or two bars indicate inadequate signal strength that may be prone to interference and noise.

FM MUTE Indicates whether the Tuner is in FM Mute/Auto Mode (ON) or FM Mute Off/Mono Mode (OFF)

TUNED< Shows that the station is correctly tuned.

STEREO Shows that an FM station is transmitting in stereo and the Tuner is operating in Auto Mode.

MEMORY Lights when the Memory function is active and stations or characters are being entered into memory.

RDS Indicates that the station selected is transmitting RDS information

BANK Displays the current Memory Bank selected

PRESET NUMBER Displays the current Memory Preset number

FINDING AND STORING AM & FM STATIONS USING AUTOTUNE.

You can use the SEARCH mode to automatically look for stations, and then use the STORE mode to enter them into the NAD 414RDS memory.

First select the AM or FM band using the AM or FM button. If you want to search for the main stations available in your area, then the NAD 414RDS will search only for strong signals (three or more bars on the Signal Strength Display) and all weak stations will be muted and passed over. If you want to include all signals in the search, no matter how weak, switch the FM Muting off by pressing the FM MUTE button. FM Mute On/Off is shown in the Display Panel.

Now press AUTOTUNE and turn the TUNE/PRESET knob clockwise to search up the frequency band or anti-clockwise to search down the frequency band.

When the tuner finds a broadcast signal of adequate strength (shown by at least three bars of the tuning strength meter and the >TUNE< indicator illuminating) then the automatic search stops at that station. If the station is transmitting RDS information, the RDS indicator will light up and station initials and frequency will be shown in the Display Panel. If a non-RDS station is found, then just the frequency will be shown.

To store that station as a Preset, press MEMORY. The Memory indicator will be displayed and the Preset section will flash in the Display Panel.

Press BANK to select which of the three Banks of Presets you want to store the station into. Turn the TUNE/PRESET knob to select which Preset number you wish to assign to the station (shown as a flashing number in the Display Panel) and then press MEMO-RY again. The Memory light in the Display Panel will go out and the station is now stored in your NAD 414RDS memory.

You can enter a new station into an unused Preset or over-write an existing programmed Memory Preset. By doing this you will replace all the data previously held on that Preset number.

To exit the Memory mode without storing a station, leave all the controls untouched; the Memory mode will automatically cancel itself after 8 seconds. The Memory Presets are held in non-volatile memory, so they will remain stored, even if the Tuner is switched off or unplugged from the mains supply.

SELECTING A PRESET STATION.

To select a Memory Preset station, press the PRESET Button and then select which Bank of Presets you want to use by pressing the BANK button. Turn the TUNE/PRESET knob until the right Preset is found and shown in the Display Panel. Any unused Presets will be skipped and it is not possible to select a Bank unless it has at least one Preset stored into it.

If you want to automatically search the whole bank for a suitable programme, press SCAN. The NAD 414RDS will then scan through all the Preset stations in the current Bank, playing each for 6 seconds. When a suitable programme is heard, press SCAN again to cancel the scanning mode.

DELETEING A STORED STATION.

You can empty a Preset by deleting the stored information. First select the Memory Preset to be emptied and then press the MEMORY button, hold it down and press FM MUTE/MODE. The Memory Preset will then be deleted and '—' appears as the Preset number. You can store a new station into a used Preset, by simply going through the Preset storing process and placing a new station over the existing one.

FINDING AND STORING AM & FM STATIONS USING MANUAL TUNING.

You can also manually TUNE stations and store them into the NAD 414RDS memory.

First select the AM or the FM band using the AM or FM button. Select FM Mute On or Off as required.

Then turn the TUNE/PRESET knob clockwise to search up the frequency band or anti-clockwise to search down the frequency band.

When the tuner is properly locked onto a station then the >TUNE< indicator will illuminate. If you have difficulty tuning between two stations on adjacent frequencies, switch the IF BAND0 to 'Narrow'. This will make it easier for your NAD 414RDS to lock onto the required station.

If the station is transmitting RDS information, the RDS indicator will light up and station initials and frequency will be shown in the Display Panel. If a non-RDS station is found, then just the frequency will be shown.

Store the station into memory in the same way as described in 'Finding And Storing AM & FM Stations Using Autotune.'

STORING A STATION NAME.

When a station is transmitting RDS information, your NAD 414RDS will automatically show the station initials and frequency when its Preset is used. Although the Tuner automatically shows the frequency of any other non-RDS Preset station, it also allows you to type in the station name to make it easier to identify which station is stored in the Memory Preset.

To enter a name, first select the Preset you want to attach a name to. Then press CHARACTER and the first space in the Station Data area of the Display Panel will flash. Turn the TUNE/PRESET knob to select the first character (see Character list for reference). Pressing MEMORY will store the first character and move forward to the next space on the line. Use the TUNE/PRESET knob again to select the next character in the name and press MEMORY to store it. Continue until the station name is complete (up to 8 characters). Press CHARACTER again to store the completed name.

This function is only available for non-RDS stations. RDS stations will always display their transmitted name and this cannot be over-written using CHARACTER.

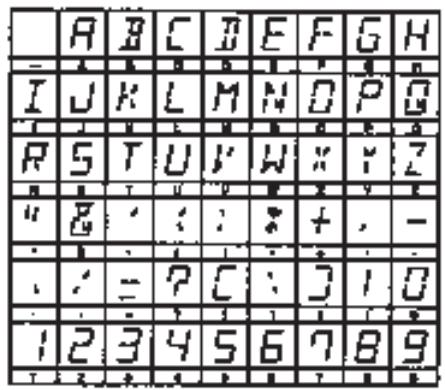

There are 54 characters available including a blank space.

(show Character set per T-450RDS manual)

USING RDS.

An increasing number of FM radio stations are transmitting additional services and information digitally encoded into the normal FM signal. This Radio Data System (RDS) makes it easier to find the right station by displaying its name and frequency. It can also display the type of programming the station is transmitting, whether it transmits traffic information, and can also display additional text information, such as the title of current track being played.

RDS also makes it easier to find the other stations that may be of interest. Using the SCAN function lets you search for the strongest signal version of the station you are listening to, find other stations with similar types of programme or find other stations that carry traffic information.

There are six RDS Services and although your NAD 414RDS is able to display and use all of these, not every radio station transmits the full six. Some may only send the Programme Service Name and Identification.

The six RDS services are:-

PS Programme Service Name

Shows the station's initials

PTY Programme Type

Shows the type of programme being transmitted. Can be used to search for other similar programmes being transmitted by other stations

TP Traffic Programme

Shows whether the station supplies traffic information. Can be used to search for other stations transmitting traffic information.

AF Alternate Frequencies

Used to search for other frequencies that the current station is being transmitted on.

RT Radio Text

Displays additional information about the current programme such as the programme's name or the name of the current track being played.

CT Clock Time

When an RDS station broadcasting CT information is received, a clock will appear on the display within 1 minute from the time the station is received.

DISPLAYING RDS INFORMATION.

When an RDS station is received, the RDS indicator will show in the Display Panel and your NAD 414RDS will use the Programme Service Name (PS) data to display the station's initials and frequency in the Station Data section of the Display Panel.

You can see the other RDS information by pressing the DISPLAY button.

Pressing DISPLAY once will switch to Programme Identification and display the station's full name, description and frequency.

If no Programme Identification is being transmitted then 'No Text' will be displayed instead.

Pressing DISPLAY again will show the Radio Text information, if transmitted.

If no Radio Text information is being transmitted then either 'No Update' or the current time will be dis

played instead.

It takes two or three seconds for the Radio Text information to be fully transmitted. If the RDS section of the tuner is waiting to be updated then 'WAIT' will appear in the Display Panel.

Pressing DISPLAY three times will display the frequency that your NAD 414RDS is tuned to.

For non-RDS stations, the DISPLAY button will switch between displaying the user-entered station name (if any) and the frequency.

RDS station

Non-RDS Station

Normal Operation

RDS Station initials (PS)

User-entered station name (or frequency if no name has been entered)

Pressing: DISPLAY x1

RT* Current tuned frequency

Pressing: DISPLAY x2

CT*

Pressing: DISPLAY x3

Current tuned frequency

• For information on the Radio Data Service, refer to the list in the section "USING RDS".

USING RDS TO SEARCH FOR STATIONS AND INFORMATION.

RDS offers a facility to automatically search for other stations that are transmitting similar programming, or are provide traffic information or are stronger transmissions of the same station on alternative frequencies.

To use RDS to search for stations transmitting similar types of programme type, press the PTY TP AF Button once. The current station's programme type will be displayed for two seconds in the Station Data section of the Display Panel (see list below). Press SCAN while this is displayed and your NAD 414RDS will automatically search for other RDS stations transmitting the same programme type. Each matching station is heard for six seconds and its frequency flashes, then Scan goes on to the next station that is transmitting the same programme type. Press SCAN again to stop the scanning process on a particular station.

If you want to search for a particular programme type then press the PTY TP AF Button once and then use the TUNE/PRESET knob to choose the programme type. Press SCAN to find any matching programmes.

To use RDS to search for stations transmitting traffic information (usually after news bulletins), press the PTY TP AF Button twice and press SCAN. Your NAD 414RDS will search out the first RDS station that includes traffic information in their broadcasts. ^TP^ indicates an RDS station that includes traffic information, 'TP' indicates an RDS station that does not give out traffic information or a non-RDS station.

To use RDS to search for a stronger signal for the current station, press PTY TP AF Button three times

and press SCAN. Your NAD 414RDS will search out the strongest signal for the current station.

This is normally used on In-Car systems to automatically switch to the strongest version of a national radio station when travelling. But it can be used to check that you are tuned to the optimum signal for that particular station.

RDS Search Options

press

PTY TP AF x1 PTY Programme Type

Used to search for other similar programmes being transmitted by other stations.

PTY TP AF x 2 TP Traffic Programme

Used to search for other stations transmitting traffic information.

PTY TP AF x 3 AF Alternate Frequencies

Used to search for other strong frequencies that the current station is being transmitted on.

The Programme Types can fall into one any one of these 15 different categories.

Programme Types (PTY)

NONE No programme type information transmitted

NEWS News programme

AFFAIRS Current affairs programme

INFO General information programme

SPORT Sport programme

EDUCATE Educational programme

DRAMA Plays or drama programme

CULTURE Culture/discussion programme

SCIENCE Science programme

VARIED Other general programme material

POP M Popular Music programme

ROCK M Rock Music programme

M.O.R.M Middle of the road music programme

LIGHT M Light music/light classical programme

CLASSICS Classical music programme

OTHER M Other types of music such as Jazz. Folk, Country, Reggae, R&B etc.

Displaying clock time (CT)

If the station you are listening to is not an RDS station, this function cannot be used.

1. Press the DISPLAY button and RT information will be dispalyed.

2. Press the DISPLAY button one more time.

3. A clock will appear on the display within one minute after receiving a station broadcasting CT information.

NO UPDATE or NO TIME will appear on the display within several seconds after receiving a station which does not broadcast CT information. Then, the PS information will be displayed.

TROUBLESHOOTING

NO SOUND

Power AC lead unplugged or power not switched on.
Signal leads incorrectly connected.
Station not selected or weak signal with FM Mute on.
Internal fuse blown.

Check AC lead.
Check connections to amplifier.
Re-tune or switch off FM Mute.
Consult dealer.

NO SOUND ONE CHANNEL

Signal leads to amplifier disconnected or damaged.

Check leads and connections.

NOISE

Hiss. Weak signal.

Distortion. Multi-path signals or interference from another station. Whistles or buzzes on FM & AM. Interference from electrical sources - computers, games consoles. Whistles or buzzes on AM: Interference from fluorescent lighting or electrical motors.

Check signal strength meter. Check station tuning. Adjust or replace antenna.
Check station tuning. Adjust or replace antenna. Select 'Narrow' IF Setting.
Check station tuning. Switch off or move the other source of the electrical noise.
Check station tuning. Adjust or replace AM antenna.

NO RDS INFORMATION

Station signal too weak.

Station not transmitting RDS.

Check signal strength meter. Check station tuning. Adjust or replace antenna. No remedy.

There are 54 characters available including a blank space.

NOTES CONCERNANT L'INSTALLATION

1. POWER ON/OFF [MARCHE/ARRET]

2. IF BAND [BANDE IF]

Options Station RDS Station non RDS

Normal

PS*

PTY (Type de Programme) "PAS RDS [NOT RDS]"

Station RDS Station non RDS

Normal

Initiales de la station RDS (PS)

EDUCATE Programmes educatifs

Folk, Country, Reggae,

Rhythm & Blues, etc ...

AUCUNE INFORMATION RDS

KEINE RDS-INFORMATIONEN

Sendersignal zu schwach.

DISPLAYX2 CT* DISPLAYX3 Frec

PTY Tipo Programa 'NOT RDS

Pulsando PTY TP AF

EDUCATE Programa educativo

4. "NAD LINK IN/OUT"

RDS-station StationutanRDS

Normal

PS* Namn after eget val.

Ett tryck

RT* Stationens frekvens

Andra trycket

CT* Stationens frekvens

Tredje trycket

Stationens frekvens Stationens frekvens

RDS-station StationutanRDS

Normal

Stationens initialer Stationens frekvens

& frekvens

Ett tryck

PTY Program Typ "NOT RDS"

Andra trycket

TP Trafik Information "TP"

Tredje trycket

AF Alternativ Frekvens "NOT RDS"

6. SCAN.

VISNING AV RDS INFORMATION.

RDS-station StationutanRDS

Normal

Initialer (PS) Namn after eget val aller frekvens.

Ingen RDS information.

Stationen for svag.

2. BANDA IF [IF BAND]

Tuning Range 87.50 - 108.00 MHz (25kHz/50k Hz steps)

Usable Sensitivity Mono: 11.2 dBf, 1.0 uV, 75 ohms, IHF

0.9 uV, 75 ohms, DIN

Stereo: 17.2 dBf, 2.0uV, 75 ohms, IHF

20uV, 75 ohms, DIN

50dB Quieting Sensitivity Mono: 16.1 dBf, 2.0uV, 75 ohms

Stereo: 36.1 dBf, 17uV, 75 ohms

Capture ratio 1.5dB

Image Rejection Ratio 80dB

IF Rejection Ratio 90dB

Signal-to-Noise Ratio Mono: 76dB, IHF

Stereo: 66dB, IHF

Alternate Channel Attenuation

Selectivity

AM Suppression Ratio

Total Harmonic Distortion Mono: 0.1% (Wide)

Stereo: 0.2% (Wide)

Frequency Response

Stereo Separation

Output Voltage

Muting Level

AM section

Tuning Range 522Hz-1611kHz (9kHz steps)

Usable Sensitivity 25uV

Image Rejection Ratio 40dB

IF Rejection Ratio 40dB

Signal-to-Noise Ratio 40dB

Total Harmonic Distortion 0.7% (Wide)

Output Voltage 0.15V

Physical Specification

Dimensions in mm 435 x 96 x 319

Width x Height x Depth

Net Weight 3.5kg

Shipping Weight 4.5kg

NAD ELECTRONICS

LONDON

© 1996. 414 I.M. PRINTED IN MALAYSIA
