T775 AV Surround Sound Receiver

1. Read instructions - All the safety and operating instructions should be

read before the product is operated.

2. Retain instructions - The safety and operating instructions should be

retained for future reference.

3. HeedWarnings - Al wamings on the product and in the operating

instructions should be adhered to.

4. Follow Instructions - All operating and use instructions should be

5. Cleaning - Unplug this product from the wall outlet before cleaning

Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments - Do not use attachments not recommended by the

product manufacture as they may cause hazards

7. Water and Moisture - Do not use this product near water-for example,

near à bath tub, wash bowl, kitchen sink, or laundry tub: in à wet basement: or near a swimming pool and the like.

8. Accessories - Do not place this product on an unstable cart, stand,

tripod, bracket, or table: The product may fall causing serious injury to a child or adult and serious damage to the product. Use only with à cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting ofthe product should follow the manufacturers instructions, and should use a mounting accessory recommended by the manufacturer.

9. Cart- A product and cart combination should be moved

with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10. Ventilation - Slots and openings in the cabinet are provided for

ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a buit-in installation such as à bookcase or rack unless proper ventilation is provided or the manufacturer instructions have been adhered to

11. Power Sources - This product should be operated only from the type

of power source indicated on the marking label and connected to à MAINS socket outlet with a protective earthing connection. Ifyou are not sure ofthe type of power supply to your home, consult your product dealer ar local power company.

12. Power-Cord Protection - Power-supply cords should be routed so that

they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product

13. Mains Plug - Where the mains plug or an appliance coupler is used

as the disconnect device, the disconnect device shall remain readily operable

14. Outdoor Antenna Grounding - [fan outside antenna or cable system

is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and bui-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding ofthe mast and supporting structure, grounding ofthe lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

NOTE TO CATV SYSTEM INSTALLER

Thisreminderis provided to callthe CATVsysteminstllers attention to Section 820-40 of the NEC which provides guidelines for proper grounding and in perticu, speciesthat the cable groundshallbe connected othe grounding system ofthe buildingLas dose tothepointofcableentnyas practical LA ES

ÉSDbiEn 15.Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges. 16.Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal 17.Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 18.Flame Sources - No naked flame sources, such as lighted candles, should be placed on the product. 19.0bject and Liquid Entry - Never push objects of any Kind into this product through apenings as they may touch dangerous voltage points or short-out parts that could result in a ire or electric shock. Never spill liquid of any kind on the product 20.Headphones - Excessive sound pressure form earphones and headphones can cause hearing loss. 21.Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualiied service personnel under the following conditions: When the power-supply cord or plug is damaged. b.. Ifliquid has been spilled, or objects have fallen into the product. € _Ifthe product has been exposed to rain or water. d.. 1fthe product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation. €. Ifthe product has been dropped or damaged in any way. £._ When the product exhibits a distinct change in performance-this indicates a need for service. 22.Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fre, electric shock, or other hazard.

23.Battery Disposal- When disposing of used batteries, please comply with governmental regulations or environmental public instructionis rules that apply in our country or area 24.Safety Check - Upon completion of any service or repairs to this product askthe service technician to perform safety checks to determine that the product is in proper operating condition:

25. Wall or Ceiling Mounting - The product should be mounted to a wall

or ceiling only as recommended by the manufacturer. WARNING The lightning flash with arrowhead symbol, within an equilaterel triangle, is intended to alert the user to the presence of uninsulated dangerous voltage" within the products enclosure that may be of suffcient magnitude to constitute à risk of electric shock to persons The exclamation point within an equilateral triangle is intended to alert the user to the presence ofimportant operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION

DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE AND OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THIS APPARATUS. THE EQUIPMENT MUST BE CONNECTED TO AN EARTHED MAINS SOCKET- OUTLET.

CAUTION REGARDING PLACEMENT

To maintain proper ventilation, be sure to leave a space around the unit (from the largest outer dimensions including projections) than is equal to, or greater than shown below. Left and Right Panels: 10 cm Rear Panel: 10 cm Top Panel: 50 cm

IMPORTANT INFORMATION TO UK CUSTOMERS

DO NOT cut off the mains plug from this equipment. IFthe plug fitted is not suitable for the power points in your home or the cable is too short to reach à power point, then obtain an appropriate safety approved extension lead or consult your dealer. If nonetheless, the mains plug is cut off, REMOVE THE FUSE and dispose of the PLUG immediately, to avoid possible shock hazard by inadvertent connection to the mains supply. IFthis product is not provided with a mains plug, or one has to be fitted, then follow the instructions given below NADisa Copyright IMPORTANT DO NOT make any connection to the larger terminal which is marked with the letter'E' or by the safety earth symbol or colored GREEN or GREEN AND YELLOW The wires in the mains lead on this product are colored in accordance with the following code

As these colors may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: + The BLUE wire must be connected to the terminal marked with the letter'N'or colored BLACK. + The BROWN wire must be connected to the terminal marked with the letter L'or colored RED + When replacing the fuse, only a correctiy rated and approved type should be used, and be sure to re-fit the fuse cover. IF IN DOUBT CONSULT A COMPETENT ELECTRICIAN. (é € This product is manufactured to comply with the radio interference requirements of EEC DIRECTIVE 2004/108/EC.

NOTES ON ENVIRONMENTAL PROTECTION

Atthe end of its useful fe, this product must not be disposed ofwith regular household waste but must be returned to à collection point for the recycling of electrical and electronic equipment. The symbol on the product, users manual and M p:cegino point ins out The materials can be reused in accordance with their markings. Through re-use, recycling of raw material, or other forms ofrecycling of old products, you are making an important contribution to the protection of our environment Your local administrative office can advise you of the responsible waste disposal point. RECORD YOUR MODEL NUMBER (NOW, WHILE YOU CAN SEE IT) The model and serial number of your new T 775 are located on the back of the cabinet. For our future convenience, we suggest that you record these numbers here Model number Serial number k of NAD Electronics International a division of Lenbrock Industries Limited NAD Electranies Intematianal a division of Lenbrook Industries Limited

DEALING WITH HUM AND NOISE. 7

ABOUT THE ON-SCREEN DISPLAY (OSD). 13

SETUP MENU 17 SOURCE SETUP 17

SOURCE SETUP (NORMAL VIEW) 17

SOURCE SETUP (TABLE VIEW) 20

iPod SETUP 20 SPEAKER SETUP 20

ZONE SETUP 24 AMPLIFIER SETUP 24 THANK YOU FOR CHOOSING NAD. TheT 775 AW Receiver is a technologically advanced and highly capable product — yet we have invested great effort in making it simple and easy to use. The T 775 delivers a range of genuinely useful options for surround sound and stereo listening like, using powerful digital signal processing and superbly accurate digital-audio circuitry. However, we have also been careful to ensure that the T 775 is as musically transparent faithful to every video detail and spatilly accurte as possible, incorporating much of what weve learned from a quarter-century/s experience designing audio, video and home-theater components. As with all our products, NAD'S "Music First” design philosophy guided the T 775% design, such that it can confidentiy promise you both state-of-the-art surround home-theater and audiophile- quality music listening for years to come TRIGGER SETUP

ABOUT DEEP COLOR AND XWYCC

REFERENCE TROUBLESHOOTING . SPECIFICATIONS. We encourage you to take a few minutes now to read right through this manual. Investing a little time here at the outset might save you a good deal of time later, and is by far the best way to ensure that you make the most of your investment in the T 775, and get the most from this powerful and flexible home-theater component One more thing: We urge you to register your T 775 ownership on the NAD Worldwide Web site: http://NADelectronics.com/warranty For warranty information contact your local distributor.

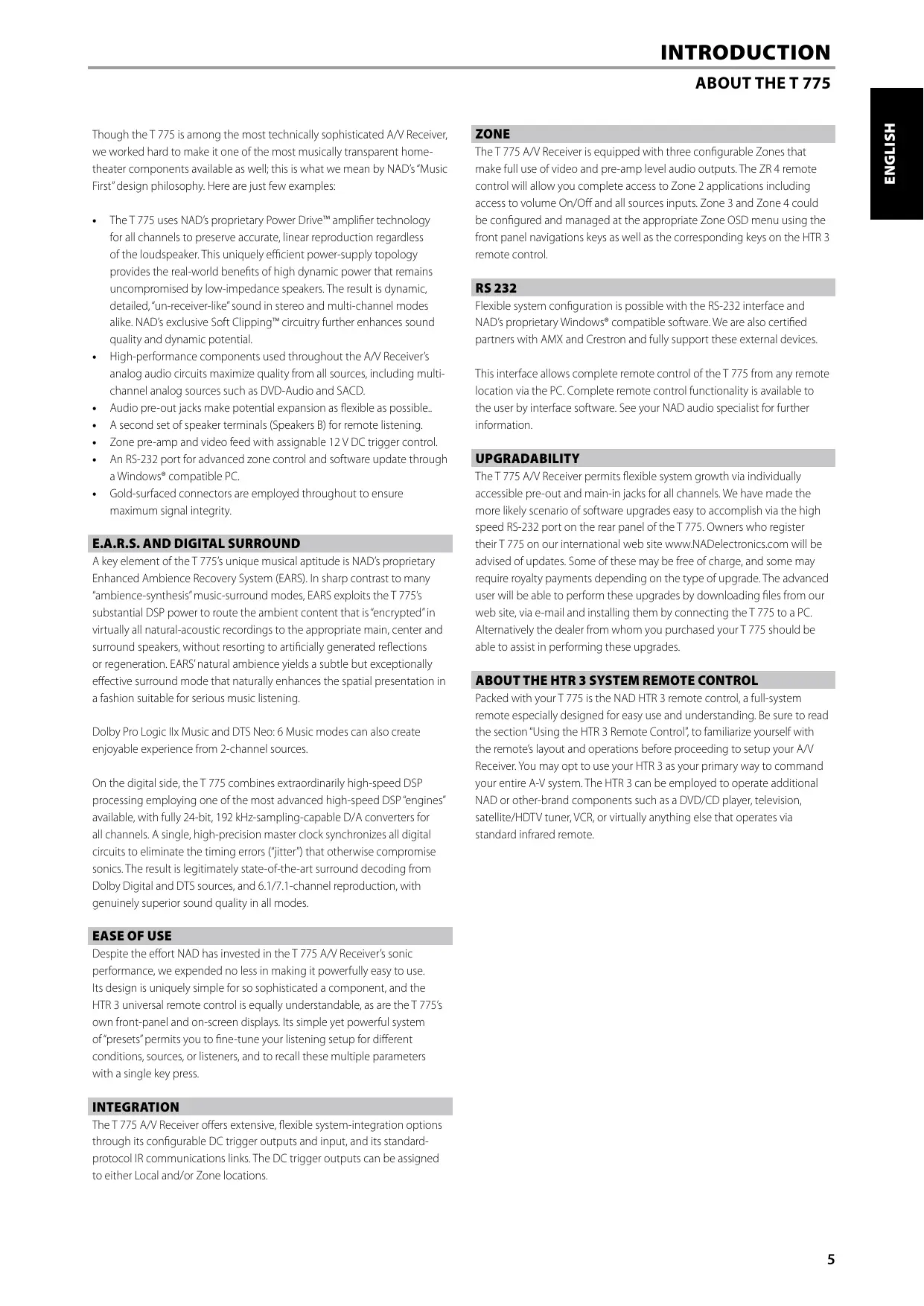

INTRODUCTION Though the T 775 is among the most technically sophisticated AMV Receiver, we worked hard to make it one ofthe most musically transparent home- theater components available as well this is what we mean by NADS "Music First design philosophy. Here are just few examples + TheT 775 uses NAD$ proprietary Power Drive" amplifier technology for all channels to preserve accurate linear reproduction regardiess ofthe loudspeaker This uniquely efficient power-supply topology provides the realworld benefits of high dynamic power that remains uncompromised by low-impedance speakers. The result is dynamic, detailed ‘un-receiver-ike' sound in stereo and multi-channel modes alke. NADS exclusive Soft Clipping"” circuitry further enhances sound quality and dynamic potential. + High-performance components used throughout the AW Receivers analog audio circuits maximize quality from al sources, including multi- channel analog sources such as DVD-Audio and SACD. + Audio pre-out jacks make potential expansion as flexible as possible + Asecond set of speaker terminals (Speakers 8) for remote listening, + Zone pre-amp and video feed with assignable 12 V DC trigger control + An RS-232 port for advanced zone control and software update through a Windows® compatible PC + Gold-surfaced connectors are employed throughout to ensure maximum signal integrity. E.A.R.S. AND DIGITAL SURROUND Akey element ofthe T 7755 unique musical aptitude is NAD'S proprietary Enhanced Ambience Recovery System (EARS). In sharp contrast to many “ambience-synthesis’ music-surround modes, EARS exploits the T 7755 substantial DSP power to route the ambient content that is‘encrypted"in virtually al natural-acoustic recordings to the appropriate main, center and surround speakers, without resorting to artificilly generated reflections or regeneration. EARS natural ambience yield a subtle but exceptionally effective surround mode that naturally enhances the spatial presentation in à fashion suitable for serious music listening Dolby Pro Logic 1x Music and DTS Neo: 6 Music modes can also create enjoyable experience from 2-channel sources. On the digital side, the T 775 combines extraordinarily high-speed DSP processing employing one ofthe most advanced high-speed DSP ‘engines" available, with fully 24-bit, 192 KHz-sampling-capable D/A converters for all channels À single, high-precision master clock synchronizes all digital circuits to eliminate the timing errors (‘jitter") that otherwise compromise sonics. The result is legitimately state-of-the-art surround decoding from Dolby Digital and DTS sources, and 6.1/7.1-channel reproduction, with genuinely superior sound quality in all modes

Despite the effort NAD has invested in the T 775 A/ Receiver's sonic performance, we expended no less in making it powerfuly easy to use Its design is uniquely simple for so sophisticated a component, and the HTR 3 universal remote control is equally understandable, as are the T 775‘ own front-panel and on-screen displays. ts simple yet powerful system of‘presets’ permits you to fine-tune your listening setup for different conditions, sources, or listeners, and to recall these multiple parameters with a single key press. INTEGRATION The T 775 AW Receiver offers extensive, flexible system-integration options through its configurable DC trigger outputs and input, and its standard- protocol IR communications links. The DC trigger outputs can be assigned to either Local and/or Zone locations. ABOUT THET 775 ZONE TheT 775 AW Receiver is equipped with three configurable Zones that make full use of video and pre-amp level audio outputs. The ZR4 remote control wil allow you complete access to Zone 2 applications including access to volume On/Off and all sources inputs. Zone 3 and Zone 4 could be configured and managed at the appropriate Zone OSD menu using the front panel navigations keys as well as the corresponding keys on the HTR 3 remote control. RS 232 Flexible system configuration is possible with the RS-232 interface and NAD$ proprietary Windows® compatible software.We are also certified partners with AMX and Crestron and fully support these external devices. This interface allows complete remote control of the T 775 from any remote location via the PC. Complete remote control functionality is available to the user by interface software. See your NAD audio specialist for further information. UPGRADABILITY The T 775 AW Receiver permits flexible system growth via indiidually accessible pre-out and main-in jacks for all channels. We have made the more likely scenario of software upgrades easy to accomplish via the high speed RS-232 port on the rear panel ofthe T 775. Owners who register their T 775 on our international web site www.NADelectronics.com will be advised of updates. Some of these may be free of charge and some may require royalty payments depending on the type of upgrade. The advanced user will be able to perform these upgrades by downloading files from our web site, via e-mail and installing them by connecting the T 775 to a PC. Alternatively the dealer from whom you purchased yourT 775 should be able to assist in performing these upgrades

ABOUT THE HTR 3 SYSTEM REMOTE CONTROL

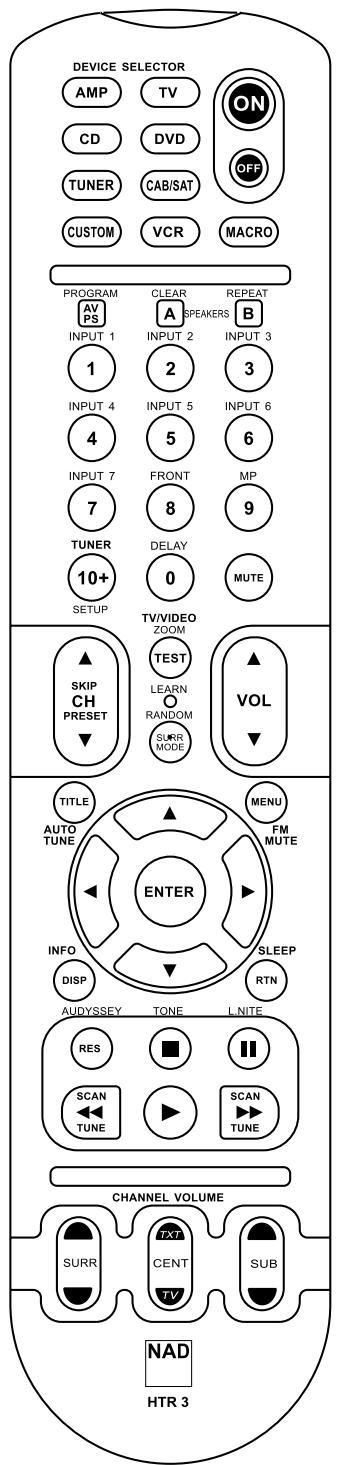

Packed with your T 775 is the NAD HTR 3 remote control, a full-system remote especially designed for easy use and understanding. Be sure to read the section "Using the HTR 3 Remote Control’ to familarize yourself with the remote layout and operations before proceeding to setup your AW Receiver. You may opt to use your HTR 3 as your primary way to command your entire AV system. The HTR 3 can be employed to operate additional NAD or other-brand components such as a DVD/CD player, television, satellite/HDTV tuner, VCR, or virtually anything else that operates via standard infrared remote.

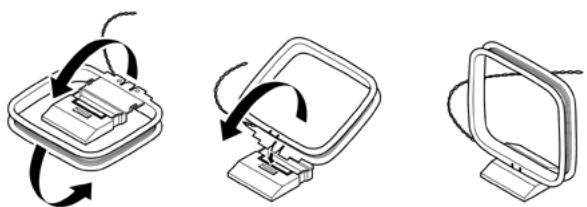

Packed with your T 775 A/ Receiver you will find + An AM loop antenna + AFMribbon-wire antenna with balun + Aremovable AC cable (if you wish, any IEC-standard AC cable of suitable wattage may be substituted) + The HTR 3 remote control with 4 (four) AAA batteries + The ZR4 zone remote control with 3V CR2025 battery +__ This owners manual

Please save the box and all of the packaging in which your T 775 arrived. Should you move or athenaise need to transport yourT 775, this is by fer the safest container in which to do so. Weve seen too many otherwise perfect components damaged in transit for lack of a proper shipping carton, so please: Save that boul INITIAL SETUP Before you make the fist connection to your T 775, you should have the arrangement of your listening room/home theater components and fumiture mapped out, at least initial, Unfortunately a discussion of the vital questions of loudspeaker placement and listeningAiewing positions is beyond our scope here. Suffice itto say that these two questions will influence your systems ultimate performance every bit as powerfully as your selection of electronics and speakers. Your NAD audio specialist dealer will be happy to advise you and to recommend reference materials CHOOSING À LOCATION Choose a location that is well ventilated (with at least several inches to both sides and behind), and that will provide à clear line of sight, within 25 feet/8 meters, between the T 775 front panel and your primary listeningAiewing position—this will ensure reliable infrared remote control communications The T 775 generates a modest amount of heat, but nothing that should trouble adjacent components Itis perfectly possible to stack the T 775 on top of other components, but the reverse usually should be avoided. Nonetheless it is generally preferable that the T 775 stand alone. itis especially important that sufficient ventilation be provided. If you are contemplating on locating the T 775 within a cabinet or other furniture, consult your NAD audio/video specialist for advice on providing adequate airflow. QUICK START Packed with your T 775 is à Quick Start Guide that will guide you through typical setup configurations in combination with your ancillary devices. The Quick Start Guide also features the contents of your 1775 package as well as start up procedures The T 775 is defaulted to the following settings: Source Audio Input Video Input Source 1 HDMI IN/ Audio 1 IN HDMI IN Source 2 Optical 2 IN/ Audio 2 IN Component Video 2 IN Source 3 Coaxal 3 IN/ Audio 3 IN SVideo 31IN Source 4 Audio 4 IN Video 41IN iPod Audio 5 IN $-Video IN Source 7 74 Input Component Video 3 IN Front input Optical Front nput/ Audio Front Input S-Video Front IN Media Player Audio MP input Tuner For Video output, select the highest video quality format available on your TV/Monitor and utilize this for your Monitor OUT connection from the T 775 to the TV/Monitor. In most cases, this would be HDMI but for other TV/Monitar without HDMI input, the best connection in order of best video quality would be Component Video, S-Video and Composite video input. To modify the above default settings and for a better understanding of source setting and combinations, please refer to the section on ‘Source Setup'ofthe Setup Menu discussion: NOTE Digital input will always take precedence over analog audio input even ifboth are present.

Hum and noise may sometimes prove a challenge in complex, multi-channel audio systems. Note these considerations to help prevent hum and noise problems: + Powerall your systems audio component from AC outlets originating from the same circuit of your house wiring. As far as possible, power all audio components from the same outlet, or adjacent outlets on the same circuit. it may be useful to power video displays (and computers) from outlets on another circuit, especially ifthat circuit is supplied from the other leg” ofthe house wiring, + Do not bundie analog audio cables with AC power cables, or with coaxial digitaaudio cables. it is best ifthey cross at right angles ifthey must be in close proximity. + Employhigh-quality, well-shielded audio cable throughout, and ensure that all connections are secure. + A penci-eraser can be used to burnish copper- and gold-plated contacts to ensure good, low resistance contact specialized contact-cleaners can also be useful. Avoid unnecessary unplugging and re-plugging since the gold (or coppen contact plating of typical cable connectors, even very high-quality ones, is very thin and easily wo Track down hum/noise problems ane component at a time, working backwards from the AW Receiver. Thatis a. Connect the speakers to the AW Receiver only, and check for hum. b.. Then connect one component only (a CD player for example) alone, with no other components connected and check for hum. € Connect additional components, one at a time, to the AW Receiver and check for hum. At each stage, Ifhum/noise appears, examine the audio cabling and AC-power routing ofthe new component. In some cases, moving the new component's AC cord to a different outlet, or installing à groundft (3-to-2-prong adapter) on its power cord, will eliminate the hum.

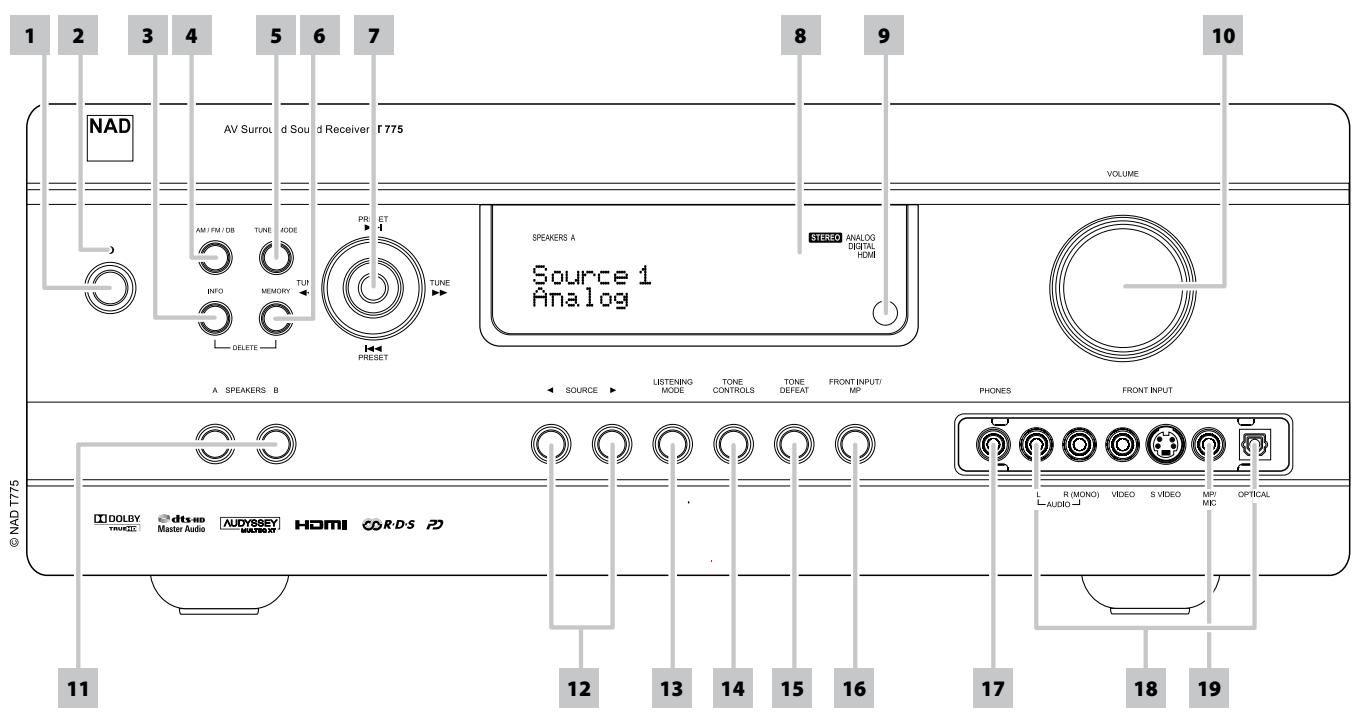

1 STANDBY BUTTON : Press this button or the HTR 3 remote‘ [ON] button to switch ON theT 775. The Standby LED indicator will turn from amber to blue and illuminate the VFD. Pressing the standby button again turns the unit back to standby mode. The T 775 can also be sitched ON from standby mode by pressing any ofthe front panel buttons. When both Main and Zones are ON, press and hold this button for more than five seconds to place them at standby mode. NOTES The rear panel POWER switch must be in the ON position for the Standby button to activate. IfAuto Trigger IN at Trigger Setup menu is assigned to ‘Main' or All and the TRIGGER switch is set to AUTO" mode, the standby button in the front panel as well as the corresponding ON/OFF function keys in the HTR 3 remote control will be disabled effectively handing this function to an external controller. Switch TRIGGER to ‘OFF' to maintain normal power ON/OFF function procedures. (See section also about ‘Trigger Setup” under the “Setup Menu” discussions. 2 STANDBY LED : This indicator will light up amber when the T 775 is in standby state. When the T 775 main or zones are in the ON state, this indicator wél iluminate blue. In the unlikely event that the T 775 Switches to protection state, then this indicator will illuminate red. When infrared command from the HTR 3 is received, this indicator will also flash momentari. 3 INFO : Repeatedy toggle this button (press/hold first in Tuner mode and then toggJle) to display both at the Vacuum Fluorescent Display {VFD) and On-Screen Display (OSD) the following - Current Source, Volume level, Listening mode, Audio Source Format, Audio Codec, Video Mode and active Zones with their corresponding Source Inputs, While at Tuner mode, toggle this button to cycle through Preset Name, RDS name and RDS text. 4 AM/FM/DB : Toggle this button to select either AM, FM, DAB (230V version only) or XM (120V version only) tuner functions. 5 TUNER MODE : In FM mode, this button will toggle between FM Stereo and FM mono. Select FM Mono (FM stereo and FM Mute icons at VFD are extinguished) for stations that have too much interference or are too weak. In DAB (230V version only) or XM (120V version only) radio, this button enables the digital radio menu in conjunction with the Navigation button and Enter buttons. 6 MEMORY: Press this button to store tuned AM, FM and digital radio stations to the T 7755 40 preset-memory locations. One can store à mix of any AM, FM and digital radio stations to the 40 available presets.

7. NAVIGATION and ENTER buttons : These buttons are used to

navigate the T 775 OSD, Tune Scan Forwardæ and Tune Scan Reverse << Preset Skip Forward #tand Preset Skip Reverse as well as navigation of DAB (230V version only), XM (120V version only) tuner functions and iPod 8 VACUUM FLUORESCENT DISPLAY (VFD}: Displays visual information about the current settings like the active Source, volume level listening mode, audio format, applicable RDS/XM/DAB as well as iPod-related display information and other related indicators. Refer also to the item about DISPLAY SETUP under the USING THE T 775 - SETUP MENU segment ofthe OPERATION section: 9 REMOTE SENSOR: Point the HTR 3 remote control at the remote sensor and press the buttons, D not expose the remote sensor of the T 775 to a strong light source such as direct sunlight or ilumination. I you do so, you may not be able to operate the T 775 with the remote control Distance: About 23ft (7m) from the front of the remote sensor. Angle: About 30° in each direction of the front of the remote sensor.

10 VOLUME : Use this control to adjust the volume level ofthe main speakers. The default volume level is -20dB. The VOLUME knob is also used to increment / decrement other adjustable parameters like Tone Controls 11 A SPEAKERS B : Press either speaker A or B or both to select the set of speakers you wish to listen to. Speaker À is the main set of 7 multichannel and surround speakers. Speaker B is an auxiliary set for remote locations such as other rooms of your home. For Speaker B selection, all surround sound sources are downmixed to stereo. Combining Speaker À and Speaker B (SPEAKERS À + B) will also result to the source being dounmixed to stereo. 12 ASOURCER : Press these buttons to toggle through the input selections - Source 1, Source 2, Source 3, Source 4, iPod, Source 7, Front Input, Media Player and Tuner (AM, FM, XM, DAB as applicable). More Sources could be directly recalled through these buttons upon enabling them at the Setup Menu (See the section'Source Setup'at Setup Menu discussion) 13 LISTENING MODE: Toggle to select through the various Listening mode options, Depending on the format of the currentiy selected input {digital or analog, stereo or multichannel) various listening modes are available. Refer also to the item about LISTENING MODE under the USING THE T 775 - MAIN MENU segment of the OPERATION section. 14 TONE CONTROLS : Press to adjust TREBLE control using the VOLUME knob over a + 10dB range. Press again to adjust BASS control and a third time for DIALOG control. See also section about Tone Controls' under “Setup Menu’ discussions. 15 TONE DEFEAT : Tone Controls are enabled or disabled by pressing this button. Tone controls are bypassed at’ Tone Defeat'while at'Tone Active/the tone controls are enabled again. See also section about ‘Tone Controls' under Setup Menu'discussions 16 FRONT INPUT/MP : Use this button to directly select Front Input and Media Player Toggle button to switch between Front Input and Media Player input. FRONT PANEL 17 PHONES : Accepts stereo headphone using a standard 1/4-inch stereo phone plug (use à suitable adapter for headphones equipped with a smaller plug). For headphone listening, the Front speakers must be set to “Large” at theSpeaker Configuration'ofthe Speaker Setup item at the Setup Menu, otherwise headphone bass response will be restricted Plugging in headphones will automatically switch the T 775 to Stereo, Stereo Downmix or Analog Bypass modes, 18 FRONT INPUT jacks : Use these convenience jacks for occasional sources such as à camcorder, tape player, video game console, any analog audio or optical digital audio and composite or S-Video video sources. If your source has a single audio out jack only or is marked ‘mono output’, plug this int the T 7755 Front'R (Mono)'input. On the other hand, if your source has two output jacks indicative of stereo output, insert bath jacks into the T 775 corresponding Front L'and'R {Mono)'input to achieve stereo output as well. 19 MP/MIC input : Connect your MP35 standard stereo phone jack to this input. This is the same input where Audyssey microphone jack is connected (See also discussion about'Audyssey Auto Calibration

ATTENTION! Please make sure that the T 775 is powered off or unplugged before making any connections. is also advisable to power-doun or unplug all associated components while making or breaking any signal or AC power connections 1 DIGITAL AUDIO IN (OPTICAL 1-3, COAXIAL 1-3) : Connect to the optical or coaxial S/PDIF-ormat digital output of sources such as CD or DVD players, HDTV ar satellite tuners and other components. Coaxial and Optical digital input association is configurable via the Setup Menu DIGITAL AUDIO OUT (OPTICAL, COAXIAL) : Connect the optical or coaxial digital OUT ports ta the corresponding S/PDIF digital input of a recording component such as a CD recorder, DAT deck, computer soundcard or other digital processor. 2 HDMI (HDMI 1-4, HDMI MONITOR OUT) : Connect HDMI inputs to the HDMI OUT connectors of source components such as DVD player or HDTV satellte/cable box. Connect the HDMI Monitor OUT to a HDTV or projector with HDMI input. WARNING Before connecting and disconnecting any HDMI cables, both the T 775 and the ancillary source must be powered OFF and unplugged from the AC outlet. Failure to observe this practice may cause permanent damage to all equipment connected via HDMI sockets. 3 COMPONENT VIDEO 1-3 IN, COMPONENT VIDEO OUT : Connect the Component Video IN 1-3 inputs to Component Video outputs from compatible source components, typically a DVD player and terrestrial or satellite HDTV tuner. Connect Component Video OUT to the Component Video input of a compatible video monitor/TV. Be sure to observe consistency in connecting the Y/Pb/Pr jacks to the corresponding sources/inputs. The routing of the component video inputs is fully configurable via the Setup Menu. The T 7755 component video inputs and outputs are fully wideband and compatible with allowable HDTV formats. 4 MPDOCK: The T 775 is equipped with a data port in the rear panel where an optional NAD IPD (NAD IPD Dock for iPod), NAD IPD 2 and later variants can be plugged in. Connect the‘MP DOCK (DATA PORT)" jack ofthe T 775 to the corresponding"DATA PORT" socket of the optional NAD IPD model. Refer also to the item about"LISTENING TO YOUR iPod PLAYER"under the*USINGTHET 775 - AM/FM/DB/iPod' segment of the "OPERATION" section: NOTE The external *NAD IPD Dock for iPod” (NAD IPD) model is not supplied with your T 775.

OUT when Source 3 (AUDIO 3 IN/IDEO 3 IN/S VIDEO 3 IN) is selected. Likewise, there will be no output at AUDIO 4 OUT/ VIDEO 4 OUT/S- VIDEO 4 OUT when Source 4 (AUDIO 4 IN/IDEO 4 IN/S VIDEO 4 IN) is the active source input. This prevents feedback through the recording component thereby preventing possible damage to your speakers. When configured, AUDIO 3 OUT/VIDEO 3 OUT/S-VIDEO 3 OUT and AUDIO 4 OUT/IDEO 4 OUT/S-VIDEO 4 OUT are the same assigned ports for Zone 3 and Zone 4 respectively. See also Zone output description below. 6 MONITOR (S-Video, Video) : Connect to video input ofthe monitor/ television using quality dual-RCA and/or S-Video cables designed for video signals. In general. the S-Video connection is superior and should be used if your TW/monitor provides the corresponding input. 7 AUDIO 1 IN/VIDEO 1 IN/S-VIDEO 1 IN, AUDIO 2 IN/VIDEO 2 IN/S-VIDEO 2 IN, AUDIO 3 IN/VIDEO 3 IN/S-VIDEO 3 IN, AUDIO 4 IN/VIDEO 4 IN/S-VIDEO 4 IN, AUDIO 5 IN/VIDEO 5 IN/S-VIDEO 5 IN, AUDIO 6 IN : These comprise the T 7755 principal input. Connect S-Video, composite video, and analog stereo audio from source components such as DVD players and HDTV/satelite tuners, AUDIO 3 IN/VIDEO 3 IN/S-VIDEO 3 IN, AUDIO 4 IN/VIDEO 4 IN/S-VIDEO 4 IN may be used with recording components such as videocassette or DVD-recorders by connecting these components’ record-output to the corresponding T 775 AUDIO 3 INVIDEO 3 IN/S-VIDEO 3 IN or AUDIO 4 INAMDEO 4 IN/S-VIDEO 4 IN jacks. AUDIO 3INMDEO 3 IN/S-VIDEO 3 IN or AUDIO 4 IN/VIDEO 4 IN/S-VIDEO 4 IN may freely be used for play-only components, in which case their corresponding OUT jacks would remain unconnected. Refer also to AUDIO 3 OUT/ VIDEO 3 OUT/S-VIDEO 3 OUT, AUDIO 4 OUT/VIDEO 4 OUT/S-VIDEO 4 OUT discussion above. AUDIO 6 is ideal for the connection of the analog output ofline-level audio sources like a CD player or Stereo tuner.

87.1 CHINPUT: Connect to the corresponding analog audio outputs of à

multichannel source component such as a DVD-Audio or multichannel- SACD player or external multichannel decoder (disc copy protected formats only allow analog signal transfer). Typically these sources will produce 5.1-channel output, in which case the Surround Back jacks are left unconnected. The signals present at these jacks may be heard by selecting Source 7 (External 7.1 audio input is defaulted to this Source). There is no bass-management or other processing (other than master- volume control) avallable to this 7.1 CH. Input. While the mui-channel audio outputs of à DVD-Video player can be connected to these jacks, using the T 7755 own Dolby Digital and DTS decoding and digital-analog converters via a digital connection will usually produce superior results. REAR PANEL 9 XM MODULE INPUT (120V version only): Connect XM radio cable to this socket. Follow the instructions that came with your XM radio. With XM radio, there are more than 100 channels of music, news, sports, comed, talk and entertainment. You will find that the coverage is continent wide. The music quality is digital with many commercial-free music channels NOTE The external XM radio is not supplied with your T 775. DAB MODULE INPUT (230V version only): Plug-in the other end ofthe Mini-Din connector from the NAD DAB Adaptor DB 1 module output port into this socket. The T 775 is compatible only with NAD DAB Adaptor DB 1 so check with your NAD dealer for this modules avallability. With DAB, you can receive CD-like quality programs without any annoying interference and signal distortion: NOTE The external NAD DAB Adaptor DB 1 module’ is not supplied with your T77S. 10 RS-232 : Connect this interface via RS-232 serial cable (not supplied) to any Windows® compatible PC to allow remote control of the T 775 through NAD5 proprietary PC software or other compatible external controllers. Please log on to wwwnadelectronics.com/software for the latest PC interface control software NAD is a certified partner of AMX and Crestron and fully supports these external devices. See your NAD audio specialist for more information 11 FM, AM ANTENNA INPUT : The supplied wire "dipole" FM antenna will connect to the FM connector using the supplied“balun' adapter it will usually work best when mounted on a vertical surface such as a wall, with arms fully outstretched forming a horizontal"T" perpendicular to the origin point ofthe signal Connect the supplied AM loop antenna to these terminals. Ian external AM antenna is used, make connections to the AM and GND terminals in accordance with the instructions supplied with the antenna 12 SOFT CLIPPING : Enables NAD' proprietary Soft Clipping circuitry on all channels. At ON position, Soft Clipping gent} limits the output of theT 775 to minimize audible distortion should the AW Receiver be over-driven. Soft Clipping may simply be left ON at all times to reduce the ikelihood of audible distortion from excessive volume settings. However for critical listening and to preserve optimum dynamics, you may wish to defeat it by setting this switch OFF.

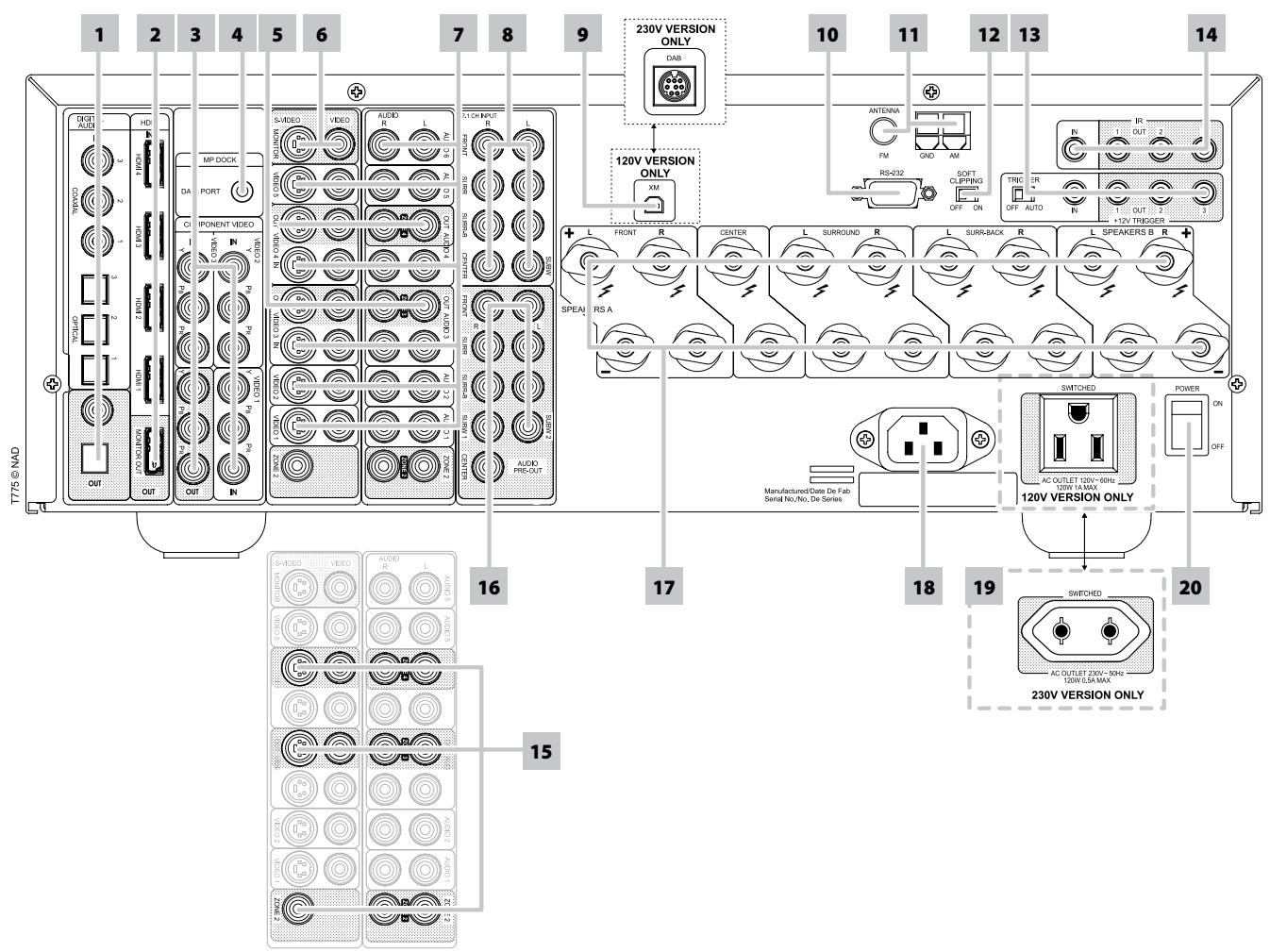

REAR PANEL 13 +12 VTRIGGER OUT : There are three configurable +12V TRIGGER OUTPUT. Use a 3.5mm mini-jack connector to pass +12 volts at a maximum current of 50 millamps to auxliary equipment such as à multichannel amplifier or subwoofer. The center conductor (hot) ofthe 35mm jack is the control signal. The outside conductor (shield) is the ground return-path. TRIGGER IN accepts 12V Trigger output of compatible components such as power controllers and home automation devices. TRIGGER OFF/AUTO. When at AUTO position, the T 775 selects the 12V Trigger Input to turn ON if so assigned at the ‘Trigger Setup'menu) and at the same time disables the HTR 3 and front panels ON/OFF function. When at OFF position, the trigger input is disabled. WARNING IfAuto Trigger IN at Trigger Setup menu is assigned to ‘Main' or All and the TRIGGER switch is set to AUTO" mode, the standby button in the front panel as well as the corresponding ON/OFF function keys in the HTR 3 remote control will be disabled effectively handing this function to an external controller. Switch TRIGGER to ‘OFF' to maintain normal power ON/OFF function procedures. See discussion on ‘Trigger Setup'at the "Setup Menu'literature for guidelines on how to configure TRIGGER IN/OUT. 14 IRIN/OUT : These mini-jacks accept and output remote-controlled codes in electrical format, using industry-standard protocols for use with°lR-repeater" and mult-r00m systems and related technologies. IRIN. This input is connected to the output of an IR (infrared) repeater {Xantech or similar) or the IR output of another component to allow control of the T 775 from à remote location. IR OUT 2. When connected to the IR IN of an ancillary equipment, direct the ancillary equipments own remote control to the T 7755 infrared receiver to command or control the linked unit. IRIN and IR OUT 3. Connect the T 775% IR IN to the IR OUT of an ancillary equipment. Connect also the T 775 IR OUT 3 to another equipment with IR IN feature. With this setup, the T 775 acts as an'lR- repeater"allowing the equipment connected to the T 775'5 IR IN control or command ofthe other equipment linked to the T 7755 IR OUT 3 IR OUT 1. In conjunction with IRIN, IR OUT 1 can be used as an lR- repeater" just like the IR OUT 3 as described above. It can also stand alone as an IR OUT similar to that of IR OUT 2 function AÏLNAD products with IR INAR OUT features are fully compatible with the T 775. For non-NAD models, please check with your other products service specialists as to their compatibility to the T 775% IR features. 15 ZONE 2, ZONE 3, ZONE 4 : Sends zone selected audio and video output sources to the corresponding audio and video input of another separate zone. Use high quality patch cables to reduce noise pickup over long distance runs. For a better understanding of zone settings, study below the section on'Zone Controls'of the'Main Menu' discussion as well as the item on'Zone Setup'under the ‘Setup Menu'literatures. NOTE The ZR 4 remote control will only control Zone 2 applications. Zone 3 and Zone 4 could be configured and managed at the appropriate Zone OSD menu using the front panel navigations buttons as well as the corresponding keys on the HTR 3 remote control.

16 AUDIO PRE-OUT : The Audio PRE- OUT makes it possible to use the 1775 as a pre-amplifier to external power amplifiers for some or all channels. Connect FRONT L, FRONT R, CENTER, SURR R, SURR L, SURR-BL and SURR-BR to the respective channel input of a power amplifier or ampliiers driing the corresponding applicable speakers. Unike the full range channels, there is no power amplifier built-into the T 775 for a subwoofer. Connect the SUBW 1 or SUBW 2 output or both to powered (‘active’) subwoofers or to power amplifier channels driving à passive system. NOTE Never connect both the external amplifier and T 7755 speaker outputs to the same set of speakers. 17 SPEAKERS À, SPEAKERS B : Connect the respective SPEAKER AS FRONT L FRONT R, CENTER, SURR R, SURR L, SURR-BL and SURR-BR channels to their corresponding loudspeakers. Make sure the“+' (red) terminal and"#{black) terminal are connected to the corresponding “4 and”terminals ofthe loudspeaker Use extra care to ensure that no stray wires or stands cross between posts or terminals at either end. Connect left and right channels of Speakers 8 to the corresponding remote loudspeakers. When Speakers B is activated, the output is converted to ‘Stereo Downmix'as indicated in the VFD. Combining Speaker A and Speaker B (SPEAKERS À + B) will also result to the source being downmixed to stereo. TheT 775 is designed to produce optimum sound quality when connected to speakers with impedances within its operating range. Please make sure that al the speakers are rated 4Q minimum per speaker. NOTE Use stranded wire of at least 16 gauge (AWG). Connections to the T 775 can be made with banana plugs (120V version only) or by using bare wire or pins. Use the transverse hole through the post for bare-wire or pin connections. By loosening the terminal plastic nut, make a clean, neat connection and re-tighten carefully. To minimize the danger ofshort-circuit, ensure that only 1/2-inch of exposed wire or pin is ‘employed when connecting. 18 AC MAINS INPUT: The T 775 comes supplied with a separate AC Mains cable. Before connecting the cable to a live wall socket, ensure that itis firmly connected to the T 775% AC Mains input socket first. Connect only to the prescribed AC Outlet, ie. 120V 60 Hz (for 120V version models of T775 only) or 230V 50 Hz (for 230V version models T 775 only). Always disconnect the AC Mains cable plug from the live wall socket first, before disconnecting the cable from the T 775 Mains input socket 19 SWITCHED AC OUTLET : This convenience outlet can supply switched power to another component or accessory. With the POWER switch at the rear panel set to ON position, this outlet is powered ON or OFF by the front panel STANDBY switch or by the HTR 3 ON/OFF buttons. The total draw of all devices connected to this jack must not exceed 120 watts. 20 POWER : The POWER switch supplies the master AC mains pouver for the T 775. When this switch is at ON position, the T 775 is in standby mode as shown by the amber status condition ofthe standby LED. IF you intend not to use the T 775 for long periods of time (such as when on vacation), switch the POWER switch to the OFF position. When the POWER switch is at OFF position, the front panel standby button, HTR 3 remote control or ZR 4 cannot activate the T 775.

ABOUT THE ON-SCREEN DISPLAY (OSD) TheT 775 r ever employs a simple, self-explanatory system of on-screen hat will appear on the connected video monitor/TV. re required during the setup process (and are useful in day-to-day operation) so be sure to connect the monitor/TV before proceeding with setup.

Press either or ENTER buttons ofthe HTR 3 remote control or front panel to display the T 775 Main Menu on your video monitor/TV. Ifthe OSD does not appear, check your MONITOR OUT connections.

NAVIGATING THE OSD AND MAKING CHANGES

To navigate through the OSD menu options, please do the following using the HTR 3 or corresponding front panel buttons: Press b to select a menu item. Use A /V keys or in some cases, ENTER jons. Repeatedly press to advance or go further into sub-menus of a desired menu item

3. Press to save the settings or changes done on the current menu or

essing will also return the user to the previous menu or sub-menu. exit from a particular menu MAIN MENU Main Menu Listening Mode DSP Options Tone Controls Zone Controls (Press + to Advance) {Press 4 to Return) The Main Menu contains the menu options for Listening Mode! DSP Options Tane Controls'Zone Controls' and access to'Setup Menu: through these Main Menu options and their sub-menu selections, please refer to and follow the directions stated in the sections “Display the OSD'and'Navigating the OSD and Making Changes To navigai NOTE The individual configurations set forth at Listening Mode; DSP Options’ and Tone Controls are carried over whenever they are enabled during AN Preset setting. Please see the section ‘AV Presets'for reference. OPERATION

USING THE T 775 - MAIN MENU

LISTENING MODE Listening Mode Mode : DTA he T 775 offers distinct listening modes, tallored for different types of

recording or program material. With a two-channel (Stereo) source, following listening modes can be selected STEREO All output is directed to the front left/right channels. Low frequencies are directed to the subwoofer if one is present in the Speaker settings. Select Stereo'when you wish to listen to a stereo (or monaural) production, such as music CD or FM broadcast, without surround enhancement. Stereo recordings whether in PCM/digital or analog form and whether surround- encoded or not encoded, are reproduced as recorded. Multi-channel digital recordings (Dolby Digital and DTS) are reproduced in‘tereo Downmix" mode via the front left/right channels only as Lt/t (left/right-total) signals. DIRECT he analog or digital sources are automatically played in their native channels are reproduced directly This mode recreates the original sound most faithfully thereby producing outstandingly high quality audio. formats. All the source's audi PRO LOGIC io-channel recordings, whether stereo or surround-encoded, are reproduced with Dolby Pro Logic surround processing, yielding output to lefright surround channels (assuming are present in the current'Speaker Configuration). The surround front | channel is monophonie, but it is reproduced in both surround speakers. right, center and disc

DOLBY PRO LOGIC IIx Dolby Pro Logic Iix processes both stereo and 5.1 signals into a 6.1 or 7.1 channel output. At Dolby Pro Logic I, you can choose PLIIx Movie or PLIx Music modes to tailor your listening experience to the source material Dolby Pro Logic Iix surround processing yields more stable imaging and full bandwidth sound to the rear channels in Movie mode offering sound that is more similar to Dolby Digital decoding. For two channel signals, Pro Logic 1x Music mode also features three additional user controls - Dimension, Center Width, and Panorama See also section about'Adjusting Listening Modes’below. The following chart shows the channels available assuming they are enabled in the'Speaker Configuration menu: Listening Mode Active Decoded Output Channels Two-Channel Sources 6.1 Speaker System 7.1 Speaker System Front (left &right), Front [left & right), Center, Surround (left & right, Back Surround, Subwoofer Center, Surround (left & right and Back Surround {left and igh) and subwoofer Dolby Pro Logic x Music Dolby Pro Logic x Movie DTS NEO:6 To-channel recordings, whether stereo or surround-encoded, are reproduced with Neo: 6 surround with output ta front left/right, center and discrete left/right surround channels plus subwoofer (assuming these are n the current'Speaker Configuration). The T 775 provides two DTS Neo 6 variations - NEO: Cinema and NEO:6 Music. See also section about ‘Adjusting Listening Modes’ below. EARS Two-channel recordings, whether stereo or suround-encoded, are reproduced with proprietary NAD surround processing with signals output to the front left/ght, center and discrete left/right surround channels, plus subwoofer (assuming these are present in the current'Speaker Configuration). EARS does not employ the surround back speakers (if any). EARS extracts the natural ambience present in nearly all well-produced stereo recordings. it does not synthesize any ambience or other sonic elements and thus remains truer to the sound ofthe original musical performance than most other music-surround options. Select EARS for listening to stereo music recordings and broadcasts. EARS produces a subtle but highly natural and believable ambience from early all'natural-acoustic' stereo recordings. Typicall, these include classical jazz, and folk genres as well as numerous examples from others. I virtues include realistic stable “front-stage' sonic imaging and spacious but unexaggerated ambient “virtual acoustics’"that remain faithful to the original recording. ENHANCED STEREO All recordings are reproduced in stereo via the maximum speaker complement configured in the current'Speaker Configuration! Enhanced stereo can be useful for maximum volume from all channels or for multi- speaker background music (cocktail party) listening. For this mode, Front Center, Surround and Back speakers can be turned ON/OFF as desired. ANALOG BYPASS All analog signals remain in the analog domain without analog-to-digital conversions, At Analog Bypass, the DSP circuitry is bypassed but full tone control functions remain. Bass management'or Speaker settings are also not in effect as these are DSP functions.

Several of the T 7755 listening modes have one or more selectable variations and adjustable parameters that you can modify to suit you system or personal preferences. At Listening Mode menu, use a combination of ENTER and A /Y keys to navigate and effect desired settings NOTE Listening Mode parameter changes are maintained when you change listening modes. You may also save a modified Listening Mode for easy recall by saving it to a Preset (See AW Presets’ below under Setup Menu discussions). PRO LOGIC Ilx PLiix MOVIE is optimized for film soundtracks. PLiix MUSIC for music recordings Center Width (0 to 7): Modifies the “hard-centeredness'ofthe center image, by gradually mixing mono center content to the Front left/right speakers as well À setting of 0 retains the center-channel-only default while à setting of 7 yield a fully phantom center channel Dimension (-7 to +7}: Adjusts front-rear emphasis ofthe surround effect independently from the relative channel levels Panorama (On/Off): Adds a“wraparound' effect by extending some stereo content into the surround channels. NOTE Pro Logic lix mode will decode as Pro Logic I mode when the BACK surround speakers are set to "OFF" from “Speaker Configurations" menu. See also section about "Speaker Configurations’ under “Speaker Setup” ofthe Setup Menu. DTS NEO:6 NEO: 6 Cinema is optimized for flm soundtracks NEO: 6 Music for music recordings Center Gain (0 to 0,5): Adjust for better center image in relation to the surround sound channels

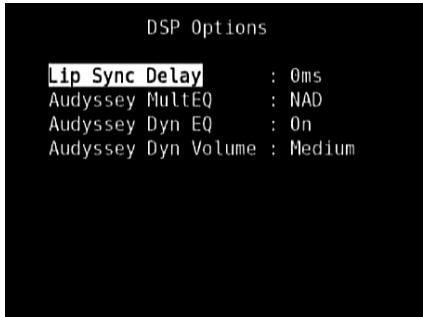

DSP Options has the feature’Lip Sync Delay'whose function is to match any delay that may oceur in the picture relative to the audio. By varying Lip Sync Delay'from Oms to 120ms, one can delay the audio output in order to synchronize it with the video image. AUDYSSEY MultEQ Audyssey Mult£Q becomes available among the DSP options only after successfully completing Audyssey Auto Calibration (accessible through the Setup Menu). Refer also to Audysseÿ Auto Calibration segment ofthe Speaker Setup under Operation — Using the T 775 - Setup Menu Audyssey Mult£Q can be set to the following levels veloped target curve: te for very small or highly treated rooms in which the listener is seated quite close to the loudspeakers. MultEQ fiers are used in the same way as the Audyssey curve, but it does not apply a high frequency roll-off. NAD: Ideal‘in room"response developed by NAD engineers along with Audyssey Engineers. Off: MultEQ fiers are not used or no measurement process at all NOTES + AUDYSSEY” anda lit green box icon are illuminated at the VFD if NAD, Audyssey or Flat is selected. If"Off"is selected ‘AUDYSSEY" and the green box icon will not be illuminated. IFNAD, Audyssey or Flat is selected and changes are done at the ‘Tone Controls! “Speaker Configuration’ "Speaker Levels” and “Speaker Distance” settings, ‘AUDYSSEY” and a li red box icon are illuminated atthe VFD. Restore the parameter to its previously calibrated Audyssey setting by adjusting back the altered configuration. Audyssey MultEQ options can also be direct} selected or changed using HTR 35 AUDYSSEY button with DEVICE SELECTOR set to AMP mode Toggle AUDYSSEY button to select ‘Audyssey Mult£Q" and then use the LAPY Jo select through the Audyssey Mult£Q options. Press AUDYSSEY again to save the selected option and at the same time move on to the next menu setting or exit the menu setting altogether. AUDYSSEY DYN EQ (AUDYSSEY DYNAMIC EQ) Audyssey Dynamic EQ solves the problem of deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics. By carefully combining information from incoming source levels with actual output sound levels in the room, Audyssey Dynamic EQ delivers unprecedented sound reproduction at all volume levels. OPERATION

USING THET 775 - MAIN MENU

Audyssey Dynamic EQ selects the correct frequency response and surround volume levels moment-by-moment. The resulting bass response, octave- to-octave balance and surround impression remained the same despite changes in volume. Audyssey Dynamic EQ is designed to work in conjunction with Audyssey Mutt£Q. Dynamic EQ determines the proper loudness compensation based on the sound pressure level measurements MultEQ provides. Audyssey Dynamic EQ working in tandem with Audyssey MuitEQ provides the right listening conditions for every listener at any volume level. On:

ctivate Audyssey Dynamic EQ function feat Audyssey Dynamic EQ function NOTE Audyssey Dynamic EQ and Audyssey Dynamic Volume (see below) can be directly selected or changed using HTR 3 AUDYSSEY button with DEVICE SELECTOR set to AMP mode. Toggle AUDYSSEY button to select ‘Dyn EQ" or “Dyn Vol” and then use the [ AY Jto select through their respective options. Press AUDYSSEY again to save the setting and at the same time move on to the next option or exit the menu setting altogether.

AUDYSSEY DYNAMIC VOLUME

Audyssey Dynamic Volume delivers consistent volume playback levels, anticipating sudden spikes and dis in volume and compensating for them in real time. Audyssey Dynamic Volume monitors the volume of program material moment-by-moment, content while optimizing the dynamic range to preserve the impact. maintaining the desired listening level for all Audyssey Dynamic Volume includes Audyssey Dynamic EQ which compensates for deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics. These to technologies enable the full frequency response of the source at its original level to be reproduced at any listening level. Even at lower listening volumes, Dynamic Volume ensures that the richness and dynamics of the response are maintained Audyssey Dynamic Volume can be set to the following levels Light: Provide the least adjustment to the loudest or softest sound level Medium: Seting that prevents loud and soft sound from being much louder than their respective average sound levels Heavy: Affect volume the most by causing all sound to be of equal loudness NOTE Audyssey Dynamic EQ must be set to “On” to activate Audyssey Dynamic Volume. If Audyssey Dynamic EQ is set "Off Audyssey Dynamic Volume will also remain “Off” IMPORTANT NOTICE I Audyssey Auto Calibration is not setup, the relative balance of your systems loudspeakers has to be manually adjusted (with the aid of a SPL meter) for Audyssey Dynamic Volume and Audyssey Dynamic EQ to be effective. Ifthe speakers are not proper) calibrated, the corresponding Audyssey Dynamic Volume and Audyssey Dynamic EQ responses could be distorted. Refer also to the item about “USING SPL METER" in the SPEAKER LEVELS section below.

TONE CONTROLS Tone Controls off Tréble 048 Ba 0dB Center Dialog 0dB TheT 775 has three Tone Control levels -Treble, Bass ai ‘enter Dialog, Bass and Treble controls only affect the low bass and high treble leaving the critical midrange frequ in the VFD) control boos € of coloration. The Center Dialog (Dialog/ the presence/ofthe midrange region improving intelligibility of speech These controls allow one to tweak on-the-fly, the frequency response

ourcé e during playback. The control setting could be adjusted by. navigating through the Tone Controls O$D menu via a combination of ENTER and A/ keys. The same can be managed directly by pressing the front panel TONE CONTROLS'button and then rotating the Volume knob to select desired setting. Maximum and minimum values for all three Tone Control levels are +/- 10 dB. ‘Toi Defeat'gives one the choice of varying or completely bypassing the tone control section ofthe T 775. If Off (Tone Active’in the VFD) is selected, the Tone Control circuits are active Select'On' (Tone Defeat’'in t VFD) to bypass the Tone Controls tively NOTE Tone Control options can be directly selected or changed using HTR 35 TONE button with DEVICE SELECTOR set to AMP mode. Toggle TONE button to select ‘Treble’ “Bass” or “Dialog' and then use the [ AJ ]to adjust their respective levels. Press TONE again to save the settings and atthe same time move on to the next parameter or exit the parameter setting altogether. ZONE CONTROLS Zone Controls Depending on the settings made at the separate "Zone 5 tup'menu under the'Setup Menu'section discussion, the applicable Zone can be configured and managed via this'Zone Controls window Zone Controls Gone 2 ur ce Volume Zone 3 Source : Source 1 Volume : -20dB Zone 4 : on Source : Tuner Volume : -20dB Select'On'to activate the applicable Zone. When activated, the Source input Select'Local'as your selected Zones Source input if you wish to enjoy the same source as the main Zone and allow simultaneous listening, but with fl separate volume levels. fa Zone is set to'Of:it is deactivated or powered off. Volume’refers to the adjustable secondary Zone 2 Volume level that can be ncreased or decreased using the A/Y buttons ofthe HTR 3 or front panels corresponding navigation buttons. en a Zone is activated, a corresponding Zone number is iluminated at the VFD. Zone 2 is always available to be configured at'Zone Controls menu. For Zone 3 and Zone 4 to become available at the ‘Zone Controls window, their corresponding Mode ‘in the'Zone Setup’ menu under the Setup Menus tion should be set to‘Zone (Audio Only) NOTE The ZR 4 remote control will only control Zone 2 applications. Zone 3 and Zone 4 could be configured and managed at the appropriate Zone OS$D menu using the front panel navigations buttons as well as the corresponding keys on the HTR 3 remote control.

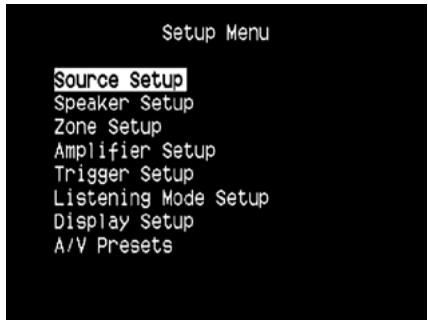

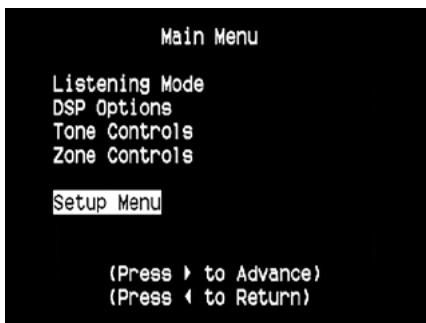

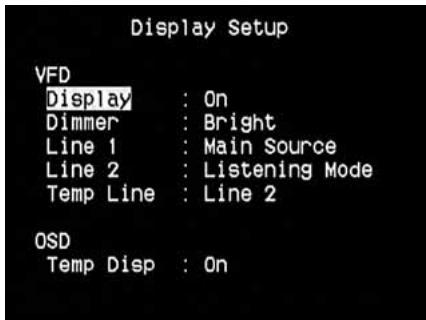

SETUP MENU Setup Menu Zone Setup Amplifier Setup Trigger Setup Listening Mode Setup

comize the operation ofthe T 775 to the AV system. Unless your system ancillary equipment used in one speci fault as shown in à

mpanying Quick ke setup menu to configure the inputs ofthe exactly m At Setup Menu, the following are configurabl p. Speaker Setup, Zone Setup, Amplifier Setup, Trigger Setup, Listening Modk Setup and A/V Presets. To access and navigate through Setup Menu and its sub-menu selections, please refer to and follow the directions stated in the sections Display the O$D'and'Navigating the OSD and Making Changes SOURCE SETUP Source Setup Source Setup (Normal View Source Setup (Table View) iPod Setup From Setup Menu, pressing à will direct you to the Source Setup menu id adjust allocate or change the settings of the following tup (Normal View), Source Setup (Table View) and iPod S wherein y SOURCE SETUP (NORMAL VIEW) Source Setup (Normal View)

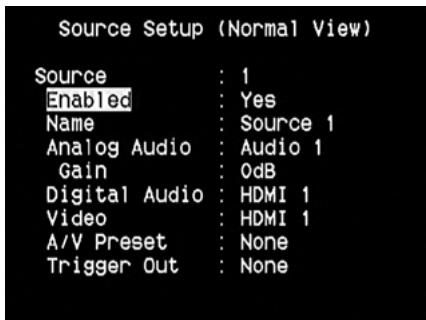

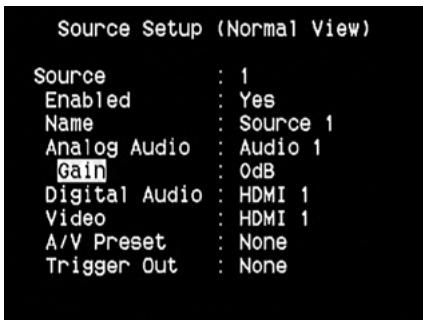

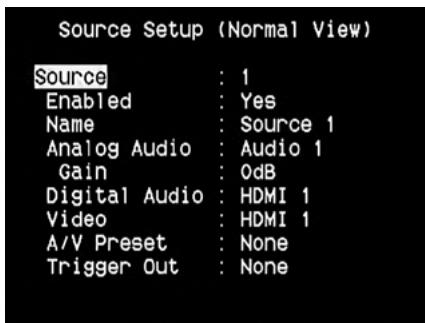

Enabled Yes Name Source 1 Analog Audio Audio 1 Gain 048 Digital Audio : HDMI 1 Video HDMI 1 AIV Preset None Trigger Out : None The Source Setup (Normal Views) menu makes it possible ange the following settings OPERATION

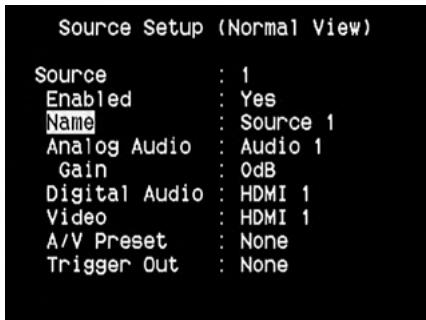

with ten configurable Sources. The s Source are dependent on the configurations set forth in the parameters for that particular Source window. o change or toggle through the Sources, s andthen ENTER or A/Y to move up or down the Source selections. ollto'Source! press à button NOTE Source 5 is defaulted to iPod. For Source 5 to be changed and allocated for other inputs, go to iPod Setup’ menu under the ‘Source Setup' menu. AtiPod Setup menu, set Enabled'to ‘No you can now assign Source 5 to other inputs or settings as desired. ENABLED One can enable/disable à fonty # front panel, bypassing unus re via this option. Th particularly useful y Sources are used and one directly selects the Source from the ources. Source Setup (Normal View) Source 1 d Yes Name Source 1 Analog Audio Audio 1 Gain dB Digital Audio : HDMI 1 Video HDMI 1 A/V Preset None Trigger Out None enable or disable a particular Source, scroll to‘Enabled'and press A/Y keys to select'Yes'or'No NAME A new Name maybe assigned to a Source label. For example, ce 1Litis possibl name Soui yer is attached to "Soi layer: Source Setup (Normal View) Source 1 Enabled Yes Source 1 Analog Audio Audio 1 Gain dB Digital Audio : HDMI 1 Video HDMI 1 A/V Preset None Trigger Out None n order to rename the character. Then, press A/Y to pick through the alphanumeri ce label, scroll to'Name‘and press to go the ic selections. aracter and at the same time save the name can be as long as twi Press 4/à to move to the next changes done on the urrent character. The I be shown in the VFD as well as on the OSD.

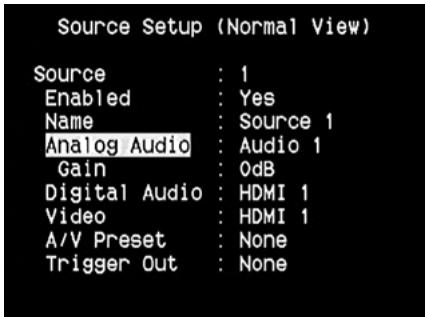

ANALOG AUDIO The T 775 has nine analog audio inputs including 7.1 input. These analog Audio 5, Audio 6, Audio Front, ssigned to each Source. inputs - Audio 1, Audio 2, Audio 3, Audio 4, Audio MP and 7.1 Input can be variabiy Source Setup (Normal View) Source 1 Enabled Yes Name Source 1 Audio 1 Gain dB Digital Audio : HDMI 1 Video HDMI 1 A/V Preset None Trigger Out None Scroll to'An an analog audio input to the particular Sourck , 7.1 Input or Off. Audio'and then press & and then A/Y to select and assign e choice: There are When‘Audid'is chosen, press and then A/Y keys to select and assign the desired audio input — 1 to 6, Front and MP. Select 7.1 Input'to choose the audio signal fed to‘7.1 Channel Input 1fOff d by the particular is selected, no incoming analog audio signal is sel Source. NOTE An incoming digital signal present at the assigned digital input will always take precedence over the assigned analog audio input, even if both are present. To maintain the analog audio input for the particular Source, select Offat the Digital Audio’ setting of the same ‘Source menu. GAIN Gain adjustment allows all sources to play back at the same volume so you don't need to adjust the volu y source is selected. tis generally pref red making louder the softer sources. time a he level ofthe loudest source rather than Source Setup (Normal View) Source 1 Enabled Yes Name Source 1 Analog Audio : Audio 1

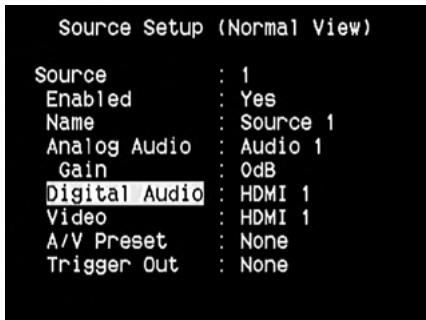

Digital Audio : HDMI 1 Video HDMI 1 A/V Preset None Trigger Out None Scroll to Gain! press Band then A/V to step through the desired le: -12dB to 1208. DIGITAL AUDIO o take advantage oftheT 7, high performance surround and digital audio circuitry it is advisable that ts Digital Audio inputs are selected Source Setup (Normal View) Source 1 Enabled Yes Name Source 1 Analog Audio Audio 1 Gain dB HDMI 1 Video HDMI 1 A/V Preset None Trigger Out None f Digital Audio input for the T 775. These areHDMI, Optical and Coawial digital inputs. À fourth option is'Off whereby no ncoming digital audio signal is selected by the particular Source he desired digital audio input for a particular Source can be selected by scrolling to ‘Digital Audio! D and then A/Y to step through the desired digital Input source. After finalizing the desired type of Digital Audio nput, press and then A/Y again to select the specific Digital Audio input here are eleven Digital Audio inputs selectable for the T 775, They are the following

HDMI HDMI 1, HDMI 2, HDMI 3, HDMI 4

Optical -> Optical 1, Optical 2, Optical 3, Optical Front Coaxial -> Coaxial 1, Coaxial 2, Coaxial 3 NOTE An incoming digital signal present at the assigned digital input will always take precedence over the assigned analog audio input, even if both are present. To maintain the analog audio input for the particular Source, select ‘Off atthe ‘Digital Audio’ setting ofthe same ‘Source’ menu. VIDEO here are four types of video input a particular Source could be assigned. , S-Video and Video inputs. À ffth opt erein the particular Source is prompted not to select any Video in hese are HDMI

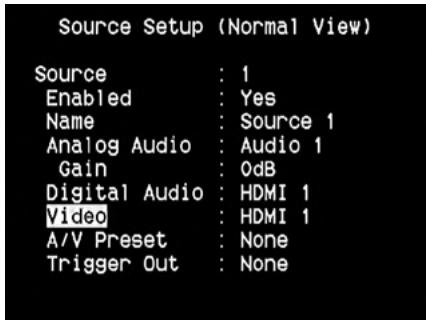

Source Setup (Normal View) Source 1 Enabled Yes Name Source 1 Analog Audio Audio 1 Gain dB Digital Audio : HDMI 1 Video] HDMI 1 A/V Preset None Trigger Out None Navigate through the Video input select ons by pressing & and then A/V to step through the selections. The following are the assignable Video nputs

TheT 775 is equipped with a Video Format Converter. This allows for a simpliied video connection between the T 775 and your TV Monitor when using multiple video S-Video, and nats such as Composit ponent (YUV). This format change is accomplished by encoding the analog video signal into a digital signal using a very high quality digital encoder to maintain the best possible picture quality Once in digital format, the video input signal could also be available at the other Monitor output jacks including HDMI MONITOR OUT. Thus, you do not have to necessarly assign the video output of a composite video input signal to MONITOR OUT (Composite video). The composite video input signal can be viewed also at HDMI MONITOR OUT at a resolution setting dependent upon your TV/Monitor resolution capability. With a composite video input, the corresponding video resolution at HDMI MONITOR OUT will be at 480i/576i or 480p/576p. Some TV/Monitors will automatically display the video signal at 4 76p ifthey are not capable of displaying 480i/5 I your TV/Monitor does not have HDMI input, select the highest quality video format available on your TV/Monitor and utlize this as T 775 preferred Monitor OUT. In most cases, this will be Component Video, but on some older Ts, S-Video maybe the best quality c NOTES + HDMiresolution cannot be downsampled. You must connect T 7755 HDMI MONITOR OUT to your TV/Monitor HDMI input when using an HDMI source. With a component video input, the corresponding output at HDMI MONITOR OUT will be dependent upon the resolution setting ofthe source. Allthree monitor outputs (Composite, S-Video and Component Video) will always be active no matter what the source format is. AIN PRESET A particular Source can be assigned a stored Preset. The parameters set up in the selected Preset number will be adopted into the particular Source it is assigned (Please refer to the separate section on'A/V Presets‘for further understanding o! Preset se ttings) Source Setup (Normal View) Source 1 Enabled Yes Name Source 1 Analog Audio : Audio 1 Gain 0d8 Digital Audio : HDMI 1 Video HDMI 1 A/V Preset Trigger Out None AN Preset'and by pressing and then A/V keys, a S

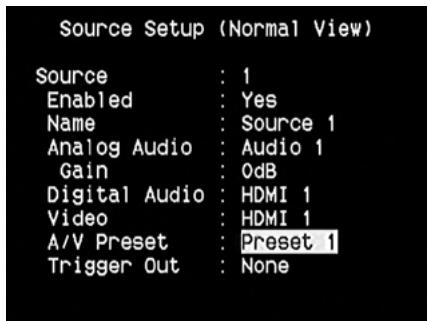

Scrolling could be assigned a Preset number ranging from Preset 1 Hit is desired not to assign the particular Source a Preset setting, select OPERATION

USING THET 775 - SETUP MENU

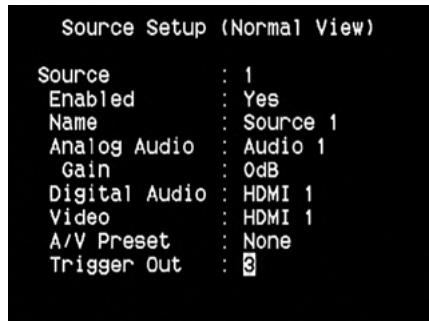

TRIGGER OUT he Trigger Out for a particular Source is dependent on the configural done in a separate menu on Trigger Setup (See"Trigger Setup'below)

three available Trigger outputs are assigned to'Source Setup'in the separate Trigger Setup'window, a particular Source can have the following Trigger Out combinations Trigger Out > 1322 1+22321+3+ Source Setup (Normal View) Source 1 Enabled Yes Name Source 1 Analog Audio Audio 1 Gain dB Digital Audio : HDMI 1 Video HDMI 1 A/V Preset None Trigger Out € hese combinations are dependent oi the assignment of'Source Setup'for Trigger 1 Out, Trigger 2 Out or Trigger 3 Out'at the Trigger Setup menu. Another option isNone'whereby the particular Source is not assigned any rigger Out. For‘Trigger Out'to become enabled and assignable at Source Setup 1ote the following ormal View)'menu, make sure to carry out o beforehand + In the separate Trigger Setup'menu, assign Trigger 1 Out, Trigger 2 Out or Trigger 3 Out'to Source Setup: +__ ‘Trigger Out'will not appear as an option at the Source Setup (Normal View) menu if at the separate ‘Trigger Setup menu, Trigger 1 Out, e 2, Zone 3, Trigger 2 Out or Trigger 3 Out'are all assigned to ‘Main with not even one ‘Trigger Out‘ port allocated Zone 4, or Zone 2+3+ to ‘Source Setup

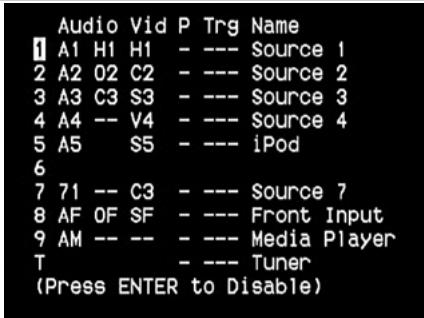

SOURCE SETUP (TABLE VIEW) Trg Name î Source 1 2 Source 2 3 Source 3 4 Source 4 5 iPod

Source 7 Front Input Media Player Tuner Press ENTER to Disable) The Source reflects the tup (Table Vi ttings made in the Sc rce Setup (Normal View) menu. All the Source settings are summarized and displayed in tabulated form in the Source Setup (Table View) Navigating through the Source Setup (Table View) via a combination of > and then A/V keys, one will have the be settings for‘ Audio, Video, Preset, Trig t of directly changing the r and Source Name'without going ource Setup (Normal View) menu. iPod SETUP iPod Setup Yes Auto Connect : Yes Menu Timeout : 308 The i Setup menu allows you to preset the following associated settings when iPod is the selected sou Enable Auto Connect : Select Yes'to a! : Select Yes’ to enable iPod as a So: ce or'No'to disable it. ratically enable and connect the iPod player docked in the linked NAD iPod docking station when Source 5 (the default iPod sour if you do not want for t automatically Menu Timeout : Set the time for the OSD to revert to the Now conneci Playing'display when the menu has been left idie (no screlling or ) forthe specified time out time. For Playing'O$D to be shown, there sh played before going to the i at 55 increments. If you do not want for 0 timeou, select'Off navigation being Now Id be a song paused or being menu. You can set the’Menu Timeout SPEAKER SETUP Speaker Setup Speaker Configuration Speaker Levels $ Distan After connecting all ancillary sources and other binations, the Spea Setup menu will guide you on how to manage and setup your speakers in order to acl optimum sound acoustics in your listening environment. The fc Speaker Setup Menu sections.

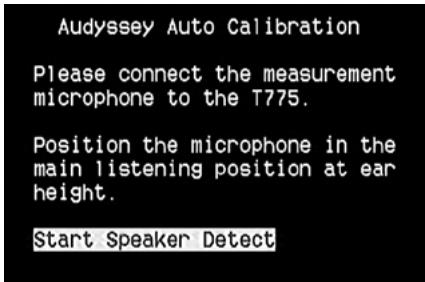

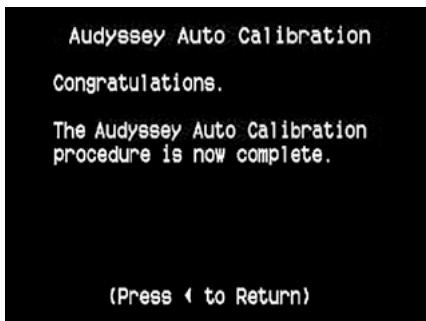

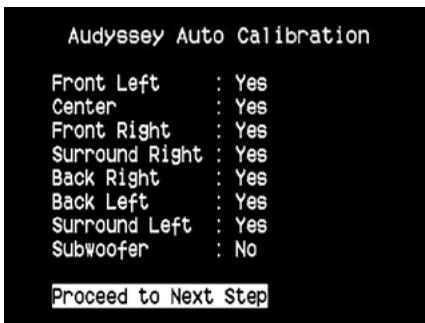

Audyssey Auto Calibration Please connect the measurement microphone to the T775 Position the microphone in the main listening position at ear height Start Speaker Detec has been shown that many, if not most, surround sound systems are not accurat properly the average person probably etup and calibra bration requires special knowledge and instrumentation t doesn't p he Audyssey Auto 775, to automatically setup and c ker placement o etup and Calibration featured in T 775 uses à tronics built in long ith sophisticated digital your brate the T 775 to the exact speakers and spe: n unique Home Theatre. Audyssey Auto Calibration Front Left : Yes Center : ves Front Right Yes Surround Right : Yes Back Right : Yes Back Left : Yes Surround Left : Yes Subyoofer : No oceed to Next St he following measurements are perform + Detection : Spea figuration is detected including numbe surround speakers and whether a subwoofer and center channel is connected + Size:T 775 crossover is set based on each channels signal handling capability and the subwoofer crossover is automatically set + Level ach speaker is matched within 1dB at the microphone position. + Distance: set to within 1 foot uratel microphone for & + Polarity:th speakers are connected improperly. Incorrect polarity can ruin the speaker position up pi ram will dets the user ifany nd sound. illusion of realism offered by sui his is à one-time set up, unless speakers are moved or changed, in which case the calibration should be performed again.

AUDYSSEY MultEQ XT ROOM ACOUSTICS CORRECTION Sound reflecting from room boundaries can disturb the spatial illusion of surround sound, and can also distort the tonal balance ofthe system. Professional Acoustical Engineers often add wall treatments and even move walls and relocate speakers to improve system performance, but for the average Home Theatre, this is either too expensive or just not a practical solution. Audyssey MultEQ XT, using multiple measurements from the actual listening positions, and processing this information using very sophisticated digital signal processing, is able to ‘precondition"the signal to effectively make the walls disappear. This creates a family size‘ sweet spot where the sound and spatial cues are very accuratel} reproduced MultEQ XT is designed to tame room acoustics without changing the sonic character of your loudspeakers. While it will make the most of whatever loudspeakers you have, it will not make poor speakers sound Ike good ones! Connect the Audyssey microphone jack into the front panel's MP/MIC input and the Audyssey Auto Calibration wizard will guide you through a simple step-by-step configuration. Once setup and calibrated, the next greatest improvement in performance is obtained by eliminating the acoustic interference caused by room boundaries interacting with your speakers

MEASUREMENT IS THE FIRST STEP

The sound at each listening position (up to 8 positions) is calibrated using the same microphone used during the setup phase A special test tone is sent to each speaker and the data is memorized by the T 775. The duration of calibration may take some time depending on the number of speakers as well as the number of measuring points. After all positions are measured, the DSP calculates the ideal system respanse for your particular room and speaker setup. Isome inconsistencies or discrepancies are detected during the Audyssey calibration, the process maybe interrupted orthe problem is shown in the particular setup window. À notice screen is correspondingly displayed. After following and undertaking the displayed instructions, re-start the Audyssey calibration again. When the measurements are finalized, Audyssey calculates the ideal system response for your particular room and speaker setup. NOTE The test tone emitted during measurement is loud. This maybe bothersome for you and may affect your other household members as well and even your neighbor. NEXT A TARGET CURVE MUST BE CHOSEN Because loudspeaker designers assume that their products will be used in ‘ypical domestic rooms, they are Voiced’to work in this environment. It is assumed that the room will add some bass reinforcement and will absorb some treble energy. Thus ifwe effectively remove the walls with room correction, and set the speakers for flat response you may find this sounds 00 bright in the treble and too weak in the bass region: OPERATION

USING THET 775 - SETUP MENU

NAD engineers have done extensive research in this area of room acoustics, and along with Audyssey engineers developed what we believe is the ideal in room'response curve. We include this NAD EQ along with an Audyssey developed EQ as the two best choices, The response curves shown below typif NAD EQ room correction process. Audyssey microphone verse Correction Fier c ed Room Response Flat EQ is a third option, but not one that we recommend for listening litis useful for verifying system performance when using external instrumentation) Select the Target Curve you find to be most satisfactory by pressing the Audyssey key ofthe remote. The Mult£Q XT corrected response can also be bypassed if you wish. Audyssey Auto Calibration Congratulations. The Audyssey Auto Calibration procedure is now complete {Press 4 to Return) His recommended that you take full advantage ofthe T 7755 Audyssey Auto Calibration feature for your speaker setup. However, I you desire to setup your speakers manuall or if you already had run Audyssey Auto Calibration but would like to make adjustments, the following sections on Speaker Configuration, Speaker Levels and Speaker Distance can also be followed and implemented! NOTE During manual setting of your speakers, previously calibrated Audyssey settings could be retrieved byre-adjusting back the altered configurations as highlighted by an asterisk.

SPEAKER CONFIGURATION Speaker Configuration Front SE 80kz * Center Surround Back Subwoofer #Restore Audyssey Values Every surround-sound system requires "bass-management"to direct | he speakers best able to reproduce it, For this function to operate correcty it is important th frequency content from any or all channels

correctiy identify your speakers’ capabilities. We use the terms “Small and “Large' (and‘Off") but note that physical size may be irrelevant. hysical size, that lacks about 200 Hz vith deep-bass + A"Small' speaker is any model, regard significant deep-bass response, that is, belor + A Large speaker is any full-range model; that is, response + An"Off speaker is one that is not present in your system. For example. you might not have any surround-back speakers installed; in that case, you would set the'Surround'setup item to "Off" Depending on the relationship between speakers the possible selections for each speaker are as follows Subwoofer Front LR Center Surround L/R Back 12 LARGE LARGE SMALL OFF LARGE LARGE SMALL SMALL OFF OFF OFF LARGE LARGE SMALL OFF LARGE SMALL LARGE ON or OFF SMALL SMALL OFF OFF OFF LARGE LARGE SMALL OFF OFF LARGE SMALL SMALL OFF OFF OFF SMALL

SMALL Qi OF où SMALL

OFF OFF The Speaker Configuration is*global"; that is, it remains in force with all inputs and in al listening modes. However, speaker settings are part of theT 5 Preset system. Consequently, multiple speaker settings can be stored for easy recall as different types of recordings or listening modes require.

Speaker Configuration can be managed and adjusted by pressing a combination of and then A/Y keys. Set Front Center and'Surround'to Large!"Sma or‘Off"as your subsystemis speakers require. ck'to either 1 he'Back' speakers can ei or 2 speakers as per avallability. Set Subw er be one or two speakers. Set'8: On'or‘Off' selecting*On SUBWI or SUBW2 have a subwoofer connected to the T 7: only i output jack ENHANCED BASS en the subwoofer is set to ON and t'is set to“Large" Enhanced 5 also available. Normally, with speakers set to‘ Large" the subwoofer is not active. The Enhanced Bass option allows full range operation of

the speakers with the additional bass contribution of the subwoofer. This feature is particularly useful when one wants to experience maximum bass output. Please no coustic cancellation effects, the be response may be uneven when using this setting You can set Subwoofer to“On"even with“Large" front speakers, in which ed to will pass only to the sub. In most subwoofer-equipped systems, setting front speakers to Small‘is usually the better option. case ba any channels set to “Small'will be the subwoofer and to the front speakers; LFE-channel signal Allthe speakers/low frequency content can be directly adjusted within the range 40Hz to 20 NOTE The configurations set forth at Speaker Setup are carried over whenever itis enabled during AW Preset setting. Please see also the section AV Presets'for reference SPEAKER LEVELS Center Front Right Surround Right Back Right ck Left Surround Subwoofer Adjusting the relative balance of your system loucispeakers ensures that surround-sound recordings, whether music orfilm, wil present the balance of effects, music, and dialog that the artists intended. Adcitionalh, ifyour system incorporates a subwoofer t establishes a correct relationship between the volume ofthe subwoofer and the other speakers, and thus of low-frequencies (bass) to other sonic elements.

Lis quite practical to perform the careful work will produce acceptably accurate results, However, the use ofan inexpensive sound-pressure level (SPL) meter, such as Radio Sh part number 33-2050, makes this task easier, more accurate and more repeatable. Ownership of such a meter could prove a valuable audio tool. 775 level setup routines “by ear' and

The SPL meter should be placed at the primary listening position, at approximately the height of the seatedlisteners head. À tpod is helpful but with a litle duct tape almost anything — a pole lamp, music-stand, or ladder-backed cha, for example — can do as well Just be sure that no large acousticallyreflective surfaces obstruct or are near the microphone element. Orient the meter with its microphone (usually at one end) pointing straight up toward the ceiling (not toward the speakers) and ensure that*C" weighting scale is selected. Set the meter to display 75 dB SPL. On Radio Shack meters, this necessitates either setting the meter toits 80 dB range and taking your readings at the -5 point or selecting the 70 dB range and reading at the +5 point.

SETTING SPEAKER LEVELS AT TEST MODE

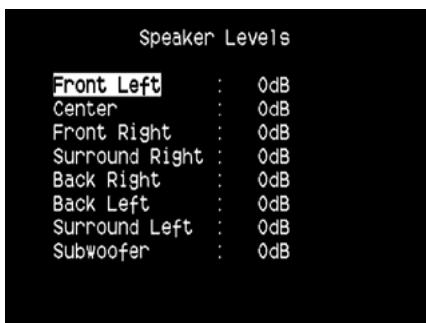

While at'Speaker Levels menu, press the HTR 3 remote's'Te the T 7755 Speaker Levels balancing te as ou step through your speakers (test'appears to the right side of the current speaker), beginning with the Front Left. f you do not hear the test signal, check your speaker connections or your‘Speaker Setup'OSD menu settings. «y activating ignal . You will hear a‘surf” sound Use the remote A/V keys to adjust the loudness ofthe noise output from the currently playing channel to the required level (is usually simplest to begin with the Front Left). As you cycle the test signal around the speakers, the OSD will highlight the currently playing channel. The“level offset reading on the right will change by 1 dB increments, +12 dB adjustment is available. Press'ENTER' to adjust the next speaker. NOTE Hyou are balancing levels “by ear’ choose one speaker—usually the center—as a reference and adjust each ofthe others in turn to ‘sound as loud” as the reference. Be sure that you remain in the primary listening position while balancing all channels. To produce the same SPL meter reading (or subjective loudiness) use the remotes ATV keys to adjust each speaker NOTES + Allspeakers must be in their final locations before level.setting. + Your subwoofer (if any) should be set with its integral crossover defeated, or if undefeatable, set to its highest-possible frequency if you are using the T 7755 Subwoofer output. Final subwoofer-level adjustment “by-ear;" using music and film sound material is frequently useful. + Due to the effects ofroom acoustics, matched-pair speakers (front: surround; back) will not always calibrate to exactly the same level offset readings. You can exit‘ Test mode at any time by pressing 4 key, bringing you back to “Speaker Setup menu. You can also press the'TEST'key to discontinue the ‘Test mode OPERATION

USING THET 775 - SETUP MENU

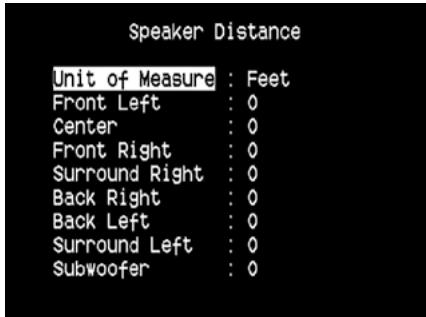

SPEAKER DISTANCE Speaker Distance Feet Front Left Center Front Right Surround Right ack Right ack Left Surround Left Subvoofer Your systemis speaker distance settings are a subtle but important refinement of your setup. Informing the T 775 of the loudspeaker-to-listener dimensions of each speaker automatically imposes the correct delays optimizing imaging, intelligibilty and surround-sound ambience. Enter your dimensions with precision within about 1 foot (30 cm)

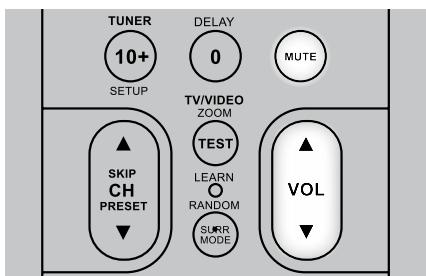

SETTING SPEAKER DISTANCE

While at'Speaker Distance menu, use the A / Y keys to individually set Front Left, Center, Front Right, Surround Right, Back Right, Back Left, Surround Left and Subwoofer to the distance measuring from your principal listening position to the front surface of their corresponding loudspeakers. Distance can be set up to 30 feet or 9.1 meters Distance can be displayed as feet or meters selectable at the‘Unit of Measure'îtemn.

ADJUSTING THE VOLUME

In addition to the Volume knob, use the HTR 35 VOL A/Y to adjust volume"oftheT 775 raising or lowering the channels altogether À momentary keypress will change the master volume by 1 dB increments. you hold doun VOL A/Y, the master-volume change will‘run-on'untilthe key is released. Since recordings vary considerably in overall average level, there is no imperative to listen at any particular master-volume setting. À setting of -20 dB may sound'as loud”from ne CD or DVD as -10 dB does from another. 1e‘master The T 775 will power-up from Standby mode at whatever master volume setting was last used: however, if the prior setting was greater than -20 dB, theT 775 will power up at -20 dB. This prevents inadvertently beginning a session at excessive volume.

Use the H 35/Mute'key to silence all channels completely. Muting is always avallable regardless ofthe source or listening mode selections NOTES + Changing input or listening-mode selections does not release muting. + Adjusting the volume level via the HTR 3 or the front panel volume knob will automatically release the mute function.

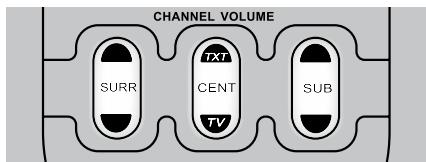

ADJUSTING CHANNEL LEVELS ‘ON THE FLY”

(CHANNEL VOLUME You can make changes to the relative levels of center, surround and subwoofer outputs without having to go into the"Speaker Levels menu: This is very convenient in circumstances like increasing (or tone down) a films dialog level by raising (lowering) the center channel or reducing excessive deep bass (or enhance deep bass) by lowering (raising) the subwoofer level. Use the HTR 3 SURRCENT'and'SUB'keys for direct-access level adjustment ofthese channels over a range of +6 dB. The surround back channels (ifanÿ) adhjust in lockstep with the surround channels NOTE Level settings adjusted On the FIy' are added or subtracted to the setup levels established at the T 775 level-calibration routine as invoked by the HTR 3 Test’ key. However, selecting any Preset will revert the channel levels to those stored in the preset. It will also take T 775 offthe levels set via Audyssey Auto Calibration. ZONE SETUP Zone Setup Zone 2 Volume : Variable Zone 3 Mode Zone (Audio Only} Volume : Variable Zone 4 Mode The Zone feature allows one to simultaneously experience in different zones of the house multiple sound and applicable video sources from all enabled Sources as well as from Front Input, Media Player and Tuner. The T 775 has three configurable Zones - Zone 2, Zone 3 and Zone 4. Use a combination of or ENTER and A /Y keys to navigate through the Zone Setup menu parameters

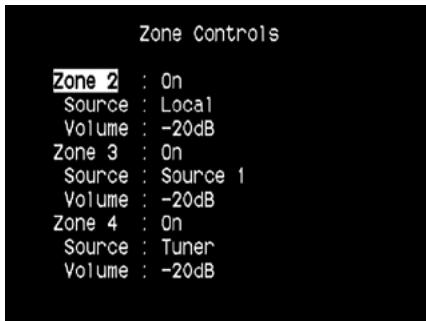

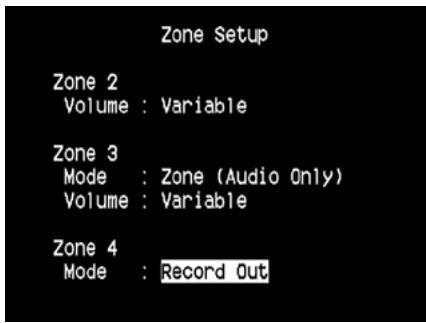

VOLUME Zone 2 have Fixed and Variable volume contral. When set to ‘Variable’ and while at the’Zone Controls menu OSD, the Zone 2 Volume level can be adjusted using the HTR 3 A/Y or the corresponding front panel navigation buttons or directly via ZR 4 VOL A/. On the other hand, ifVolume is set to Fixed'the Zone 2 Volume is set to a preset dB level and thereafter the Zones volume can be varied via the volume control ofthe separate amplifier it is fed into. MODE Zone 3 and Zone 4 can be configured into two modes - Record Out and Zone (Audio Only). fthe selected mode is Record Out, the audio and applicable video signal of the assigned Source are directly sent out to the applicable Audio/Video Output (See Item 5. AUDIO 3 OUT/VIDEO 3 OUT/S- VIDEO 3 OUT, AUDIO 4 OUT/VIDEO 4 OUT/SVIDEO 4 OUT of REAR PANEL discussion.) When Zone 3 or Zone 4 is set to'Rt rd Out mode, they will not be available at the ‘Zone Controls'section of the Main Menu window. Record Oi tting is ideal for making recordings with a VCR or other similar devices. This setting is also used for mult-zone installations using passive impedance matching volume controls, See your NAD dealer for specific information about integrating your NAD Receiver into a multi-room audio distribution system. Zone 2 and Zone 3'Volume‘wil function the same way as that of Zone 2 when Mode‘is set to‘Zone (Audio Only): See discussion also on’Zone Controls'at the Main Menu. NOTE The ZR 4 remote control will only control Zone 2 applications. AMPLIFIER SETUP Amplifier Setup EXRTE : Main Back the surround back speakers are not used in the main zone, their surround back amplifier channels could be assigned for Main back, Main Front (Bi- Amp) and multi-zone use. he Surround Back amplifier is configurable through t + Main Back: Assign as surround back speakers + Main Front (Bi-Amp}: Provide a bi-amp mode for the Main Front speakers (Left and Right) speakers thus reproducing the Front Left and Front Right amplifier channel outputs. + Zone 2: Assign the surround back amplifier channels to supply Zone 2 speaker level outputs from the surround back speaker terminals. Assign the surround back amplifier channels to supply Zone 3 speaker level outputs from the surround back speaker terminals. + Zone 4: Assign the surround back amplifier channels to supply Zone 4 speaker level outputs from the surround back speaker terminals. € following settings + Zone

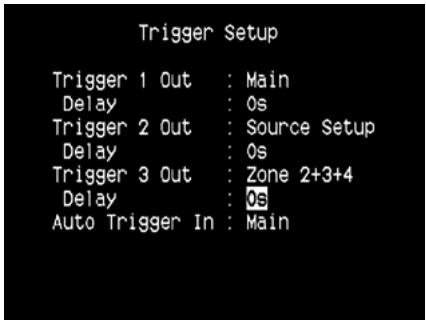

TRIGGER SETUP Trigger Setup Trigger 1 Out Main Delay où Trigger 2 Out Source Setup Delay 0s Trigger 3 Out Zone 2+3+4 CAEN bel Auto Trigger In : Main The T 775 features three configurable +12V DC Trigger Output that can be used to activate a component or system it is fed into. À Trigger Input is also available to turn on the applical of or ENTER and A /V keys to navigate th parameters. nkitis associated to. Use a combination gh the Trigger Setup menu TRIGGER OUT Triggers are s.TheT Out and Trigger 3 Out) ar voltage signals used to turn on/off other compliant s three +12V DC Trigger Outputs (Trigger 1 Out, Trigger 2

dependent on which mo tput can be assigned and 4, Zone 2+3+4 and Source Setup. Main : +12V DC is available at the assigned Trigger Out when the T 7 is at pi Zone 2, Zone 3, Zone 4, Zone 2+3+4 jered state, +12V DC is available at the assigned Trigger Out. le they are associated with. There are six choices where +12V DC - Main, Zone 2, Zone 3, these ai d state. hen the applicable Zone is atpow Source Setup : Trigger Output is linked to ‘Source Setup! +12V DC is available at Trigger Out whenever the particularly assigned Sour selected. Please see also separ t'Trigger Out‘ under discussion à the Source Setup (Normal) section. DELAY The availability of +12V DC at Trigger Out can be regulated. fit is desired that +12V DC is available without delay the moment Trigger Out is linked an select through a to its assigned setting, set Delay to Os. Othenwise, one c delay time of 15 to 155.

Auto Ti iated ger IN allows external system controllers ta toggle the asso On'and vice versa, When the TRIGGER section oftheT 775 fromStandby' switch at the rear panel is set to AUTO, a +12V DC input at Trigger IN will ower ON the sectior Mai applied at Trigger IN. Zone 2, Zone 3, Zone 4: Applicable Zone is turned ON whenever +12V DC is present at Trigger IN. Al: Main, Zone 2, Zone 3 and Zon nput at Trigger IN. here Trigger IN is assigne, From standby mode, the T 775 is powered ON when +12V DC is 4 as described above will all be activated given a +12V WARNING Auto Trigger IN at Trigger Setup menu is assigned to Main’ or All’ and the TRIGGER switch is set to AUTO'mode, the Standby button in the front panel as well as the corresponding ON/OFF function keys in the HTR 3 remote control will be disabled effectively handing this function to an external controller. Switch TRIGGER to OFF' to maintain normal power ON/OFF function procedures. See also'tem13. +12 VTRIGGER OUT, TRIGGER IN, TRIGGER AUTO/OFF REAR PANEL discussion as well as the Trigger Out’ discussio à under Source Setup (Normal View) OPERATION

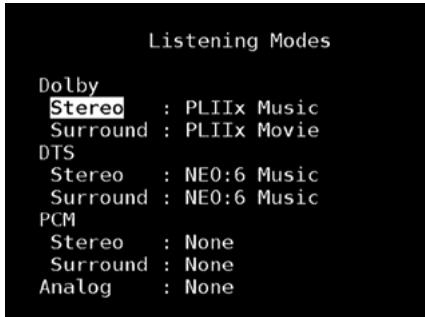

Listening M Dolby Setup DTS Setup nhanced_Sterec he T 775 has various listening mode options and is most configurable. hese are provided to reproduce a variety of sound effects depending the source to be played. Use a combination of or ENTER and A/Y keys to configure the following settings. upon the content LISTENING MODES he aud configured and pr rmat as detected by the selected Source can be automatically DOLBY Dolby Digital is the multi-channel digital signal format develop: Dolby laboratories. Discs bearing the Dolby Digital (double-D symbol) inthe were recorded with up to 5.1 channels of digital signals, reproducing à much better sound quality, with dynamic and spatial sound sensati are much be: than in the previous Dolby Surr Listening Modes Dotby PLIIx Music Surround : PLIIX Movie DTS Stereo Surround PCM Stereo Surround Analog NEO:6 Music NEO:6 Music None None : None À Dolby Digital audio input can be configured relative toits format as follows can defauit Stereo: Ifthe detected audio is of Dolby stereo format, it to one of t x Movie, PLIx Music or None. Surround: Fthe detected audio is of Dolby Surround format, you can gs Surround EX, PLIX À and PLIIx Music, Stereo Downmix or None: cted,the Dolby Digital signal will be defautted or'Surround'settings set forth at the'PCM'option. See fauk it to one ofthe following discussion below about

Dolby Digital Plus is the next-generation audio technology for all high- definition programming and med. ft combines the efficiency to meet future broadcast demandé with the power and flexibility to realize the full audio potential expected in the upcoming high-definition era. Bull on Dolby Digital, the muhi-channel audio standard for DVD and HD broadcasts worldwide, Dolby Digital Plus was designed for the next-generation AW recelvers but remains fully compatible with all current AW receivers. Dolby Digital Plus delivers mult-channel audio programs of up to 7.1 channels and supports multiple programs in a single encoded bitstream with the maximum bit rate potential of up to 6 Mbps and the maximum bit rate performance of up to 3 Mbps on HD DVD and 1.7 Mbps on Blu-ray Disc. It outputs Dolby Digital bitstreams for playback on existing Dolby Digital systems. Dolby Digital Plus can accurately reproduce the sound originally intended by directors and producers. It also features mult-channel sound with discrete channel output, interactive mixing and streaming capability in advanced systems. Supported by High-Definition Media Interface (HDMI, a single-cable digital connection is possible for high-definition audio and video. DOLBY TrueHD Dolby TrueHD is a lossless encoding technology developed for high- definition optical discs in the upcoming era. Dolby TrueHD delivers tantalizing sound that is bit-for-bit identical to the studio master, unlocking the true high-definition entertainment experience on high-definition optical discs in the next generation. When coupled with high-definition video, Dolby TrueHD offers an unprecedented home theater experience with stunning sound and high-definition picture. It supports bit rates of up to 18 Mbps and records up to 8 full-range channels individually with 24-bit/96 kHz audio. it also features extensive metadata including dialogue normalization and dynamic range control. Supported by High-Definition Media Interface (HDMI, a single-cable digital connection is possible for high-definition audio and video. HD DVD and Blu-ray Disc standards currently limit their maximum number of audio channels to eight, whereas Dolby Digital Plus and Dolby TrueHD support more than eight audio channels. Note that the T 775 only supports 7.1 channel

Using à Matrix decoder, this method creates the back channel (sometimes also called the ‘surround center”) by means of signals on the left and right surround channels recorded in Dolby Digital 5.1, reproduction being provided in Surround 6.1. This method should be selected with sources bearing the "Dolby Digital (double-D symbo)-EX' symbol, recorded in Dolby Digital Surround Ex With this additional channel you will experience improved dynamics and à better sensation of movement within the sound field. If media sources recorded in Dolby Digital EX are decoded with a Digital EX decoder, the format is detected automatically, and the Dolby Digital EX mode is selected. However, some media sources recorded in Dolby Digital EX can be detected as simple Dolby Digital media sources. In this case Dolby Digital EX should be selected manual NOTE Please refer to the section ‘Listening Mode’ at the Main Menu discussions for a description of Pro Logic, PLIIx Movie, PLIIx Music and Stereo Downmix modes.

DTS ‘The Digital Theater System Digital Surround (simply called DTS) is à ult- channel digital signal format that can process higher data rates than with Dolby Digital. Although both Dolby Digital and DTS are 5.1 channel media formats, discs bearing the"DTS" symbol are thought to provide better sound quality due to the lower audio compression required. also offers a broader dynamic, producing magnificent sound quality. A DTS audio input can be configured relative to its format as follows Stereo: the detected audio is of DIS format, you can default it to one ofthe following settings - NEO: Cinema, NEO:6 Music or None. Surround! Fthe detected audio is of DTS Surround format, you can default it to one of the following settings - NEO:6 Cinema, NEO: Music, Stereo Downmix or None. None: fNone'is selected, the DTS signal will be defaulted to the'Stereo' or'Surround'settings set forth at the PCM'option. See discussion below about PCM! NOTE Please refer to the section Listening Mode at the Main Menu discussions for a description of Stereo Downmix and DTS Neo:6 surround modes. PCM PCM (Pulse Code Modulation) is the digital representation of a standard audio signal converted with little or no compression. IF'None‘is selected for any ofthe Dolby or DTS settings, this PCM'section will default the audio signal as follows Stereo: The detected stereo audio format will be configured into one ofthe following options — Pro Logic, PLIIx Movie, PLIIx Music, NEO:6 Cinema, NEO:6 Music EARS, Enhanced Stereo or None. Surround: The detected surround audio format wi be configured into one ofthe following options -PLiix Movie, PLiix Music, NEO:6 Music, NEO:6 Cinema, Stereo Downmix or None. ANALOG Ifthe audio input is an analog signal the following are the surround modes the input can be defaulted — Pro Logic, PLIIx Movie, PLiIx Music, NEO: 6 Cinema, NEO: 6 Music, EARS, Enhanced Stereo, Analog Bypass and None. NOTE Allthese Listening Modes for Dolby Digital, DTS' PCM and Analog' can be directly changed by pressing the ‘Listening Mode‘ button on the front panel or through the Listening Mode" option at the Main Menu window. The chosen audio format will be reflected back to the appropriate setting at the Listening Mode Setup!

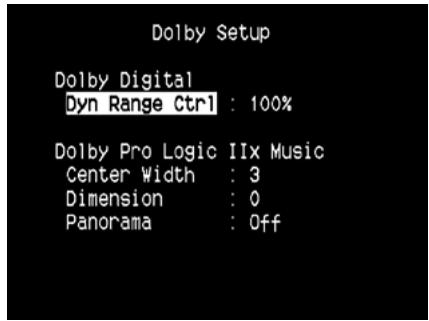

DOLBY SETUP Dolby Setup Dolby Digital Dyn Range Ctr1 Dolby Pro Logic IIx Music Center Width Under this menu, the Dolby Digitals Dynamic Range Control can be adjusted as well as the settings for Dolby Digital Pro Logic x Music. Dyn Range Ctrl :You can select the (subjective range from soft to loud) for playback of Dolby Digital soundtracks. For fully cinematic effect, always select 100%, the default ctive dynamic range Settings of 75%, 50%, and 25% progressively reduce dynamic range, making soft sounds comparatively louer while limiting the peak oudness of loud ones. The 25% setting will yield the least dynamic range and is best for lat night sessions or other times when you wish to retain maximum dialog intelligibiity while minimizing overall volume levels Dolby Pro Logic lix Music : Please refer to the same description of Ix Music’ under the ADJUSTING LISTENING MODES segment of the (OPERATION - USING THE T 775 - MAIN MENU DTS SETUP DTS Setup DTS Digital Surr DTS Neo:6 Music Center G Under this menu the Dynamic Range Control of DTS Digital Surround can be adjusted as well as the settings for DTS Neo: 6 Music. Dyn Range Ctrl: This is the same configurable Dynamic Range Control feature as described above at Dolby Setup, the only difference being the soundtrack is now in DTS format. DTS Neo: 6 Music : Please refer to the same description of NEO 6: Music’ under the ADJUSTING LISTENING MODES segment ofthe (OPERATION - USING THE T 775 - MAIN MENU OPERATION

he following are further descriptions about the DITS surround mode

DTS-HD Master Audio is a technology that delivers master audio sources recorded in a professional studio to isteners without any loss of data, preserving audio quality. DTS-HD Master Audio adopts variable data transfer rates, facilitating data transfer to the maximum rate of 24.5 Mbps in the Blu-ray disc format, 18.0 Mbps in the HD-DVD format, which by far exceeds that of a standard DVD. These high data transfer rates enable lossless transmission of 96 kHz/24-bit 7.1-channel audio sources without deteriorating the quality of the original sound. DTS-HD Master Audio is an irreplaceable technology that can reproduce sound falthfully as intended by the creator of music or movies. DTS - ES EXTENDED SURROUND " (DTS ES) channel digital format which greatiy improves the 360° his is a new mu spatial sensation ofthe Surround impression thanks to the greater space expansion of the surround signals, providing high compatibility with the conventional DTS format. n addition to the 5.1 channels, the expanded DTS-ES Surround also offers the back surround (also sometimes called the “surround centre’) in reproduction, providing a total of 6.1 channels. The expanded DTS-ES Surround includes two formats, with two different methods of surround signal recording, as follows DTS-ES" DISCRETE 6.1 Since the signals ofthe 6.1 Surround channels (including the back channel) are completely independent, itis possible to achieve the sensation that the acoustic image is moving about freely among the background sounds, 360 degrees surrounding the listener. Although maximum quality is achieved with sound tracks recorded using this system and reproduced using the DTS-ES decoder, when played with a conventional DTS decoder, the back surround channel is automatically downmixed in the surround right and surround left channels ofthe surround system, in such a way that none of the signal components are lost.

DTS - ES" MATRIX 6.1

n this format, the additional signals ofthe back channel receive a matrix encoding and are inputted into the right and left surround channels. During reproduction they are decoded to the right, left and back surround channels Since this bit-stream format is 100% compatible with conventional DTS signals, the DTS-ES Matrix 6.1 format effect can also be achieved from sources with DTS-ES 5.1 signals. Natural), is also possible to reproduce from a DTS 5.1 channel decoder, signals recorded in DTS-ES 6.1 Inen a DTS-ES decoder processes a discrete DTS-ES 6.1 or in Matrix 6.1 these formats are automatically detected and the Optimum Surround mode is selected. However, some DTS-ES Matrix 6.1 sources may be detected as DTS. In this case the DTS-ES Matrix mode should be selected manually in order to reproduce them.

This mode applies the conventional 2-channel signals such as digital PCM or analog stereo signals to the high precision digital matrix decoder used for DTS-ES Matrix 6.1 to achieve 6.1-channel surround playback. DTS Neo: 6 surround includes two modes for selecting the optimum decoding ofthe signal sources: DTS NEO: 6 CINEMA : This method is ideal for the reproduction of movies. The decoding takes place by emphasizing the separation in order to achieve the same atmosphere with 2-channel as with 6.1- channel sources. DTS NEO: 6 MUSIC : Mainly recommended for music reproduction. The right and left front channels do not pass through the decoder and are reproduced directly so there is no loss in sound quality, and the effects of the right surround, left surround, central and back surround channels add a natural sensation of expansion ofthe sound field ENHANCED STEREO Please refer to the same description of’ENHANCED STEREO'under the “LISTENING MODES’ segment of the OPERATION - USING THE T 775 - MAIN MENU DISPLAY SETUP Display Setup VED Display] on Dimmer Bright Line 1 Main Source Line 2 Listening Mode Temp Line : Line 2 0SD Temp Disp : On The Vacuum Fluorescent Display (VFD) and On-Screen Display (OSD) can be shown in various ways by navigating through the parameters at the ‘Display Setup menu. Use a combination of or ENTER and AY keys to step through the Display Setup menu items. NOTE The configurations set forth at Display Setup'are carried over whenever itis enabled during AW Preset setting. Please see also the section below about AV Presets. VACUUM FLUORESCENT DISPLAY (VFD) Display : Select On'to display all applicable data or characters at the VFD. Nothing will be shown at VFD if Temp'is selected. At'Temp'setting however, whenever any ofthe front panel controls or their corresponding keys in the remote control is activated, the appropriate VFD characters will be shown temporarly and then fade away. Note that ifany of the Zones are at powered state, they ill be continually shown at VFD even at Temp setting Dimmer :fitis desired to reduce the brightness of the VFD), set Dimmer to ‘Dim Otherwise, select Bright'to return to normal VFD brightness Line 1, Line 2 : The VFD shows two main lines of data or characters. Line 2isthe line of data or characters located at the lower bottom of the VFD lines, one can select which display could be shown by choosing through the following while directly above it is Line 1. For bo Main Source : Shows the active Source Volume : Current Volume level is shown. Listening Mode : Selected Listening Mode is shown Audio Src Format : Shows the active Sources detected audio format. Audio Codec: Displays the detected audio stream format like Analog, PCM Surround, Dolby TrueHD, DTS-HD Master Audio and other formats.

Video Mode: Show the video resolution of the active input source. Details shown include the video resolution with frame rate, Deep Color bit rate and the luma and chroma components. For a better understanding of these video details, consult with your NAD Audio Specialist or your distributor's technical department. Zone 2-Zone 3-Zone 4 Source : The assigned Source for the applicable Zone is shown. Off: Select'Off fit is desired not to show any data at the applicable Line. Temp Line : Choose between Line 1 and Line 2 as the desired line where VFD will be temporerily shown if Temp'is selected at'Displayoption as described above. ON-SCREEN DISPLAY (OSD) Temp Disp: This applies to the OSD that is temporarily shown at video out whenever any ofthe front panel controls or their corresponding keys in the remote control is activated. Set to On'ifit is desired to show the applicable OSD at the monitor/TV; otherwise, select'Off.

ABOUT DEEP COLOR AND XVYCC

DEEP COLOR TheT 775 has the support for 30-, 36-, and 48-bit RGB or‘deep color’ à specification that extends color depths beyond the capability ofthe human eye to perceive them. Deep color expands the colors on the display resulting to a vividness and accuracy that has never been before seen in display technology. Deep Color eliminates the on-screen color banding for tonal transitions that are smooth and graduations of color that are very subtle. enables increased contrast ratio, and may represent many times more shades of gray between black and white xvYCC Extended-gamut YCC, or xwYCC as it is called, is a color space used in video electronics that supports 1.8 times as many colors as the sRGB color space. Color space is the range of colors based on the three primary colors (red, green and blue, or RGB). An xwYCC display, along with Deep Color, can display the complete range of colors that can be viewed by the human eye and give a crystal clear picture that is full of clarity IMPORTANT NOTICE For xvYCC and Deep Color signal transfer possible, the source and TV/Monitor must be xvYCC and Deep Color compatible. leither source or TV/Monitor does not support xvYCC and Deep Color, then you cannot full enjoy the wide color gamut and high bit depth that xwYCC and Deep Color offer.

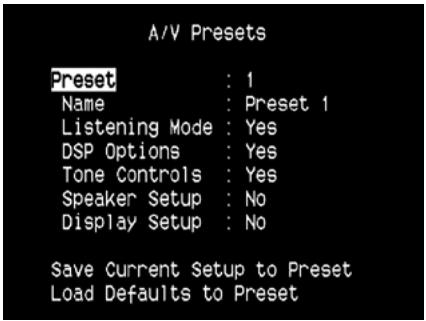

AIN PRESETS Listening Mo: DSP Options trois Setup Setup Save Current Setup to Load Defaults to Preset TheT 7755 simple but powerful) flexible system of Presets'allows you to customize virtually every aspect of your audio-video playback, and recall them with a single key-press. The parameters Listening Mode/DSP Options and'Tone Controls accessible via the'Main Menu‘together with'Speaker Setup and'Display Setup'configurable through "Setup Menu'are stored together as a Single Preset. You might create one Preset optimized for pop music and anoi One more Preset can be set up to recall each family member or one for fully cinematic home-theater playback and yet another one for late- night movies, with each Preset fine-tuned to a particular scenario or preference. rer for classical vorite setting CREATING PRESETS Creating a Preset consists simply of storing a complete set ofthe parameters set forth in the Listening Mode/DSP Options'and'Tone Controls'accessible via the'Main Menu'together with "Speaker Setup and “Display Setup'configurable through "Setup Menu Scroll to'A Presets'using the A/Y keys to save a collection of said parameter settings to a Preset. Select a Preset number and by a combination of pressing the A/V keys, you can selectivety include in the particular Preset any of the above-mentioned parameter settings by choosing"Yes! I you decide not to include in the particular Preset a certain parameter setting, select No Nowr in order to save the settings chosen for the particular Preset number, scroll down to'Save Current Setup to Preset'and press the D key. Ifyou chose to load instead the default settings, scroll down to'Load Defaults to Preset'and press the à key to restore the default settings. In addition to the parameter settings, the Preset label itself can be assigned a new name. This new Name will be shown in the VFD as well as onthe OSD. To rename the Preset label, scroll to'Nameand press b to go the character. Then, press A/Y to pick and select through the alphanumeric selections. Press 4/ to move to the next character or back to the previous character and at the same time save the changes done on the current character. NOTE The selected Preset remains in force until you select a different Preset. RECALLING PRESETS You may recall a Preset at any time using the HTR 3 remote control. Press 5 square AVPS key and then the numeric key 1-5 corresponding to the desired preset number. The newly recalled Preset will then manifest or replace the previous Preset (f any). the HT OPERATION

TheT 7755 internal AM/FM tuner offers very high quality sound from radio broadcasts. The reception and sound quality will always be dependent to à degree however on the type of antenna(s) used as well as proximity to the broadcast origin, geography and weather conditions. ABOUT ANTENNAS The supplied ribbon-wire FM antenna can be connected to the rear-panel FMrantenna input using the included'balun'adapter and should be fully extended to form a°T: This folded-dipole antenna wil usually work best when oriented vertically, with the arms ofits"T”fully outstretched and arranged perpendicular to the origin ofthe desired broadcast. There are no ‘rules’ however and experimenting freely with antenna placement and orientation may yield the clearest sound and lowest background noise In areas of poor FM reception, an exterior FM antenna can improve performance dramaticalh.Iradio listening isimportant to you, consider consulting an antenna installation professional to optimize your system. The supplied AM'loop'antenna will usually provide adequate reception However, an exterior AM antenna can be used to improve reception Consult an antenna professional for more information. IMPORTANT NOTICE Unless otherwise specifically stated, navigating or accessing AM/FM functions can be undertaken by using either the HTR 3 remote control or the front panel buttons. IFthe control button or icon button being referred to is available on the HTR 3 remote control and front panel, then the reference to said button is applicable to both the HTR 3 remote control and front panel. The same condition applies to their equivalent buttons. NOTE When using the HTR 3 to carry out AM/FM commands, ensure that the DEVICE SELECTOR is set to “TUNER

Press the [AM/FM/DB] button on the front panel or the numeric +10" button of the HTR 3 while at AMP or TUNER device selector page. Each subsequent press of either button will toggle you through AM, FM and XM (or DAB) band. Stop (release button) at your desired tuner band.

TUNING STATIONS 1 Press TUNE 4@/B2> on the front panel momentarily to step up or down between AM or FMfrequencies.

2. Press and hold TUNE 44 or TUNE Be for more than 2 second to search

up or down - the T 775‘ tuner will stop at the next sufficientiy strong. signal it encounters. Pressing the TUNE 44/2 during the search process will stop the search. 3 After first pressing TUNER (yellow lettering) at the Device Selector page OfHTR 3 to set the remote to control Tuner functions, press TUNE 44 or TUNER (yellow lettering) on the HTR 3 - toggle in to perform slowr manual search, press and hold to automatically search DIRECT TUNING If you know your desired stations frequency allocation, you can tune directly to the station. 1 Toggle [ENTER] button to switch between‘PresetandTune’ mode (see the lower line of the VFD). Select “Tune” mode.

2. Using the numeric keys of the remote control, key-in the frequency

The T 775 can store a mix of your 40 favorite AM, FM and XM (or DAB) radio stations for immediate recall 1 To store a radio preset, fist tune the desired frequency (see above), then press the front panel MEMORY key.

2. TheVFD will show the next available preset number (Preset _ _ Free)

Ifthere are no more vacant Preset number, you can overwrite an existing Preset number by pressing the A/Y buttons on the HTR 3 or corresponding front panel navigation buttons) to select the Preset number you want to ovenwrite. 3 Then, press the MEMORY'key once again to save the station to the particular Preset number and displaying P__'(the two blank spaces will correspond to the preset number that could be from ‘Ol'to the maximum of"40) on the VFD. 4 Press PRESET 4/1 on the front panel to step up or down between presets. Press and hold PRESET H4/»»1to "scroll continuously up or down. The HTR 3 remote PRESET A/Y keys work similar. NOTE The T 775% Radio Presets are distinct from its global’ Presets that can be used to manage listening and setup modes and levels. See A/V Presets above.

2. Using the numeric keys ofthe remote control key-in directly your

1 Select the Preset number to be deleted

2. Press and hold [MEMORY] button and then press and release [INFO]

button - current stored preset setting will be erased. The Radio Preset can only be deleted using the front panel buttons.

The front-panel TUNER MODE key is à dual-purpose control. In the normal position, FM Mute FM Stereo icons on the VFD are illuminated, only the stations with a strong signal can be listened to, and the noise between stations is muted Pressing the TUNER MODE button again (FM Mute FM Stereo icons on the VFD are extinguished) allows distant and potentially noisy stations to be received. Noise is reduced ifthe FM station signal level is less than the FM Stereo threshold (since mono FM is inherentiy less noise-prone) though at the sacrifice of the stereo effect. NOTE One can store the same channel in two preset locations - one with TUNER MODE On and another with TUNER MODE Off.

You can assign an eight character*User Name”to each radio preset, which will show in the front-panel readout whenever that preset is recalled

To name a radio preset"NEWS/ follow the procedure as below (The buttons mentioned apply to the front panels buttons. The applicable HTR 3 keys also execute the same functions as described). 1 Recall the desired radio preset. 2 Then, press the'MEMORY'button once and then within five (5) seconds, press the’INFO' button - the readout shows a blinking box.

3. Use the'PRESET H4/@B1' buttons to select the first character ofthe

name (N'from the alphabetical list).

4. Press TUNER button to select the character and correspondingly

move forward to the next position. (Press TUNE «to go back to the previous character) Repeat this process for each character in sequence. 5 Press the MEMORY key again to store the User Name and exit the text- entry mode. ABOUT RDS The Radio Data System (RDS) permits compatible FM AW Receivers to display text determined by the broadcaster. The T 775 supports two RDS modes, station-name (PS mode) and radio-text (RT mode). However, not every FM station incorporates RDS in its broadcast signal. In most areas you wil find from one to several RDS-enabled stations, but is by no means impossible that your favorite stations will not be broadcasting RDS data

When an RDS-enabled FM broadcast is tuned, after à brief delay the*RDS" symbol will illuminate in the T 775 front-panel readout and the readout's character section will show its station-name (PS) text:"ROCK101/for example. Press the front-panel INFO key to toggle the readout between this and the stations radio-text (RT) readout if any, which might scroll song- or artist- name, or any other text of the station's choosing. USING THET 775 - AM/FM/DB/iPod

LISTENING TO XM RADIO

The T 775 is'XM Ready’ which means that with the addition of separately sold XM Mini-Tuner CPC-9000 and XM Mini-Tuner Home Dock, it has everything you need to listen to live XM. Everything else is buit right in Just subscribe to the XM service and your T 775 will be ready to receive XM content. NOTES + When using the HTR 3 to carry out XM commandé, ensure that the DEVICE SELECTOR is set to “TUNER” In XM mode and with DEVICE SELECTOR set to ‘TUNER' HTR 35 [FM MUTE] button has the same function as that ofthe front panels [TUNER MODE] button. Check with your NAD audio specialist for other versions of XM Mini- Tuner compatible with T 775. IMPORTANT NOTICE Unless otherwise specificall stated navigating or accessing XM functions can be undertaken by using either the HTR 3 remote control orthe front panel buttons. the control button or icon button being referred tois available on the HTR 3 remote control and front panel then the reference to said button is applicable to both the HTR 3 remote control and front panel. The same condition applies to their equivalent buttons,

CONNECTING THE XM ANTENNA

1. Plug the end ofthe XM antenna into the corresponding XM antenna port

on the rear panel ofthe T 775.

2. Press and hold'TUNER MODE" button on the front panel ta check the

current XM channels signal strength as shown in the VFD and OSD. Press “TUNER MODE" again to exit signal strength check. Refer also to your XM radio‘ guide on how to install the XM antenna for optimum signal reception. TUNING STATIONS There are three ways to tune to the XM channel you wish to listen. Make sure to set your HTR 35 Device Selector to*TUNER' prior to undertaking the following tuning options. The A/Y/4/R buttons refer to the corresponding keys on the HTR 3. The same keys correspond to the front panel navigation buttons *PRESET 4/ PRESET BB1/TUNE 44/ TUNE D" 1 Manual Tuning : Toggle the 4/» buttons to step up or down each available XM channel. Press and hold 4/à for faster scanning of XM channels. The HTR 3 keys *TUNE 44/TUNE >" will lkewise execute these same functions.

2. Direct Channel Call: Using the numeric keypadks ofthe HTR3,

key-in directly the desired available channel number and it will be automatically tuned. 3 Category :Toggle TUNER MODE" until"CAT""and a corresponding category is displayed on the VFD.'CATH" stands for the categories channels are grouped into - ie, Country, Rock, Jazz & Blues, etc. Toggle A/Y buttons to step up or doun the avallable categories. After selecting the desired category, use the same steps as that of XM Manual Tuning, Tuning will only be limited to within the selected category. Toggle the A/Y buttons to choose another category and then tune again

Toggle’INFO'button to display the XM information of the selected channel such as the artist name, song title, category or any ather text as supplied for the channel PRESETS The procedure for storing XM channels is the same method as stated in the section "Setting Radio Presets” under “Listening to Radio’ For immediate recall of stored XM presets, toggle "TUNER MODE" button until*P__* {the two blank spaces corresponding to the preset number) is shown in VFD. Press the front panels "PRESET H4/ PRESET mr button or HTR 35 A/V keys to step up or down the stored presets that can be a combination of AM, FM and XM channels.

LISTENING TO DAB RADIO

Uni now, analogue radio signals such as FM or AM have been subject to numerous kinds of interference on their way from the transmitter to your radio. These problems were caused by mountains, high-rise buildings and weather conditions. With Digital Audio Broadcast (DAB), you can now receive CD-Ike quality radio programs without any annoying interference and signal distortion. DAB broadcasts use digital signals rather than traditional analogue transmissions, thus providing clear high quality reception. You get far more robust reception and virtually hiss or crackle free sound with DAB as long as you are within à good coverage area With DAB, the listener can scroll through list of avallable stations - then instantly tune to the station of his choice. There is no need either to remember channel frequencies. All broadcasts are selected by simply selecting the service name. The T 775 makes it possible for you to enjoy listening to DAB broadcasts TheT 775 has a Digital Audio Broadcast (DAB) module socket on the rear panel for adding a separately sold and NAD-specified outboard DAB module - the NAD DAB Adaptor DB 1. All the control software for this format is included: just plug-in the module and start enjoying the CD-Ike quality sound and expansive content selection available with DAB. IMPORTANT NOTICE Unless otherwise specifcally stated, navigating or accessing DAB functions can be undertaken by using either the HTR 3 remote control or the front panel buttons. Ifthe control button or icon button being referred to is available on the HTR 3 remote control and front panel then the reference to said button is applicable to both the HTR 3 remote control and front panel. The same condition applies to their equivalent buttons. NOTES + When using the HTR 3 remote control to carry out DAB commands, ensure that the DEVICE SELECTOR is set to “TUNER" HTR 3'S [FM MUTE], [ENTER] and 4/» are the equivalent remote control keys for the front panel buttons [TUNER MODE), [ENTER] and (TUNE <U»»].

Plug-in the other end of the DIN connector (supplied with your NAD DAB Adaptor DB 1) from the DAB modules output port into the corresponding DAB module input socket on the rear panel oftheT 775. Select DAB mode on the T 775 by toggling the [AM/FM/DB] button in the front panel NOTES + The NAD DAB Adaptor DB 1 is not supplied with your T 775. Please refer to NAD DAB Adaptor DB 1 installation guide for proper setup connection ofthe DB1 with respect to the T 775. lfthere is no NAD DAB Adaptor DB 1 connected, the VFD will show “Check DAB Tuner DAB OPERATION With the separately sold NAD DAB Adaptor DB1 already connected to the 1775, you can now carry out the T 775 to receive DAB broadcasts. 1 Toggle [AM/FM/DB] button until DAB mode. The VFD will showNo Service List’indicating that there are no scanned DAB broadcast services yet. This is the default mode ofthe DB1 DAB P-— Ho Service List

2. Totune to DAB broadcast services, press [TUNER MODE] and then

toggle the front panel [TUNE 44/p> ] to select either ‘Full Scan” or “Local Scan FULL SCAN will enable the scanning of the full range of digital frequencies (Band Ill and L-Band) LOCAL SCAN performs local scanning of available DAB services in your area. Check with your dealer or visit wwMWorldDABorg to check the applicable digital transmission frequencies in your area 3 Upon selecting either‘Full Scan” or'Local Scan’ automatic scanning will be performed. This sequence cannot be interrupted. During the sequence, the following message will be visible in the VFD. canti LLCLLI The bars show the progress of the sequence. When scanning is completed, the last number shown on the right side of the VFD corresponds to the total number of DAB broadcast stations found. Then, the first station is tuned in (See‘ALPHANUMERIC" section below to understand the order or arrangement of stations)

OPERATION 4 The strength ofthe incoming signal can be shown on the VFD by pressing the [ENTER] button. The more segments visible in the lower display line, the stronger the signal. By changing the position ofthe antenna, you can increase the signal strength. You can also opt for an external antenna, Consult an antenna professional for more information. NOTE “No Service List” will also be shown in the VFD when no stations are found after the scanning process. IFthis occurs, check the connection and position of the DAB antenna or call your local DAB broadcast providers for coverage information SERVICE LIST Follow the steps below to select through the DAB service stations found. 1 ATDAB mode, press [TUNE 44/2 ] to step through the list of available stations as shown in the lower display line of the VFD. 2 Press [ENTER] to select the desired station.

Aside from Full Scan'and'Local Scan' as already described above, pressing the [TUNER MODE] button will also present you with other options namely — Station Order, DRC, Manual Scan, Prune List and Reset STATION ORDER Use "Station Order” to sort the sequence ofthe listed stations. There are three orders - Alphanumeric, Ensemble and Active. 1 While listening to a DAB broadcast, press front panel s [TUNER MODE] button and then [TUNE 44/22 ] to select "Station Order’ Press [ENTER]

2. Toggle [TUNE 44/p> ] to select through "Alphanumeric!"Ensemble"

and'Active" 3 Press [ENTER] to select desired station order. ALPHANUMERIC Thisis the default setting. Stations are arranged by numbers first and then alphabetically by letters. ENSEMBLE Digital radio is broadcast as groups of data called ensemble. Each ensemble contains a number of stations, transmitted at a set frequency. When “Ensemble"is selected as the mode of station order, the radio stations are arranged in the order of their ensemble names. NOTE Ensemble is also interchangeably termed as “multiplex” by other broadcast providers. ACTIVE Active stations are listed at the top ofthe channel list. Those channels that are in list but have no service in the area will be displayed last in the channel list. USING THET 775 - AM/FM/DB/iPod DRC The level of compression of stations can be set to eliminate the differences in dynamic range or sound level between radio stations. Popular music would normally be more compressed than classical muse, resulting in possible different audio levels when changing from one station to the other. Setting the DRC to*0"means no compression, “1/2'indicates medium compression and“1"shows maximum compression. No compression is recommended, especially for classical music. 1 While listening to a DAB broadcast, press front panel's [TUNER MODE] button and then [TUNE #@/BB ] to select *DRC" Press [ENTER]. 2 Toggle [TUNE @@/@» ] to select through"DRC 0°"DRC and "DRC 1° 3 Press [ENTER] to select desired DRC level. MANUAL SCAN This option allows you to directly tune to a desired channel and include it in the service list (f not yet available at the time). You can also use manual scan to assist you in positioning the DAB antenna for best reception of the desired channel 1 While listening to a DAB broadcast, press front panel's [TUNER MODE] button and then [TUNE @/BB ] to select*“Manual Scan Press LENTERL The current channel and frequency are shown in the upper line ofthe VFD. The bars’ at the lower line of the FD indicate the signal strength level ofthe current channel 2 Toselect other channels, toggle [TUNE 4@/BB ] to step through the channel list. Release [TUNE @4/ BB ] when you have arrived at your desired channel. Channel and frequency are shown in the upper line ofthe VFD. The “bars’ at the lower line of the VFD indicate the signal strength level ofthe current channel. To improve the reception ofthe selected channel adjust or reposition the DAB antenna until the best reception is indicated 3 Press [ENTER] to tune the selected channel NOTE The number of ensembles and stations that could be scanned will vary depending on your location. PRUNE LIST There maybe situations wherein certain stations become inactive. The ‘Prune List’option enables the deletion of these inactive stations in the service list 1 While listening to a DAB broadcast, press front panels [TUNER MODE] button and then [TUNE 4/2 ] to select“Prune List! 2 Press [ENTER] Any inactive stations are automatically deleted.

OPERATION USING THET 775 - AM/FM/DB/iPod RESET The*Reset”option allows the connected (and separately sold) NAD DAB Adaptor DB1 to be reset ta its factory default settings 1 While listening to a DAB broadcast, press front panel s [TUNER MODE] button and then [TUNE 44/2 ] to select"Reset” 2 Press [ENTER] ‘Reset? No’will be shown in the lower line ofthe VFD. Press [TUNE 44/2» ] to switch to'Reset? Yes' option. 3 To select'Reset? No'or"Reset? Yes’ press [ENTER] while at the desired option. Selecting "Reset? Ves’ will cause the DB1 to be reset to its factory default settings

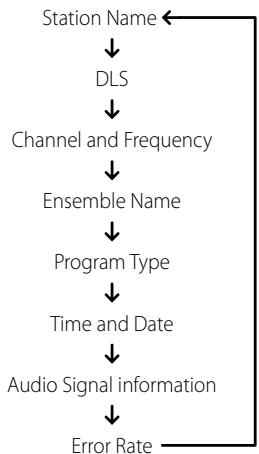

INFORMATION SETTINGS While listening to a DAB broadcast the type of information displayed in the lower line ofthe VFD can be varied. Toggle front panels [INFO] button to step through the following display options Station Name <——

Channel and Frequency

Time and Date Audio Signal information

Error Rate STATION NAME The name or identification of the DAB broadcast station is shown, This is the default display. DLS Dynamic Label Segment (DLS) is the scrolling text supplied by the broadcasting station. It may contain information on music titles or details regarding the program or station

CHANNEL AND FREQUENCY

The channel and frequency ofthe currently tuned DAB broadcast are displayed ENSEMBLE NAME The name ofthe ensemble that is broadcasting the program is displayed PROGRAM TYPE This is à description of the type of broadcast supplied by the station, such as Pop, Rock, Drama and the likes.

The current time and date as supplied by the DAB station are displayed.

AUDIO SIGNAL INFORMATION

Displays the bit rate and audio type (stereo, mono or joint stereo) as transmitted by the DAB broadcast provider. These are set by the broadcaster to suit the type and quality of material being transmitted ERROR RATE This displays the digital error rate (0 to 99) of the currently tuned channel the lower the figure, the better the quality of the received broadcast

OPERATION LISTENING TO YOUR iPod PLAYER The T 775 is equipped with a data port in the rear panel where an optional “NAD IPD Dock for iPod” (NAD IPD) can be plugged in. With the NAD IPD linking the T 775 with your ou iPod player, you can enjoy listening to your favorite tracks and playlists as well as view applicable still image and video playback You can control your iPod player using the assigned buttons in the T 775 front panel. And with the corresponding HTR 3 remote control function keys, you can select the materials stored in your iPod for playback as well as access many of ts functions even from across the room. The optional NAD IPD also charges your iPod player while it is connected to the T 775. NOTES “NAD IPD Dock for iPod” (NAD IPD) currentiy has two versions - the NAD IPD 1 and NAD IPD 2. These two NAD IPD models and later variants are compatible with the T 775. NAD IPD and iPod player are not supplied with your T 775. iPod player functions, features and playback capabilities accessible through T 775 may vary depending on your iPod player model. When using the HTR 3 to control the iPod functions, make sure that the Device Selector is set to AMP" CONNECTING THE OPTIONAL NAD IPD AND iPod PLAYER TO THE T775 Mike sure that al the devices are unplugged before making the connections.

1. Connect the NAD IPD$ DATA PORT to the corresponding" MP DOCK'

data port oftheT 775.

2. Connect also the NAD IPD S-video out and audio out to the T 775

Audio 5/Wideo 5 input (the default iPod source allocation in the T 775). You can also connect both audio and video out connectors to any available assignable input ofthe T 775. 3 Dock your iPod player into the NAD IPD. NAVIGATING THE iPod PLAYER'S FUNCTIONS AND FEATURES After linking together your iPod player, NAD IPD and the T 775, you can now plug them IN to their applicable power sources. 1 With your T 775, iPod player and NAD IPD all at power ON state, select SOURCE 5 of yourT 775. Your iPod player will show in its display the NAD logo and below it"OK to disconnect' On the other hand, the T 775 VFD will show in the upper line“iPod Menu"and the lower line“Playlists’ The lower line will vary depending on the current menu selected Atthe same time, the T 775 OSD will display the whole iPod Menu selections like Playlists, Artists, Albums, Songs, Podcasts, Genres, Composers and Audiobooks.

2. Navigate through the iPod menu selections using a combination ofthe

[A/w/4/»] buttons. NOTES + TheiPod players click wheel and controls will not operate when it is properly connected to the T 775 viathe NAD docking station. To exit from the iPod Menu at Source 5, press [4] bringing you to Menu Select OSD. Follow the instructions as shown.

CONTROL FEATURES AND SETTINGS

The following control functions and settings are selectable or enabled using the front panel and HTR 3 remote control buttons. Since the HTR 3 will be the primary controller in most cases, we will focus on remote- controlled operations. Note that other NAD IPD models, like the NAD IPD 2, have their own remote controls. The controls below also apply to the corresponding buttons ofthe remote controls of such applicable NAD IPD models. USING THET 775 - AM/FM/DB/iPod ENTER Press [ENTER] to go “iPod Settings menu where you can setup the following options: Shuffle : Select [Shuffle] to enable random playback of either [Songs] or [Albums] lists. To turn off shuffle mode, select [Off] Repeat : Select [One] for repeated playback of the current song. Select [AIN for repeated playback of your entire list under [Songs] selection. Audiobook Speed : The playback speed of your audiobaok can be varied according to your preference. During audiobook playback, adjust the reading speed to [Normal], [Fast] or [Slowi] DISP During playback toggle [DISPI key of HTR 3 to show in the T 775 VFD upper line the Song title, Artist Name and Album title. IFthere are no information available, the display wi show*No Song/"No Artist’ or“No Album' as applicable. Aside from these information, the lower line will display the current titles track number allocation and time elapsed. The equivalent front panel key for [DISP is INFO]

A/Y NAVIGATION BUTTONS

During playback mode, press [A] to skip forward to the next song or [W] to skip back to the previous sang. For quicker scrolling up or down the list, press and hold [A/W] While at menu options or selection lists, toggle [A] to go up or down the options or lists. ‘The equivalent front panel keys for [ A/W ] are [PRESET m1, PRESET Hd]

Press HTR 35 [A/W SKIP/CH/PRESET] to scroll up and down the Songs list one page or at least 8 titles at a time. Press and hold [A/W SKIP/CH/PRESET] to quickly scroll through the song titles, During fast scrolling, the first letter ofthe song is displayed on the bottom right comer of the OSD as the title changes SCAN [<4/»>]1/ PAUSE [11] / PLAY De] Press PAUSE [II] during playback to stop playback temporarily, Resume play by pressing PAUSE [II] again or PLAY De] During playback or PAUSE mode, press [SCAN 44/ Bb] for fast forward or backward scanning of current song

OPERATION USING THET 775 - AM/FM/DB/iPod NADIPD2 The NAD IPD 2 has its own remote control - the DR 1. For you to control the NAD IPD 2 using the DR 1, you have to go to“iPod Setup' menu (please refer to the item about"iPod Setup under the“USING THE T 775 - SETUP MENU" segment of OPERATION section) and then set'Auto Connect"to“No'. With this setting, you can then use the DR 1 to control your iPod player docked in the NAD IPD 2. Note that if you set'Auto Connect" to"No'while at Source 5, you have to change source and then return to Source 5 for the changed setting to take effect. When using the DR 1 to command your iPod player docked in the NAD IPD 2, you have to referto your iPod players own display screen to make full use ofits feature; there is no OSD at this condition. However, any time you press HTR 35 Le ] or front panelS [TUNE me], the ‘Menu Select’ OSD comes up. I you select'iPod Menu"at this" Menu Select” option, the NAD IPD 2 gets manually connected. The control of the NAD IPD 2 will then again be done through the T 775 using the applicable front panel control buttons or HTR 3 buttons while refering to the OSD: the NAD IPD 2 will not respond to any DR 1 commands at this stage In addition to the above commands common to the DR 1, below are the descriptions of the other DR 1 control buttons. LIGHT Press [LIGHT] to turn ON the backlight of your iPod player ifit is at idle mode MENU Press [MENU] to return to previous option or menu selection ENTER Press [ENTER] to select an option or start playback. (REPEAT) Toggle to initiate repeat mode as follows - repeat one song, repeat all songs or cancel repeat mode 26 (RANDOM) Toggle to initiate playback in random order. There are three random modes = Shuffle Song, Shuffle Album or Shuffle Of.

TO VIEW VIDEOS OR PHOTOS LOADED IN YOUR iPod Videos or photos uploaded in your iPod can be viewed directly via the 1775. The following are the steps

1. Make sure thatthe [TV Out] setting of your iPod‘ Video Settings menu

is at [On] mode and appropriate [TV Signal] is chosen. 2 Video or photo file selections and playback procedures are managed directly from your iPod player and not through the T 775. You must exit completely from the T 775 Setup Menu or Menu Select OSD for you to be able to navigate through your iPod players video or photo menu options. À more direct way is by going to the iPod Setup'menu and set “Enabled'to [No] 3 With the NAD IPD'S S-VIDEO OUT and AUDIO OUT ports connected to the T 775 AUDIO/VIDEO 5 input or to any other assignable input, you can now directly enjoy via T 775 your video or photo file selections as uploaded in your iPod. Make sure that you select the correct'Source Number‘ofthe T 775. NOTE For other navigation functions, please refer to your iPod players owners manual. Depending on the iPod player model some other functions maybe controlled using the applicable T 775 navigation controls. iPod is a trademark of Apple, Inc, registered in the US. and other countries

SPECIFICATIONS + Controls up to 8 devices. ( \ + 44 function keys. PE + Learns up to 352 commandés. + Records up to 44 macros with à maximum of 64 commandés each + Configurable punch-through + Keyillumination with programmable timeout + Upgradable. + Contains pre-programmed library of NAD remote codes. The NAD HTR 3 is ready to operate the T 775 AN Receiver right out of the box, but it is really eight remotes in one. Each ofthe 8 Device Selector keys at the top ofthe handset can call up a new'page’ of remote control codes to be transmitted by the remaining 44 keys. You may ‘teach' codes from any infrared-remote controlled component, regardiess of brand, to any or all of these. Obviously, the most logical system is that you teach the codes from your DVD player to the [DVD] Device Selector‘page' your television codes to the [TV] “page” and so on, but there is no required scheme: You may load any commands to any key on any page (see “Learning Codes From Other Remotes’ below) The HTR 3 is already preprogrammed with a full complement of commands for the T 775 AW Receiver on its AMP] Device Selector page, and as well as with library commands to operate most NAD-brand DVD or CD components on the corresponding Device Selector “pages! These default commandés are permanent: Even if you teach the HTR 3 new commandé to take their place, the underlying library commandés remain in place and can easily be recalled should you add an NAD companent to your system later (see“Delete Mode’ below) Note: For use with the T 775, it should not be necessary to re-program any keys on the HTR 3 [AMP] page. However, in order for the HTR 3 to control your specific NAD-brand components you may need to load one or more different code-libraries (see“Loading Code Libraries! below

CONTROLLING THE T 775

The HTR 3 is divided into two main sections. Eight Device Selector keys at the top—[AMP], [DVD] [TV] and so on—set the handset' remaining keys to a‘page" of commands to control a particular component. À Device Select key determines only what component the HTR 3 will command: it does not perform any function on the AM Receiver All ofthe remaining keys are function keys that can “learn' control codes from virtually any infrared remote controller allowing you to teach the codes of your equipment, regardless of brand, to the HTR 3 However, the HTR 3 is already preprogrammed to operate the T 775. All ofthe function keys on the [AMP] Device Selector*page" perform T 775 functions. (The HTR 3 can also command many other NAD components, from its [DVD] [CD,] [TUNER] and [CUSTOM] pages.) Itis important to note that certain HTR 3 keys perform different functions depending on the selected Device Selector"page! The color of the Device Selector key-labeling corresponds to the labeling ofthe function keys. Most centrall, the black [AMP] Device Selector'page" correspandé to the black as well as white input-select labeling above the numeric keys: When the HTR 35 [AMP] Device Selector page is active, these keys select the AW Receiver inputs. Similarly, the purple [DVD] Device Selector"page” corresponds to several purple labels, the green [TV] page to green labels, and so on

Begin by positioning the HTR 3“nose-to-nose"with the source remote so the two devices‘infrared windows are about 2 inches apart + Enter Leaming Mode: On the HTR 3, simultaneously press-and-hold for 3 seconds both a Device Selector key and the [RES] key (just below the DISP key) untl the Learn LED at the center ofthe HTR 3 turns steady green. + Pressthe HTR 35 function key you wish to teach a command; the Learn LED will turn amber. + Press-and-hold the function key on the source remote: The HTR 35 Learn LED will flicker amber for a second or two, then turn solid green. The command is leamed. + Press the HTR 35 Device Selector key again to exit the learning mode IFthe Learn LED does not flicker amber you may need to vary the distance between the remotes. If the Learn LED turns red rather than green, that particular command of that source remote command could not be learned: Example: Learning DVD Pause" Position the HTR 3 and your DVD player remote as described above. + Onthe HTR3, simultaneously press-and-hold [DVD] and [RES]: the Learn LED turns steady green: + Press the HTR 35 Pause [I] key the Learn LED turns amber. + Press-and-hold the corresponding Pause key of your DVD players remote control; the HTR 3 Learn LED flickers amber and then turns solid green. The command is learned. + Press [DVD] again to exit the learning mode. CANCEL OPERATION You can cancel configuring a key, by pressing the active Device Selector key before the learn process is complete: the Learn LED will turn red PUNCH THROUGH The HTR 35“punch-through"function allows you to retain a function key from one Device Select'page" to another, so that, for example, the AMP [SURR MODE] function might still control the T 775 when the DVD Device Selector page is active. NOTE The HTR 35 [VOL] keys are pre-programmed as ‘punched-through'" for all Device Select pages: IVOL] will operate the T 7755 master volume regardless ofthe currently selected device. The [SURR] ICENTER ] and [SUB] Channel Volume control similarly are pre-programmed as punched-through. To set a punch through, after entering the Learning Mode, and pressing the desired key to be punched through, simply press the device key twice of the device to punch through to. The status LED will turn green: press the Device Selector key again to exit Leaming Mode. Example: Punch-through AMP [SURR MODE] key to the DVD ‘page' + Onthe HTR3, simultaneously press-and-hold [DVD] and [RES]: the Learn LED turns steady green. + Press [SURR MODE}; the Learn LED turns amber. + Press [AMP] twice: the Learn LED turns green + Press [DVD] again to exit the learning mode.

COPY A COMMAND FROM ANOTHER KEY

You may copy à command from any HTR 3 key to any other. To copy à key function, after entering the Learning Mode, and pressing the desired key to be copied to, simply press the device key from which you wish to copy, having fist pressed its Device Selector key ifitresides on anotherpage! The status LED will turn green; press the Device Selector key again to exit Learning Mode. Example: Copy the Pause command from the CD page to the AMP [HI] button: + On the HTR3, simultaneously press-and-hold [AMP] and [RES]; the Learn LED turns steady green + Press Pause [II]; the Learn LED turns amber. + Press [CD}; press Pause [11]; the Learn LED turns green + Press [AMP] again to exit the learning mode. NOTE The copy and punch-through functions are similar. However, if you copy a command and then subsequently delete, or over-write the original (source-key) command, the copied-to keys command remains unchanged. you punch-through to a command and then delete or over-write the original key, the punched-through functions also change accordingly.

MACRO COMMANDS A‘macro' command is a series of two or more remote codes issued automatically from a single keypress. You might use à macro to automate a simple command sequence, such as, “Turn on the DVD player and then press PLAY! Or you might compose an elaborate macro to power up an entire system, select a source, choose a Listening Mode, and begin playback—again, all from a single keypress. The HTR 3 can store one macro on each of its function keys (these exclude the Device Selector keys). NOTE Macros are independent of the currently selected device. RECORDING MACROS To record a macro, simultaneous|y press-and-hold for 3 seconds both the [MACRO] key and the HTR 3 function key to which you wish to assign the macro, until the status LED turns green. The macro button will also light up. Press the sequence of function keys to be recorded into the macro, being sure to first press the requisite Device Selector key or each function (you may switch devices while recording the macro as many times as necessary), allowing you to create macro containing command from more than one Device Selector“page! When you have finished entering the desired command sequence, press [MACRO] again to store the macro: the Learn LED and [MACRO] key ilumination will turn off. NOTE Each macro can store a maximum of 64 command steps. f you exceed this number, the macro will be stored automatically after the 64th command is added. Example: Record a Macro to the [0] key to Turn on the T 775, Select‘input 1” (Source 1), and Commence Playback of connected Source 1 device (as in DVD player) + Onthe HTR 3, simultaneously press-and-hold [MACRO] and [0] (numeric zero); the Learn LED turns steady green. + Press [AMP}; press [ON]; press [1] ('nput or Source 1°); press [DVD]; press +] (Plaÿ) -the Learn LED blinks as each step is added! + Press [MACRO] again to exit the macro-record mode. To clear a macro, perform the above steps without entering any functions. EXECUTING MACROS To execute a macro, press and release [MACRO] its key ilumination lights for 5 seconds. While it remains lit, press an HTR 3 key to which à macro has previously been stored. The corresponding macro will run; as each step executes, its parent" Device Selectar key flashes lights briefly: when execution is finished, the [MACRO] key illumination goes out. Pressing any other HTR 3 key while a macro is executing will abort the macro. Remember that you must hold the HTR 3 so that its infrared emnitter can activate the target components. NOTE When a macro executes, a 1 second delay is automatically inserted between its commands. If you need more than a 1 second delay between particular commands—for example, to permit a component to power up completely—you can record empty" steps into the macro by changing Device Selector ‘pages’ without entering actual command functions.

BUTTON ILLUMINATION TIMEOUT

The HTR 35 key-illumination can be set to remain lit for 0-9 seconds, The default value is 2 seconds. To setthe illumination timeout, simultaneously press-and-hold for 3 seconds both the HTR 35 [DISPI and the [0-9] key, with the digit corresponding to the desired timeout duration: the Learn LED will flash twice to confirm the new setting. When set to zero, the illumination will not turn on at all. NOTE Key ilumination is the biggest drain on the HTR 35 batteries. À short key-illumination timeout will extend battery life appreciably;turning it off altogether (set t to 0 seconds) will lengthen it still further.

FACTORY RESET The HTR 3 can be reset toits factory state, deleting all learned commands, copied and punched- through keys, macros, and other setup information, reverting all keys to their pre-programmed library. commandé. To perform à factory reset simultaneously press-and-hold for 10 seconds the HTR 35 [ON] and IRTNI keys:the Learn LED will start to flash green. Release [ON and [RTNI before the second flash is complete: the Learn LED will turn red, indicating the remote has been reset NOTE You must release [ON] and [RTN before the second flash goes out, otherwise the unit will not reset: should this occur, repeat the full procedure DELETE MODE The HTR 3 can store leamed, copied, and'default library” commands on any single key (The default library commands are the pre-programmed NAD codes, such as the native T 775 commands on the IAMP]'page/) You can delete command by layers back'down'to the default library command on any key, removing learned commandé, punched-through functions, and copied keys. NOTE The default library commandé cannot be deleted, so you need not worry that using Delete Mode might cause irreparable changes. To enter Delete Mode, simultaneously press-and-hold for 3 seconds both the desired keys Device Selector key and the [RTN] key, until the Learn LED turns green. Press the function key whose command you wish to delete; the Learn LED flashes; the number of times indicates which type of function has become active - see the table below. Press the active Device Selector key again to exit Delete Mode. NOTE You may delete multiple function-key commands on the same Device Selector page” but to delete from more than one Device Selector page you must exit Delete Mode and then re-enter it on the required page. Flashes Command Type 1 Defauft Library Command 2 Copied Library Command 3 Learned Command

LOADING CODE-LIBRARIES The HTR 3 can store a different library of default NAD codes for each ofits Device Selector"pages® Ifthe original default library does not control your NAD CD player tape deck, DVD player, or other component, follow the procedure below to change the code-library. Begin by ensuring that the component you wish the HTR 3 to control is plugged in and powered-up l'on/'not merely in standby). To enter the HTR 35 Library Mode, simultaneously press-and-hold for 3 seconds both the desired Device Selector key and the [AVPS] key, until the Learn LED turns green. While keeping the HTR 3 pointed toward the component, enter the first appropriate three-digit code- library number from the table below Press [OFF IFthe component turns off, press [ENTER] to accept that code library number and exit the Library Mode. IFthe component does not tum off, enter the next three-digit code-library number from the table. When you enter the correct number the component will turn off: press [ENTER] to accept that code library number and exit the Library Mode. LIBRARY CODE NAD PRODUCT DESCRIPTION LIBRARY CODE NAD PRODUCT DESCRIPTION 100 Receiver/Processor (Discrete ON/OFF) 300 Tuner 101 Receiver/Processor (Toggle ON/OFF) 301 L75, L76 Tuner 102 s170 302 L70 Tuner 10 U5 303 L53 Tuner 104 Second Zone Commands (Zone 2) 304 L73 Tuner 3112 Zone3 305 cs 41 Zone4 306 cas 105 170 307 x Series Tuner 106 16 400 Tape Deck B 107 18 401 TAPE Deck A 108 153 500 1V280 109 13 501 MRB 110 Stereo Receiver / Amplifier 502 MR20 LL Stereo Second Zone 503 PMR4S 112 xS Series 600 1535, 1562, 1585, M55 200 CD Player 601 1550, L5S 201 CD Player (old) 602 1512,1531,1532, 1571, 1572 20 5170, 5240, 5340 603 L70, 73 DVD 203 5325 604 L56 204 5060 605 1513,1514,1515, 1517, 1524,1533,1534 205 Ms 606 LS3DVD SEARCH MODE Ifnone of the codes from the table, when entered, turns on the component, and if you are quite sure you have followed the above procedure completely and carefull, you may want to try the “search” method as follows: Enter Library Mode by simultaneously pressing-and-holding for 3 seconds both the desired Device Selector key and the [APS] key, until the Learn LED turns green. Now press-and-hold the HTR 35 [A] or WI) key: the remote will step through al the available codes at a rate of approximately 1 per second When the component turns off immediately release the cursor key: press [ENTER] to accept that code- library and exit the Library Mode. Try a few commandés; should you prove to have stepped past the needed code-ibrary, re-enter the Library Mode and use the cursor key to step back to it NOTE Ii possible that search mode will find code-libraries that operate, at least partially, some other brand non-NAD) components. You may certainly exploit such capabilities as you find them. However, since we can only ensure the completeness or accuracy of NAD code-libraries, we cannot support the HTR 3% operation with other-brand components.

You can check the current code-library on any Device Selector key as follows. Enter Library Mode by simultaneously pressing-and-holding for 3 seconds both the desired components Device Selector key and the [APS] key, until the Learn LED turns green. Press the [DISP] key; the HTR 3 indicates the current code-library by flashing its (CUSTOM, [VCRI and [MACRO] keys For example, to indicate code-library #501, the HTR 3 will flash [CUSTOM] 5 times, pause, and then flash IMACRO] once. You might wish to make a note of your components’ code-library numbers.

SUMMARY OF THE HTR 3 MODES

Mode Keys To Press (for 3 seconds) Leam/Copy/Punch Through Device Key + RES Key Delete Mode Device Key + RTN Key Macro Record Macro Key + Function Key Library Mode Device Key + AVPS Key Back Light Timeout DISP Key + Digi Key Factory Reset See"Factory Reset above SLEEP MODE The Sleep Mode timer will switch the T 775 to Standby mode automatically after à preset number of minutes. Pressing the HTR-35 SLEEP button once will display the setting ofthe sleep time increment. Pressing the HTR-3 SLEEP button a second time within a 3-second period will change the sleep time increment in 15-minute intervals, after which time the T 775 will automatically switch into Standby mode. To adjust the sleep delay, press the HTR-35 SLEEP button twice: first to display the sleep time increment, and a second time to change the sleep time increment. The sleep time increment and a “SLEEP"icon will continuousty display on the T 7755 front panel Vacuum Fluorescent Display (VFD) Each consecutive press increases the sleep time in 15-minute increments from 15 to 90 minutes. To cancel the sleep mode, continue pressing the HTR-3SSLEEP button until'SLEEP OFF displays on the VFD. Switching the T 775 to standby from either the HTR-35 OFF or the T 7755 STANDBY button will also cancel the sleep mode

USING THE ZR 4 REMOTE CONTROL

The ZR 4 remote control is a discrete compact remote for controlling the T 775 from various rooms other than the main room. The ZR 4 remote allows full separate control of the source selection irrespective to the main room. This means the zone input may be completely different, audio and video, from the main input and thus corresponding volume levels as well Ifone wishes to enjoy the same source as the main room, the ZR 4 remote has a [LOCAL] button to allow simultaneous listening, but with full separate volume levels. To mute the Zone Volume level, press MUTE'on the ZR 4. fthe’Zone Controls OSD menu is ON, the Zone ‘Volume level section will displayMute’ The T 775% front fluorescent display will show activity of the zone control so that main room occupants are aware of the zone remote activity. Furthermore ifthere is no main room activity, only the zone indicator will be active in the T 7755 fluorescent display. NOTE The ZR 4 remote control will only control Zone 2 applications. Zone 3 and Zone 4 could be configured and managed at the appropriate Zone OSD menu using the front panel navigations keys as well as the corresponding keys on the HTR 3 remote control. The HTR 35 CUSTOM" device is also defaulted to Zone 2 remote control codes.

REFERENCE TROUBLESHOOTING CONDITION No sound from all channels. No sound from some channels. No sound from surround channels. No sound from Subwoofer. No sound from Center channel. No Dolby Digital/DTS. T775 does not respond to front panel commands or remote control. T775 does not respond to HTR 3 remote. POSSIBLE CAUSES + AC power unplugged! + Powernot switched on + Outlet has no power. + Speaker A (or Speaker B) is not activated. - Feulty/missing cables. + ‘Speaker Configuration’ channel (s) set to "OFF" + Power-amp or speaker-connections fauity. + No surround listening mode is engaged + Surround-channels set to"OFF'on'Speaker Configuration menu + Surround-channels level set too low on “Speaker Levels menu + Subwoofer is off, not powered or improperly connected. + Subwoofer set to*OFF'on "Speaker Configuration menu + Sub level set too low on‘Speaker Levels' menu. + Source is a 2/0 (etc). Dolby Digital or DTS recording without center channel + Center set to "OFF" on ‘Speaker Configuration menu. + Center level set too low on'Speaker Levels' menu. + Sources digital output is not connected to a 1775 digital input.

• Source component not configured for multichannel digital output. + Batteries are flat or incorrectly inserted + IRtransmitter window on remote or IR A/V Receiver window on T 775 is obstructed. 2 T775 front panel is in very right sunlight or ambient light + Microprocessor error. + 1775 may have over heated + 12VTRIGGER IN/OUT is set to AUTO position. + Check AC cable connection and outlet. + Activate Speaker À (or Speaker B) by pressing + Check cables. + Check'Speaker Configuration’ menu. + Check power amp, cabling, and speakers. + Select appropriate listening mode. + Correct'Speaker Configuration" or'Speaker + Power-up subwoofer, check Sub's AC outlet + Correct "Speaker Configuration" or "Speaker

• Play a known 5:1-channel recording or select

• Correct Speaker Configuration’ or Speaker + Check connections. + Check source component setup. + Check batteries. + CheckIR windows and ensure clear line-of-sight + Reduce sunlight/room lighting: + Power-down the T 775 via the rear panel Power + Wait five minutes, re-connect and power up. + Switch 12VTRIGGER IN/OUT to OFF position. POSSIBLE SOLUTIONS the corresponding front panel or HTR 3 button. Levels'settings. or check connections. Levels'settings. Dolby Pro Logic Ix Music mode. Levels settings. from remote toT 775. switch and unplug it from the AC outlet. Factory defaults for 120V version only : Press simultaneously Source 4 + Front Input/MP Factory defaults for 230V version only : Press simultaneously Source + Front Input/MP Audyssey Auto Calibration se: defaults. gs along with other stored presets and settings will all be deleted upon restoring your T 775 toits factory

REFERENCE SPECIFICATIONS AMPLIFIER SECTION Power output Stereo Mode IHF dynamic power. 8 ohms IHF dynamic power. 4 ohms Power output Surround Mode Total harmonic distortion at rated power IM distortion at rated power Damping factor, 8 ohms Input sensitivity and impedance Frequency response Signal/noise ratio Signal/noise ratio PREAMPLIFIER SECTION Input sensitivity and impedance Frequency response Signal/noise ratio TUNER SECTION AM SECTION Frequency range Usable sensitivity SIN ratio Total Harmonic Distortion Loop sensitivity 20dB S/N FM SECTION Usable sensitivity, MONO HF (3% THD) S/N Ratio MONO S/N Ratio STEREO Total Harmonic Distortion, MONO Total Harmonic Distortion, STEREO Channel Separation RDS decode sensitivity PHYSICAL SPECIFICATIONS Unit Dimensions (Wx H x D} Net Weight Shipping Weight *- Gross dimensions include feet, volume knob and extended speaker terminals. 130W (21.1dBW) (8 ohms within rated distortion) 200W (23dBW) 340W (25.3dBW) 7x 100W (20dBW) <0.08% <0.08% >60 11V/50KQ 2 08dB (ref. 1kHz, 20Hz — 20kHz) >93d8 (ref rated power at 8 ohms, A-WTD) >83d8 (ref Wat 8 ohms, A-WTD) 350mV/50KQ 4 0,5 dB (20Hz - 20kHz) >88dB (ref. 2V, AWTD) S30kHz -1710kHz (120V version, 10kHz steps) 531kHz -1602kHz (230V version, 9kHz steps) 30dBu 38dB <3% 66dBu <16.1d8f 18dBu 60d8 55dB 0.25% 0.5% 40dB 28dBu 435 x 170 x431mm (Gross)* 208kg 257kg Specifications are subject to change without notice. For updated documentation and features, please log onto www. NADelectronies.com for the latest information about T 775, Manufactured under license under US. Patent #: 5,451,942; 5,956,674; 5,974,380,5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 &other US. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Master Audio are trademarks of DTS, Inc. © 1996-2009 DTS, Inc. All Rights Reserved. Manufactured under License from Dolby Laborataries."Dolby" “Pro Logic’ and the double-D symbol are trademarks of Dolby Laboratories. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. The XM name, XM Ready and related logos are registered trademarks of XM Satellite Radio Inc. This product incorporates copyright protection technology that is protected by method claims of certain US. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited

www.NADelectronics.com

©2009 NAD ELECTRONICS INTERNATIONAL

Al igh No par of this publ ed. NAD and the NAD logo are trademarks of NAD Electroni juced,stored or transmitted in any form. Itemational, a dision of Len our the written permission of NAD Electro on may be rep 1 775 Manual Issue 25
