USER MANUAL MR530 BOLOGNESE BRAUN

(Audio Supplies Company Ltd.)

A B C D	MR 500 Soup	MR 530 Pesto	MR 530 Bolognese	MR 530 Sauce MR 530 Baby MR 560 Fresh
F G H I	● ● ●	● ● ●	● ● ●	● ● ●
J	●	●	●	●

	Parmesan 1cm	Parmesan 1cm
max.	300 g	200 g	200 g	30 g	20	200 g	300 g	350 g
L sec.	15-30	30	10	20	20	15	25	30
			1 - 4		1 - 15	1 - 15	8 - 15	8 - 15
	turbo	turbo		turbo			+5 sec turbo	+5 sec turbo

Deutsch

Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy your new Braun appliance.

Caution

Please read the use instructions carefully and completely before using the appliance.

The blades are very sharp! To avoid injuries, please handle blades with utmost care.
Always unplug the appliance when it is left unattended and before assembling, disassembling, cleaning and storing.
- This appliance is not intended for use by children or persons with reduced physical or mental capabilities, unless they are given supervision by a person responsible for their safety. In general, we recommend that you keep the appliance out of reach of children.
- Do not hold the motor part A nor the whisk gear box H under running water, nor immerse them in water.
- Braun electric appliances meet applicable safety standards. Repairs or the replacement of the mains cord must only be done by authorised service personnel. Faulty, unqualified repair work may cause considerable hazards to the user.
- Before plugging into a socket, check whether your voltage corresponds to the voltage printed on the bottom of the appliance.
- The appliance is constructed to process normal household quantities.
- Neither the beaker ⑥ , nor the chopper bowl (c) is microwave-proof.

Description

A Motor part
⑧ On/off switch for variable speed
© Turbo switch
Buttons for releasing the working parts
Variable speed regulator
Blender shaft
Measuring beaker
Whisk gear box
① Whisk
① Chopper

Setting the speed

When activating switch ⑧ , the processing speed corresponds to the setting of variable speed regulator ⑨ . The higher the setting, the faster the chopping results.

However, maximum processing speed can only be achieved by pressing the turbo switch ©. You may

also use the turbo switch for instant powerful pulses without having to manipulate the speed regulator.

Depending on the application, we recommend the following speed settings:

Handblender 1...turbo

Chopper 1...turbo

Whisk 1...15

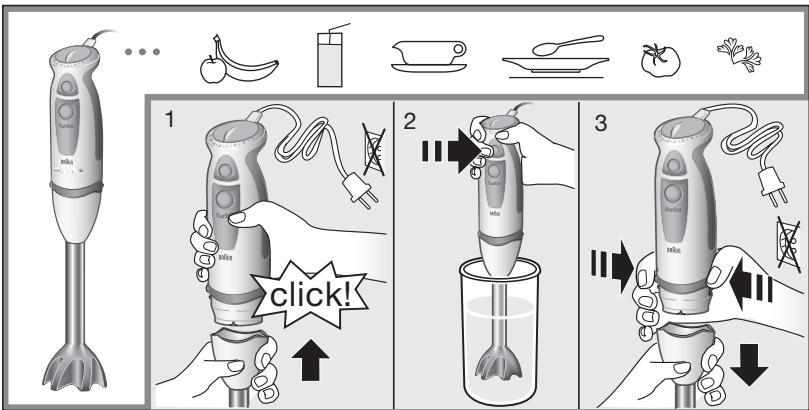

How to operate your handblender

The handblender is perfectly suited for preparing dips, sauces, soups, mayonnaise and baby food as well as for mixing drinks and milkshakes.

1. Insert the motor part A into the blender shaft F until it locks.
2. Introduce the handblender in the vessel, then press the on/off switch or the turbo switch .
3. To release the blender shaft after use, press buttons ① and pull it off.

You can operate the handblender in the measuring beaker ⑨ , and just as well in any other vessel. When blending directly in the saucepan while cooking, take the pan from the stove first to protect your handblender from overheating.

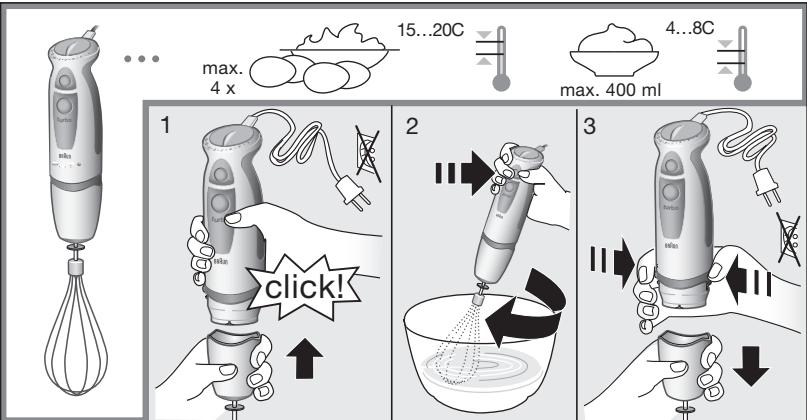

How to operate your whisk

Use the whisk only for whipping cream, beating egg whites and mixing sponges and ready-mix desserts.

1. Insert the whisk ① into the whisk gear box , then insert the motor part into the gear box until it locks.
2. Place the whisk in a vessel and only then, press switch ⑧ to operate it.
3. To release, press buttons ⑤ and pull off the gear box. Then pull the whisk out of the gear box.

For best results:

• Do not use the beaker ⑨ , but a wider bowl.
• Move the whisk clockwise, holding it slightly inclined.

Whipped cream

Only whip up to 400 ml chilled cream (min. 30% fat content, 4 - 8^ ).

Start with a low speed setting (1) and while whipping, increase the speed to setting 15.

Egg snow

Only whip up to 4 egg whites.

Start with a medium speed setting (7) and while beating, increase the speed to setting 15.

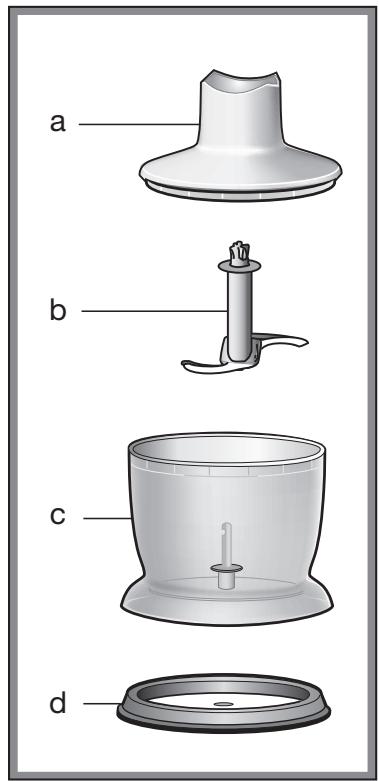

How to operate your chopper attachment

(a) Chopper gear box
(b) Blade
(c) Chopper bowl
(d) Anti-slip base/lid

The chopper is perfectly suited for chopping meat, cheese, onions, herbs, garlic, carrots, walnuts, hazelnuts, almonds etc.

For chopping hard goods (e.g. hard cheese), use the turbo switch ©.

N.B.: Do not chop extremely hard food, such as ice cubes, nutmeg, coffee beans, and grains.

Before chopping ...

• pre-cut meat, cheese, onions, garlic, carrots (see table page 5)
• remove stalks from herbs, un-shell nuts

• remove bones, tendons and gristle from meet.

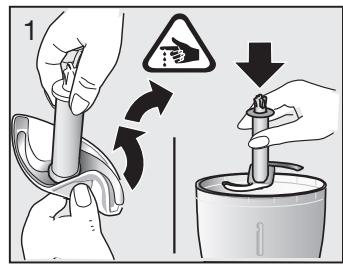

• Caution: Carefully remove the plastic cover from the blade (b). The blade is very sharp!
  Always hold it by the upper plastic part. Place the blade on the centre pin of the chopper bowl (c). Press it down until it locks.
  Always place the chopper bowl on the anti-slip base (d).

• Place the food in the chopper bowl.
• Put the gear box (a) on the chopper bowl.
• Insert the motor part A into gear box (a) until it locks.
• Press switch ⑧ or ⑤ to operate the chopper. During processing, hold the motor part with one hand and the chopper bowl with the other.
• After use, press buttons ① to remove the motor part.
• Then remove the gear box.
• Carefully take out the blade.
• Then remove the processed food from the chopper bowl. The anti-slip base also serves as an air-tight lid for the chopper bowl.

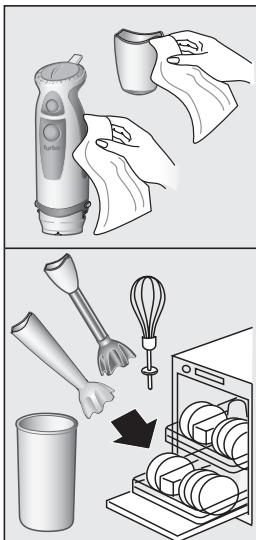

Cleaning

Clean the motor part A and the whisk gear box H with a damp cloth only. The chopper gear box (a) may be rinsed under the tap. Do not immerse the gear box (a) in water.

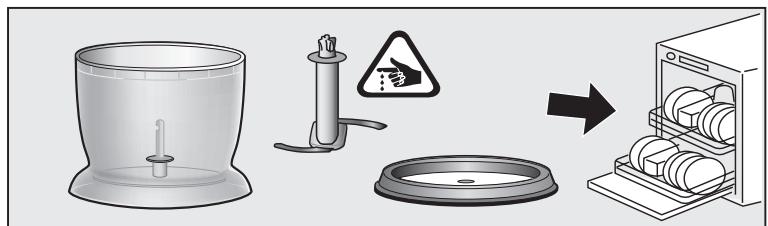

All other parts can be cleaned in the dishwasher.

However, after processing very salty food, you should rinse the blades right away. Also, be careful not to use an overdose of cleaner or decalcifier in your dishwasher.

When processing foods with colour (e.g. carrots), the plastic parts of the appliance may become discoloured. Wipe these parts with vegetable oil before placing them in the dishwasher.

Accessories

(available at Braun Service Centres; however not in every country)

BC: Chopper attachment, perfectly suited for chopping large quantities as well as for preparing shakes, making light doughs and crushing ice cubes.

HC: High-speed chopper, ideal for herbs, onions, garlic, chilis, nuts etc.

Recipe examples

Mayonnaise (use handblender)

200-250 ml oil

1 egg (yolk and white)

1 tbsp. lemon juice or vinegar salt and pepper to taste

Put all ingredients into the beaker according to the a.m. order. Introduce the handblender to the base of the beaker. Pressing the turbo switch keep the handblender in this position until the oil emulsifies. Then, without switching off, slowly move it up and down until the mayonnaise is well combined.

Ice cream (use chopper)

100 g raspberries (deep-frozen)

10 g powdered sugar

80 g cream

Put all ingredients into the jar, press the turbo switch and blend for about 30 seconds. Serve at once.

Anchovy dip (use chopper)

30 g drained anchovy files

200 g cream cheese «Philadelphia»

2 tbsp. olive oil

Put all ingredients in the chopper bowl.

Adjust the variable speed setting to the minimum. Press the on/off switch ⑧ until the paste becomes homogeneous.

Finish the dip by pressing the turbo switch

Variations of this recipe can be done by using salmon, Roquefort or blue cheese instead of anchovy files.

Subject to change without notice.

This product conforms to the European Directives EMC 2004/108/EC and Low Voltage 2006/95/EC.

Please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

François

Pied mixeur 1...turbo

Bol hachoir 1...turbo

Fouet métal 1...15
