USER MANUAL PowerBlend 7 JB7550 BRAUN

Black triAction Twe blender with control knob and brand logo (BRAUN), no visible text or symbols on the device itself.

Type JB703AI

EN Please read safety instructions (separate booklet) carefully and completely before using the appliance.

© Copyright 2024. All rights reserved

De'Longhi Braun Household GmbH

Carl-Ulrich-Strasse 4

63263 Neu-Isenburg / Germany

1 2 3 4 5 6 7 8 9 10 11* a b c * certain models only smooth | m edilum coarse smooth dielium coarse F extimControl BRAN start/stop

Max70°C
			smooth medium coarse	SEC.
	1700 ml		smoothmediumcoarse	AUTO
	1250 ml		smoothmediumcoarse	AUTO
<TKCK]	1250 ml	1		30-60
	750 ml	1→10		30-60
	200 g		medium	AUTO
	400 g		smoothmediumcoarse	AUTO
	200 g		1-2x smooth1-2x medium	AUTO
	200 g		2x smooth2x medium2x coarse	AUTO
	10- 12		smoothmediumcoarse	AUTO

Max70°C			smooth medium coarse	SEC.
	1700 ml		smooth	AUTO
	400 - 800 g		1-2x smooth	AUTO
[7GBW]	500 - 1500 ml	1 → 10		30 - 45
	400 g	1 → 10		45 - 60
	250 - 500 ml	1.) + 2.) 7		60-90 + 10-20
	1500 ml	1 → 10		45 - 60
	200 g	1		5
	15 - 30 g			5xP
	100 - 150 g			5-10x

Max30°C			smooth medium coarse	sec.
	600 ml		smooth medium coarse	AUTO
max 200 g	600 ml		smooth medium coarse	AUTO
	400 ml		smooth medium coarse	AUTO
	5x		smooth medium coarse	AUTO
	600 ml		smooth medium coarse	AUTO

C max. 300 ml max. 1000 ml start/stop start/stop start auto off start/stop 10 9 8 7 6 5 4 3 2 1 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

Illustration showing a blender's cleaning process with labeled parts and warning symbols

Illustration showing various cleaning and cleaning products with labeled icons and Chinese text

DEUTSCH

Beschreibung

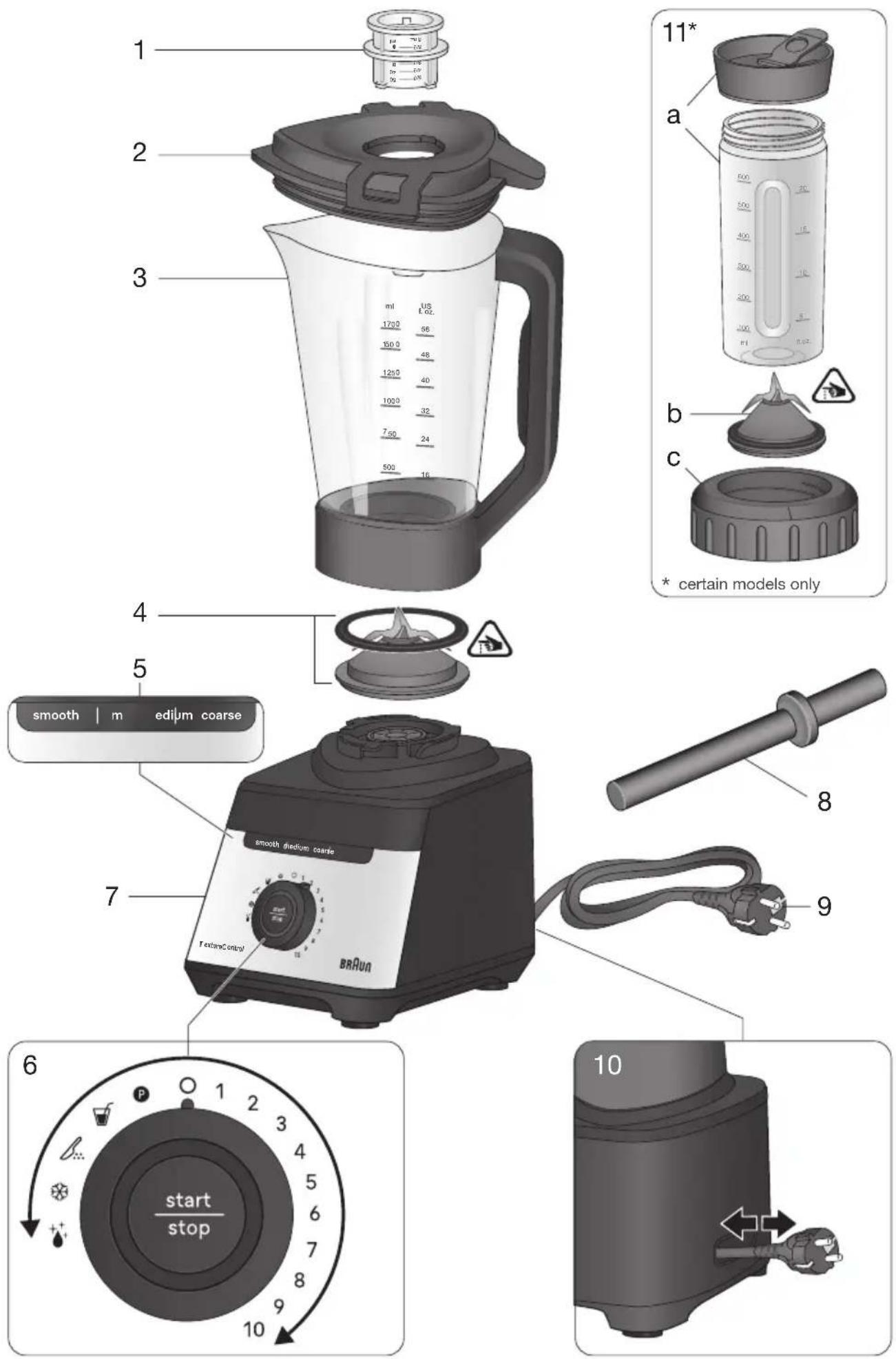

1. Measuring cap
2. Lid incl. gasket
3. Glass jug
4. PrecisionCrush blade
5. Texture modes

6. START/STOP button
   Speed Control/Program dial

7. Motor base

8. Tamper

9. Power cord

10. Cord storage (on back side)

11. Smoothie2Go blending set consisting of:

a. 600 ml Smoothie2Go bottle incl. drinking lid

b. Smoothie2Go blade group incl. gasket

c. Smoothie2Go adapter

Before First Use

Clean all parts before using the blender for the first time – refer to „Care and Cleaning“.

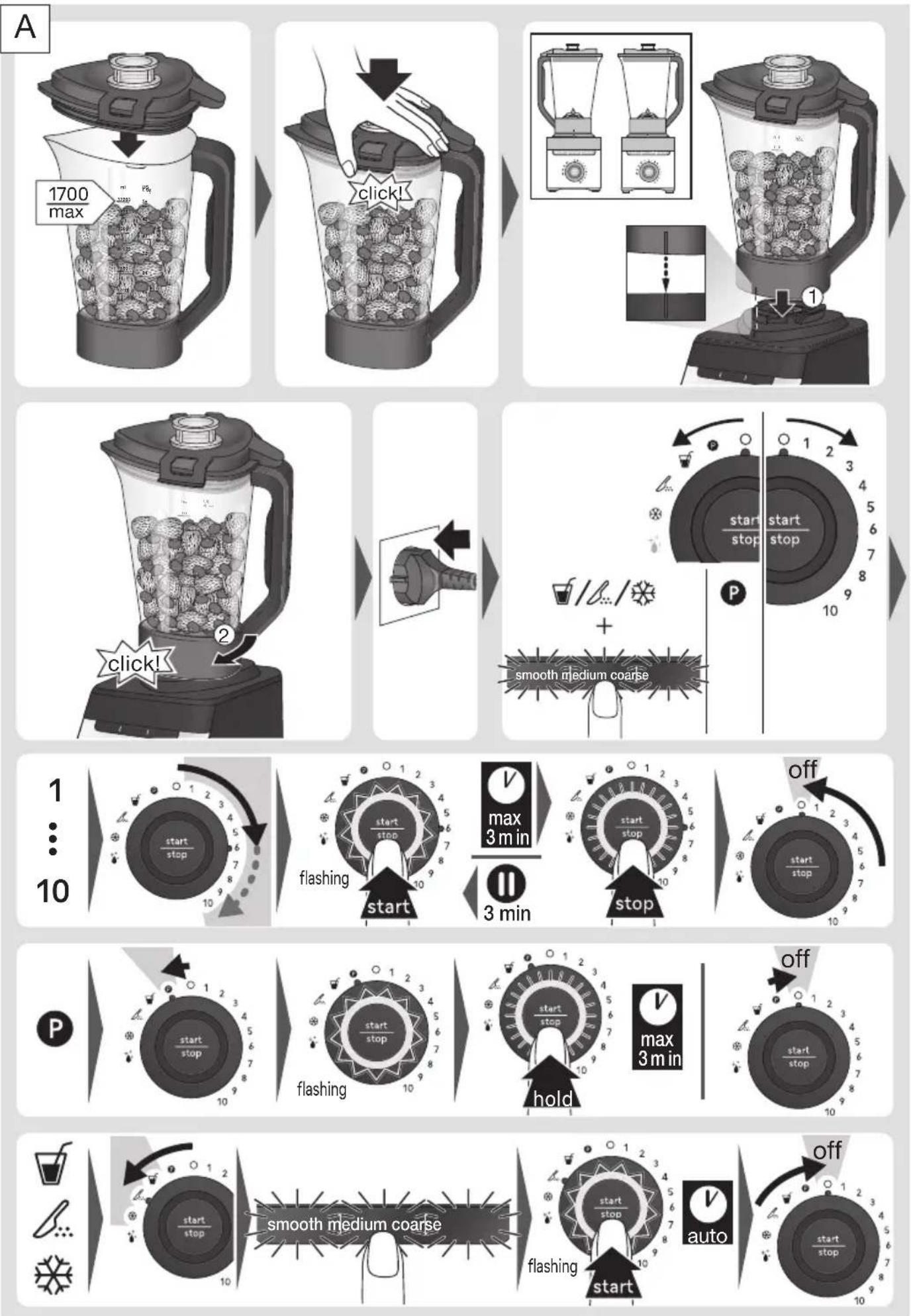

(A) Using the Jug

Be careful when blending hot liquids in the jug using the manual mode. Start blending on speed 1 to avoid possible burns due to escaping steam and splashes. The maximum allowed amount of hot liquid ingredients in the jug is 1250 ml.

Manual Mode

Select a speed (1-10) (6) and press START/STOP to start blending.
START/STOP turns permanently on during operation.

- To finish press START/STOP again and turn the dial back to "0".

For detailed processing instructions refer to table I.

Automatic Food Programs & Texture Modes

• First, select one of the 3 automatic food programs (6).
• The texture mode (5) pre-set to the selected program turns permanently on. Optionally you can select another texture mode.
• Press START/STOP to start the program.
  ●The program stops automatically.
• To stop the program in advance, press START/STOP again.

For detailed processing instructions refer to table I.

Pulse Mode

The pulse mode can be used to break apart larger pieces of food or to control the texture of food when chopping. Duration depends on how long you press the START/STOP button (6).

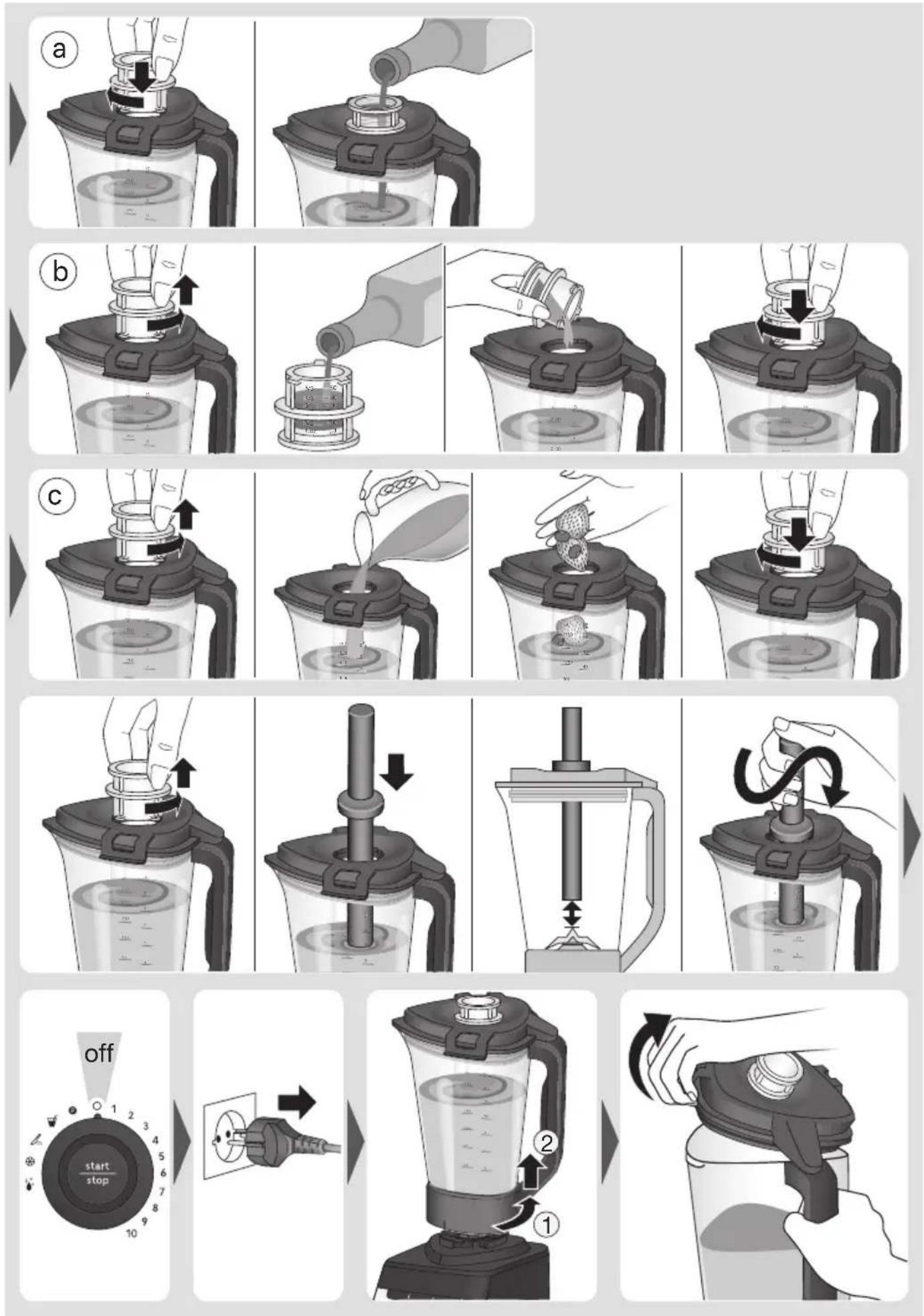

Using the Double Function Measuring Cap

During operation use the measuring cap (1) to slowly add oil through the dripping hole to emulsify sauces and dressings (Fig. a) or easily add small amounts of liquids (Fig. b).

By removing the measuring cap, you can add additional ingredients or liquids at low speed (Fig. c).

Using the Tamper

It helps to push unmixed ingredients down from the jug wall and to bring thick mixtures into the blades while blending. The supplied tamper (8) will not touch the bla-

de when used through the opening of the measuring cap (1).

Note: It must be used only when the main part of the lid is in place.

(B) Blending with the Smoothie2Go Bottle

Note: When using the Smoothie2Go bottle the programs smoothie √ and ice crush ✕ and all speeds are available for use.

The Smoothie2Go bottle must not be used to blend hot foods or carbonated liquids. To avoid damage, do not fill the container past the “max” marking.

When preparing protein shakes or drinks with alcohol, do not fill beyond max. 400 ml.

For processing larger quantities, we recommend using the jug.

For detailed processing instructions refer to table II.

Thermal Motor Protection

The blender is equipped with a thermal protector which protects the motor from overheating. If the motor shuts down during operation, unplug the blender and let it cool down for a minimum of 15 minutes before continuing blending.

For Best Results

• If blending action stops during blending there may be not enough liquid to blend efficiently. Add some more liquid or insert the tamper and stir slowly.
• For preparing small amounts of food use a low speed level.
• When chopping vegetables, we recommend adding a small amount of water to improve the circulation. After finishing, strain your chopped ingredients.
• Fill the jug in the following order: Liquids, dry goods, leafy greens, soft ingredients, hard or frozen ingredients, ice cubes. Fill

the ingredients in the reverse order into the Smoothie2Go bottle.

- If blending in manual mode, always start on speed 1 and slowly increase to the desired speed.

Use the chopper accessory (optional accessory available at your Braun Service Center; however not in every country) to make a pancake stuffing or spread.

Fill the chopper with 150 g pitted prunes and let run on speed 10 for 2 seconds.

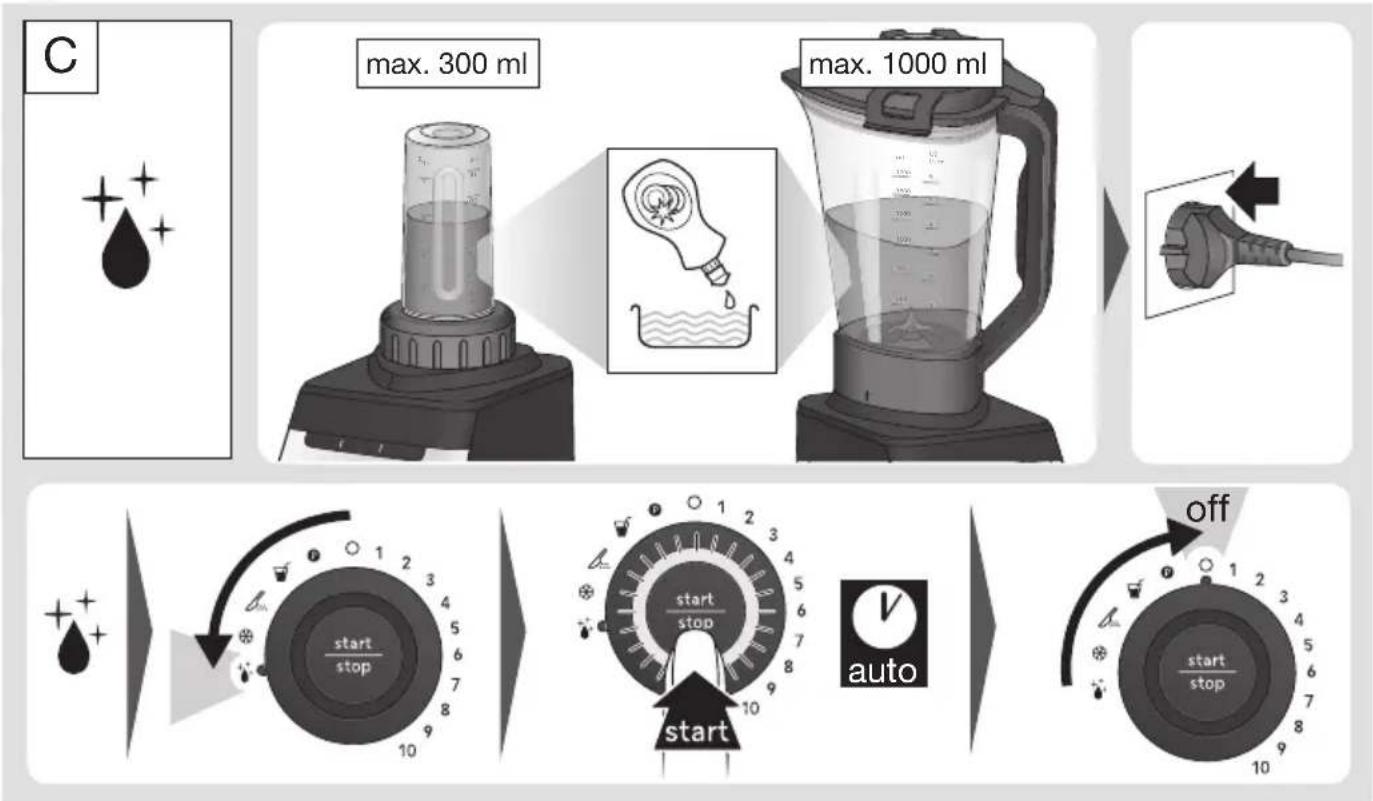

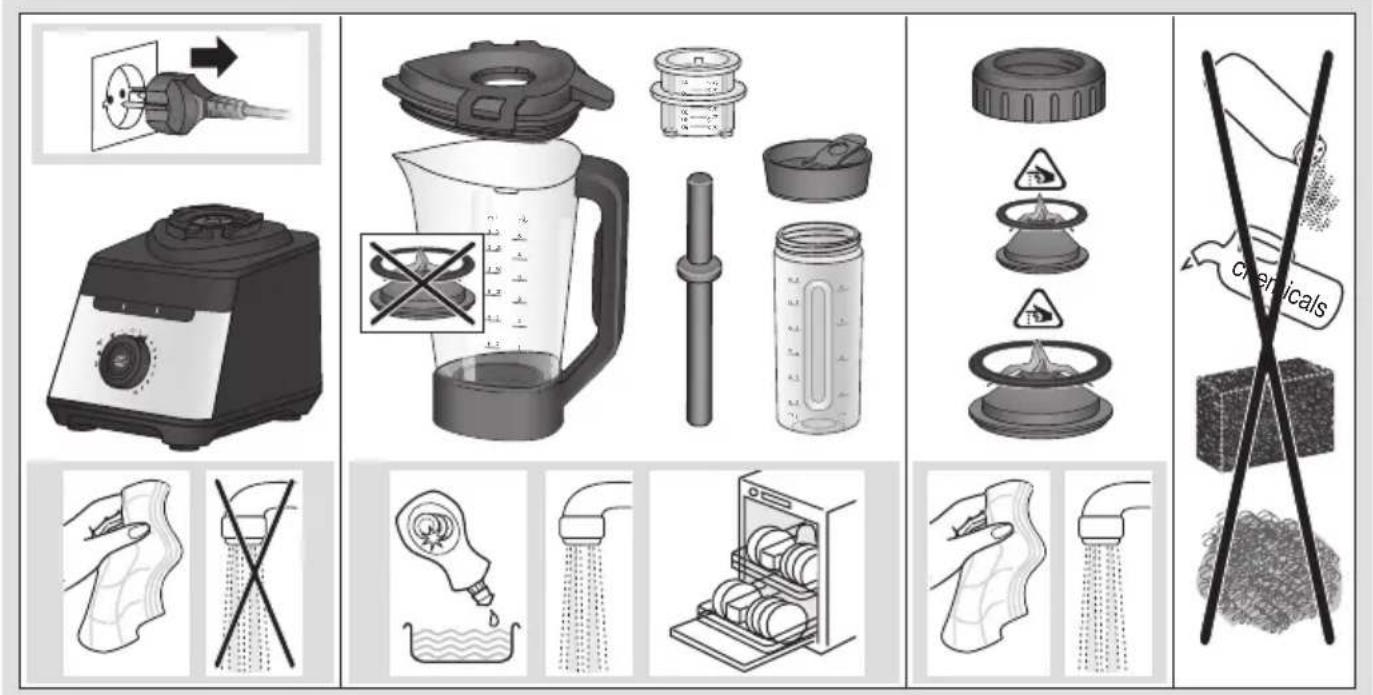

(C) Care and Cleaning

We recommend cleaning the jug by using the CLEAN program 🔊 to prolong its lifetime. The program will automatically stop once it completes the cycle.

Fill the jug (3) with water (max. 1000 ml), add a few drops of dishwashing soap and follow the steps as described.

The same procedure applies for the Smoothie2Go bottle (max. 300 ml water) [11a].

For best results, run the CLEAN program immediately after use. Make sure to thoroughly rinse and air-dry the jug after completion of the program.

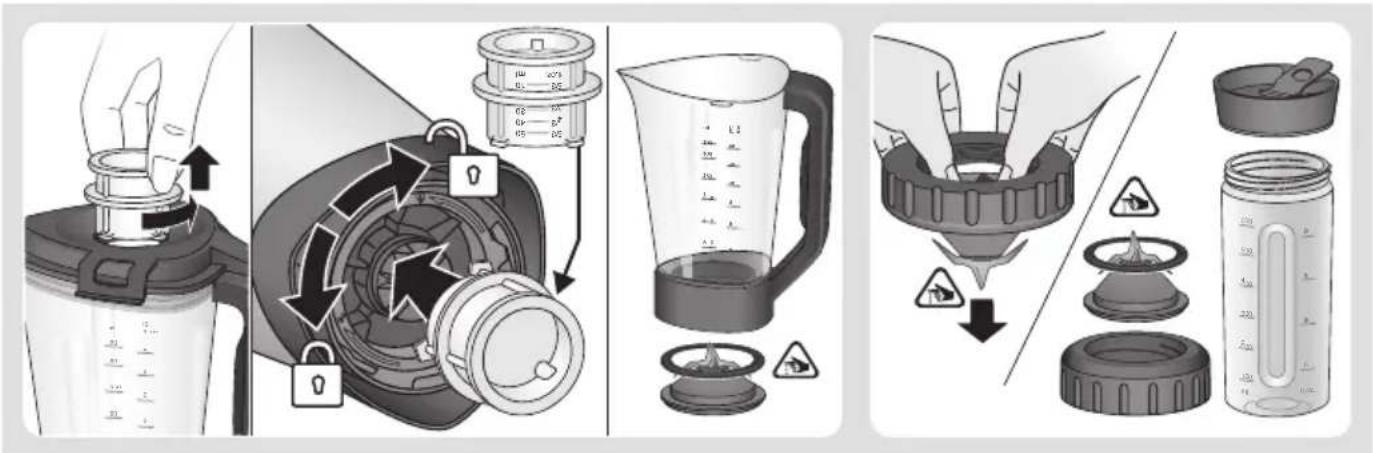

For a deep cleaning of the blade group you can disassemble it by using the measuring cap and clean it separately. To re-assemble the blade group use the measuring cap again.

Note: Make sure the blade group is firmly mounted in the jug.

All parts – except the motor base, the blade groups and the Smoothie2Go adapter – are dishwasher safe.

Warranty and Service

For detailed information see separate warranty and service leaflet or visit www.braunhousehold.com.

Troubleshooting

Problem Potential Causes Solution
Blender does not operate and all LEDs are flashing in a steady pattern.	Jug or Smoothie2Go attachment is not properly attached.	Check the correct position of the attachment and of the lid.
	Smoothie2Go blade group is not properly screwed onto the bottle.	Remove the Smoothie2Go attachment from the motor base. Unscrew the blade group from the bottle, check the positioning and screw it correctly onto the bottle.
Liquid is splashing out of the jug.	Lid gasket is not mounted properly, loose or even torn.	Ensure that the gasket is mounted properly.
	Jug lid or measuring cap are not closed properly.	Close the lid and measuring cap.
	Jug is overfilled.	Follow the maximum quantity recommendation in the processing table.
Jug is leaking at the bottom.	Blade group gasket is loose or even torn.	Ensure that the gasket is mounted properly.
	Jug blade group is not properly screwed onto the jug.	Screw the blade group properly onto the jug.
Motor base is moving on the countertop.	Rubber feet are not clean.	Clean the rubber feet to ensure a good grip.
Blender does not operate and the START/STOP button is flashing in a pattern of three short flashes.	The thermal protection is activated to protect the motor from overheating.	Turn the blender off, unplug and wait at least 15 minutes before resuming operation.
	The blade is blocked.	Turn the blender off and remove the container from the motor base. Check if ingredients are blocking the blade.
	Lid or container was detached during operation.	Ensure that the lid and attachment are mounted properly.
	If the error does not disappear contact Braun Customer Service.
