Product Type	Immersion blender with chopper accessory
Brand	Braun
Model	MultiQuick 5 Baby
Usage	Domestic
Main Functions	Blending, chopping, preparing baby purees
Speeds	2 speeds (I and II)
Switch	EasyClick release buttons
Included Accessories	Blending foot, beaker with lid, 350 ml chopper (bowl, blade, lid), spatula
Chopper Capacity	350 ml
Blade Material	Stainless steel
Power Supply	220-240 V
Cleaning	Removable parts dishwasher-safe (except motor block)
Motor Block Care	Clean with a damp cloth only
Safety	Very sharp blades; do not immerse motor block; keep out of reach of children
Compliance	Complies with European regulation 1935/2004 for food contact
Included Recipes	Example baby recipes in the manual
Manual Pages	99 pages

Frequently Asked Questions - MultiQuick 5 Baby BRAUN

How to assemble the blending foot?

Attach the mixing shaft to the motor block until you hear a click. Make sure the appliance is unplugged during assembly.

How to use the chopper accessory?

Place the blade on the central rod of the bowl, pour the food, put the lid on, then attach the motor block. Use maximum speed for hard foods.

Can I blend hot foods?

Yes, but remove the pot from the heat, let it cool slightly and make sure the liquid is not boiling to avoid burns.

How to clean the appliance?

Unplug the appliance. Clean the motor block with a damp cloth. Other parts (blending foot, bowl, lid, etc.) are dishwasher-safe.

Which accessories are dishwasher-safe?

All parts except the motor block: blending foot, beaker, chopper bowl, lid, blade, spatula, and non-slip base (removable).

What is the capacity of the chopper bowl?

The chopper bowl has a capacity of 350 ml, ideal for small portions like baby purees.

What if the blades do not turn?

Check that the chopper bowl is correctly assembled and that the motor block is properly attached. If the problem persists, unplug and check that the blade is not blocked.

Can I blend ice cubes or unshelled nuts?

No, do not use the chopper for extremely hard foods like ice cubes, coffee beans, or unshelled nuts, as this could damage the blades.

How to change speed?

Use the switches I (slow speed) and II (fast speed) on the motor block. For most preparations, maximum speed gives the best results.

Where to find spare parts?

Contact an authorized Braun service center. Blades, bowls, and other accessories are available through the after-sales service.

USER MANUAL MultiQuick 5 Baby BRAUN

Type 4165

Register your product www.braunhousehold.com/register

Hand blender

Deutsch 6

English 10

Français 14

Español 18

Português 22

Italiano 26

Nederlands 30

Dansk 34

Norsk 37

Svenska 41

Suomi 45

Polski 48

Český 52

Slovenský 56

Magyar 60

Hrvatski 64

Slovenski 68

Türkçe 72

Română (RO/MD) 76

Ελληνικά 80

Қазақ 84

Русский 88

Українська 93

De'Longhi Braun Household GmbH

B

					+
	1cm	1cm
max.
	10	15	6x1			6x1	5x1	12x1	8x1	12x1

Deutsch

Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy your new Braun appliance.

Before use

Please read instructions carefully and completely before using the appliance.

Caution

• The blades are very sharp! To avoid injuries, please handle blades with utmost care.
- Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
- This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

- Children shall not play with the appliance.

- This appliance shall not be used by children.

- Children shall be kept away from the appliance and its mains cord.

• Always unplug or switch off the appliance when it is left

unattended and before assembling, disassembling, cleaning and storing.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Before plugging into a socket, check whether your voltage corresponds with the voltage printed on the bottom of the appliance.

- This appliance is designed for household use only and for processing normal house-hold quantities.

- Do not use any part in the microwave.

- Please clean all parts before first use or as required, following the instructions in the Care and Cleaning section.

Parts and Accessories

1 On switch: speed «I»
2 On switch: speed «II»
3 Motor part
4 EasyClick Release buttons
5 Blender shaft
6 Beaker with lid

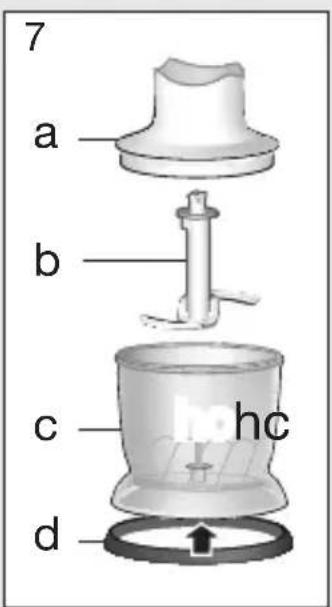

7 350 ml chopper accessory «hc» a Lid
b Chopping blade
c Chopper bowl
d Anti-slip rubber ring

8 Spatula

Unpacking

Take the unit out of the carton. Remove all pieces of the packing. Remove any possibly extant labels on the unit (do not remove the rating plate).

How to Use the Appliance

Blending Shaft (A)

The hand blender is perfectly suited for preparing dips, sauces, salad dressings, soups, baby food, as well as drinks, smoothies and milkshakes.

For best results, use the highest speed.

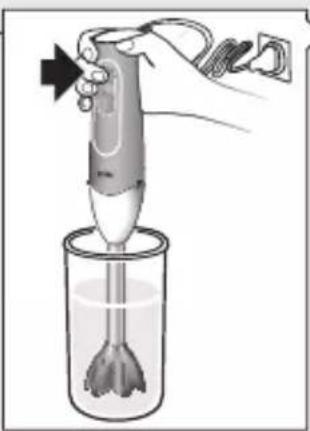

Assembly and Operation

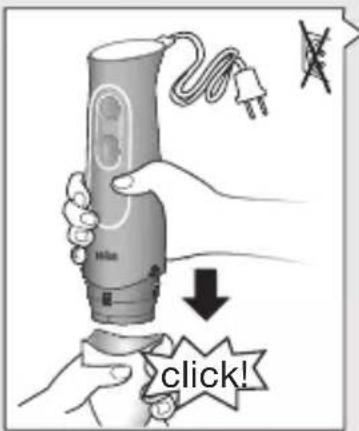

• Attach the blending shaft (5) to the motor part until it clicks.
• Place the blending shaft into the mixture to be blended. Then switch the appliance on.
• Blend ingredients to the desired consistency using a gentle up-and-down motion.

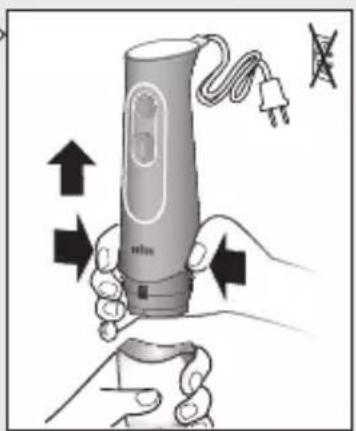

• After use, unplug the hand blender and press the release buttons (4) to detach the blending shaft.

Caution

• If using the appliance to purée hot food in a saucepan or pot, remove the saucepan or pot from the heat source and ensure the liquid is not boiling. Allow hot food to cool slightly to avoid risk of scalding.
• Do not let the hand blender sit in a hot pan on the cooktop when not in use.

Recipe Example: Carrot potato purée 200 g carrots, pelled and diced 200 g potatoes, peeled and diced 1 tsp vegetable oil

• Boil the vegetables in water and oil until tender.
• Purée in the beaker and adjust the texture with boiled cooled water or baby's usual milk.

Chopper Accessory (B)

The chopper (7) is perfectly suited for chopping meat, hard cheese, onions, herbs, garlic, vegetables, bread, crackers, nuts and for preparing small portions of baby purée.

Refer to the Processing Guide C for maximum quantities, recommended times and speeds.

Maximum operation time for the «hc» chopper: 2 minutes for large amounts of wet ingredients, 30 seconds for dry, hot or hard ingredients or amounts < 100g. Immediately stop processing when motor speed decreases and/or strong vibrations occur.

Before Use

• Pre-cut foods into small pieces for easier chopping.
• Remove any bones, tendons and gristle from meat to help prevent damage to the blades.
• Make sure the anti-slip rubber ring (7d) is attached to the bottom of the chopper bowl.

Assembly and Operation

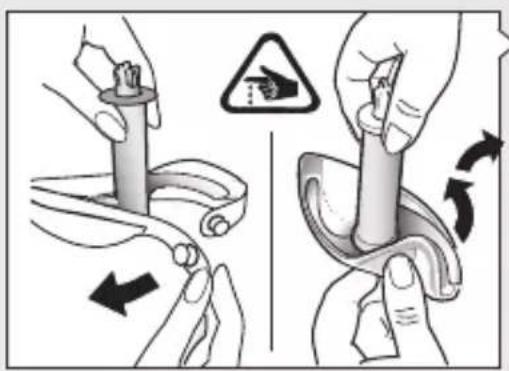

• Carefully remove the plastic cover from the blade.
• The blade (7b) is very sharp! Always hold it by the upper plastic part and handle carefully.
• Place the blade on the center pin of the chopper bowl (7c). Press it down and give it a turn so that it locks into place.
• Fill the chopper with food and put on the lid (7a).

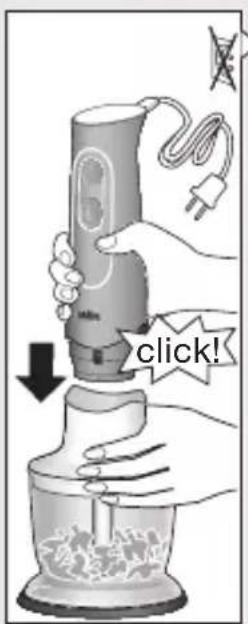

• Align the chopper with the motor part (3) and click together.

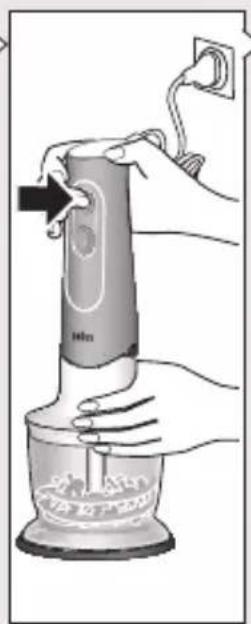

• To operate the chopper, switch on the appliance. During processing, hold the motor part with one hand and the chopper bowl with the other.

• Always chop harder foods (e.g. parmesan cheese) at full speed.

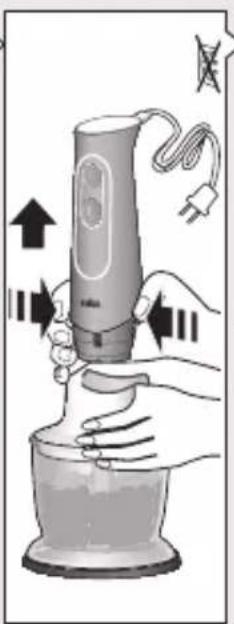

- When chopping is complete, unplug and press the release buttons (4) to detach the motor part.

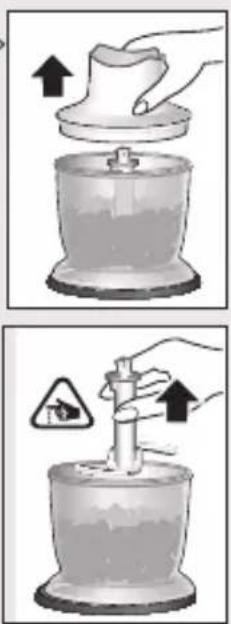

- Lift the lid up. Carefully take out the blade before pouring out the contents of the bowl. To remove the blade, slightly turn it then pull it off.

Caution

• Do not use the chopper accessory (7) to process extremely hard foods, such as unshelled nuts, coffee beans, grains, or hard spices e.g. nutmeg. Processing these foods could damage the blades.
• If using the appliance to purée hot food ensure the liquid is not boiling. Allow hot food to cool slightly to avoid risk of scalding.
• Never place the chopper bowl in the microwave oven.

«hc» Recipe example: Honey-Prunes (as a pancake stuffing or spread):

40 g prunes

40 g creamy honey

10 ml water (vanilla-flavoured)

• Fill the «hc» chopper bowl with prunes and creamy honey.
• Chop 4 seconds at maximum speed
• Add 10 ml water (vanilla-flavoured).
• Resume chopping for another 1,5 seconds.

«hc» Recipe example: Apple blueberry purée

30 g blueberries

1/2 small apple (approx. 70 g)

• Peel the apple and chop into small pieces.
• Place the apple in a pot with a small amount of water.

• Steam the apple on a low heat until soft for approximately 5 - 10 minutes. Add the blueberries shortly before the apple is done.

• Once cooled down, place the fruit in the chopper and blend max. 30 seconds to a smooth consistency.

• Add water as needed.

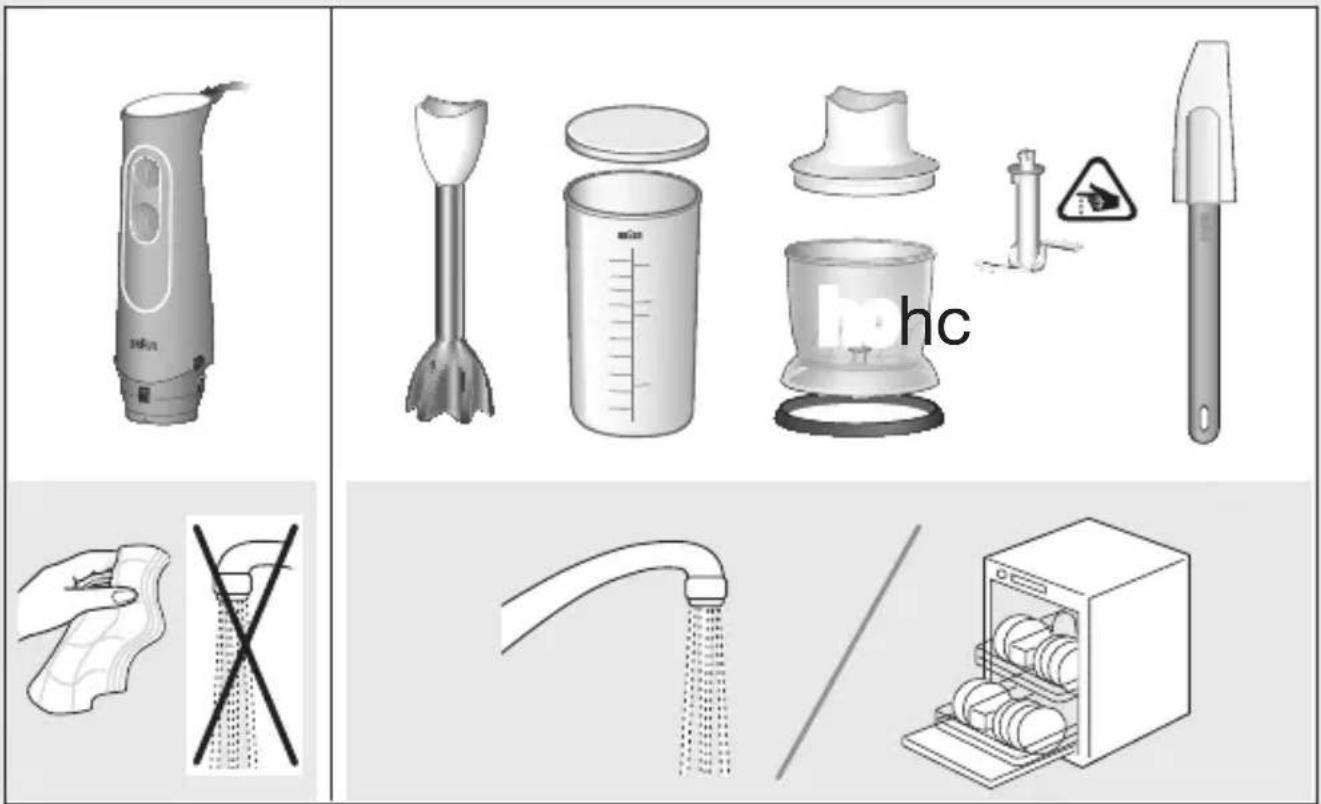

Care and Cleaning (C)

• Always clean the hand blender thoroughly after use.
- Unplug hand blender before cleaning.
- Do not immerse the motor part (3) in water or any other liquid. Clean with a damp cloth only.
- All other parts can be cleaned in a dishwasher. Do not use abrasive cleaners that could scratch the surface.
- You may remove the anti-slip rubber ring from the bottom of the bowl for an extra thorough clean.
- When processing foods with high pigment content (e.g. carrots), the accessories may become discolored. Wipe these parts with vegetable oil before cleaning them.

Both the design specifications and these user instructions are subject to change without notice.

Do not dispose of the product in household waste at the end of its useful life.

Materials and accessories coming into contact with food conform to EEC regulation 1935/2004.

For UK Only

Guarantee Information

All Braun Household products carry a minimum guarantee period of two years. The rights and benefits under this guarantee are additional to your statutory rights which are not affected.

Please keep your receipt as this will form the basis of your guarantee.

In the unlikely event of a breakdown you have access to professional help from our team simply by calling:

02392 392333

For service in the Republic of Ireland please call:

012475471

Braun Household undertakes within the specified period to repair or replace any part of the appliance, free of charge (with the exception of any glass or porcelain-ware incorporated in the product) found to be defective provided that;

• We are promptly informed of the defect.
• The product is used and maintained in accordance with the User Instructions.
• The appliance has not been altered in any way or subjected to misuse or repair by a person other than an authorised service agent for Braun Household.
• No rights are given under this guarantee to a person acquiring the appliance second hand or for commercial or communal use.
• Any repaired or replaced appliance will be guaranteed on these terms for the unexpired portion of the guarantee.
• The need for repair has not been caused by insufficient aftercare or cleaning: or damage caused by the chemical or electrochemical effects of water.

Under no circumstances shall the application of this guarantee give rise to the complete replacement of the appliance or entitle the consumer to damages.

Braun Household, New Lane, Havant, Hampshire PO9 2NH

www.braunhousehold.co.uk

Thank You for choosing Braun. We are confident that you will get excellent service from this product.

TO IMPROVE YOUR EXPERIENCE Register now at www.braunhousehold.co.uk By registering we may send you from time to time details on exclusive offers, promotions, recipes and inside tips.
