Product type	Immersion blender (blender)
Brand	Braun
Model	MultiQuick 3 Vario
Main functions	Mixing, whisking, mashing (potato masher), chopping
Included accessories	Blending foot, whisk with drive, potato masher with blade, 500 ml chopper with lid and blade, measuring beaker
Speed control	Variable (continuous adjustment)
Turbo button	Yes (instantaneous maximum speed)
Release buttons	EasyClick for accessory change
Chopper capacity	500 ml
Chopper bowl material	Plastic with non-slip rubber base
Care	Motor block and drives cleaned with damp cloth; other parts dishwasher safe
Safety	Very sharp blades; do not immerse motor block; do not use for extremely hard foods (unshelled nuts, ice cubes, etc.)
Use	Household only
Compliance	European Regulation 1935/2004 (food contact materials)
Power supply	Mains (check voltage on appliance)

Frequently Asked Questions - MultiQuick 3 Vario BRAUN

How do I adjust the speed of my Braun MultiQuick 3 Vario immersion blender?

Use the variable speed control (1) to adjust the speed continuously. The higher the setting, the faster the chopping. You can also press the turbo button (3) for instantaneous maximum speed.

How to use the turbo button?

The turbo button (3) reaches the maximum preparation speed instantly, without having to adjust the speed control. Ideal for powerful pulses.

How to assemble and use the whisk?

Attach the whisk (8b) to the drive (8a), then align the motor block and the assembled whisk and push until it clicks. Use only for whipping cream, egg whites, or cake mixes. Move the whisk clockwise while tilting slightly.

How to use the potato masher?

Assemble the drive (9a) to the foot (9b), attach the blade (9c) on the central pivot. Place the accessory into cooked foods and turn the appliance on at speed 11. Stir gently up and down. Never use on a pot on the stove.

How to use the chopper?

Place the blade (10b) on the central stem of the bowl (10c), pour the food, put the lid (10a), then attach the motor block. For hard foods (Parmesan), use turbo speed. Do not chop extremely hard foods such as unshelled nuts or ice cubes.

What are the important safety precautions?

The blades are very sharp, handle with care. Do not immerse the motor block or drives in water. Do not allow children to use the appliance unattended. Always turn off and unplug before cleaning or changing accessories.

How to clean the appliance?

Unplug the appliance. Clean the motor block and drives with a damp cloth. Other parts (blending foot, whisk, potato masher, chopper bowl, lid except the chopper lid which should not be immersed) are dishwasher safe. Do not use abrasive cleaners.

What is the mayonnaise recipe with this blender?

Mix 250 g oil, 1 egg + 1 yolk, 1-2 tbsp vinegar, salt and pepper in the measuring beaker. Place the blender at the bottom, blend at turbo speed until emulsified, then slowly lift the foot. Time: about 1 minute for a salad, up to 2 minutes for thick mayonnaise.

Can I chop hard foods like nuts or ice cubes?

No, do not use the chopper for extremely hard foods such as unshelled nuts, ice cubes, coffee beans, seeds or hard spices like nutmeg. This could damage the blades.

Where can I find spare parts?

Spare parts are available from authorized Braun service centers. Check the Braun website or contact customer service for more information.

USER MANUAL MultiQuick 3 Vario BRAUN

White BLEBAN-branded hairdryer with black handle and digital display (no visible text or symbols)

Type 4193

Register your product www.braunhousehold.com/register

Hand blender

Deutsch	6
English	10
Français	14
Español	18
Português	22
Italiano	26
Nederlands	30
Dansk	34
Norsk	37
Svenska	40
Suomi	43
Polski	46
Český	50
Slovenský	53
Magyar	56
Hrvatski	60
Slovenski	63
Türkçe	66
Română (RO/MD) 70
Еллнікá	74
Български	78
Қазақша	82
Русский	86
Українська	90
عری	96

De'Longhi Braun Household GmbH

Illustration of a mechanical component with a flanged base and a tapered top, labeled with number 6 (no text or symbols on the object itself)

7 sin

8* a b

9* a b c

10* a b c ca d 500 ml

*certain models only

A click!

B click! click!

		Parmesan
	1cm	1cm
max.	300 g	200 g	200 g	30 g	20	200 g	300 g	350 g
sec.	15-30	30	10	20	20	15	25	30
			1 - 3 1	- 11 1	- 11 7 -	11 7 - 11
		turboturbo	turbo				+5 sec turbo turbo	+5 sec turbo turbo

5

Deutsch

Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy your new Braun appliance.

Before use

Please read instructions carefully and completely before using the appliance.

Caution

• The blades are very sharp! To avoid injuries, please handle blades with utmost care.
- Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
- This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
- Children shall not play with the appliance.
- This appliance shall not be used by children.
- Children shall be kept away from the appliance and its mains cord.
- Cleaning and user maintenance shall not be made by children without supervision.
- Always unplug or switch off the appliance when it is left unattended and before assembling, disassembling, cleaning and storing.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Before plugging into a socket, check whether your voltage corresponds with the voltage printed on the bottom of the appliance.

• This appliance is designed for household use only and for processing normal household quantities.
• Do not use any part in the microwave.
• Cleaning of the appliance should follow the instruction in the relevant section.

Parts and Accessories

1 Variable speed regulator
2 Variable speed button (on/off)
3 Turbo button
4 Motor part
5 EasyClick Release buttons
6 Blender shaft
7 Beaker
8 Whisk accessory a Gearbox b Whisk

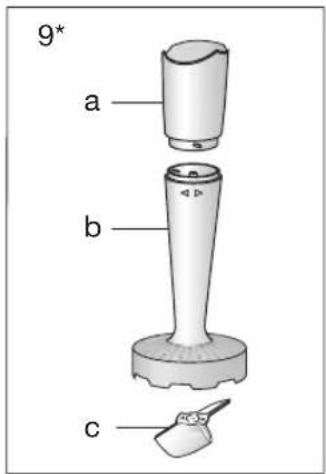

9 Puree accessory a Gearbox
b Puree shaft
c Paddle

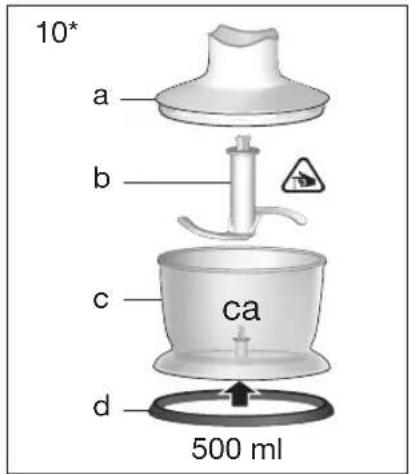

10 500 ml chopper accessory «ca»
a Lid (with gear)
b Chopping blade
c Chopper bowl
d Anti-slip rubber ring

Clean all parts before using for the first time – refer to «Care and Cleaning».

How to Use the Appliance

Setting the speed

When activating the variable speed button (2), the processing speed corresponds to the setting of the variable speed regulator (1). The higher the setting, the faster the chopping results. You can adjust the speed conveniently during operation by turning the speed regulator.

Maximum processing speed can be achieved by pressing the Turbo button (3). You may also use the Turbo button for instant powerful pulses without having to manipulate the speed regulator.

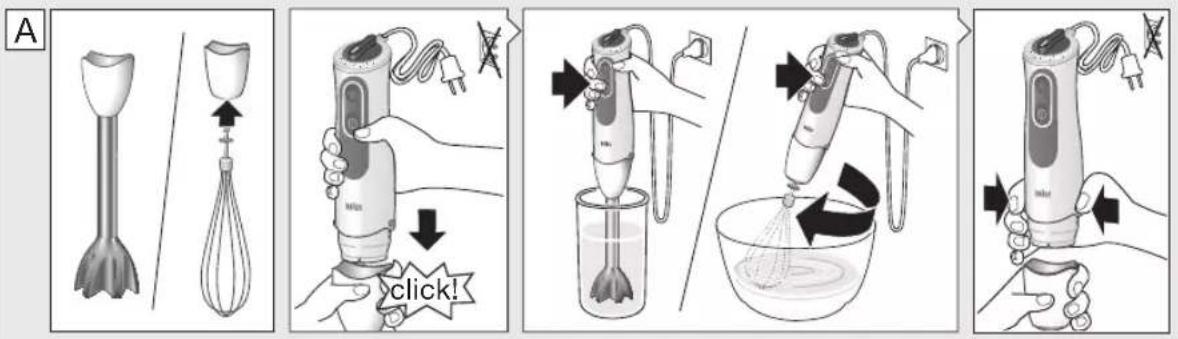

Blending Shaft (A)

The hand blender is perfectly suited for preparing dips, sauces, salad dressings, soups, baby food, as well as drinks, smoothies and milkshakes.

For best results, use the Turbo speed.

Assembly and Operation

• Attach the blending shaft (6) to the motor part until it clicks.
• Place the blending shaft into the mixture to be blended. Then switch the appliance on.
• Blend ingredients to the desired consistency using a gentle up-and-down motion.
• After use, unplug the hand blender and press the release buttons (5) to detach the blending shaft.

Caution

• If using the appliance to purée hot food in a saucepan or pot, remove the saucepan or pot from the heat source and ensure the liquid is not boiling. Allow hot food to cool slightly to avoid risk of scalding.
• Do not let the hand blender sit in a hot pan on the cooktop when not in use.

Recipe Example: Mayonnaise

250 g oil (e.g. sunflower oil)

1 egg and 1 extra egg yolk

1–2 tbsp. vinegar

Salt and pepper to taste

• Place all ingredients (at room temperature) into the beaker in the order as above.
• Place the hand blender at the bottom of the beaker. Blend at Turbo speed until the oil starts emulsifying.
• With the hand blender still running, slowly raise the shaft to the top of the mixture and back down to incorporate the rest of the oil. NOTE: Processing time: approx. 1 minute for salads and up to 2 minutes for a thicker mayonnaise (e.g. for dip).

Whisk Accessory (A)

Use the whisk only for whipping cream, beating egg whites, making sponge cakes and ready-mix desserts.

Assembly and Operation

• Attach the whisk (8b) to the gearbox (8a).
• Align the motor part with the assembled whisk attachment and push the pieces together until they click.
• After use, unplug and press the release buttons to detach the motor part. Then pull the whisk out of the gearbox.

Tips for Best Results

• Move the whisk clockwise while holding it at a slight incline.
• To prevent splattering, start slowly and use the whisk attachment in deep containers or pans.
• Place the whisk in a bowl and only then switch the appliance on.
• Always ensure the whisk and mixing bowl are completely clean and free of fat before whisking egg whites. Only whip up to 4 egg whites.

Recipe Example: Whipped Cream

400 ml chilled cream (min. 30% fat content, 4 - 8 °C)

• Start with low speed and increase the speed while whipping.
• Always use fresh chilled cream to achieve greater and more stable volume when whisking.

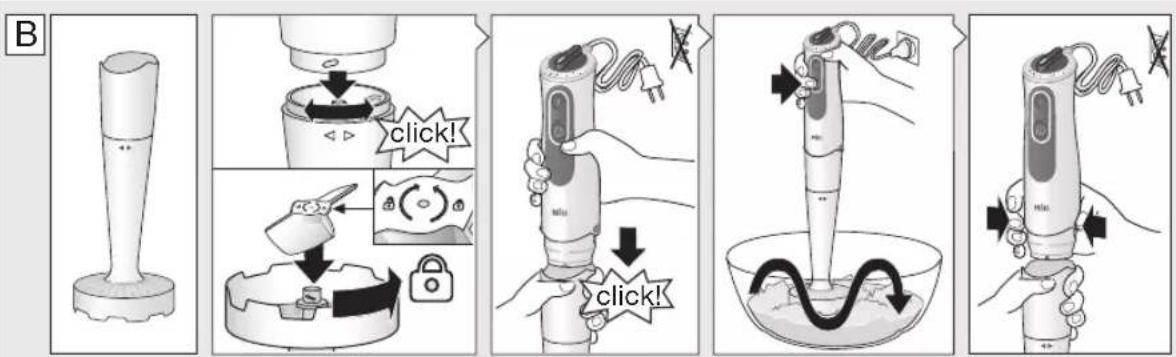

Puree Accessory (B)

The puree accessory can be used to mash cooked vegetables and fruits such as potatoes, sweet potatoes, tomatoes, plums and apples.

Before Use

• Do not mash hard or uncooked food, as this may damage the unit.
• Peel and remove any stones or hard parts; cook and drain then mash the food.

Assembly and Operation

• Fit the gearbox (9a) to the shaft (9b) by turning in a clockwise direction until it locks into place.
• Turn the puree accessory upside down and fit the paddle (9c) over the central hub and turn counter-clockwise to locate. (If the gearbox is not fitted properly, then the paddle will not secure in place).
• Align the assembled puree accessory with the motor part and click the two parts together. Plug in.
• Dip the puree accessory into the ingredients and switch on the appliance at speed 11.
• Using a gentle up and down motion, move the puree accessory through the ingredients until the desired texture is achieved.
• Release the variable speed button and ensure the puree accessory has completely stopped turning before removing it from the food.
• After use, unplug the appliance. Remove the paddle (9c) by turning clockwise.
• Press the release buttons to detach the puree accessory from the motor part. Separate the gearbox from the shaft by turning counterclockwise.

Caution

• Never use the puree accessory in a saucepan over direct heat.
• Always remove the saucepan from the heat and allow to cool slightly.
• Sit the saucepan or bowl on a stable, flat surface, and support it with your free hand.
• Do not tap the puree accessory on the side of the cooking vessel during or after use. Use a spatula to scrape excess food away.
• For best results when mashing never fill a saucepan or bowl more than half full with food.
• Do not process more than one batch without interruption.
• Let the appliance cool down for 4 minutes before you continue processing.

Recipe Example: Mashed Potatoes

1 kg cooked potatoes

200 ml warm milk

• Place the potatoes in a bowl and mash for 30 seconds with speed 11.
• Add the milk. Resume mashing for another 30 seconds.

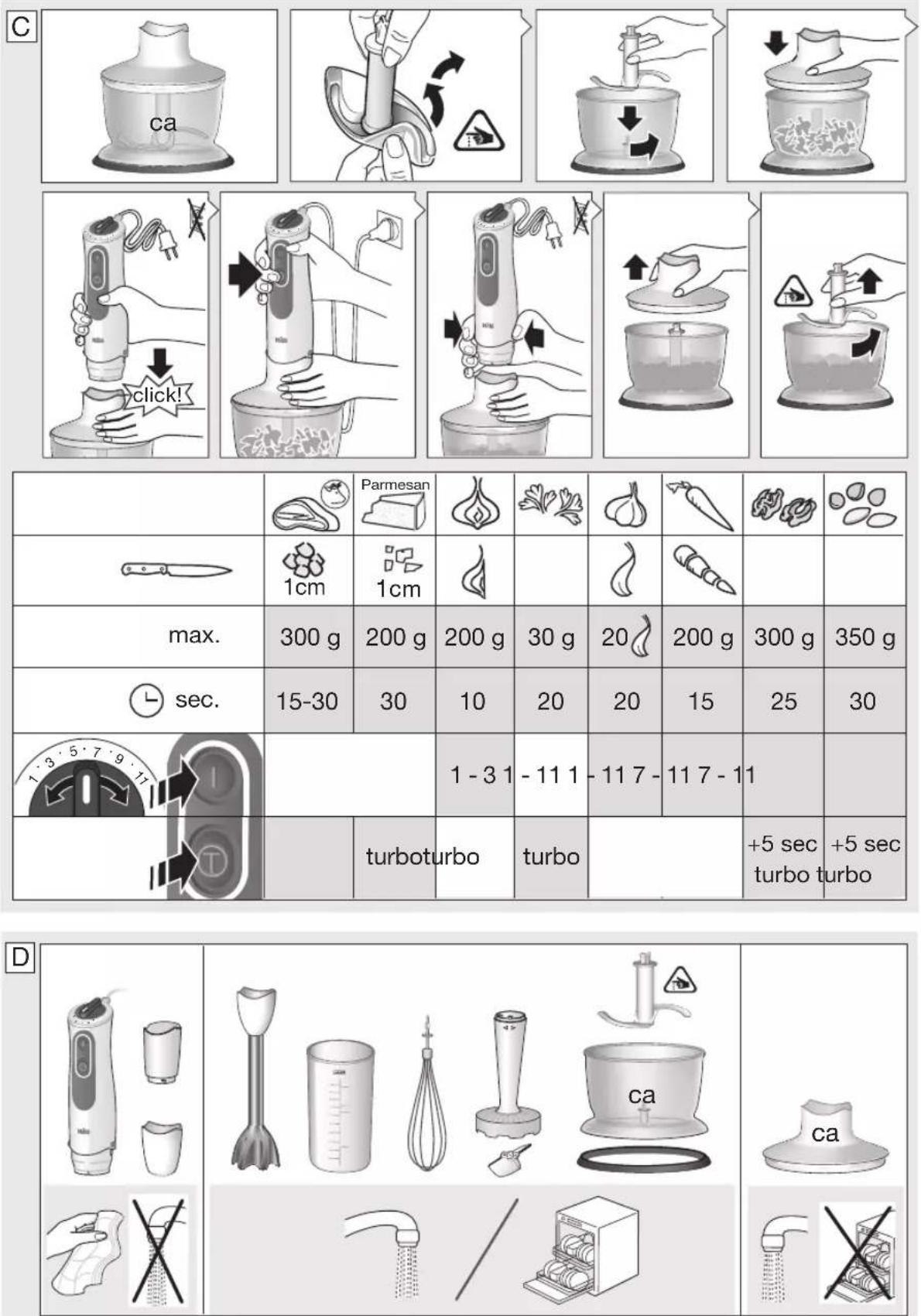

Chopper Accessory (C)

The chopper (10) are perfectly suited for chopping meat, hard cheese, onions, herbs, garlic, vegetables, bread, crackers and nuts.

Refer to the Processing Guide C for maximum quantities, recommended times and speeds.

Maximum operation time for the «hc» chopper: 2 minutes for large amounts of wet ingredients, 30 seconds for dry or hard ingredients or amounts < 100 g. Immediately stop processing when motor speed decreases and/or strong vibrations occur.

Before Use

• Pre-cut foods into small pieces for easier chopping.
• Remove any bones, tendons and gristle from meat to help prevent damage to the blades.
  • Make sure the anti-slip rubber ring (10d) is attached to the bottom of the chopper bowl.

Assembly and Operation

• Carefully remove the plastic cover from the blade.
• The blade (10b) is very sharp! Always hold it by the upper plastic part and handle it carefully.
• Place the blade on the center pin of the chopper bowl (10c). Press it down and give it a turn so that it locks into place.
  • Fill the chopper with food and put on the lid (10a).
• Align the chopper with the motor part (4) and click together.
• To operate the chopper, switch on the appliance. During processing, hold the motor part with one hand and the chopper bowl with the other.
  • Always chop harder foods (e.g. parmesan cheese) at Turbo speed.
• When chopping is complete, unplug and press the release buttons (5) to detach the motor part.
• Lift the lid up. Carefully take out the blade before pouring out the contents of the bowl. To remove the blade, slightly turn it then pull it off.

Caution

• Do not use the chopper accessories to process extremely hard foods, such as unshelled nuts, coffee beans, grains, or hard spices e.g. nutmeg. Processing these foods could damage the blades.
• Never place the chopper bowl in the microwave oven.

«hc» Recipe example: Honey-Prunes (as a pancake stuffing or spread):

50 g prunes

70 g creamy honey

10 ml water (vanilla-flavoured)

• Fill the «hc» chopper bowl with prunes and creamy honey.
  • Chop 4 seconds at maximum speed
• Add 10 ml water (vanilla-flavoured).
• Resume chopping for another 1,5 seconds.

Use the chopper accessory «hc» (optional accessory available at your Braun Service Center; however not in every country).

Care and Cleaning (D)

• Always clean the hand blender thoroughly after use.
- Unplug hand blender before cleaning.
- Do not immerse the motor part (4) or gearbox (8a, 9a) in water or any other liquid. Clean with a damp cloth only.
- The lid (10a) can be rinsed under running water. Do not immerse in water, nor place in a dishwasher.
- All other parts can be cleaned in a dishwasher. Do not use abrasive cleaners that could scratch the surface.
- You may remove the anti-slip rubber ring from the bottom of the bowl for an extra thorough clean.
- When processing foods with high pigment content (e.g. carrots), the accessories may become discolored. Wipe these parts with vegetable oil before cleaning them.

Both the design specifications and these user instructions are subject to change without notice.

Do not dispose of the product in household waste at the end of its useful life.

Materials and accessories coming into contact with food conform to EEC regulation 1935/2004.

For UK Only

Guarantee Information

All Braun Household products carry a minimum guarantee period of two years. The rights and benefits under this guarantee are additional to your statutory rights which are not affected.

Please keep your receipt as this will form the basis of your guarantee.

In the unlikely event of a breakdown you have access to professional help from our team simply by calling: 02392 392333

For service in the Republic of Ireland please call: 012475471

Braun Household undertakes within the specified period to repair or replace any part of the appliance, free of charge (with the exception of any glass or porcelain-ware incorporated in the product) found to be defective provided that;

• We are promptly informed of the defect.
- The product is used and maintained in accordance with the User Instructions.
- The appliance has not been altered in any way or subjected to misuse or repair by a person other than an authorised service agent for Braun Household.
- No rights are given under this guarantee to a person acquiring the appliance second hand or for commercial or communal use.
- Any repaired or replaced appliance will be guaranteed on these terms for the unexpired portion of the guarantee.
- The need for repair has not been caused by insufficient aftercare or cleaning: or damage caused by the chemical or electrochemical effects of water.

Under no circumstances shall the application of this guarantee give rise to the complete replacement of the appliance or entitle the consumer to damages.

Braun Household, New Lane, Havant, Hampshire PO9 2NH

www.braunhousehold.co.uk

Thank You for choosing Braun. We are confident that you will get excellent service from this product.

TO IMPROVE YOUR EXPERIENCE

Register now at www.braunhousehold.co.uk By registering we may send you from time to time details on exclusive offers, promotions, recipes and inside tips.

Français

Use the chopper accessory «hc» (optional accessory available at your Braun Service Center; however not in every country)

d Slipvrije rubberring

d Anti-slip gummiring

10 ml water (vanilla-flavoured)
