USER MANUAL AF505 MAKITA

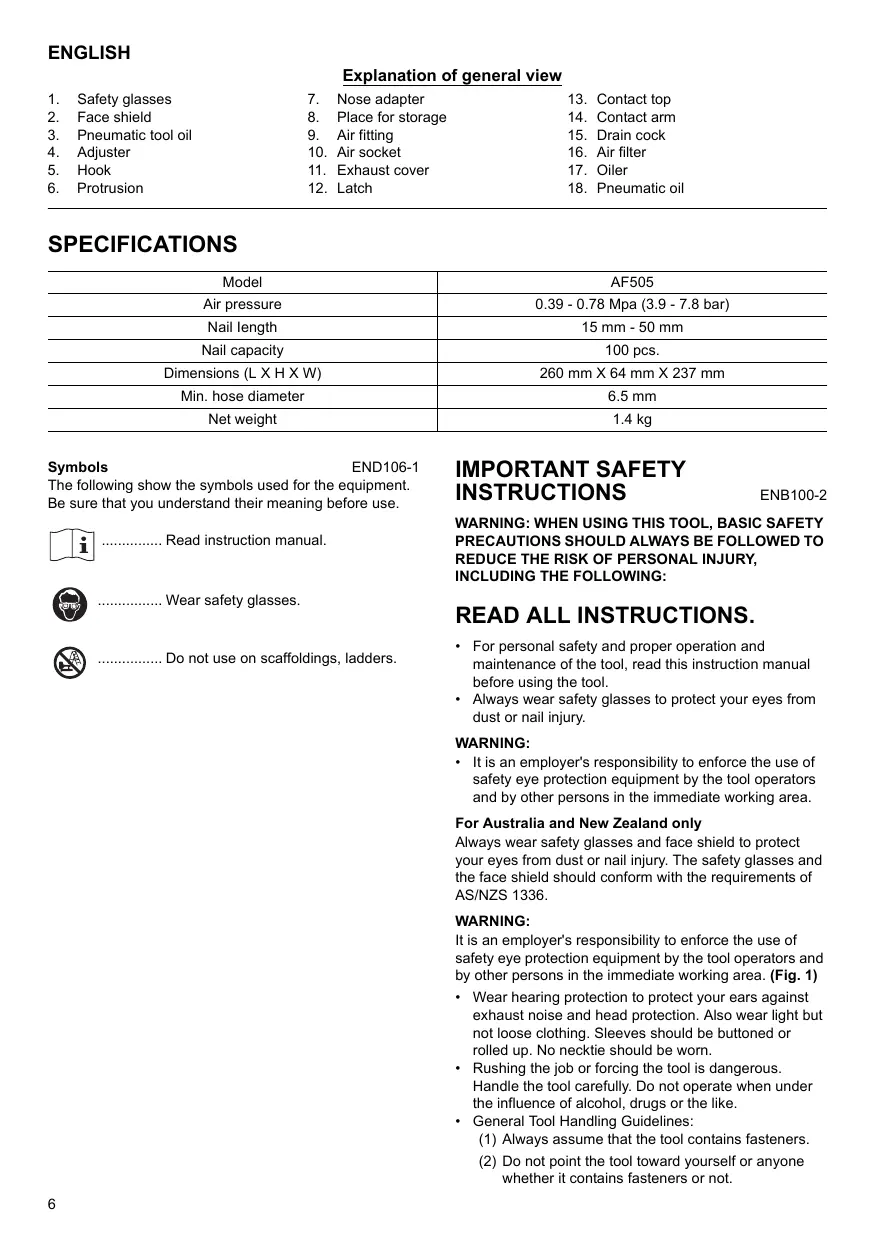

Explanation of general view

1. Safety glasses

2. Nose adapter

3. Contact top

4. Face shield

5. Place for storage

6. Contact arm

7. Pneumatic tool oil

8. Air fitting

9. Drain cock

10. Adjuster

11. Air socket

12. Air filter

13. Hook

14. Exhaust cover

15. Oiler

16. Protrusion

17. Latch

18. Pneumatic oil

SPECIFICATIONS

Model	AF505
Air pressure	0.39 - 0.78 Mpa (3.9 - 7.8 bar)
Nail length	15 mm - 50 mm
Nail capacity	100 pcs.
Dimensions (L X H X W)	260 mm X 64 mm X 237 mm
Min. hose diameter	6.5 mm
Net weight	1.4 kg

Symbols

END106-1

The following show the symbols used for the equipment. Be sure that you understand their meaning before use.

Read instruction manual.

Wear safety glasses.

Do not use on scaffoldings, ladders.

IMPORTANT SAFETY INSTRUCTIONS

ENB100-2

WARNING: WHEN USING THIS TOOL, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF PERSONAL INJURY, INCLUDING THE FOLLOWING:

READ ALL INSTRUCTIONS.

• For personal safety and proper operation and maintenance of the tool, read this instruction manual before using the tool.
  Always wear safety glasses to protect your eyes from dust or nail injury.

WARNING:

• It is an employer's responsibility to enforce the use of safety eye protection equipment by the tool operators and by other persons in the immediate working area.

For Australia and New Zealand only

Always wear safety glasses and face shield to protect your eyes from dust or nail injury. The safety glasses and the face shield should conform with the requirements of AS/NZS 1336.

WARNING:

It is an employer's responsibility to enforce the use of safety eye protection equipment by the tool operators and by other persons in the immediate working area. (Fig. 1)

• Wear hearing protection to protect your ears against exhaust noise and head protection. Also wear light but not loose clothing. Sleeves should be buttoned or rolled up. No necktie should be worn.
• Rushing the job or forcing the tool is dangerous. Handle the tool carefully. Do not operate when under the influence of alcohol, drugs or the like.
• General Tool Handling Guidelines:

(1) Always assume that the tool contains fasteners.
(2) Do not point the tool toward yourself or anyone whether it contains fasteners or not.

(3) Do not activate the tool unless the tool is placed firmly against the workpiece.
(4) Respect the tool as a working implement.
(5) No horseplay.
(6) Do not hold or carry the tool with a finger on the trigger.
(7) Do not load the tool with fasteners when any one of the operating controls is activated.
(8) Do not operate the tool with any power source other than that specified in the tool operating/ safety instructions.

• An improperly functioning tool must not be used.
• Sparks sometimes fly when the tool is used. Do not use the tool near volatile, flammable materials such as gasoline, thinner, paint, gas, adhesives, etc.; they will ignite and explode, causing serious injury.
• The area should be sufficiently illuminated to assure safe operations. The area should be clear and litter-free. Be especially careful to maintain good footing and balance.
• Only those involved in the work should be in the vicinity. Children especially must be kept away at all times.
• There may be local regulations concerning noise which must be complied with by keeping noise levels within prescribed limits. In certain cases, shutters should be used to contain noise.
• Do not play with the contact element: it prevents accidental discharge, so it must be kept on and not removed. Securing the trigger in the ON position is also very dangerous. Never attempt to fasten the trigger. Do not operate a tool if any controls are inoperable, disconnected, altered, or not working properly.
• Operate the tool within the specified air pressure of 0.39 - 0.78 MPa (3.9 - 7.8 bar) for safety and longer tool life. Do not exceed the recommended max. operating pressure of 0.78 MPa (7.8 bar). The tool should not be connected to a source whose pressure potentially exceeds 1.37 MPa (13.7 bar).
• Make sure that the pressure supplied by the compressed air system does not exceed the maximum allowable pressure of the fastener driving tool. Set the air pressure initially to the lower value of the recommended allowable pressure (see SPECIFICATIONS).
• Never use the tool with other than compressed air. If bottled gas (carbon dioxide, oxygen, nitrogen, hydrogen, air, etc.) or combustible gas (hydrogen, propane, acetylene, etc.) is used as a power source for this tool, the tool will explode and cause serious injury.
  Always check the tool for its overall condition and loose screws before operation. Tighten as required.
• Make sure all safety systems are in working order before operation. The tool must not operate if only the trigger is pulled or if only the contact arm is pressed against the wood. It must work only when both actions are performed. Test for possible faulty operation with nails unloaded.

• Check walls, ceilings, floors, roofing and the like carefully to avoid possible electrical shock, gas leakage, explosions, etc. caused by striking live wires, conduits or gas pipes.

• Use only nails specified in this manual. The use of any other nails may cause malfunction of the tool.

• Never use fastener driving tools marked with the symbol "Do not use on scaffoldings, ladders" for specific application for example:

• when changing one driving location to another involves the use of scaffoldings, stairs, ladders, or ladder alike constructions, e.g. roof laths;
  closing boxes or crates;

• fitting transportation safety systems e.g. on vehicles and wagons.

• Do not permit those uninstructed to use the tool.

• Make sure no one is nearby before nailing. Never attempt to nail from both the inside and outside at the same time. Nails may rip through and/or fly off, presenting a grave danger.
• Watch your footing and maintain your balance with the tool. Make sure there is no one below when working in high locations, and secure the air hose to prevent danger if there is sudden jerking or catching.
• On rooftops and other high locations, nail as you move forward. It is easy to lose your footing if you nail while inching backward. When nailing against perpendicular surface, nail from the top to the bottom. You can perform nailing operations with less fatigue by doing so.
• A nail will be bent or the tool can become jammed if you mistakenly nail on top of another nail or strike a knot in the wood. The nail may be thrown and hit someone, or the tool itself can react dangerously. Place the nails with care.
• Do not leave the loaded tool or the air compressor under pressure for a long time out in the sun. Be sure that dust, sand, chips and foreign matter will not enter the tool in the place where you leave it setting.
• Do not point the ejection port at anyone in the vicinity. Keep hands and feet away from the ejection port area.
• When the air hose is connected, do not carry the tool with your finger on the trigger or hand it to someone in this condition. Accidental firing can be extremely dangerous.
• Handle the tool carefully, as there is high pressure inside the tool that can be dangerous if a crack is caused by rough handling (dropping or striking). Do not attempt to carve or engrave on the tool.
• Stop nailing operations immediately if you notice something wrong or out of the ordinary with the tool.
  Always disconnect the air hose and remove all of the nails:

(1) When unattended.
(2) Before performing any maintenance or repair. Nailing frequency (times/min.)
(3) Before cleaning a jam.
(4) Before moving the tool to a new location.

• Perform cleaning and maintenance right after finishing the job. Keep the tool in tip-top condition. Lubricate moving parts to prevent rusting and minimize friction-related wear. Wipe off all dust from the parts.
• Do not operate this tool if it does not contain a legible WARNING LABEL.
• Do not modify tool without authorization from Makita.

• Ask Makita's Authorized service centers for periodical inspection of the tool.

• To maintain product SAFETY and RELIABILITY, maintenance and repairs should be performed by Makita Authorized Service Centers, always using Makita replacement parts.

• Use only pneumatic tool oil specified in this manual.
• Never connect tool to compressed air line where the maximum allowable pressure of tool cannot be exceeded by 10% . Make sure that the pressure supplied by the compressed air system does not exceed the maximum allowable pressure of the fastener driving tool. Set the air pressure initially to the lower value of the recommended allowable pressure.
• Do not attempt to keep the trigger contact element depressed with tape or wire. Death or serious injury may occur.
• Always check contact element as instructed in this manual. Nails may be driven accidentally if the safety mechanism is not working correctly.

SAVE THESE INSTRUCTIONS.

INSTALLATION

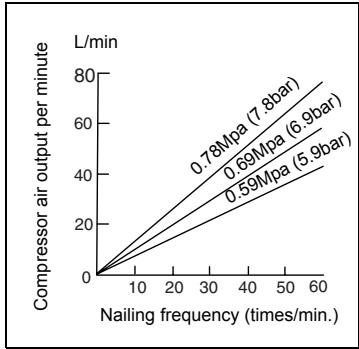

Selecting compressor

• Select a compressor that has ample pressure and air output to assure cost-efficient operation. The graph shows the relation between nailing frequency, applicable pressure and compressor air output. Thus, for example, if nailing takes place at a rate of approximately 60 times per minute at a compression of 0.69MPa (6.9 bar), a compressor with an air output over 60L / min is required. Pressure regulators must be used to limit air pressure to the rated pressure of the tool where air supply pressure exceeds the tool's rated pressure. Failure to do so may result in serious injury to tool operator or persons in the vicinity.

Selecting air hose (Fig. 2)

• Use an air hose as large and as short as possible to assure continuous, efficient nailing operation. With an air pressure of 0.49MPa (4.9 bar), an air hose with an internal diameter of over 6.5mm (1/4") and a length of less than 20m (6.6 ft.) is recommended when the interval between each nailing is 0.5 seconds. Air supply hoses shall have a minimum working pressure rating of 1.03MPa (10.3 bar) or 150 percent of the maximum pressure produced in the system whichever is higher.

CAUTION:

• Low air output of the compressor, or a long or smaller diameter air hose in relation to the nailing frequency may cause a decrease in the driving capability of the tool.

Lubrication (Fig. 3 & 4)

To insure maximum performance, install an air set (oiler, regulator, air filter) as close as possible to the tool. Adjust the oiler so that one drop of oil will be provided for every 50 nails. When an air set is not used, oil the tool with pneumatic tool oil by placing 2 (two) or 3 (three) drops into the air fitting. This should be done before and after use. For proper lubrication, the tool must be fired a couple of times after pneumatic tool oil is introduced.

FUNCTIONAL DESCRIPTION

CAUTION:

• Always disconnect the hose before adjusting or checking function on the tool.

Adjusting depth of nailing (Fig. 5)

To adjust the depth of nailing, turn the adjuster. The depth of nailing is the deepest when the adjuster is turned fully in the A direction shown in the figure. It will become shallower as the adjuster is turned in the B direction. If nails cannot be driven deep enough even when the adjuster is turned fully in the A direction, increase the air pressure. If nails are driven too deep even when the adjuster is turned fully in the B direction, decrease the air pressure. Generally speaking, the tool service life will be longer when the tool is used with lower air pressure and the adjuster set to a lower depth of nail driving.

CAUTION:

• Always disconnect the hose before adjusting the depth of nailing.

Hook (Fig. 6)

CAUTION:

Always disconnect the hose from the tool.
- Never hook the tool at high location or on potentially unstable surface.

The hook is convenient for hanging the tool temporarily.

ASSEMBLY

CAUTION:

• Always disconnect the hose before carrying out any work on the tool.
• Load the same kind, size and uniform length of nails when loading nails in the magazine.

Loading nailer

Press the lever and open the sliding door of the magazine by pulling it toward yourself with the lever pressed.

(Fig. 7)

Align the tip of nails with the grooves at the bottom of the magazine and push the whole part of nails toward the firing opening. (Fig. 8)

Close the sliding door.

Nose adapter (Fig. 9 & 10)

CAUTION:

• Always disconnect the hose before installing the nose adapter.

To prevent the surface of workpiece from being scratched or damaged, use the nose adapter by fitting the protrusion of the inside of nose adapter with the notch in the contact arm.

Store the nose adapter in place when not in use. The place for storage is on both sides of the tool and inside the carrying case.

Connecting air hose (Fig. 11)

Slip the air socket of the air hose onto the air fitting on the nailer. Be sure that the air socket locks firmly into position when installed onto the air fitting. A hose coupling must be installed on or near the tool in such a way that the pressure reservoir will discharge at the time the air supply coupling is disconnected.

OPERATION

To drive a nail, you may place the contact element against the workpiece and pull the trigger. (Fig. 12)

CAUTION:

• WITH THE TRIGGER HELD IN A HALF-PULLED POSITION, an unexpected nailing could occur, if contact element is allowed to re-contact against the workpiece or the other surface under the influence of recoil.
• In order to avoid this unexpected nailing, perform as follows;
  A. Do not place the contact element against the workpiece with excessive force.
  B. Pull the trigger fully and hold it on for 1-2 seconds after nailing.

Direction of exhaust air (Fig. 13)

The direction of exhaust air can be changed 360 degrees of angle by turning the exhaust cover with a hand.

Removing nails

CAUTION:

• Do not use deformed nails or nail strip. Failure to do so causes poor nail feeding.

WARNING:

Always disconnect the hose before removing nails.

Open the slide door and remove nails from the magazine. (Fig. 14)

With the slide door kept open, open the door and take out nails.

Removing the contact top allows nails to be easily taken out. When re-installing the contact top, insert the protrusion of the contact top into the notch in the contact arm. (Fig. 15 & 16)

Nails

Handle nail coils and their box carefully. If the nail coils have been handled roughly, they may be out of shape or their connector breaks, causing poor nail feed. (Fig. 17)

Avoid storing nails in a very humid or hot place or place exposed to direct sunlight. (Fig. 18)

MAINTENANCE

CAUTION:

• Always disconnect the hose before attempting to perform inspection or maintenance.

Maintenance of nailer

Always check the tool for its overall condition and loose screws before operation. Tighten as required. (Fig. 19) With tool disconnected, make daily inspection to assure free movement of the contact element and trigger. Do not use tool if the contact element or trigger sticks or binds. (Fig. 20)

When the tool is not to be used for an extended period of time, lubricate the tool using pneumatic tool oil and store the tool in a safe place. Avoid exposure to direct sunlight and/or humid or hot environment. (Fig. 21 & 22)

Maintenance of compressor, air set and air hose

After operation, always drain the compressor tank and the air filter. If moisture is allowed to enter the tool, it may result in poor performance and possible tool failure. (Fig. 23 & 24)

Check regularly to see if there is sufficient pneumatic oil in the oiler of the air set. Failure to maintain sufficient lubrication will cause O-rings to wear quickly. (Fig. 25)

Keep the air hose away from heat (over 60^ , over 140^ ), away from chemicals (thinner, strong acids or alkalis). Also, route the hose away from obstacles which it may become dangerously caught on during operation. Hoses must also be directed away from sharp edges and areas which may lead to damage or abrasion to the hose. (Fig. 26)

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance and adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts.

ACCESSORIES

CAUTION:

• These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

Nails
Air hoses
- Safety goggles

Descriptif

For European countries only Noise and Vibration

The typical A-weighted sound pressure level is 81 dB (A). The noise level under working may exceed 85 dB (A).

• Wear ear protection. -

The typical weighted root mean square acceleration value is not more than 2.5m / s^2

These values have been obtained according to EN792.
